7 Modern concepts of knee implants Orthopedic surgery is getting more and more technically demanding

8 Modern concepts of knee implants Modern concepts of knee implants Component- design problems Component- design problems Problems with materials Problems with materials complicated biomechanics complicated anatomy of the knee complicated anatomy of the knee Biological complexity Technical complexity Developement of state of the art kneeimplant was impaired by

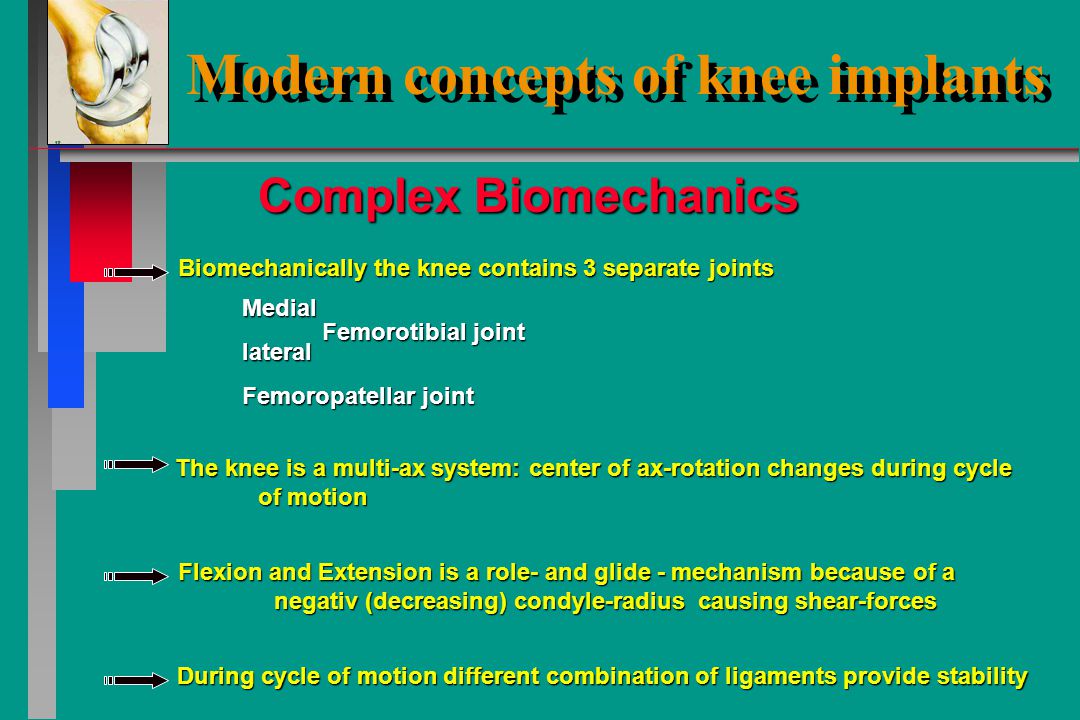

9 Modern concepts of knee implants Modern concepts of knee implants Biomechanically the knee contains 3 separate joints Mediallateral Femorotibial joint Femoropatellar joint The knee is a multi-ax system: center of ax-rotation changes during cycle of motion Flexion and Extension is a role- and glide - mechanism because of a negativ (decreasing) condyle-radius causing shear-forces During cycle of motion different combination of ligaments provide stability Complex Biomechanics

10 Modern concepts of knee implants Complex Biomechanics 3 rotational axes of movement 1 axis with moving center of rotation rol & glide movement (translation- rotation) load-aera decreases in flexion (decreasing fc-radius) patellar biomechanic

11 Modern concepts of knee implants Modern concepts of knee implants Complex Anatomy

12 Modern concepts of knee implants In conclusion the Flexion / Extension movement of the knee is not a fixed hinge type system but rather a dynamic role- and glide- mechanism with an endrotation in full extension. Flexion and extension is performed along several axes with dynamic centers of rotation secured statically by changing combinations of ligaments and dynamically by groups/combinations of muscels.

13 Modern concepts of knee implants Performance-requirements for an efficent kneeimplnat/-endoprothesis Physiological range of motion without undue stress on components Stability Longevity

14 Modern concepts of knee implants The ultimate goal is to imitate anatomy as close as possible

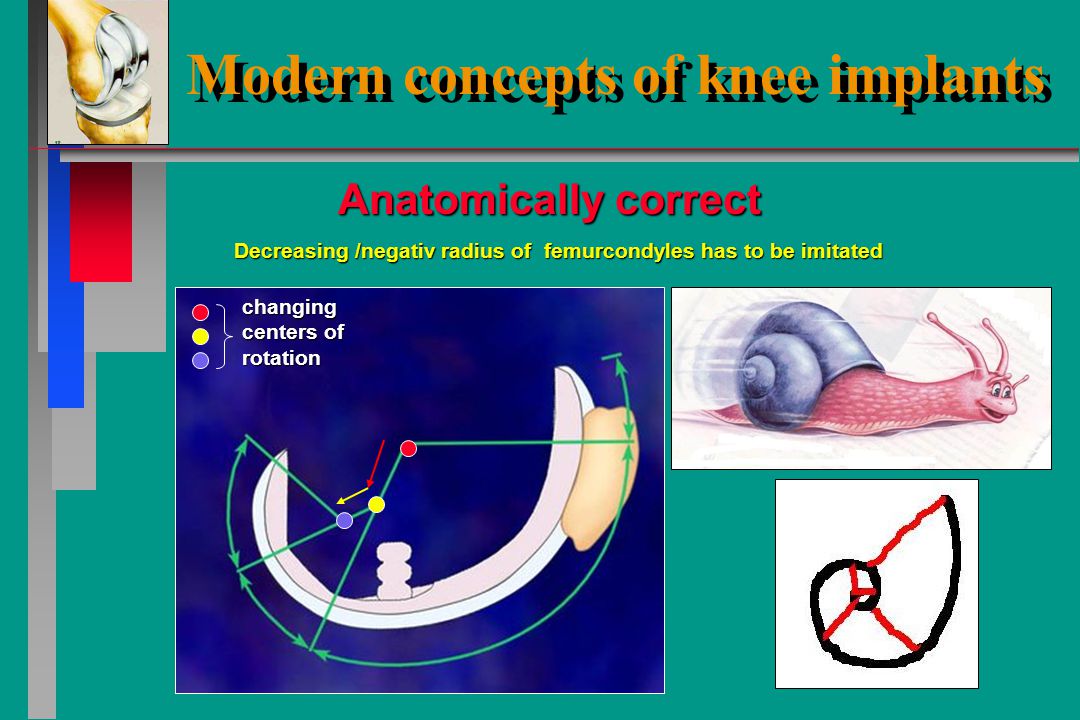

15 Modern concepts of knee implants Anatomically correct Decreasing /negativ radius of femurcondyles has to be imitated changing centers of rotation

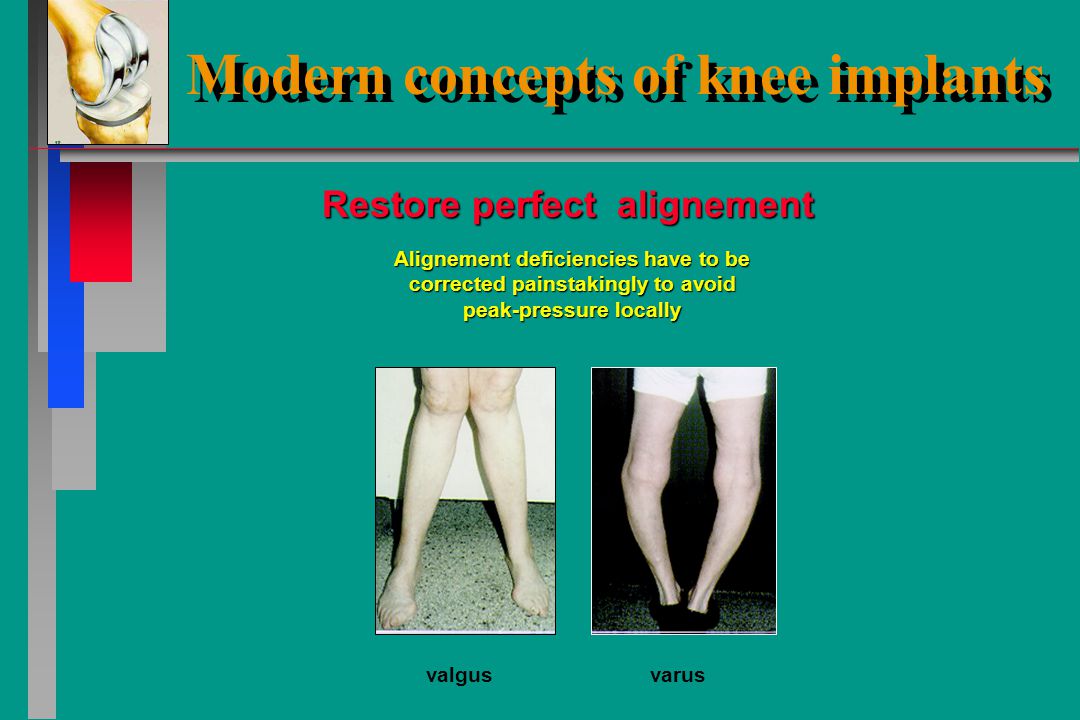

16 Modern concepts of knee implants Restore perfect alignement valgusvarus Alignement deficiencies have to be corrected painstakingly to avoid peak-pressure locally

17 Modern concepts of knee implants preoppostop Planning of proper alignément

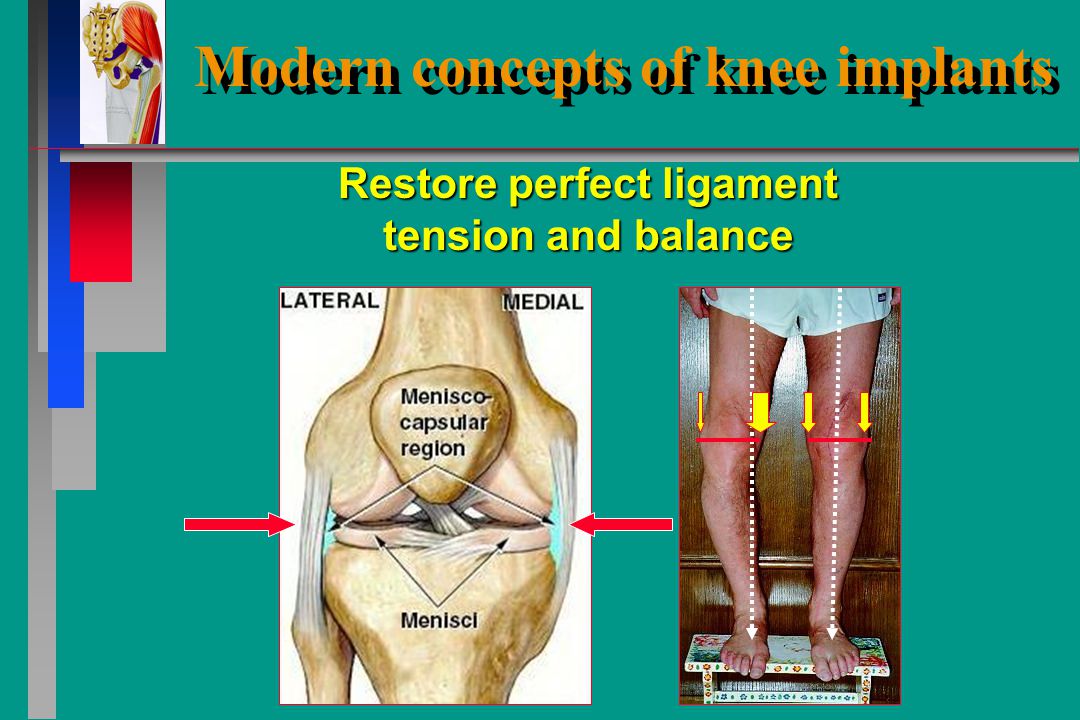

18 Modern concepts of knee implants Restore perfect ligament tension and balance

19 Modern concepts of knee implants Combination of low friction interface Ceeramics ceramics Ceramics Polyaethylen Polyaethylen Metal Polyaethylen Metal Metal Femur Tibia

20 Modern concepts of knee implants stabel fixation of components to bone cement Press fit screw fixation

21 Modern concepts of knee implants Modern concepts of knee implants D e v e l o p m e n t

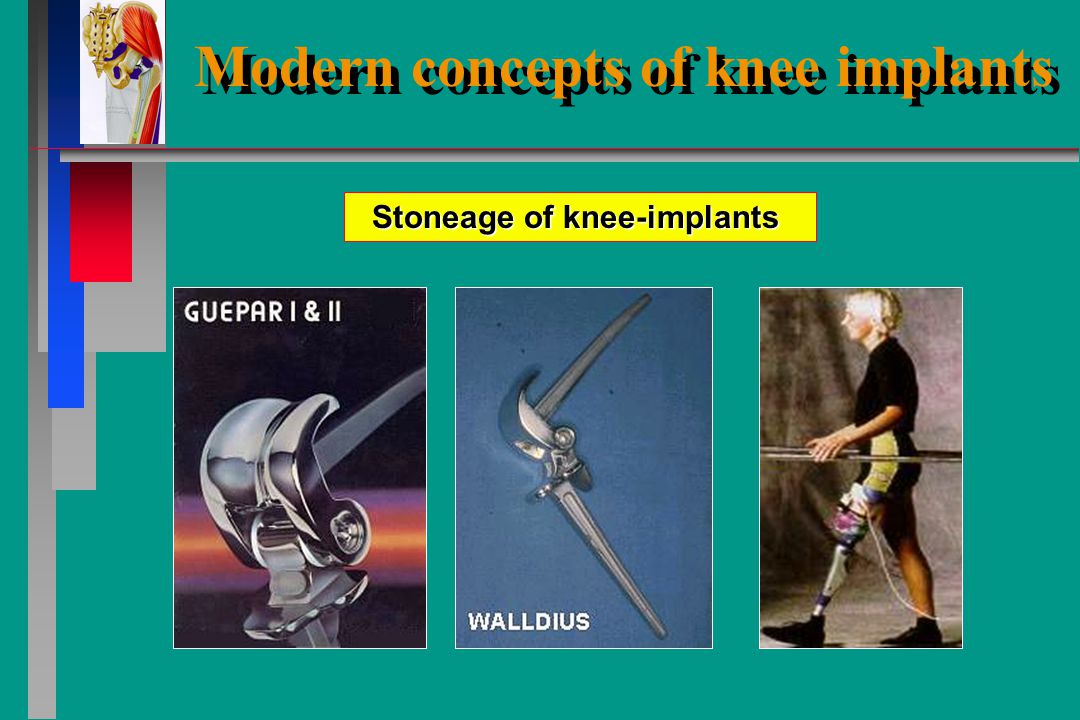

22 Modern concepts of knee implants Stoneage of knee-implants

23 Modern concepts of knee implants GSB-Hinge-Type 1970 semiconstraint Tour de France ?

24 Modern concepts of knee implants Fixed tbial bearing The Vienna Derby

25 Modern concepts of knee implants Mobile bearing Back into the future

26 Modern concepts of knee implants Congruency High contact stress Low contact stress

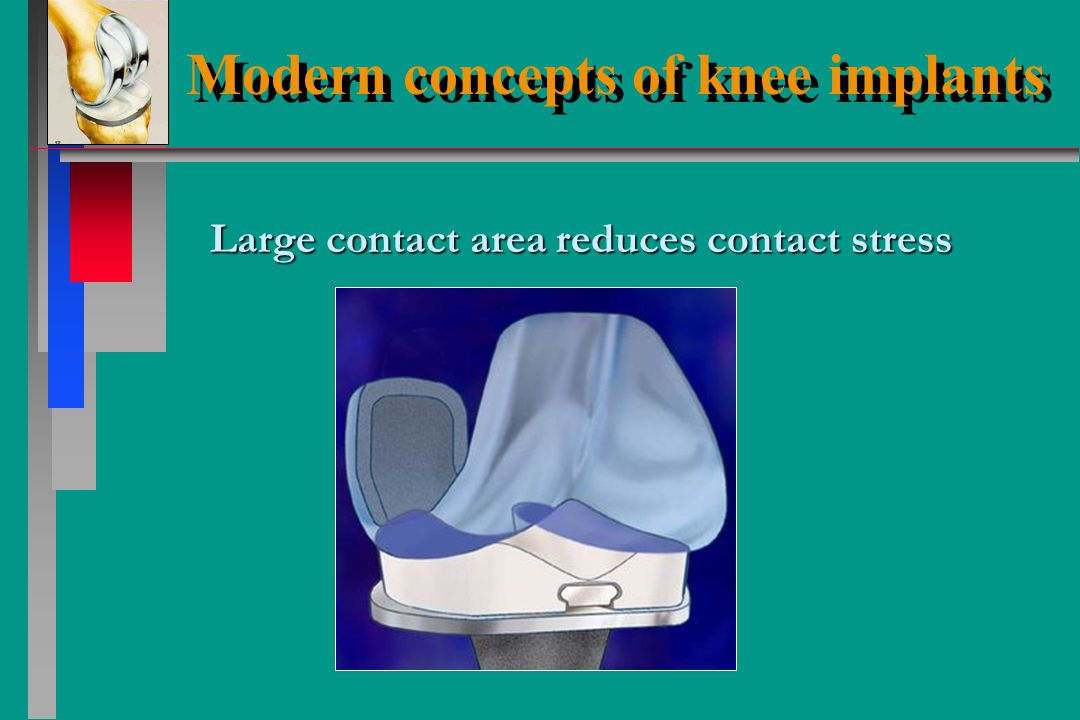

27 Modern concepts of knee implants Large contact area reduces contact stress

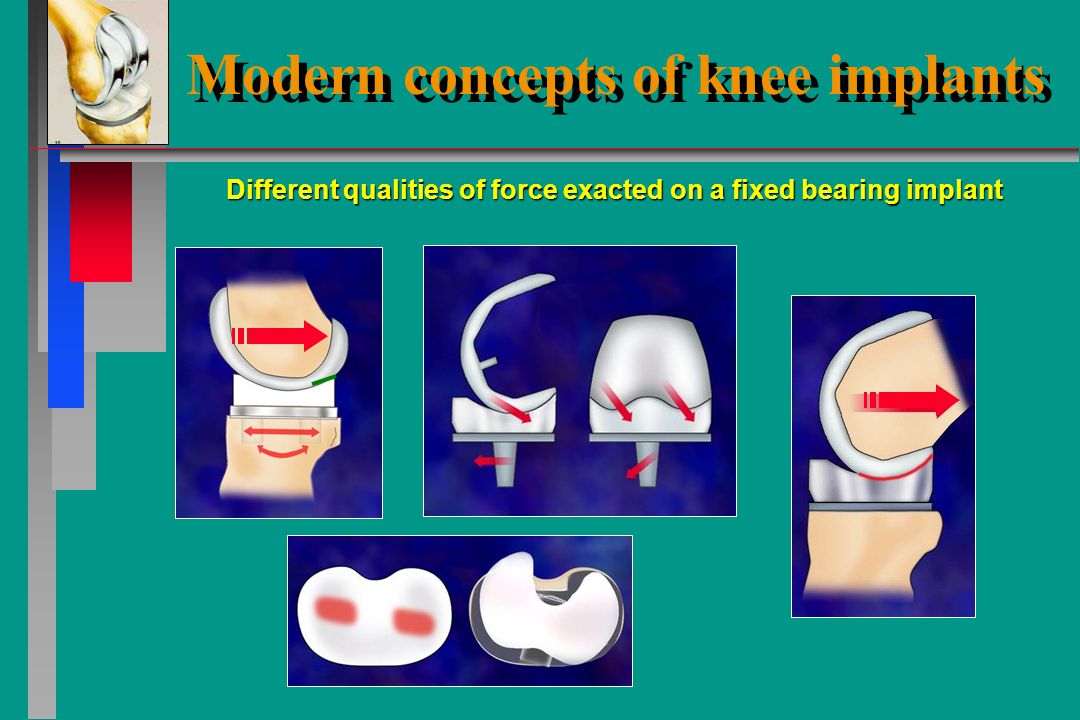

28 Modern concepts of knee implants Different qualities of force exacted on a fixed bearing implant

29 Modern concepts of knee implants Constraint means that shear and torsion forces could be transmitted to fixation interfaces and cause loosening

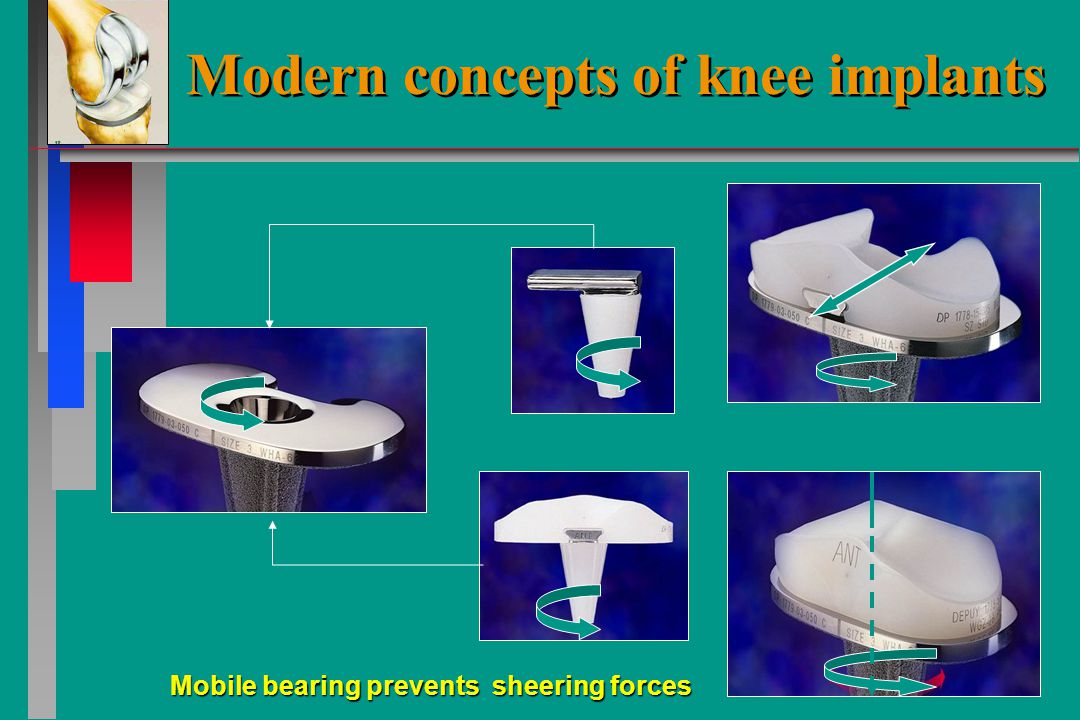

30 Modern concepts of knee implants Mobile bearing prevents sheering forces

31 Modern concepts of knee implants

32

33

34 mobile patellar bearing

35 Modern concepts of knee implants cemented-noncemented mobile bearing system

36 Modern concepts of knee implants Revision-surgery

37 Constraint systems in use for cases with severe bonedefect Tumor-surgery Revison-surgery

38 Modern concepts of knee implants Revision-surgery with semiconstraint knee - prosthesis after failure of duocondylar implant

39 Modern concepts of knee implants Semiconstraint implants for cases with sever bonedefect, instability, malalignement

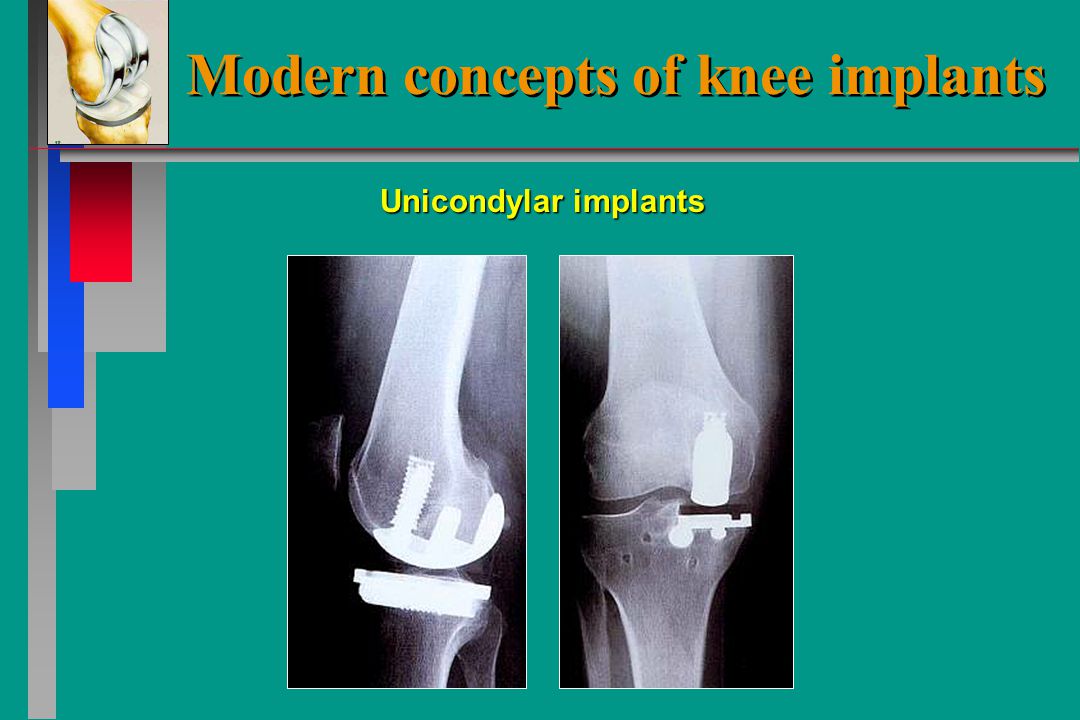

40 Modern concepts of knee implants Unicondylar implants

41 Modern concepts of knee implants Unicondylar implants Unicondylar implants

42 Modern concepts of knee implants

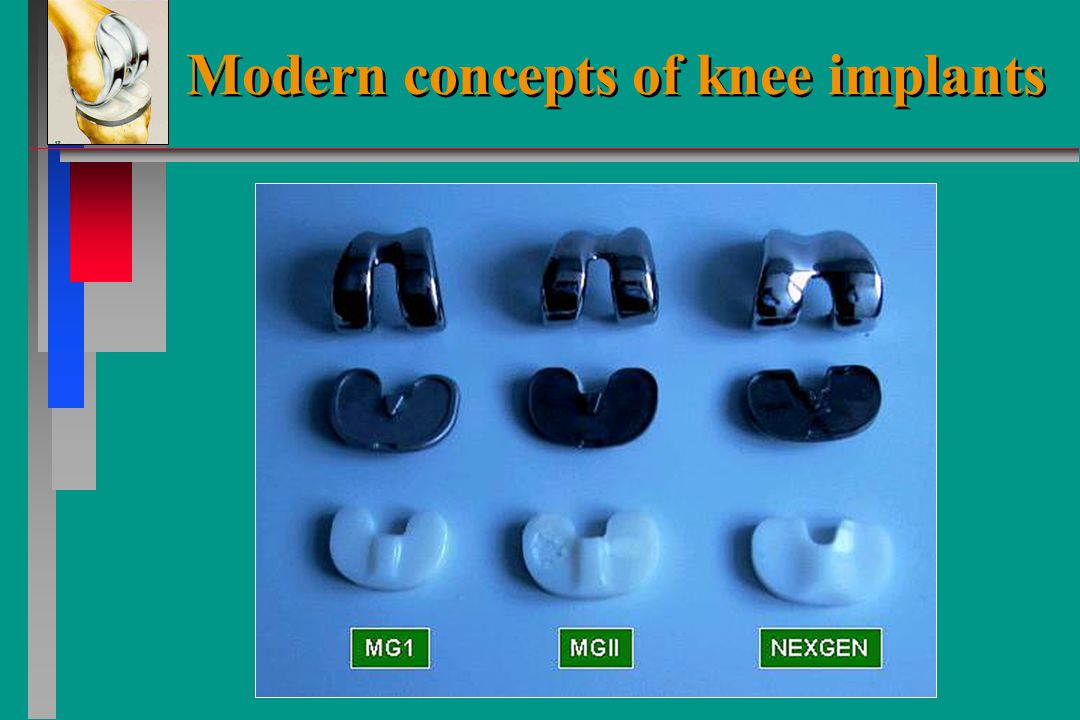

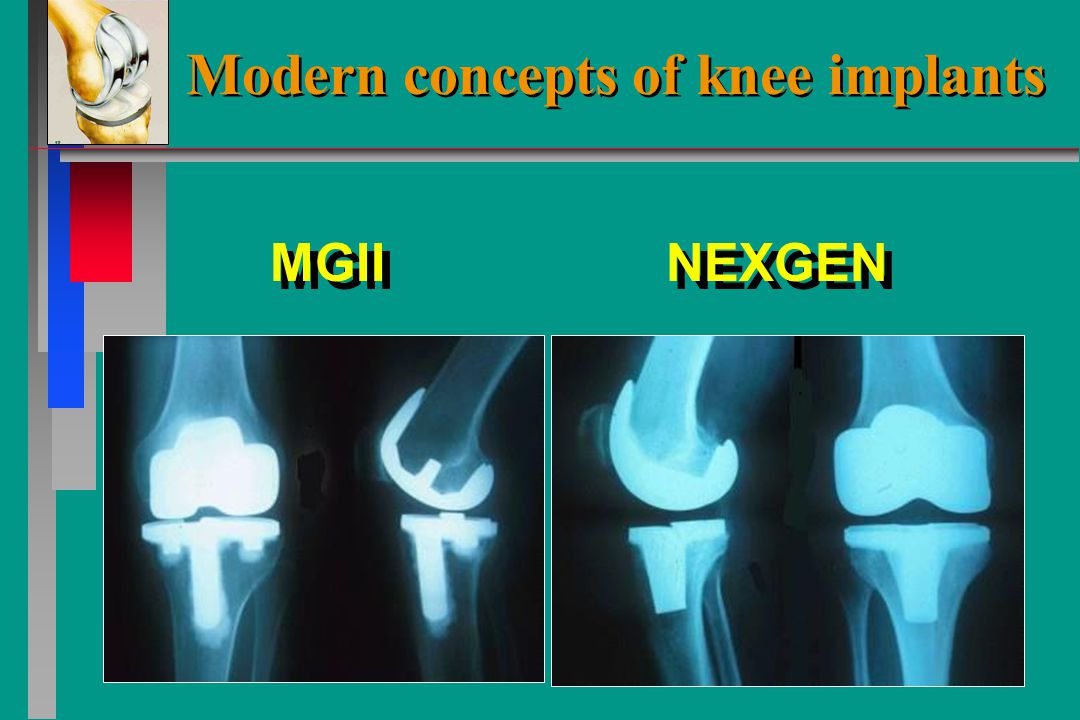

43 MGII NEXGEN

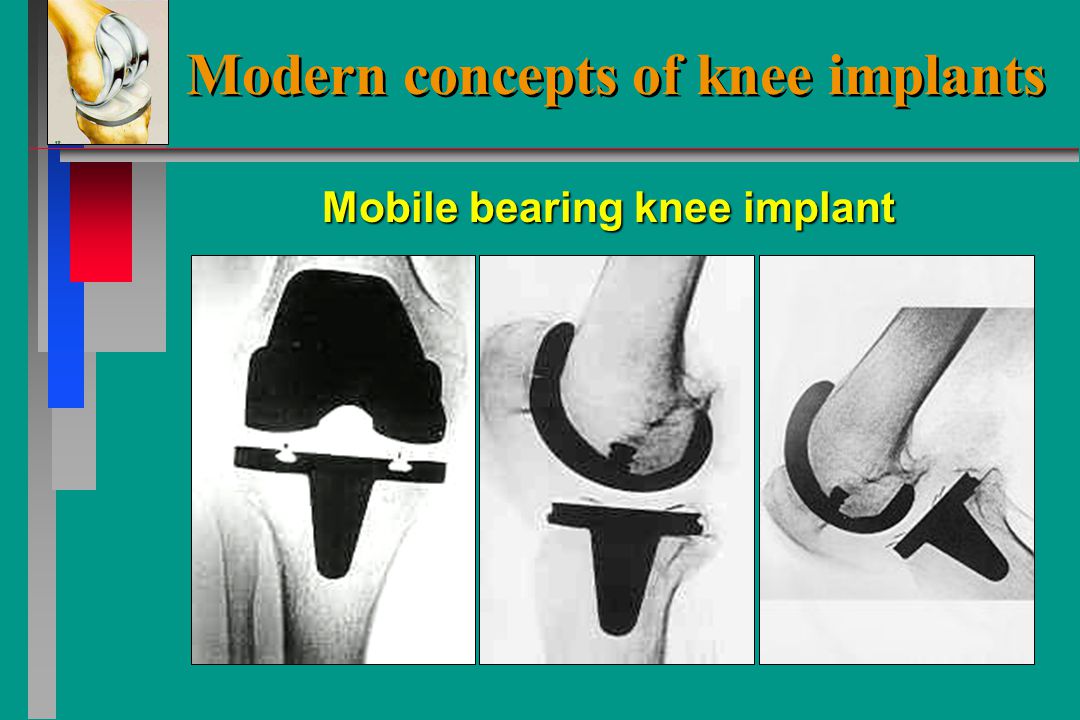

44 Modern concepts of knee implants Mobile bearing knee implant

45 Modern concepts of knee implants Surgical principles of Duocondylar knee implnats

46 Modern concepts of knee implants Modern concepts of knee implants

47 Modern concepts of knee implants

48 Modern concepts of knee implants

49 Modern concepts of knee implants

50 Modern concepts of knee implants Defining the resection lines by using a weight bearing total limb X-ray Ahlbäcks desease

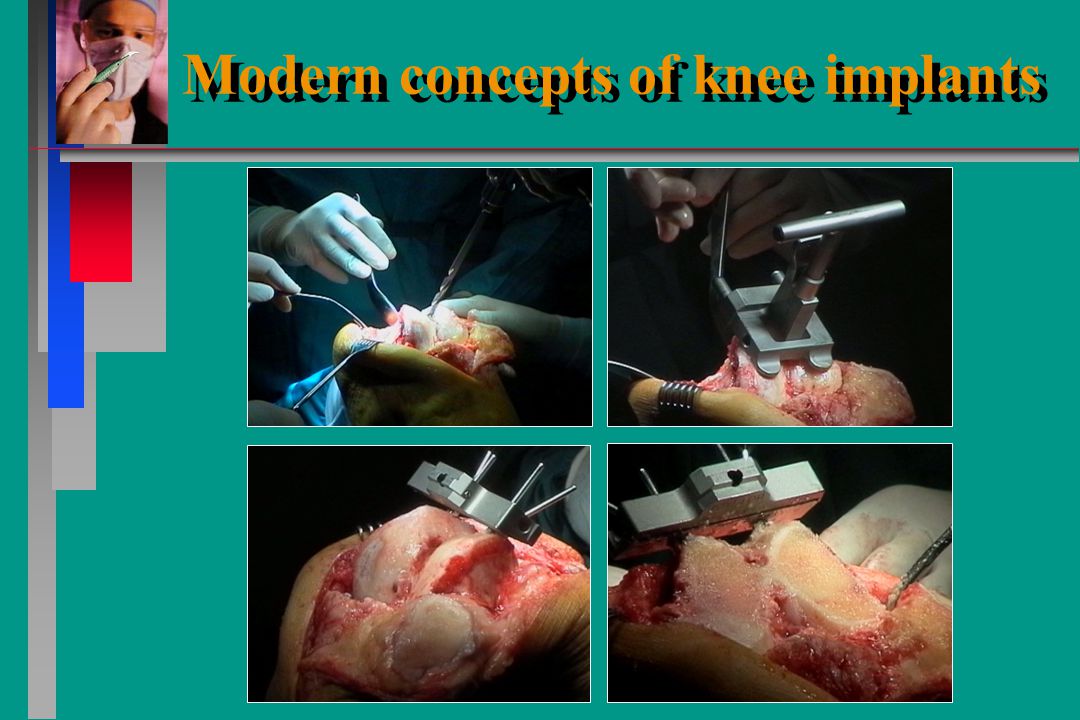

51 Modern concepts of knee implants Modern concepts of knee implants

52 Modern concepts of knee implants

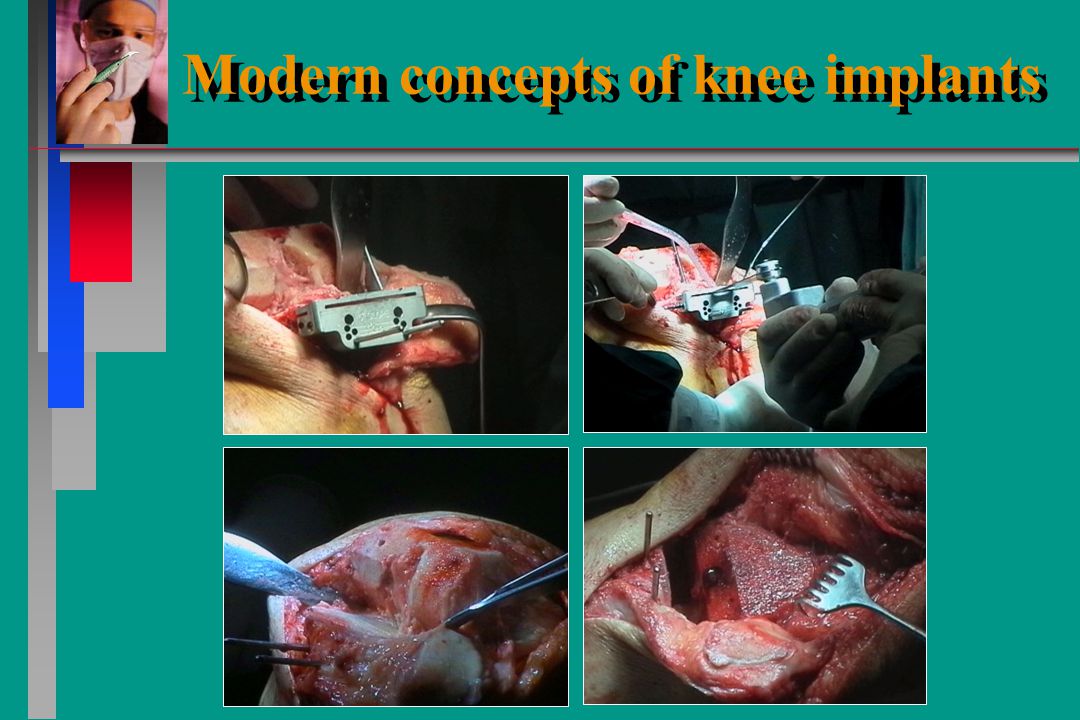

53 Modern concepts of knee implants

54 Modern concepts of knee implants

55 Modern concepts of knee implants

56 Modern concepts of knee implants

57 Modern concepts of knee implants

58 Modern concepts of knee implants

59 Modern concepts of knee implants Resect as little as possible and as much as necessary Bonestock is the most valuable resource Stability Revision surgery

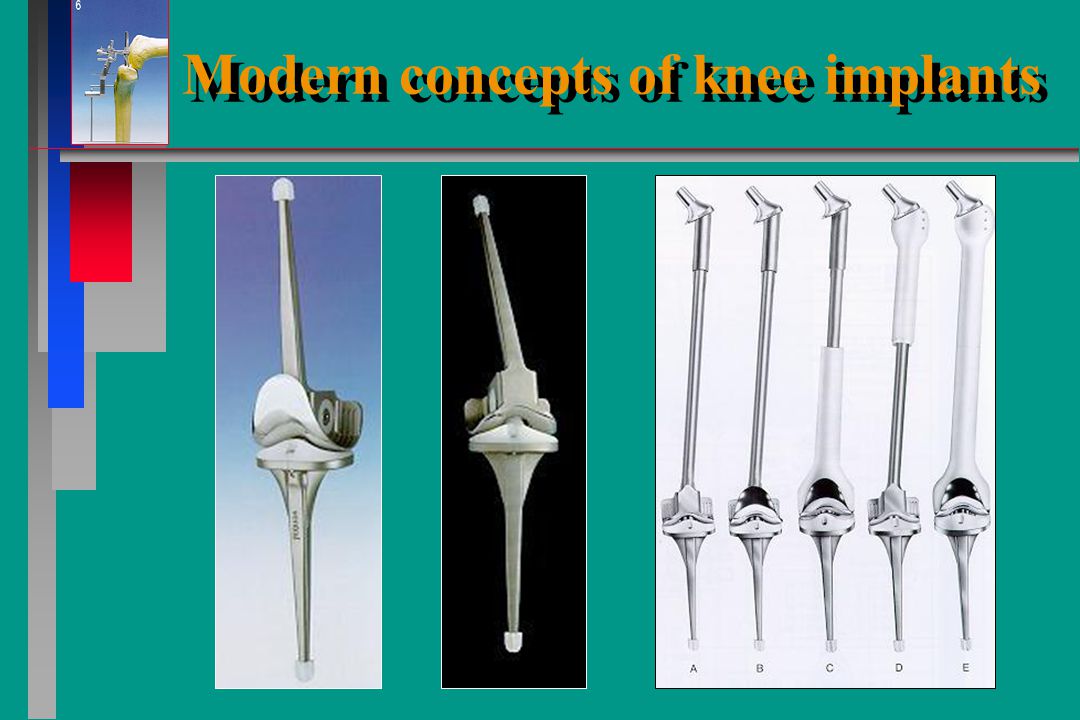

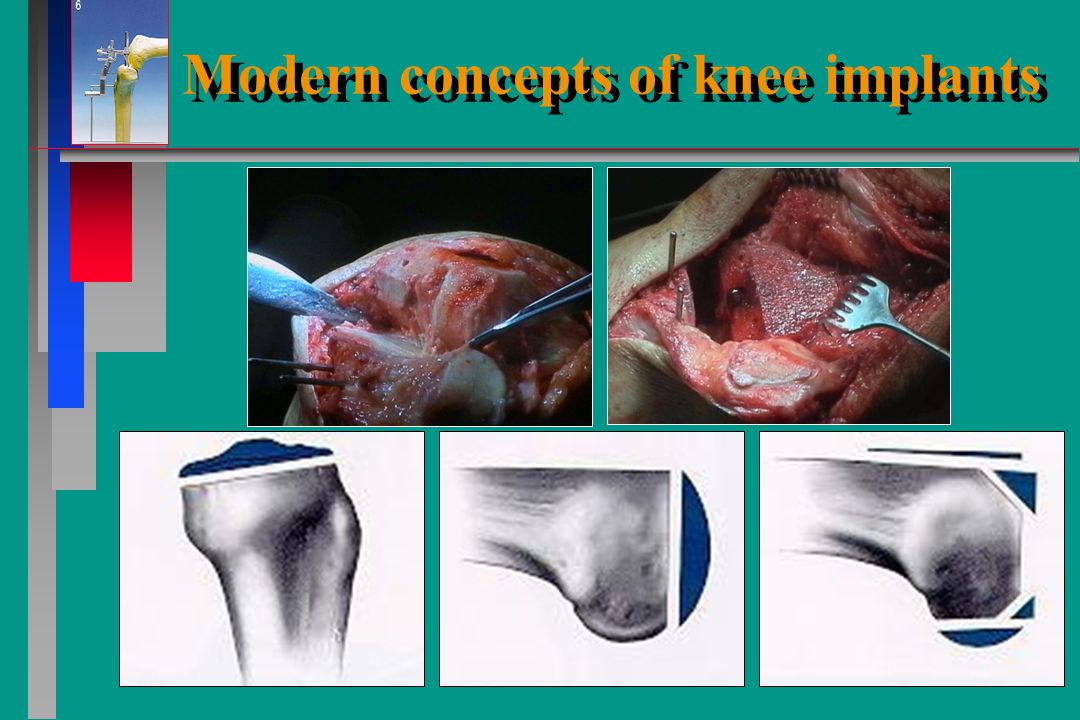

60 Modern concepts of knee implants Modern concepts of knee implants

61 Modern concepts of knee implants

62 Modern concepts of knee implants In conclusion, what do we expect from a modern knee implant

63 Surgical managability Excuse me Doc, can I see your diploma? Managable for the average orthopedic surgeon Modern concepts of knee implants Modern concepts of knee implants

64 Durability Modern concepts of knee implants Modern concepts of knee implants

65 Affordability Modern concepts of knee implants Modern concepts of knee implants

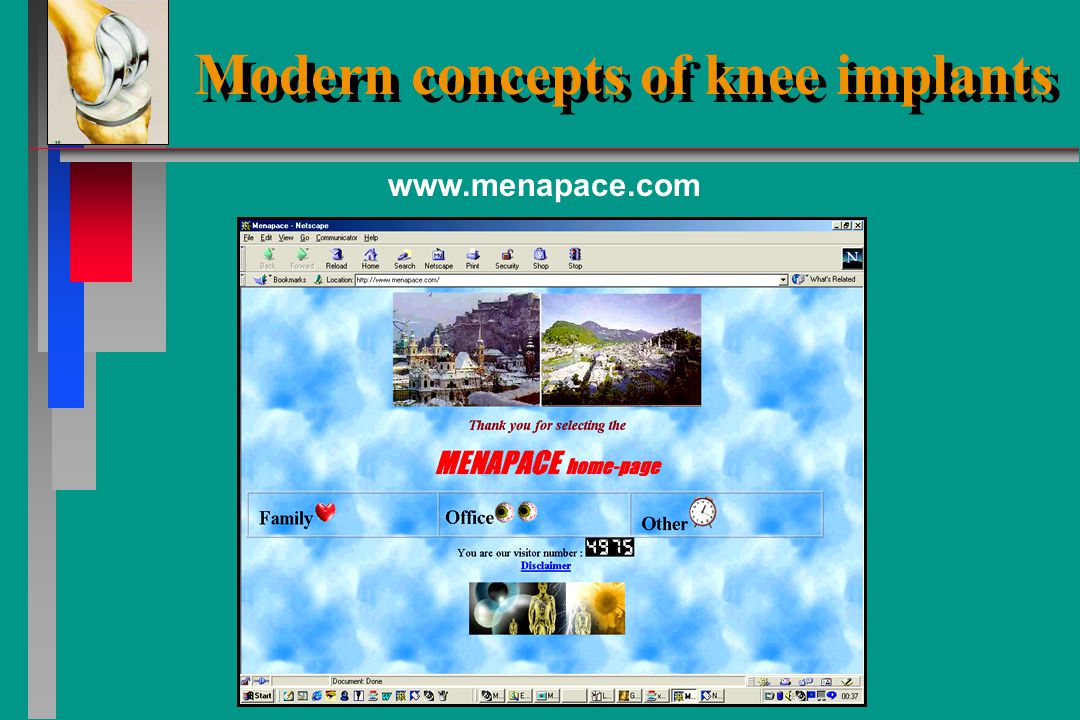

66 Discussion welcomed BILIS you will be answered Modern concepts of knee implants Modern concepts of knee implants
