Unit 1 Energy Matters Menu Reaction Rates Enthalpy changes Patterns in the Periodic Table Bonding, Structure and Properties The Mole Click here to end.

Similar presentations


Presentation on theme: "Unit 1 Energy Matters Menu Reaction Rates Enthalpy changes Patterns in the Periodic Table Bonding, Structure and Properties The Mole Click here to end."— Presentation transcript:

1

2 Unit 1 Energy Matters

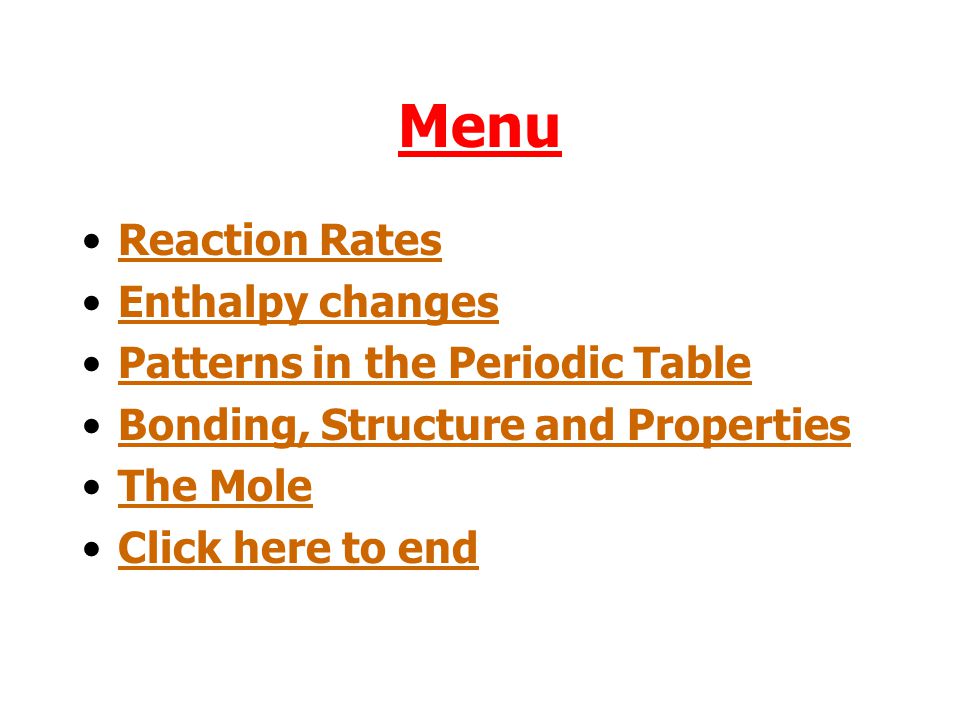

3 Menu Reaction Rates Enthalpy changes Patterns in the Periodic Table Bonding, Structure and Properties The Mole Click here to end

4 Reaction Rates

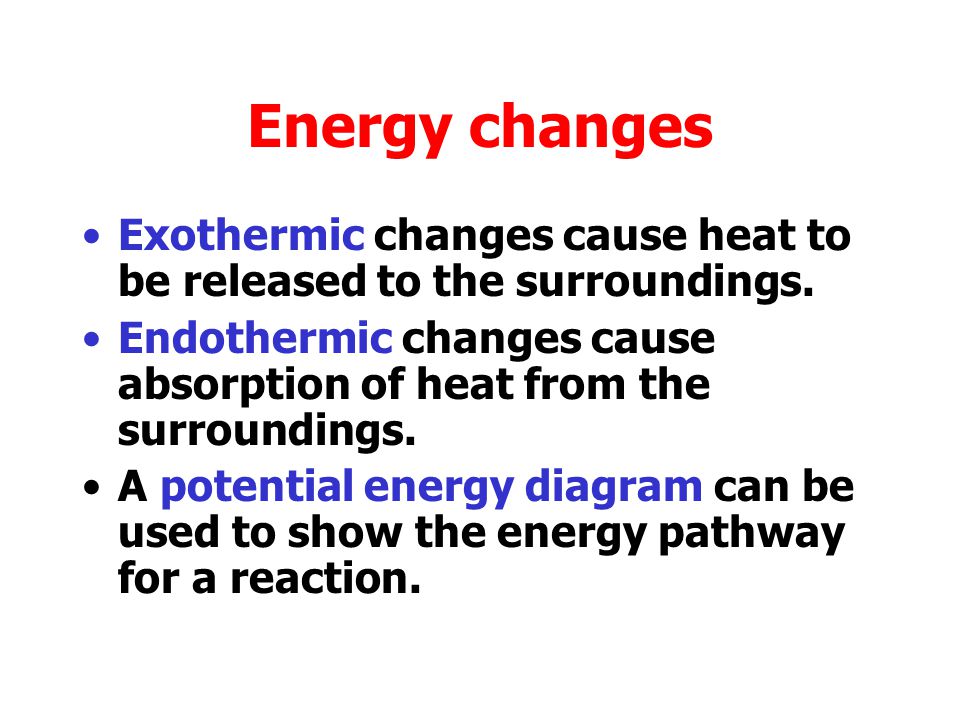

5 Energy changes Exothermic changes cause heat to be released to the surroundings. Endothermic changes cause absorption of heat from the surroundings. A potential energy diagram can be used to show the energy pathway for a reaction.

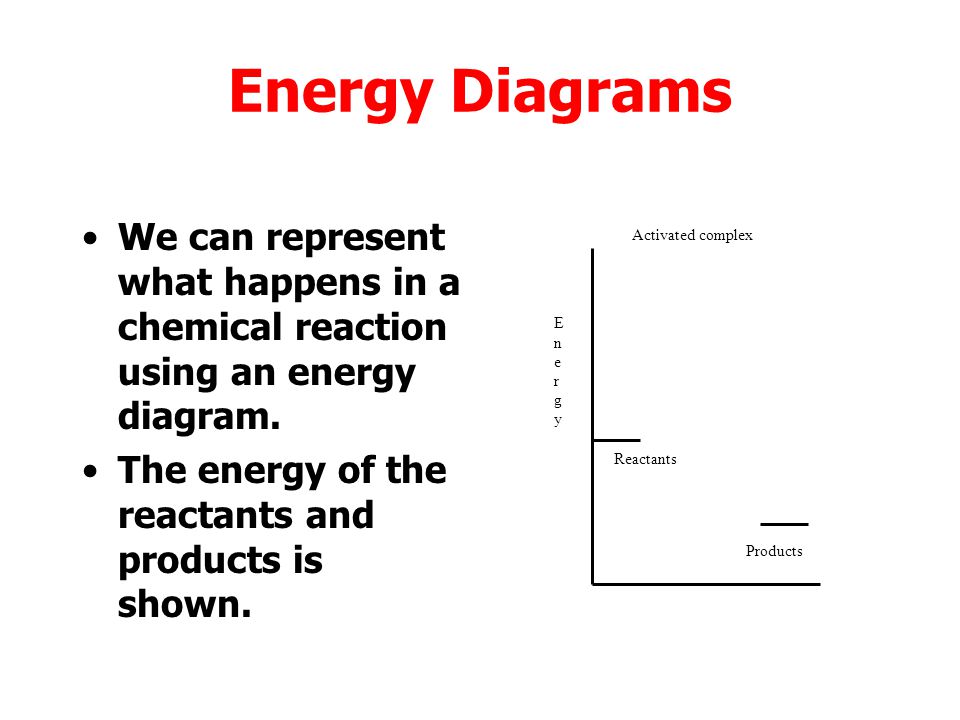

6 Energy Diagrams We can represent what happens in a chemical reaction using an energy diagram. The energy of the reactants and products is shown. EnergyEnergy Reactants Products Activated complex

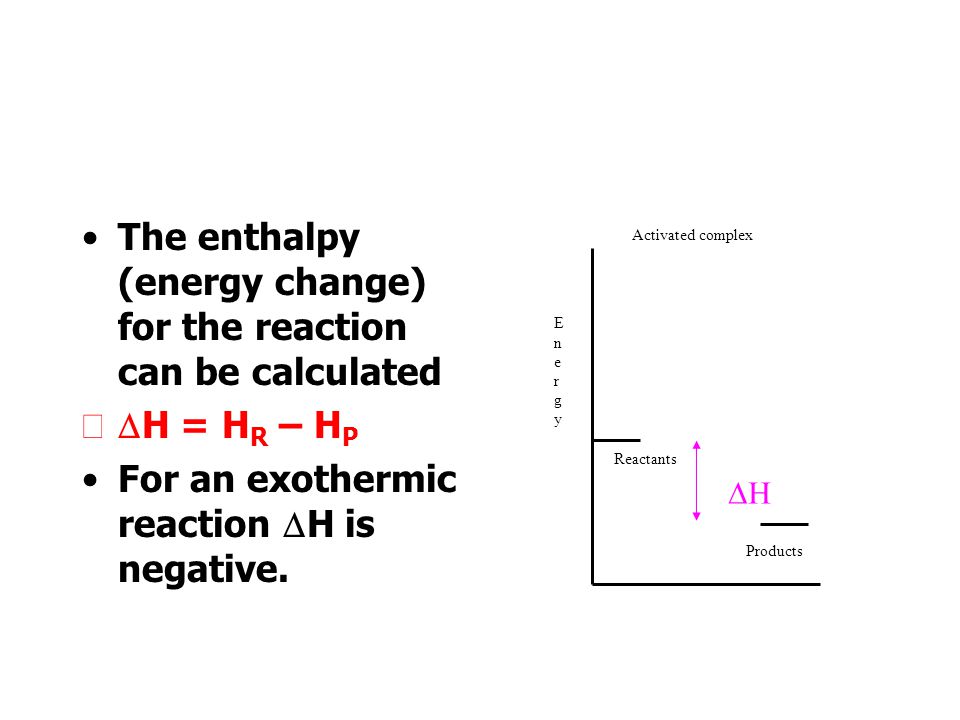

7 The enthalpy (energy change) for the reaction can be calculated H = H R – H P For an exothermic reaction H is negative. Reactants Products EnergyEnergy Activated complex H

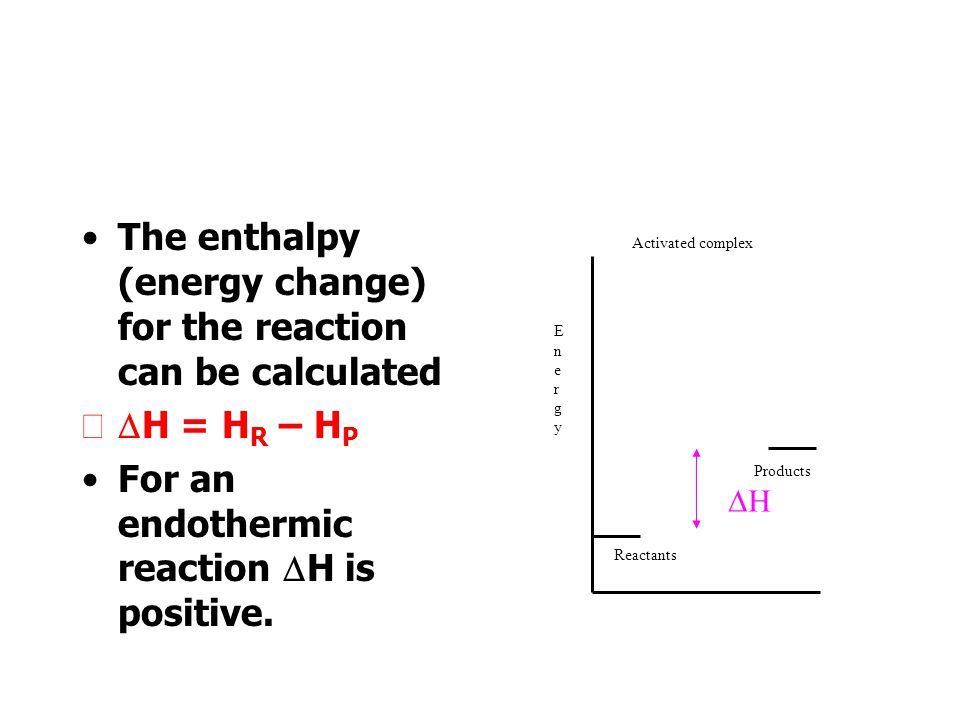

8 The enthalpy (energy change) for the reaction can be calculated H = H R – H P For an endothermic reaction H is positive. EnergyEnergy Reactants Products Activated complex H

9 An activated complex is formed. This is an unstable collection of atoms, intermediate between reactants and products. EnergyEnergy Reactants Products Activated complex

10 The energy which is needed to produce the activated complex is called the activation energy (E A ). EnergyEnergy EAEA

11 A similar energy diagram can be drawn for an endothermic reaction. EnergyEnergy EAEA H

12 EnergyEnergy EAEA H

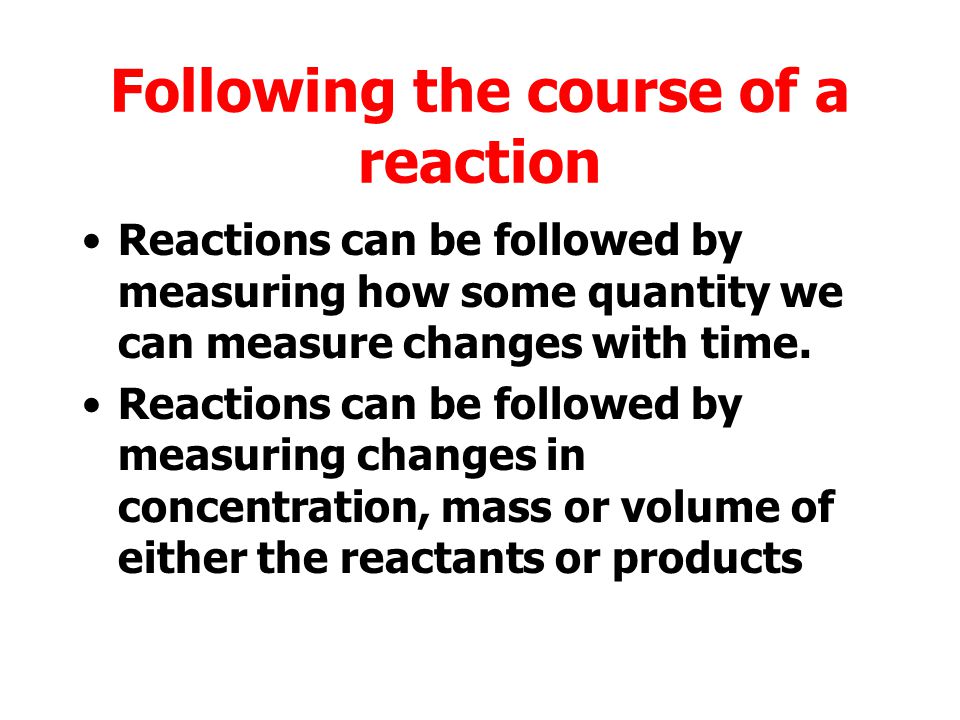

13 Following the course of a reaction Reactions can be followed by measuring how some quantity we can measure changes with time. Reactions can be followed by measuring changes in concentration, mass or volume of either the reactants or products

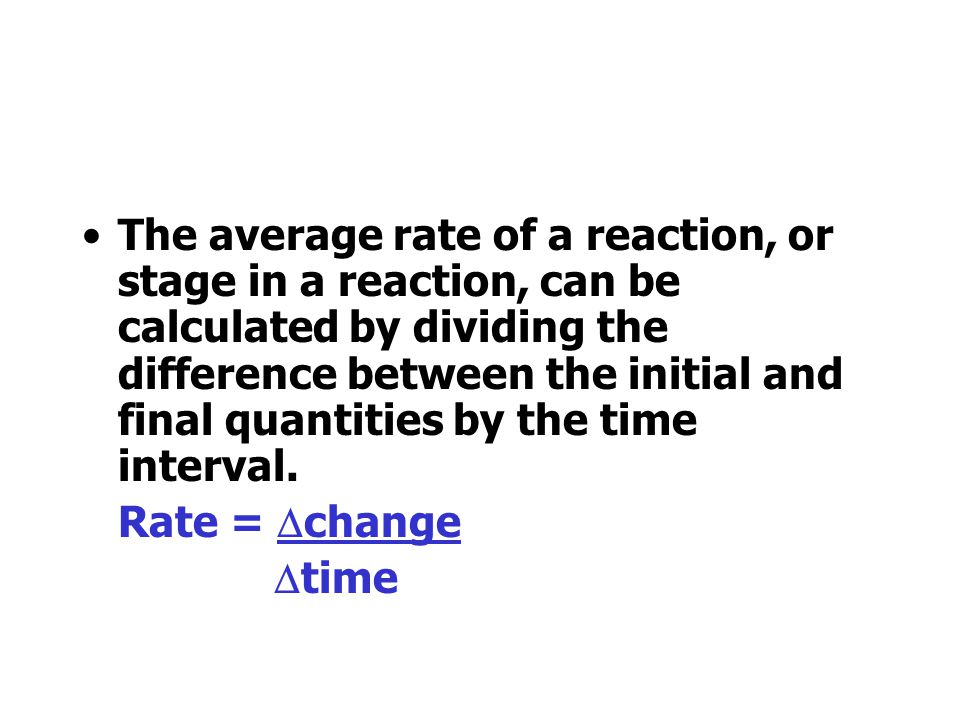

14 The average rate of a reaction, or stage in a reaction, can be calculated by dividing the difference between the initial and final quantities by the time interval. Rate = change time

15 Volume of gas released (ml) Time (s)

16 Volume of gas released (ml) Time (s) V1V1 t1t1

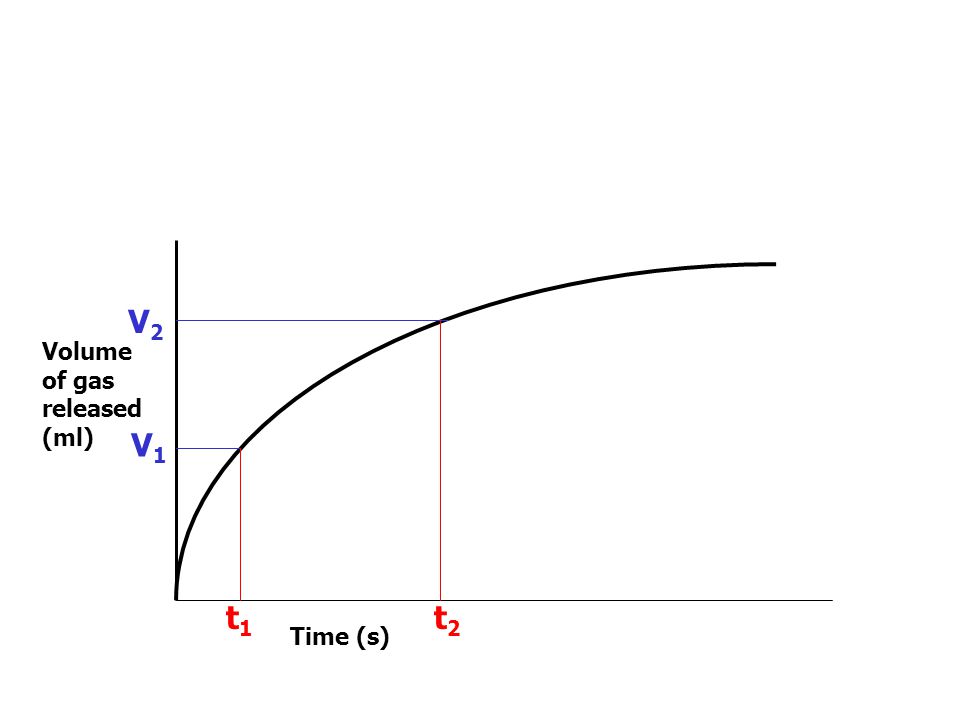

17 Volume of gas released (ml) Time (s) V1V1 t1t1 V2V2 t2t2

18 Volume of gas released (ml) Time (s) V1V1 t1t1 V2V2 t2t2 Volume change ( V) V = V 2 – V 1

19 Volume of gas released (ml) Time (s) V1V1 t1t1 V2V2 t2t2 Time change ( t) t = t 2 – t 1

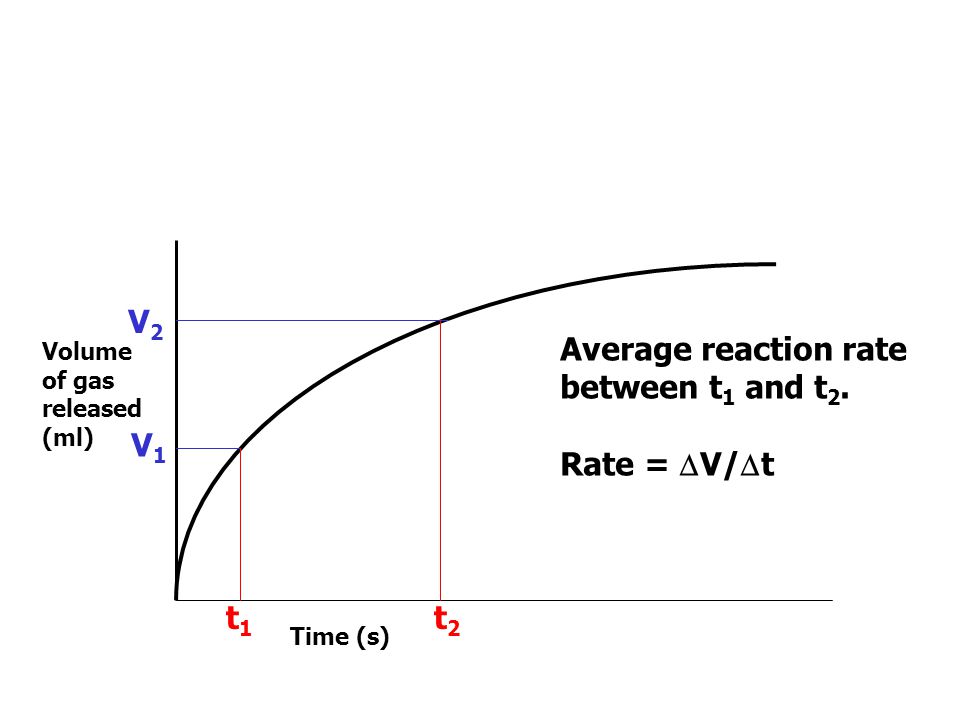

20 Volume of gas released (ml) Time (s) V1V1 t1t1 V2V2 t2t2 Average reaction rate between t 1 and t 2. Rate = V/ t

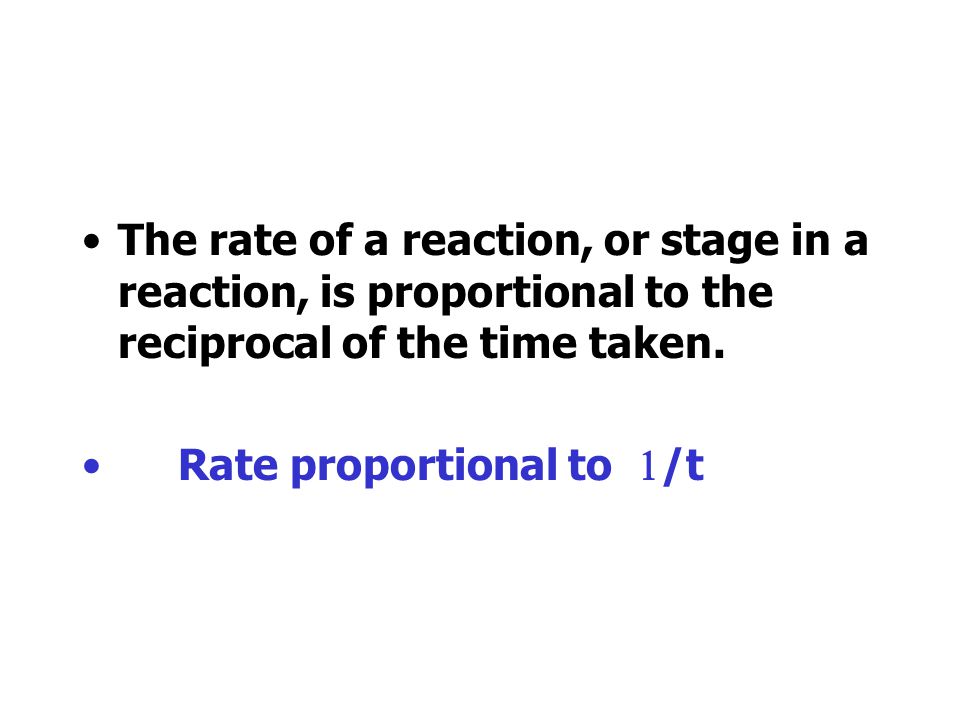

21 The rate of a reaction, or stage in a reaction, is proportional to the reciprocal of the time taken. Rate proportional to /t

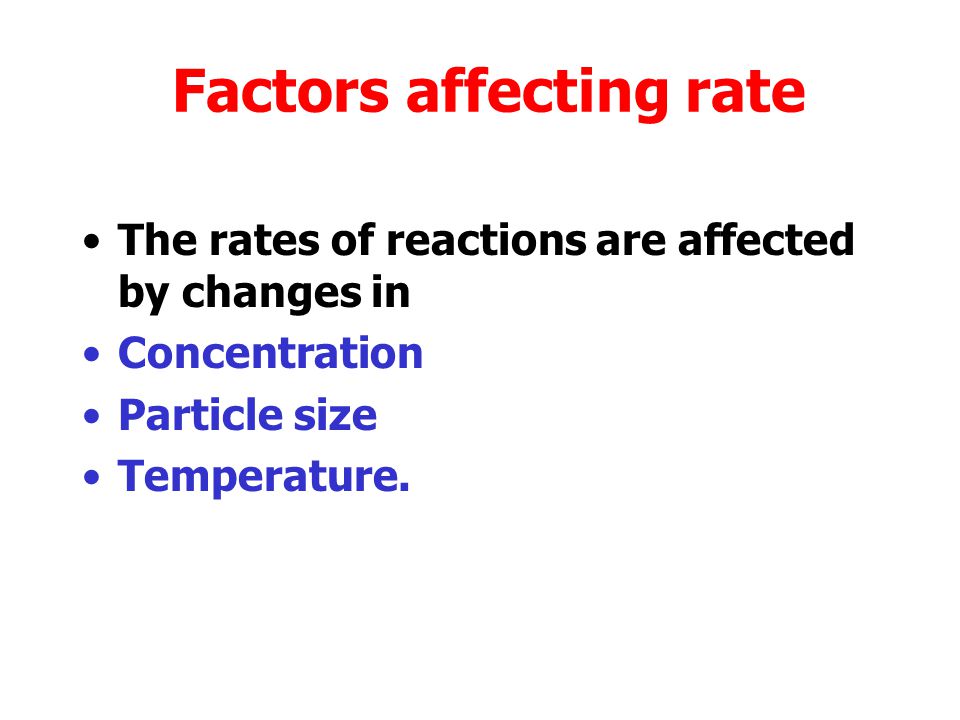

22 Factors affecting rate The rates of reactions are affected by changes in Concentration Particle size Temperature.

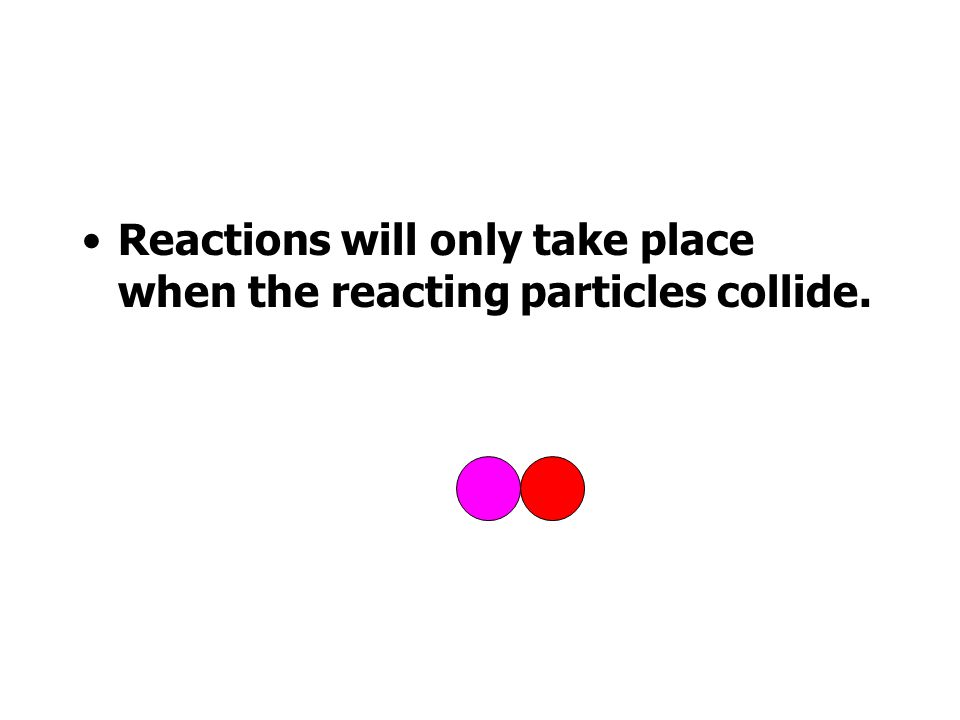

23 Collision Theory Reactions will only take place when the reacting particles collide.

24

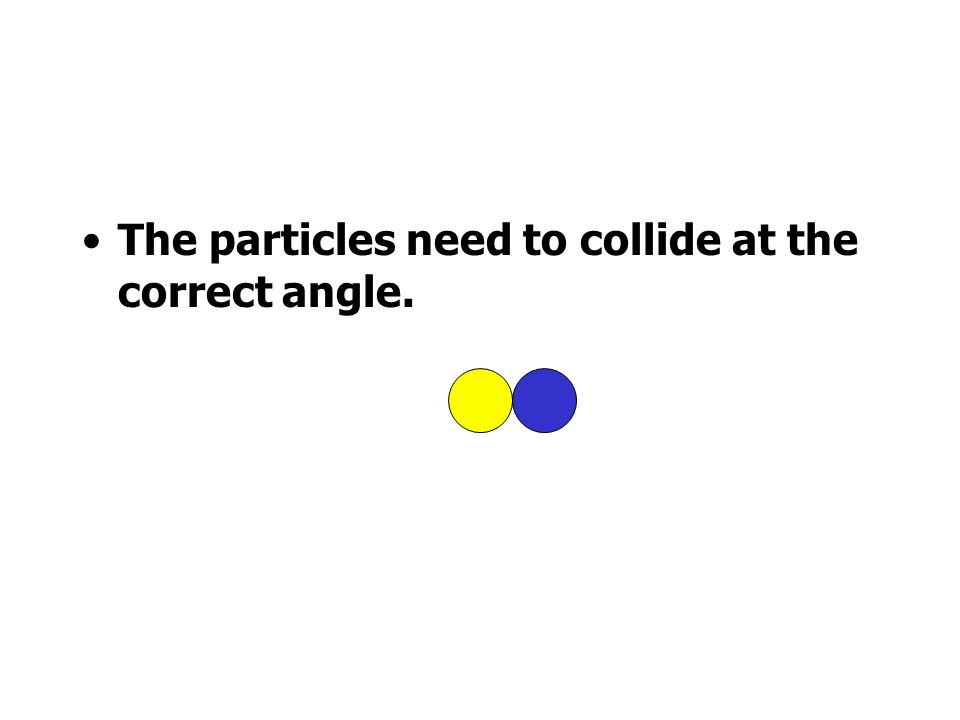

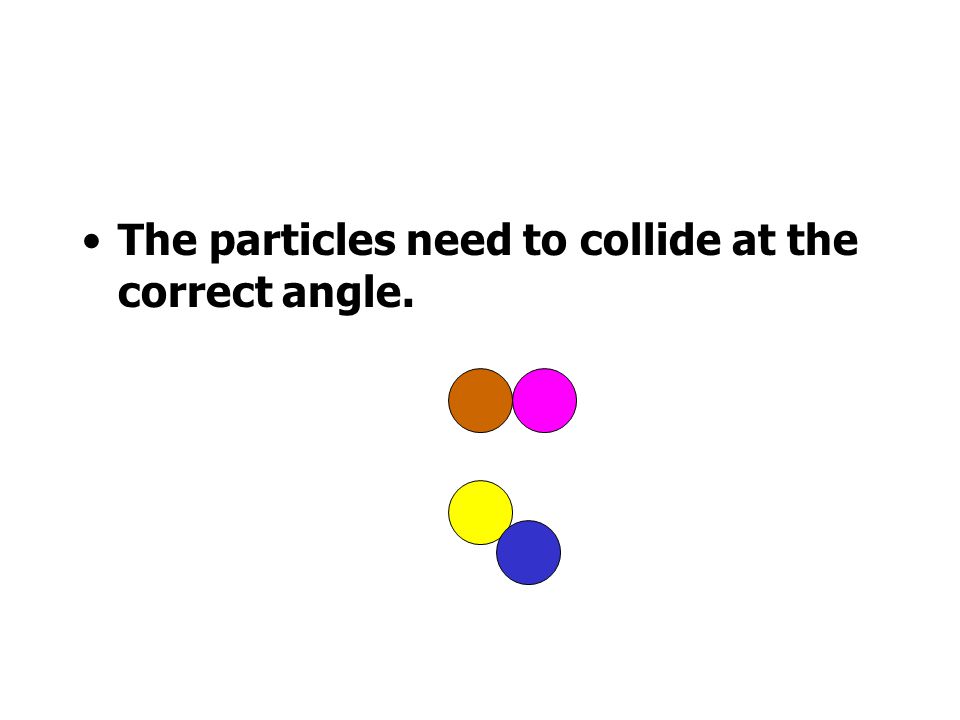

25 The particles need to collide at the correct angle.

26

27

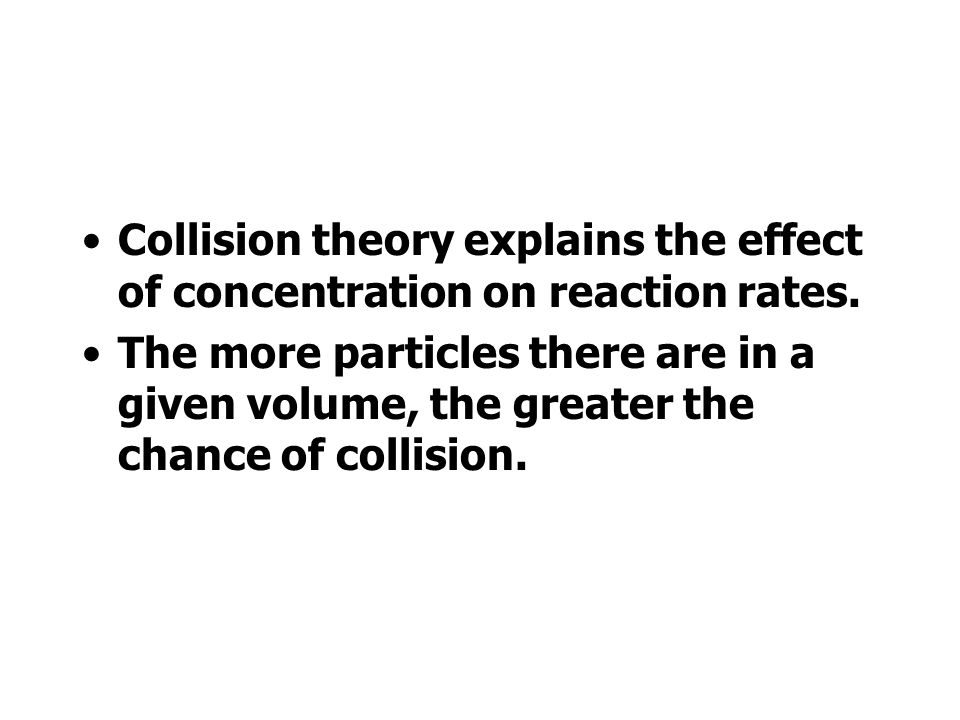

28 Collision theory explains the effect of concentration on reaction rates. The more particles there are in a given volume, the greater the chance of collision.

29 Concentration

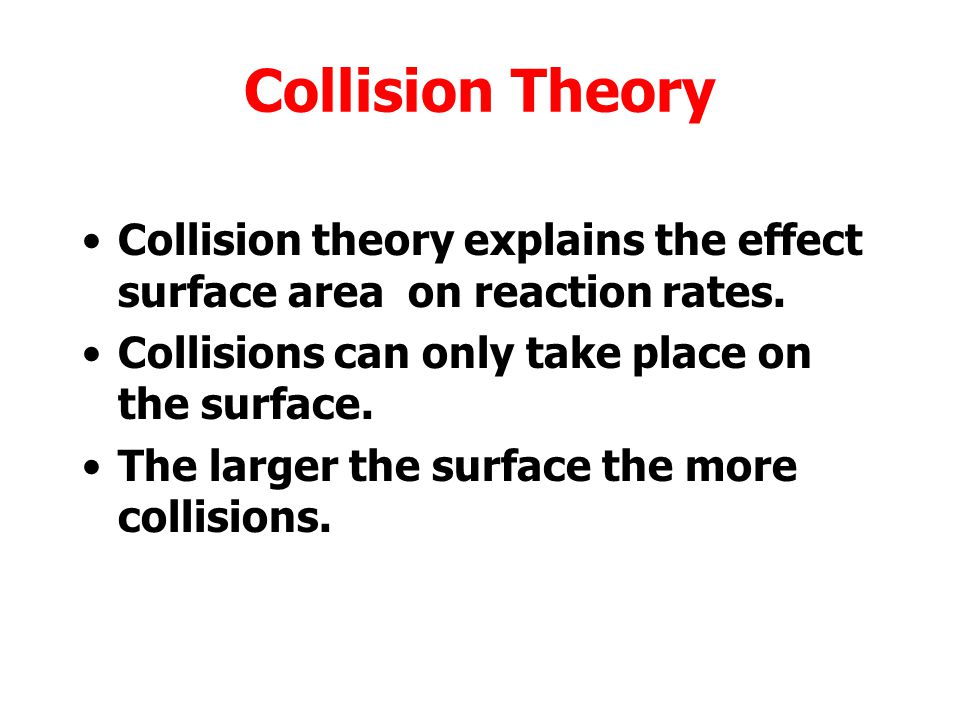

30 Collision Theory Collision theory explains the effect surface area on reaction rates. Collisions can only take place on the surface. The larger the surface the more collisions.

31 Surface Area

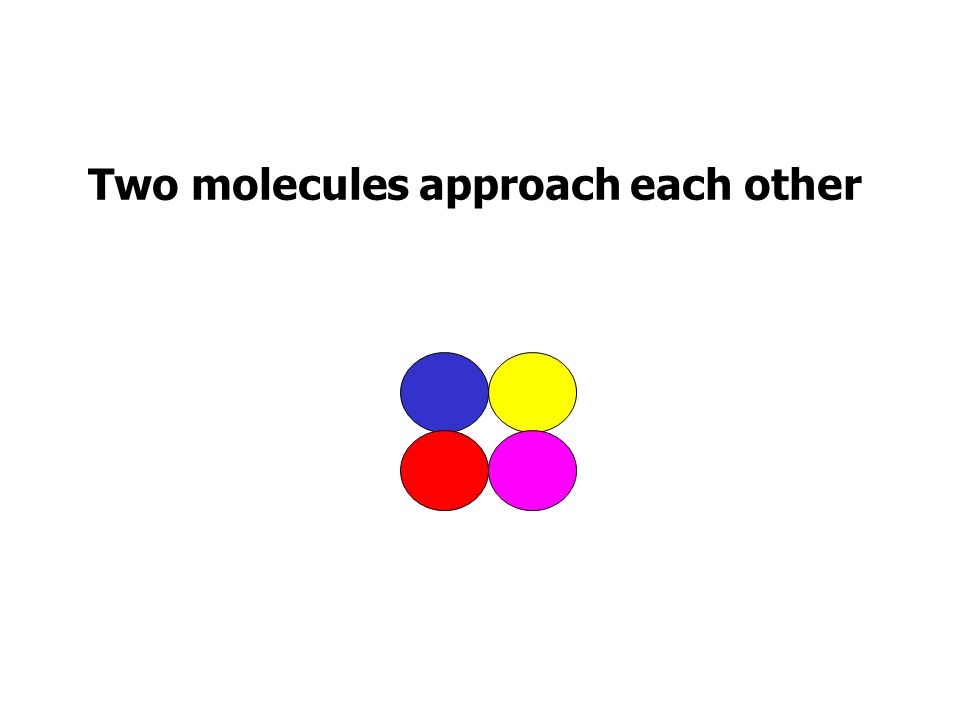

32 Activation energy Two molecules approach each other

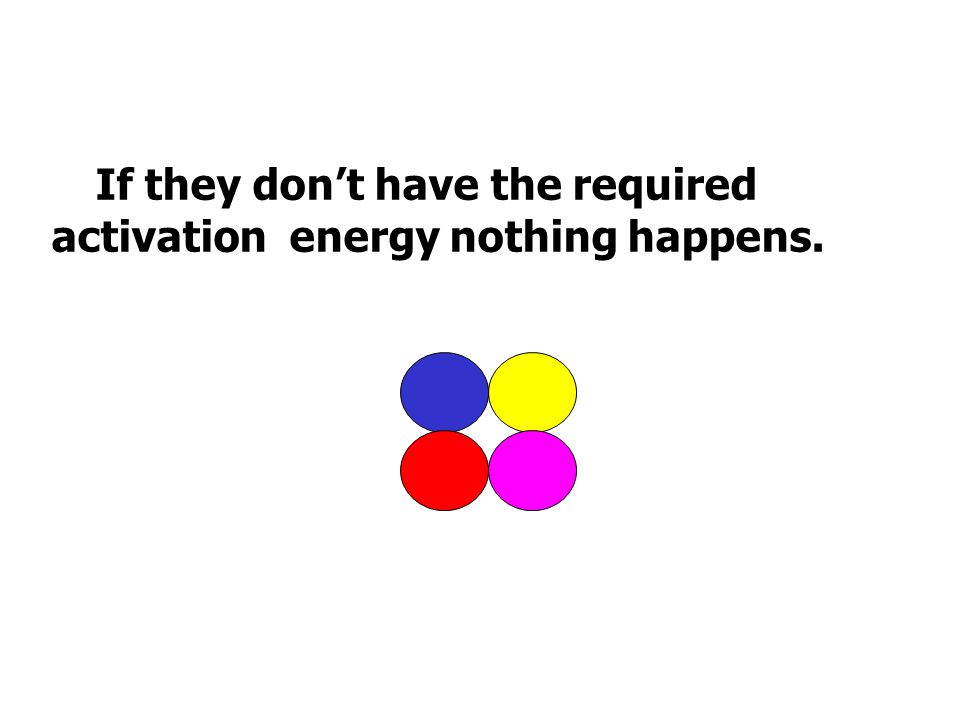

33 If they dont have the required activation energy nothing happens.

34 Two molecules approach each other

35 If they have the required activation energy the molecules form the Activated complex

36 If they have the required activation energy the molecules form the Activated complex

37 The activated complex splits apart To form the products.

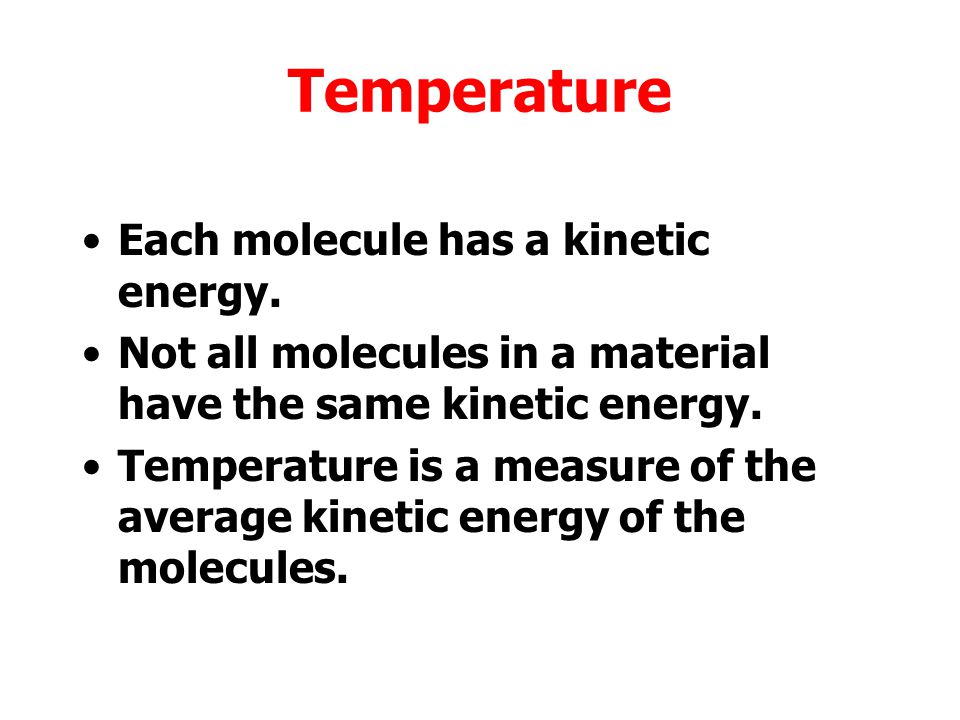

38 Temperature Each molecule has a kinetic energy. Not all molecules in a material have the same kinetic energy. Temperature is a measure of the average kinetic energy of the molecules.

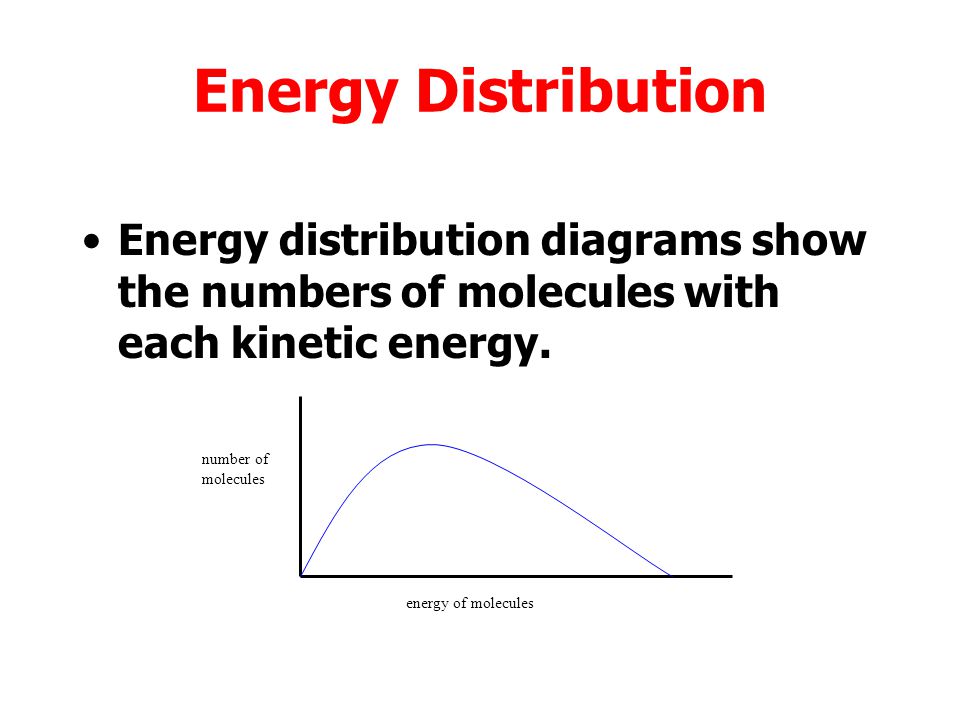

39 Energy Distribution Energy distribution diagrams show the numbers of molecules with each kinetic energy. energy of molecules number of molecules

40 As the temperature increases the kinetic energy distribution changes. energy of molecules number of molecules

41 At higher temperatures the average kinetic energy of the molecules is greater. More molecules will be able to provide the activation energy. The reaction will go faster.

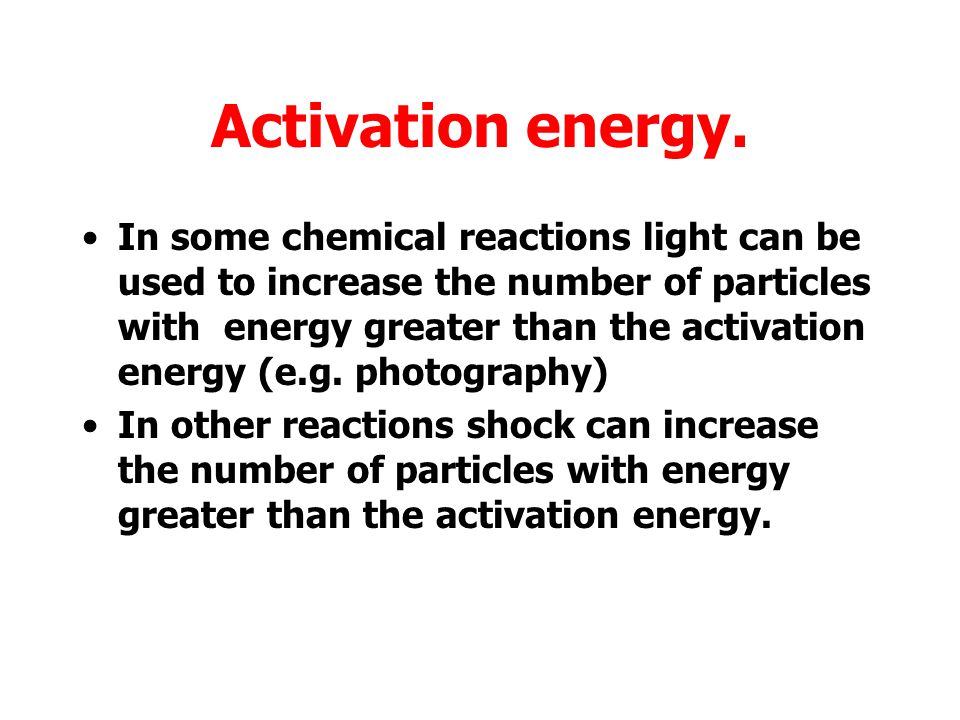

42 Activation energy. In some chemical reactions light can be used to increase the number of particles with energy greater than the activation energy (e.g. photography) In other reactions shock can increase the number of particles with energy greater than the activation energy.

43 Excess When we carry out a chemical reaction we will usually use more of one of the reagents than is needed. That reagent is said to be in excess. We can calculate the reagent in excess using a mole equation.

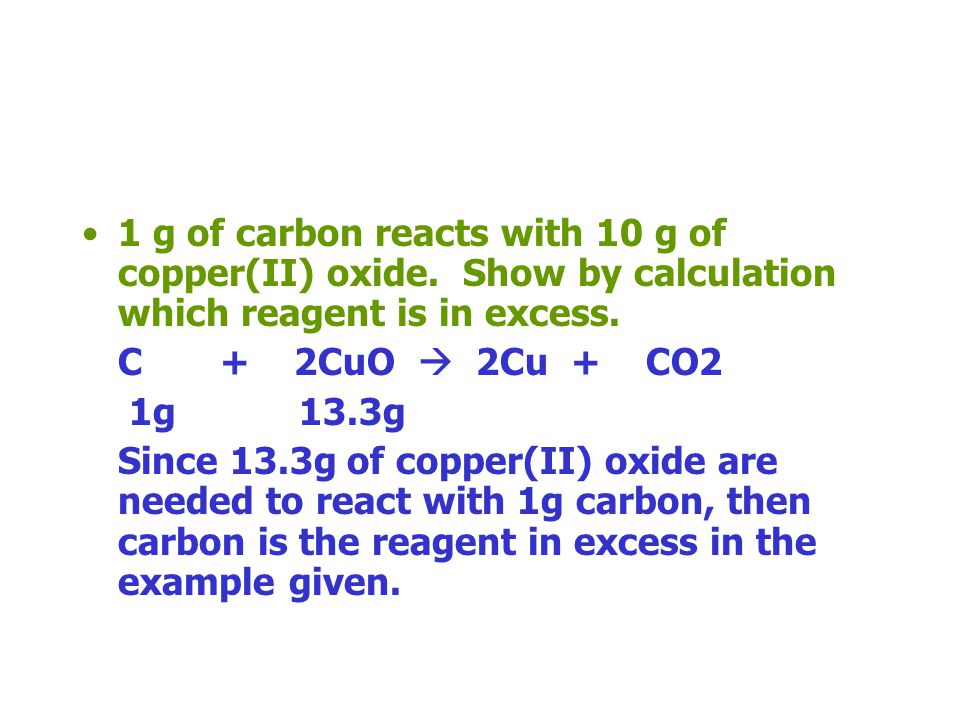

44 1 g of carbon reacts with 10 g of copper(II) oxide. Show by calculation which reagent is in excess. C + 2CuO 2Cu + CO2 1 mole 2 moles 2 moles 1 mole 12g 2x( ) 12g 159g 1g159/12=13.3g

45 1 g of carbon reacts with 10 g of copper(II) oxide. Show by calculation which reagent is in excess. C + 2CuO 2Cu + CO2 1g 13.3g Since 13.3g of copper(II) oxide are needed to react with 1g carbon, then carbon is the reagent in excess in the example given.

46 Catalysts Catalysts speed up reactions, without being changed by the reaction. Catalysts are used in many industrial processes. They reduce the temperature needed, so reducing energy costs.

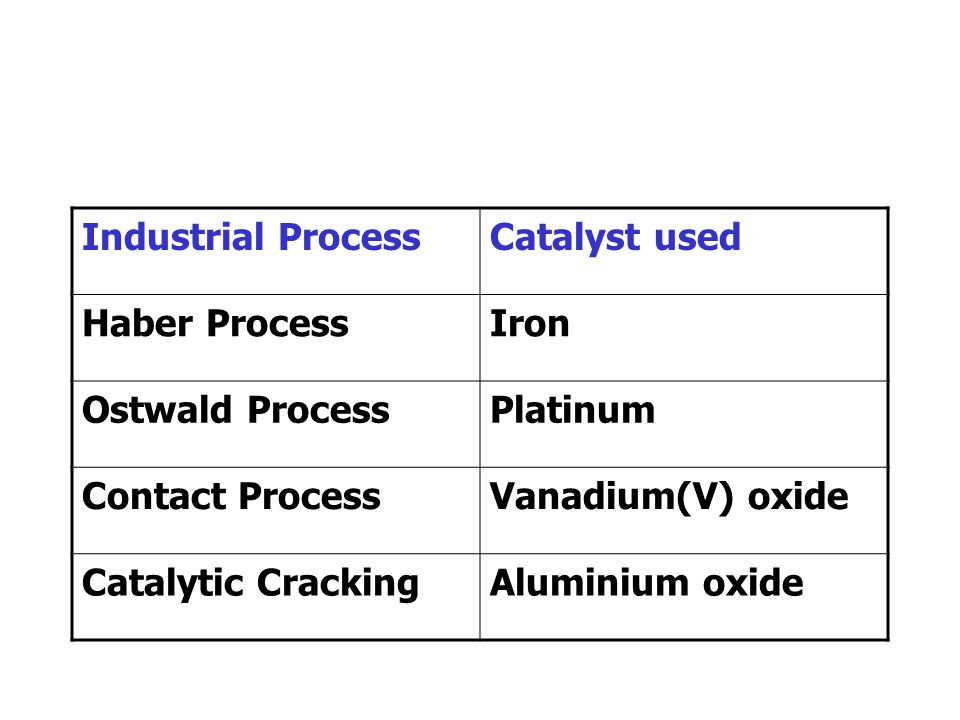

47 Industrial ProcessCatalyst used Haber ProcessIron Ostwald ProcessPlatinum Contact ProcessVanadium(V) oxide Catalytic CrackingAluminium oxide

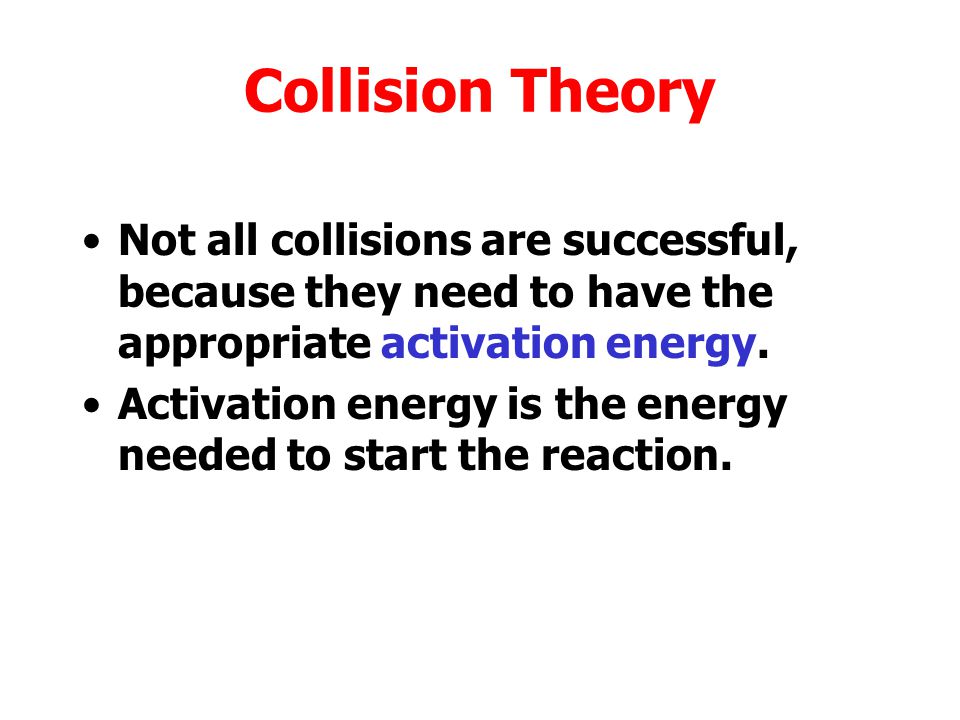

48 Collision Theory Not all collisions are successful, because they need to have the appropriate activation energy. Activation energy is the energy needed to start the reaction.

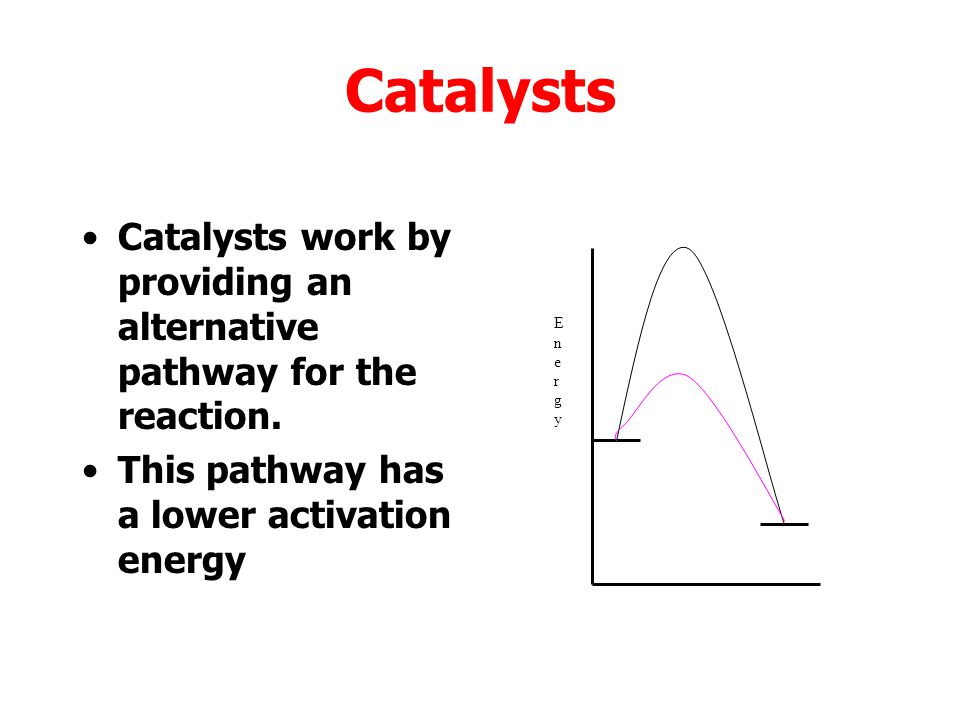

49 Catalysts Catalysts work by providing an alternative pathway for the reaction. This pathway has a lower activation energy EnergyEnergy

50 Catalysts work by providing an alternative pathway for the reaction. This pathway has a lower activation energy EnergyEnergy

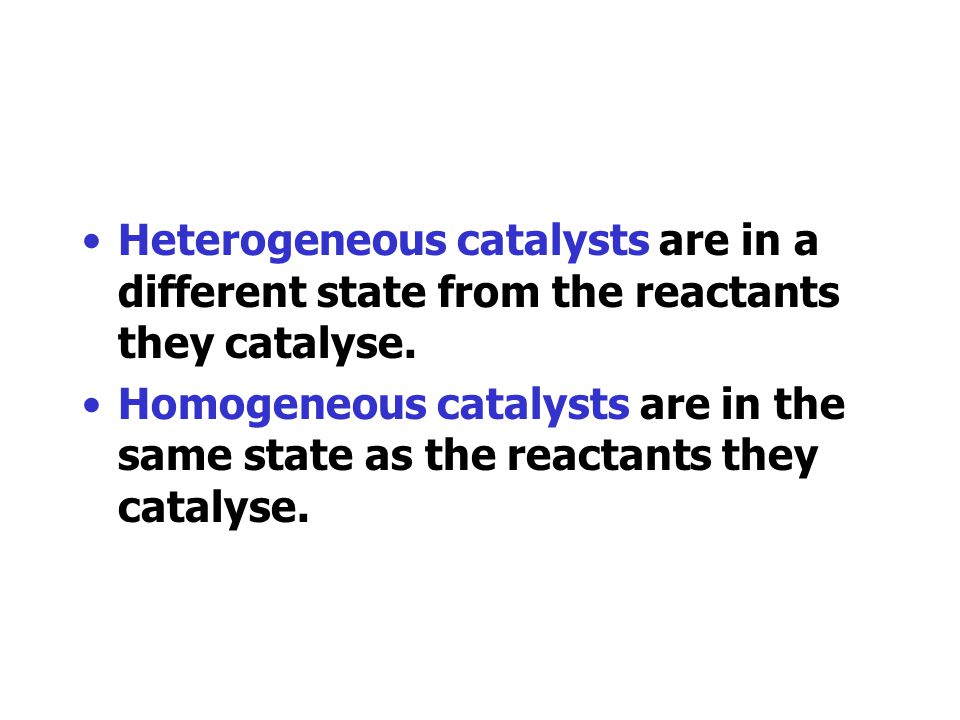

51 Heterogeneous catalysts are in a different state from the reactants they catalyse. Homogeneous catalysts are in the same state as the reactants they catalyse.

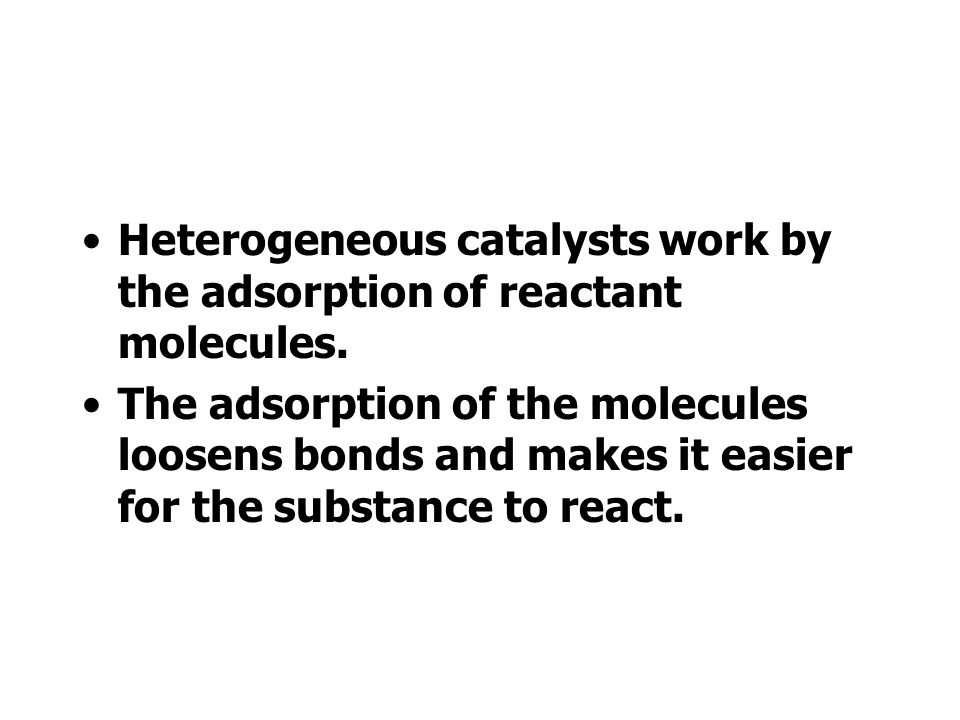

52 Heterogeneous catalysts work by the adsorption of reactant molecules. The adsorption of the molecules loosens bonds and makes it easier for the substance to react.

53 The surface activity of a catalyst can be reduced by poisoning, when surface sites are taken over by other substances, preventing reactants being adsorbed. Impurities in the reactants result in the industrial catalysts having to be regenerated or renewed.

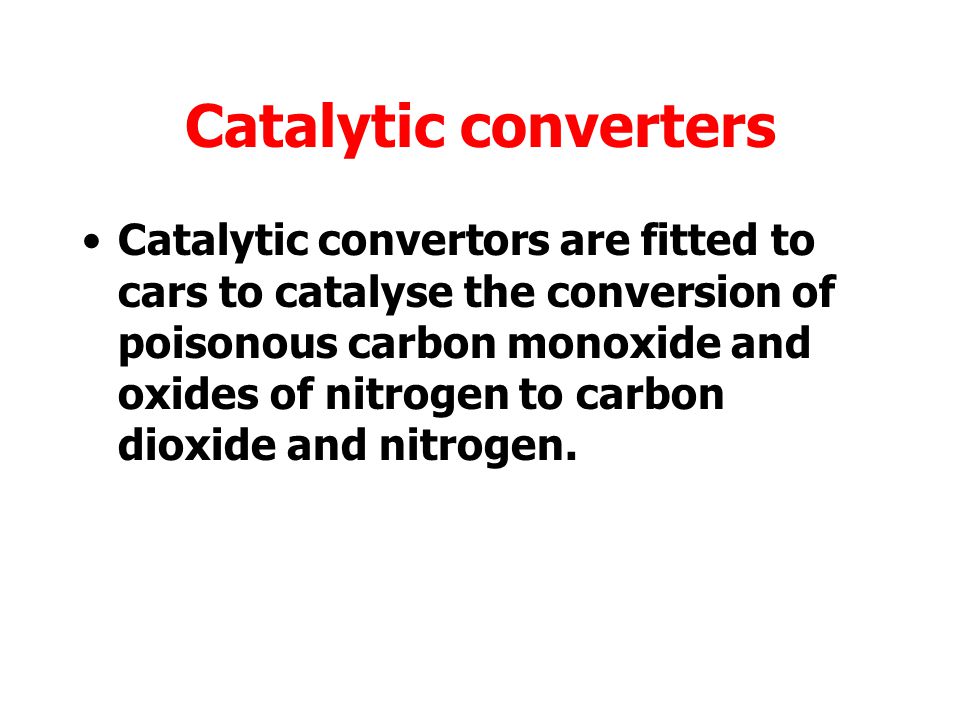

54 Catalytic converters Catalytic convertors are fitted to cars to catalyse the conversion of poisonous carbon monoxide and oxides of nitrogen to carbon dioxide and nitrogen.

55 Cars with catalytic converters only use lead-free petrol to prevent poisoning of the catalyst.

56 Enzymes Enzymes catalyse the chemical reactions which take place in the living cells of plants and animals. Enzymes are used in many industrial processes.

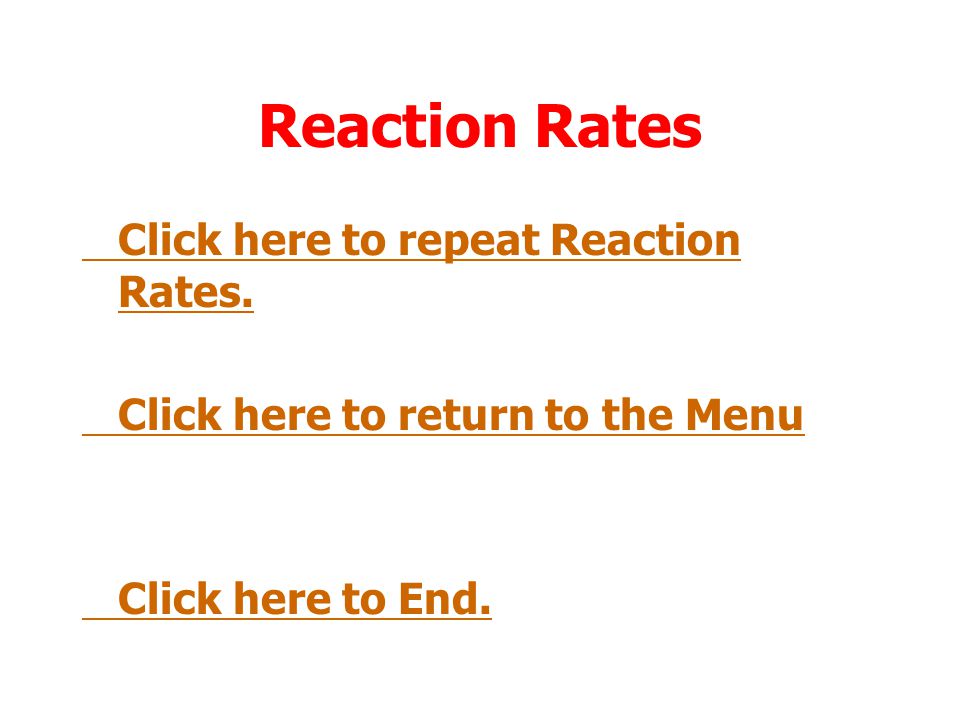

57 Reaction Rates Click here to repeat Reaction Rates. Click here to return to the Menu Click here to End.

58 Enthalpy changes

59 An enthalpy change is the energy produced or released in a chemical reaction. Enthalpy change is given the symbol H. Enthalpy change is measured in kilojoules per mole (Kj/mol)

60 Enthalpy of combustion The enthalpy of combustion of a substance is the enthalpy change when one mole of the substance burns completely in oxygen.

61 Enthalpy of solution The enthalpy of solution of a substance is the enthalpy change when one mole of the substance dissolves in water.

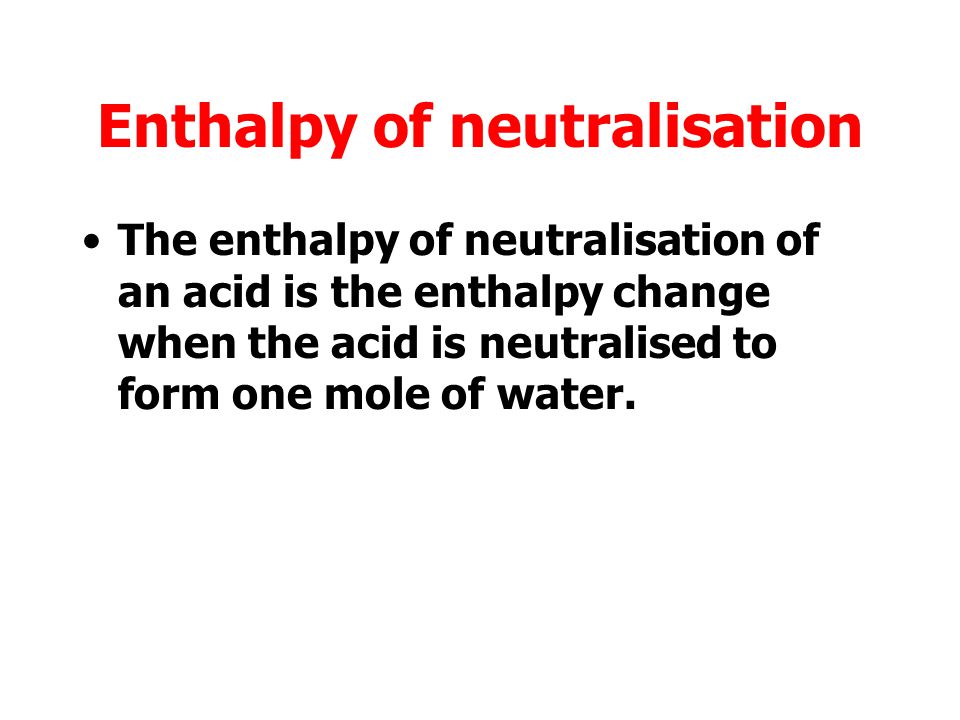

62 Enthalpy of neutralisation The enthalpy of neutralisation of an acid is the enthalpy change when the acid is neutralised to form one mole of water.

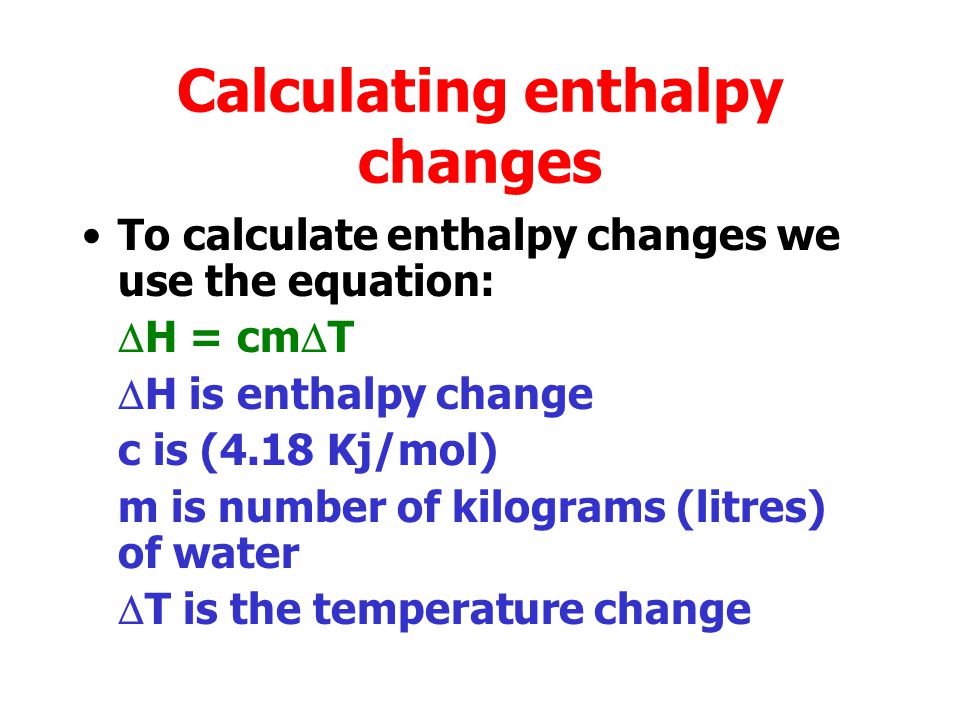

63 Calculating enthalpy changes To calculate enthalpy changes we use the equation: H = cm T H is enthalpy change c is (4.18 Kj/mol) m is number of kilograms (litres) of water T is the temperature change

64 Enthalpy changes Click here to repeat Enthalpy changes. Click here to return to the Menu Click here to End.

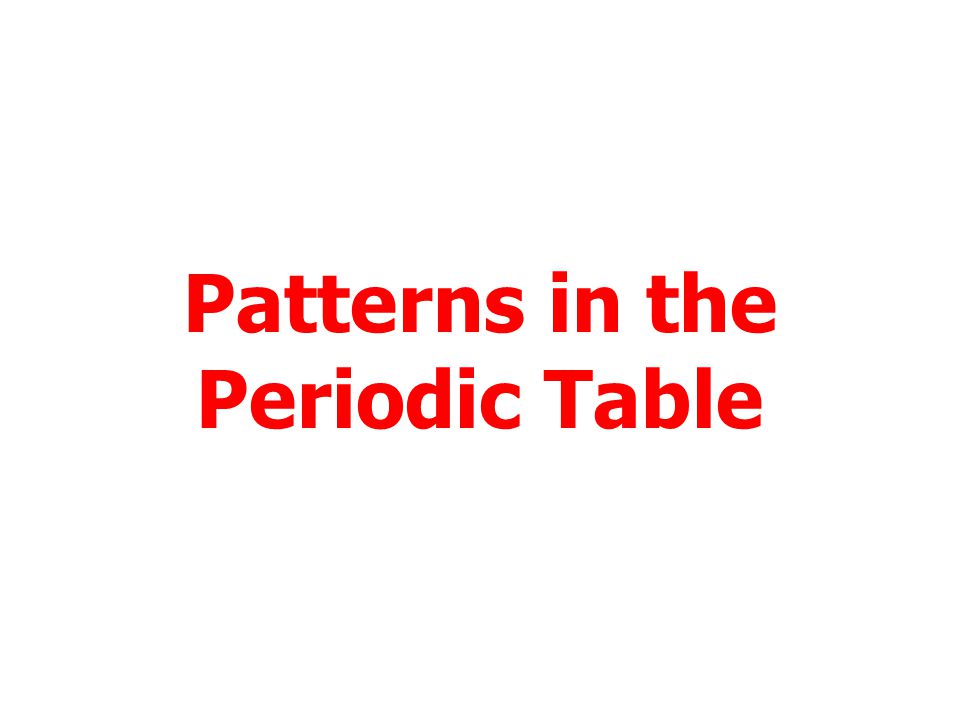

65 Patterns in the Periodic Table

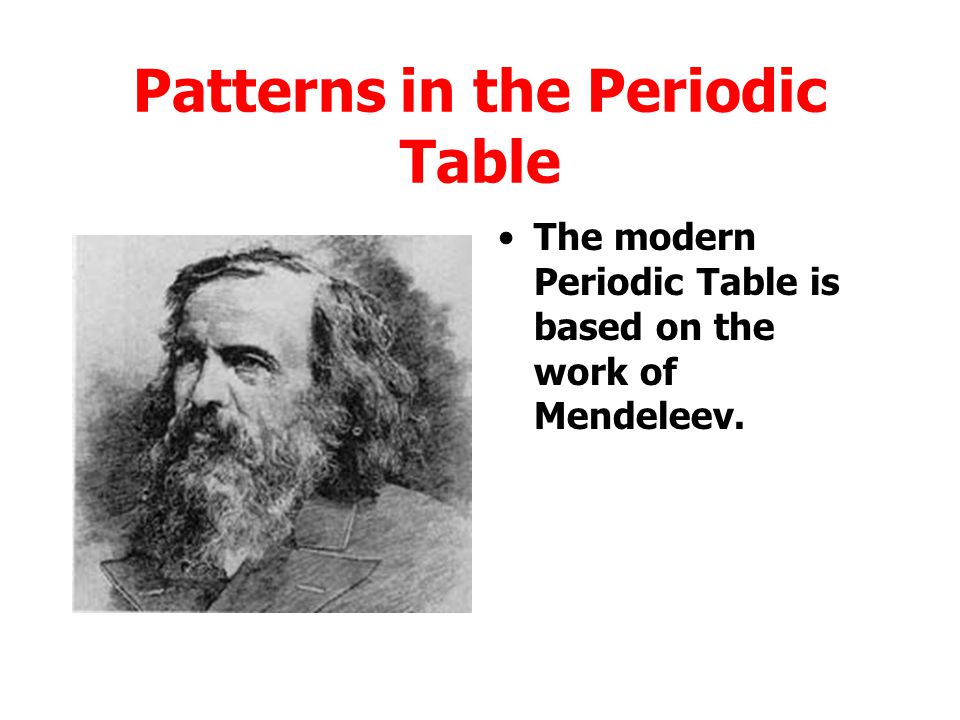

66 The modern Periodic Table is based on the work of Mendeleev.

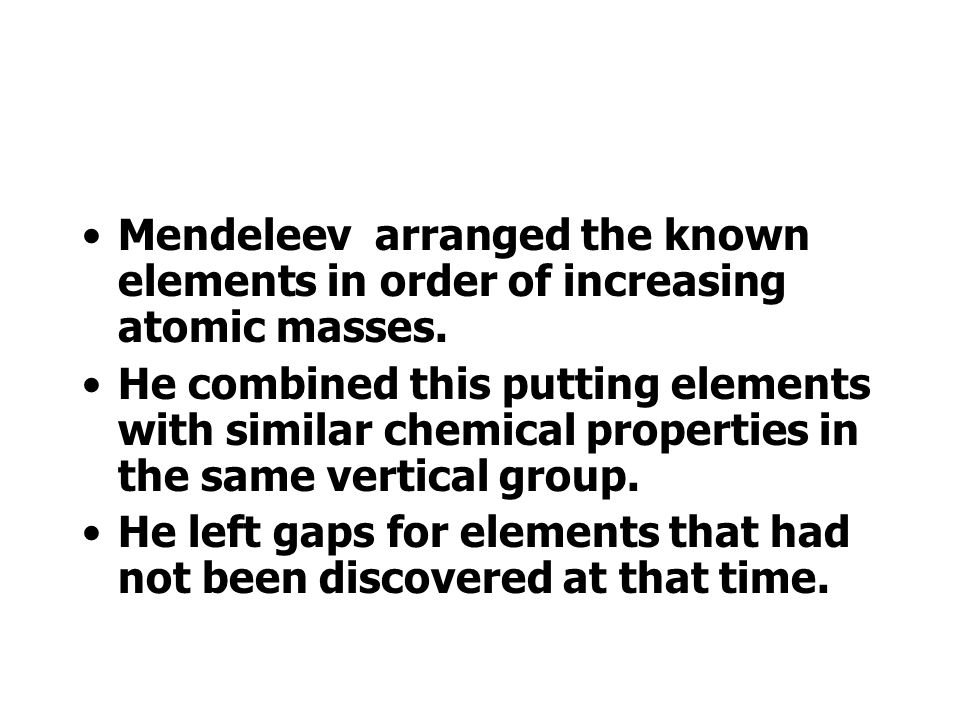

67 Mendeleev arranged the known elements in order of increasing atomic masses. He combined this putting elements with similar chemical properties in the same vertical group. He left gaps for elements that had not been discovered at that time.

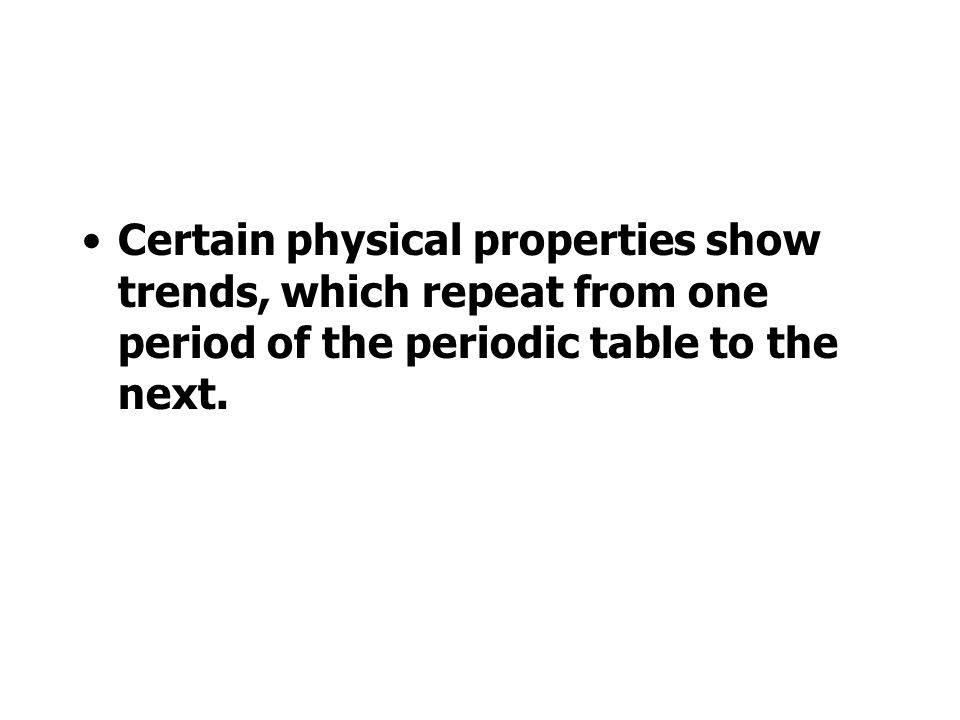

68 Certain physical properties show trends, which repeat from one period of the periodic table to the next.

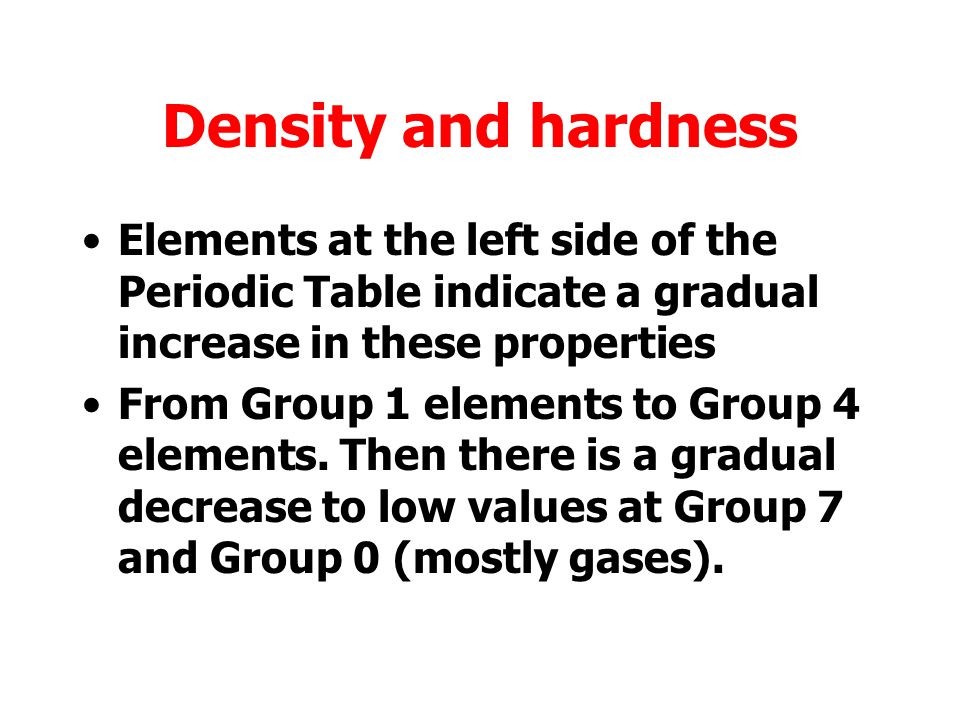

69 Density and hardness Elements at the left side of the Periodic Table indicate a gradual increase in these properties From Group 1 elements to Group 4 elements. Then there is a gradual decrease to low values at Group 7 and Group 0 (mostly gases).

70 Melting and boiling points The melting point and boiling point of an element gives an indication of the size of the forces that hold together the atoms or molecules. The higher the melting and boiling point the stronger the forces.

71 Boiling points

72 Melting points

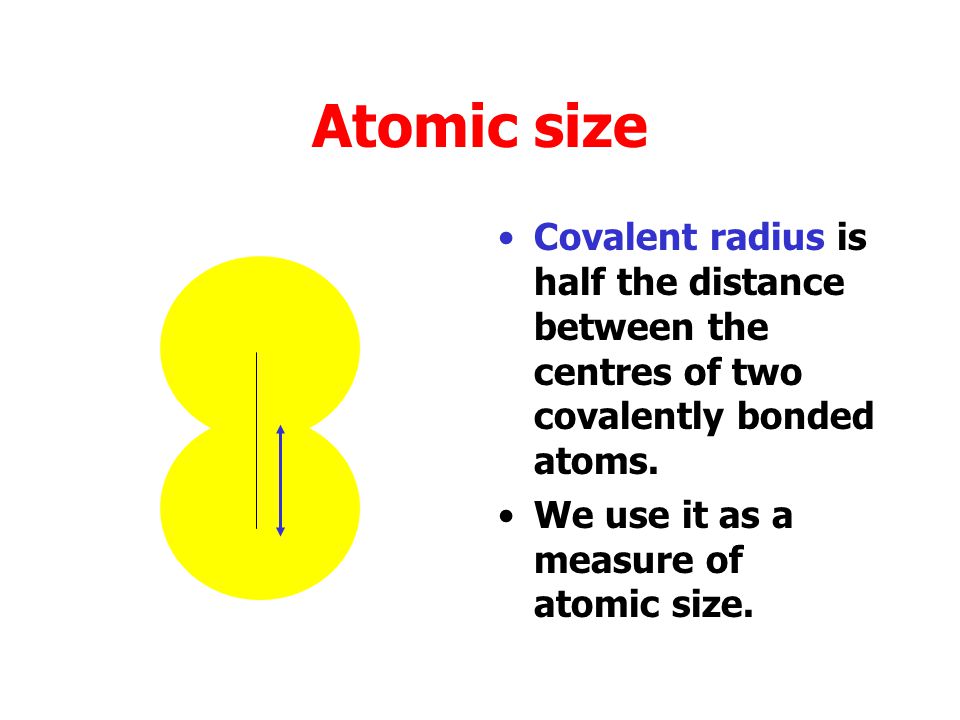

73 Atomic size Covalent radius is half the distance between the centres of two covalently bonded atoms. We use it as a measure of atomic size.

74 Covalent radius

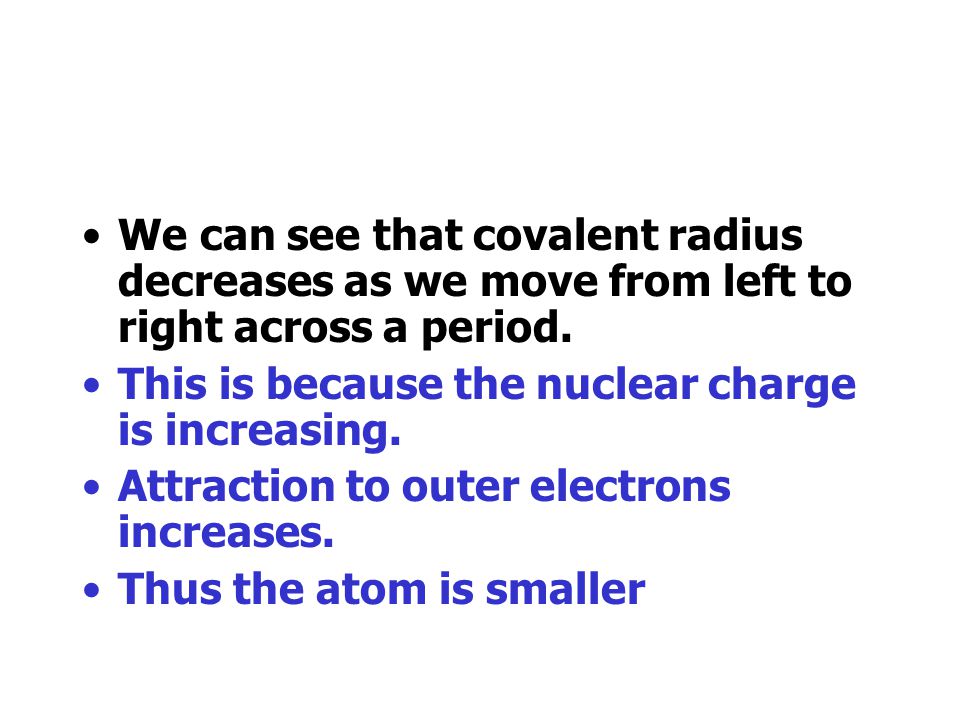

75 We can see that covalent radius decreases as we move from left to right across a period. This is because the nuclear charge is increasing. Attraction to outer electrons increases. Thus the atom is smaller

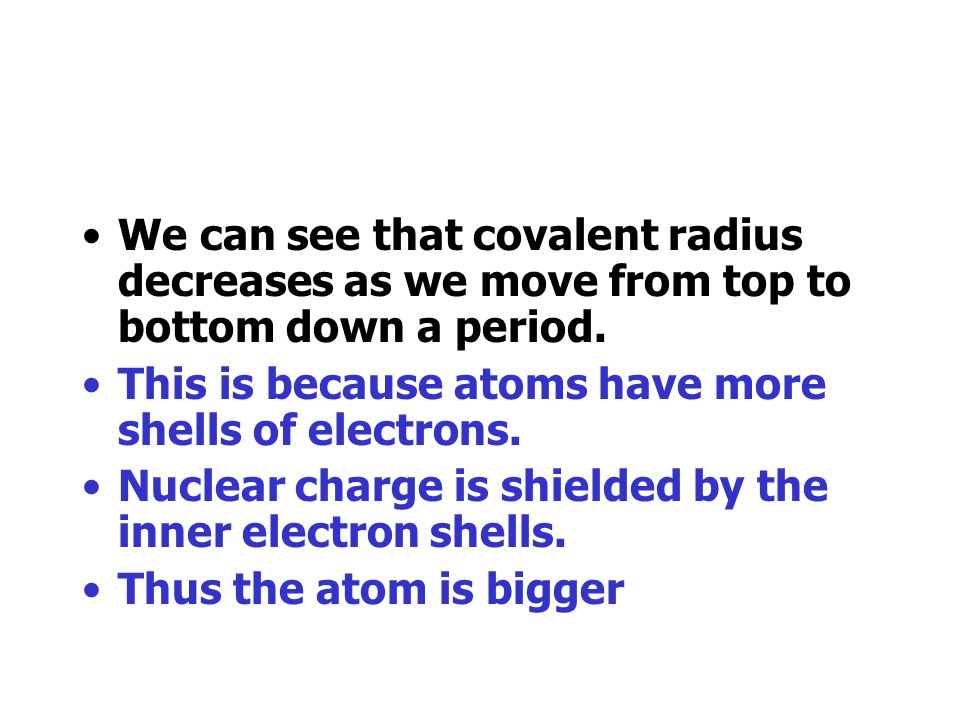

76 We can see that covalent radius decreases as we move from top to bottom down a period. This is because atoms have more shells of electrons. Nuclear charge is shielded by the inner electron shells. Thus the atom is bigger

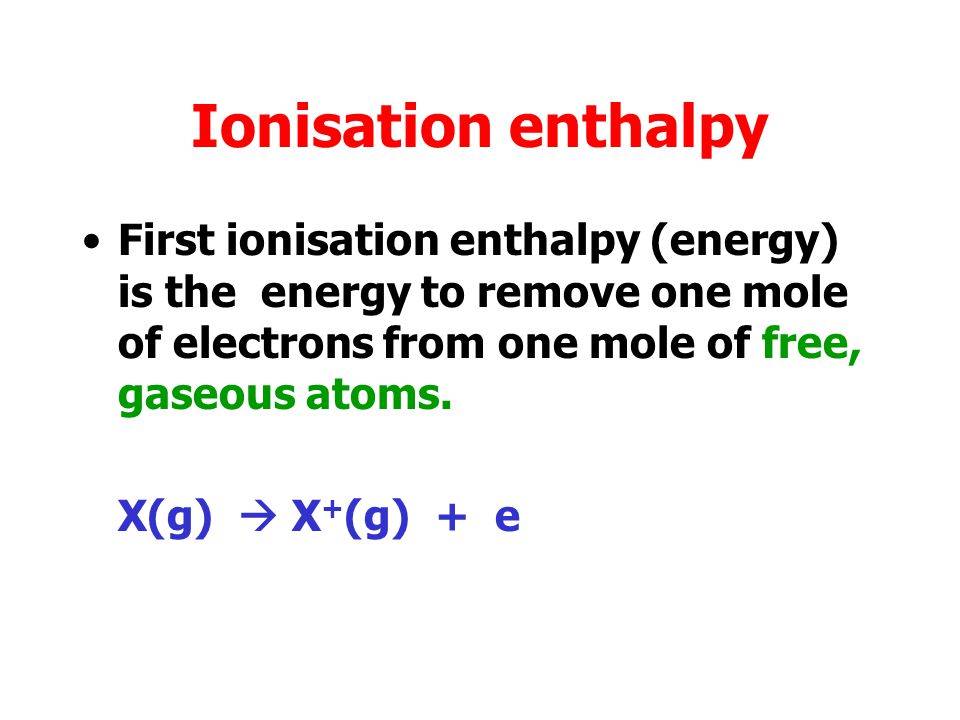

77 Ionisation enthalpy First ionisation enthalpy (energy) is the energy to remove one mole of electrons from one mole of free, gaseous atoms. X(g) X + (g) + e

78 Ionisation enthalpies of the first 20 elements

79 Ionisation enthalpy If we plot ionisation enthalpy against atomic number we can see two things. Ionisation enthalpy increases as we move from left to right across a period. Ionisation enthalpy decreases as you move down a group.

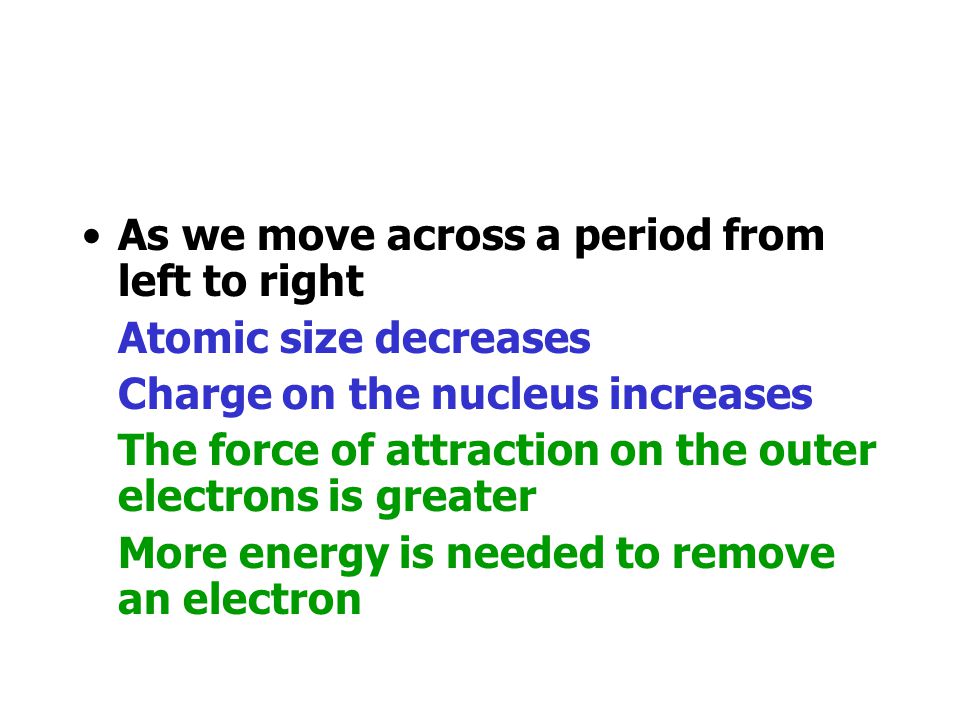

80 As we move across a period from left to right Atomic size decreases Charge on the nucleus increases The force of attraction on the outer electrons is greater More energy is needed to remove an electron

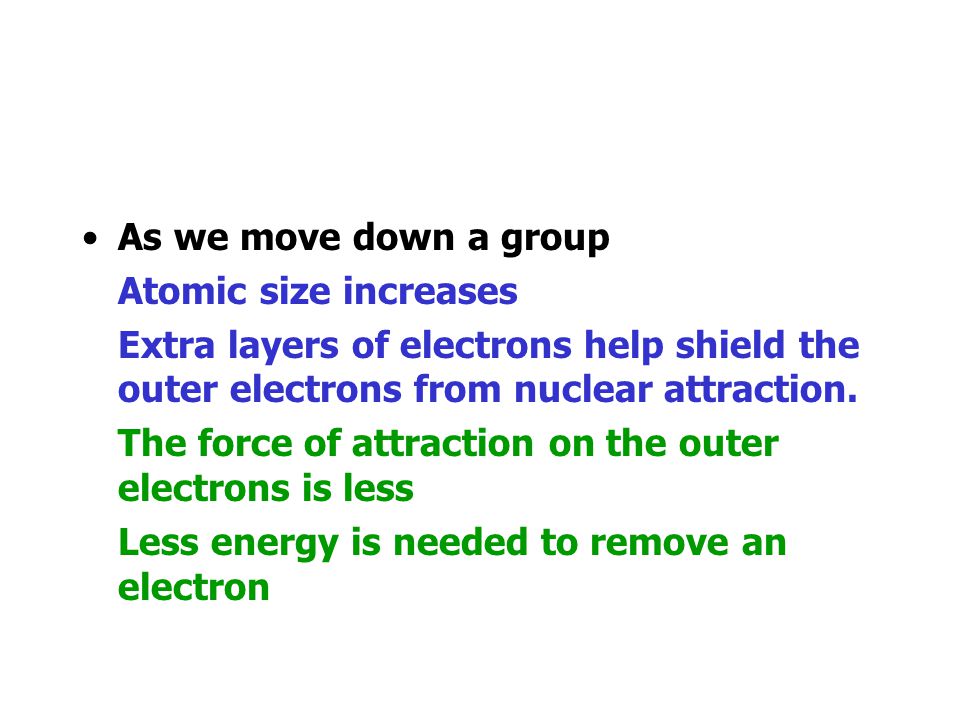

81 As we move down a group Atomic size increases Extra layers of electrons help shield the outer electrons from nuclear attraction. The force of attraction on the outer electrons is less Less energy is needed to remove an electron

82 Second ionisation enthalpy (energy) is the energy to remove a second mole of electrons. X + (g) X 2+ (g) + e

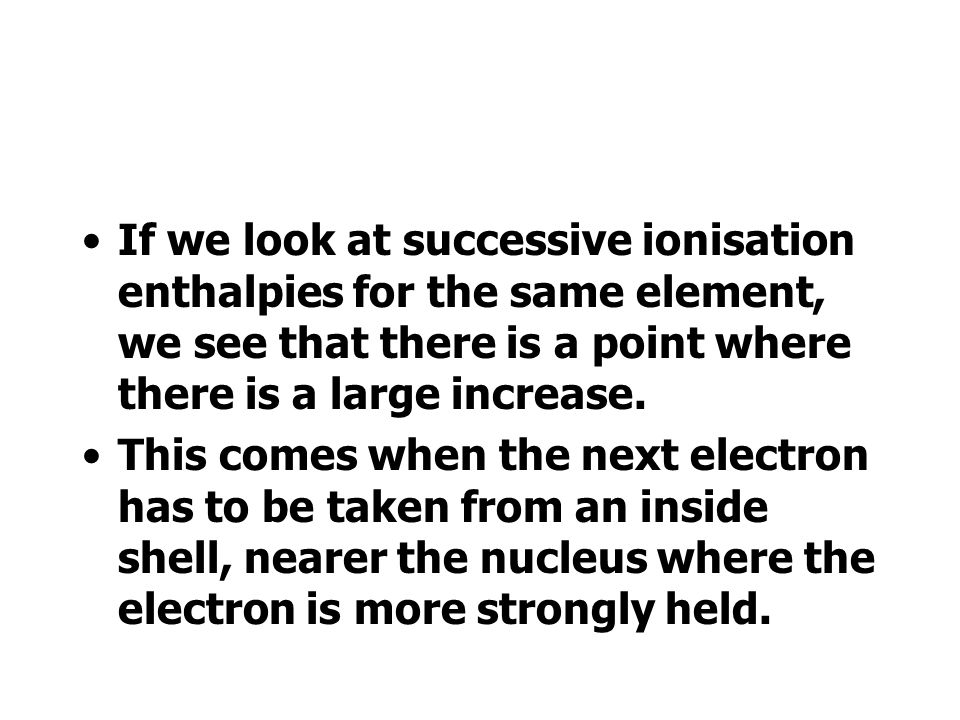

83 If we look at successive ionisation enthalpies for the same element, we see that there is a point where there is a large increase. This comes when the next electron has to be taken from an inside shell, nearer the nucleus where the electron is more strongly held.

84 Element1 st I.E. (kJmol -1 ) 2 nd I.E. (kJmol -1 ) 3 rd I.E. (kJmol -1 ) 4 th I.E. (kJmol -1 ) Na Mg Al

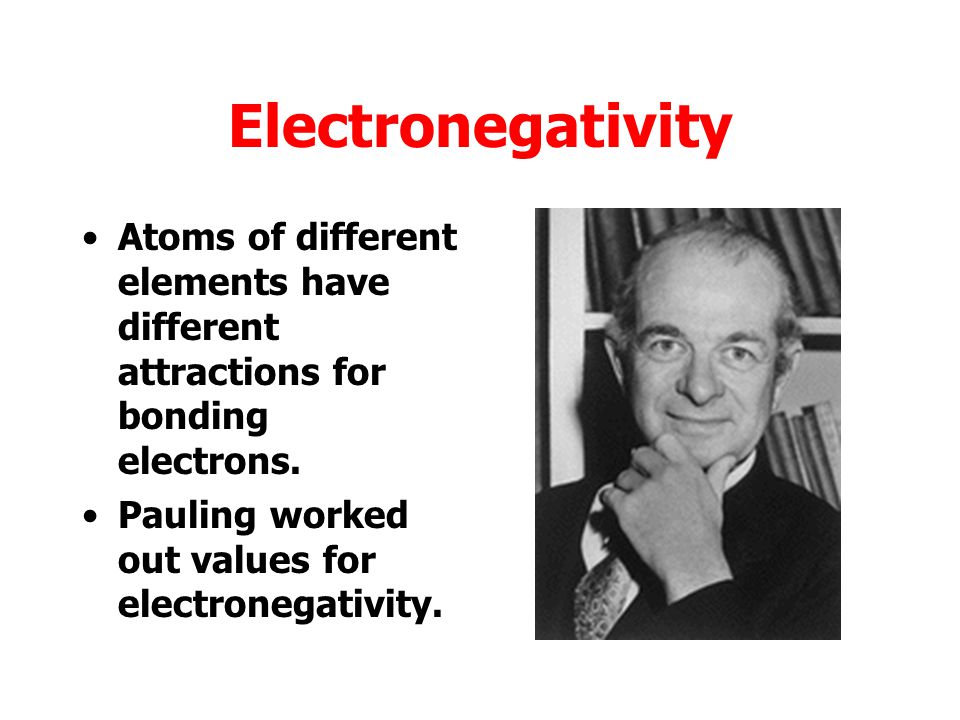

85 Electronegativity Atoms of different elements have different attractions for bonding electrons. Pauling worked out values for electronegativity.

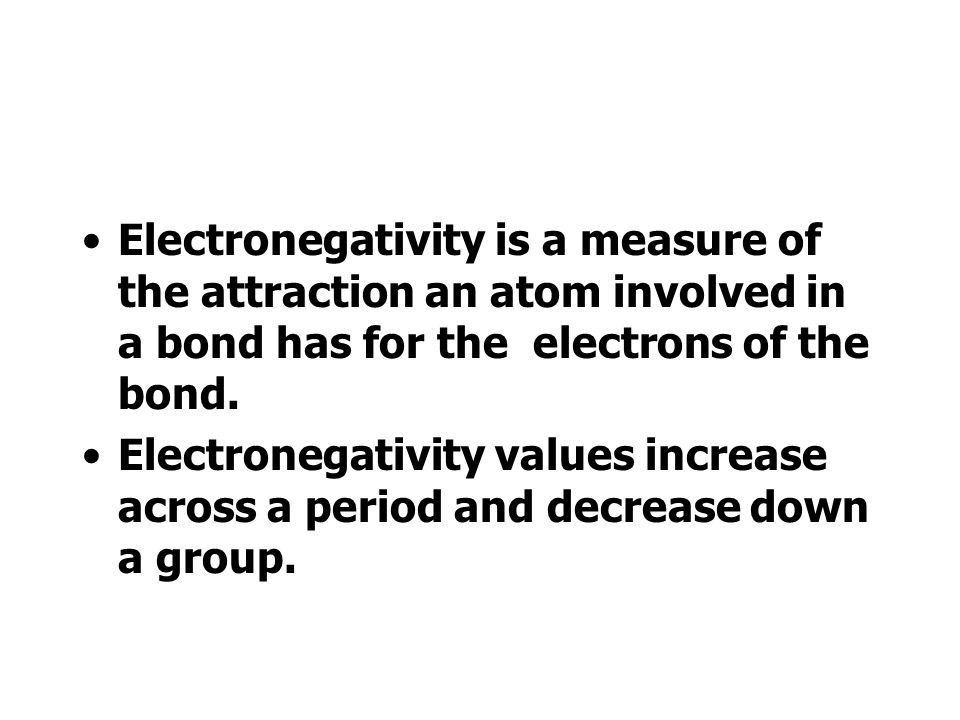

86 Electronegativity is a measure of the attraction an atom involved in a bond has for the electrons of the bond. Electronegativity values increase across a period and decrease down a group.

87 Patterns in the Periodic Table Click here to repeat Patterns in the Periodic Table. Click here to return to the Menu Click here to End.

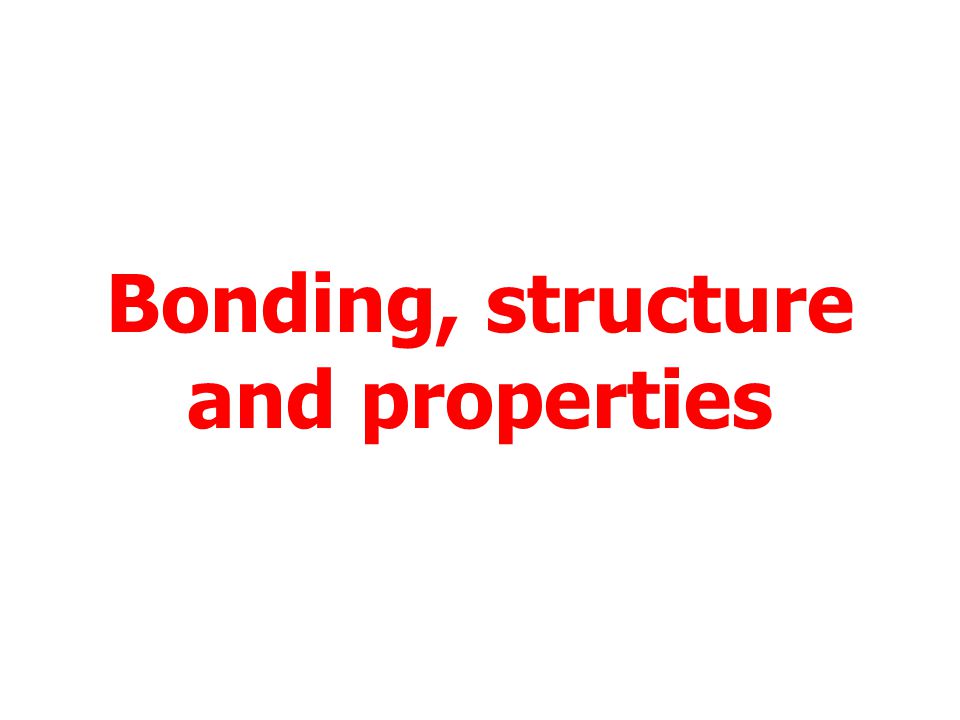

88 Bonding, structure and properties

89 Bonding Bonds are forces which hold particles together. There are two main kinds of forces Intramolecular forces Intermolecular forces

90 Intramolecular forces Intramolecular forces are the forces which hold atoms together. Covalent bonds are typical intramolecular forces.

91 Intermolecular forces Intermolecular forces are the forces which exist between molecules. Van der Waal s forces, dipole-dipole attractions and hydrogen bonds are typical intermolecular forces.

92 Metallic bonding Metals can lose their outer shell electrons to gain a stable electron arrangement. Metal atoms are arranged in a lattice and can also delocalise their outer shell electrons, allowing them to move freely between the atoms in the lattice.

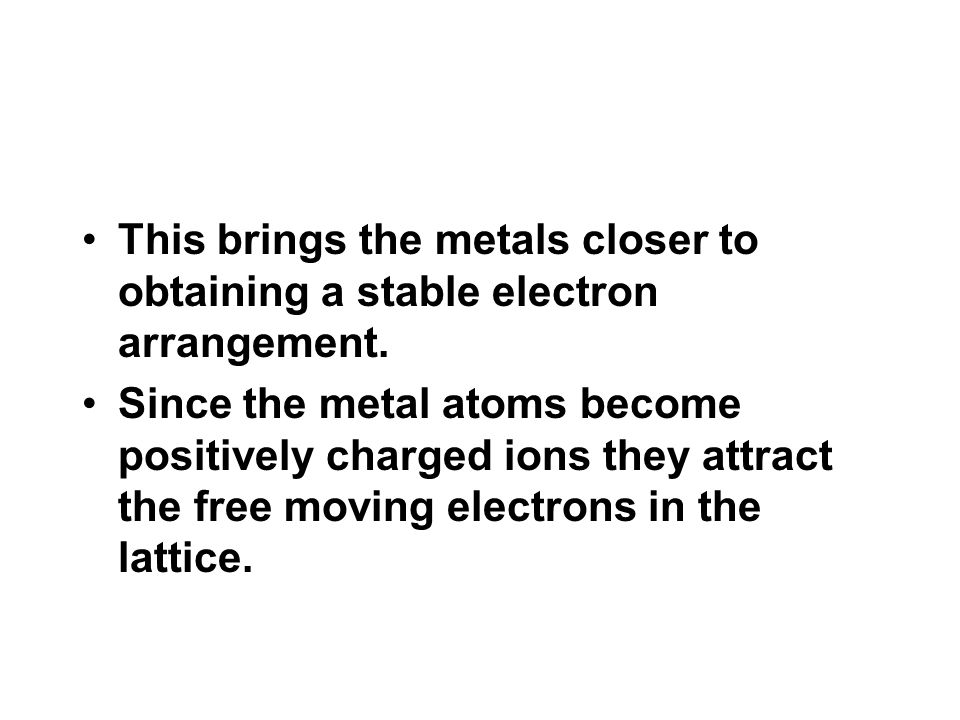

93 This brings the metals closer to obtaining a stable electron arrangement. Since the metal atoms become positively charged ions they attract the free moving electrons in the lattice.

94 This attraction forms a metallic bond which is very strong.

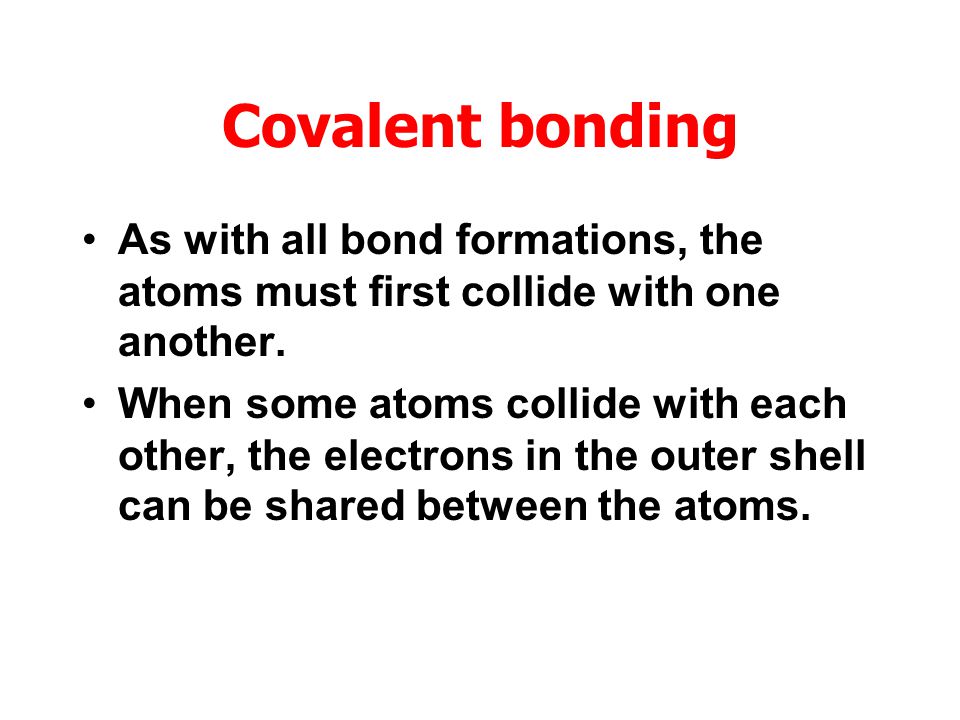

95 Covalent bonding As with all bond formations, the atoms must first collide with one another. When some atoms collide with each other, the electrons in the outer shell can be shared between the atoms.

96 The electrons of the two atoms are both negatively charged and repel each other. When a collision takes place with sufficient energy to form a compound, the outer energy levels overlap and the atoms share the electrons. The overlap area has an increase in negative charge, which is strongly attracted by the positive nuclei of both atoms.

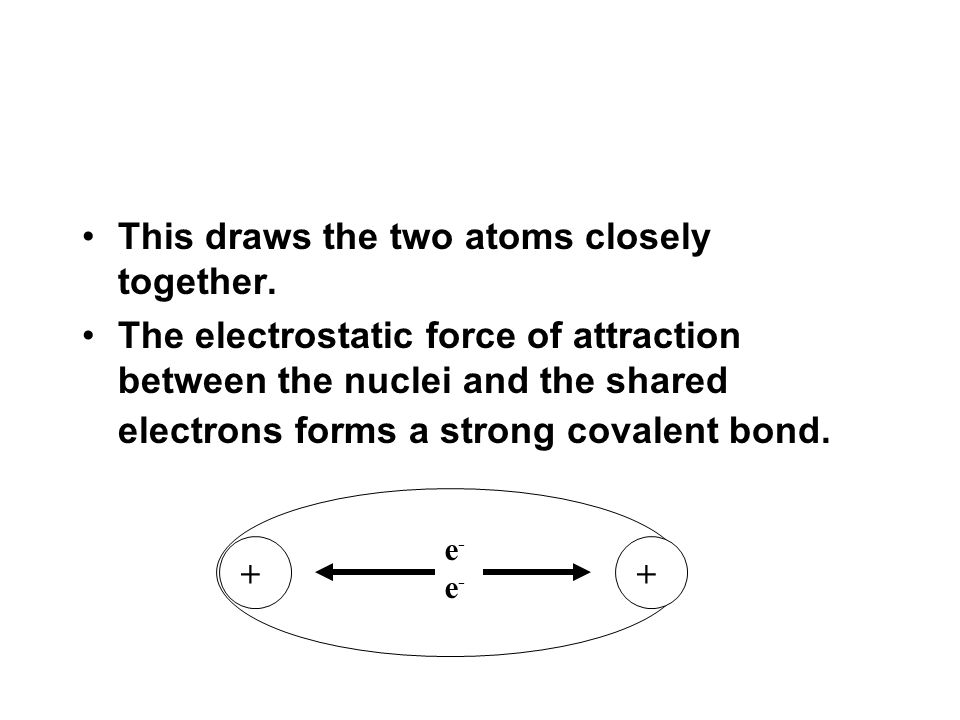

97 This draws the two atoms closely together. The electrostatic force of attraction between the nuclei and the shared electrons forms a strong covalent bond. e-e-e-e- ++

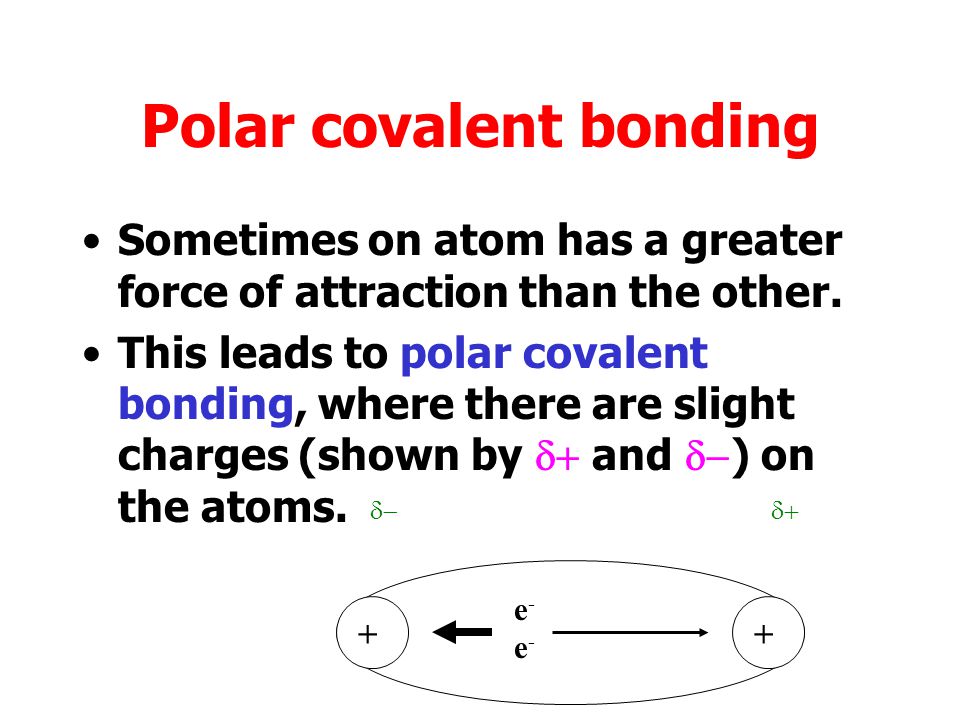

98 Polar covalent bonding Sometimes on atom has a greater force of attraction than the other. This leads to polar covalent bonding, where there are slight charges (shown by and ) on the atoms. e-e-e-e- ++

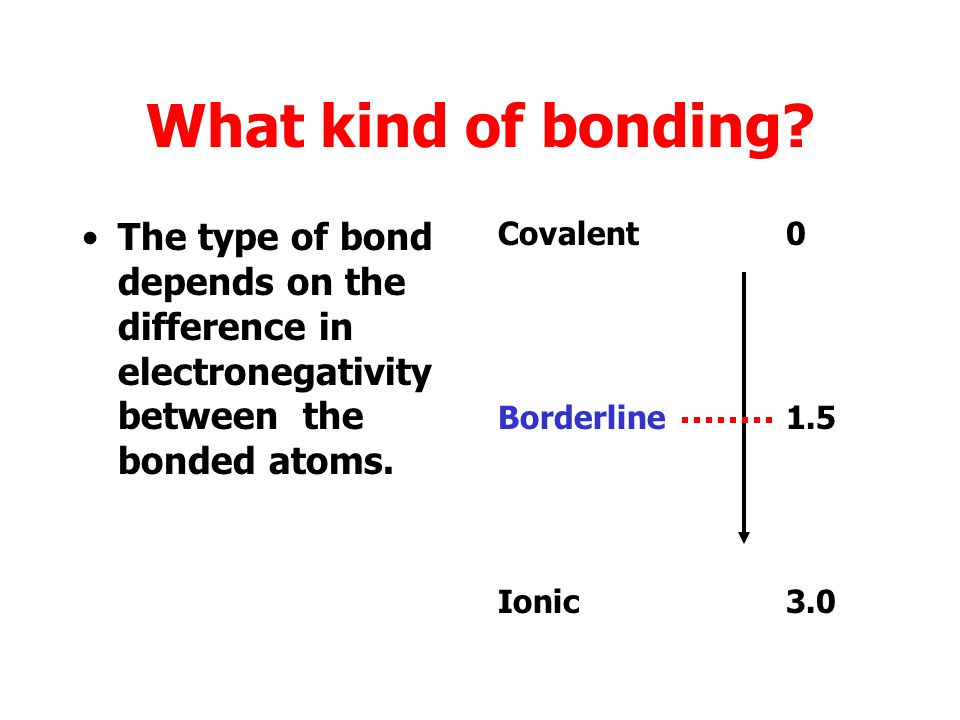

99 What kind of bonding? The type of bond depends on the difference in electronegativity between the bonded atoms. Covalent0 Borderline 1.5 Ionic3.0

100 Ionic bonding An ionic bond usually occurs between a metal and a non-metal and involves ions, which are charged atoms (or groups of atoms). In ionic bonding, electrons are transferred from one atom to another allowing both atoms to achieve a stable electron arrangement.

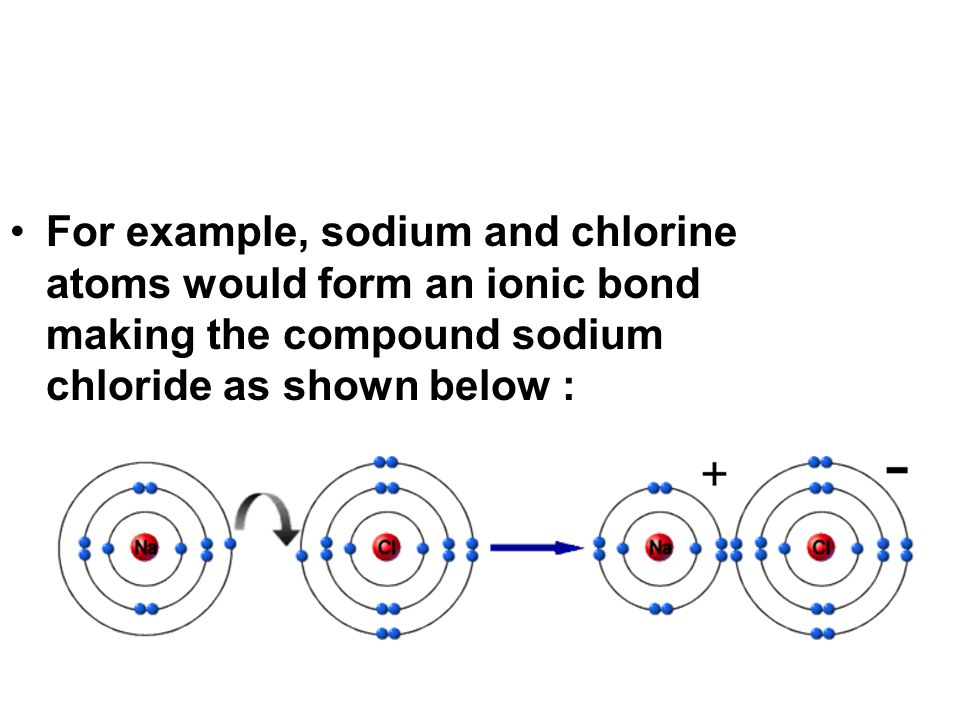

101 For example, sodium and chlorine atoms would form an ionic bond making the compound sodium chloride as shown below :

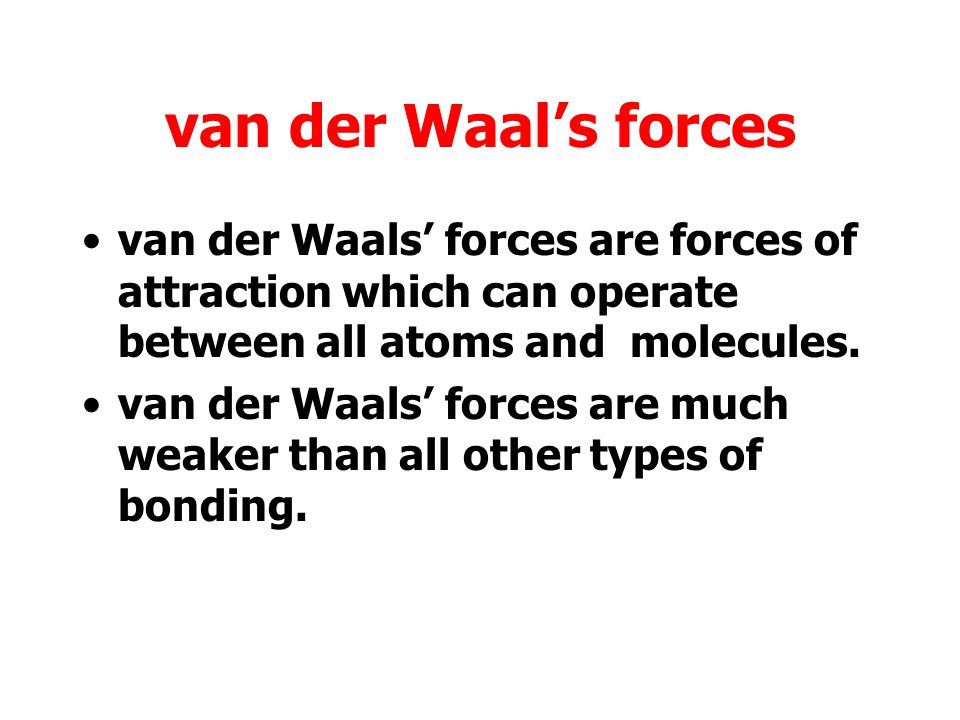

102 van der Waals forces van der Waals forces are forces of attraction which can operate between all atoms and molecules. van der Waals forces are much weaker than all other types of bonding.

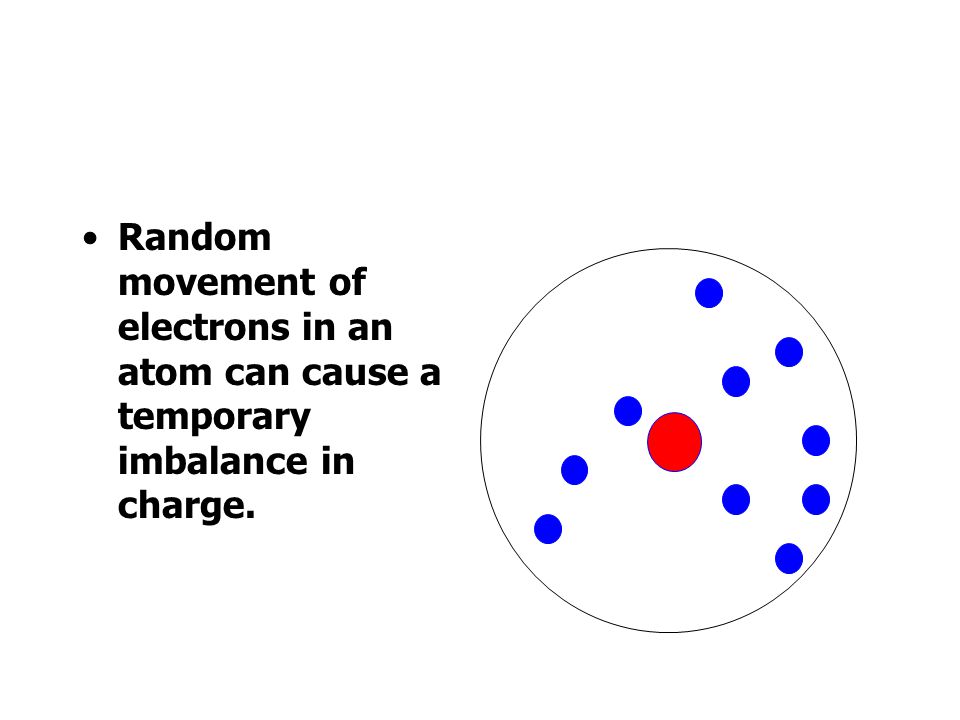

103 Random movement of electrons in an atom can cause a temporary imbalance in charge.

104 The force of attraction between two such atoms is called van der Waals force.

105 Thus van der Waals forces are a result of electrostatic attraction between temporary dipoles, caused by movement of electrons in atoms and molecules. The strength of van der Waals forces is related to the size of the atoms or molecules.

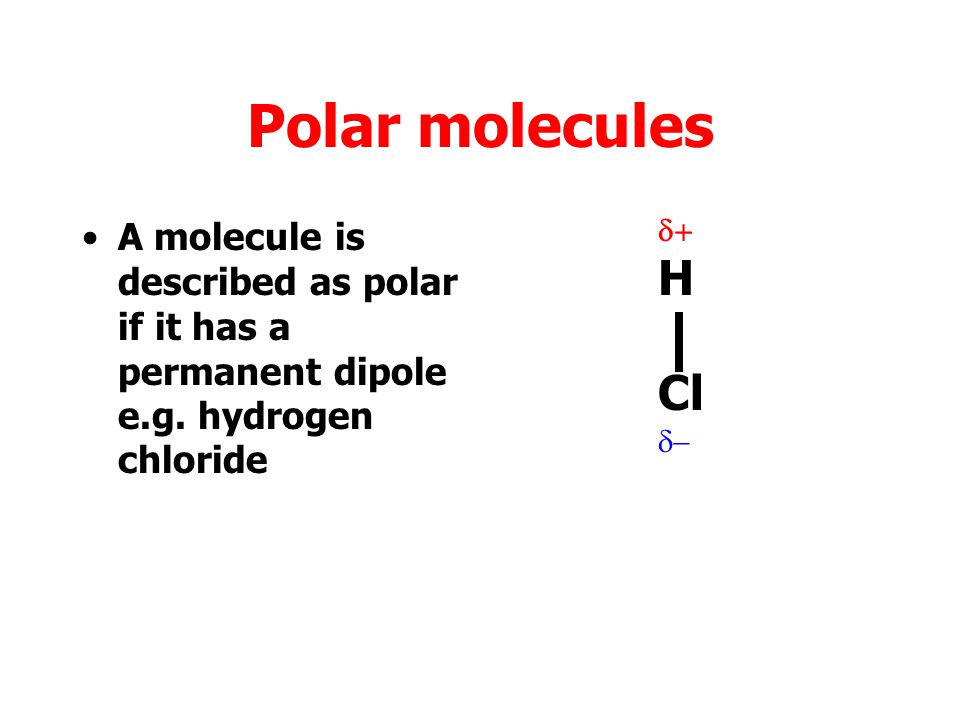

106 Polar molecules A molecule is described as polar if it has a permanent dipole e.g. hydrogen chloride H Cl

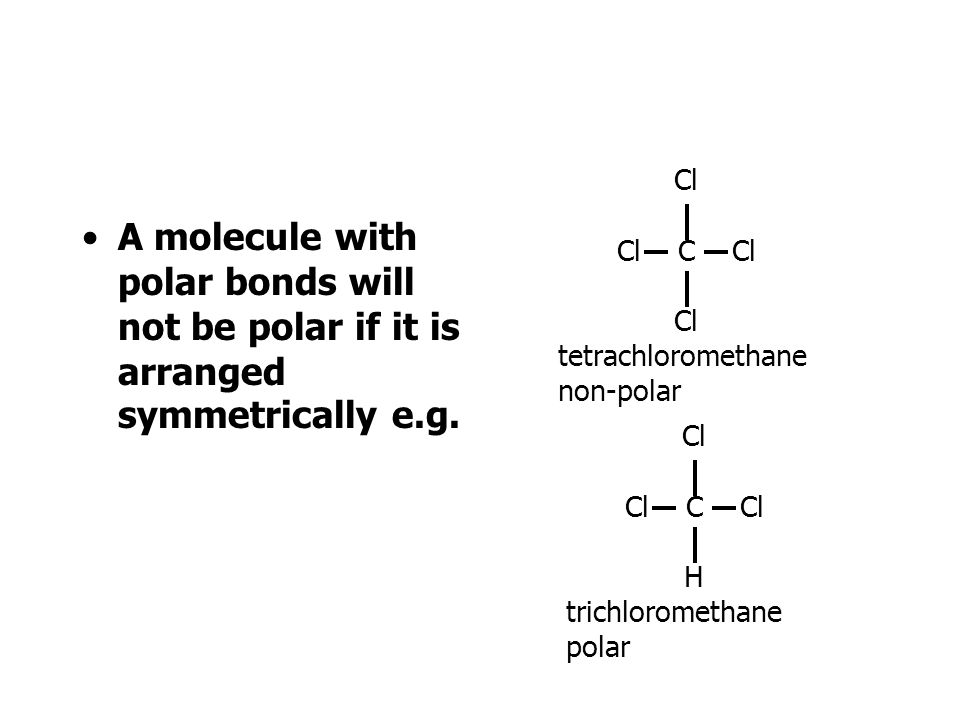

107 A molecule with polar bonds will not be polar if it is arranged symmetrically e.g. Cl Cl C Cl Cl tetrachloromethane non-polar Cl Cl C Cl H trichloromethane polar

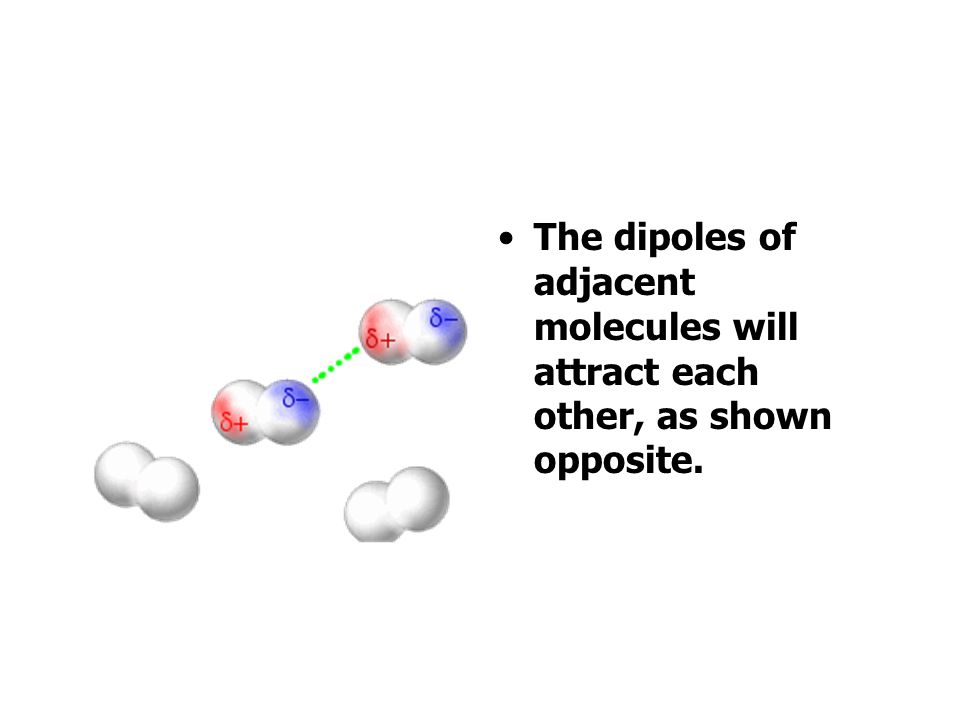

108 The dipoles of adjacent molecules will attract each other, as shown opposite.

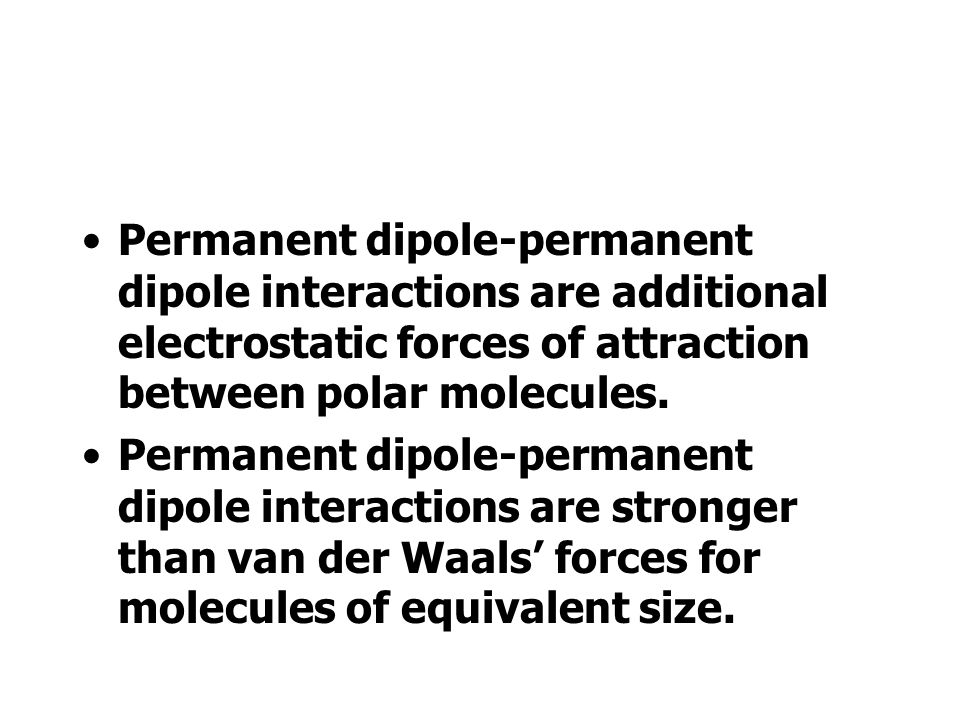

109 Permanent dipole-permanent dipole interactions are additional electrostatic forces of attraction between polar molecules. Permanent dipole-permanent dipole interactions are stronger than van der Waals forces for molecules of equivalent size.

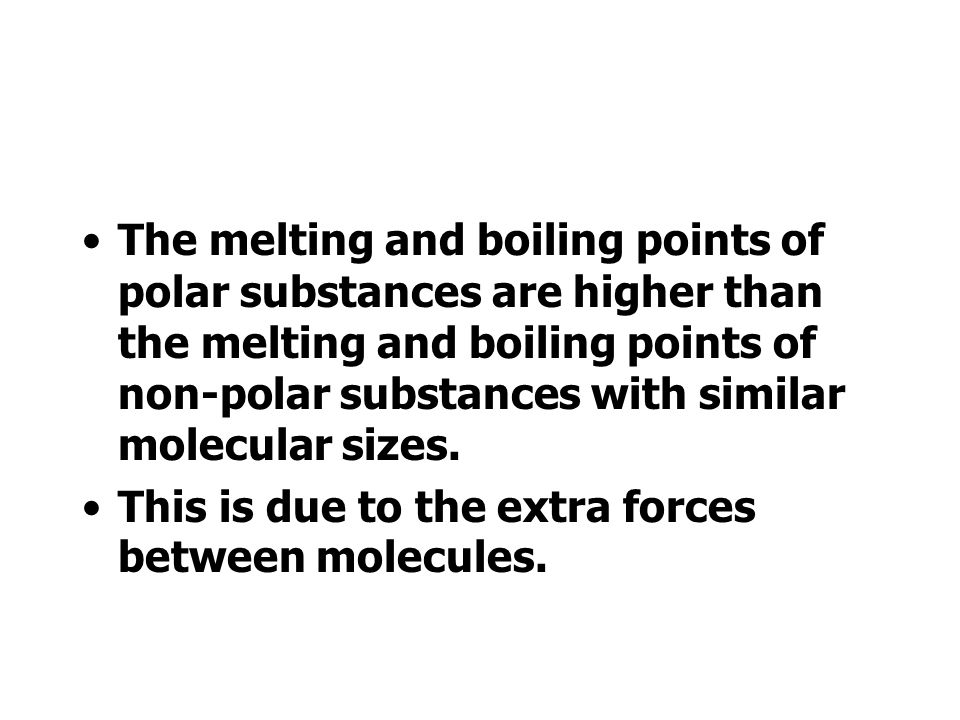

110 The melting and boiling points of polar substances are higher than the melting and boiling points of non-polar substances with similar molecular sizes. This is due to the extra forces between molecules.

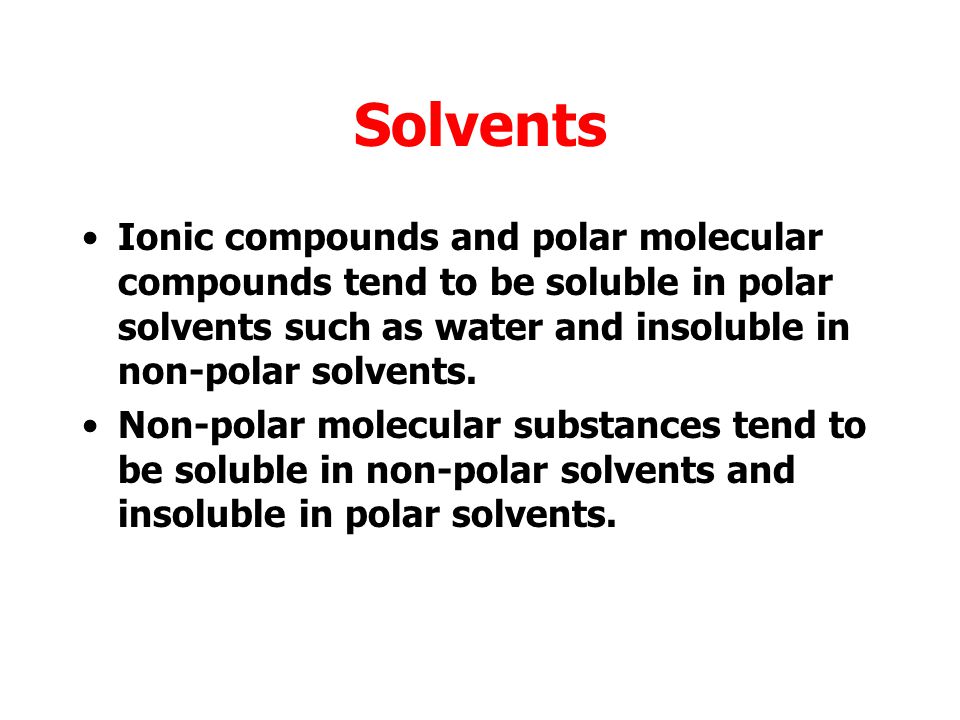

111 Solvents Ionic compounds and polar molecular compounds tend to be soluble in polar solvents such as water and insoluble in non-polar solvents. Non-polar molecular substances tend to be soluble in non-polar solvents and insoluble in polar solvents.

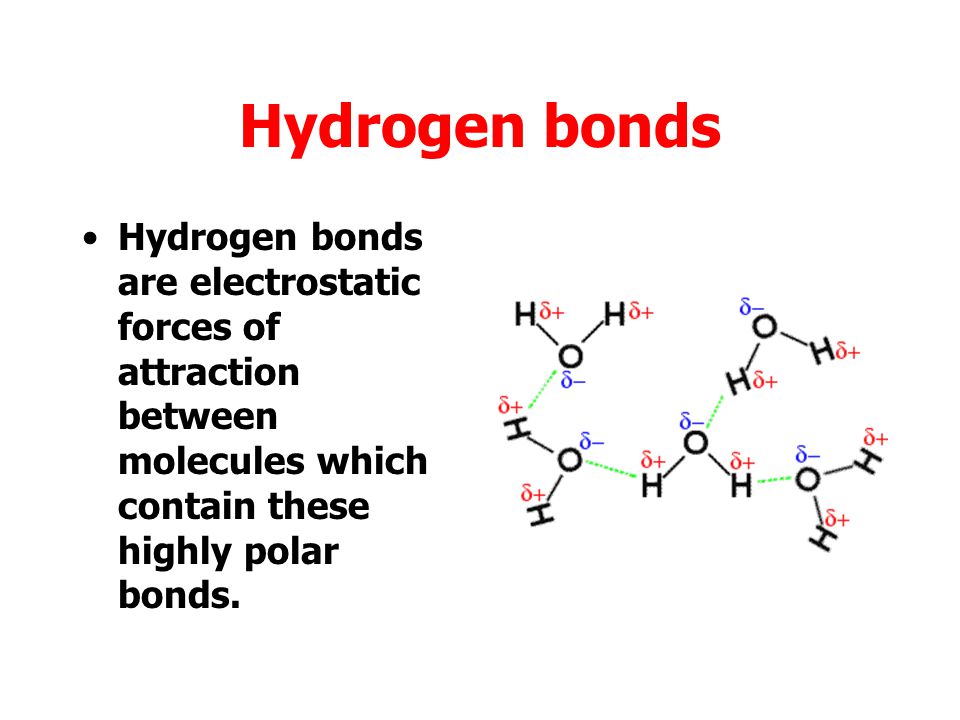

112 Hydrogen bonds Hydrogen bonds are electrostatic forces of attraction between molecules which contain these highly polar bonds.

113 A hydrogen bond is stronger than other forms of permanent dipole-permanent dipole interaction but weaker than a covalent bond. Bonds consisting of a hydrogen atom bonded to an atom of a strongly electronegative element such as fluorine, oxygen or nitrogen are highly polar.

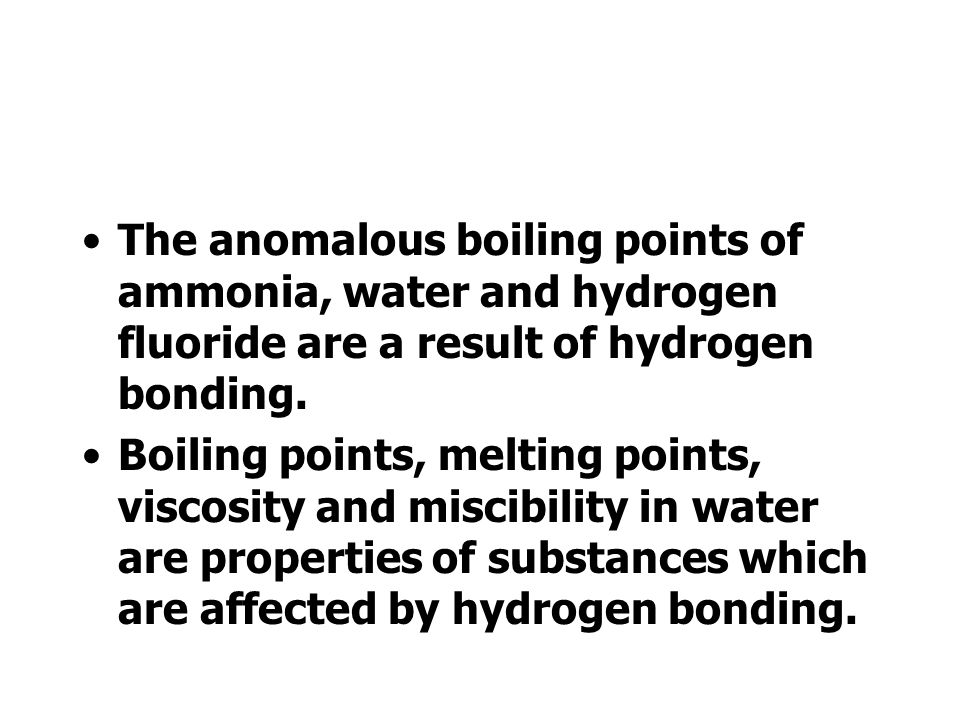

114 The anomalous boiling points of ammonia, water and hydrogen fluoride are a result of hydrogen bonding. Boiling points, melting points, viscosity and miscibility in water are properties of substances which are affected by hydrogen bonding.

115 Hydrogen bonding between molecules in ice results in an expanded structure which causes the density of ice to be less than that of water at low temperatures.

116 Structure Different materials have different structures Metallic Ionic Covalent molecular Covalent network Monatomic

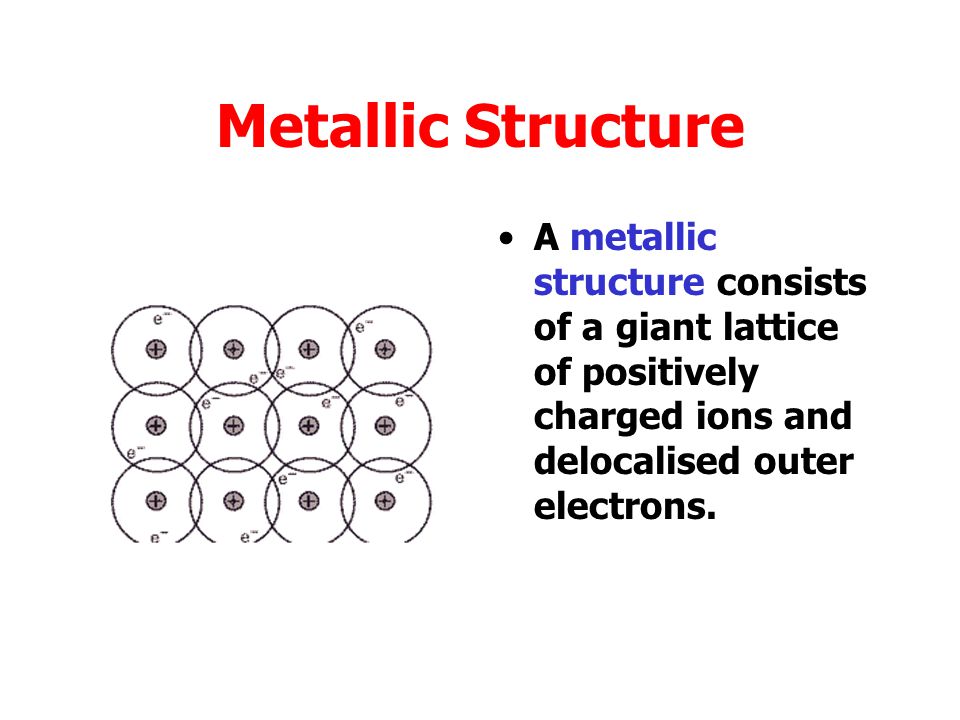

117 Metallic Structure A metallic structure consists of a giant lattice of positively charged ions and delocalised outer electrons.

118 Ionic Structure An ionic structure consists of a giant lattice of oppositely charged ions. This structure only is found in compounds.

119 Covalent Molecular Structure A covalent molecular structure consists of discrete molecules held together by weak intermolecular forces. This can be found in elements (Cl 2 ) or compounds (CH 4 )

120 Covalent Network Structure A covalent network structure consists of a giant lattice of covalently bonded atoms. This structure is found in elements (C(diamond)) or compounds (SiO 2 or SiC)

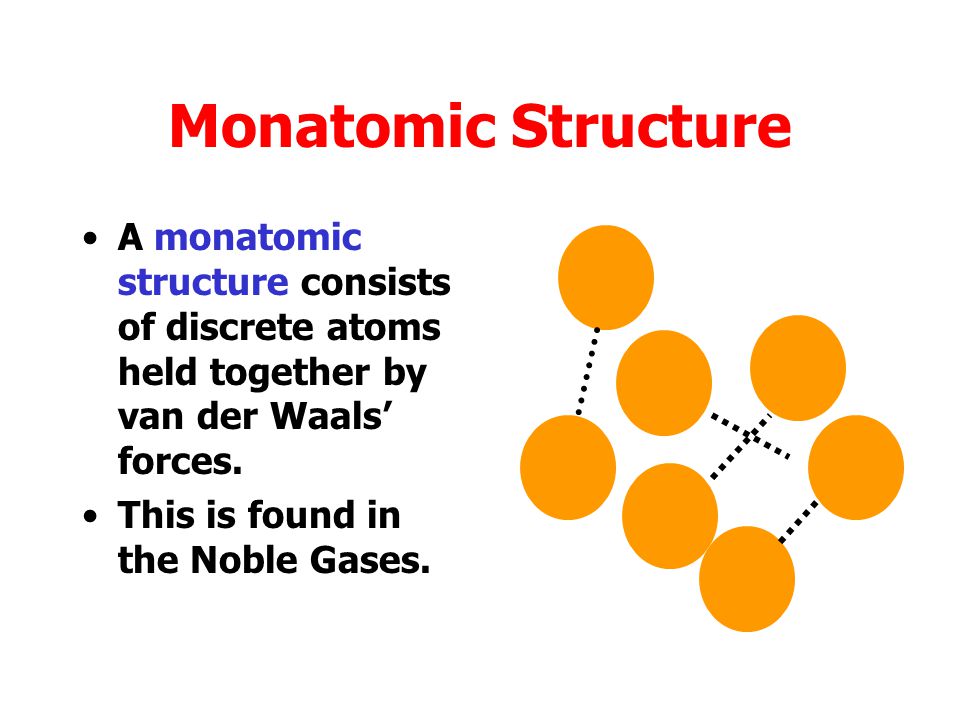

121 Monatomic Structure A monatomic structure consists of discrete atoms held together by van der Waals forces. This is found in the Noble Gases.

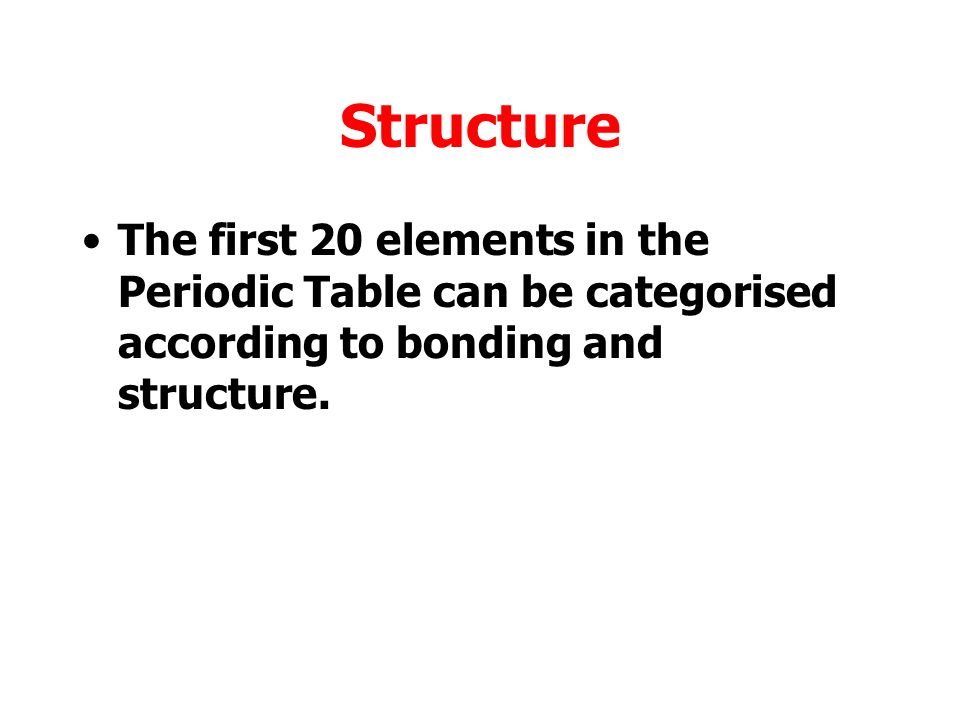

122 Structure The first 20 elements in the Periodic Table can be categorised according to bonding and structure.

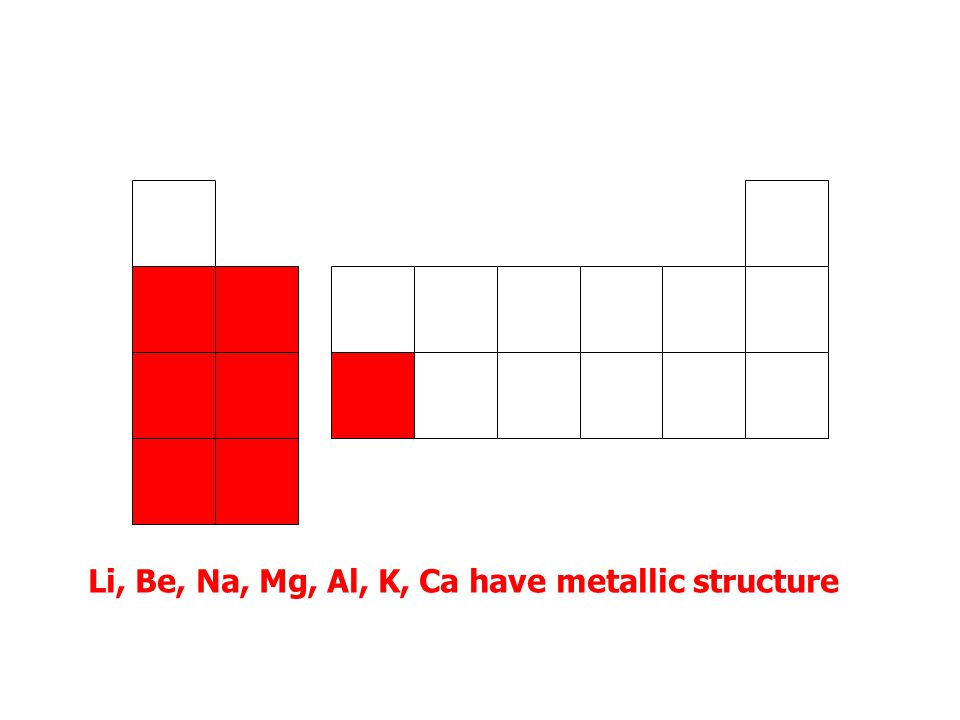

123 Li, Be, Na, Mg, Al, K, Ca have metallic structure

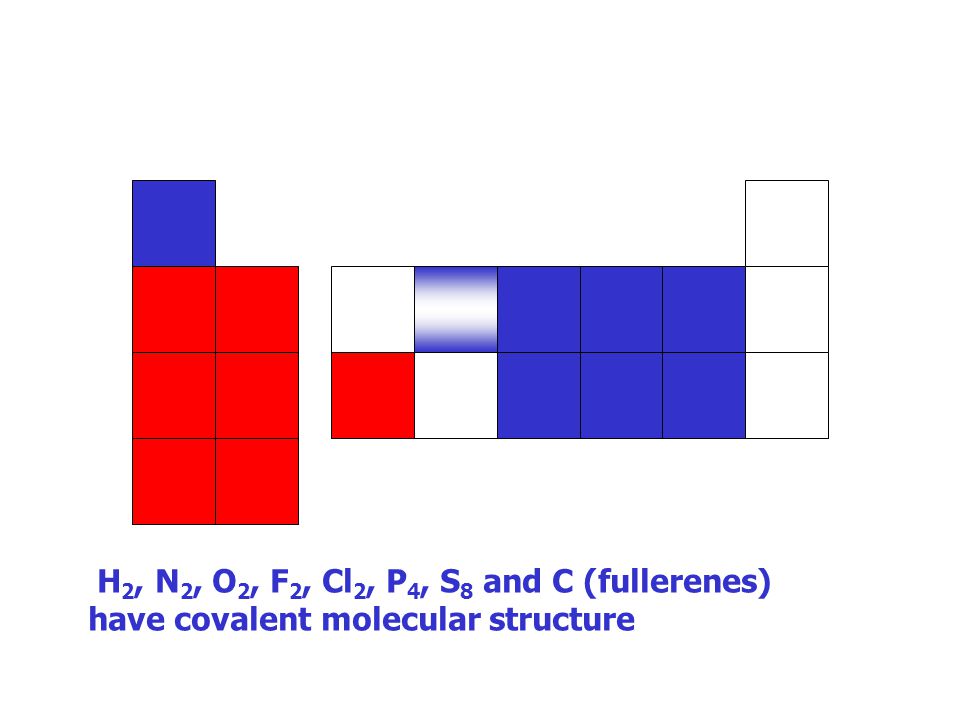

124 H 2, N 2, O 2, F 2, Cl 2, P 4, S 8 and C (fullerenes) have covalent molecular structure

125 B, C (diamond, graphite), Si) have covalent network structure

126 He, Ne and Ar have monatomic structure

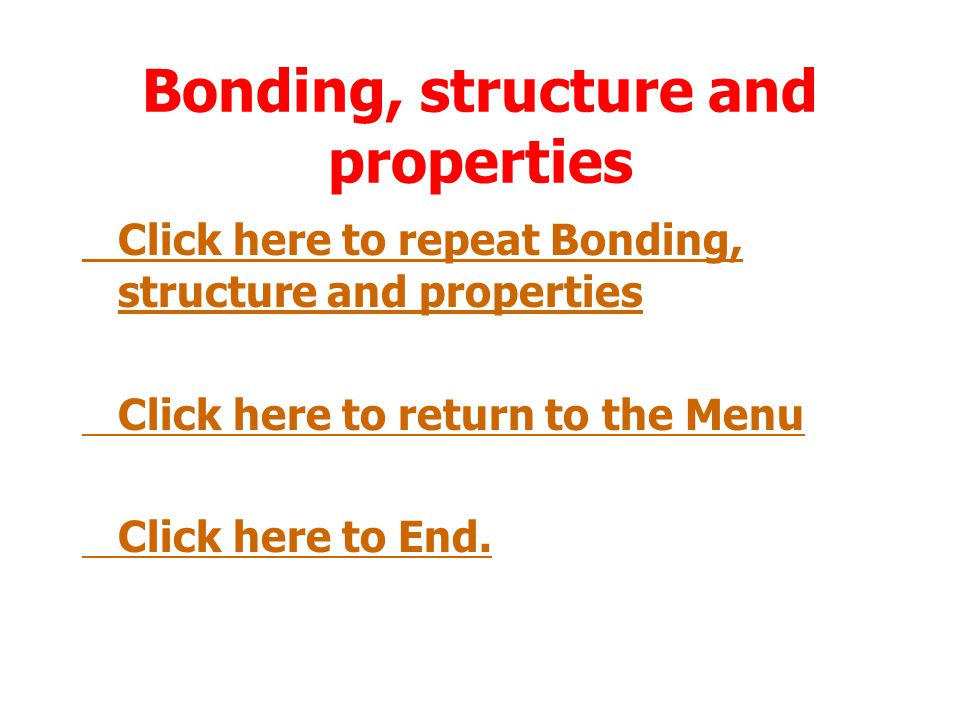

127 Bonding, structure and properties Click here to repeat Bonding, structure and properties Click here to return to the Menu Click here to End.

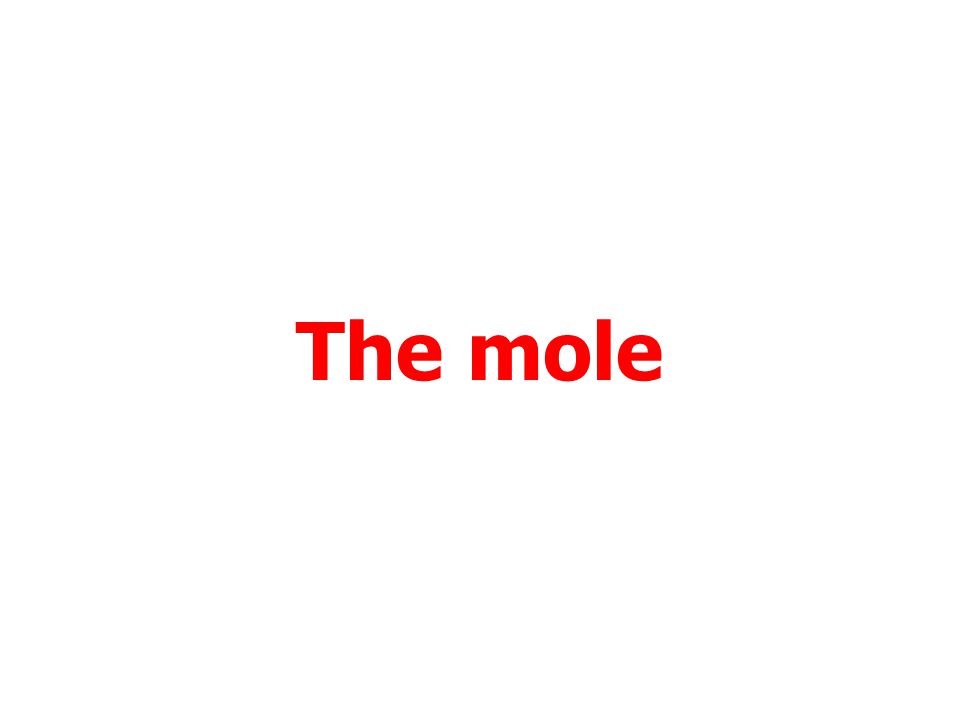

128 The mole

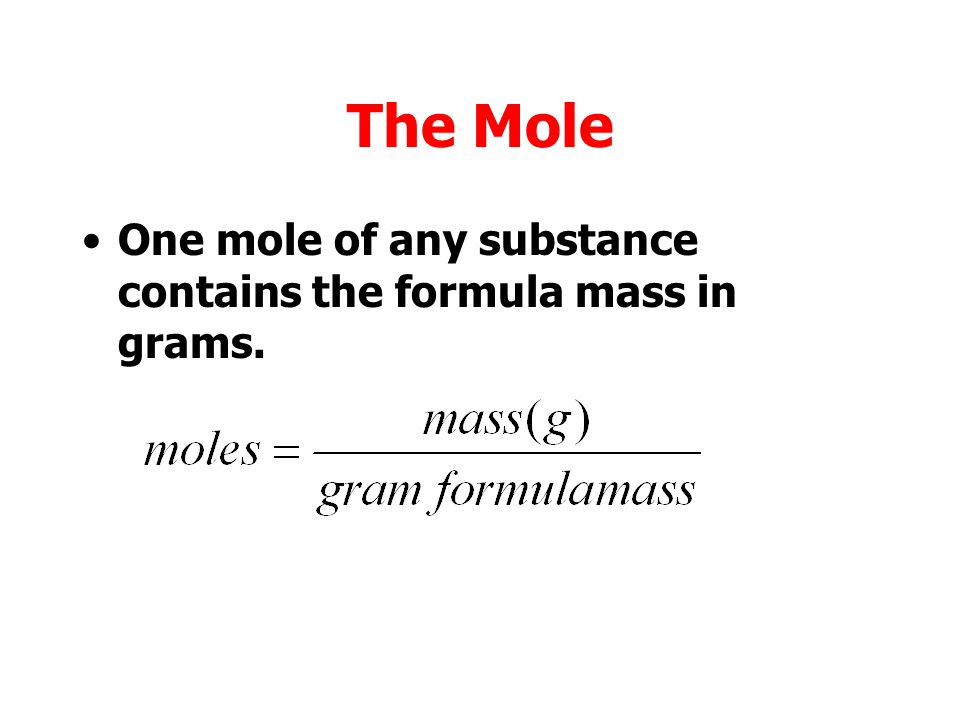

129 The Mole One mole of any substance contains the formula mass in grams.

130 A 1 mole per litre (mol/l) solution contains one mole in each litre of solution.

131 Each material is made up of different types of particles: atoms, molecules, ions. The basic blocks of each substance are called formula units.

132 Formula Units SubstanceExampleFormula Units Atomic element copperCu atoms Molecular element chlorineCl 2 molecules Covalent compound methaneCH 4 molecules Ionic compound calcium chloride 1xCa 2+ ions 2xCl - ions

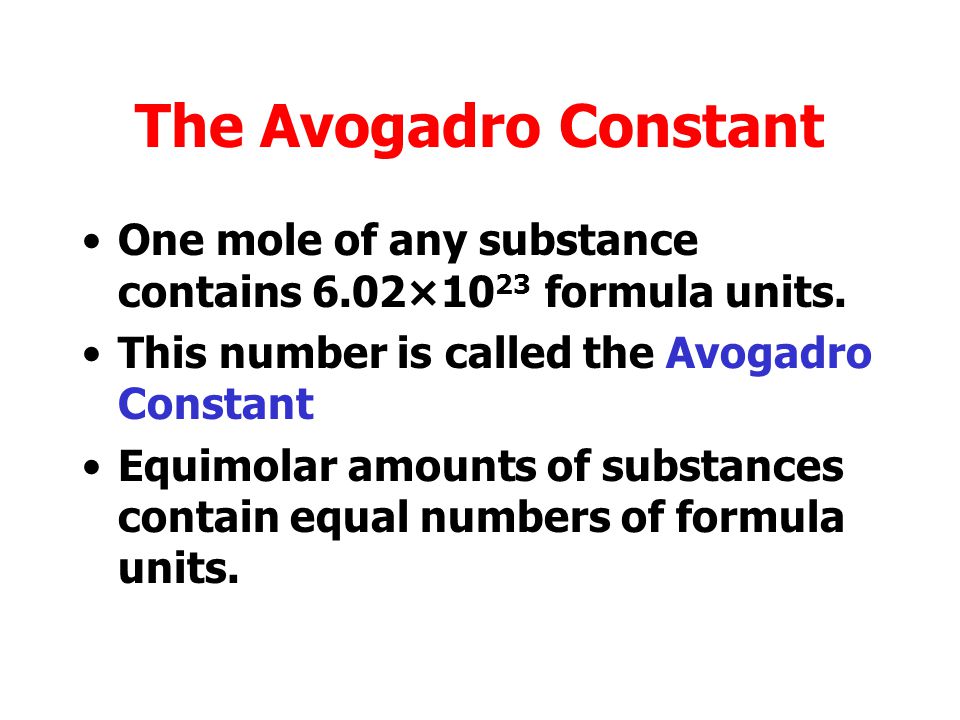

133 The Avogadro Constant One mole of any substance contains 6.02×10 23 formula units. This number is called the Avogadro Constant Equimolar amounts of substances contain equal numbers of formula units.

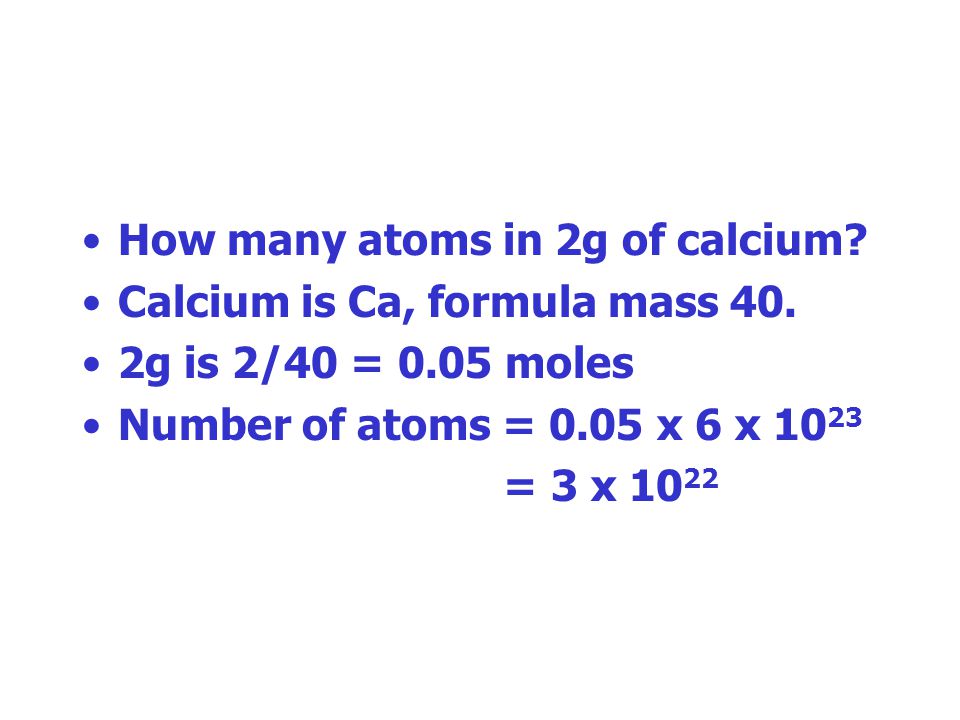

134 How many atoms in 2g of calcium? Calcium is Ca, formula mass 40. 2g is 2/40 = 0.05 moles Number of atoms = 0.05 x 6 x = 3 x 10 22

135 How many ions in 10 of calcium carbonate? Calcium carbonate is CaCO 3, formula mass g is 10/100 = 0.1 moles Number of formula units = 0.1x6x10 23 = 6x10 22 Each formula unit has 2 ions. Number of ions = 2 x 6x10 22 = 1.2x10 23

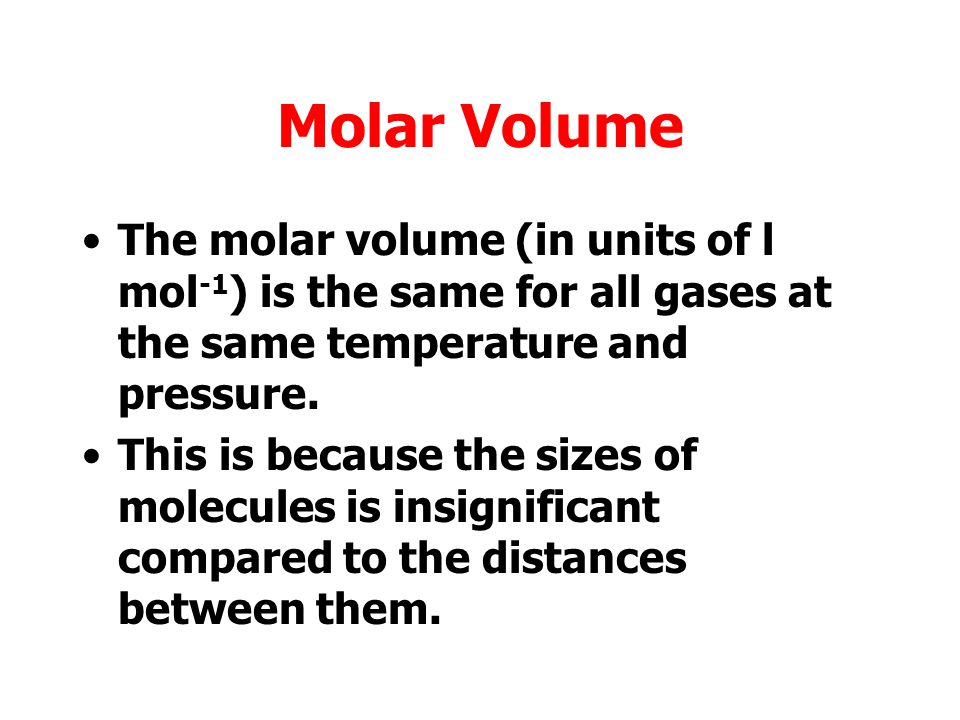

136 Molar Volume The molar volume (in units of l mol -1 ) is the same for all gases at the same temperature and pressure. This is because the sizes of molecules is insignificant compared to the distances between them.

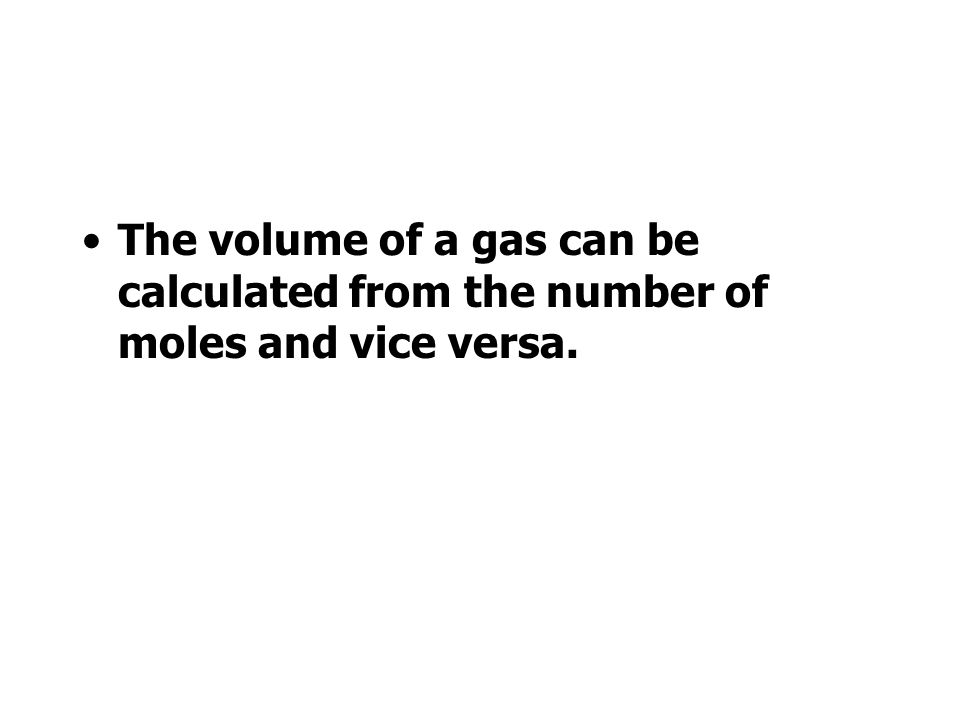

137 The volume of a gas can be calculated from the number of moles and vice versa.

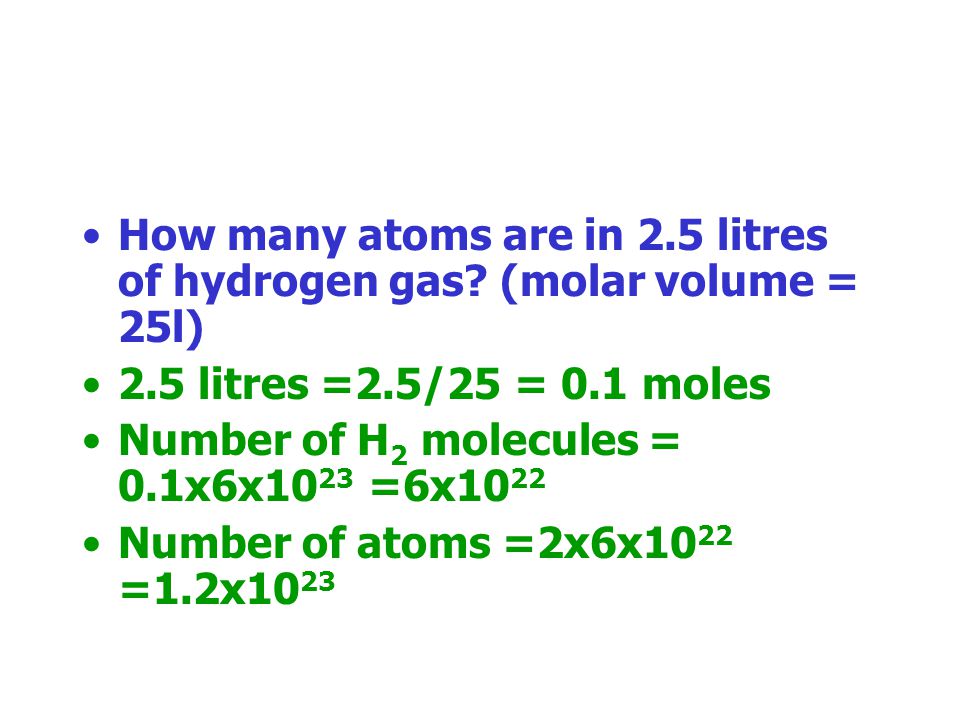

138 How many atoms are in 2.5 litres of hydrogen gas? (molar volume = 25l) 2.5 litres =2.5/25 = 0.1 moles Number of H 2 molecules = 0.1x6x10 23 =6x10 22 Number of atoms =2x6x10 22 =1.2x10 23

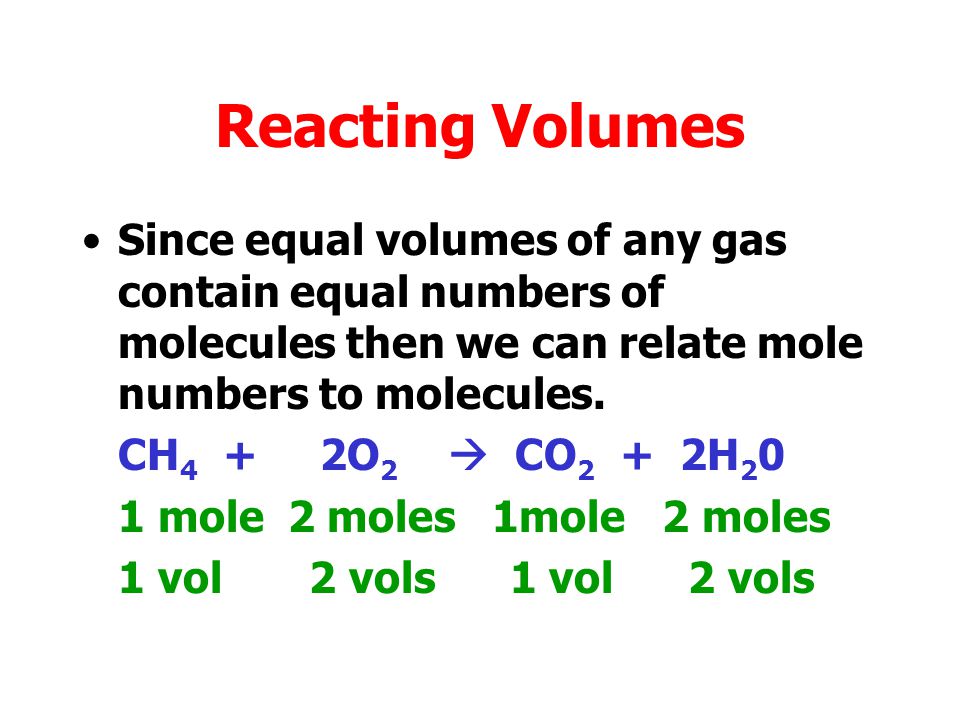

139 Reacting Volumes Since equal volumes of any gas contain equal numbers of molecules then we can relate mole numbers to molecules. CH 4 + 2O 2 CO 2 + 2H mole 2 moles 1mole 2 moles 1 vol 2 vols

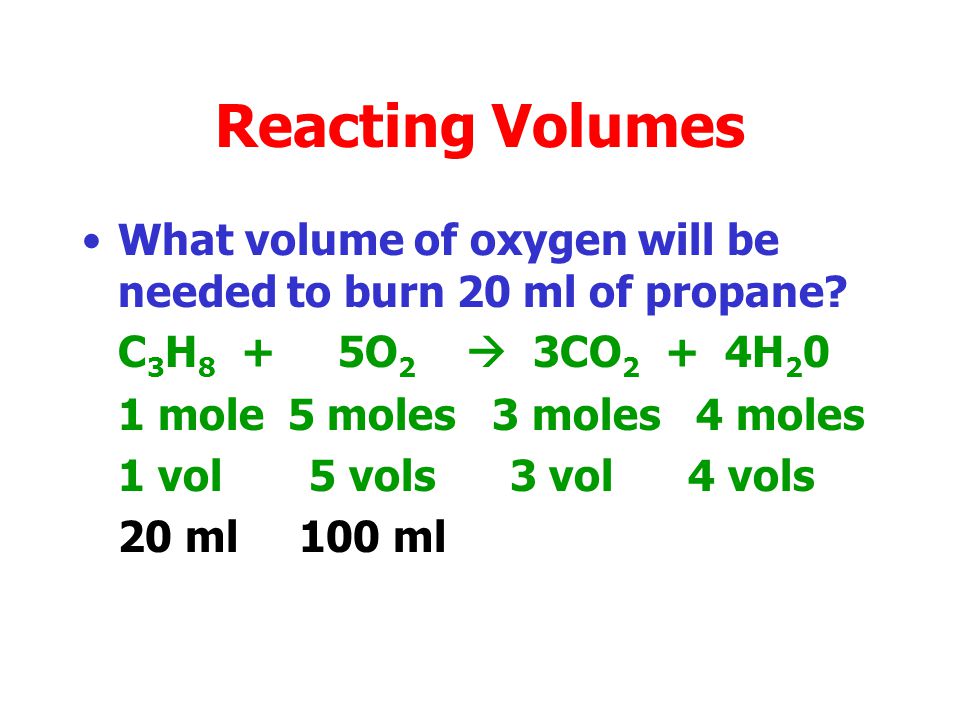

140 Reacting Volumes What volume of oxygen will be needed to burn 20 ml of propane? C 3 H 8 + 5O 2 3CO 2 + 4H mole 5 moles 3 moles 4 moles 1 vol 5 vols 3 vol 4 vols 20 ml 100 ml

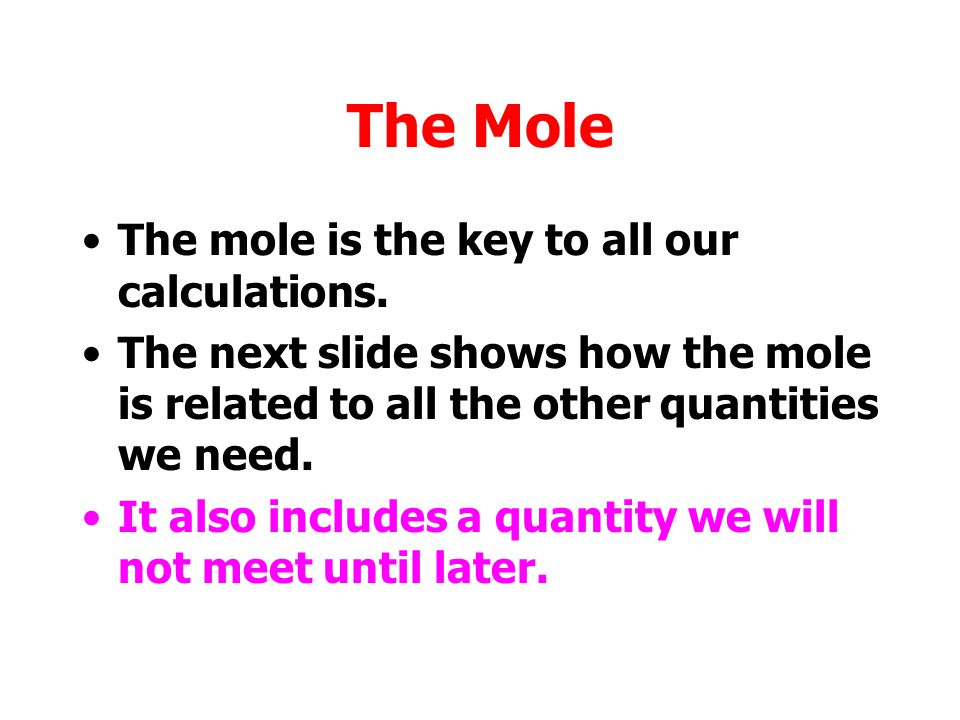

141 The Mole The mole is the key to all our calculations. The next slide shows how the mole is related to all the other quantities we need. It also includes a quantity we will not meet until later.

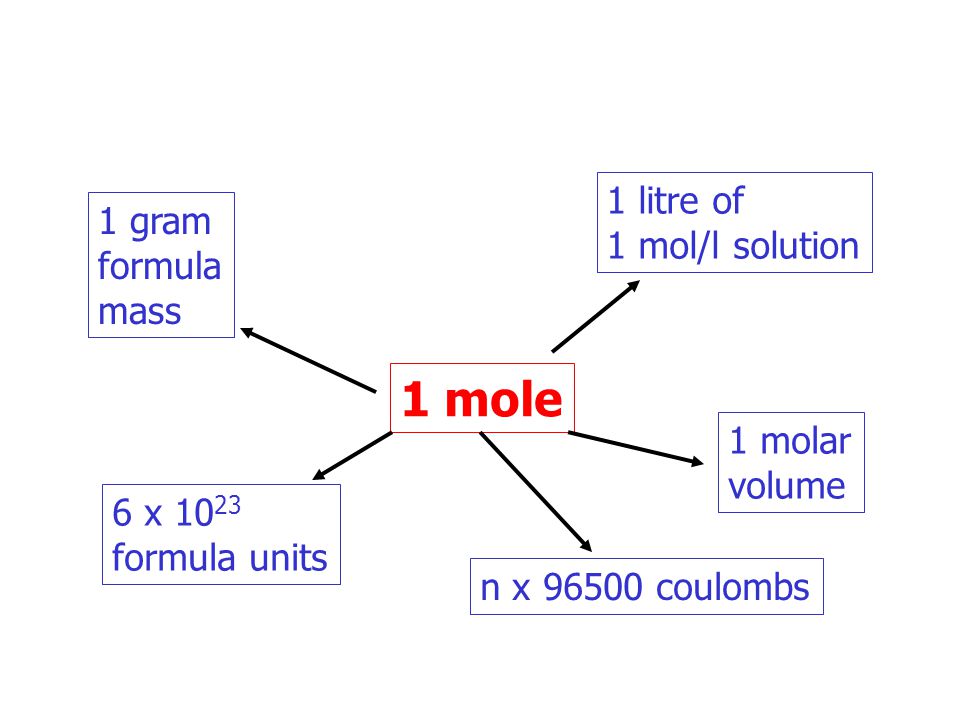

142 1 mole 1 gram formula mass 1 litre of 1 mol/l solution 6 x formula units 1 molar volume n x coulombs

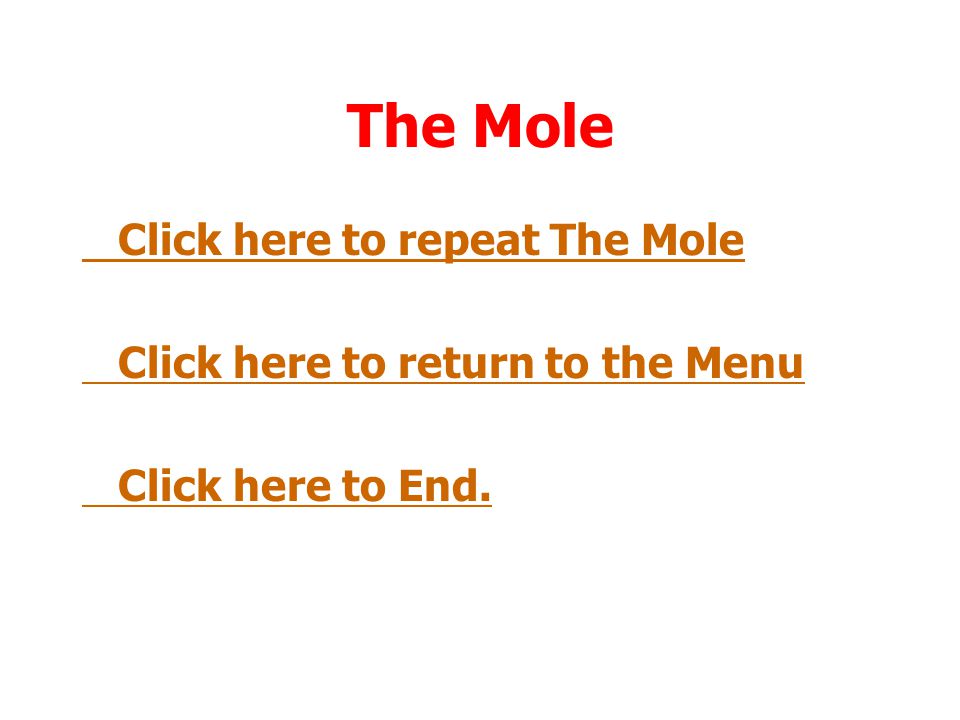

143 The Mole Click here to repeat The Mole Click here to return to the Menu Click here to End.

144 The End Hope you found the revision useful. Come back soon!!
