Welcome Preclassification of Vehicles for Weight Based Tolling By Rajdeep Info Techno Pvt. Ltd. RAJDEEP INFO-TECHNO PVT. LTD.

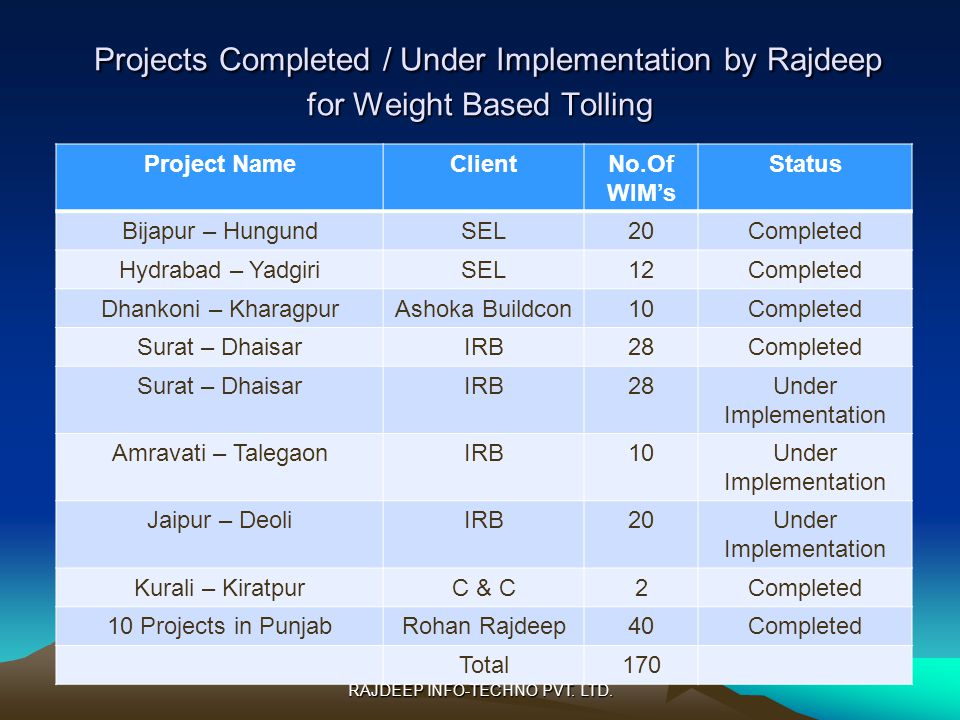

Projects Completed / Under Implementation by Rajdeep for Weight Based Tolling Projects Completed / Under Implementation by Rajdeep for Weight Based Tolling Project NameClientNo.Of WIMs Status Bijapur – HungundSEL20Completed Hydrabad – YadgiriSEL12Completed Dhankoni – KharagpurAshoka Buildcon10Completed Surat – DhaisarIRB28Completed Surat – DhaisarIRB28Under Implementation Amravati – TalegaonIRB10Under Implementation Jaipur – DeoliIRB20Under Implementation Kurali – KiratpurC & C2Completed 10 Projects in PunjabRohan Rajdeep40Completed Total170

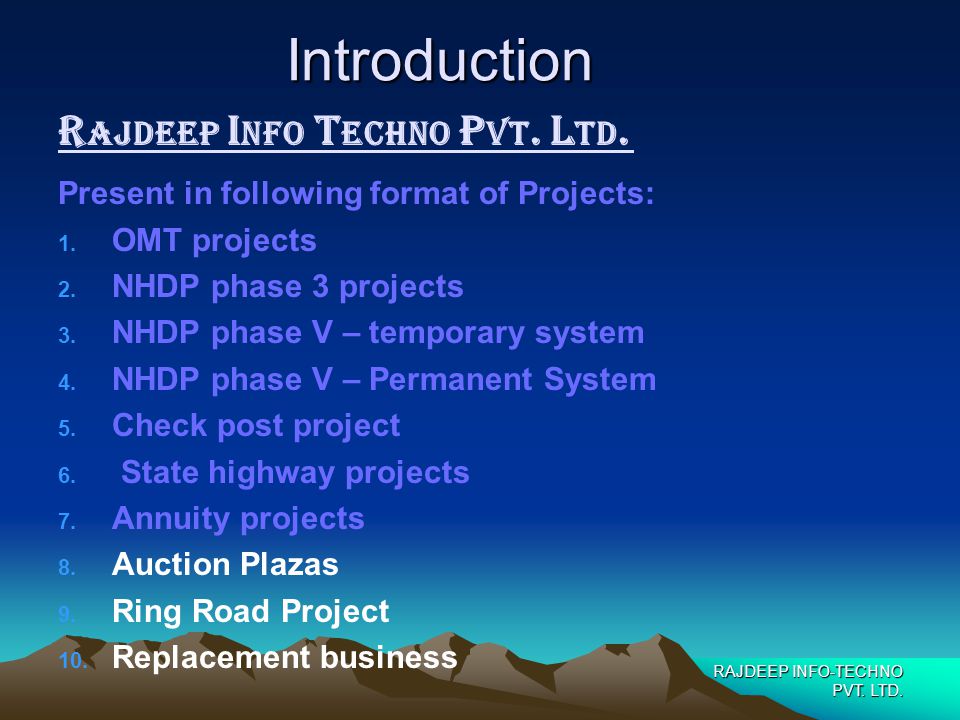

RAJDEEP INFO-TECHNO PVT. LTD. Introduction R AJDEEP I NFO T ECHNO P VT. L TD. Present in following format of Projects: 1. OMT projects 2. NHDP phase 3 projects 3. NHDP phase V – temporary system 4. NHDP phase V – Permanent System 5. Check post project 6. State highway projects 7. Annuity projects 8. Auction Plazas 9. Ring Road Project 10. Replacement business

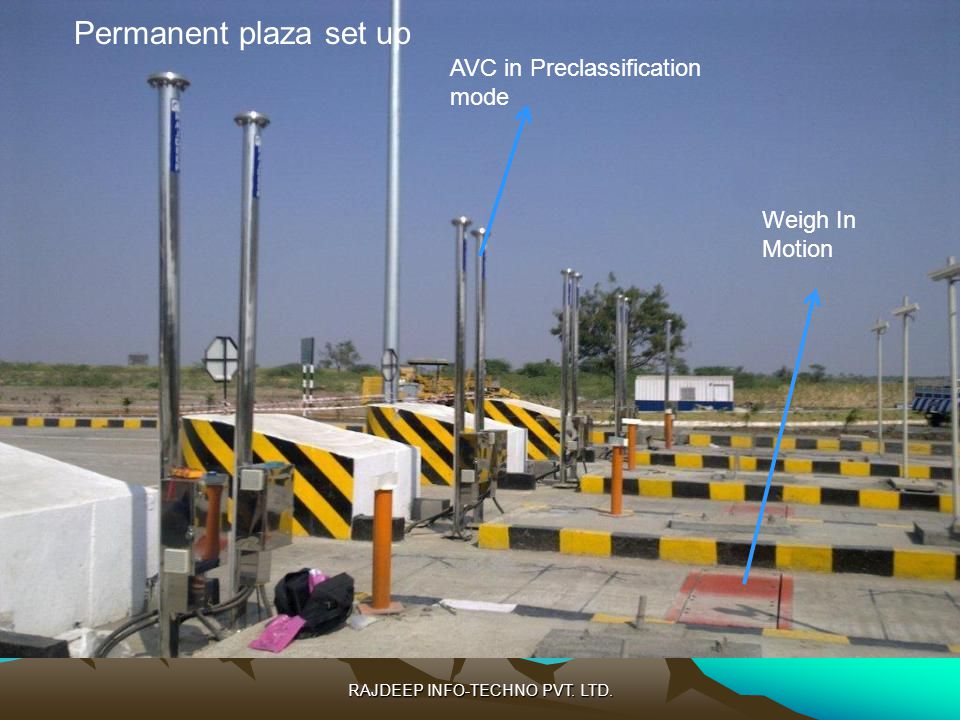

Bijapur – Hungund project (AVC and WIM in pre classification mode)
Bijapur – Hungund project (TLCs and cabling in tunnel)

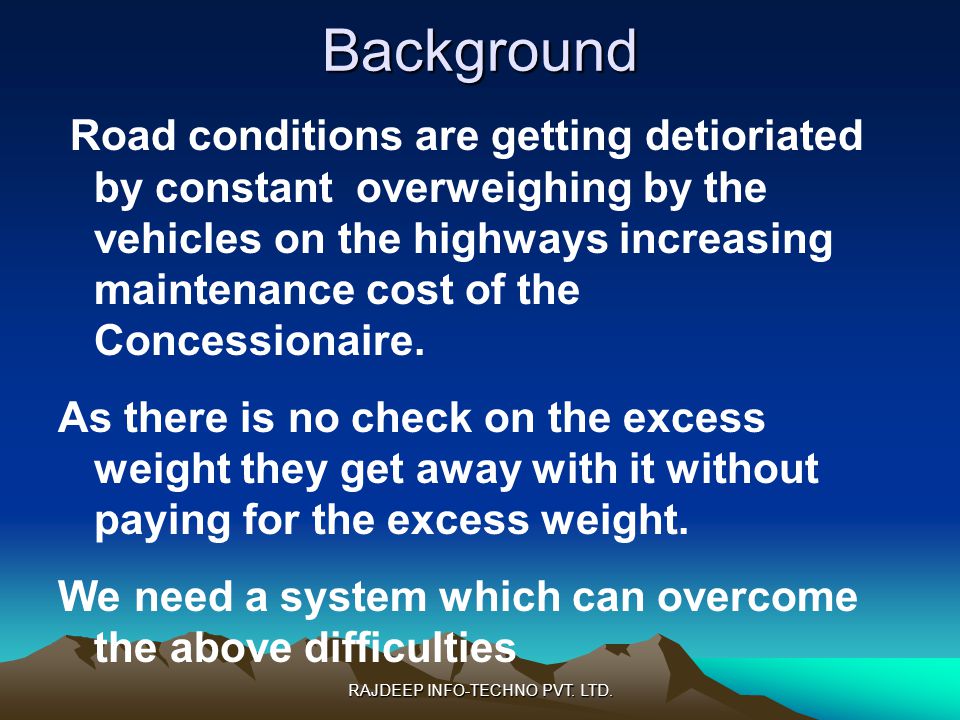

RAJDEEP INFO-TECHNO PVT. LTD. Background Road conditions are getting detioriated by constant overweighing by the vehicles on the highways increasing maintenance cost of the Concessionaire. As there is no check on the excess weight they get away with it without paying for the excess weight. We need a system which can overcome the above difficulties

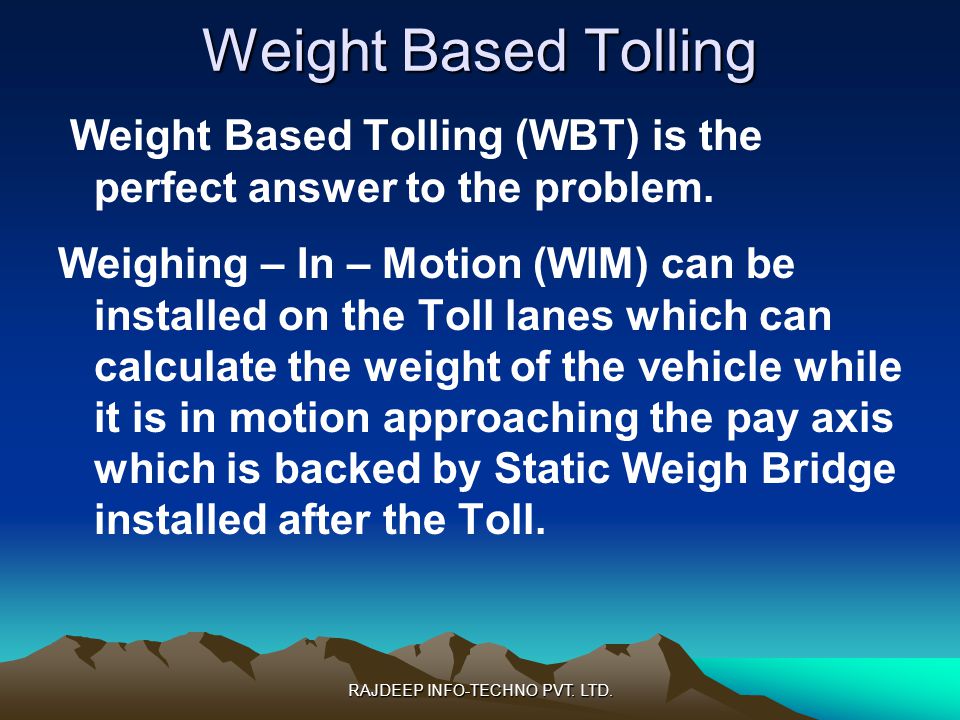

RAJDEEP INFO-TECHNO PVT. LTD. Weight Based Tolling Weight Based Tolling (WBT) is the perfect answer to the problem. Weighing – In – Motion (WIM) can be installed on the Toll lanes which can calculate the weight of the vehicle while it is in motion approaching the pay axis which is backed by Static Weigh Bridge installed after the Toll.
RAJDEEP INFO-TECHNO PVT. LTD. Methodology Weight Based Tolling works best under Pre-Classification. Vehicle classification by the system (AVC) should be in Pre-Classification approx 24 mtrs before pay axis WIM should be placed in Pre- Classification approx. 22 mtrs before the pay axis.

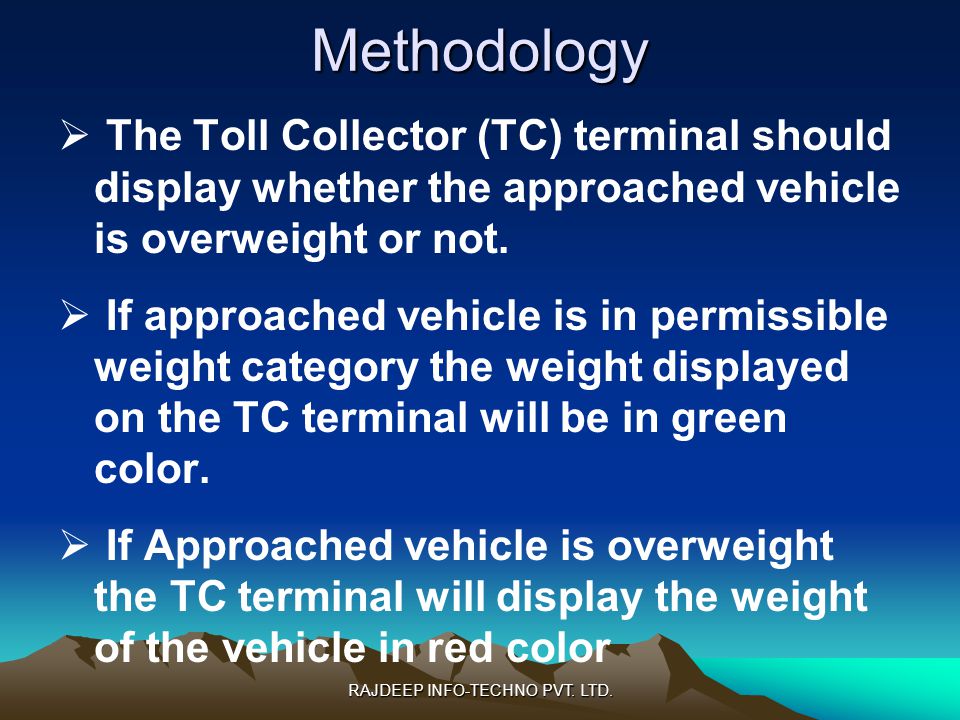

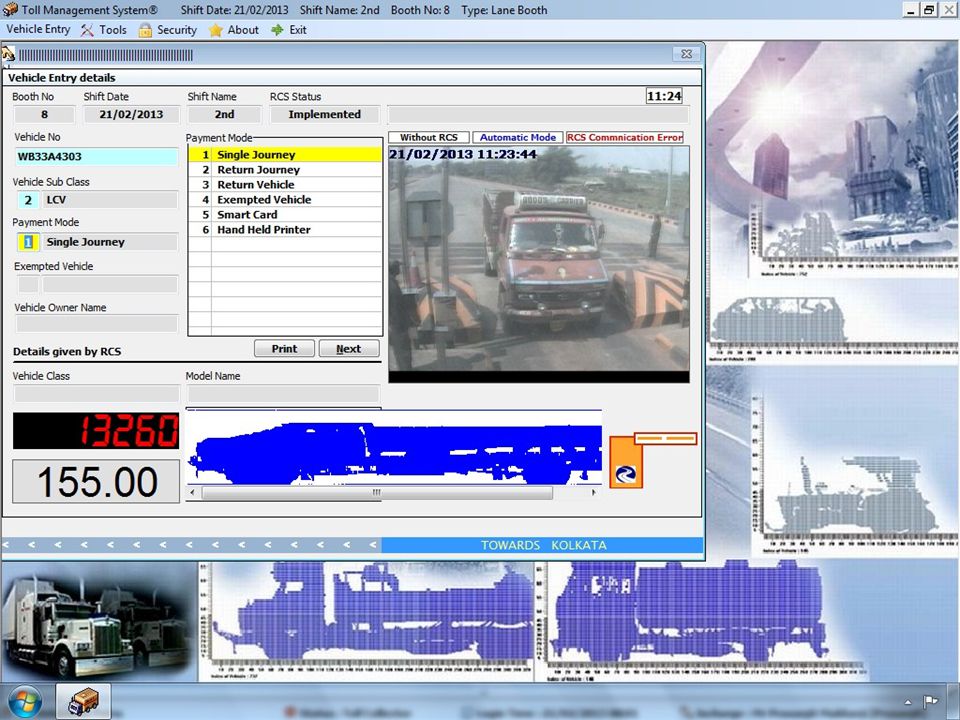

RAJDEEP INFO-TECHNO PVT. LTD. Methodology The Toll Collector (TC) terminal should display whether the approached vehicle is overweight or not. If approached vehicle is in permissible weight category the weight displayed on the TC terminal will be in green color. If Approached vehicle is overweight the TC terminal will display the weight of the vehicle in red color
RAJDEEP INFO-TECHNO PVT. LTD.

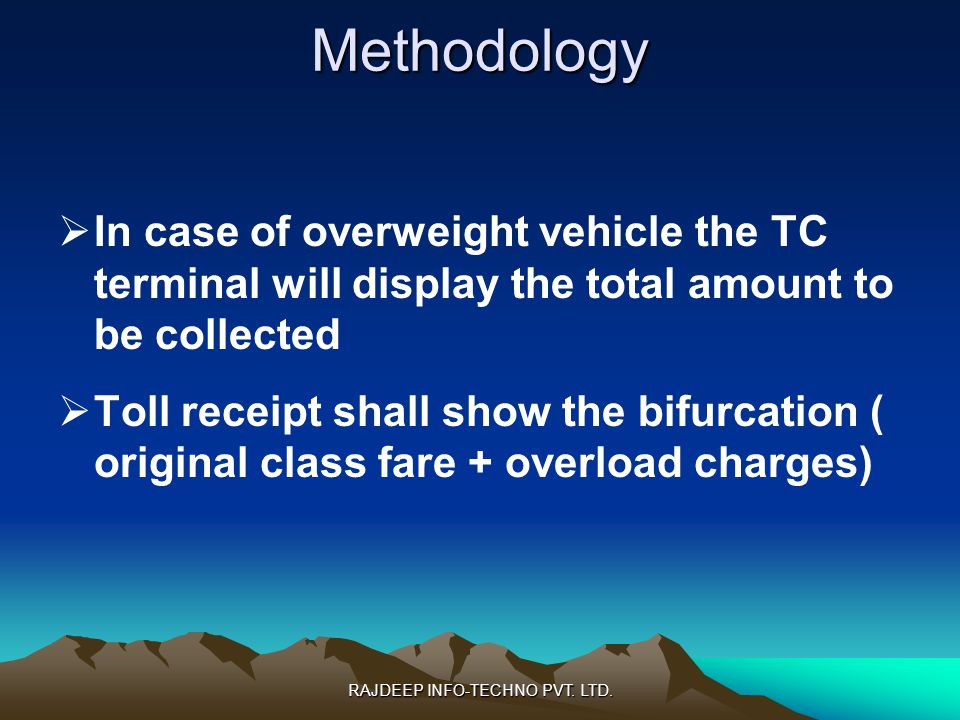

Methodology In case of overweight vehicle the TC terminal will display the total amount to be collected Toll receipt shall show the bifurcation ( original class fare + overload charges)
RAJDEEP INFO-TECHNO PVT. LTD.

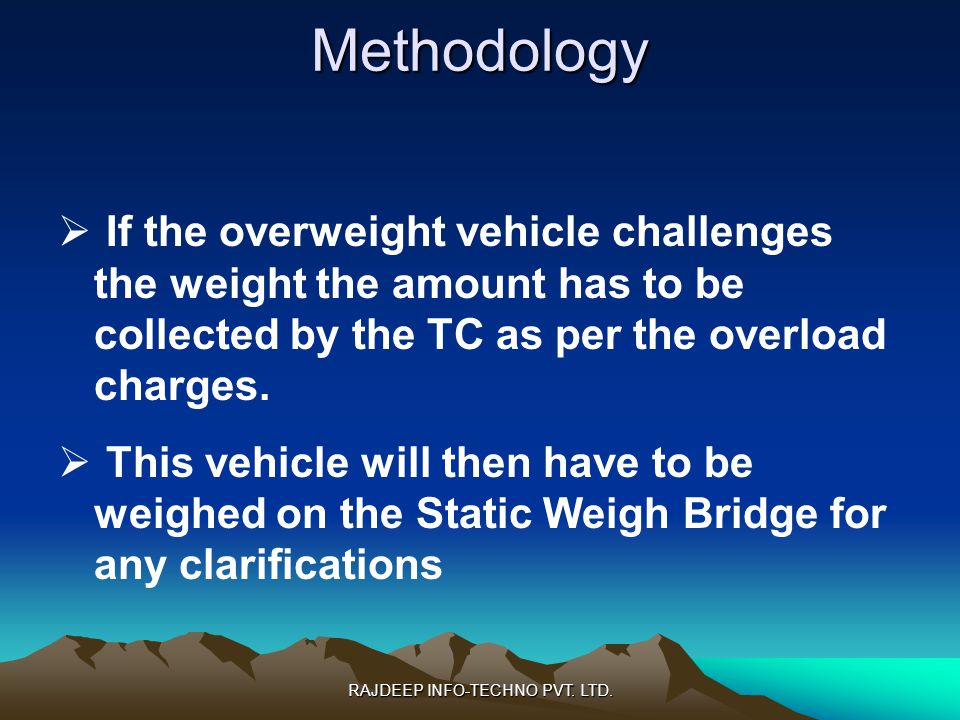

Methodology If the overweight vehicle challenges the weight the amount has to be collected by the TC as per the overload charges. This vehicle will then have to be weighed on the Static Weigh Bridge for any clarifications

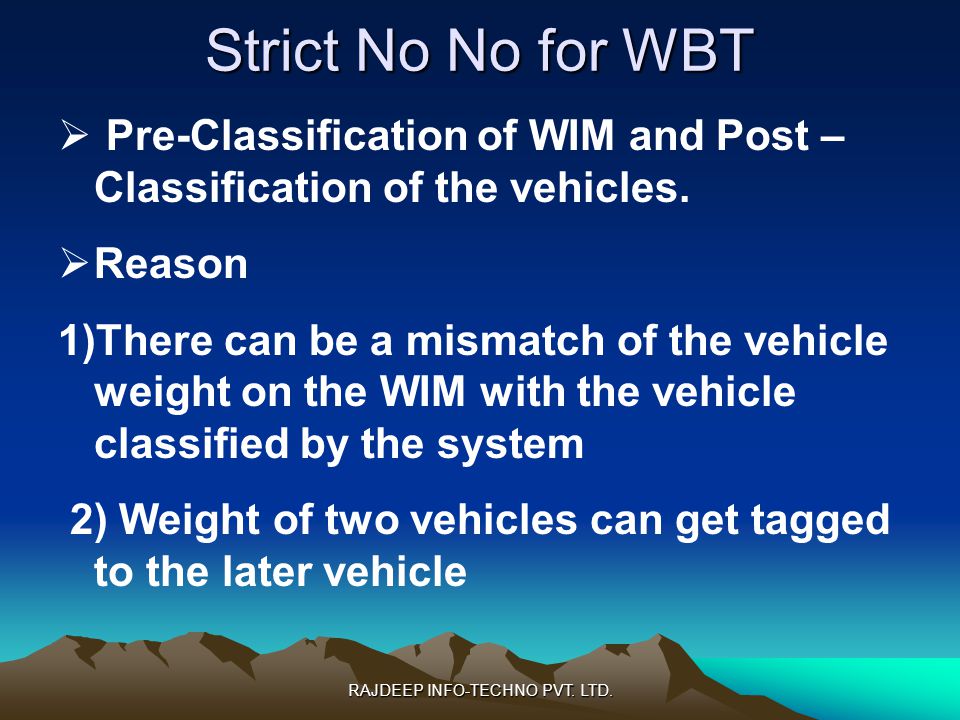

RAJDEEP INFO-TECHNO PVT. LTD. Strict No No for WBT Pre-Classification of WIM and Post – Classification of the vehicles. Reason 1)There can be a mismatch of the vehicle weight on the WIM with the vehicle classified by the system 2) Weight of two vehicles can get tagged to the later vehicle

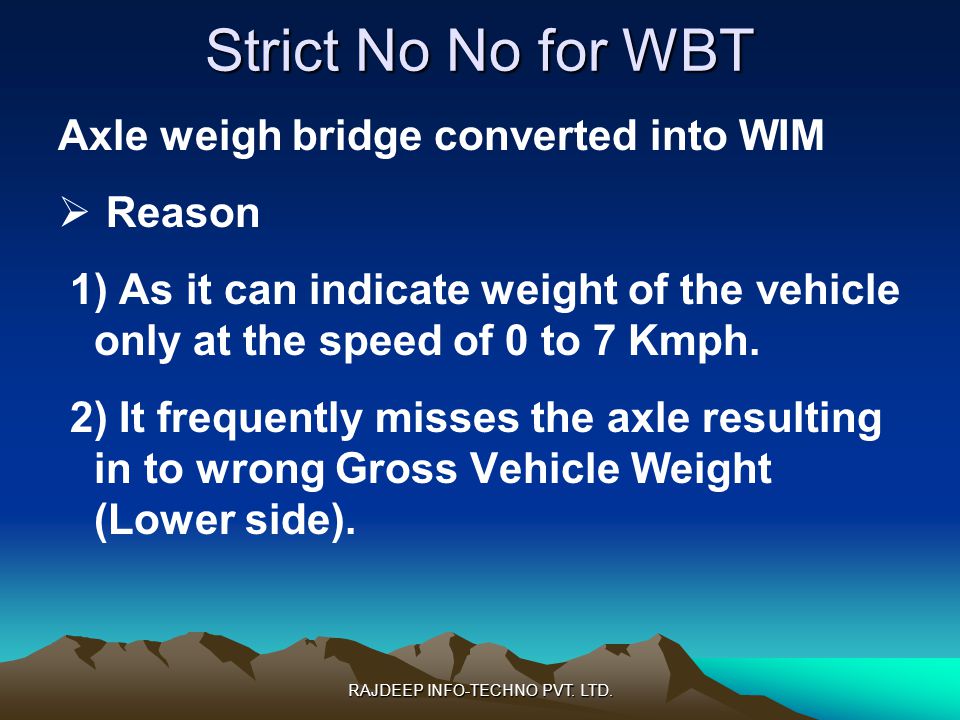

RAJDEEP INFO-TECHNO PVT. LTD. Strict No No for WBT Axle weigh bridge converted into WIM Reason 1) As it can indicate weight of the vehicle only at the speed of 0 to 7 Kmph. 2) It frequently misses the axle resulting in to wrong Gross Vehicle Weight (Lower side).

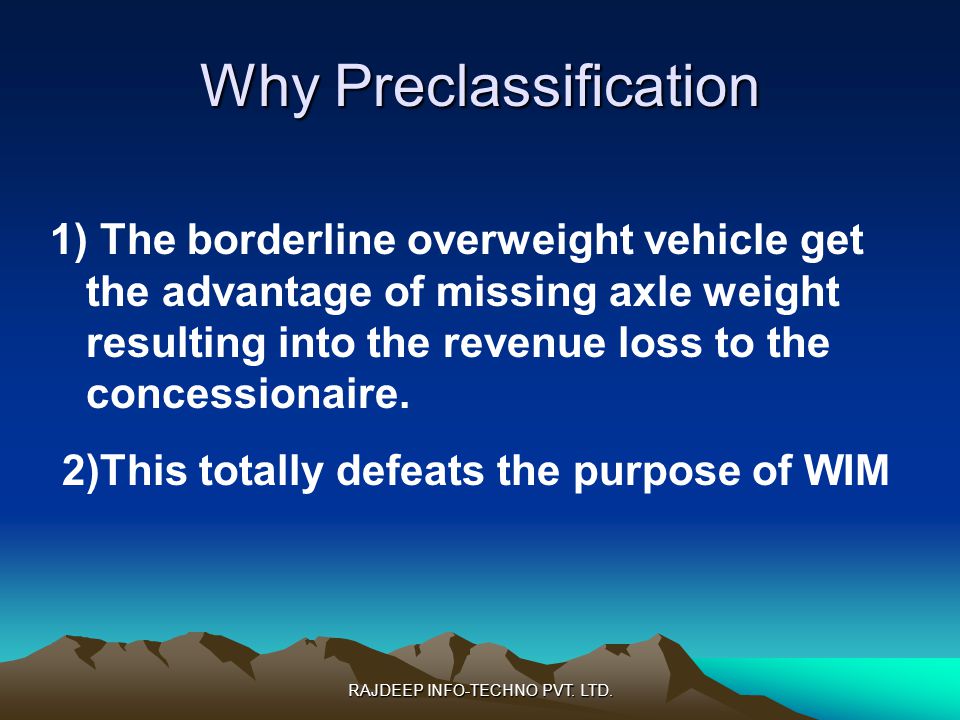

RAJDEEP INFO-TECHNO PVT. LTD. Why Preclassification 1) The borderline overweight vehicle get the advantage of missing axle weight resulting into the revenue loss to the concessionaire. 2)This totally defeats the purpose of WIM

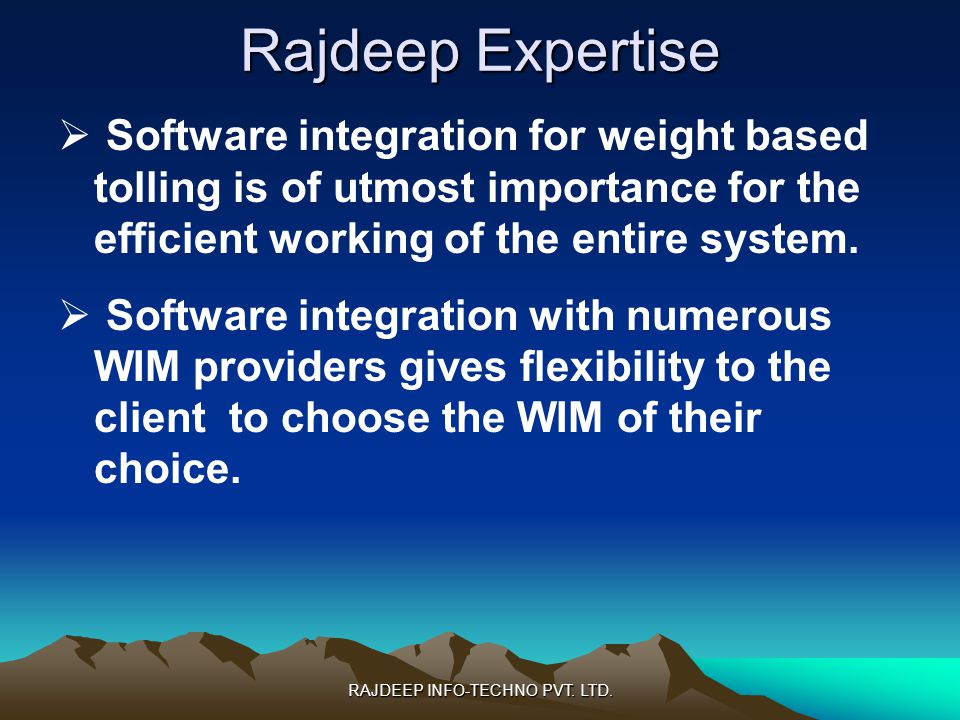

RAJDEEP INFO-TECHNO PVT. LTD. Rajdeep Expertise Software integration for weight based tolling is of utmost importance for the efficient working of the entire system. Software integration with numerous WIM providers gives flexibility to the client to choose the WIM of their choice.

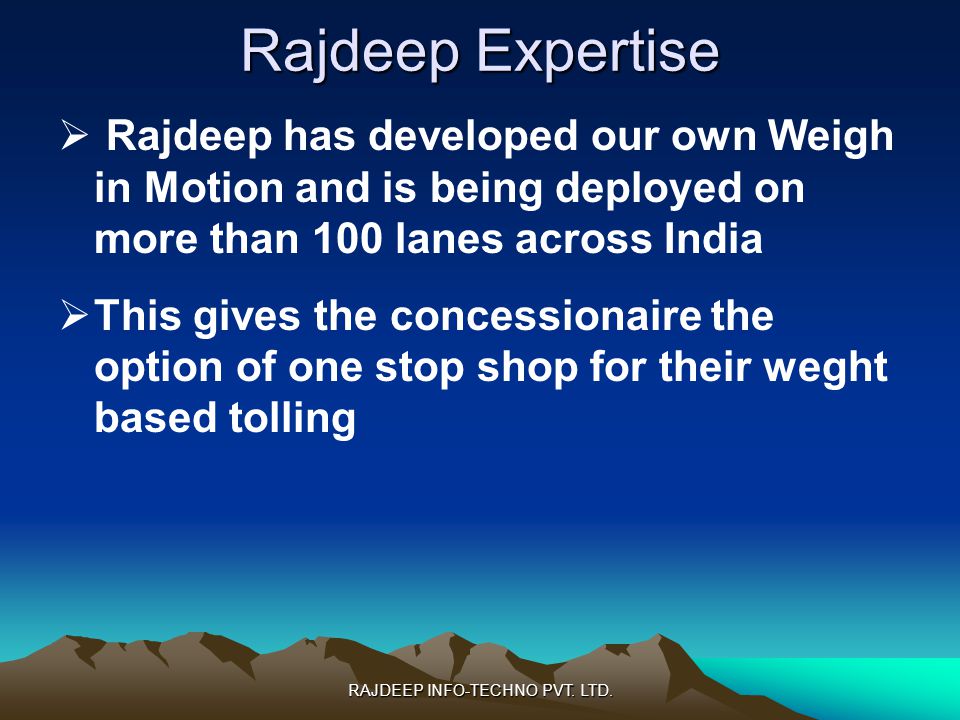

RAJDEEP INFO-TECHNO PVT. LTD. Rajdeep Expertise Rajdeep has developed our own Weigh in Motion and is being deployed on more than 100 lanes across India This gives the concessionaire the option of one stop shop for their weght based tolling
Shall be happy to answer your questions Thank You. RAJDEEP INFO-TECHNO PVT. LTD.
