1 Hazardous Materials

2 HAZMAT Definition (USDOT) Any substance which may pose an unreasonable risk to health and safety of operating or emergency personnel, the public, and/or the environment if not properly controlled during handling, storage, manufacture, processing, packaging, use, disposal, or transportation. Any substance which may pose an unreasonable risk to health and safety of operating or emergency personnel, the public, and/or the environment if not properly controlled during handling, storage, manufacture, processing, packaging, use, disposal, or transportation.

3 Requirements and Standards OSHA: CFR OSHA: CFR EPA: 40 CFR 311 EPA: 40 CFR 311 NFPA: Standard 473 (Standard for Competencies of EMS Personnel Responding to Hazardous Materials Incidents) NFPA: Standard 473 (Standard for Competencies of EMS Personnel Responding to Hazardous Materials Incidents)

4 EMS HAZMAT Training Levels Awareness Awareness Level 1 Level 1 Level 2 Level 2

5 Awareness All responders who may arrive first on scene and discover hazardous substance All responders who may arrive first on scene and discover hazardous substance EMS, Fire, Law enforcement EMS, Fire, Law enforcement Focus Focus –Recognition of HAZMAT incidents –Basic identification techniques –Personal protection

6 EMS Level I Patient care in cold zone with NO significant 2 o contamination risk Patient care in cold zone with NO significant 2 o contamination risk Focus Focus –Hazard assessment –Assessment, management of previously contaminated patients

7 EMS Level II Patient care in warm zone with significant risk of 2 o contamination Patient care in warm zone with significant risk of 2 o contamination Focus Focus –Personal protection –Decontamination procedures –Assessment, management during decon

8 EMT Roles Size up incident Size up incident Establish command Establish command Activate IMS Activate IMS Isolate & identify Isolate & identify Treat, transport patients Treat, transport patients Support HAZMAT team members (medical monitoring, rehab) Support HAZMAT team members (medical monitoring, rehab)

9 Incident Size Up

10 Size-Up Priorities Safety: Self, crew first! Safety: Self, crew first! Incident stability (Stable vs. Unstable) Incident stability (Stable vs. Unstable) Property conservation Property conservation –Exposurespeople, property –Run-off

11 Size-Up Special Considerations Personal risk of exposure, contamination Personal risk of exposure, contamination Delayed product effects Delayed product effects Scene topography Scene topography Wind direction Wind direction Decontamination corridor(s) Decontamination corridor(s) Incident facility location contingency plans Incident facility location contingency plans

12 HAZMAT Identification

13 Often most difficult part of incident Often most difficult part of incident ALWAYS use at least TWO concurring sources ALWAYS use at least TWO concurring sources

14 HAZMAT References Emergency Response Guidebook Emergency Response Guidebook Container Markings Container Markings Shipping Papers Shipping Papers Material Safety Data Sheets Material Safety Data Sheets Monitors/Chemical Tests Monitors/Chemical Tests Telephone Hotlines Telephone Hotlines Poison Centers Poison Centers Chemists Chemists Toxicologists Toxicologists Reference Books Reference Books Computer databases Computer databases

15 Emergency Response Guidebook U.S., Canada, Mexico U.S., Canada, Mexico Lists >1000 products with placards, UN numbers, chemical names Lists >1000 products with placards, UN numbers, chemical names Cross references emergency, evacuation procedures Cross references emergency, evacuation procedures Medical information is limited Medical information is limited Multiple chemicals carry the same number Multiple chemicals carry the same number

16 Clues Occupancy, location Occupancy, location Vehicle, container shape Vehicle, container shape Placards, other markings Placards, other markings Labels Labels Scene appearance Scene appearance Other sensory information Other sensory information

17 Occupancy/Location What do you know about the activities at this location? What do you know about the activities at this location? Are hazardous materials likely to be manufactured, stored, used there? Are hazardous materials likely to be manufactured, stored, used there? Highway incidents are by definition a high risk situation! Highway incidents are by definition a high risk situation!

18 Fixed Facilities Manufacturers Manufacturers Warehouses Warehouses Hardware stores Hardware stores Agricultural stores Agricultural stores Water treatment plants Water treatment plants Loading docks Loading docks Pipelines Pipelines Silos Silos Barns Barns Greenhouses Greenhouses Know Your Community!

19 Vehicle/Container Shape External ring stiffeners frequently are present on vehicles transporting corrosives or poisons.

20 Vehicle/Container Shape Rounded ends on highway transport vehicles suggest presence of pressurized contents.

21 Vehicle/Container Shape Dome covers on rail tank cars suggest that the contents are under pressure. Tank cars with flat ends have been insulated to control product temperature changes.

22 Placards DOT (transport vehicles) DOT (transport vehicles) NFPA 704 (fixed facilities) NFPA 704 (fixed facilities)

23 DOT Labels Placed on packages/containers Placed on packages/containers

24 DOT Hazard Classes HAZARD CLASS HAZARD TYPE 1Explosives 2Gases 3Liquids 4Solids 5 Oxidizers, organic peroxides 6 Poisons, etiologic agents 7 Radioactive materials 8Corrosives 9 Miscellaneous (ORMs)

25 UN Numbers

26 DOT Placard Limitations ALL product hazards NOT indicated ALL product hazards NOT indicated Incorrect placards Incorrect placards Absent placards Absent placards

27 DOT Placard Limitations Some products NOT placarded Some products NOT placarded –Rail and motor freight containing <1000 pounds of: Nonflammable gases Chlorine Fluorine Liquid oxygen Flammable gases Flammable liquids Combustible liquids Flammable solids Oxidizers, organic peroxides Poison B Corrosives Irritating materials

28 NFPA 704 Used at fixed facilities Used at fixed facilities Health Fire Reactivity Specific Hazard

29 NFPA 704 HEALTH 4 = Too dangerous to enter 3 = Extreme dangerFull protective clothing 2 = HazardousBreathing apparatus 1 = Slight hazard 0 = No hazard FIRE 4 = Extremely flammable 3 = Ignites at normal temperatures 2 = Ignites when moderately heated 1 = Must be preheated to burn 0 = Will not burn

30 NFPA 704 REACTIVITY 4 = May detonateEvacuate area if fire present 3 = Shock, heat may detonateTake cover 2 = Violent chemical change possible 1 = Unstable if heated 0 = Normally stable SPECIFIC HAZARD OX = Oxidizer ACID = Acid ALK = Alkali (Base) COR = Corrosive W = Use NO Water

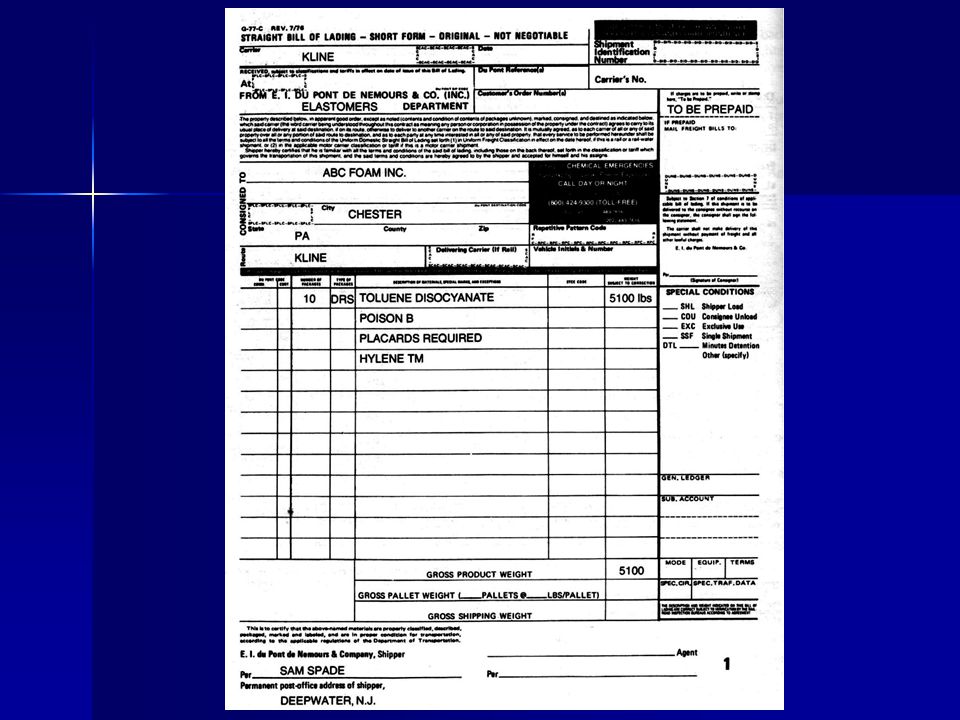

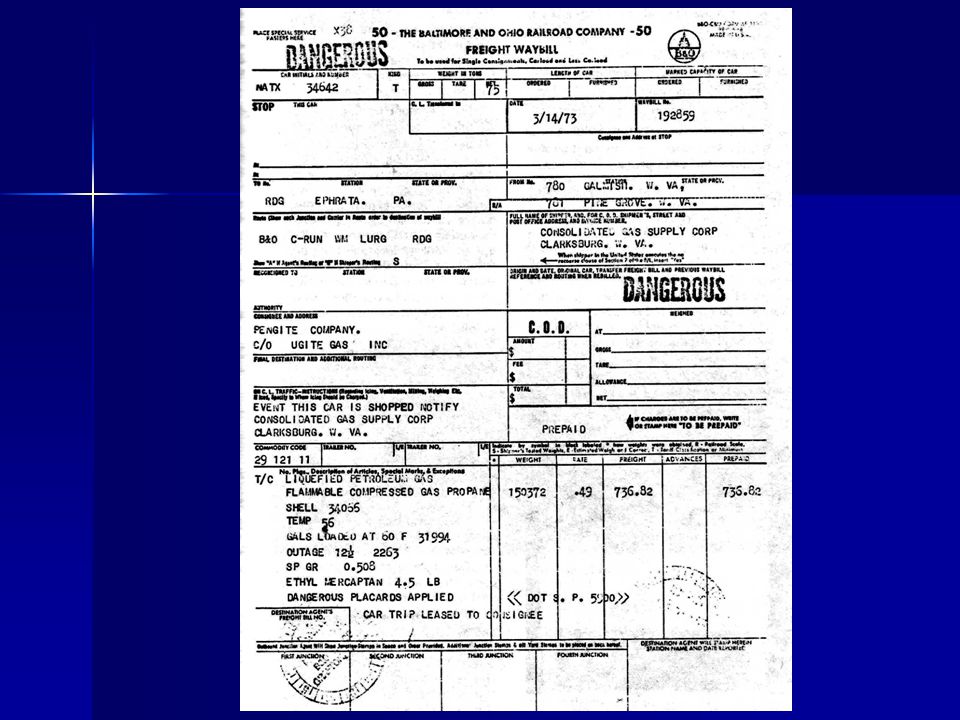

31 Shipping Papers List specific substances List specific substances Indicate quantities carried Indicate quantities carried Operators may not take papers with them Operators may not take papers with them Scene may be too unstable to retrieve Scene may be too unstable to retrieve Papers may be incomplete, inaccurate Papers may be incomplete, inaccurate

32

33

34 Material Safety Data Sheets Present at fixed facilities Present at fixed facilities Available for ALL hazards on site Available for ALL hazards on site Cover wide range of common, simple products Cover wide range of common, simple products Typically list: Typically list: –Material name –Characteristics –Manufacturer –Health, fire, reactivity dangers –Safe handling considerations –Emergency procedures

35 Other Sensory Information What do you see? Hear? Smell? What do you see? Hear? Smell? Is there a vapor cloud? Is there a vapor cloud? Is there a fire? Is there a fire? Can you hear escape of a pressurized product? Can you hear escape of a pressurized product? Any unusual odors? Any unusual odors? Are your eyes watering, burning? Are your eyes watering, burning? Are there dead animals, birds, fish observable? Are there dead animals, birds, fish observable?

36 CHEMTREC Hotline Chemical Transportation Emergency Center (CHEMTREC) Chemical Transportation Emergency Center (CHEMTREC) Sponsored by Chemical Manufacturers Association (CMA) Sponsored by Chemical Manufacturers Association (CMA)

37 CHEMTREC Services Emergency response information Emergency response information Access to manufacturers representatives Access to manufacturers representatives Activation of specialized teams to deal with chlorine, phosphorus, vinyl chloride, HCN, HF, and LPG Activation of specialized teams to deal with chlorine, phosphorus, vinyl chloride, HCN, HF, and LPG Activation of CHEMNET response teams Activation of CHEMNET response teams

38 CHEMTREC Limitations Communicators NOT technical personnel Communicators NOT technical personnel Will NOT interpret data or go beyond what information sheets say Will NOT interpret data or go beyond what information sheets say Must have product trade or chemical name to provide assistance Must have product trade or chemical name to provide assistance Cannot provide information on effects of mixing of several products Cannot provide information on effects of mixing of several products

39 CHEMTREC Information Needed What has happened? What has happened? Where? Where? When? When? Chemical(s) involved Chemical(s) involved Container type condition Container type condition Shipper/origin Shipper/origin Carrier Carrier Consignee/destination Consignee/destination Nature/extent casualties Nature/extent casualties Nature/extent property damage Nature/extent property damage Prevailing weather Prevailing weather Nature of incident area Nature of incident area Caller name/location Caller name/location Call-back number Call-back number

40 Federal, State, Local Resources Federal Federal –US EPA –Coast Guard State State –TNRCC –TDH –Railroad Commission –Parks & Wildlife –Agriculture Department Local Local –Poison Control –Health Department –Colleges, Universities

41 Protective Equipment and Medical Monitoring

42 Protective Equipment Types Level A Level A Level B Level B Level C Level C Level D Level D

43 Level A Highest level of respiratory/skin protection Highest level of respiratory/skin protection Suit fully encapsulates rescuer, SCBA Suit fully encapsulates rescuer, SCBA Used in hot zone with: Used in hot zone with: –Unknown substances –Substances with potential for respiratory and skin absorption hazards

44 Level A

45 Level B Full respiratory protection Full respiratory protection Lower skin protection level Lower skin protection level Suit non-encapsulating, but chemically resistant Suit non-encapsulating, but chemically resistant SCBA worn outside of suit SCBA worn outside of suit Typically worn in warm zone by decon team Typically worn in warm zone by decon team

46 Level C Non-permeable suit, boots, hand, eye protection Non-permeable suit, boots, hand, eye protection Air-purifying respirator with cartridges for specific substances Air-purifying respirator with cartridges for specific substances Worn during transport of patients with 2 o contamination risk Worn during transport of patients with 2 o contamination risk

47 Level D Firefighter turnout gear Firefighter turnout gear NOT suitable for HAZMAT incidents NOT suitable for HAZMAT incidents

48 Selection of PPE Based on chemical involved Based on chemical involved NO single suit material is appropriate for all chemicals NO single suit material is appropriate for all chemicals Permeability charts should be consulted to determine breakthrough times for suit material Permeability charts should be consulted to determine breakthrough times for suit material

49 Selection of PPE Latex gloves are NOT chemically resistant Latex gloves are NOT chemically resistant Nitrile gloves hive high resistance to most chemicals Nitrile gloves hive high resistance to most chemicals Leather boots will absorb chemicals permanently Leather boots will absorb chemicals permanently

50 Medical Monitoring & Rehab A primary role of EMS A primary role of EMS Entry team personnel should have annual physicals with baseline vitals on file Entry team personnel should have annual physicals with baseline vitals on file Monitoring of crews prior to entering and after working within the warm and hot zones. Monitoring of crews prior to entering and after working within the warm and hot zones.

51 HAZMAT Zones Hot Zone Contamination Present Appropriate PPE Limited number of personnel Everything inside considered contaminated Warm Zone Contamination Control Zone Appropriate PPE Decon Corridor Life-Saving Emergency Care Cold Zone CP Location Treatment/Transport Areas Staging Medical Monitoring/Rehab

52 Decontamination

53 Decon Decision Making Fast Break Fast Break Long Term Long Term

54 Fast Break Quick decisions to prevent rescuer, equipment contamination Quick decisions to prevent rescuer, equipment contamination Used on incidents with: Used on incidents with: –Patients who have self-rescued –Critical patients out of hot zone needing immediate care –Unknown materials –Potentially life-threatening materials

55 Fast Break Do NOT expose yourself Do NOT expose yourself Contain, isolate patients Contain, isolate patients Remove clothing, if possible by having them undress themselves Remove clothing, if possible by having them undress themselves Wash with large amounts of water Wash with large amounts of water Wrap completely in blankets (human burrito) Wrap completely in blankets (human burrito)

56 Fast Break What are the risks associated with immediate care? What are the risks associated with immediate care? What are the benefits of the patient receiving immediate care? What are the benefits of the patient receiving immediate care?

57 Transport Considerations Patients field decontaminated are only semi-decontaminated Patients field decontaminated are only semi-decontaminated May harbor latent contaminants, may outgas contaminants in body fluids May harbor latent contaminants, may outgas contaminants in body fluids Limit number of ambulances used in transport Limit number of ambulances used in transport Remove non-essential equipment Remove non-essential equipment Wrap patient in plastic sheeting, blankets Wrap patient in plastic sheeting, blankets Cover floor with plastic sheeting Cover floor with plastic sheeting

58 Transport Considerations Better Dirty and Alive than Clean and Dead!

59 Transport Considerations Do NOT assume your hospitals are equipped to handle contaminated patients

60 Transport Considerations Preplan transport of contaminated patients to hospitals Preplan transport of contaminated patients to hospitals –Hospitals may want contaminated patients delivered to location other than usual ER entrance –Hospitals need adequate warning to prepare to receive these patients. Alert should come when first EMS unit arrives at the scene.

61 WMD & Terrorism

62 Terrorism A violent act or act dangerous to human life, in violation of the criminal laws of the U.S. or any segment to intimidate or coerce a government, the civilian population or any segment thereof, in furtherance of political or social objectives. A violent act or act dangerous to human life, in violation of the criminal laws of the U.S. or any segment to intimidate or coerce a government, the civilian population or any segment thereof, in furtherance of political or social objectives.

63 Terrorism Targets Potential Targets Potential Targets –Public buildings –Multinational HQs –Shopping centers –Workplaces –Public assembly places –Places of worship –Schools

64 Terrorism Targets Preplan potential targets Preplan potential targets Multiple patients with similar signs, symptoms = High index of suspicion Multiple patients with similar signs, symptoms = High index of suspicion Consider secondary device, attack risk Consider secondary device, attack risk Think: Think: –Occupancy or location –Type of event –Timing of event –On-scene warning signs

65 WMD Biological Nuclear Incendiary Chemical Explosives

66 Protective Measures All forms of protection can be defined in terms of: TimeDistanceShielding

67 Considerations Acts of terrorism are criminal acts and will fall under the jurisdiction of the FBI. Acts of terrorism are criminal acts and will fall under the jurisdiction of the FBI. ICS is pivotal in the successful mitigation of any terrorist act. ICS is pivotal in the successful mitigation of any terrorist act. Self safety is foremost consideration at all times. Self safety is foremost consideration at all times.
