1 - For Good Vibrations... Good Vibrations

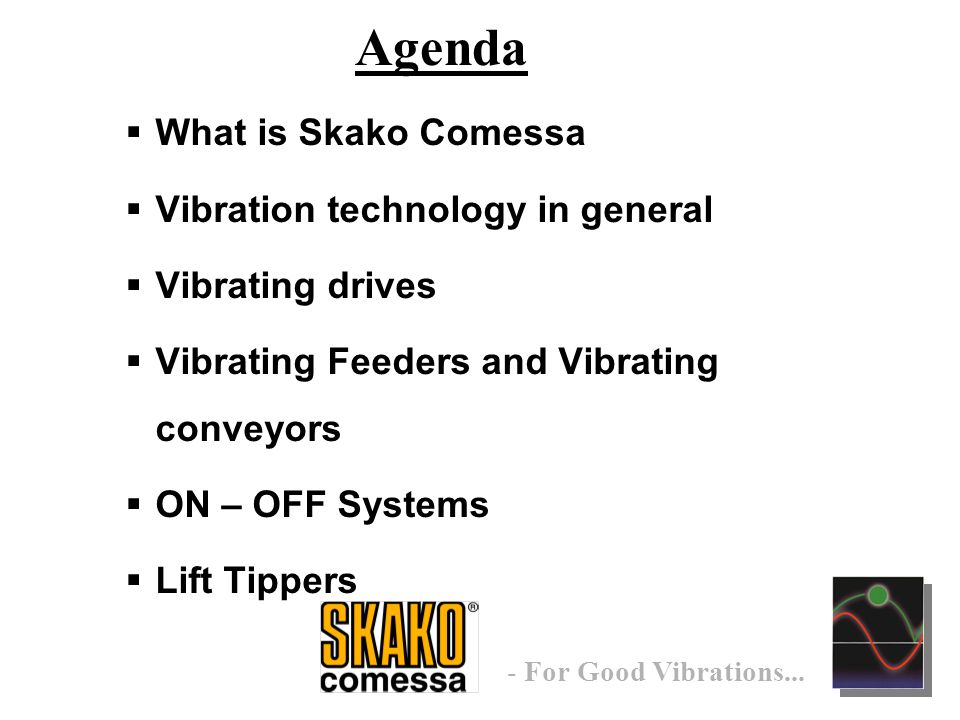

2 - For Good Vibrations... What is Skako Comessa Vibration technology in general Vibrating drives Vibrating Feeders and Vibrating conveyors ON – OFF Systems Lift Tippers Agenda

3 - For Good Vibrations... SKAKO COMESSA Customers Quarries/MiningQuarries/Mining Iron & SteelworksIron & Steelworks FoundriesFoundries HardwareHardware Slag and scrap handlingSlag and scrap handling Batching plants Cement, Concrete and Asphalt plantsBatching plants Cement, Concrete and Asphalt plants Handling of chemicalsHandling of chemicals Fertilizer plantsFertilizer plants Food industryFood industry

4 - For Good Vibrations... SKAKO COMESSA GROUP Customers

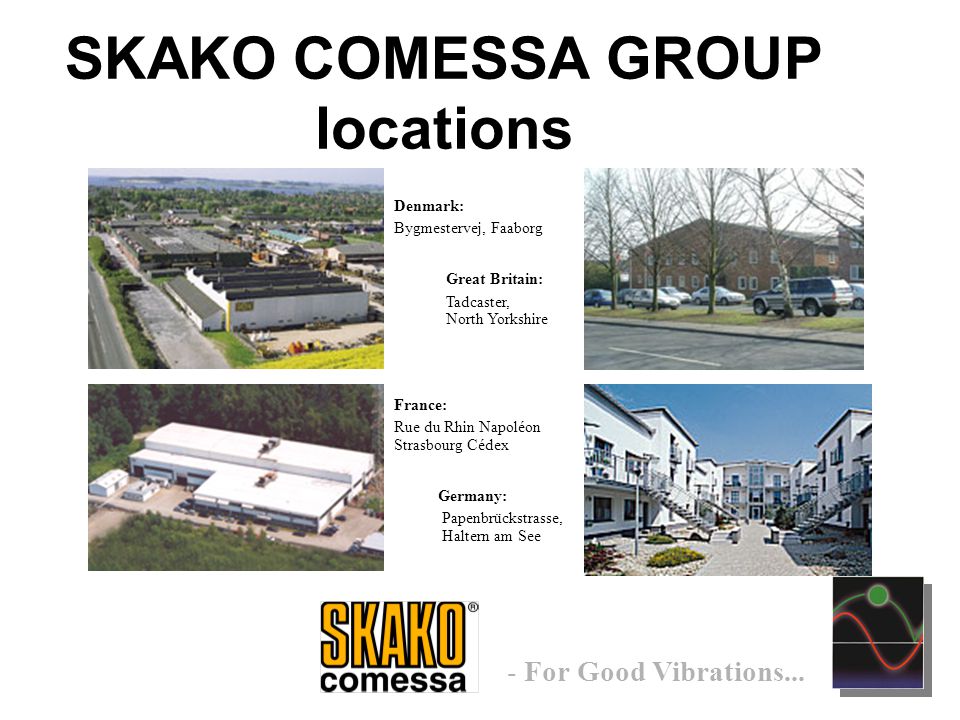

5 - For Good Vibrations... SKAKO COMESSA GROUP locations Denmark: Bygmestervej, Faaborg Great Britain: Tadcaster, North Yorkshire France: Rue du Rhin Napoléon Strasbourg Cédex Germany: Papenbrückstrasse, Haltern am See

6 - For Good Vibrations... SKAKO COMESSA Working as a global company Customer Raute in Finland have a request. Final products are delivered to Finland. Products comes from Polen or Czeck Detail Drawings made in India Final products sold to eg. China Final products sold to eg. Mexico I Denmark all products are designed, developed and mounted

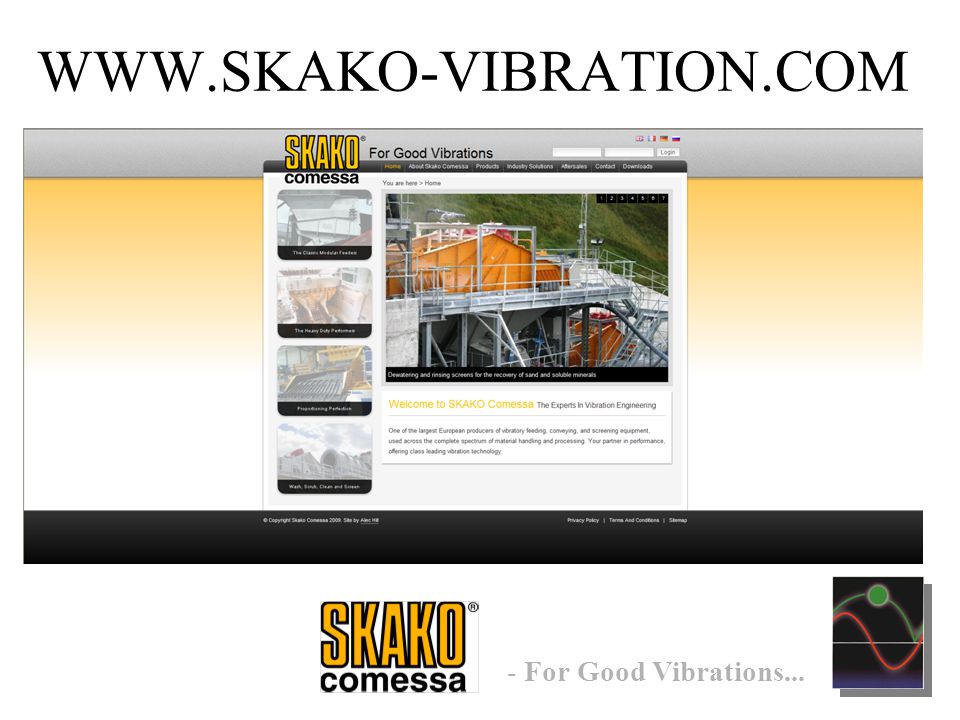

7 - For Good Vibrations...

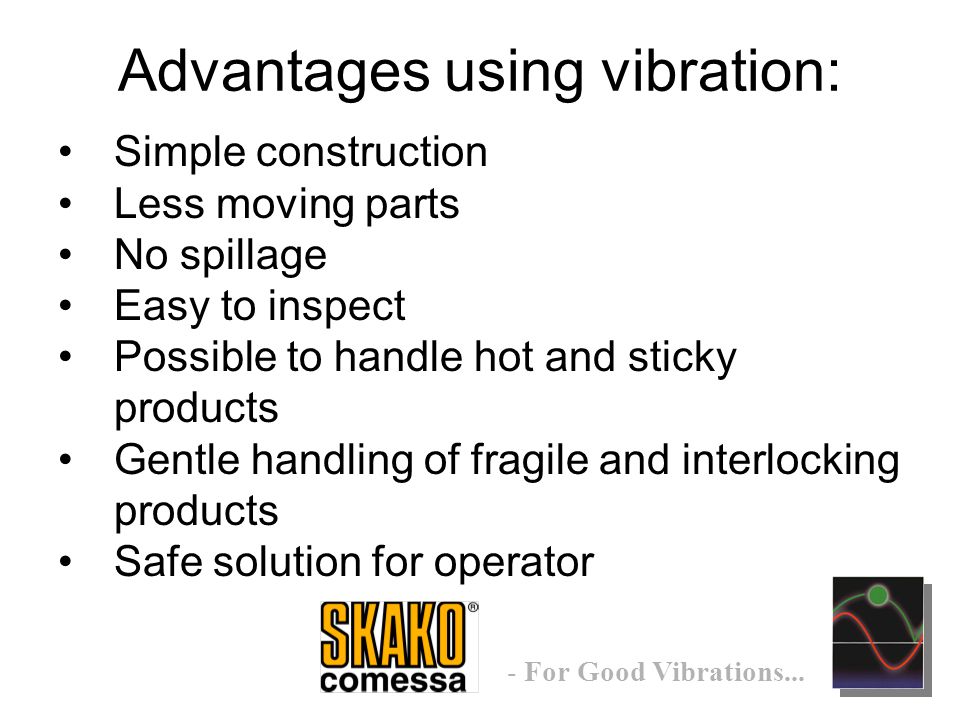

8 - For Good Vibrations... Advantages using vibration: Simple construction Less moving parts No spillage Easy to inspect Possible to handle hot and sticky products Gentle handling of fragile and interlocking products Safe solution for operator

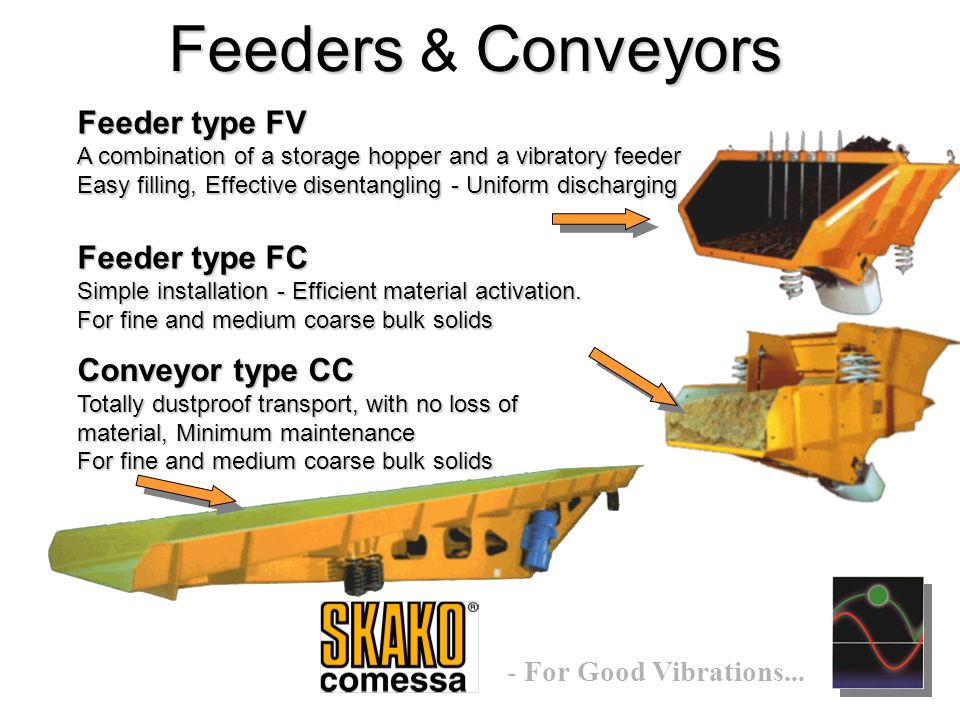

9 - For Good Vibrations... FeedersConveyors Feeders & Conveyors Feeder type FC Simple installation - Efficient material activation. For fine and medium coarse bulk solids Feeder type FV A combination of a storage hopper and a vibratory feeder Easy filling, Effective disentangling - Uniform discharging Conveyor type CC Totally dustproof transport, with no loss of material, Minimum maintenance For fine and medium coarse bulk solids

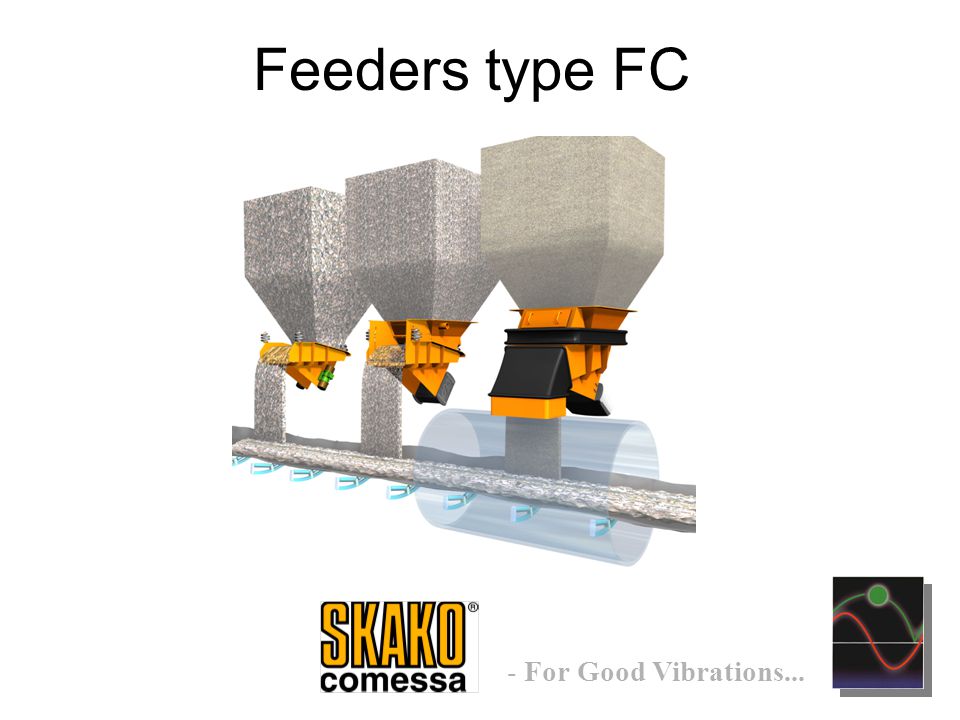

10 - For Good Vibrations... Feeders type FC

11 - For Good Vibrations... Feeder type FV With the FV feeder you get : Complete solution ( Storage hopper & Feeder ) Uniform controlled flow Disentangling of the most interlocking products Reliability

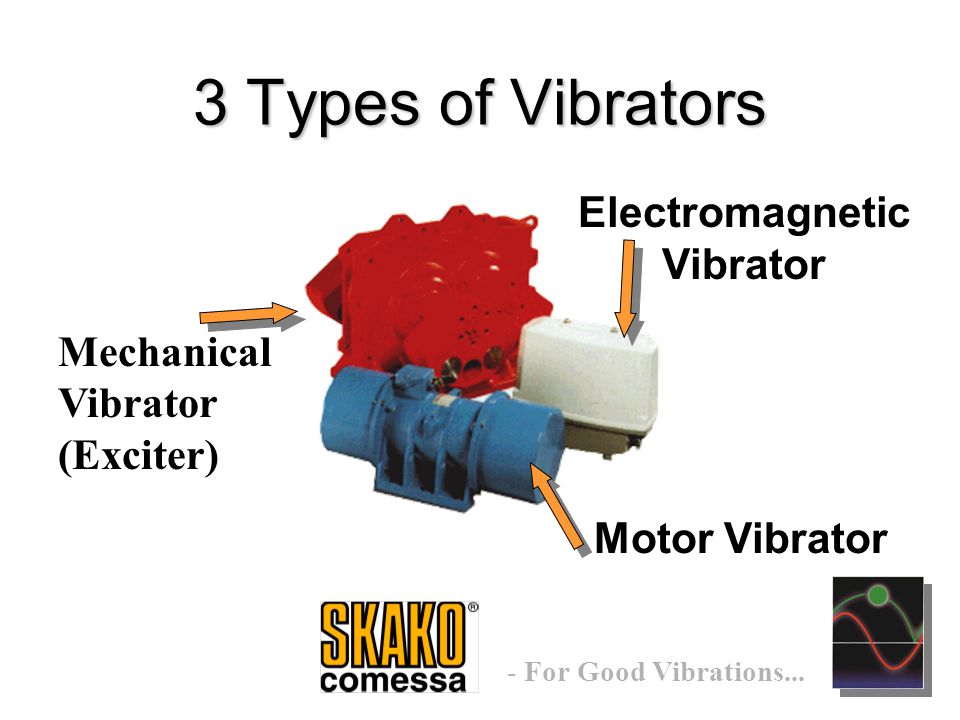

12 - For Good Vibrations... 3 Types of Vibrators Electromagnetic Vibrator Mechanical Vibrator (Exciter) Motor Vibrator

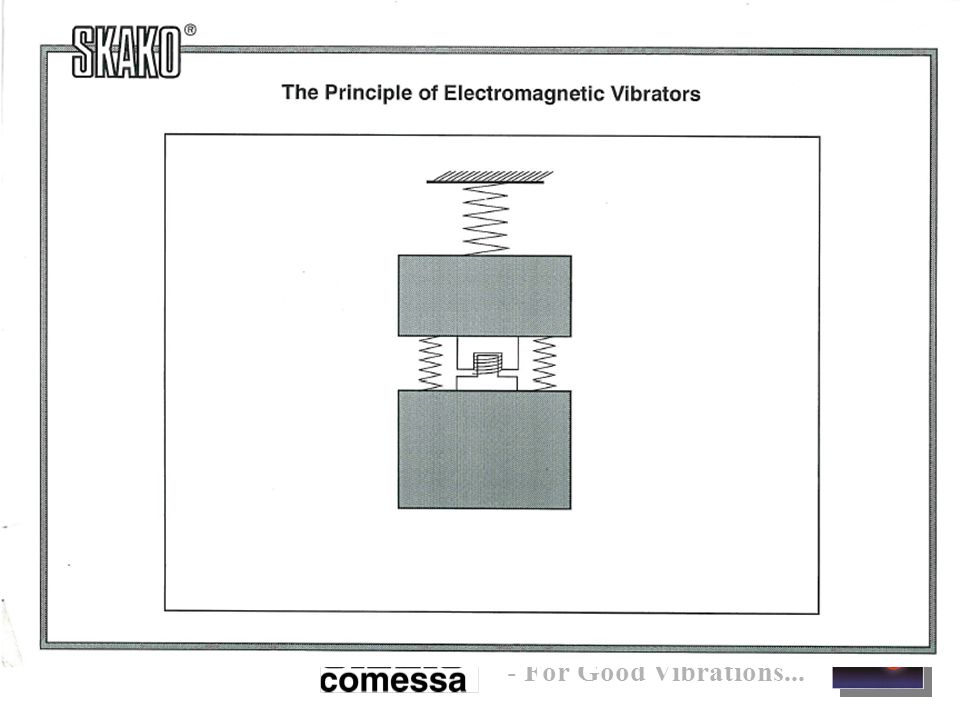

13 - For Good Vibrations...

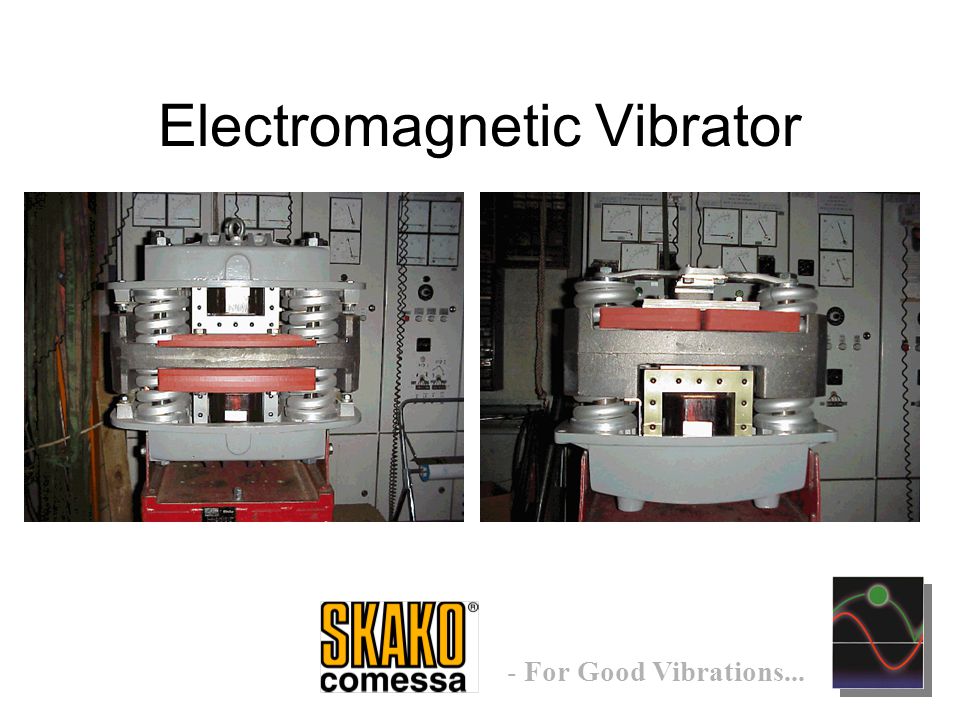

14 Electromagnetic Vibrator

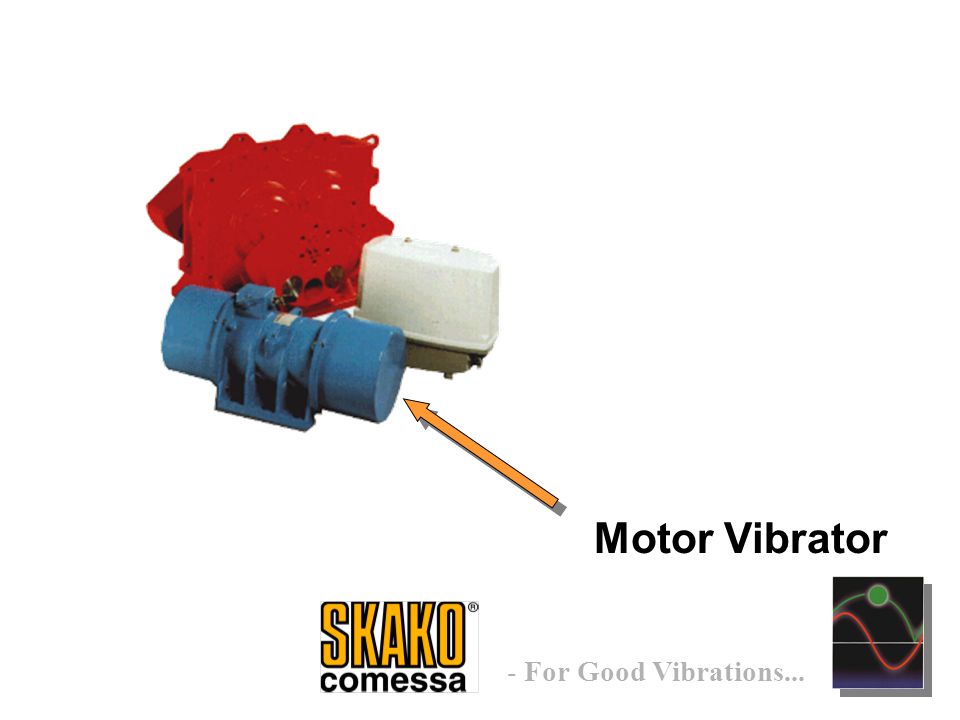

15 - For Good Vibrations... Motor Vibrator

16 - For Good Vibrations...

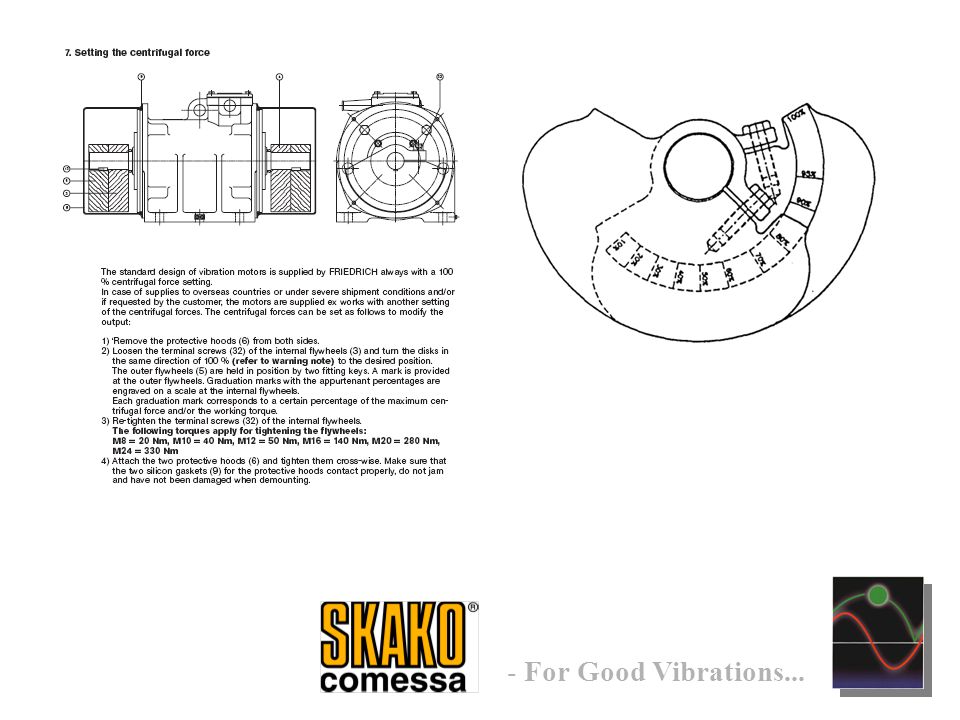

17

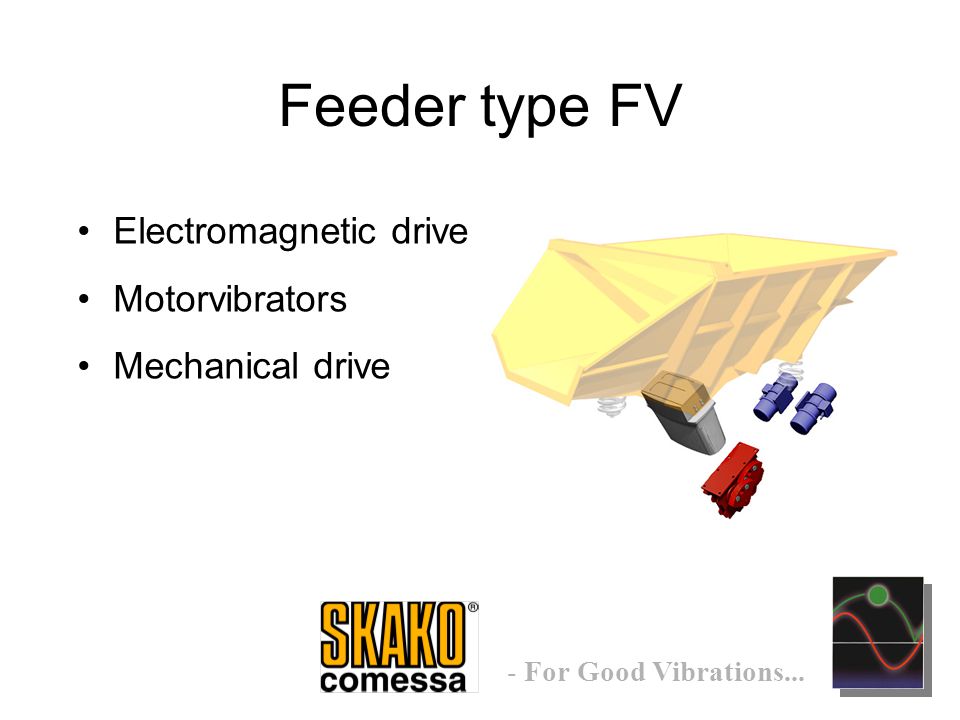

18 Feeder type FV Electromagnetic drive Motorvibrators Mechanical drive

19 - For Good Vibrations... Discharge chute Drain Finger gate Feeder type FV - additional equipment

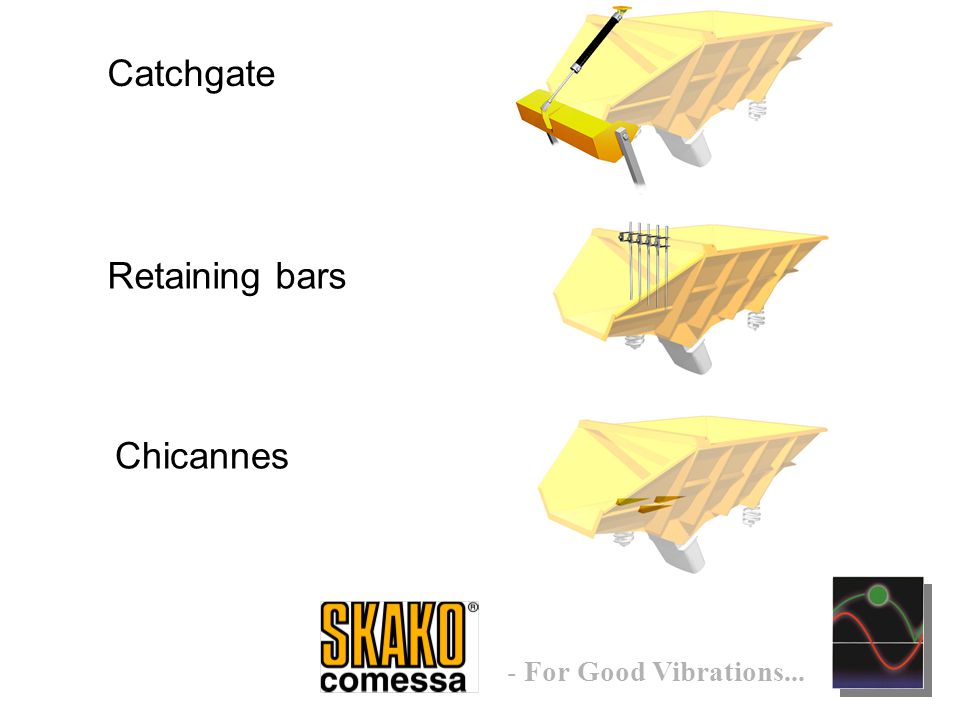

20 - For Good Vibrations... Catchgate Retaining bars Chicannes

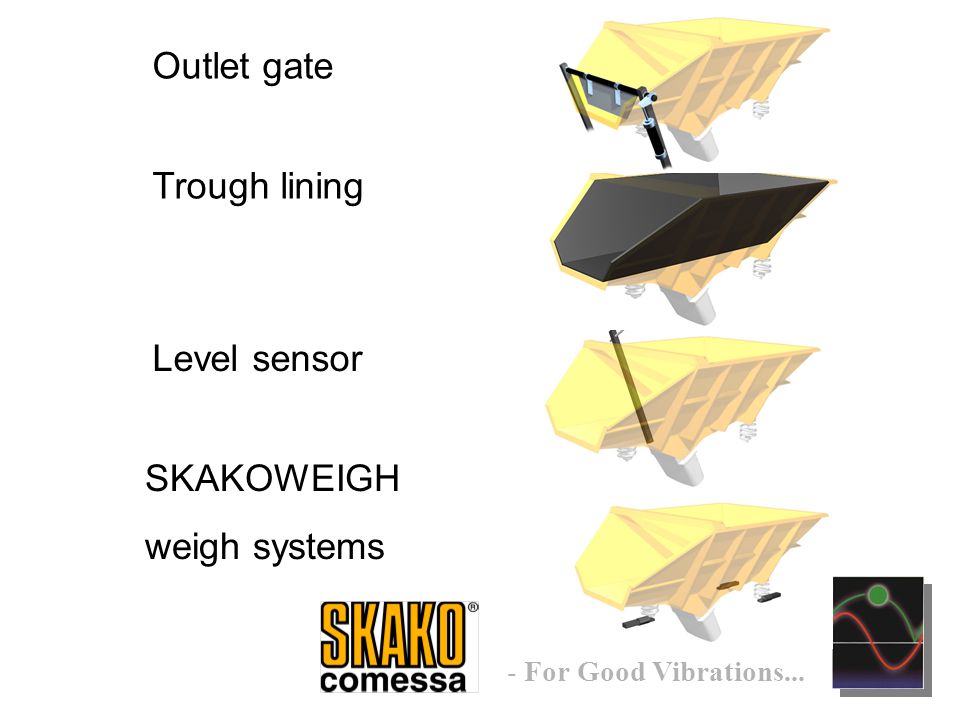

21 - For Good Vibrations... Outlet gate Trough lining Level sensor SKAKOWEIGH weigh systems

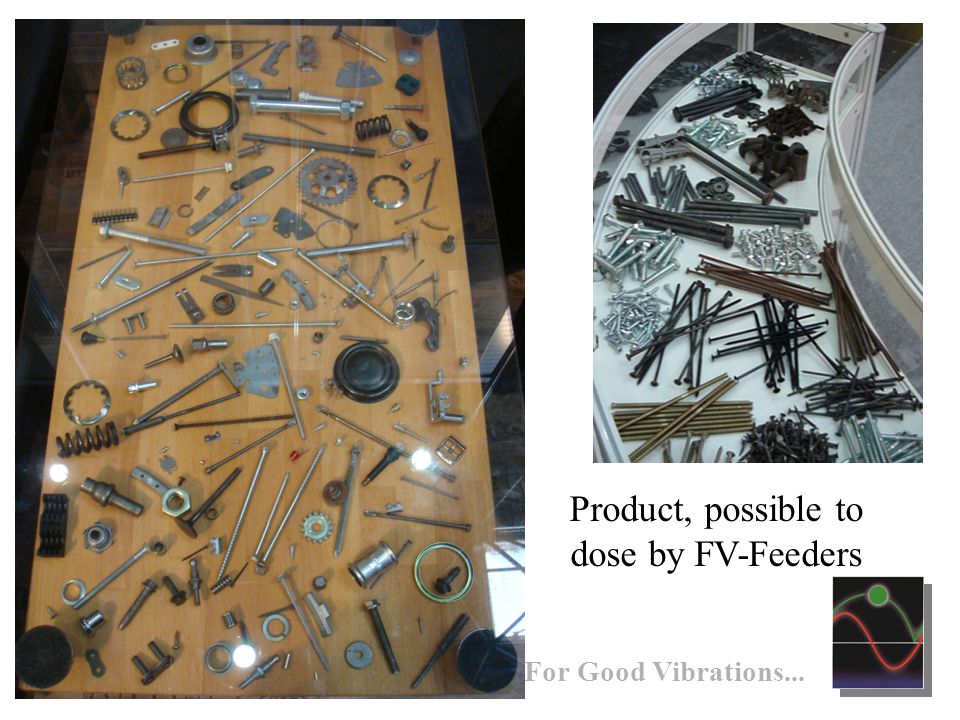

22 - For Good Vibrations... Product, possible to dose by FV-Feeders

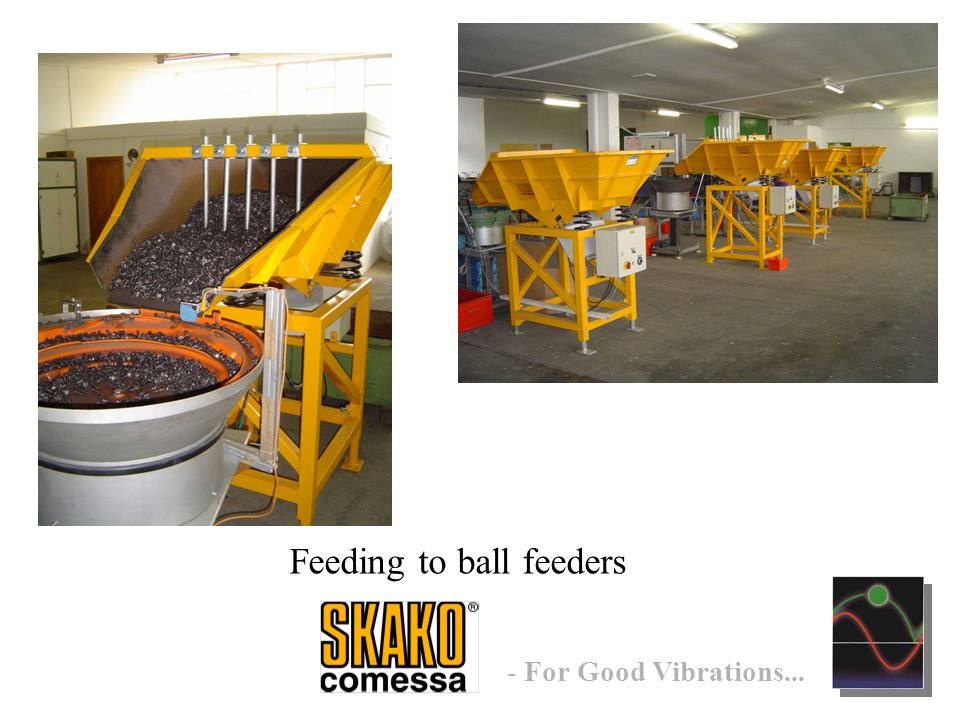

23 - For Good Vibrations... Feeding to ball feeders

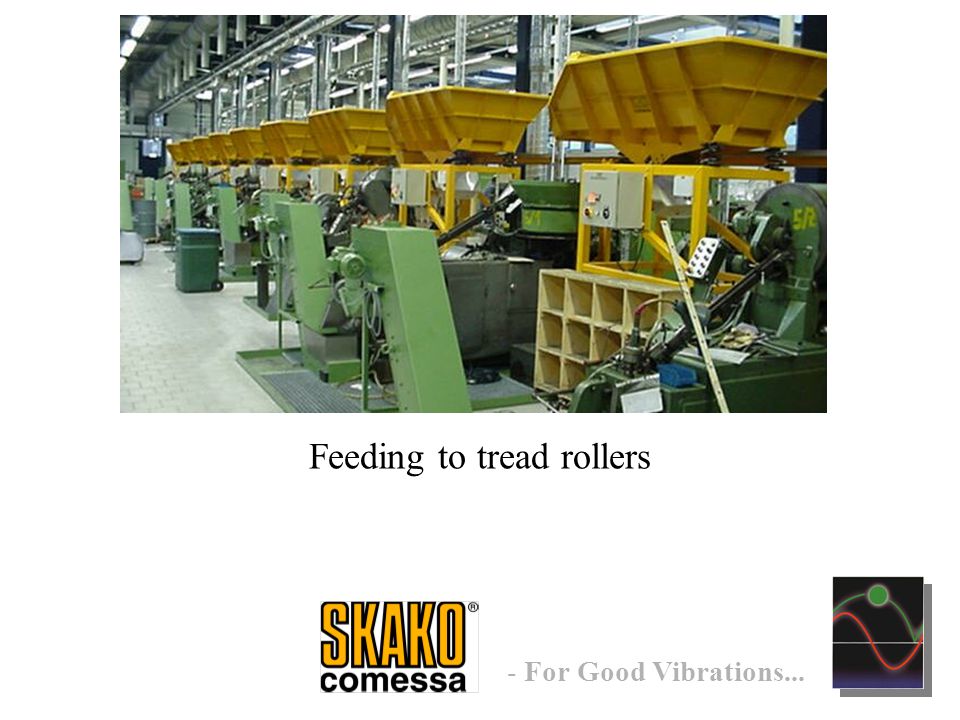

24 - For Good Vibrations... Feeding to tread rollers

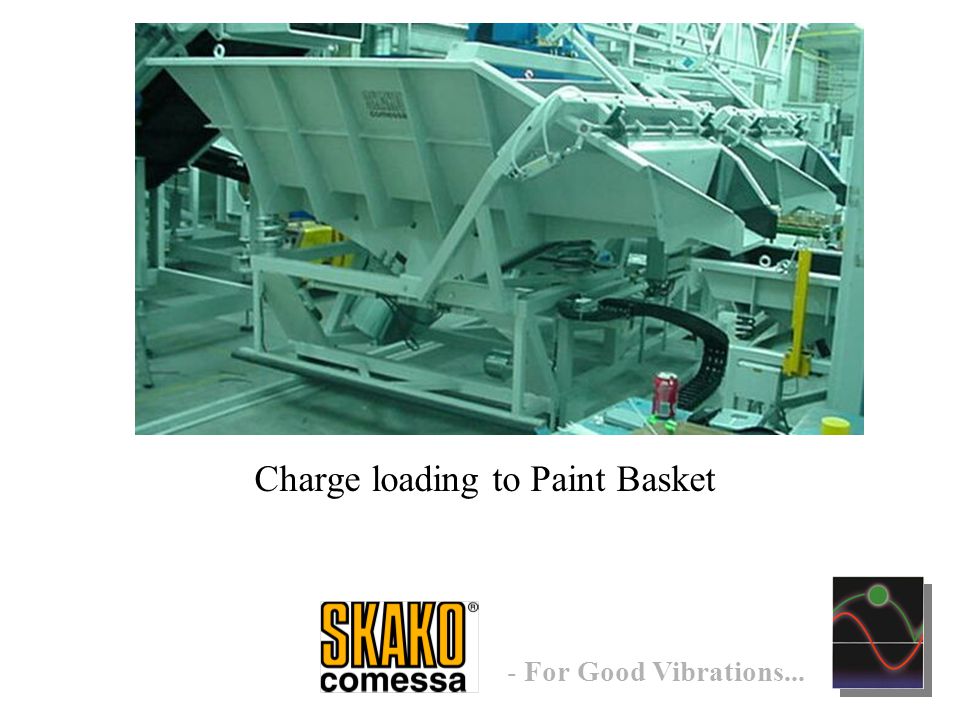

25 - For Good Vibrations... Charge loading to Paint Basket

26 - For Good Vibrations... ON – OFF Systems - For an automatic, even and continuous flow of materials - For disentangling of even the most interlocking products

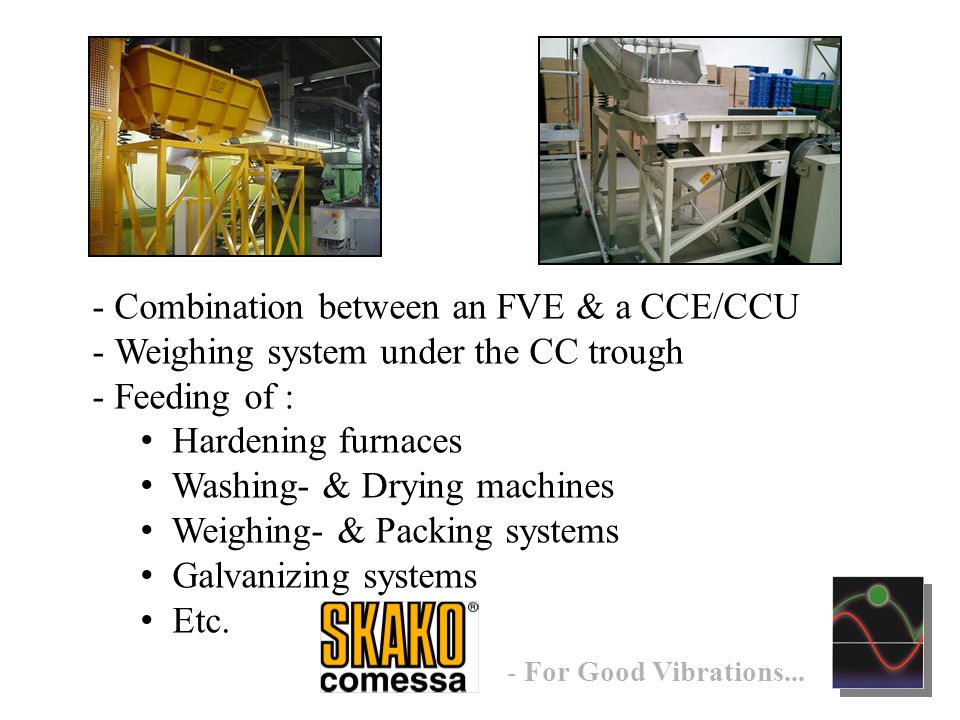

27 - For Good Vibrations... - Combination between an FVE & a CCE/CCU - Weighing system under the CC trough - Feeding of : Hardening furnaces Washing- & Drying machines Weighing- & Packing systems Galvanizing systems Etc.

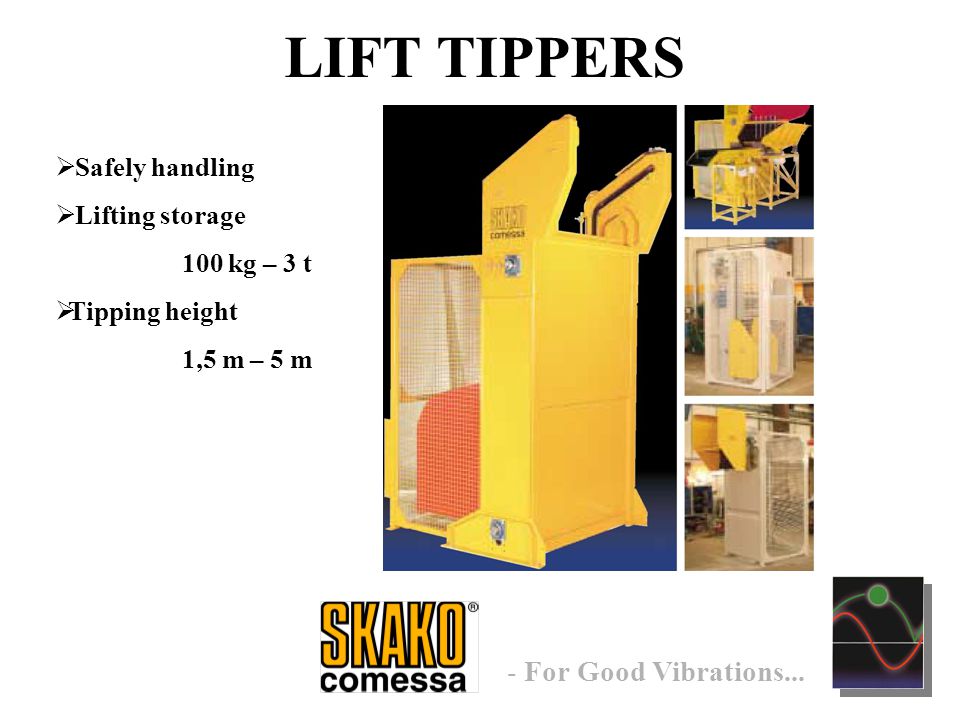

28 - For Good Vibrations... LIFT TIPPERS Safely handling Lifting storage 100 kg – 3 t Tipping height 1,5 m – 5 m

29 - For Good Vibrations... SKAKO Comessa Lift Tipper - TILD Locking Bar ArrangementPneumatic/Hydraulic Operated Cover Pneumatic/Hydraulic Clamping Arrangement Control Panel – for manual or automatically controlled system

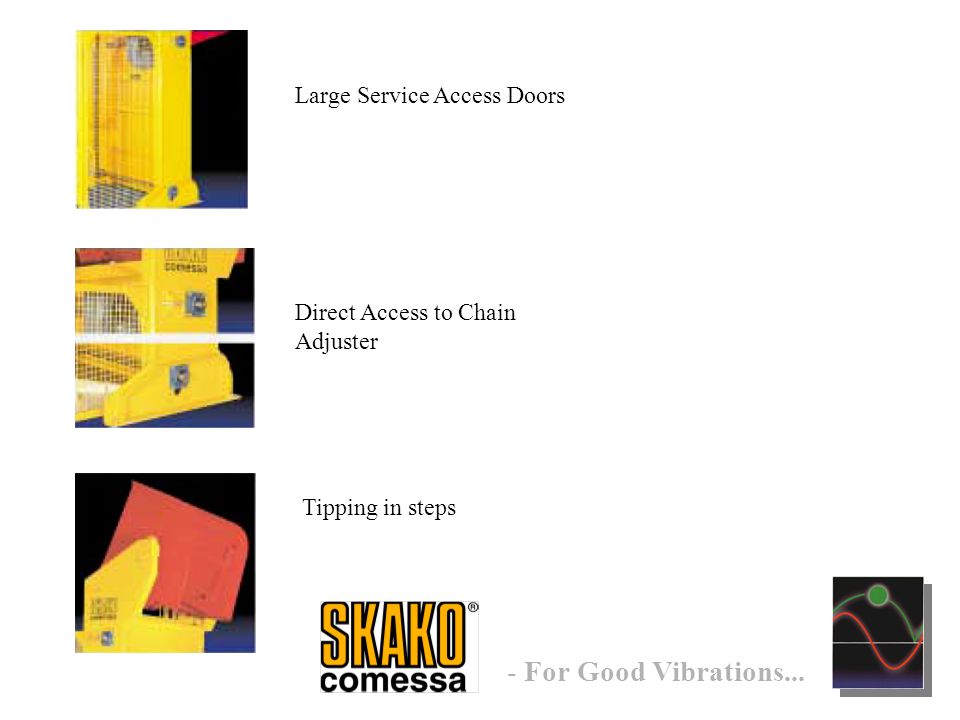

30 - For Good Vibrations... Direct Access to Chain Adjuster Tipping in steps Large Service Access Doors

31 - For Good Vibrations...

32 Good Vibrations
