1 Nye data – nye muligheder? Esben Auken, Anders V. Christiansen, Nikolaj Foged and Kurt Sørensen HydroGeophysics Group Department of Earth Sciences, University of Aarhus, Denmark

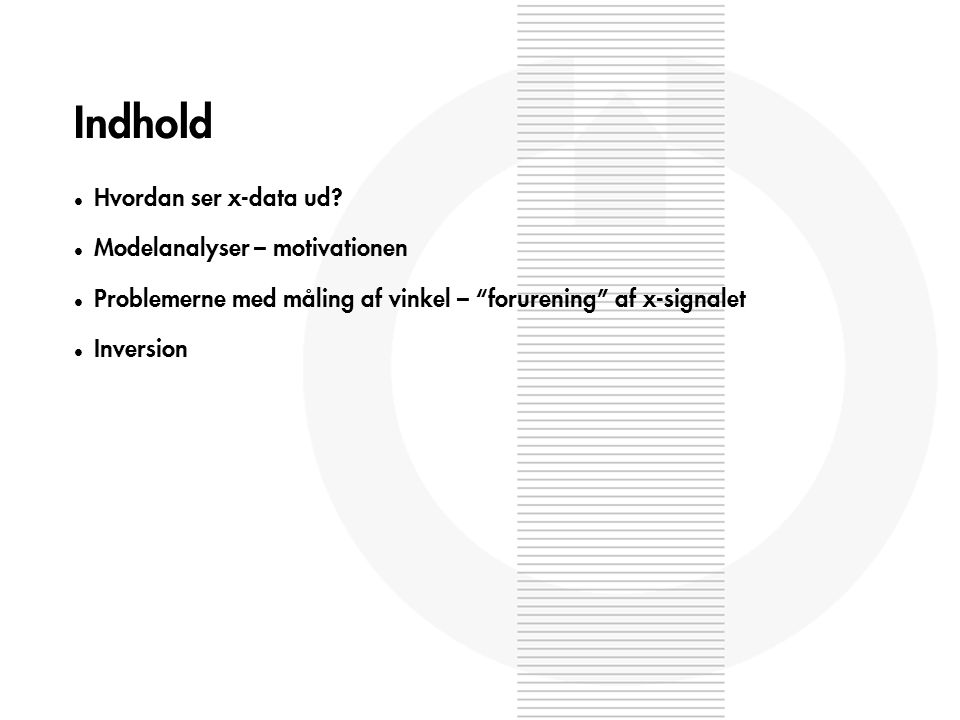

2 Indhold l Hvordan ser x-data ud? l Modelanalyser – motivationen l Problemerne med måling af vinkel – forurening af x-signalet l Inversion

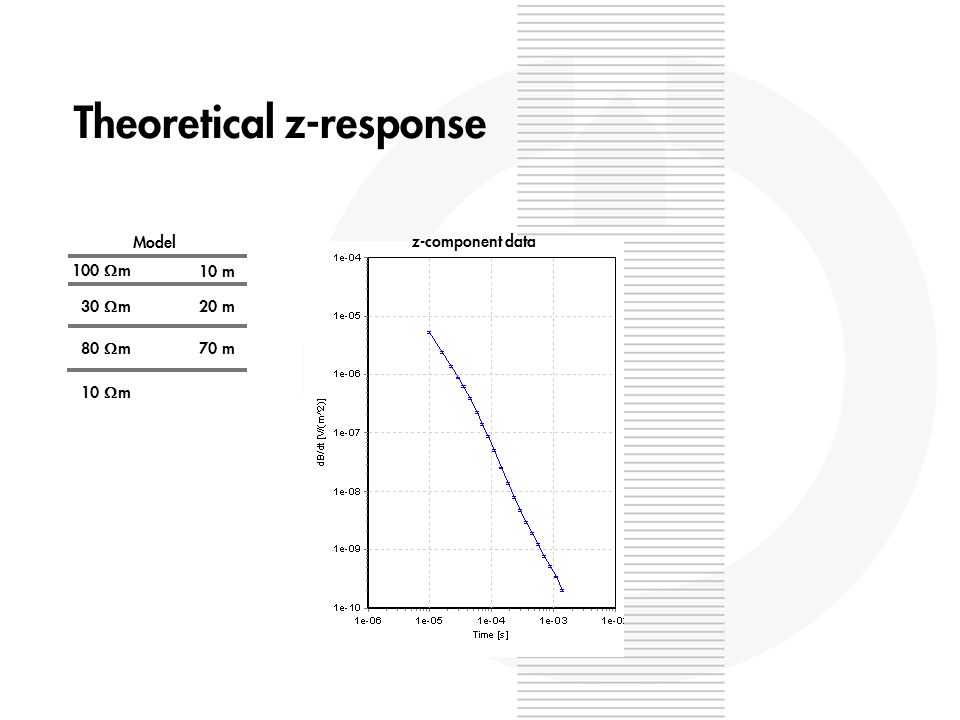

3 Theoretical z-response 100 m 10 m 30 m 20 m 80 m 70 m 10 m Model z-component data

4 Theoretical z- and x-response l Late time x t -3 l Late time z t -2.5 l x-component signal level is 5 – 8 times smaller than z-component x- and z-component 100 m 10 m 30 m 20 m 80 m 70 m 10 m Model

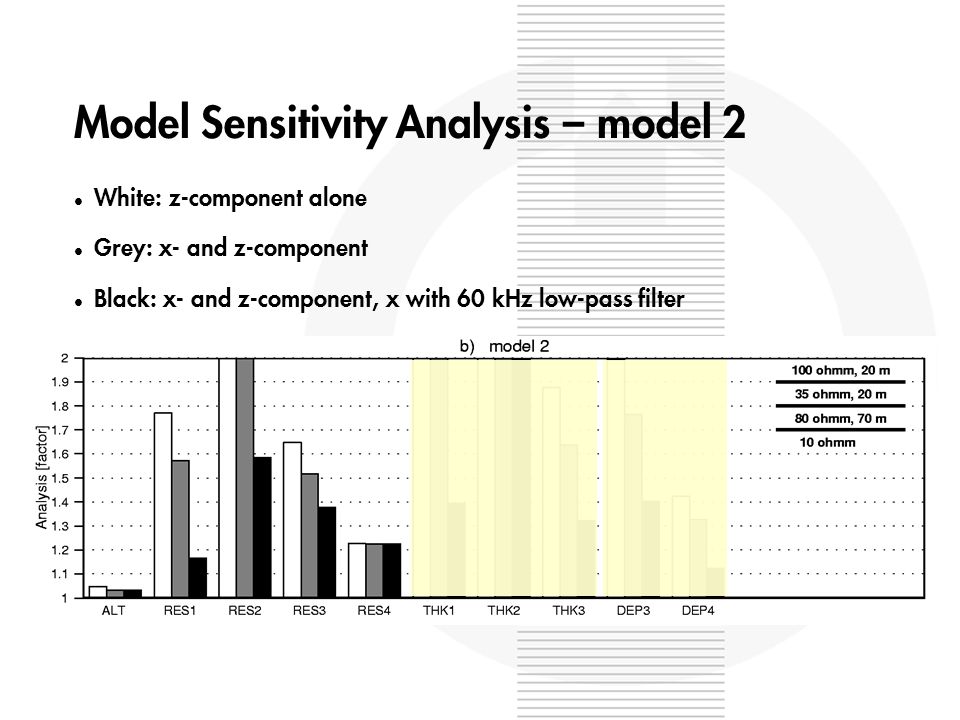

5 Model Sensitivity Analysis – model 2 l White: z-component alone l Grey: x- and z-component l Black: x- and z-component, x with 60 kHz low-pass filter

6 Model Sensitivity Analysis – model 1 l White: z-component alone l Grey: x- and z-component l Black: x- and z-component, x with 60 kHz low-pass filter

7 Model Sensitivity Analysis – model 3 l White: z-component alone l Grey: x- and z-component l Black: x- and z-component, x with 60 kHz low-pass filter

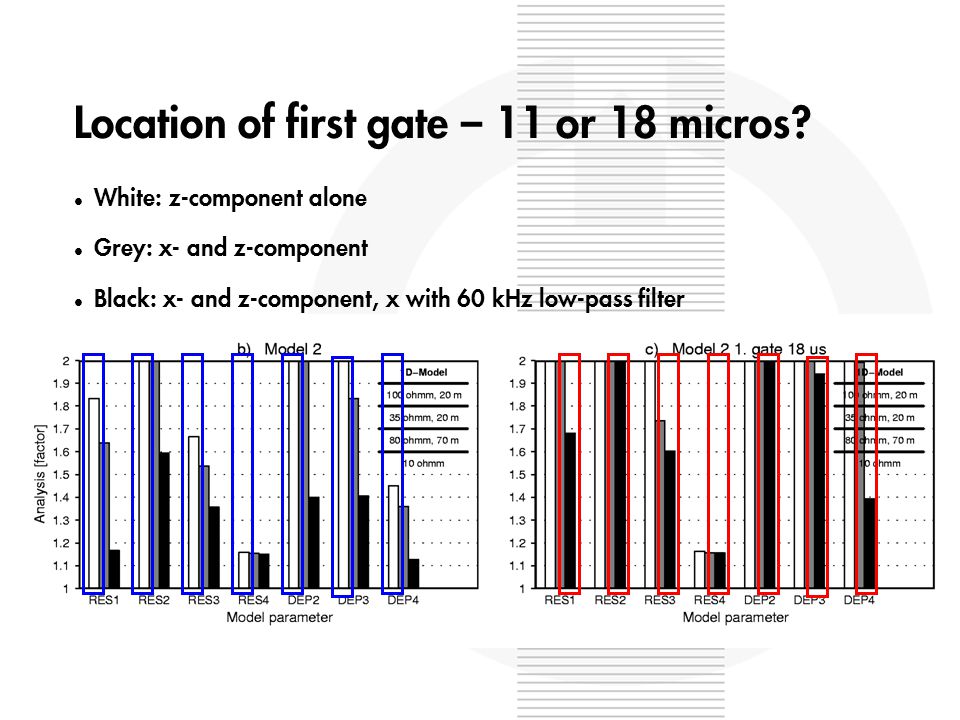

8 Location of first gate – 11 or 18 micros? l White: z-component alone l Grey: x- and z-component l Black: x- and z-component, x with 60 kHz low-pass filter

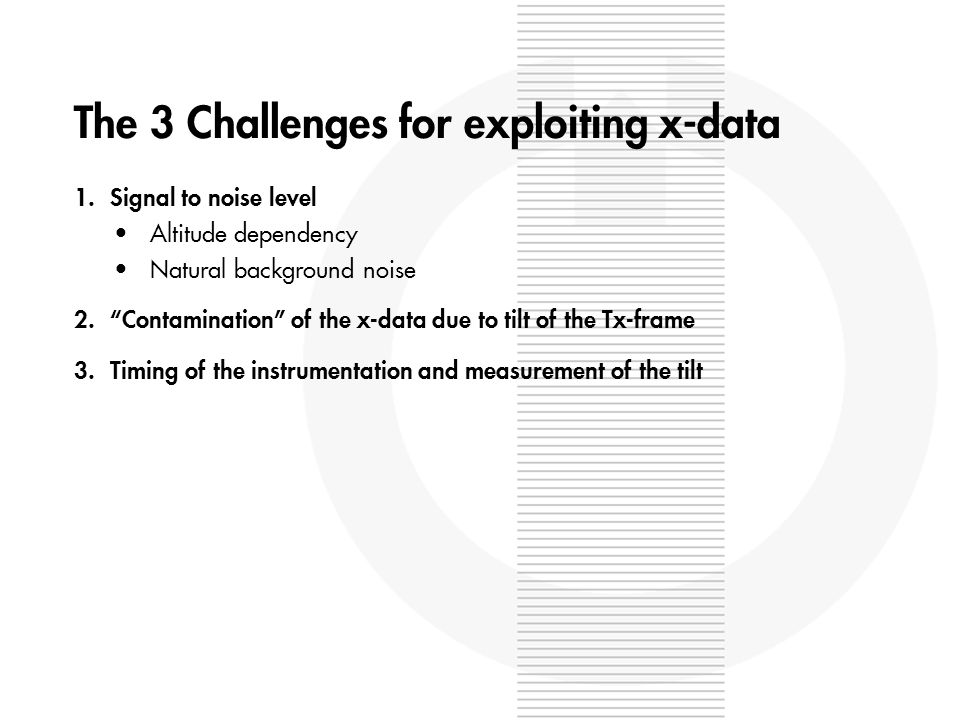

9 The 3 Challenges for exploiting x-data 1.Signal to noise level Altitude dependency Natural background noise 2.Contamination of the x-data due to tilt of the Tx-frame 3.Timing of the instrumentation and measurement of the tilt

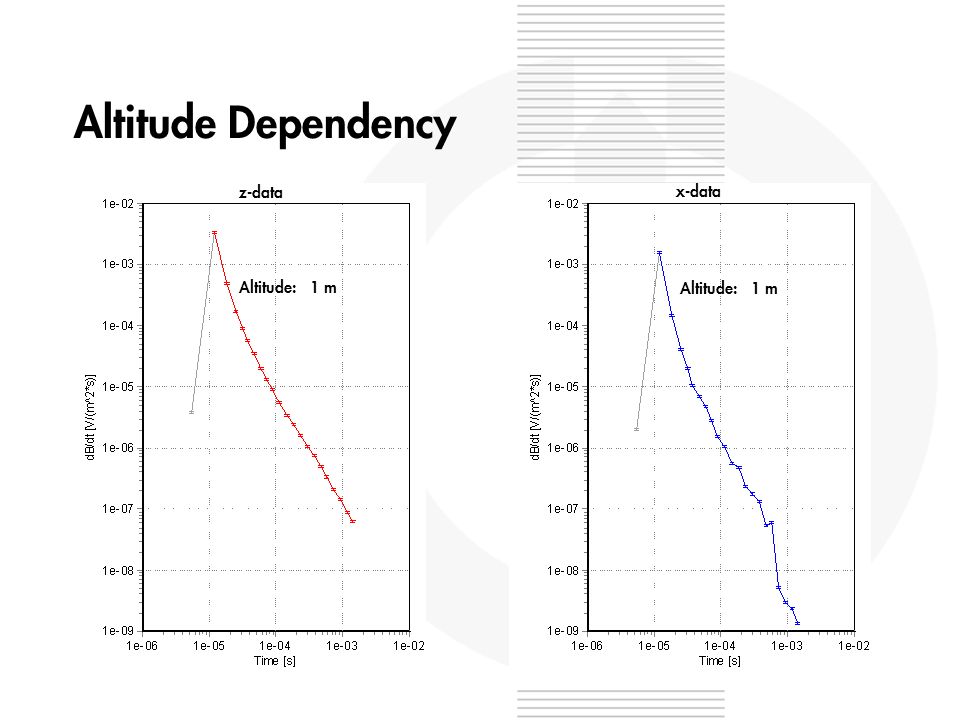

10 Altitude Dependency z-data x-data Altitude: 1 m Altitude: 1 m

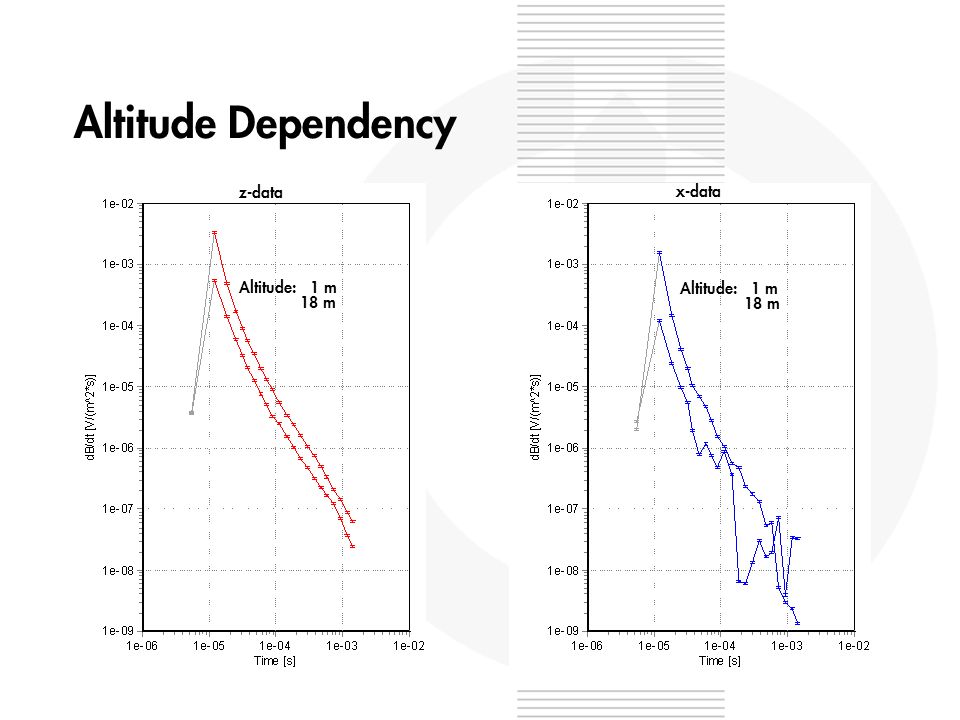

11 Altitude Dependency z-data x-data Altitude: 1 m 18 m Altitude: 1 m 18 m

12 Altitude Dependency z-data x-data Altitude: 1 m 18 m 29 m – operating altitude Altitude: 1 m 18 m 29 m

13 The 3 Challenges for Exploiting x-data 1.Signal to noise level x-signal is 5 – 8 times smaller than z-signal x-signal decreases faster with altitude compared to the z-signal x-noise is 5 – 10 times larger than z-noise 2.Contamination of the x-data due to tilt of the Tx-frame 3.Timing of the instrumentation and measurement of the tilt

14 The 3 Challenges for Exploiting x-data 1.Signal to noise level x-signal is 5 – 8 times smaller than z-signal x-signal decreases faster with altitude compared to the z-signal x-noise is 5 – 10 times larger than z-noise 2.Contamination of the x-data due to tilt of the Tx-frame 3.Timing of the instrumentation and measurement of the tilt

15 z-component x-component Tilt – Normal Situation

16 Positive Tilt of the Tx-frame l z-response adds signal to the x-response l The x-response caluclated as: B x total = B x + sin(Tilt) B z z-contamination x-component

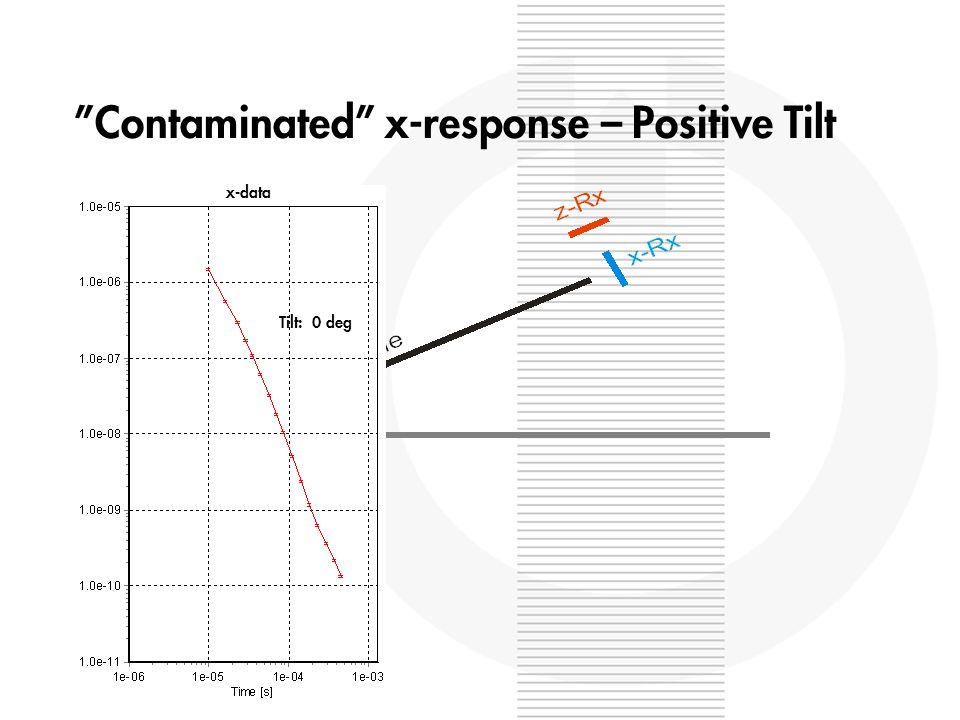

17 Contaminated x-response – Positive Tilt x-data Tilt: 0 deg

18 Contaminated x-response – Positive Tilt x-data 5 deg Tilt: 0 deg

19 Contaminated x-response – Positive Tilt x-data 10 deg 5 deg Tilt: 0 deg 9 usefull gates

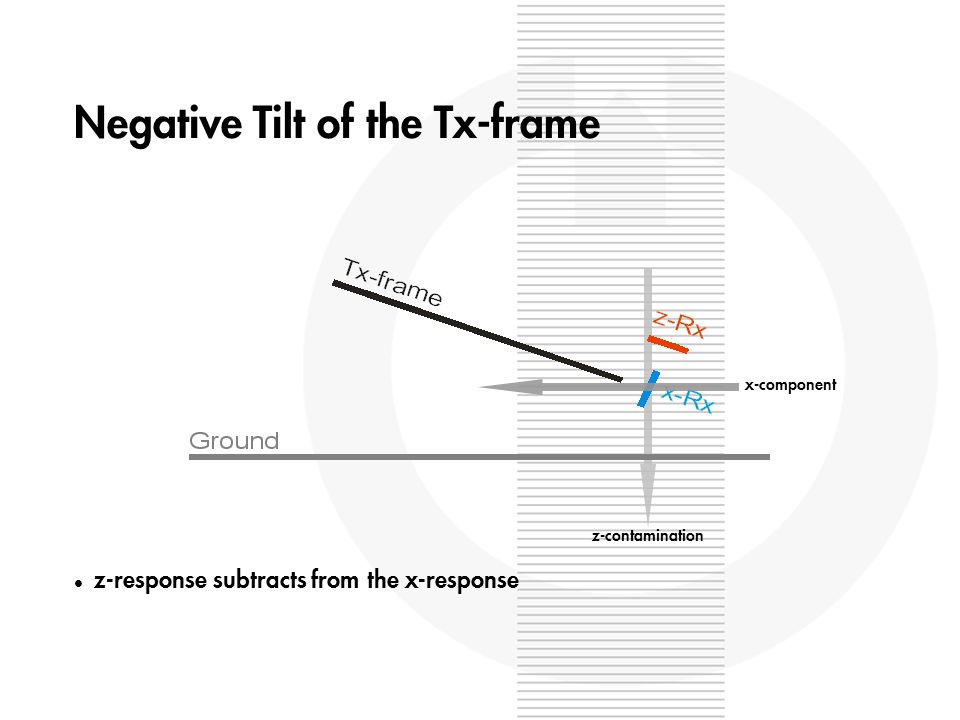

20 Negative Tilt of the Tx-frame l z-response subtracts from the x-response z-contamination x-component

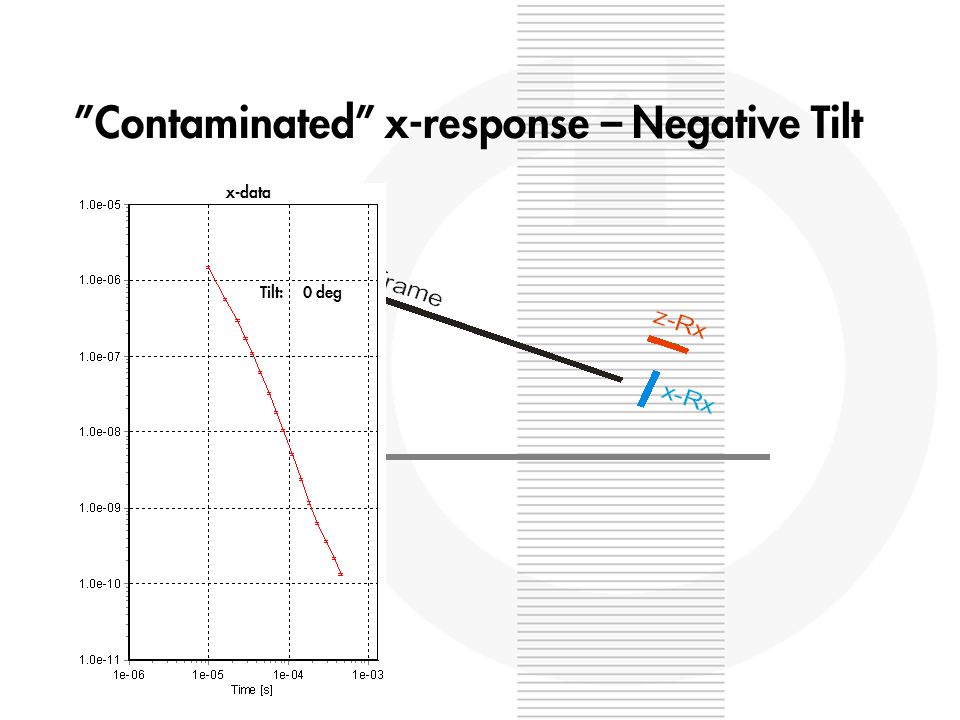

21 Contaminated x-response – Negative Tilt x-data Tilt: 0 deg

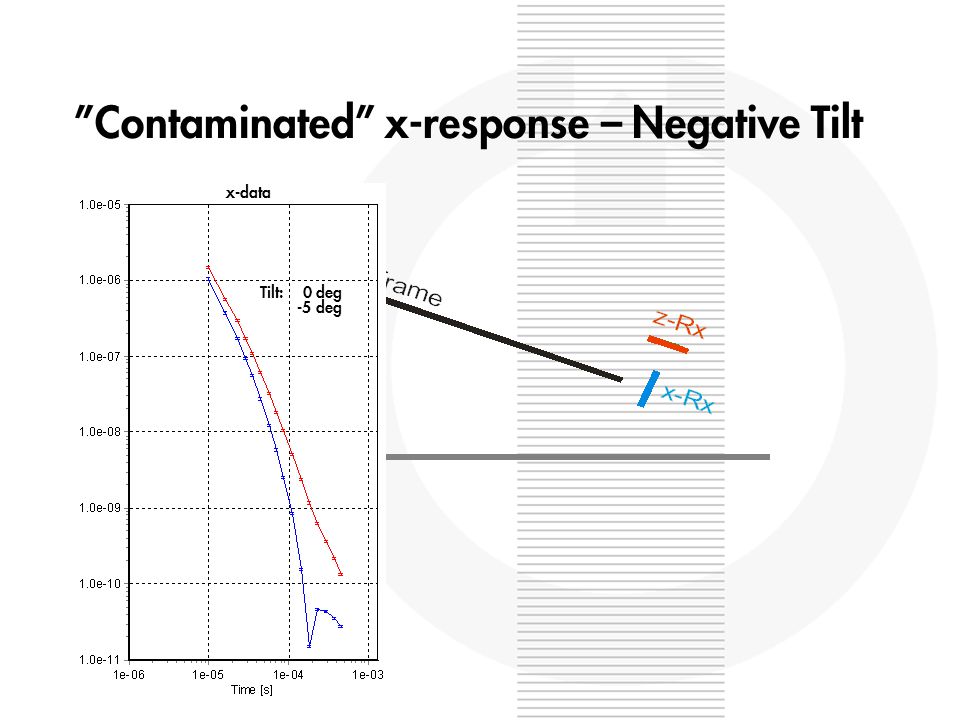

22 Contaminated x-response – Negative Tilt x-data Tilt: 0 deg -5 deg

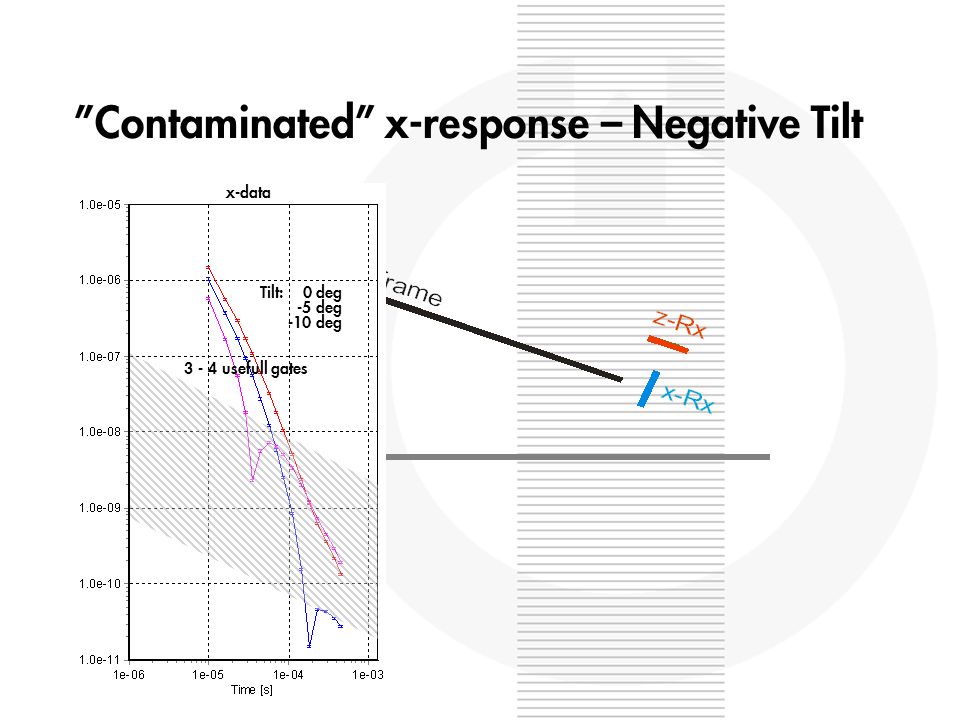

23 Contaminated x-response – Negative Tilt x-data Tilt: 0 deg -5 deg -10 deg usefull gates

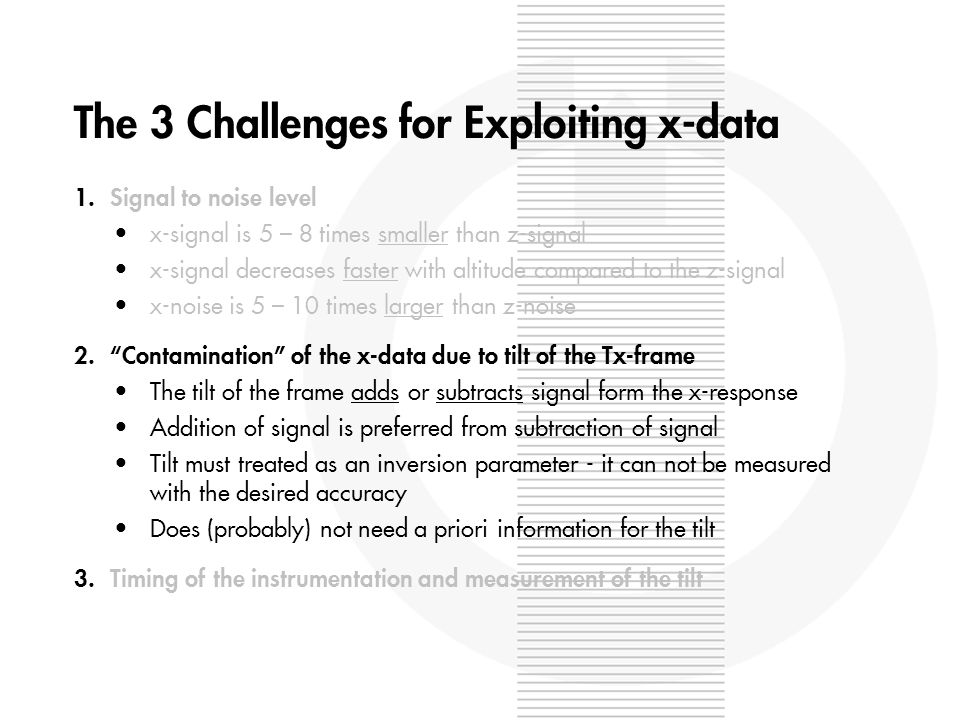

24 The 3 Challenges for Exploiting x-data 1.Signal to noise level x-signal is 5 – 8 times smaller than z-signal x-signal decreases faster with altitude compared to the z-signal x-noise is 5 – 10 times larger than z-noise 2.Contamination of the x-data due to tilt of the Tx-frame The tilt of the frame adds or subtracts signal form the x-response Addition of signal is preferred from subtraction of signal Tilt must treated as an inversion parameter - it can not be measured with the desired accuracy Does (probably) not need a priori information for the tilt 3.Timing of the instrumentation and measurement of the tilt

25 The 3 Challenges for Exploiting x-data 1.Signal to noise level x-signal is 5 – 8 times smaller than z-signal x-signal decreases faster with altitude compared to the z-signal x-noise is 5 – 10 times larger than z-noise 2.Contamination of the x-data due to tilt of the Tx-frame The tilt of the frame adds or subtracts signal form the x-response Addition of signal is preferred from subtraction of signal Tilt must treated as an inversion parameter - it can not be measured with the desired accuracy Does (probably) not need a priori information for the tilt 3.Timing of the instrumentation and measurement of the tilt

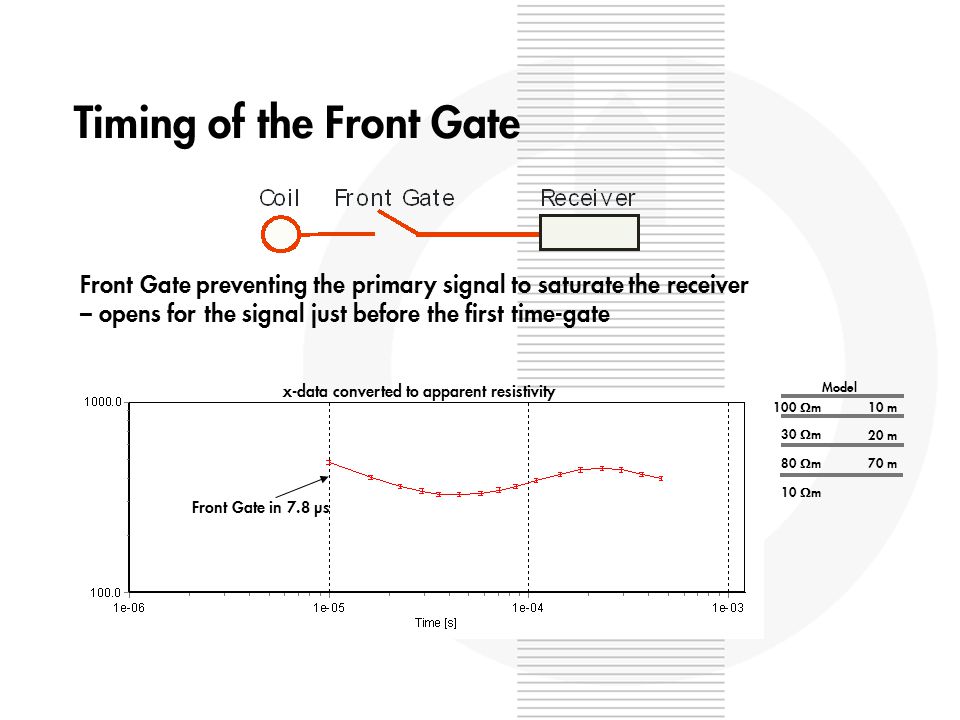

26 Timing of the Front Gate x-data converted to apparent resistivity Front Gate in 7.8 µs Front Gate preventing the primary signal to saturate the receiver – opens for the signal just before the first time-gate 100 m 10 m 30 m 20 m 80 m 70 m 10 m Model

27 Timing of the Front Gate Front Gate in 8.8 µs 300 nSec shift corresponds to approx. 3 % shift of the first gate x-data converted to apparent resistivity Front Gate in 7.8 µs 100 m 10 m 30 m 20 m 80 m 70 m 10 m Model Front Gate preventing the primary signal to saturate the receiver – opens for the signal just before the first time-gate

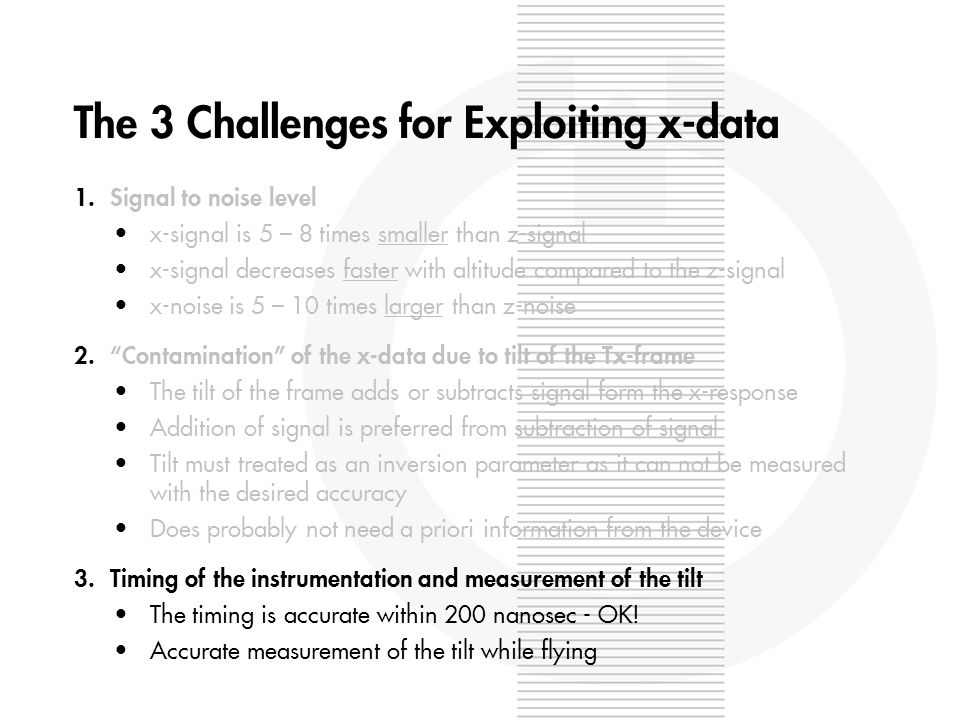

28 The 3 Challenges for Exploiting x-data 1.Signal to noise level x-signal is 5 – 8 times smaller than z-signal x-signal decreases faster with altitude compared to the z-signal x-noise is 5 – 10 times larger than z-noise 2.Contamination of the x-data due to tilt of the Tx-frame The tilt of the frame adds or subtracts signal form the x-response Addition of signal is preferred from subtraction of signal Tilt must treated as an inversion parameter as it can not be measured with the desired accuracy Does probably not need a priori information from the device 3.Timing of the instrumentation and measurement of the tilt The timing is accurate within 200 nanosec - OK! Accurate measurement of the tilt while flying

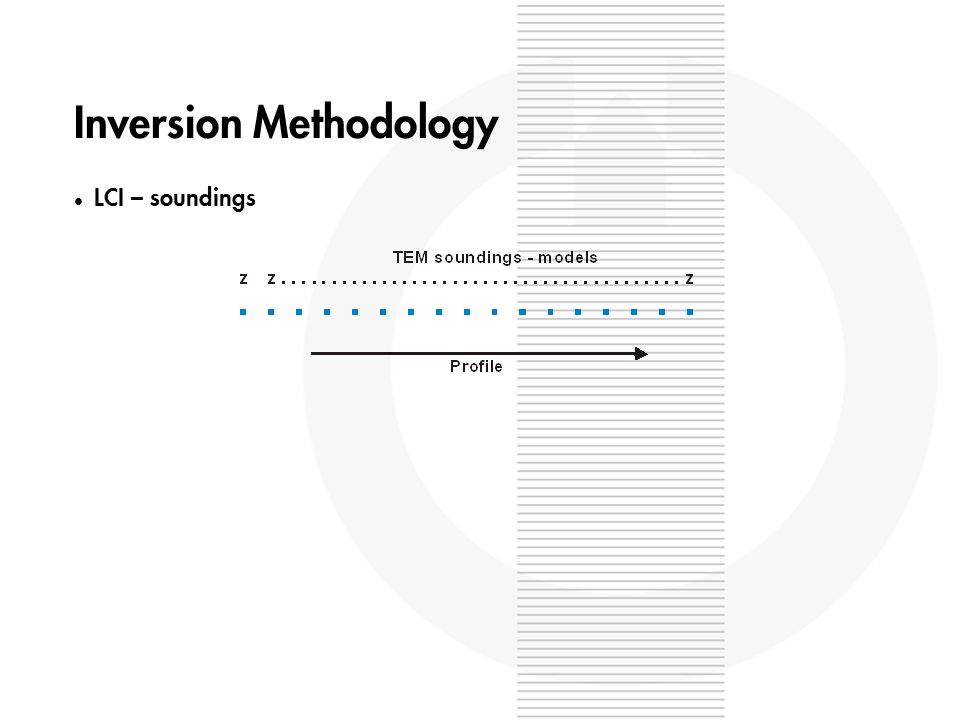

29 Inversion Methodology l LCI – soundings

30 Inversion Methodology l LCI – soundings

31 Inversion Methodology l LCI – soundings

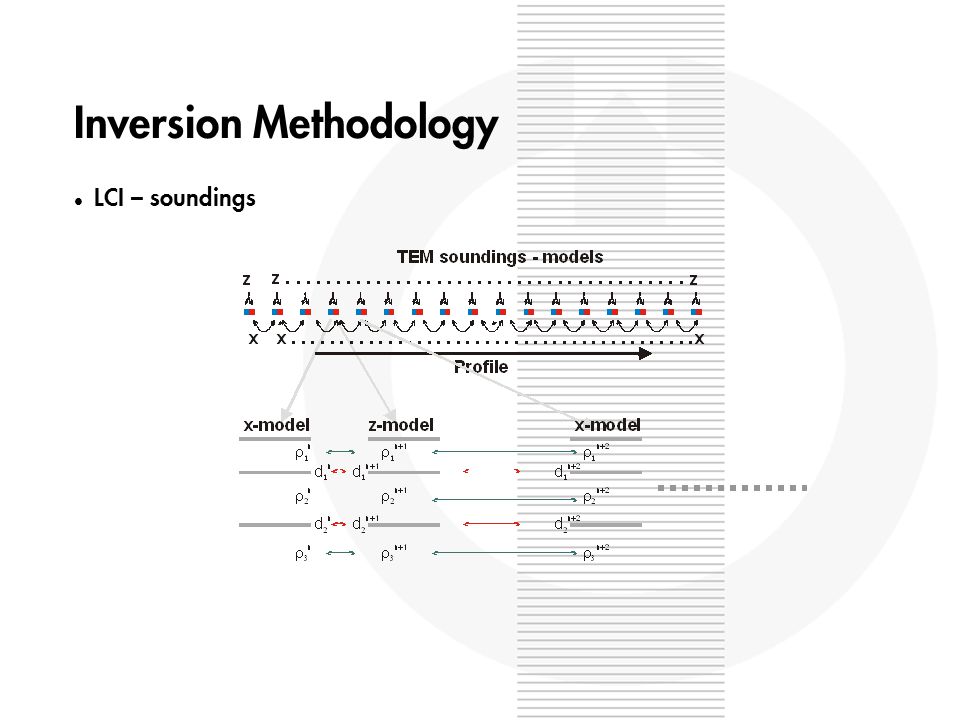

32 Inversion Methodology l LCI – soundings

33 Inversion Methodology l Damped least squares scheme, modeling of system transfer function Low pass filters, front gate, turn-on and turn-off exponential ramps Flight altitude and tilt are constrained parameters l The model is parameterized or smooth 1D

34 Data

35 Diskussion og konklusion l x-data tilfører information om den overfladenære geologi l Ved to-moment-system kompenserer x-data for, at første gate er i 16 microsek. l Ved ét-moment-system (første gate i 10 microsek.) tilfører x-data opløslighed i betragetligt omfang. l x-signalet kan anvendes, hvis ikke modstanden er for høj Kræver at flyvehøjden er omkring 30 m (eller lavere) Kræver nøjagtig måling af vinkel og kalibrering af instrumenterne l Giver ikke ekstra arbejde i felten, men giver ekstra processerings- og tolkningsarbejde l Stadigvæk på forskningsstadiet
