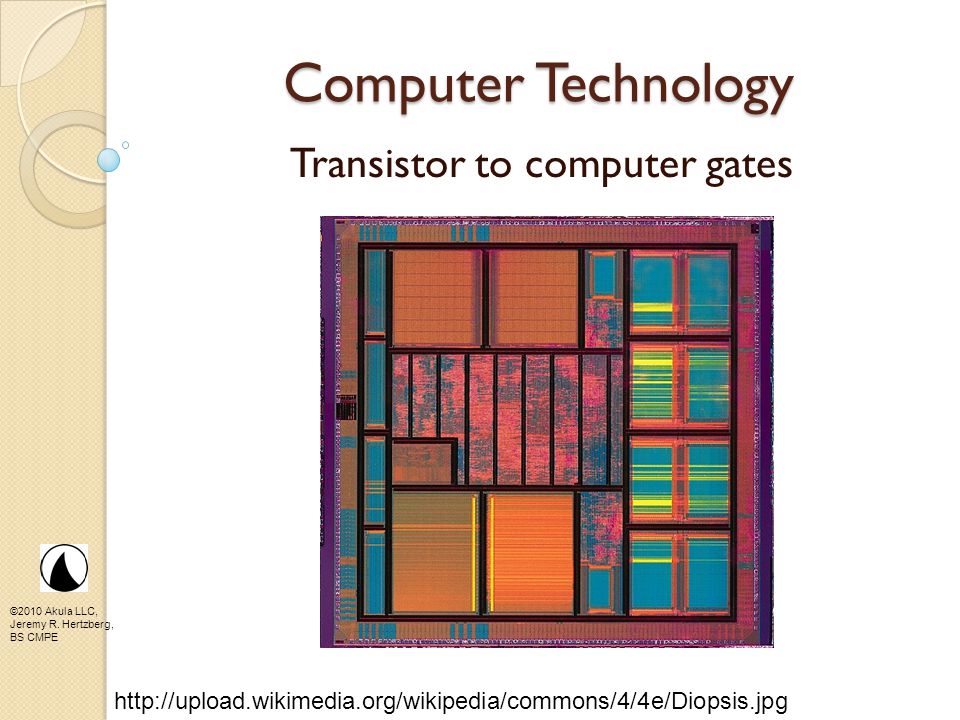

1 ©2010 Akula LLC, Jeremy R. Hertzberg, BS CMPE Computer Technology Transistor to computer gates

2 ©2010 Akula LLC, Jeremy R. Hertzberg, BS CMPE Computer Transistor Central Processor Unit or CPU Motherboard `

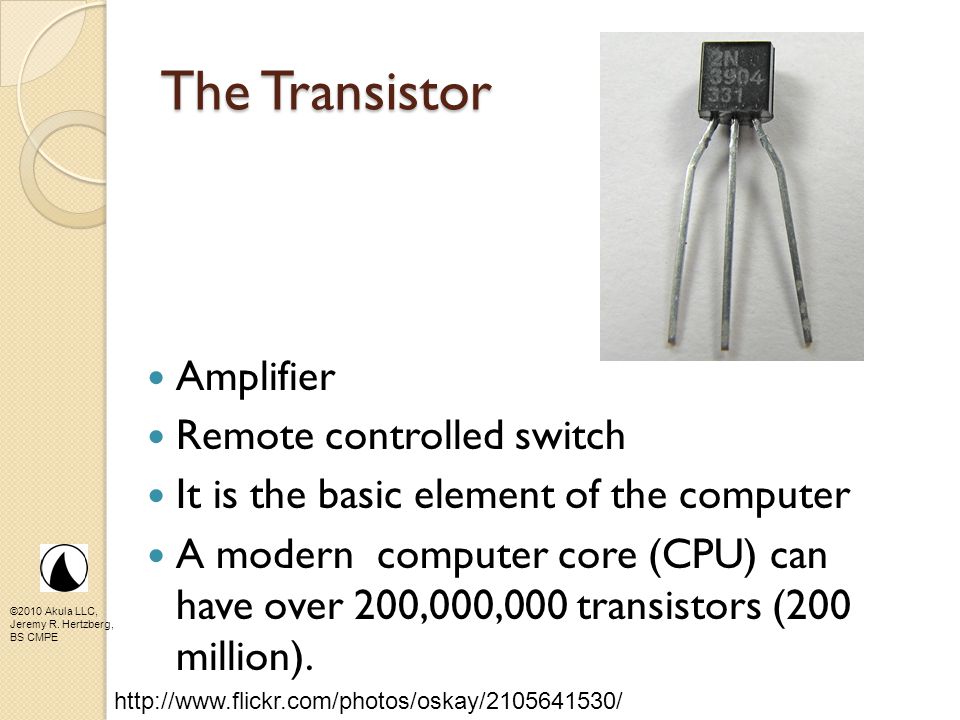

3 ©2010 Akula LLC, Jeremy R. Hertzberg, BS CMPE The Transistor Amplifier Remote controlled switch It is the basic element of the computer A modern computer core (CPU) can have over 200,000,000 transistors (200 million).

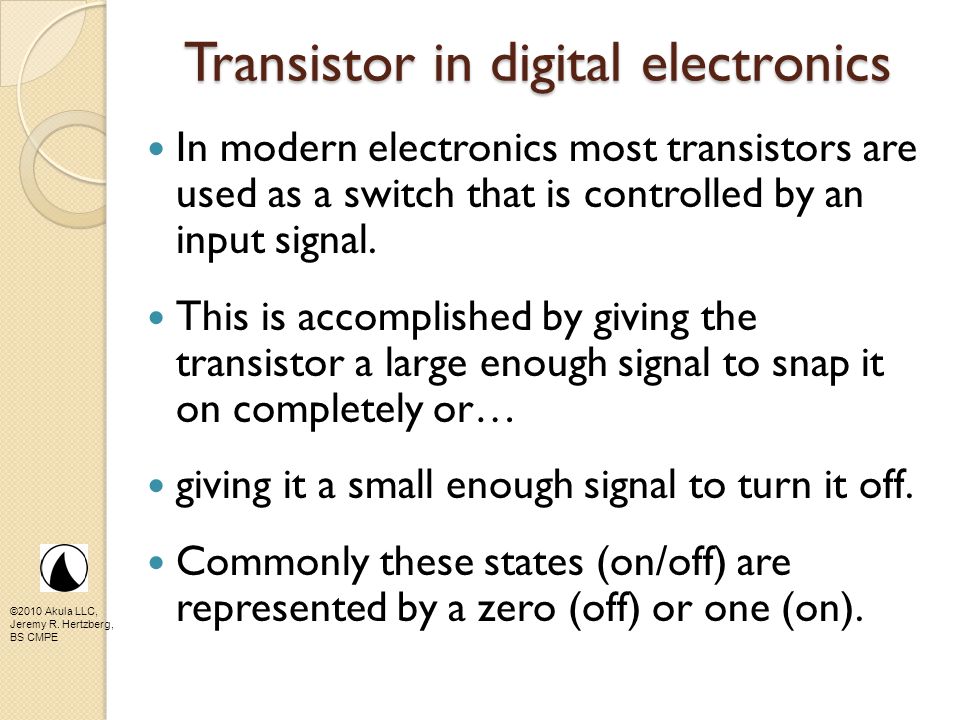

4 ©2010 Akula LLC, Jeremy R. Hertzberg, BS CMPE Transistor in digital electronics In modern electronics most transistors are used as a switch that is controlled by an input signal. This is accomplished by giving the transistor a large enough signal to snap it on completely or… giving it a small enough signal to turn it off. Commonly these states (on/off) are represented by a zero (off) or one (on).

5 ©2010 Akula LLC, Jeremy R. Hertzberg, BS CMPE Transistors

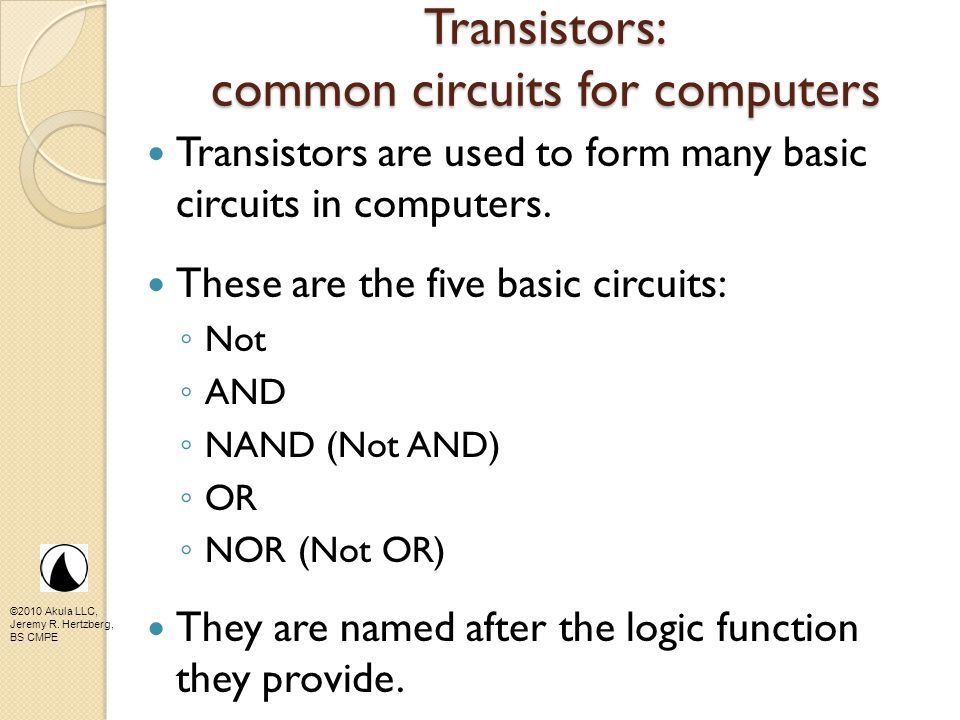

6 Transistors: common circuits for computers Transistors are used to form many basic circuits in computers. These are the five basic circuits: Not AND NAND (Not AND) OR NOR (Not OR) They are named after the logic function they provide.

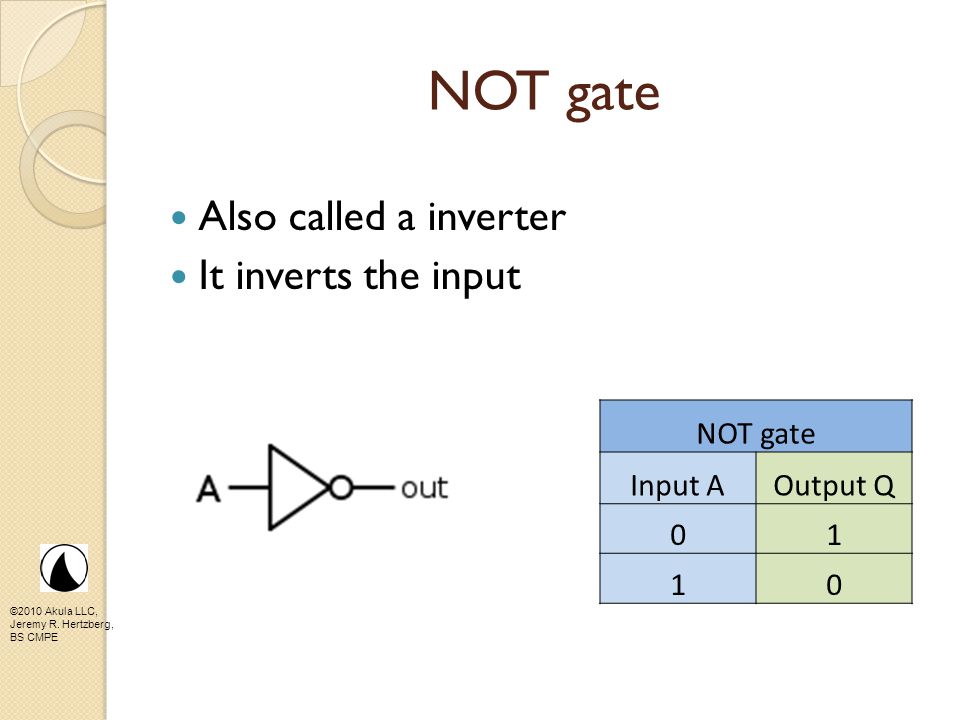

7 ©2010 Akula LLC, Jeremy R. Hertzberg, BS CMPE NOT gate Also called a inverter It inverts the input NOT gate Input AOutput Q 01 10

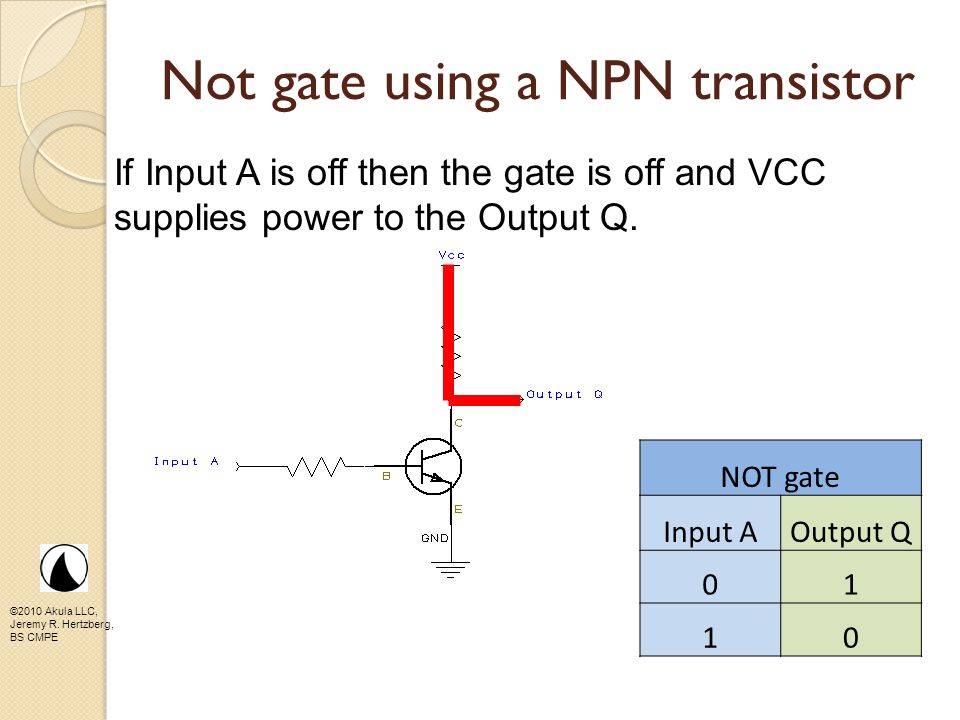

8 ©2010 Akula LLC, Jeremy R. Hertzberg, BS CMPE Not gate using a NPN transistor NOT gate Input AOutput Q If Input A is off then the gate is off and VCC supplies power to the Output Q.

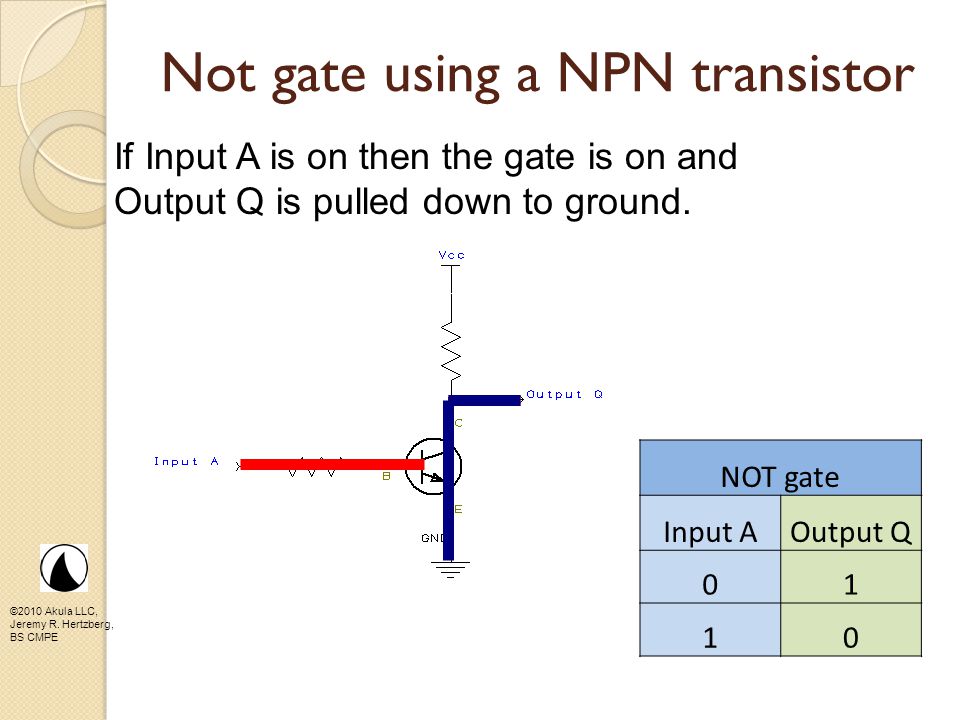

9 ©2010 Akula LLC, Jeremy R. Hertzberg, BS CMPE Not gate using a NPN transistor NOT gate Input AOutput Q If Input A is on then the gate is on and Output Q is pulled down to ground.

10 ©2010 Akula LLC, Jeremy R. Hertzberg, BS CMPE Transistor-AND gate The basic AND gate has two inputs If both inputs are high, then the output is high Otherwise the output is low AND gate Input AInput BOutput Q

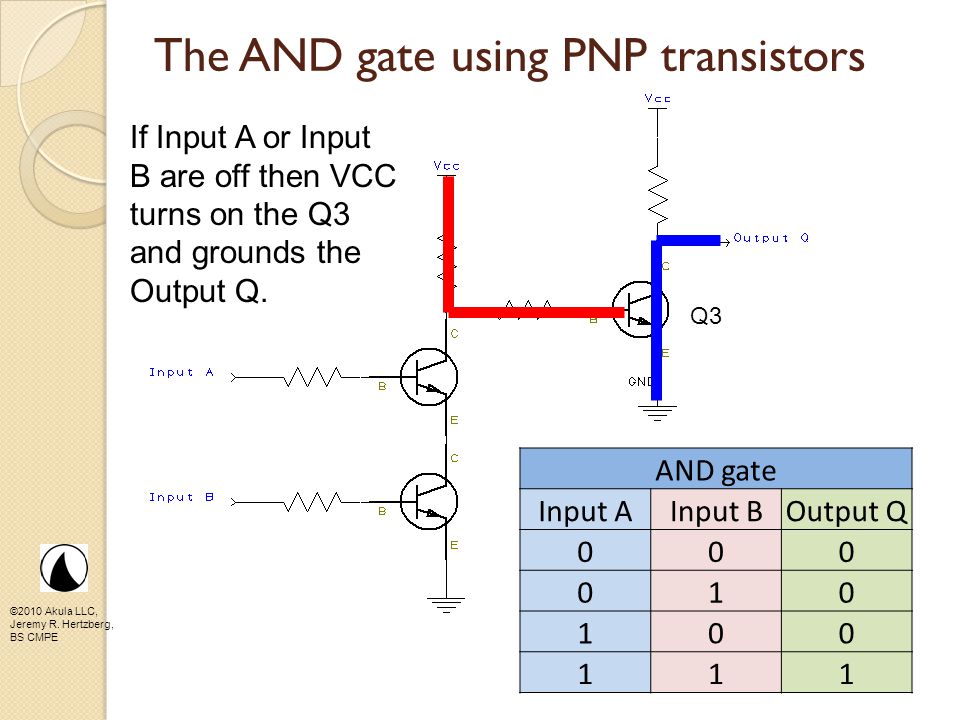

11 ©2010 Akula LLC, Jeremy R. Hertzberg, BS CMPE The AND gate using PNP transistors AND gate Input AInput BOutput Q If Input A or Input B are off then VCC turns on the Q3 and grounds the Output Q. Q3

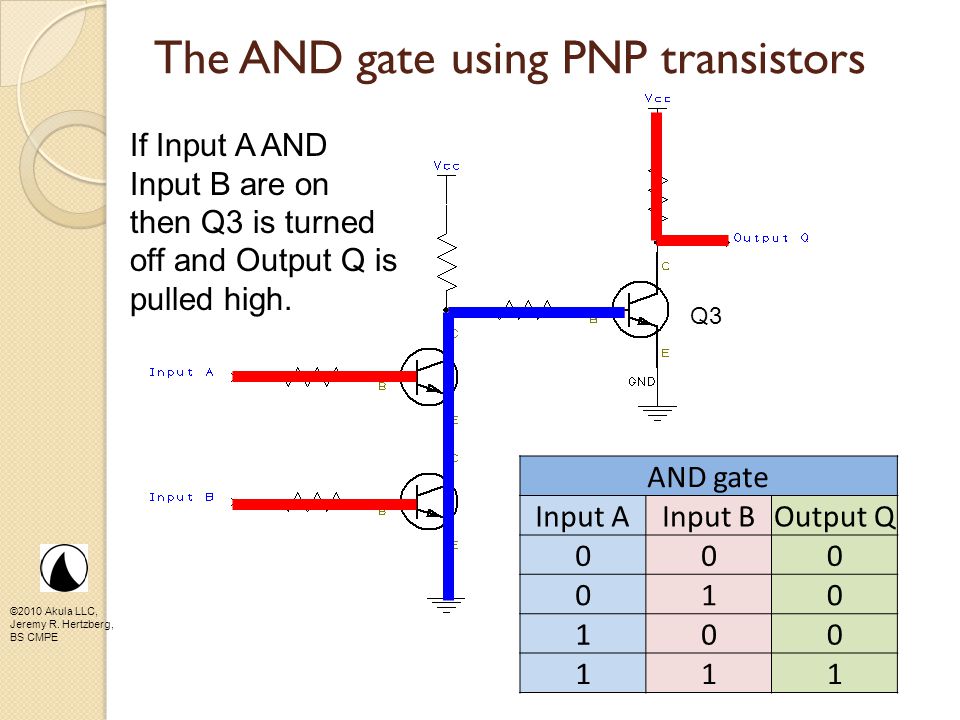

12 ©2010 Akula LLC, Jeremy R. Hertzberg, BS CMPE The AND gate using PNP transistors AND gate Input AInput BOutput Q If Input A AND Input B are on then Q3 is turned off and Output Q is pulled high. Q3

13 ©2010 Akula LLC, Jeremy R. Hertzberg, BS CMPE Transistor-NAND gate The basic NAND gate has two inputs If any inputs are high, then the output is low Otherwise the output is high NAND gate Input AInput BOutput Q

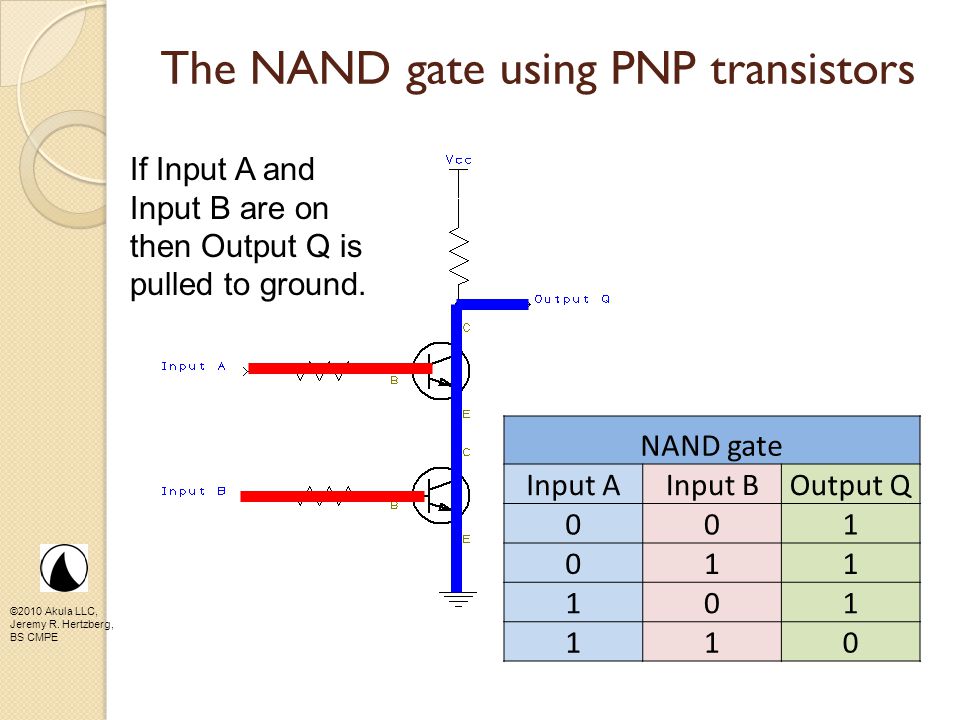

14 ©2010 Akula LLC, Jeremy R. Hertzberg, BS CMPE The NAND gate using PNP transistors NAND gate Input AInput BOutput Q If Input A and Input B are on then Output Q is pulled to ground.

15 ©2010 Akula LLC, Jeremy R. Hertzberg, BS CMPE The NAND gate using PNP transistors NAND gate Input AInput BOutput Q If Input A or Input B are off then Output Q is pulled high.

16 ©2010 Akula LLC, Jeremy R. Hertzberg, BS CMPE Transistor-OR gate The basic OR gate has two inputs If either input is high, then the output is high Otherwise the output is low OR gate Input AInput BOutput Q

17 ©2010 Akula LLC, Jeremy R. Hertzberg, BS CMPE Transistor-OR gate with PNPs OR gate Input AInput BOutput Q If Input A or Input B are on then Output Q is pulled high.

18 ©2010 Akula LLC, Jeremy R. Hertzberg, BS CMPE Transistor-OR gate with PNPs OR gate Input AInput BOutput Q If Input A and Input B are OFF then Output Q is pulled low.

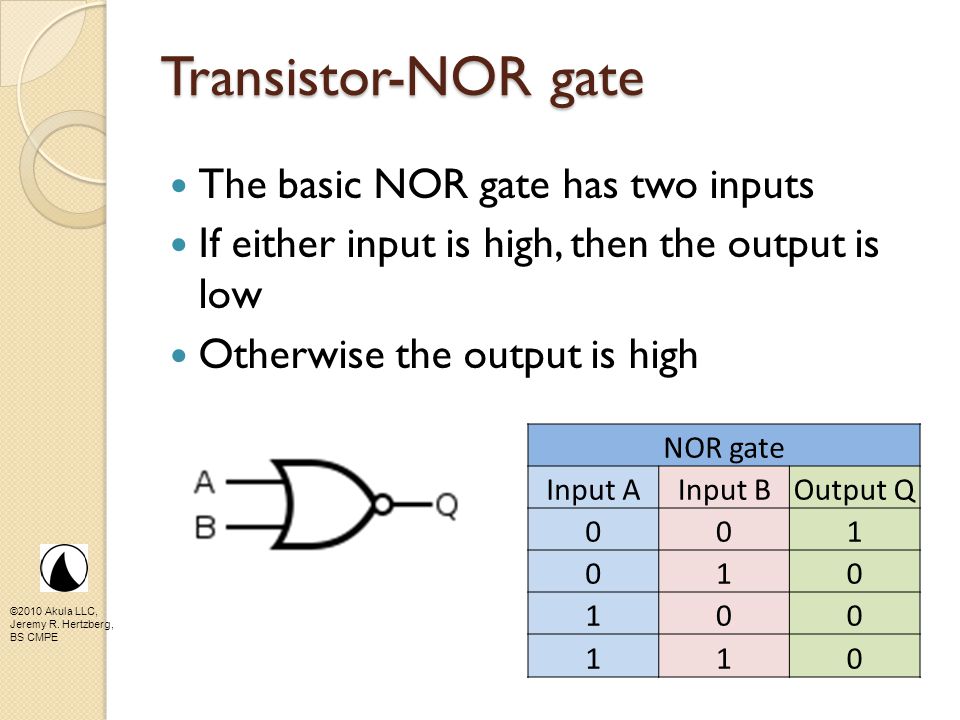

19 ©2010 Akula LLC, Jeremy R. Hertzberg, BS CMPE Transistor-NOR gate The basic NOR gate has two inputs If either input is high, then the output is low Otherwise the output is high NOR gate Input AInput BOutput Q

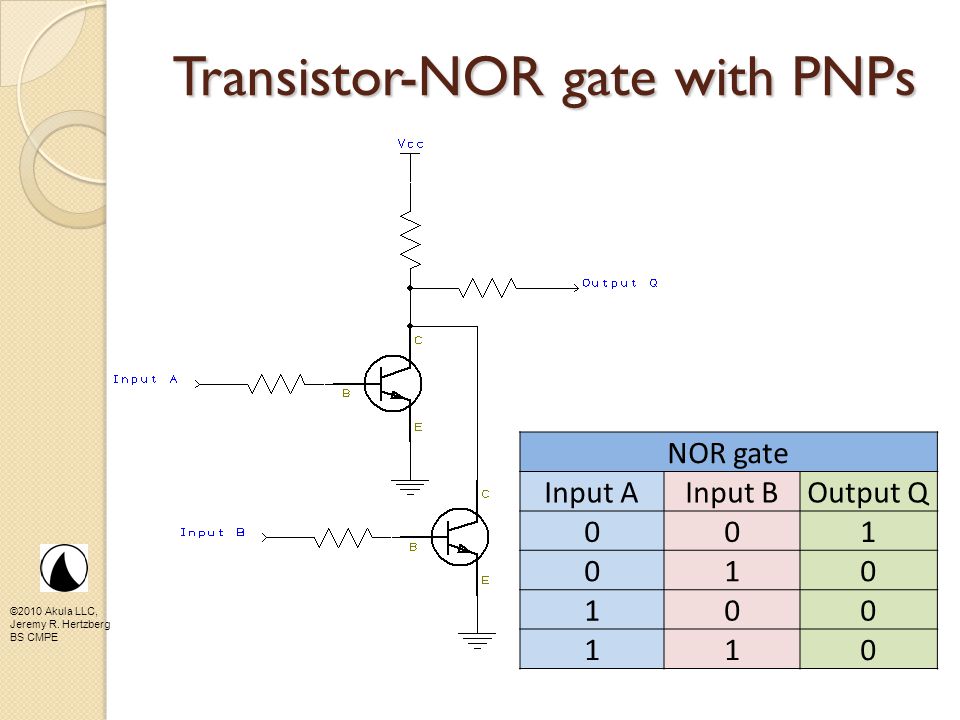

20 ©2010 Akula LLC, Jeremy R. Hertzberg, BS CMPE Transistor-NOR gate with PNPs NOR gate Input AInput BOutput Q
