1 Understanding Doppler and its Current Uses in OB Diana M. Strickland, BSBA, RDMS, RDCS

2 Continuous vs. Pulsed

3 Doppler – Moving structures - Red Blood Cells- Scattered waves- low level NOISE! Wall motion – high level NOISE! ƒd = 2(ƒt v cosθ)/c

4 Doppler – Moving structures - Red Blood Cells- ftft ftft frfr frfr f Time Positive shift Negative shift

5 ftft f time Doppler – Moving structures - Red Blood Cells- ?

6 ftft f time

7 ftft Doppler – Moving structures - Red Blood Cells- <20 o Optimal

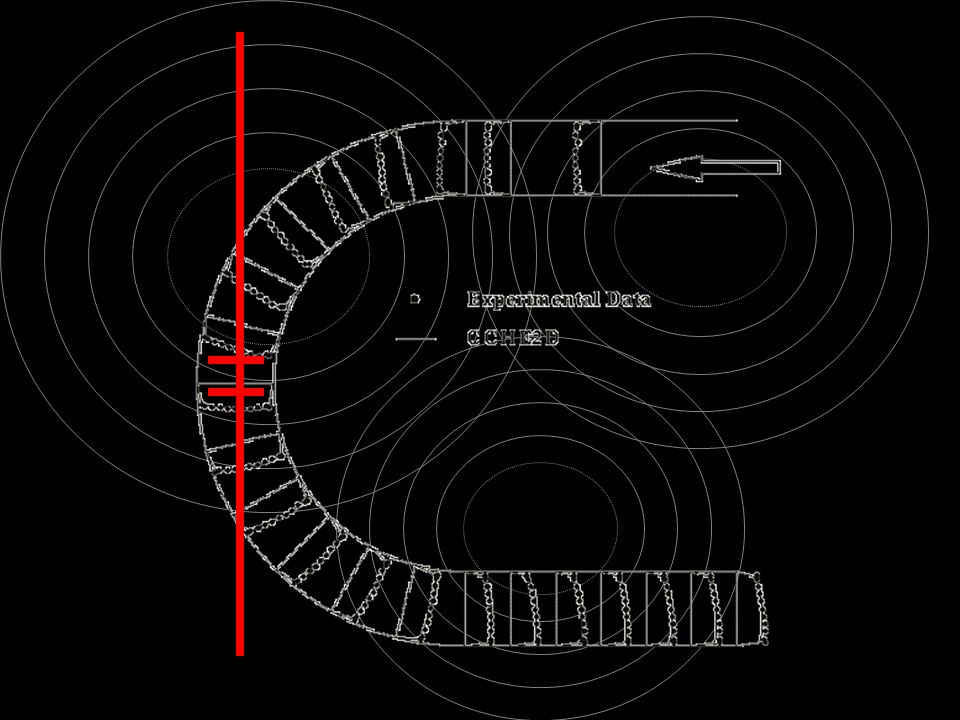

8

9 Doppler modes are differentiated by the way the signal is processed

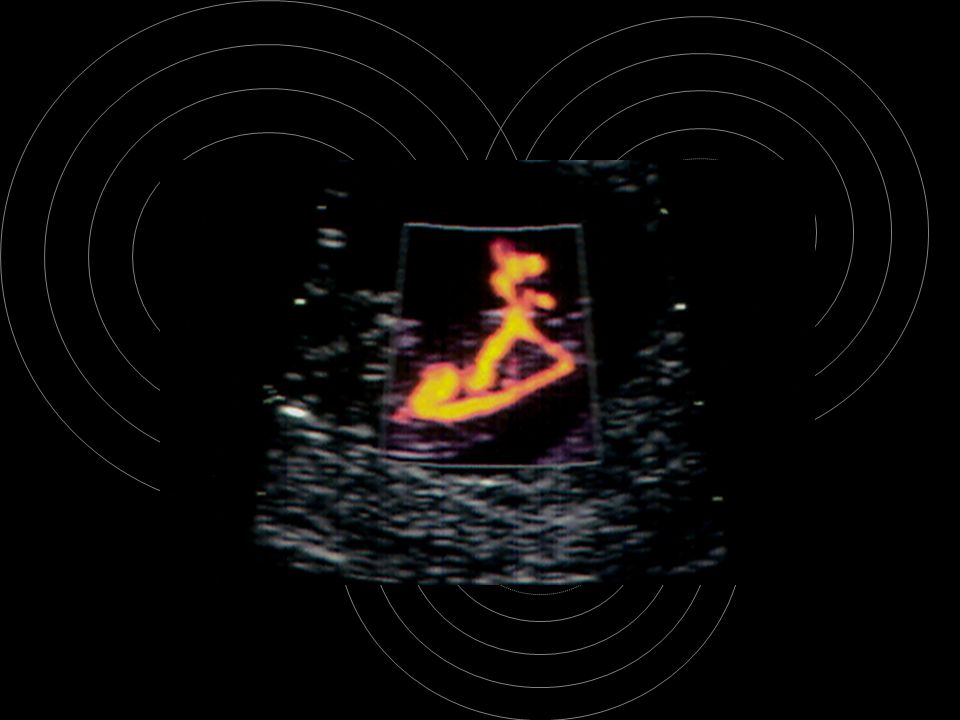

10 FFT – Fast Fourier Transform Algorithm to display multiple frequencies in a single time frame – Spectral Doppler Think of a single note versus a chord Color Doppler is an average of the spectral doppler – it cant show each frequency in a specific time unit Standard display is BART – Blue away, Red towards Density of blood cells displayed as an intensity of gray High density (power) – bright Low density (power) – less bright Is power useful in Spectral Doppler – NO, but it is in Power Doppler Color tone determined by density (#) of cells

11 Plug Flow - Systole Diastole Consider spread through sample volume

12 Broadening / Narrowing Time FrequencyFrequency SD Envelope

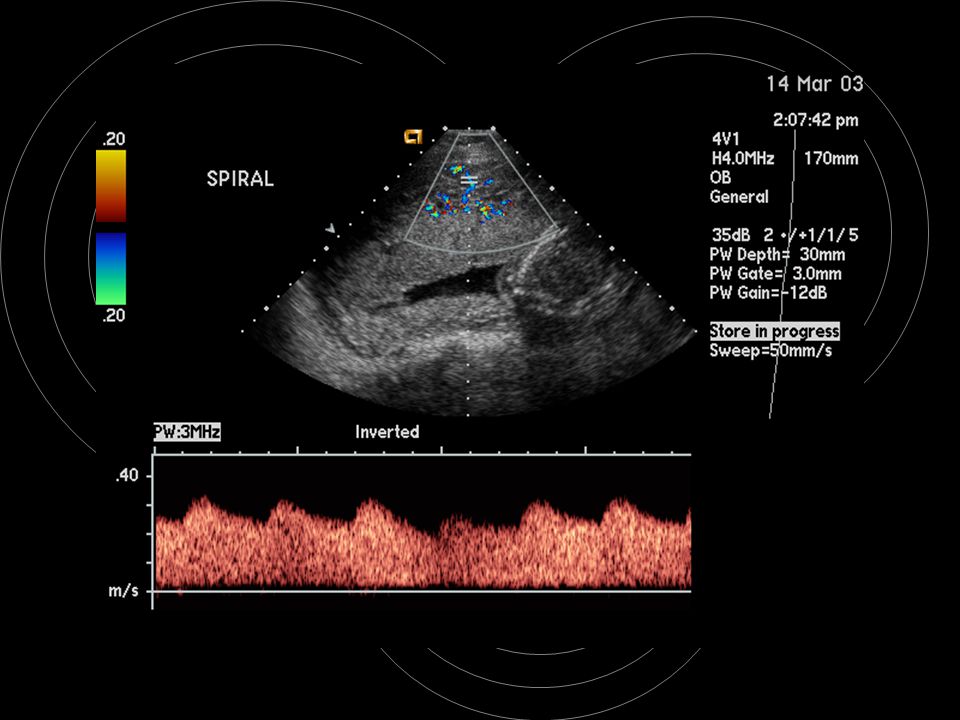

13

14

15

16 Adjusting Parameters Gain Scale Baseline Filter Gate Sweep

17 Adjusting Parameters Gain Scale Baseline Filter Gate Sweep

18

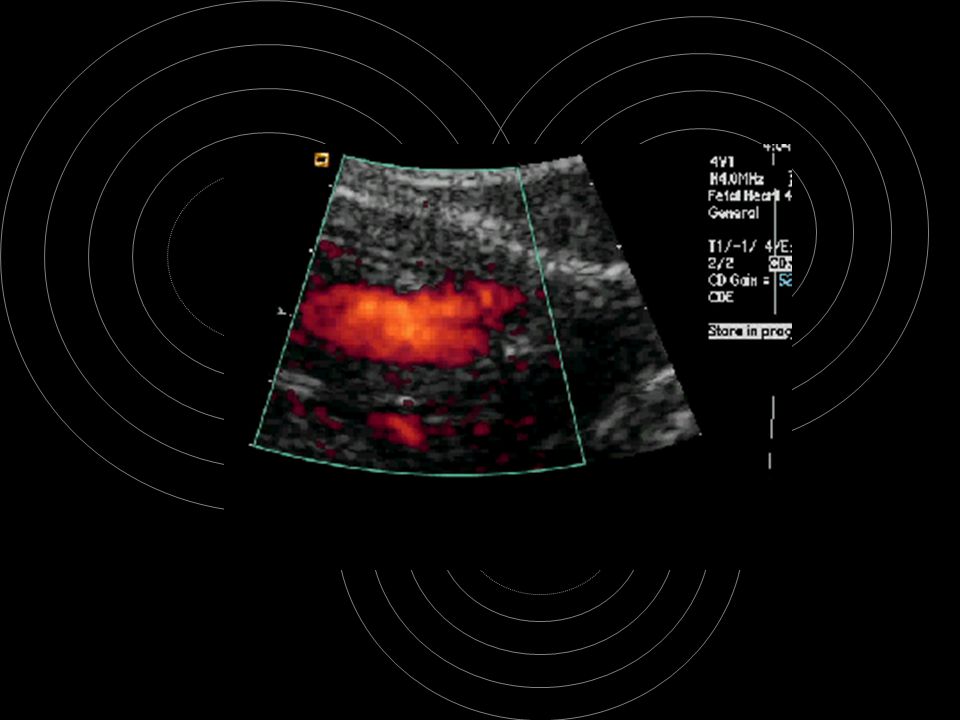

19

20 Adjusting Parameters Gain Scale Baseline Filter Gate Sweep

21 Adjusting Parameters Gain Scale Baseline Filter Gate Sweep

22 Adjusting Parameters Gain Scale Baseline Filter Gate Sweep

23 Adjusting Parameters Gain Scale Baseline Filter Gate Sweep

24 Adjusting Parameters Gain Scale Baseline Filter Gate Sweep

25 Adjusting Parameters Gain Scale Baseline Filter Gate Sweep

26 Adjusting Parameters Gain Scale Baseline Filter Gate Sweep

27 Size Invert

28 Other causes for poor Doppler signal… Frequency of transducer too high for vessel depth Lower frequency Receiver gain too low Increase gain Focal zone not optimized to area of interest – the vessel Move it ;-)

29 Fetal Well Being NST BPP Doppler

30 Fetal Well Being S / D RI (Resistance Index or Pourcelot Index) (S-D) S PI (Pulsatilty Index) (S-D) A TAMVTime-averaged mean velocity Maximum Systole / Minimum Diastole

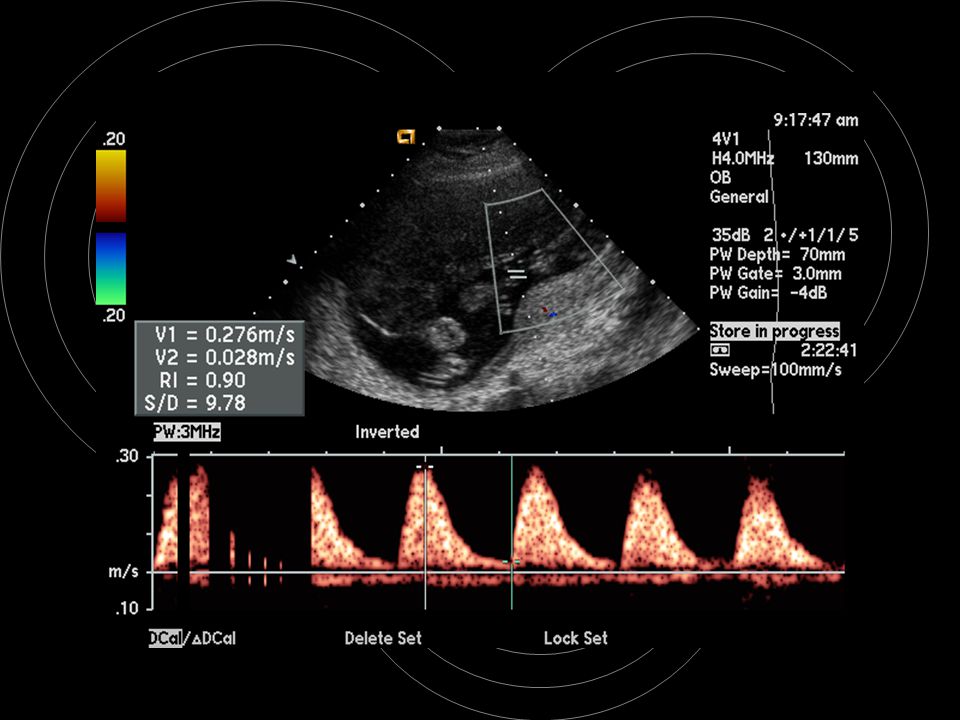

31

32

33

34

35 Middle Cerebral Artery MCA Placental Insufficiency Anemia (Isoimmunization / Parvo)

36 MCA – Circle of Willus ACA ACo MCA PCoA PCA BA IC

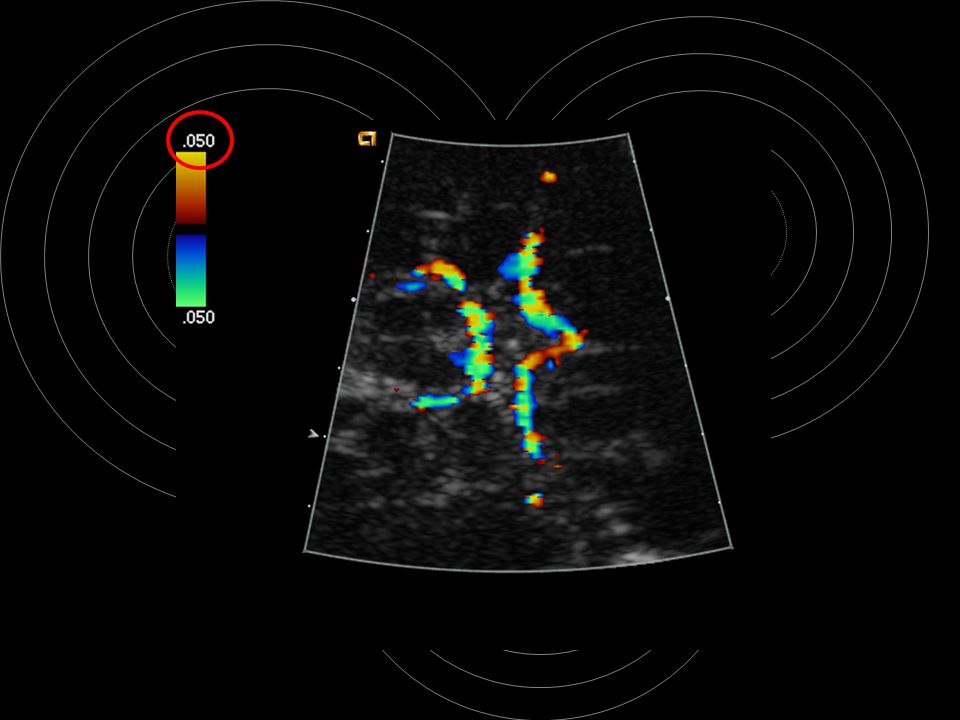

37

38 MCA – Placental Insufficiency CerebroPlacental Ratio – CPR Originally used the anterior cerebral artery –Wladimiroff, et al. RI c / RI u >1 Normal, <1 Redistribution MCA RI <70 Indicative of Redistribution Others Umb Artery RI Umb Artery PI MCA PI MCA TAMV Thoracic Aorta PI Thoracic artery TAMV UA/MCA PI ratio MCA/Thoracic Aorta PI ratio MCA PI x Thoracic TAMV

39 MCA – Placental Insufficiency Valuable when fetus is reacting to hypoxia When physiological responses to hypoxia become exhausted, fetus cannot adapt further Decline of forward cardiac function (increase venous doppler indices) Deregulation of cardiovascular homeostasis may be seen and arterial circulation indices become less reliable.

40 MCA – Placental Insufficiency Increased diastolic umbilical vein flow = GOOD Increased diastolic cerebral flow - may signal placental problem

41 Viscosity = # of red blood cells Anemia

42 Viscosity - Normal

43 Viscosity - Anemia

44

45 MCA – Anemia Fetuses healthy and w/ anemia mild, moderate, and severe. Linear models fitted to data for individual fetuses – slope was determined Average rate of change as a function of GA MCA-PSV – expressed as MoM Healthy vs. Mild anemic – NS Healthy vs. Severely anemic (P=.01) Conclusion – excellent tool to predict which fetuses will become severely anemic Detti, Mari, Moise et al, AJOG Oct 2002

46 MCA - Anemia Peak Velocity (w/fetal blood sampling) Sensitivity for moderate or severe anemia 100% FPR 12% fetuses w/o hydrops (Mari, et al, NEJM Jan 2000) Fetuses w/Parvo B19 Sens /Spec 100/100% slightly less in alloimmune group (included post transfusion follow-up) (Delle Chiaie, et al, USOG Sep 2001) Correlation between Hemoglobin and MCA-PSV becomes more accurate as severity of anemia increases. (Mari, et al, OG Apr 2002) TAMV (Abdel-Fattah, et al, BJR Sep 2002)

47 IVC/SVC doppler Influenced by heart rate, RH hemodynamics and function, and AMOUNT of blood flowing through veins Reciprocal shift observed between IVC and SVC velocity waveforms (S min ) Changes another manifestation of blood flow redistribution toward the brain May be good to use prior to 30 weeks when doppler findings more difficult to interpret

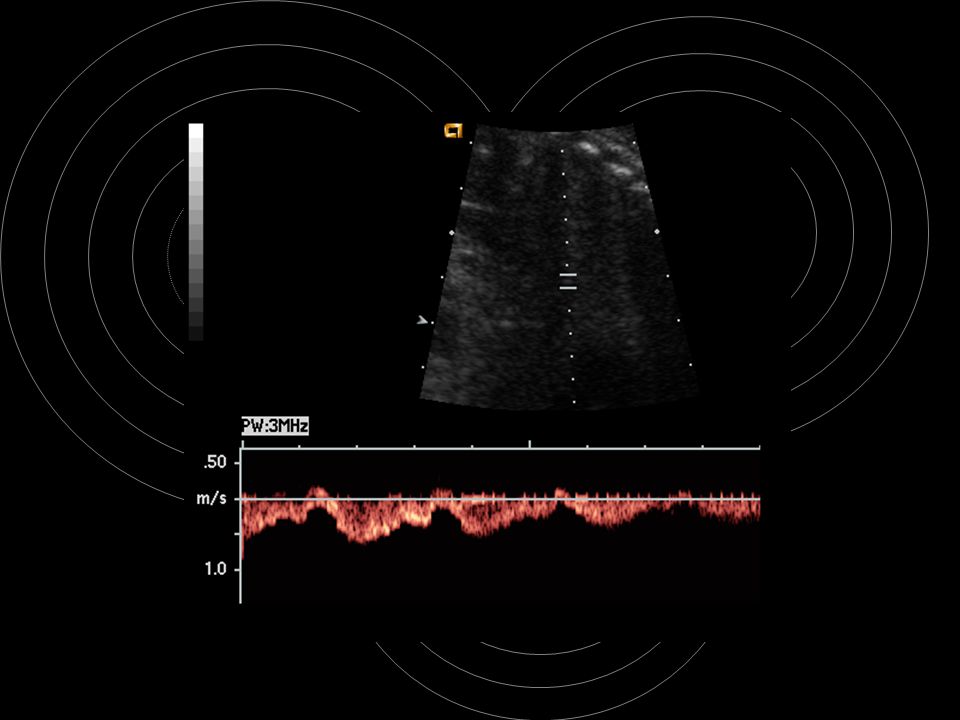

48

49 Fetal Echo Critical to evaluate flow an GV anomalies Quantitate flow – Artery size, volume, VTI Direction of flow Presence of flow Quality of flow – turbulence Tei Index – (TI) MV & LV flow in one waveform Tissue Doppler MV LV

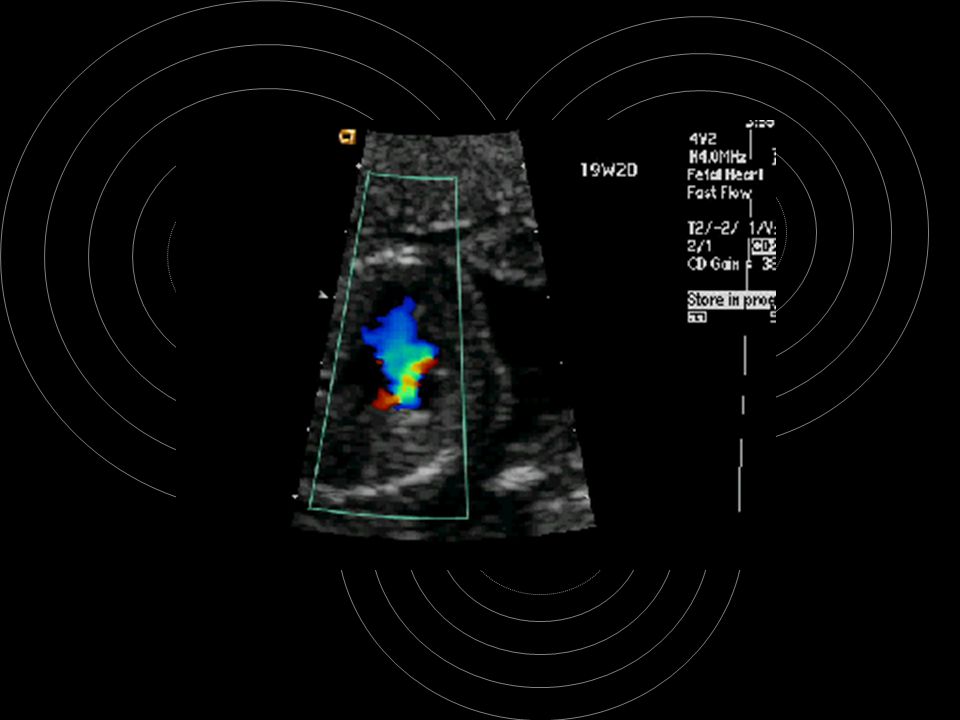

50

51

52 Uterine Artery Doppler Continuous Wave Doppler / Intraplacental IUGR (Chronic Hypertension) and Preeclampsia High AFP Little change seen in doppler indices after 26 weeks More difficult to assess when they are abnormal

53

54

55 Ovarian Artery Doppler Tumor Angiogenesis – limited vascular tone due to absence of the muscular tunica media CD screening optimal in PM women No cyclic change in ovarian volume RI < % Sens., 98.8% Spec., 98.2 PPV in 14,317 patients Kurjak, Fleischer, and Bourne

56 Ovarian Artery Doppler Impedance values in benign vs. malignant lesions overlap Studies now looking at arrangement and density of vessels Neural Networks and Baysian networks are being developed and tested
