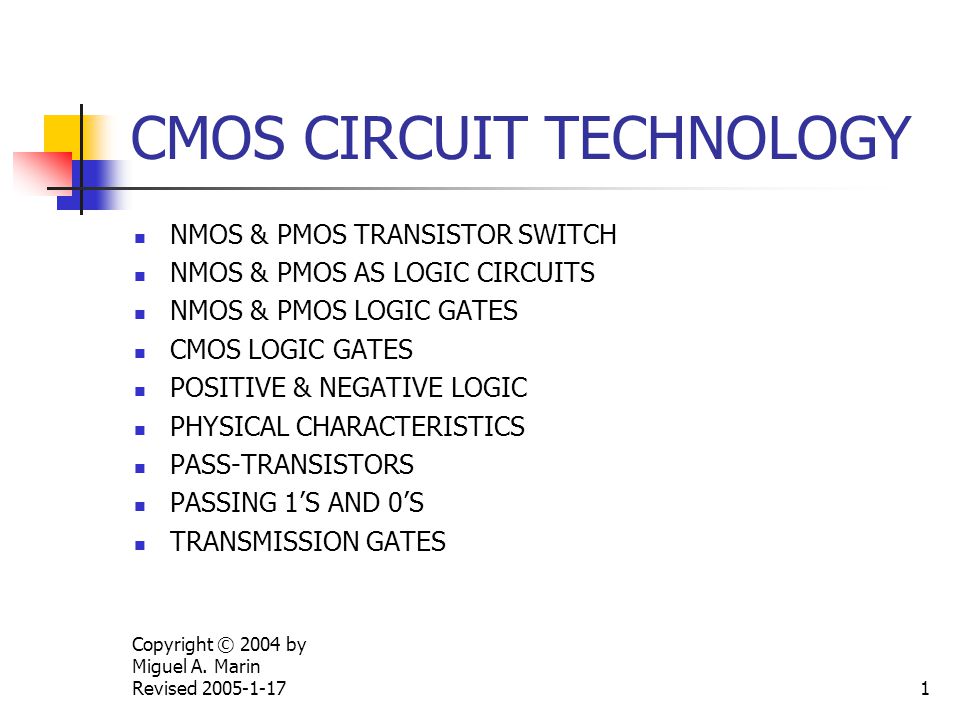

Copyright © 2004 by Miguel A. Marin Revised 2005-1-171 CMOS CIRCUIT TECHNOLOGY NMOS & PMOS TRANSISTOR SWITCH NMOS & PMOS AS LOGIC CIRCUITS NMOS & PMOS LOGIC GATES CMOS LOGIC GATES POSITIVE & NEGATIVE LOGIC PHYSICAL CHARACTERISTICS PASS-TRANSISTORS PASSING 1S AND 0S TRANSMISSION GATES

2

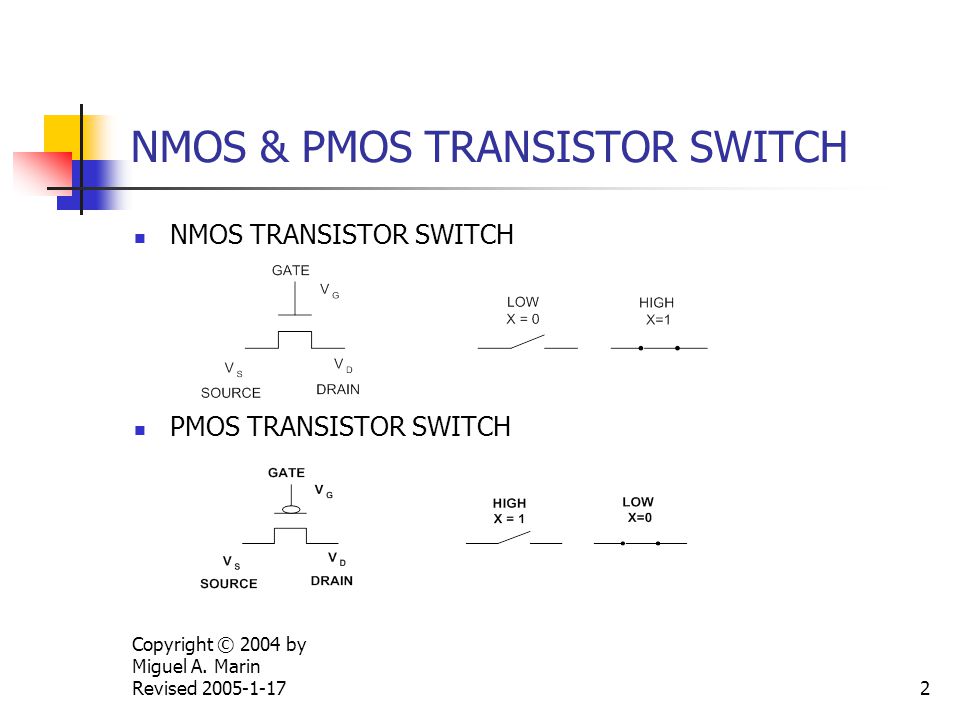

Copyright © 2004 by Miguel A. Marin Revised 2005-1-172 NMOS & PMOS TRANSISTOR SWITCH NMOS TRANSISTOR SWITCH PMOS TRANSISTOR SWITCH

3

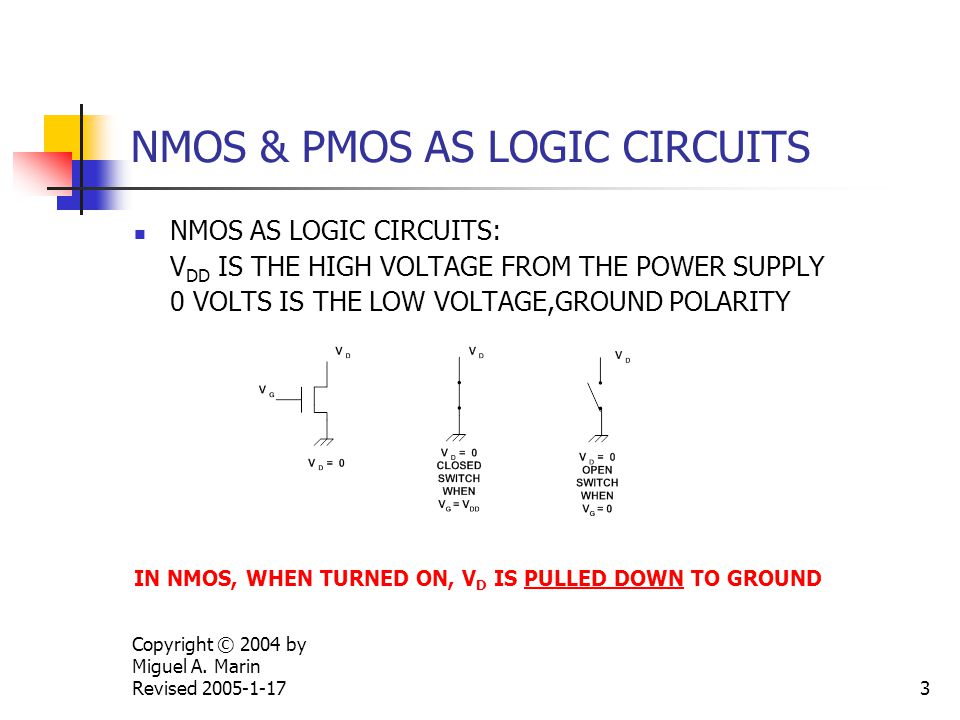

Copyright © 2004 by Miguel A. Marin Revised 2005-1-173 NMOS & PMOS AS LOGIC CIRCUITS NMOS AS LOGIC CIRCUITS: V DD IS THE HIGH VOLTAGE FROM THE POWER SUPPLY 0 VOLTS IS THE LOW VOLTAGE,GROUND POLARITY IN NMOS, WHEN TURNED ON, V D IS PULLED DOWN TO GROUND

4
Copyright © 2004 by Miguel A. Marin Revised 2005-1-174 NMOS & PMOS AS LOGIC CIRCUITS PMOS AS LOGIC CIRCUITS: V DD IS THE HIGH VOLTAGE FROM THE POWER SUPPLY 0 VOLTS IS THE LOW VOLTAGE,GROUND POLARITY IN PMOS, WHEN TURNED ON, V D IS PULLED UP TO V DD

5

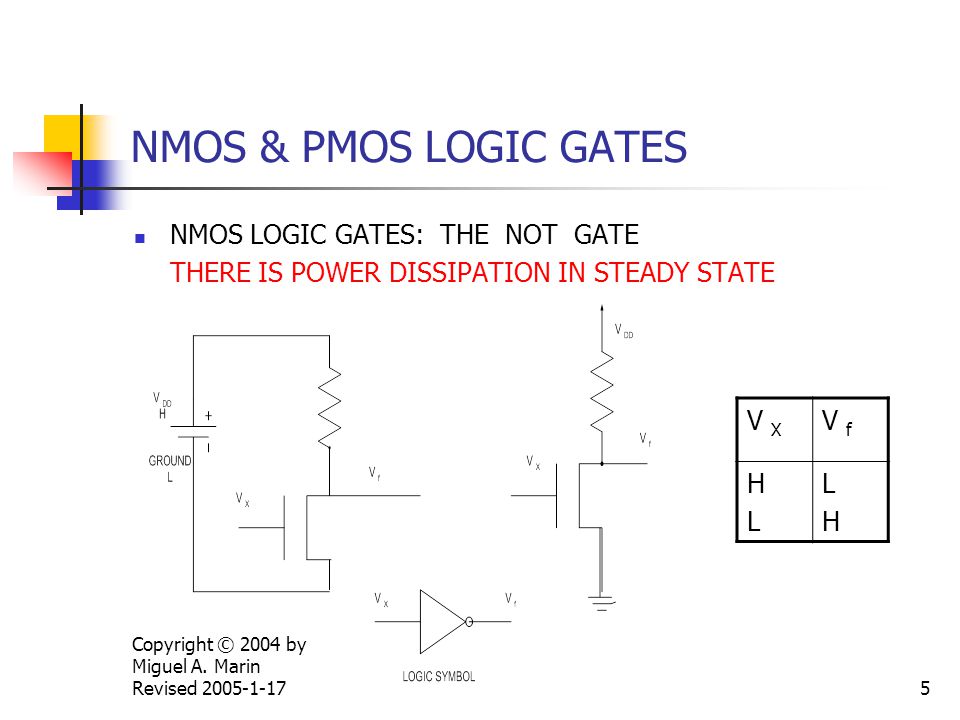

Copyright © 2004 by Miguel A. Marin Revised 2005-1-175 NMOS & PMOS LOGIC GATES NMOS LOGIC GATES: THE NOT GATE THERE IS POWER DISSIPATION IN STEADY STATE V X V f HLHL LHLH

6
Copyright © 2004 by Miguel A. Marin Revised 2005-1-176 NMOS & PMOS LOGIC GATES NMOS LOGIC GATES: THE NAND GATE THERE IS POWER DISSIPATION IN STEADY STATE IF {H = 1, L = 0} THEN THE CIRCUIT PRODUCES THE NAND GATE V X V Y V f L L H H L H HHHLHHHL

7

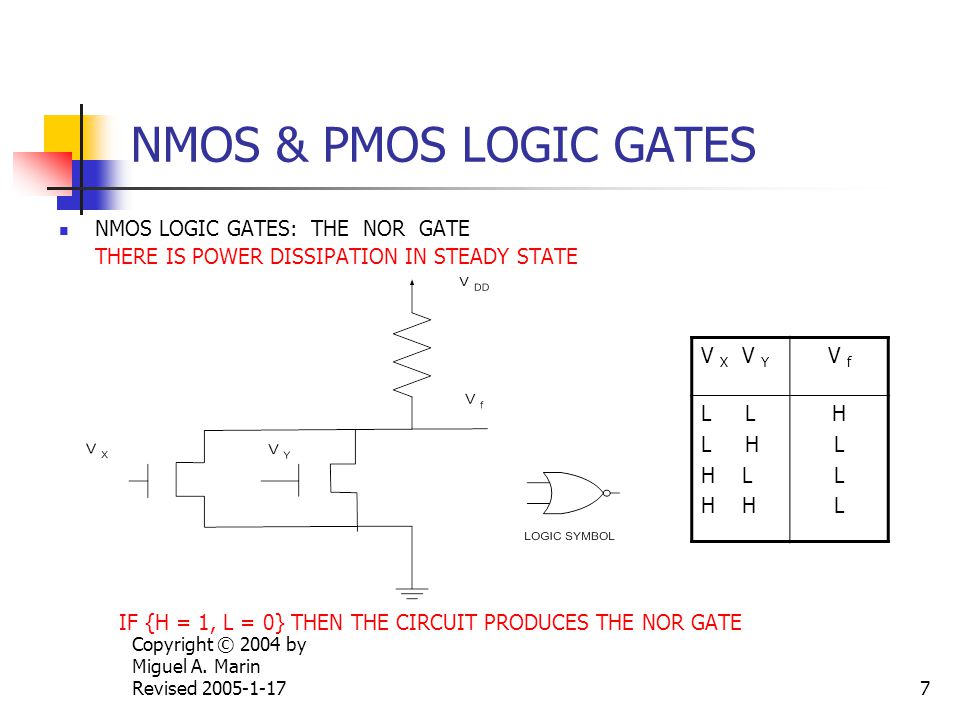

Copyright © 2004 by Miguel A. Marin Revised 2005-1-177 NMOS & PMOS LOGIC GATES NMOS LOGIC GATES: THE NOR GATE THERE IS POWER DISSIPATION IN STEADY STATE IF {H = 1, L = 0} THEN THE CIRCUIT PRODUCES THE NOR GATE V X V Y V f L L H H L H HLLLHLLL

8

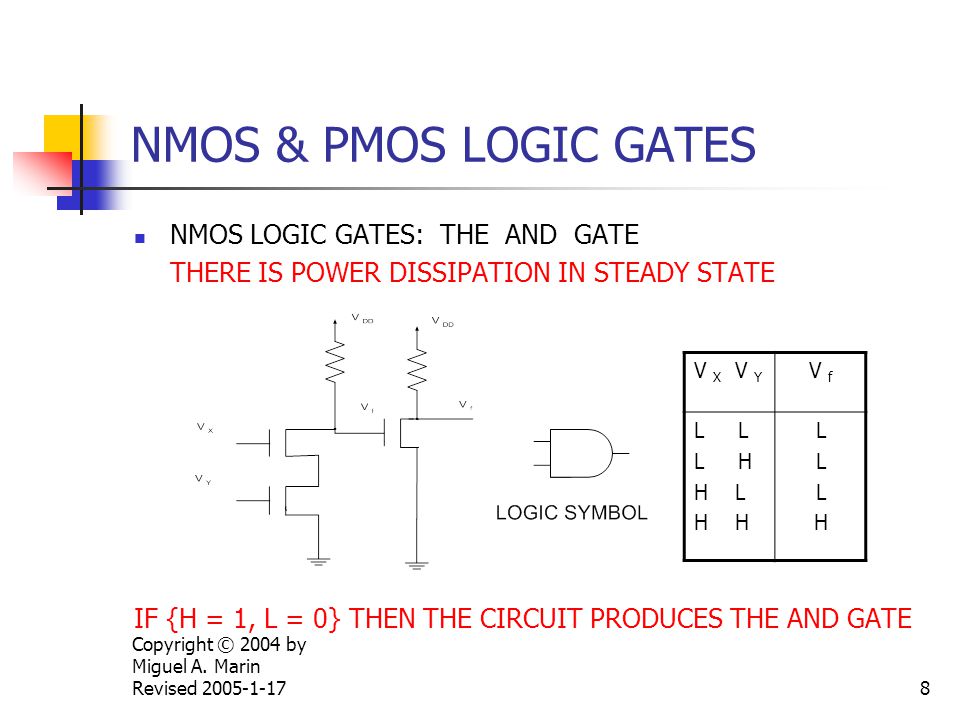

Copyright © 2004 by Miguel A. Marin Revised 2005-1-178 NMOS & PMOS LOGIC GATES NMOS LOGIC GATES: THE AND GATE THERE IS POWER DISSIPATION IN STEADY STATE IF {H = 1, L = 0} THEN THE CIRCUIT PRODUCES THE AND GATE V X V Y V f L L H H L H LLLHLLLH

9
Copyright © 2004 by Miguel A. Marin Revised 2005-1-179 NMOS & PMOS LOGIC GATES NMOS LOGIC GATES: SUMMARY THERE IS POWER DISSIPATION IN STEADY STATE

10

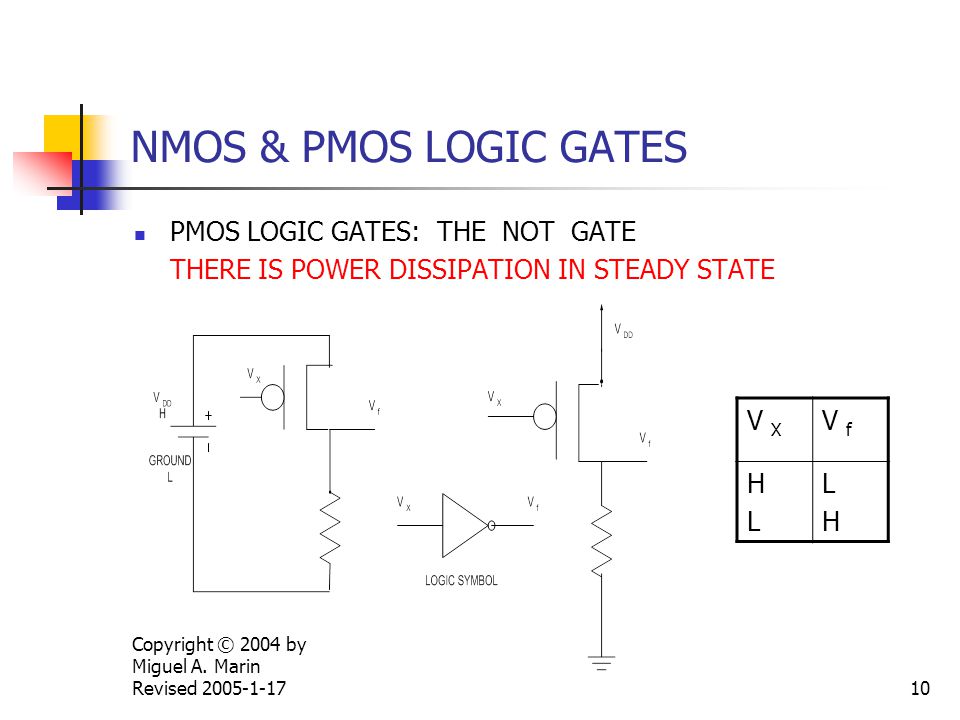

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1710 NMOS & PMOS LOGIC GATES PMOS LOGIC GATES: THE NOT GATE THERE IS POWER DISSIPATION IN STEADY STATE V X V f HLHL LHLH

11

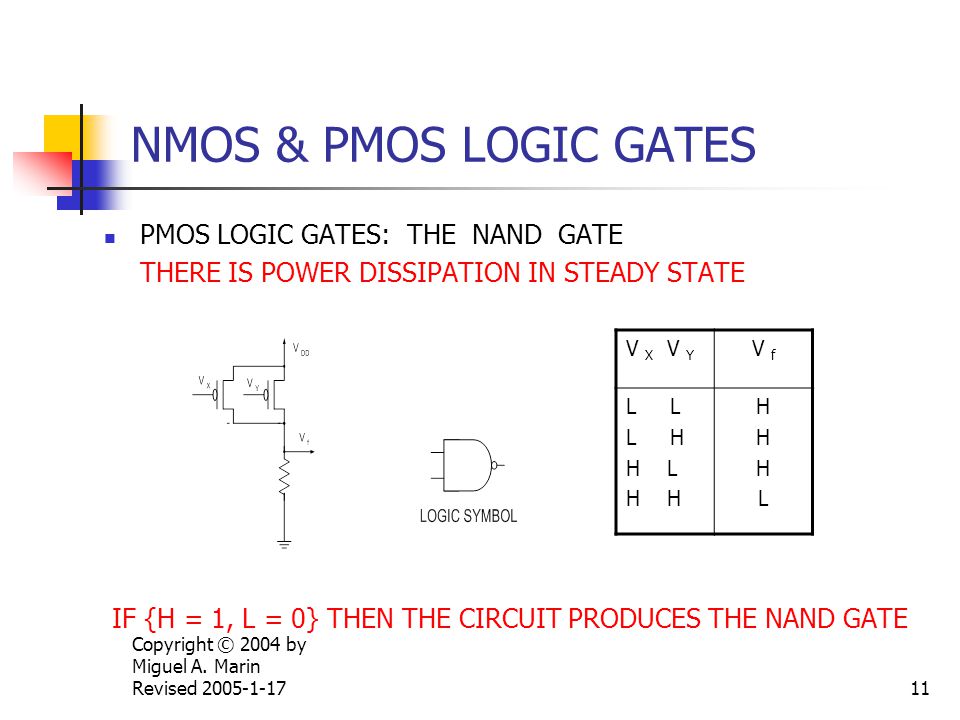

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1711 NMOS & PMOS LOGIC GATES PMOS LOGIC GATES: THE NAND GATE THERE IS POWER DISSIPATION IN STEADY STATE IF {H = 1, L = 0} THEN THE CIRCUIT PRODUCES THE NAND GATE V X V Y V f L L H H L H HHHLHHHL

12

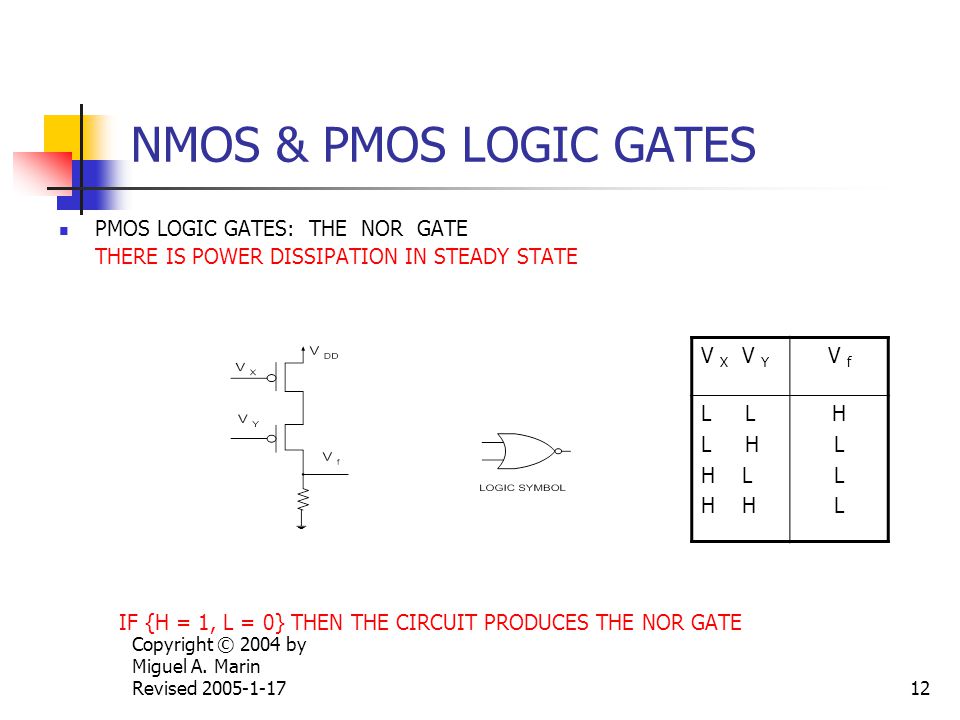

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1712 NMOS & PMOS LOGIC GATES PMOS LOGIC GATES: THE NOR GATE THERE IS POWER DISSIPATION IN STEADY STATE IF {H = 1, L = 0} THEN THE CIRCUIT PRODUCES THE NOR GATE V X V Y V f L L H H L H HLLLHLLL

13

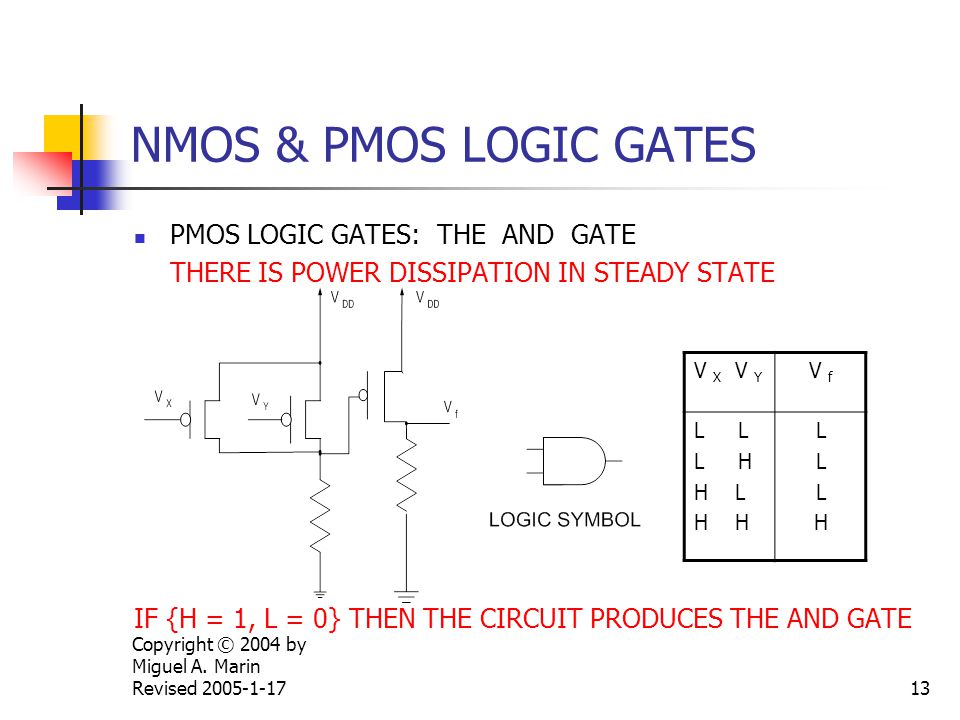

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1713 NMOS & PMOS LOGIC GATES PMOS LOGIC GATES: THE AND GATE THERE IS POWER DISSIPATION IN STEADY STATE IF {H = 1, L = 0} THEN THE CIRCUIT PRODUCES THE AND GATE V X V Y V f L L H H L H LLLHLLLH

14

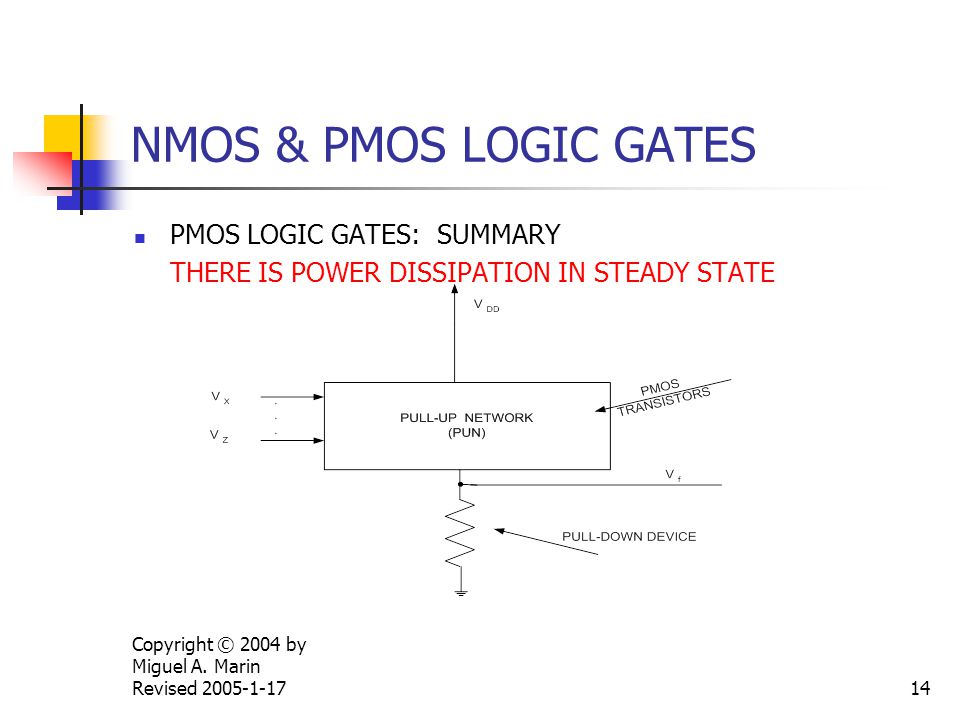

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1714 NMOS & PMOS LOGIC GATES PMOS LOGIC GATES: SUMMARY THERE IS POWER DISSIPATION IN STEADY STATE

15
Copyright © 2004 by Miguel A. Marin Revised 2005-1-1715 CMOS LOGIC GATES TO EVOID STEADY STATE POWER DISSIPATION THE PULL-UP DEVICE, USED IN NMOS LOGIC GATES, IS REPLACED BY A PULL-UP NETWORK BUILT WITH PMOS TRANSISTORS. THE PULL-DOWN DEVICE, USED IN PMOS LOGIC GATES, IS REPLACED BY A PULL-DOWN NETWORK BUILT WITH NMOS TRANSISTORS.

16

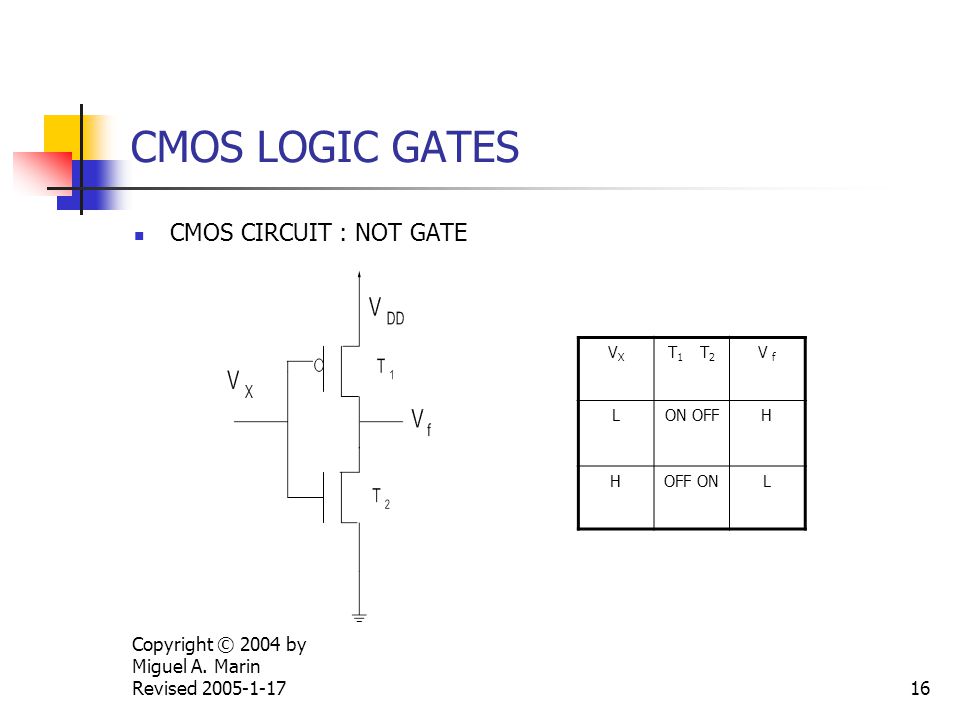

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1716 CMOS LOGIC GATES CMOS CIRCUIT : NOT GATE VXVX T 1 T 2 V f LON OFFH HOFF ONL

17

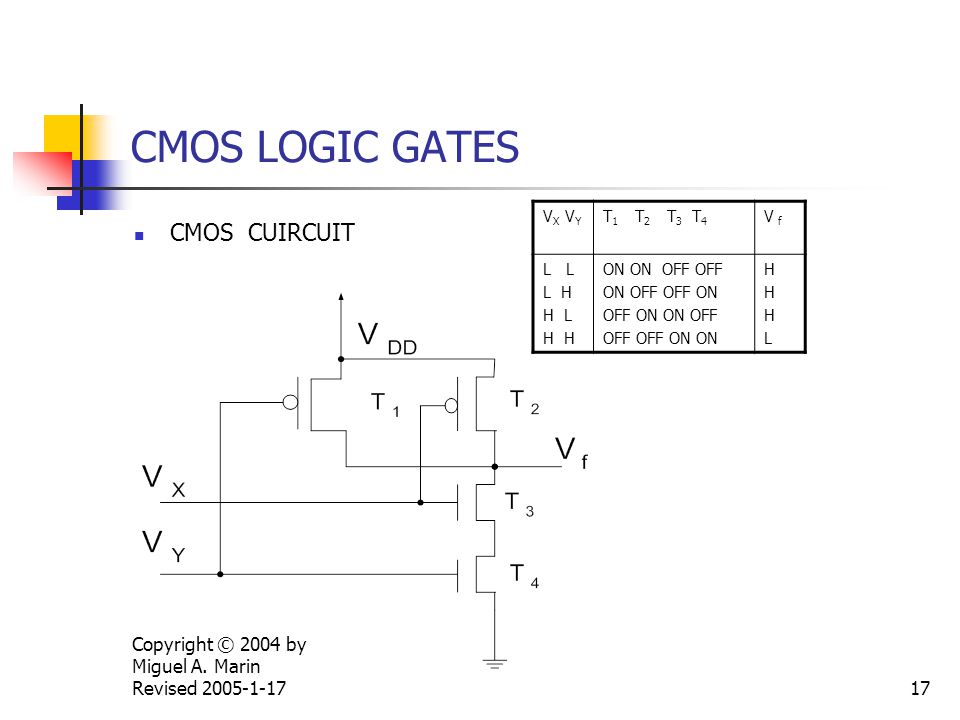

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1717 CMOS LOGIC GATES CMOS CUIRCUIT V X V Y T 1 T 2 T 3 T 4 V f L L H H L H ON ON OFF OFF ON OFF OFF ON OFF ON ON OFF OFF OFF ON ON HHHLHHHL

18

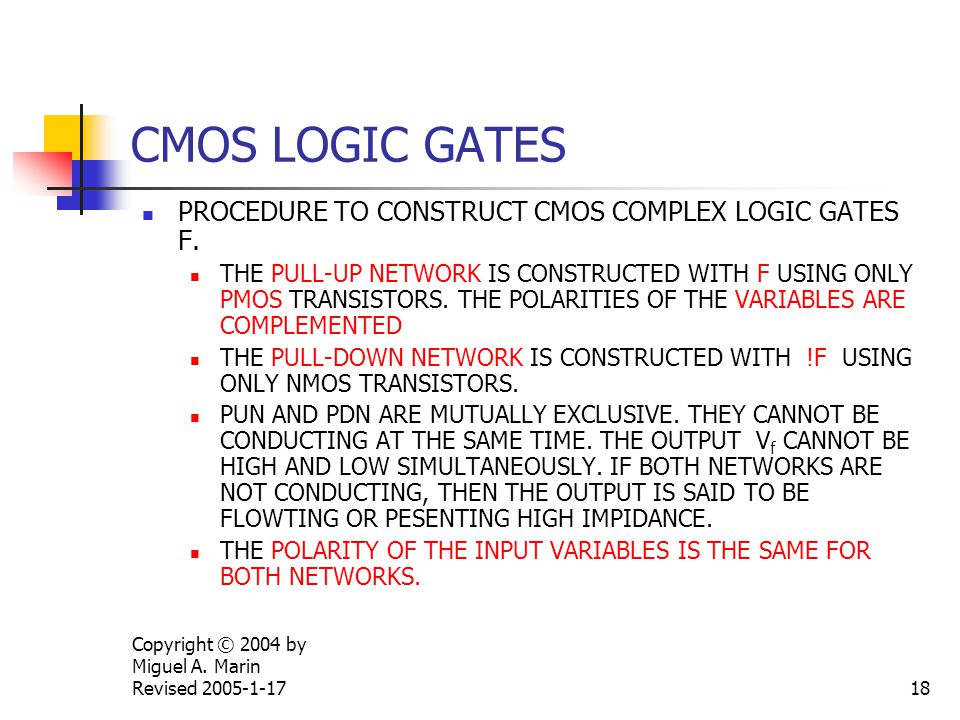

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1718 CMOS LOGIC GATES PROCEDURE TO CONSTRUCT CMOS COMPLEX LOGIC GATES F. THE PULL-UP NETWORK IS CONSTRUCTED WITH F USING ONLY PMOS TRANSISTORS. THE POLARITIES OF THE VARIABLES ARE COMPLEMENTED THE PULL-DOWN NETWORK IS CONSTRUCTED WITH !F USING ONLY NMOS TRANSISTORS. PUN AND PDN ARE MUTUALLY EXCLUSIVE. THEY CANNOT BE CONDUCTING AT THE SAME TIME. THE OUTPUT V f CANNOT BE HIGH AND LOW SIMULTANEOUSLY. IF BOTH NETWORKS ARE NOT CONDUCTING, THEN THE OUTPUT IS SAID TO BE FLOWTING OR PESENTING HIGH IMPIDANCE. THE POLARITY OF THE INPUT VARIABLES IS THE SAME FOR BOTH NETWORKS.

19

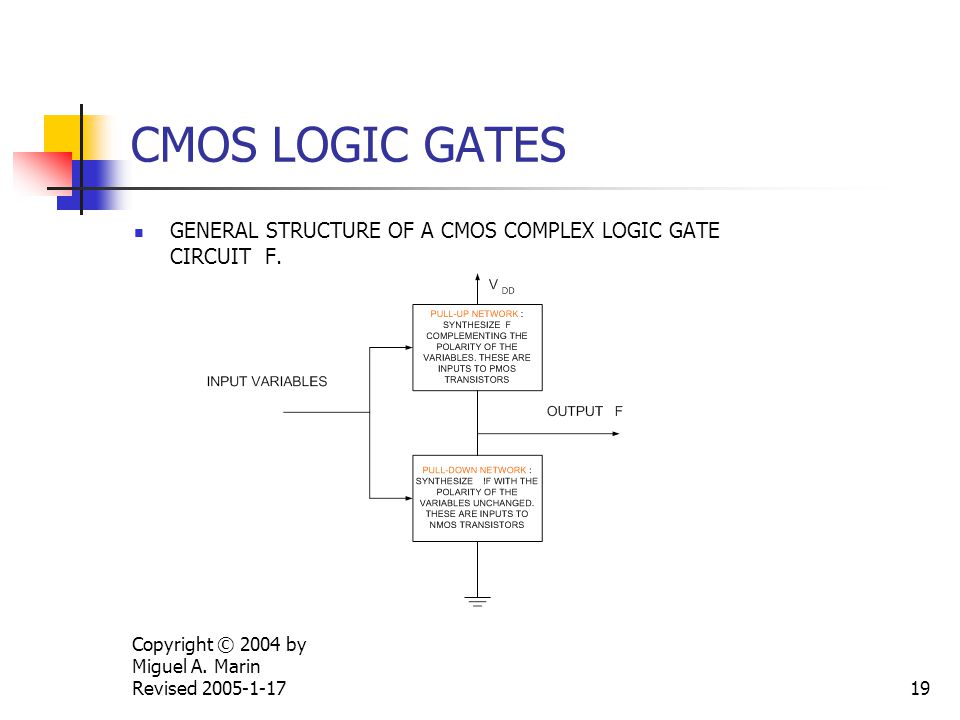

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1719 CMOS LOGIC GATES GENERAL STRUCTURE OF A CMOS COMPLEX LOGIC GATE CIRCUIT F.

20
Copyright © 2004 by Miguel A. Marin Revised 2005-1-1720 CMOS LOGIC GATES EXAMPLE OF A CMOS COMPLEX LOGIC GATE CIRCUIT F. DESIGN A CMOS CIRCUIT PRODUCING THE FUNCTION F(A,B,C,D) = !A + (!B +!C) !D. !F(A,B,C,D) = A(BC + D) PULL-UP NETWORK PULL-DOWN NETWORK

21
Copyright © 2004 by Miguel A. Marin Revised 2005-1-1721 POSITIVE & NEGATIVE LOGIC THE BEHAVIOR OF A SWITCHING DEVICE, LIKE A CMOS GATE, IS GIVEN IN TERMS OF HIGH AND LOW VOLTAGES. FOR A GIVEN DEVICE, THIS BEHAVIOR IS UNIQUE. HOWEVER, ITS LOGIC BEHAVIOR CAN BE DEFINED EITHER WITH POSITIVE LOGIC CONVENCTION: HIGH FOR 1 ; LOW FOR 0 OR WITH NEGATIVE LOGIC CONVENCTION: HIGH FOR 0; LOW FOR 1. IN GENERAL THE LOGIC BEHAVIOR OF A SWITCHING DEVICE MAY BE DIFFERENT IN POSITIVE AND NEGATIVE LOGICS. FOR EXAMPLE, THE CMOS DEVICE ON NEXT SLIDE REPRESENTS THE NAND GATE IN POSITIVE LOGIC AND THE NOR GATE IN NEGATIVE LOGIC

22

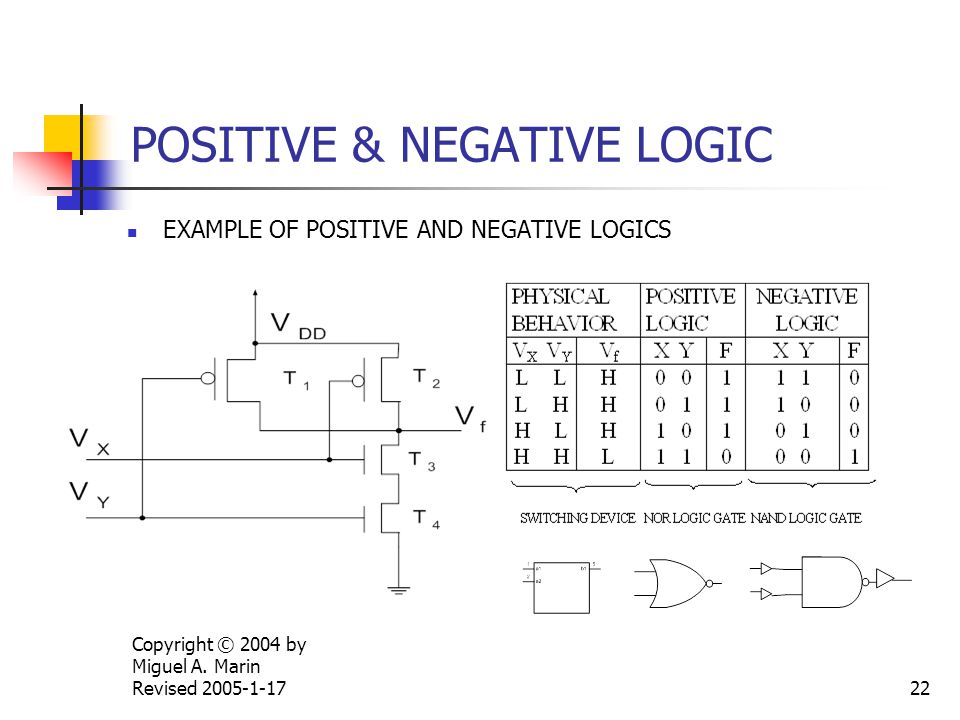

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1722 POSITIVE & NEGATIVE LOGIC EXAMPLE OF POSITIVE AND NEGATIVE LOGICS

23

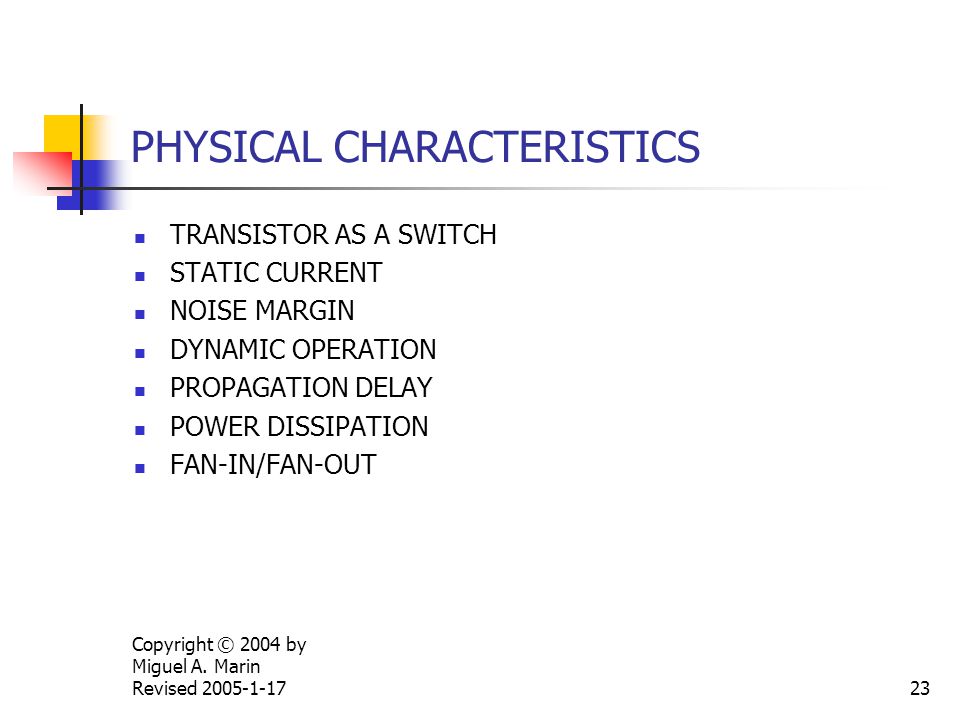

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1723 PHYSICAL CHARACTERISTICS TRANSISTOR AS A SWITCH STATIC CURRENT NOISE MARGIN DYNAMIC OPERATION PROPAGATION DELAY POWER DISSIPATION FAN-IN/FAN-OUT

24

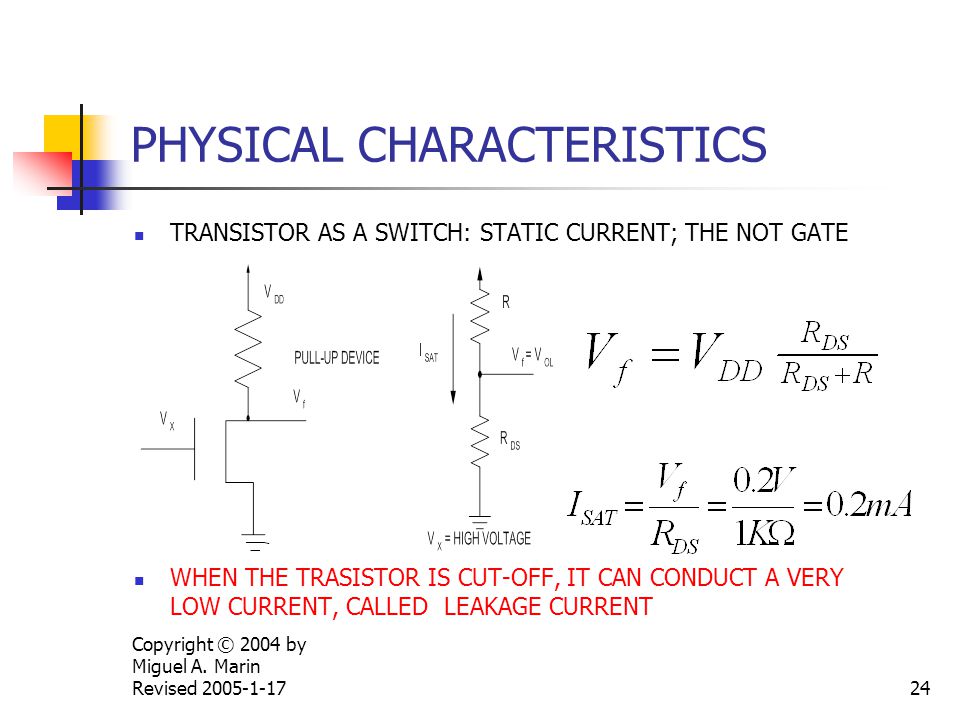

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1724 PHYSICAL CHARACTERISTICS TRANSISTOR AS A SWITCH: STATIC CURRENT; THE NOT GATE WHEN THE TRASISTOR IS CUT-OFF, IT CAN CONDUCT A VERY LOW CURRENT, CALLED LEAKAGE CURRENT

25
Copyright © 2004 by Miguel A. Marin Revised 2005-1-1725 PHYSICAL CHARACTERISTICS VOLTAGE TRANSFER CHARACTERISTIC V T is the threshold voltage ~ 0.2 V DD V OH is the output high voltage = V DD V OL is the output low voltage = 0.2 volts The plot of V f versus V x shows the voltage transfer characteristic

26
Copyright © 2004 by Miguel A. Marin Revised 2005-1-1726 PHYSICAL CHARACTERISTICS NOISE MARGIN TWO MARGINS: NM L, NM H BY DEFINITION: NM L = V IL - V OL ; NM H = V OH – V IL EXAMPLE: FOR CMOS SWITCHING CIRCUITS LET V OH = V DD AND V OL = 0 v. Finding the two points where SLOPE = -1 V IL ~ 1/8 (3 V DD + 2 V T ), V IH ~ 1/8 (5 V DD - 2 V T ) IF V T = 0.2 V DD THEN NM L = NM H = 0.425 V DD For V DD = 5 v. NM L = NM H = 2.1 v. For V DD = 3.3 v. NM L = NM H = 1.4 v.

27
Copyright © 2004 by Miguel A. Marin Revised 2005-1-1727 PHYSICAL CHARACTERISTICS DYNAMIC OPERATION LET US CONSIDER TWO INVERTERS CONNECTED IN CASCADE CAPACITIVE LOAD AT NODE A IS DUE TO SILICON CONSTRUCTION OF TRANSISTOR. IT IS CALLED PARASITIC OR STRAY CAPACITANCE

28

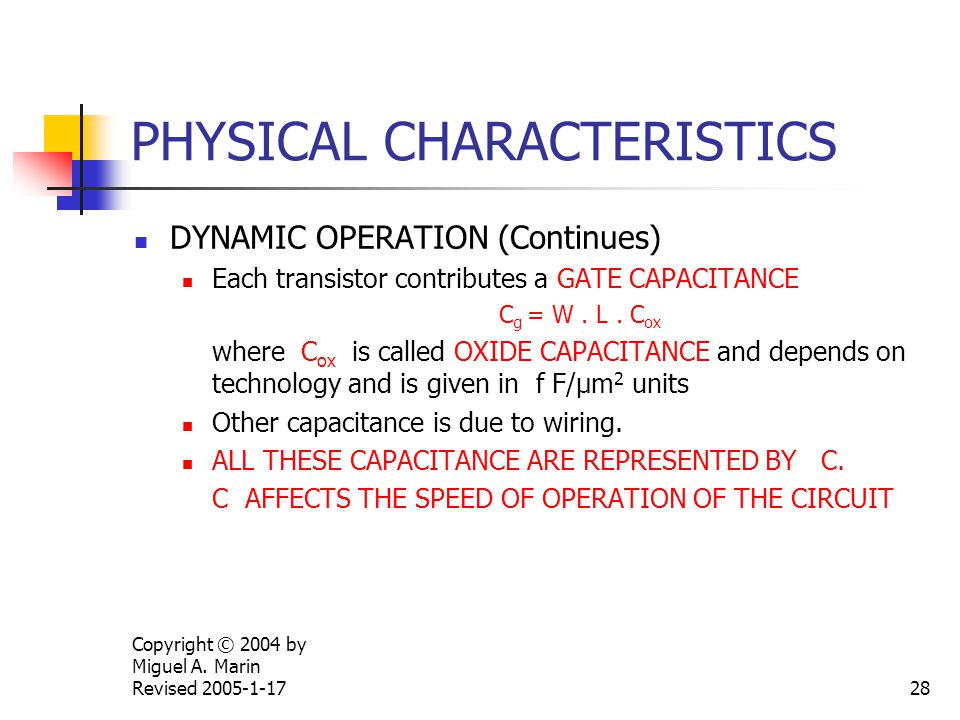

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1728 PHYSICAL CHARACTERISTICS DYNAMIC OPERATION (Continues) Each transistor contributes a GATE CAPACITANCE C g = W. L. C ox where C ox is called OXIDE CAPACITANCE and depends on technology and is given in f F/µm 2 units Other capacitance is due to wiring. ALL THESE CAPACITANCE ARE REPRESENTED BY C. C AFFECTS THE SPEED OF OPERATION OF THE CIRCUIT

29

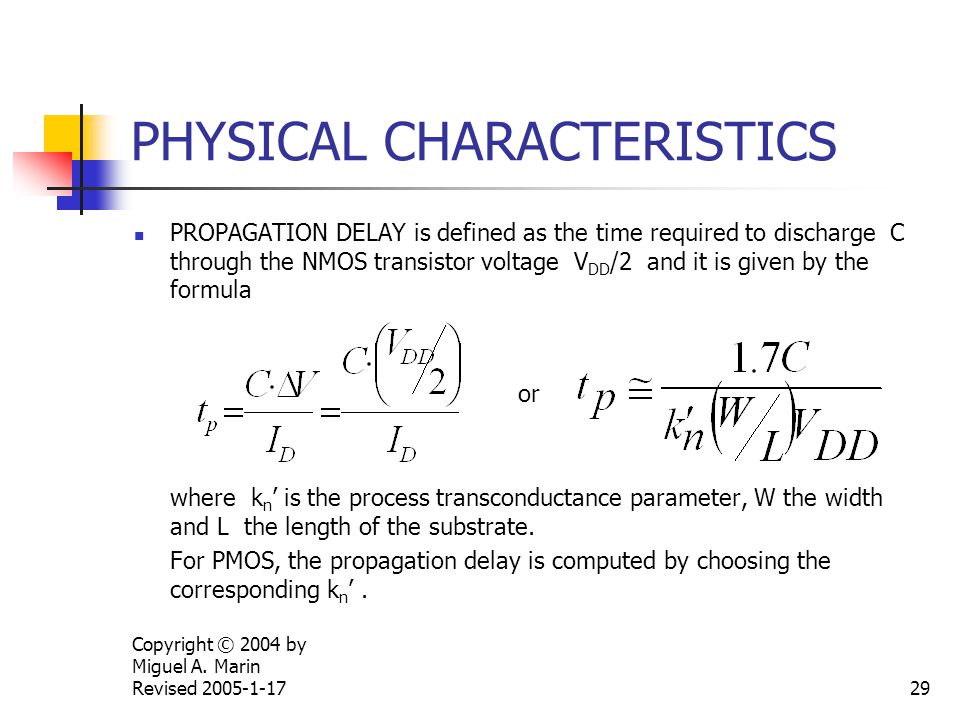

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1729 PHYSICAL CHARACTERISTICS PROPAGATION DELAY is defined as the time required to discharge C through the NMOS transistor voltage V DD /2 and it is given by the formula or where k n is the process transconductance parameter, W the width and L the length of the substrate. For PMOS, the propagation delay is computed by choosing the corresponding k n.

30

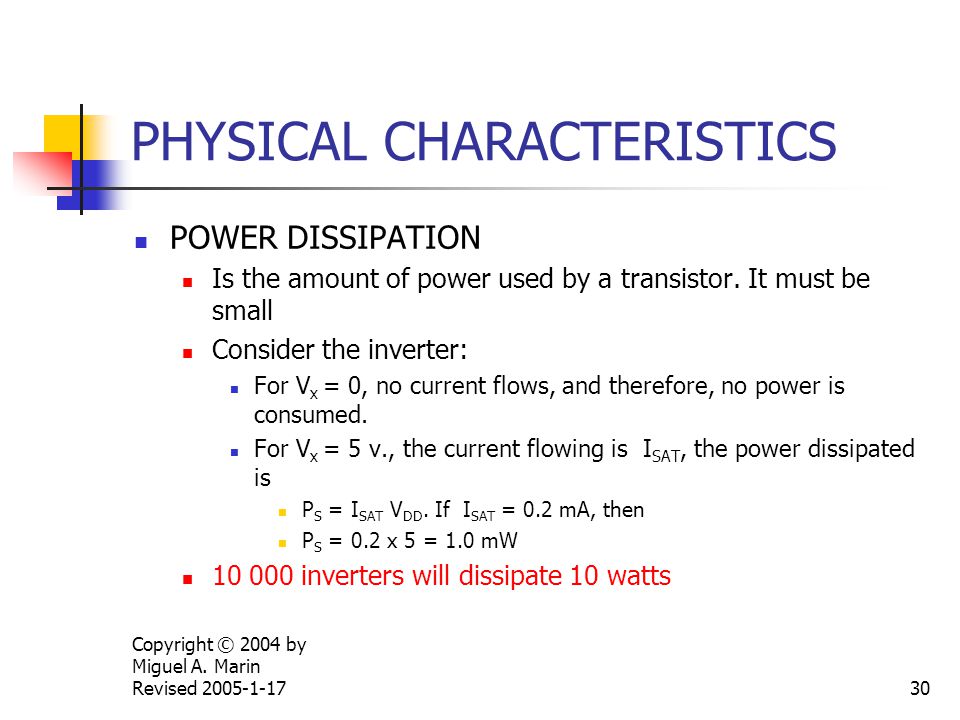

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1730 PHYSICAL CHARACTERISTICS POWER DISSIPATION Is the amount of power used by a transistor. It must be small Consider the inverter: For V x = 0, no current flows, and therefore, no power is consumed. For V x = 5 v., the current flowing is I SAT, the power dissipated is P S = I SAT V DD. If I SAT = 0.2 mA, then P S = 0.2 x 5 = 1.0 mW 10 000 inverters will dissipate 10 watts

31

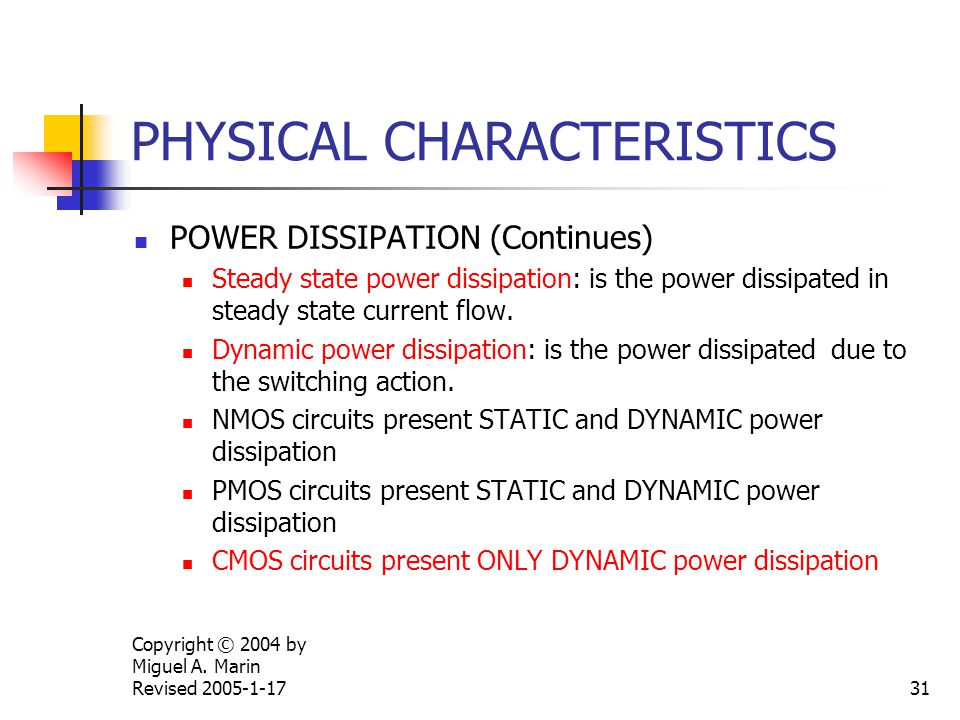

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1731 PHYSICAL CHARACTERISTICS POWER DISSIPATION (Continues) Steady state power dissipation: is the power dissipated in steady state current flow. Dynamic power dissipation: is the power dissipated due to the switching action. NMOS circuits present STATIC and DYNAMIC power dissipation PMOS circuits present STATIC and DYNAMIC power dissipation CMOS circuits present ONLY DYNAMIC power dissipation

32

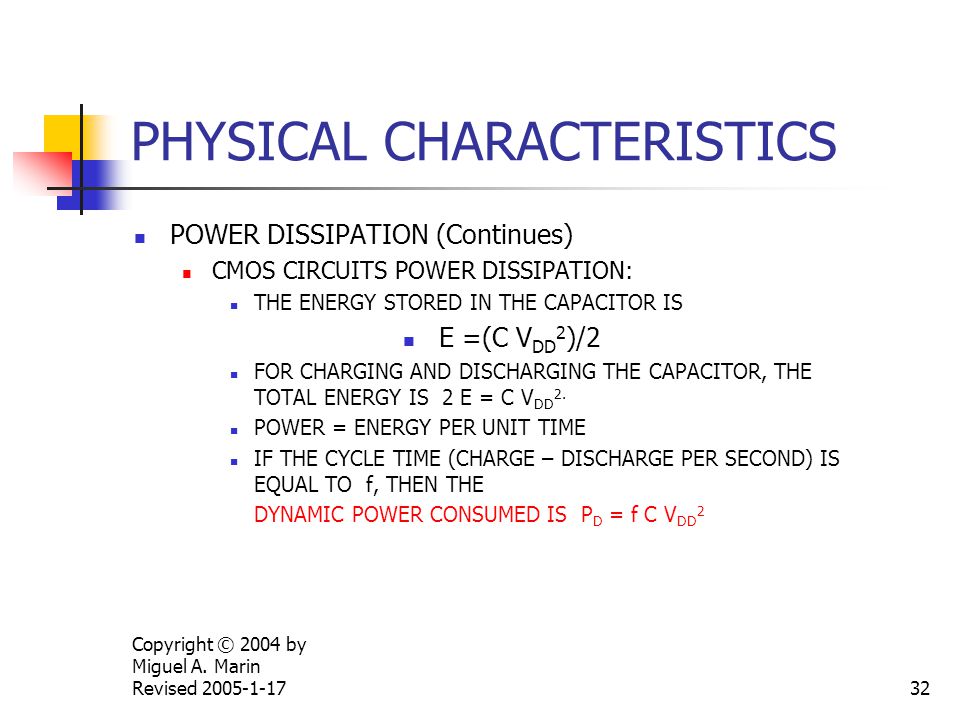

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1732 PHYSICAL CHARACTERISTICS POWER DISSIPATION (Continues) CMOS CIRCUITS POWER DISSIPATION: THE ENERGY STORED IN THE CAPACITOR IS E =(C V DD 2 )/2 FOR CHARGING AND DISCHARGING THE CAPACITOR, THE TOTAL ENERGY IS 2 E = C V DD 2. POWER = ENERGY PER UNIT TIME IF THE CYCLE TIME (CHARGE – DISCHARGE PER SECOND) IS EQUAL TO f, THEN THE DYNAMIC POWER CONSUMED IS P D = f C V DD 2

33

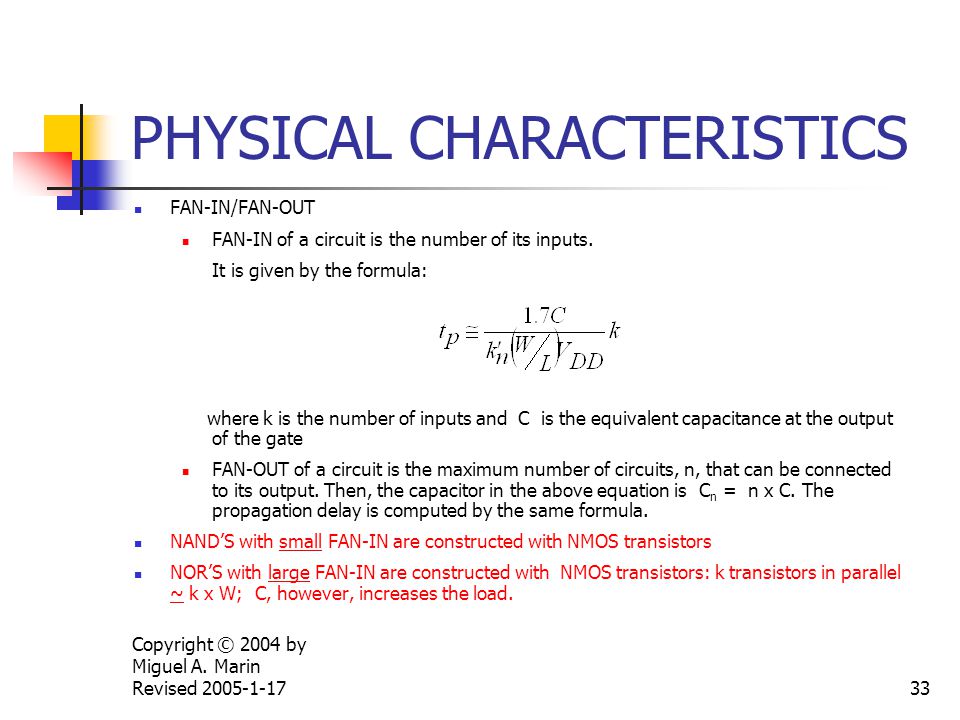

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1733 PHYSICAL CHARACTERISTICS FAN-IN/FAN-OUT FAN-IN of a circuit is the number of its inputs. It is given by the formula: where k is the number of inputs and C is the equivalent capacitance at the output of the gate FAN-OUT of a circuit is the maximum number of circuits, n, that can be connected to its output. Then, the capacitor in the above equation is C n = n x C. The propagation delay is computed by the same formula. NANDS with small FAN-IN are constructed with NMOS transistors NORS with large FAN-IN are constructed with NMOS transistors: k transistors in parallel ~ k x W; C, however, increases the load.

34

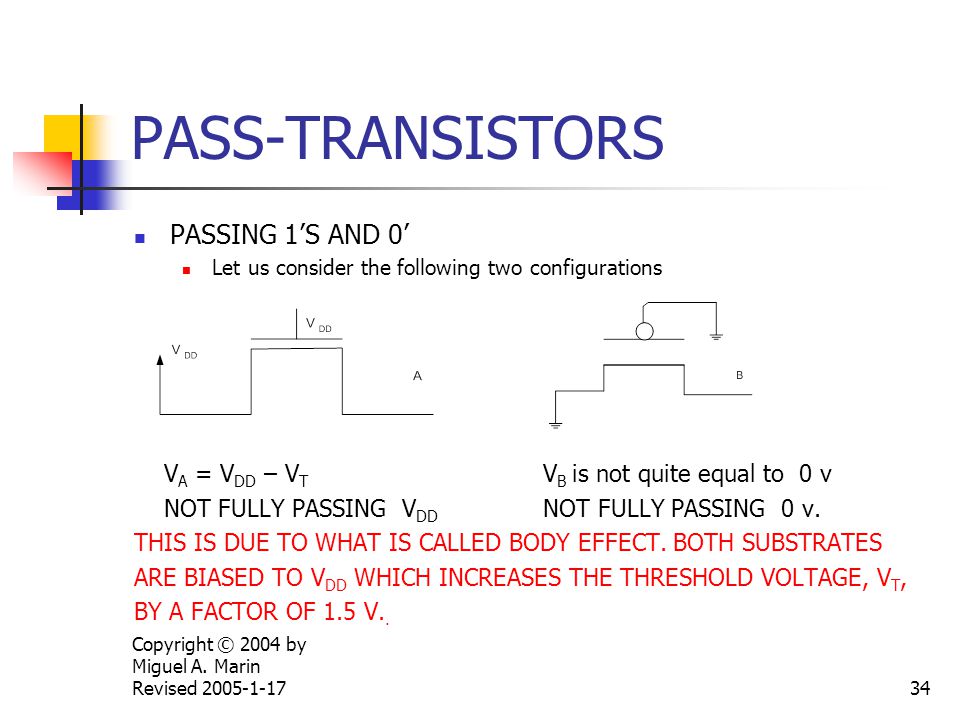

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1734 PASS-TRANSISTORS PASSING 1S AND 0 Let us consider the following two configurations V A = V DD – V T V B is not quite equal to 0 v NOT FULLY PASSING V DD NOT FULLY PASSING 0 v. THIS IS DUE TO WHAT IS CALLED BODY EFFECT. BOTH SUBSTRATES ARE BIASED TO V DD WHICH INCREASES THE THRESHOLD VOLTAGE, V T, BY A FACTOR OF 1.5 V..

35

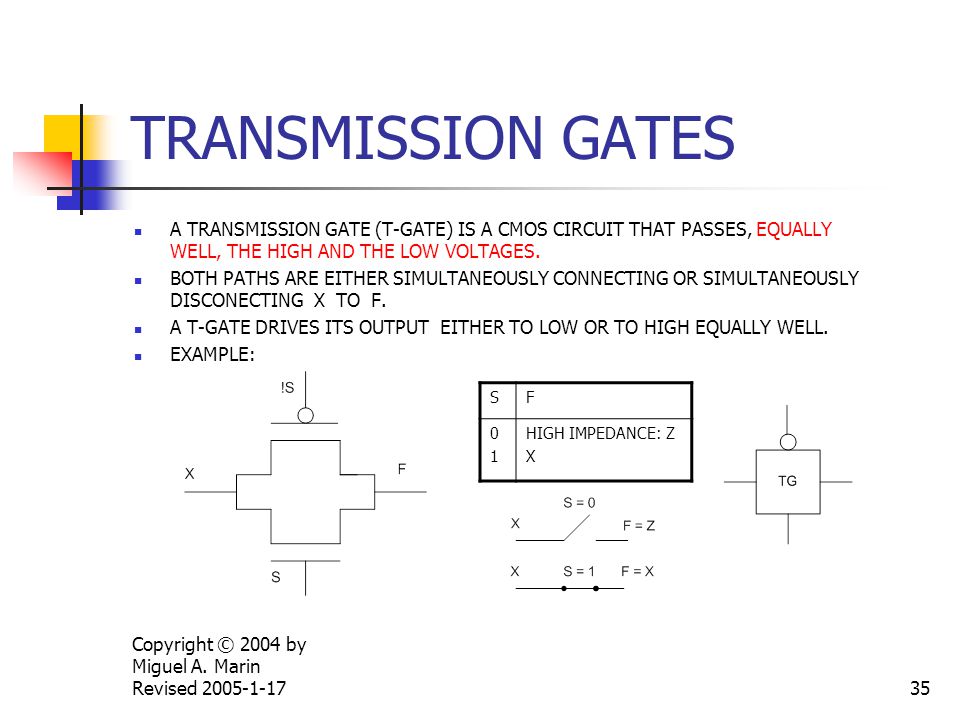

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1735 TRANSMISSION GATES A TRANSMISSION GATE (T-GATE) IS A CMOS CIRCUIT THAT PASSES, EQUALLY WELL, THE HIGH AND THE LOW VOLTAGES. BOTH PATHS ARE EITHER SIMULTANEOUSLY CONNECTING OR SIMULTANEOUSLY DISCONECTING X TO F. A T-GATE DRIVES ITS OUTPUT EITHER TO LOW OR TO HIGH EQUALLY WELL. EXAMPLE: SF 0101 HIGH IMPEDANCE: Z X

36

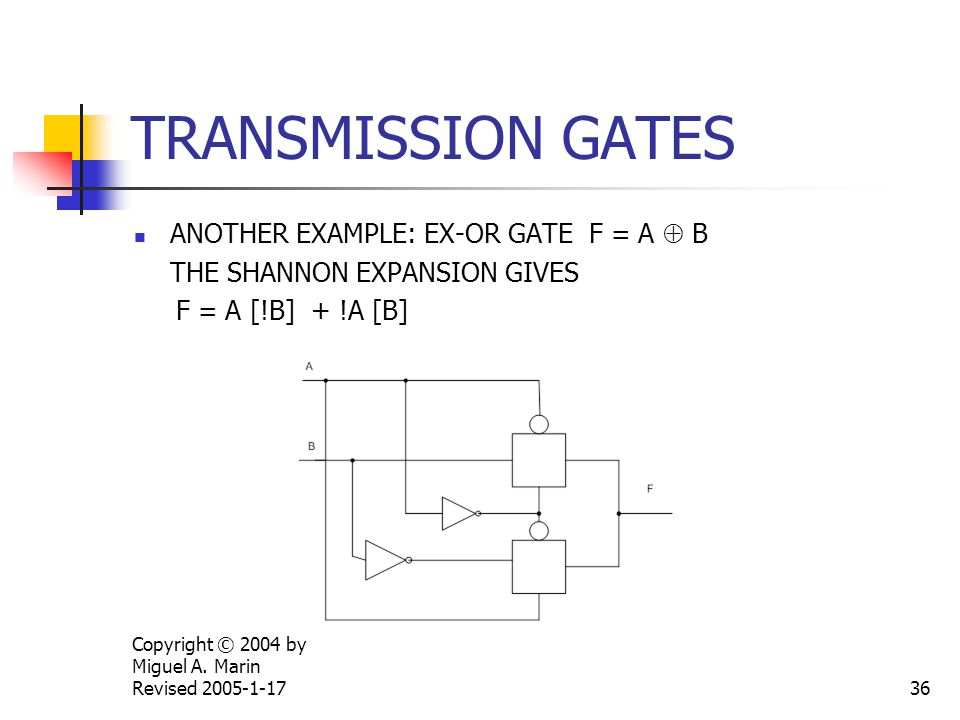

Copyright © 2004 by Miguel A. Marin Revised 2005-1-1736 TRANSMISSION GATES ANOTHER EXAMPLE: EX-OR GATE F = A B THE SHANNON EXPANSION GIVES F = A [!B] + !A [B]
