Ten Common Usage Patterns of pureXML for DB2 for z/OS Applications Guogen (Gene) Zhang,

Similar presentations


Presentation on theme: "Ten Common Usage Patterns of pureXML for DB2 for z/OS Applications Guogen (Gene) Zhang,"— Presentation transcript:

1 Ten Common Usage Patterns of pureXML for DB2 for z/OS Applications Guogen (Gene) Zhang,

2 Agenda Overview of pureXML in DB2 9 for z/OS Ten common usage patterns of pureXML Q & A

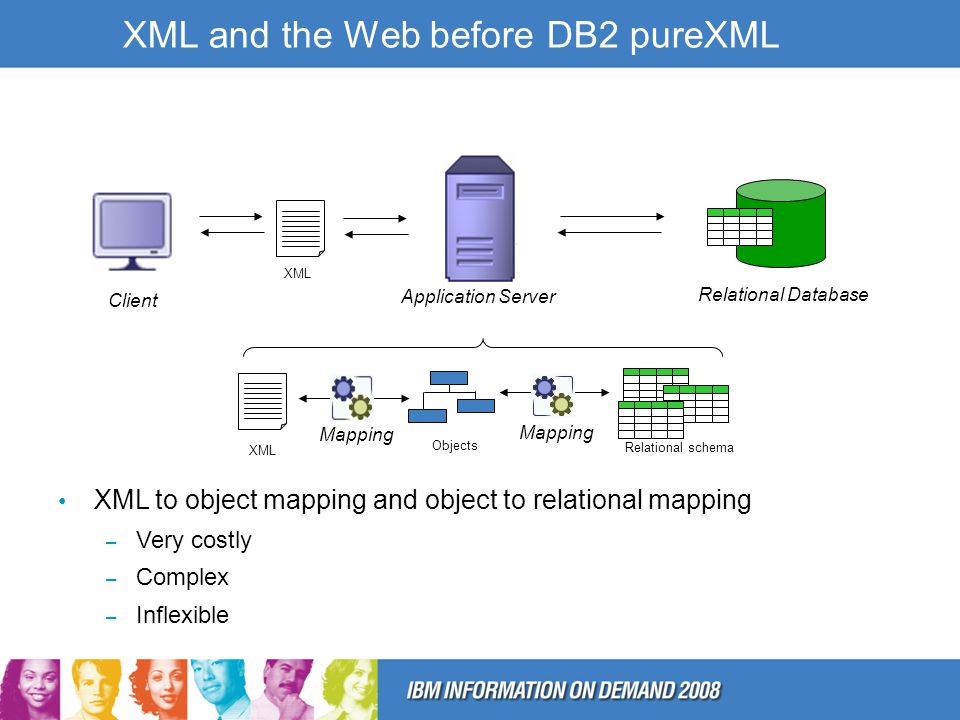

3 XML and the Web before DB2 pureXML Client Application Server XML Objects Mapping Relational schema Relational Database XML to object mapping and object to relational mapping – Very costly – Complex – Inflexible

4 DB2 pureXML and the Web Client XML DB2 pureXML relational XML SOA Gateway End-to-End XML – No expensive object mapping – Pass Thru XML from/to database SOA-Gateway – Device/application to handle network protocols, security, reliability, performance – Easy to manage Simple pre- and post-processing of XML – e.g. via XSLT

5 DB2 9 for z/OS XML Features First-class XML type, native storage of XQuery Data Model (XDM) Complete SQL/XML constructor functions – XMLDOCUMENT, XMLTEXT, XMLCOMMENT, XMLPI – From V8: XMLELEMENT, XMLATTRIBUTES, XMLNAMESPACES, XMLFOREST, XMLCONCAT, XMLAGG XMLPARSE, XMLSERIALIZE, XMLCAST Important SQL/XML functions with XPath – XMLEXISTS, XMLQUERY, XMLTABLE XML indexes – use for XMLEXISTS and XMLTABLE XML Schema repository, Validation UDF, and decomposition DRDA (distributed support) and application interfaces Utilities and tools XMLTABLE and XMLCAST: available through PTF UK33493

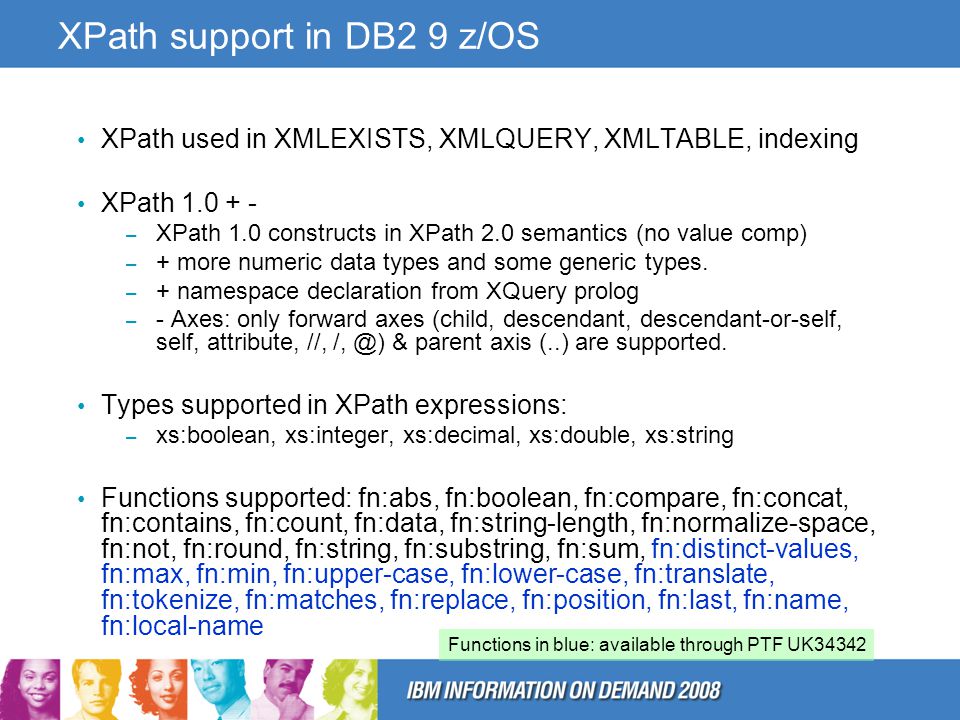

6 XPath support in DB2 9 z/OS XPath used in XMLEXISTS, XMLQUERY, XMLTABLE, indexing XPath – XPath 1.0 constructs in XPath 2.0 semantics (no value comp) – + more numeric data types and some generic types. – + namespace declaration from XQuery prolog – - Axes: only forward axes (child, descendant, descendant-or-self, self, attribute, //, & parent axis (..) are supported. Types supported in XPath expressions: – xs:boolean, xs:integer, xs:decimal, xs:double, xs:string Functions supported: fn:abs, fn:boolean, fn:compare, fn:concat, fn:contains, fn:count, fn:data, fn:string-length, fn:normalize-space, fn:not, fn:round, fn:string, fn:substring, fn:sum, fn:distinct-values, fn:max, fn:min, fn:upper-case, fn:lower-case, fn:translate, fn:tokenize, fn:matches, fn:replace, fn:position, fn:last, fn:name, fn:local-name Functions in blue: available through PTF UK34342

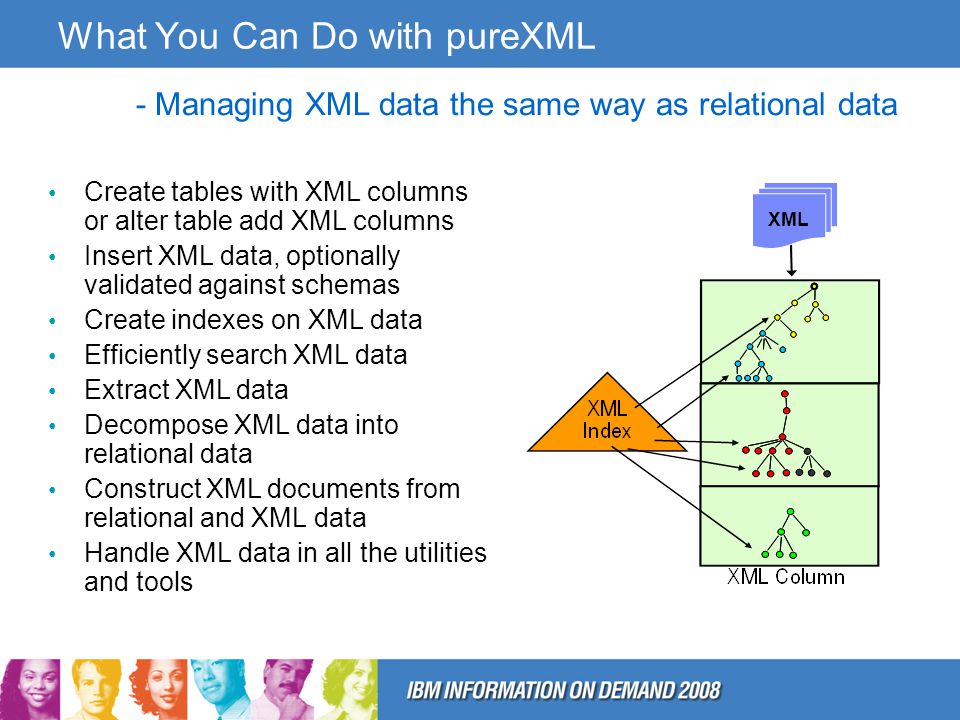

7 What You Can Do with pureXML Create tables with XML columns or alter table add XML columns Insert XML data, optionally validated against schemas Create indexes on XML data Efficiently search XML data Extract XML data Decompose XML data into relational data Construct XML documents from relational and XML data Handle XML data in all the utilities and tools XML - Managing XML data the same way as relational data

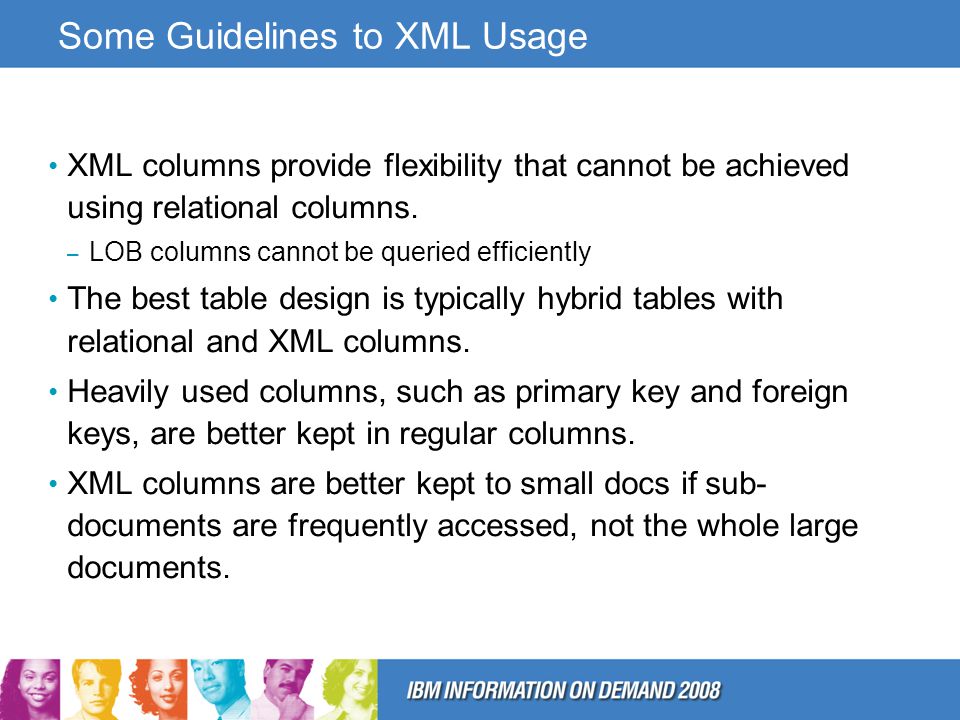

8 Some Guidelines to XML Usage XML columns provide flexibility that cannot be achieved using relational columns. – LOB columns cannot be queried efficiently The best table design is typically hybrid tables with relational and XML columns. Heavily used columns, such as primary key and foreign keys, are better kept in regular columns. XML columns are better kept to small docs if sub- documents are frequently accessed, not the whole large documents.

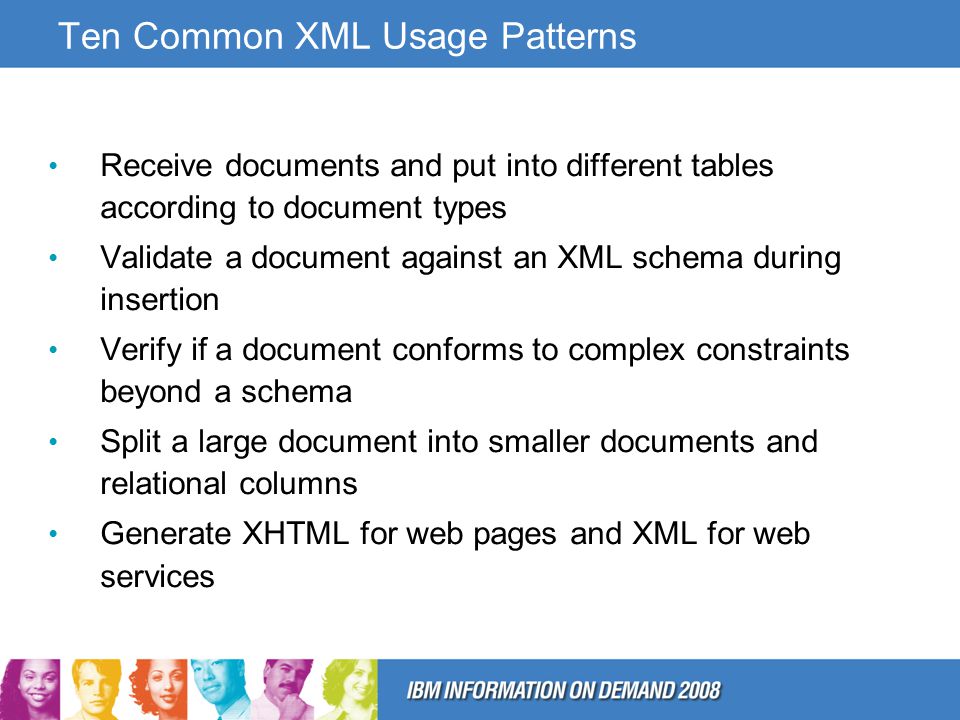

9 Ten Common XML Usage Patterns Receive documents and put into different tables according to document types Validate a document against an XML schema during insertion Verify if a document conforms to complex constraints beyond a schema Split a large document into smaller documents and relational columns Generate XHTML for web pages and XML for web services

10 Ten Common XML Usage Patterns (contd) Generate new documents from existing documents for transaction processing and workflow Generate XML data for relational data Use SQL for reporting and analytics on XML data Invoke Web services and use the result in SQL queries Use XML for object persistence (SDO/binary XML)

11 1. Receive documents and insert appropriately Scenario: insert new documents (request), or update existing row with new document (response) PAYMENT(ID, REQUEST, RESPONSE) ACCTAPPL(ID, REQUEST, RESPONSE) Solution: Get the document type and ID from a document, and find what to do. Options: You can do this from application, external stored procedure, or SQL PL stored proc

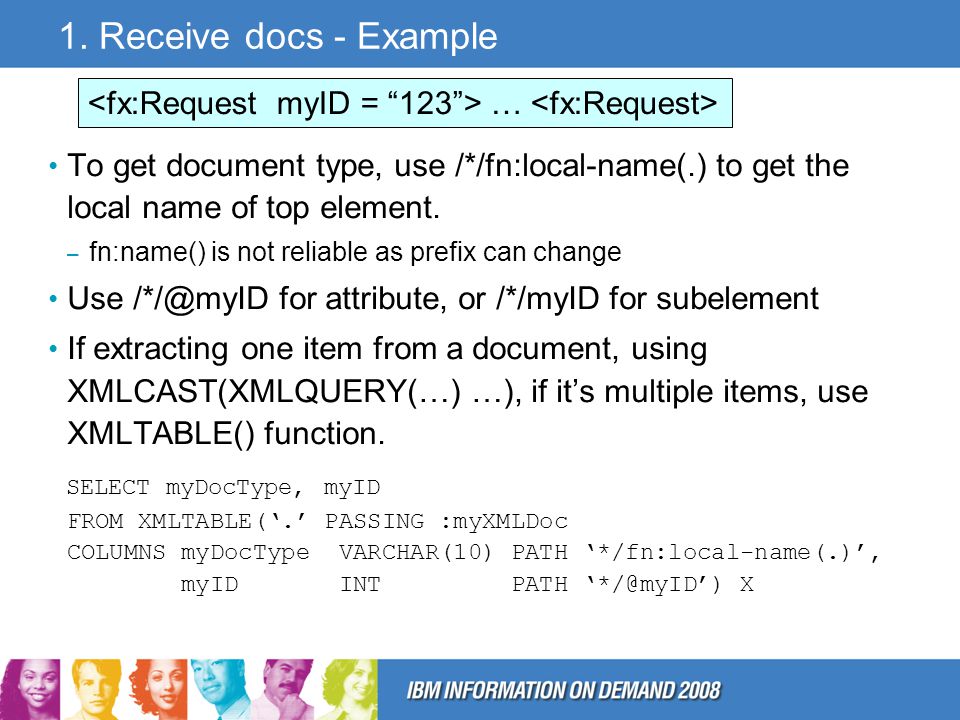

12 1. Receive docs - Example To get document type, use /*/fn:local-name(.) to get the local name of top element. – fn:name() is not reliable as prefix can change Use for attribute, or /*/myID for subelement If extracting one item from a document, using XMLCAST(XMLQUERY(…) …), if its multiple items, use XMLTABLE() function. SELECT myDocType, myID FROM XMLTABLE(. PASSING :myXMLDoc COLUMNS myDocType VARCHAR(10) PATH */fn:local-name(.), myID INT PATH X …

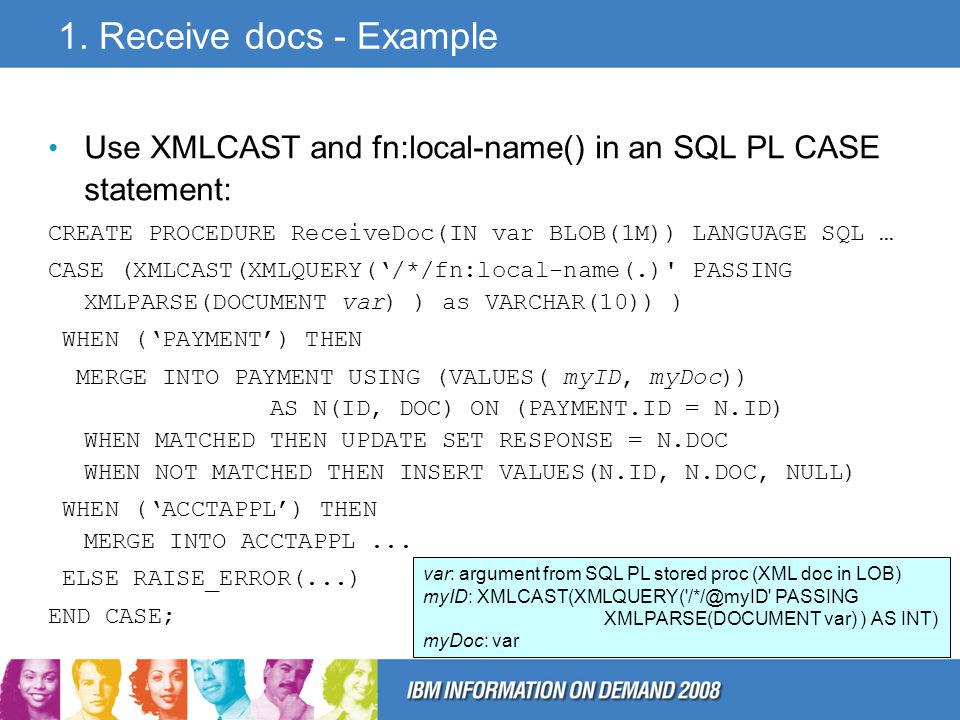

13 1. Receive docs - Example Use XMLCAST and fn:local-name() in an SQL PL CASE statement: CREATE PROCEDURE ReceiveDoc(IN var BLOB(1M)) LANGUAGE SQL … CASE (XMLCAST(XMLQUERY(/*/fn:local-name(.)' PASSING XMLPARSE(DOCUMENT var) ) as VARCHAR(10)) ) WHEN (PAYMENT) THEN MERGE INTO PAYMENT USING (VALUES( myID, myDoc)) AS N(ID, DOC) ON (PAYMENT.ID = N.ID) WHEN MATCHED THEN UPDATE SET RESPONSE = N.DOC WHEN NOT MATCHED THEN INSERT VALUES(N.ID, N.DOC, NULL) WHEN (ACCTAPPL) THEN MERGE INTO ACCTAPPL... ELSE RAISE_ERROR(...) END CASE; var: argument from SQL PL stored proc (XML doc in LOB) myID: PASSING XMLPARSE(DOCUMENT var) ) AS INT) myDoc: var

14 2. Validate a document against an XML schema Scenario: Need to validate a document before insertion Solution: DSN_XMLVALIDATE function, need to specify a single schema Options: Call the function explicitly in INSERT statement, or enforce it through a SQL PL stored procedure – For small docs (< 32KB), INSTEAD OF TRIGGER can be used with dummy view/table and a VARBINARY column

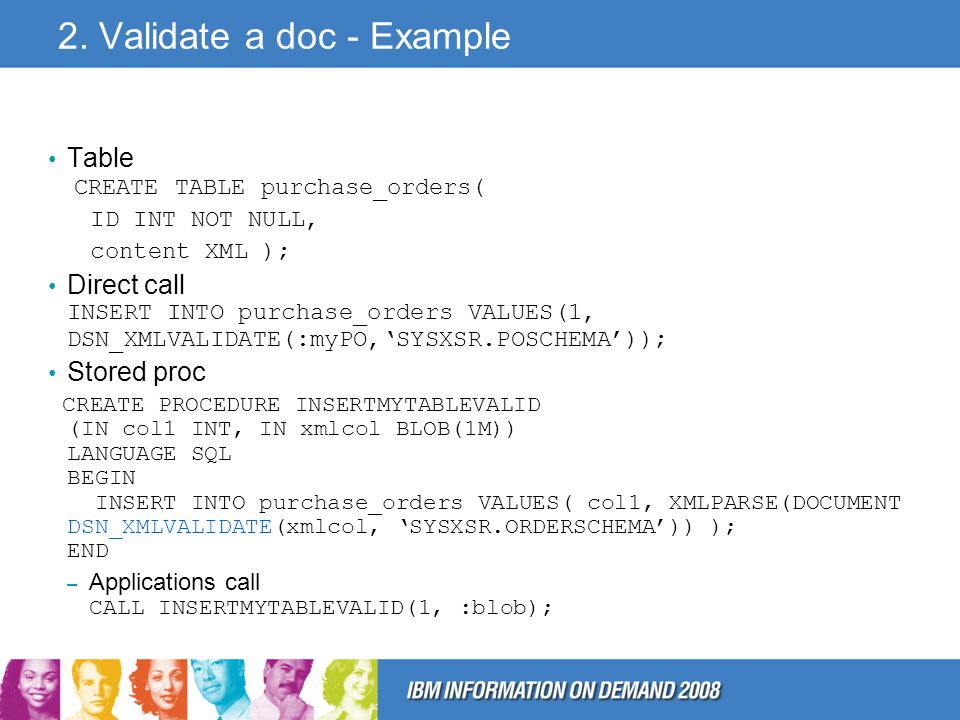

15 2. Validate a doc - Example Table CREATE TABLE purchase_orders( ID INT NOT NULL, content XML ); Direct call INSERT INTO purchase_orders VALUES(1, DSN_XMLVALIDATE(:myPO,SYSXSR.POSCHEMA)); Stored proc CREATE PROCEDURE INSERTMYTABLEVALID (IN col1 INT, IN xmlcol BLOB(1M)) LANGUAGE SQL BEGIN INSERT INTO purchase_orders VALUES( col1, XMLPARSE(DOCUMENT DSN_XMLVALIDATE(xmlcol, SYSXSR.ORDERSCHEMA)) ); END – Applications call CALL INSERTMYTABLEVALID(1, :blob);

16 2. Validate a doc – Example: COBOL using LOB 1) XML in applications' memory (hostvar), if it's UTF-8, use BLOB hostvar is the best (use CLOB or DBCLOB if it's not UTF-8): EXEC SQL INCLUDE COBIIVAR END-EXEC. EXEC SQL INCLUDE COBSVAR END-EXEC. EXEC SQL INCLUDE SQLCA END-EXEC BLOB-VAR USAGE IS SQL TYPE IS BLOB(16M).... EXEC SQL INSERT INTO T VALUES (XMLPARSE(DOCUMENT DSN_XMLVALIDATE(:BLOB-VAR, 'SYSXSR.MYSCHEMA')) ) END-EXEC.... 2) XML in a file, use LOB file reference variable is best. Assuming XML in UTF-8: BLOBFR1 SQL TYPE IS BLOB-FILE.... *** example file is in HFS MOVE '/u/li637/blob10a.txt' TO BLOBFR1-NAME. MOVE 20 TO BLOBFR1-NAME-LENGTH. MOVE SQL-FILE-READ TO BLOBFR1-FILE-OPTION. EXEC SQL INSERT INTO T VALUES (XMLPARSE(DOCUMENT DSN_XMLVALIDATE(:BLOBFR1, 'SYSXSR.MYSCHEMA')) ) END-EXEC. 3) Use LOB locator to hold XML value…

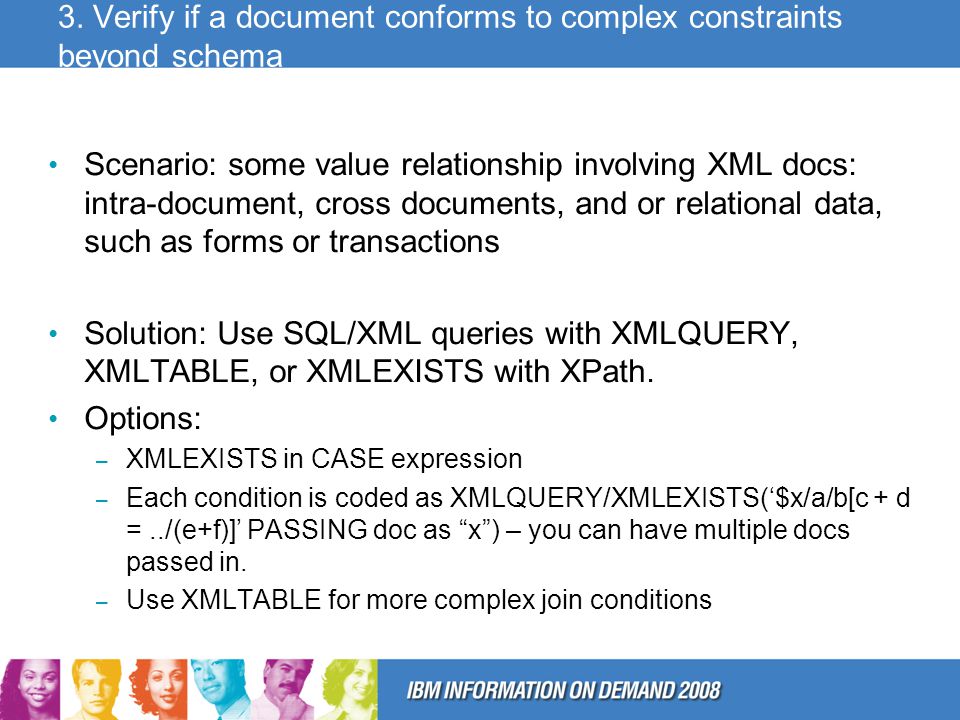

17 3. Verify if a document conforms to complex constraints beyond schema Scenario: some value relationship involving XML docs: intra-document, cross documents, and or relational data, such as forms or transactions Solution: Use SQL/XML queries with XMLQUERY, XMLTABLE, or XMLEXISTS with XPath. Options: – XMLEXISTS in CASE expression – Each condition is coded as XMLQUERY/XMLEXISTS($x/a/b[c + d =../(e+f)] PASSING doc as x) – you can have multiple docs passed in. – Use XMLTABLE for more complex join conditions

18 3. Verify a doc - Examples Use case expression with XMLEXISTS (can be multiple conditions, multiple docs) SELECT CASE WHEN XMLEXISTS('/step1/step2[step3= x + step4/y] PASSING xmlcol) THEN 1 ELSE 0 END CASE as Cond1, … FROM … Use XMLEXISTS to check one reference SELECT 1 FROM SYSIBM.SYSDUMMYU WHERE EXISTS(SELECT 1 FROM T1, T2 WHERE XMLEXISTS('/step1/step2[step3=$x]' PASSING xmlcol, T2.PK AS "x")) Use XMLTABLE for multiple conditions SELECT 1 FROM SYSIBM.SYSDUMMYU WHERE EXISTS(SELECT 1 FROM T0, XMLTABLE(/a/b PASSING T0.X COLUMNS c1 INT PATH c, c2 VARCHAR(10) PATH d) as XT, T1, T2 WHERE XT.C1 = T1.C1 AND XT.C2 = T2.C2 )

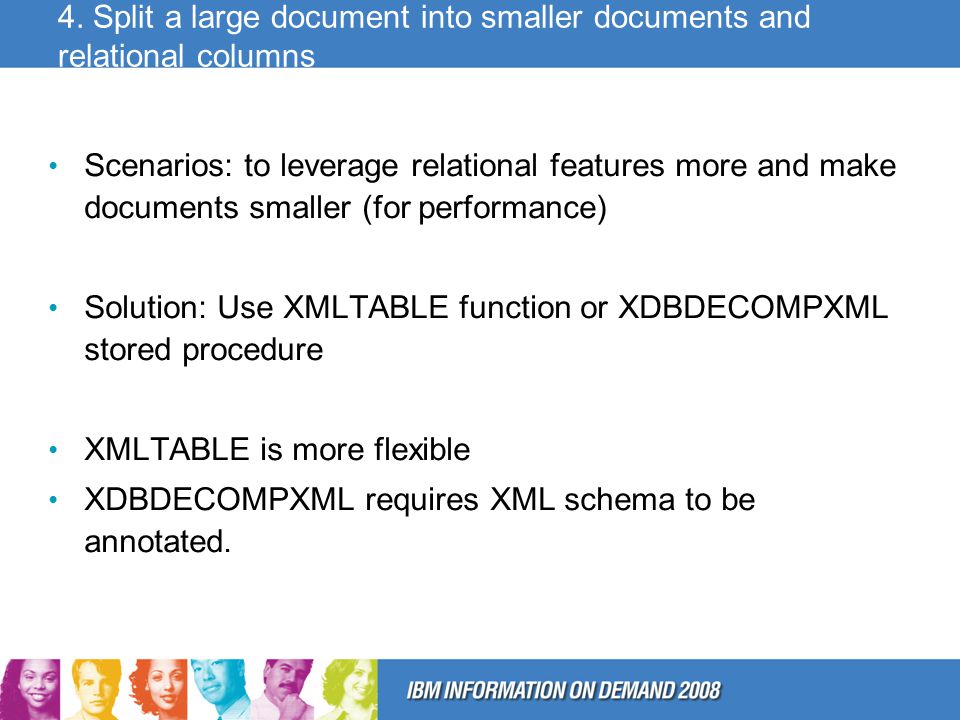

19 4. Split a large document into smaller documents and relational columns Scenarios: to leverage relational features more and make documents smaller (for performance) Solution: Use XMLTABLE function or XDBDECOMPXML stored procedure XMLTABLE is more flexible XDBDECOMPXML requires XML schema to be annotated.

20 4. Split a doc – XMLTABLE example INSERT INTO TB25MMF SELECT T.RETURNID, T.DOCID, T.DOCNAME, XMLDOCUMENT(T.DOC) FROM XMLTABLE(XMLNAMESPACES(DEFAULT 'http://www.irs.gov/efile'), '$d/Return/ReturnData/*' passing ? as "d" COLUMNS returnidchar(20) PATH '../../ReturnHeader/ReturnId', docid varchar(50) PATH docname varchar(50) PATH doc xml PATH '.') as T ;

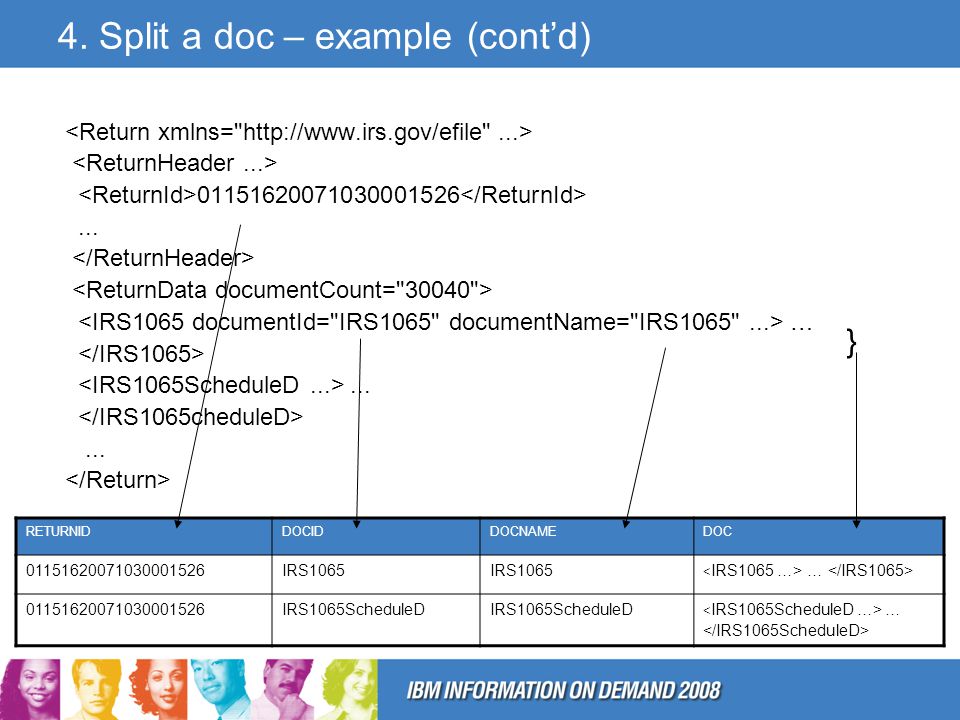

21 4. Split a doc – example (contd) … RETURNIDDOCIDDOCNAMEDOC IRS1065 … IRS1065ScheduleD … }

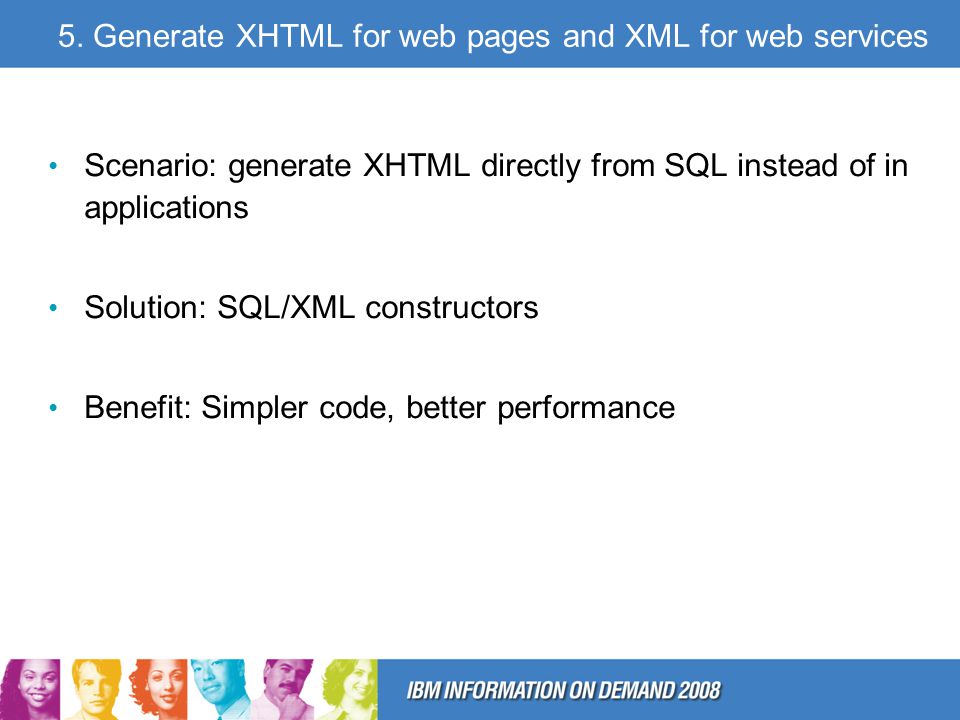

22 5. Generate XHTML for web pages and XML for web services Scenario: generate XHTML directly from SQL instead of in applications Solution: SQL/XML constructors Benefit: Simpler code, better performance

23 5. Generate XHTML or XML - Example SELECT XMLElement(NAME "TABLE", XMLATTRIBUTES('1' as "border"), XMLElement(NAME CAPTION, 'Department-Employee Table'), XMLElement(NAME TR, XMLFOREST('Dept No as TH, 'Dept Name as TH, 'Emp No as TH, 'Emp Name as TH, 'Phone as TH) ), XMLAGG( XMLCONCAT( XMLELEMENT(NAME TR, XMLELEMENT(NAME TD, XMLATTRIBUTES( X.CNT+1 as "rowspan"), D.DEPTNO), XMLELEMENT(NAME TD, XMLATTRIBUTES( X.CNT+1 as "rowspan"), D.DEPTNAME) ), ( SELECT XMLAGG(XMLElement(NAME TR, XMLForest(EMPNO as TD, FIRSTNME || ' ' || LASTNAME as TD, PHONENO as TD) ) ) FROM DSN8910.EMP E WHERE E.WORKDEPT = D.DEPTNO ) ) ) ) FROM DSN8910.DEPT D, (SELECT WORKDEPT, COUNT(*) FROM DSN8910.EMP GROUP BY WORKDEPT) X(DEPTNO, CNT) WHERE D.DEPTNO = X.DEPTNO AND D.DEPTNO IN ('A00', 'C01'); } } Table Header Dept } Emp

24

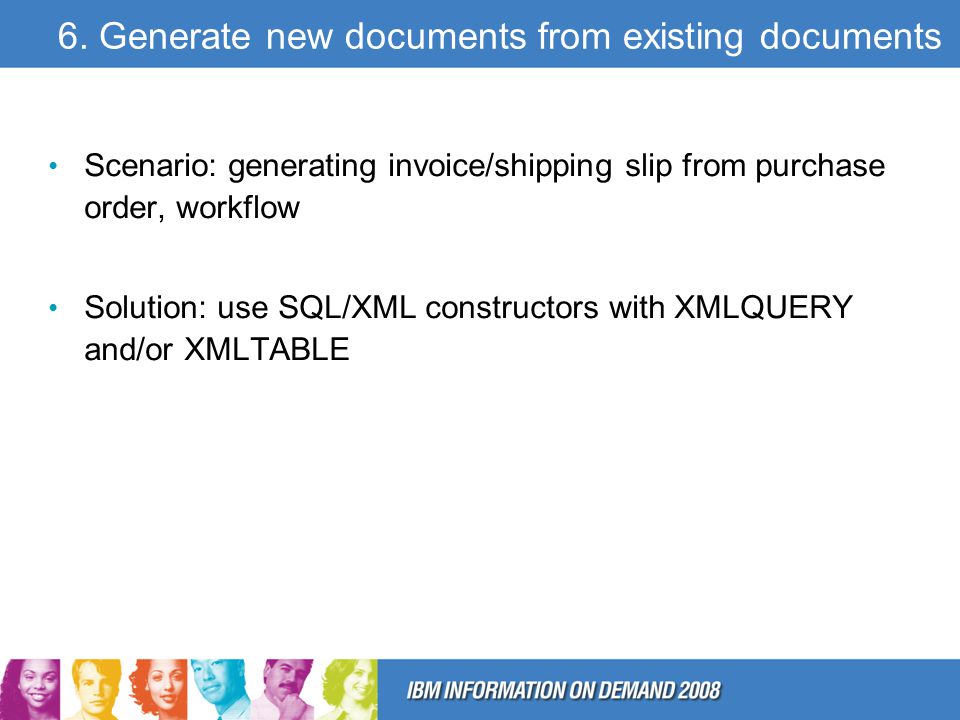

25 6. Generate new documents from existing documents Scenario: generating invoice/shipping slip from purchase order, workflow Solution: use SQL/XML constructors with XMLQUERY and/or XMLTABLE

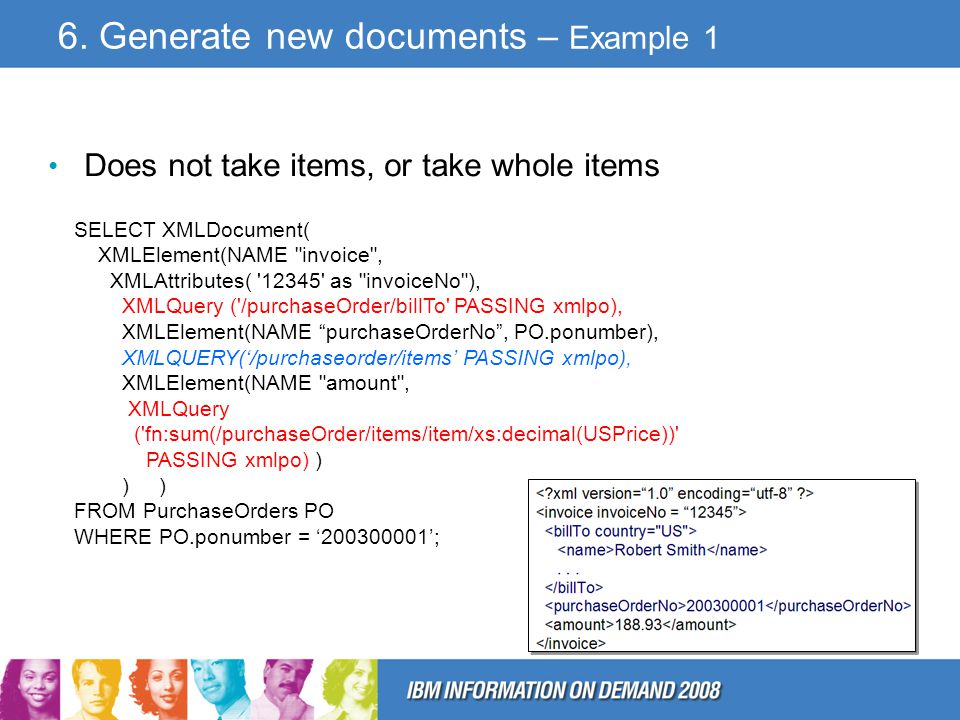

26 6. Generate new documents – Example 1 Does not take items, or take whole items SELECT XMLDocument( XMLElement(NAME "invoice", XMLAttributes( '12345' as "invoiceNo"), XMLQuery ('/purchaseOrder/billTo' PASSING xmlpo), XMLElement(NAME purchaseOrderNo, PO.ponumber), XMLQUERY(/purchaseorder/items PASSING xmlpo), XMLElement(NAME "amount", XMLQuery ('fn:sum(/purchaseOrder/items/item/xs:decimal(USPrice))' PASSING xmlpo) ) ) ) FROM PurchaseOrders PO WHERE PO.ponumber = ;

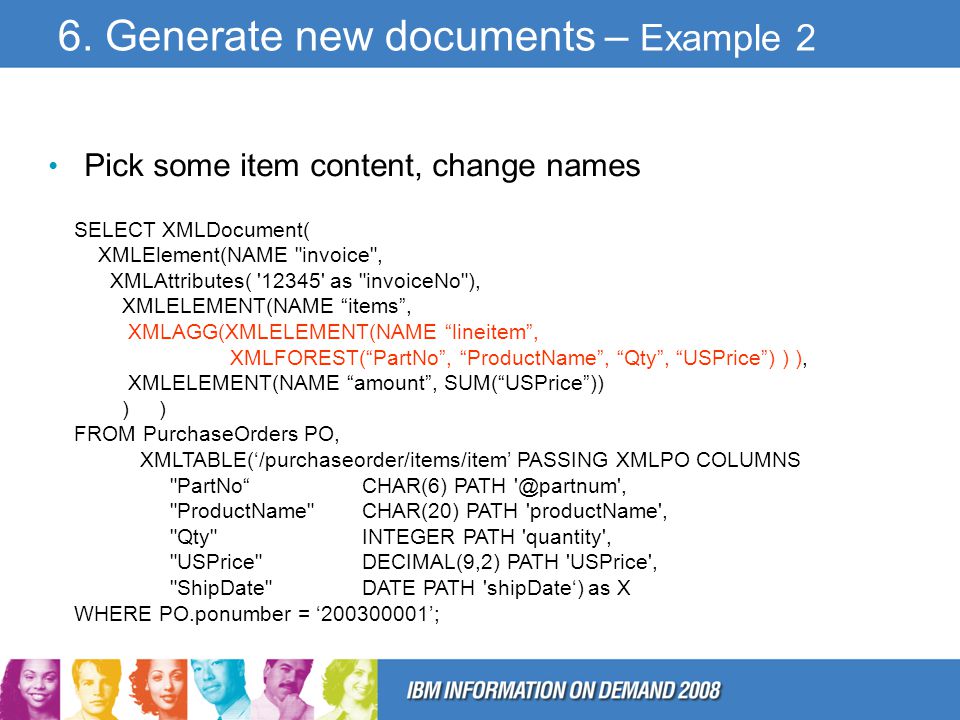

27 6. Generate new documents – Example 2 Pick some item content, change names SELECT XMLDocument( XMLElement(NAME "invoice", XMLAttributes( '12345' as "invoiceNo"), XMLELEMENT(NAME items, XMLAGG(XMLELEMENT(NAME lineitem, XMLFOREST(PartNo, ProductName, Qty, USPrice) ) ), XMLELEMENT(NAME amount, SUM(USPrice)) ) ) FROM PurchaseOrders PO, XMLTABLE(/purchaseorder/items/item PASSING XMLPO COLUMNS "PartNo CHAR(6) PATH "ProductName" CHAR(20) PATH 'productName', "Qty" INTEGER PATH 'quantity', "USPrice" DECIMAL(9,2) PATH 'USPrice', "ShipDate" DATE PATH 'shipDate) as X WHERE PO.ponumber = ;

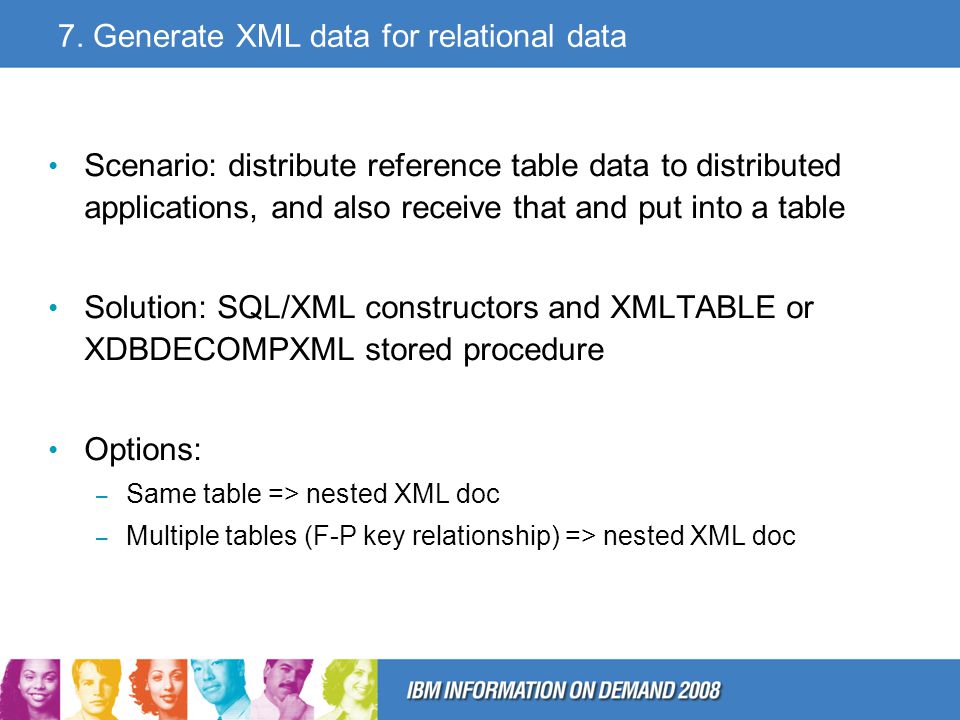

28 7. Generate XML data for relational data Scenario: distribute reference table data to distributed applications, and also receive that and put into a table Solution: SQL/XML constructors and XMLTABLE or XDBDECOMPXML stored procedure Options: – Same table => nested XML doc – Multiple tables (F-P key relationship) => nested XML doc

29 7. Generate XML data for relational data – Example 1 Simple output – single table, each row => element SELECT XMLELEMENT(NAME "table", XMLAGG(XMLELEMENT (NAME "row", XMLFOREST(c1, c2, c3...)))) FROM table; Simple input: reverse INSERT INTO table (SELECT * FROM XMLTABLE('/table/row' PASSING ? COLUMNS c1 VARCHAR(50), c2 INTEGER, c3 CHAR(1)) AS X);

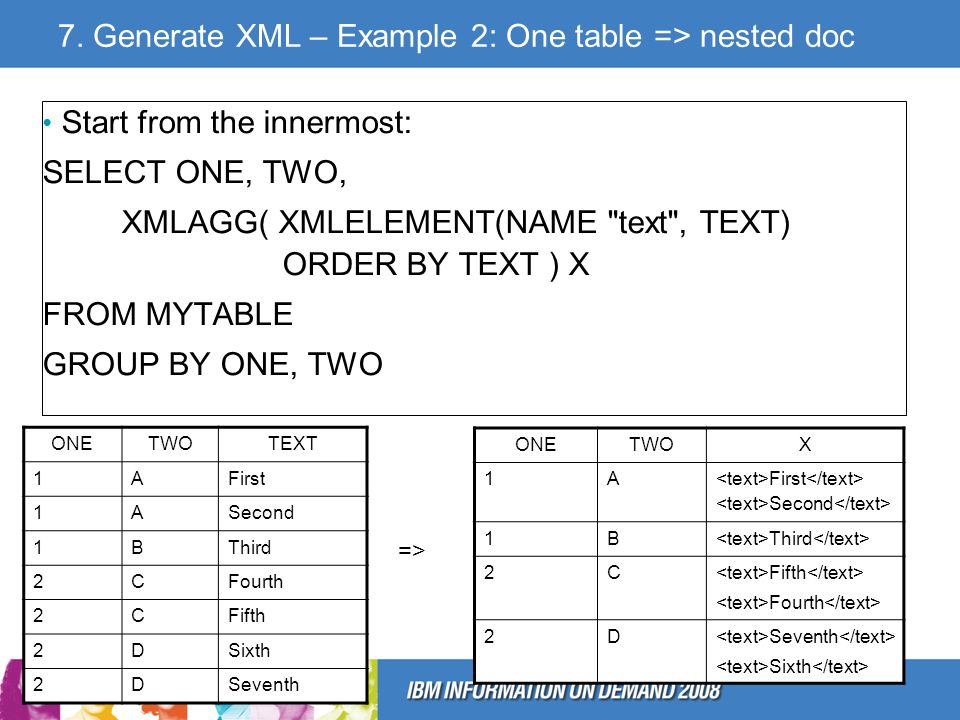

30 7. Generate XML – Example 2: One table => nested doc Start from the innermost: SELECT ONE, TWO, XMLAGG( XMLELEMENT(NAME "text", TEXT) ORDER BY TEXT ) X FROM MYTABLE GROUP BY ONE, TWO ONETWOTEXT 1AFirst 1ASecond 1BThird 2CFourth 2CFifth 2DSixth 2DSeventh ONETWOX 1A First Second 1B Third 2C Fifth Fourth 2D Seventh Sixth =>

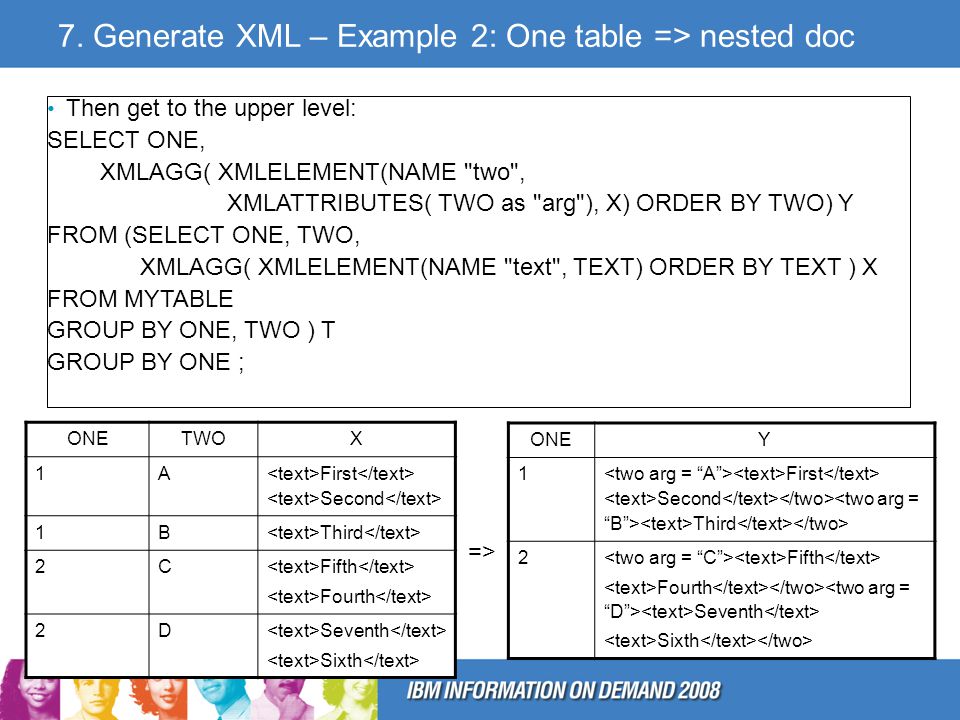

31 7. Generate XML – Example 2: One table => nested doc Then get to the upper level: SELECT ONE, XMLAGG( XMLELEMENT(NAME "two", XMLATTRIBUTES( TWO as "arg"), X) ORDER BY TWO) Y FROM (SELECT ONE, TWO, XMLAGG( XMLELEMENT(NAME "text", TEXT) ORDER BY TEXT ) X FROM MYTABLE GROUP BY ONE, TWO ) T GROUP BY ONE ; ONETWOX 1A First Second 1B Third 2C Fifth Fourth 2D Seventh Sixth ONEY 1 First Second Third 2 Fifth Fourth Seventh Sixth =>

32 7. Generate XML – Example 2: One table => nested doc Then get to three levels: SELECT XMLELEMENT(name "document", XMLAGG( XMLELEMENT(NAME "one", XMLATTRIBUTES(ONE as "arg"), Y) ORDER BY ONE) ) Z FROM ( SELECT ONE, XMLAGG( XMLELEMENT(NAME "two", XMLATTRIBUTES( TWO as "arg"), X) ORDER BY TWO) Y FROM (SELECT ONE, TWO, XMLAGG( XMLELEMENT(NAME "text", TEXT) ORDER BY TEXT ) X FROM MYTABLE GROUP BY ONE, TWO )T GROUP BY ONE ) T2; Z First Second > Third Fifth Fourth Seventh Sixth ONEY 1 First Second Third 2 Fifth Fourth Seventh Sixth =>

33 7. Generate XML – Example 3: multiple tables => nested doc DEPT(DEPTNO, DEPTNAME) -> EMP(EMPNO, LASTNAME, FIRSTNME, WORKDEPT) SELECT XMLELEMENT( NAME "Dept", XMLATTRIBUTES ( D.DEPTNO AS "deptno", D.DEPTNAME AS "name" ), ( SELECT XMLAGG (XMLELEMENT (NAME "Emp", XMLATTRIBUTES(E.EMPNO as "empno"), E.FIRSTNME || ' ' || E.LASTNAME ) ) FROM DSN8810.EMP E WHERE E.WORKDEPT = D.DEPTNO ) ) FROM DSN8910.DEPT D WHERE D.DEPTNO = 'D01';

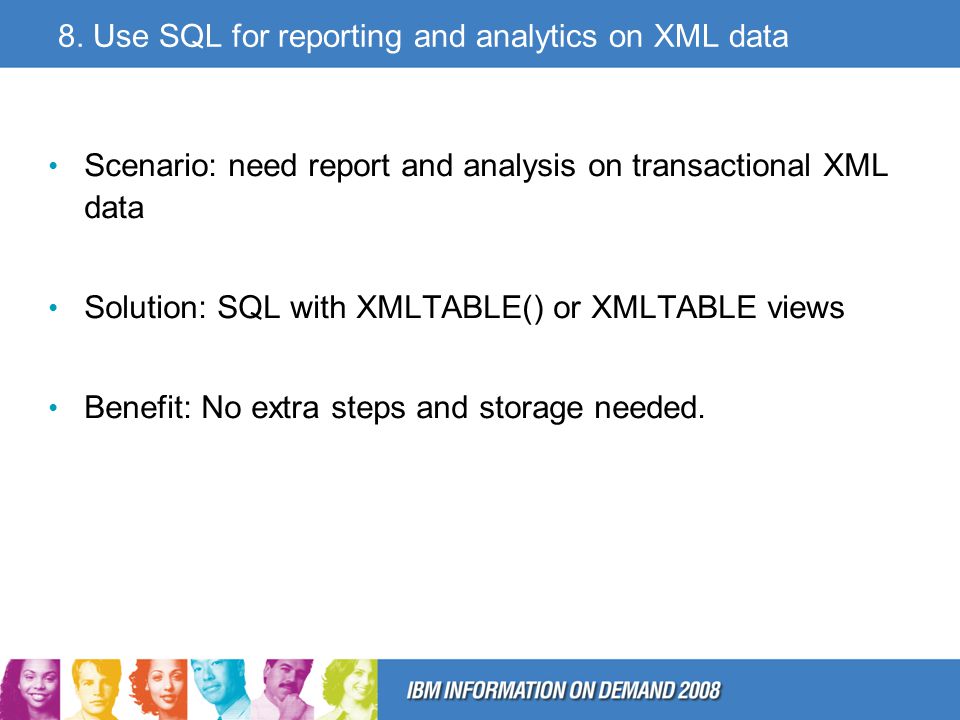

34 8. Use SQL for reporting and analytics on XML data Scenario: need report and analysis on transactional XML data Solution: SQL with XMLTABLE() or XMLTABLE views Benefit: No extra steps and storage needed.

35 8. Use SQL on XML data - Example CREATE VIEW ORDER_VIEW AS SELECT PO.POID, X.* FROM PurchaseOrders PO, XMLTABLE( '/purchaseorder/items/item' PASSING PO.XMLPO COLUMNS "orderDate" DATE PATH "shipTo City" VARCHAR(20) PATH '../../shipTo/city', "shipTo State" CHAR(2) PATH '../../shipTo/state', "Part #" CHAR(6) PATH "Product Name" CHAR(20) PATH 'productName', "Quantity" INTEGER PATH 'quantity', "US Price" DECIMAL(9,2) PATH 'USPrice', "Ship Date" DATE PATH 'shipDate', "Comment" VARCHAR(60) PATH 'comment' ) AS X; SELECT "Product Name", "shipTo State", SUM("US Price" * "Quantity") AS TOTAL_SALE FROM ORDER_VIEW GROUP BY "Product Name", "shipTo State"; SELECT "shipTo City", "shipTo State", RANK() OVER(ORDER BY SUM("Quantity")) AS SALES_RANK FROM ORDER_VIEW WHERE "Product Name" = 'Baby Monitor' GROUP BY "shipTo State", "shipTo City" ORDER BY SALES_RANK;

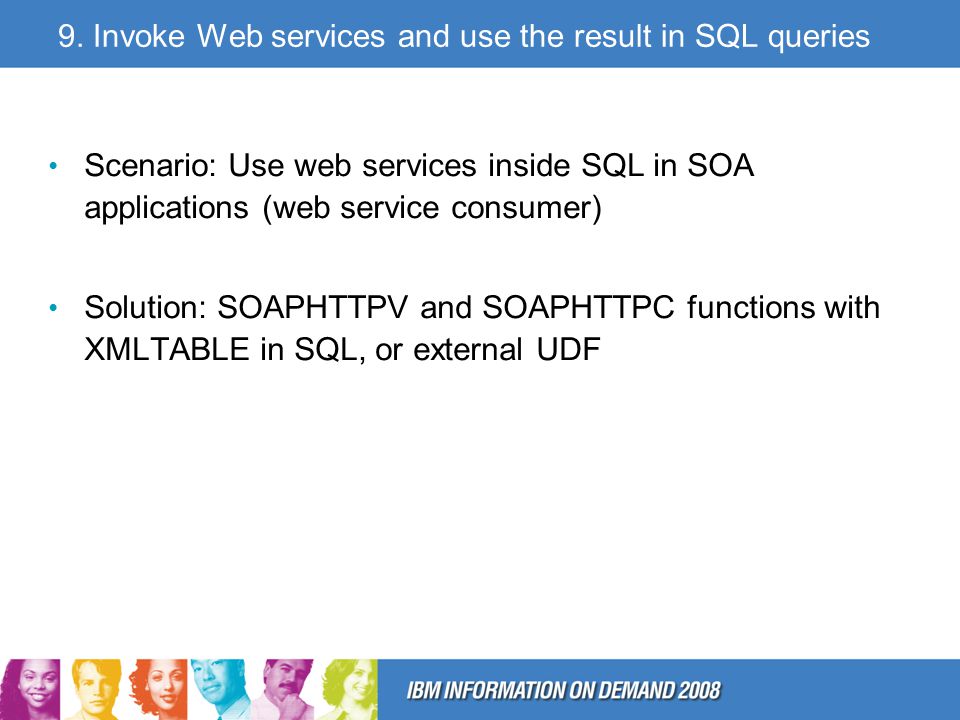

36 9. Invoke Web services and use the result in SQL queries Scenario: Use web services inside SQL in SOA applications (web service consumer) Solution: SOAPHTTPV and SOAPHTTPC functions with XMLTABLE in SQL, or external UDF

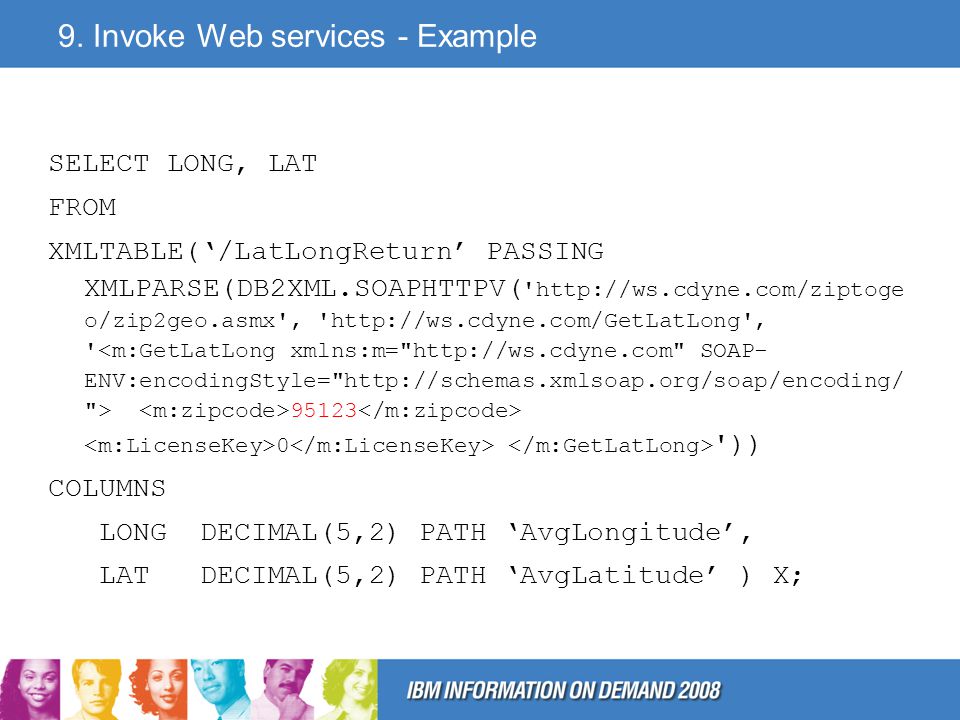

37 9. Invoke Web services - Example SELECT LONG, LAT FROM XMLTABLE(/LatLongReturn PASSING XMLPARSE(DB2XML.SOAPHTTPV( 'http://ws.cdyne.com/ziptoge o/zip2geo.asmx', 'http://ws.cdyne.com/GetLatLong', ' ')) COLUMNS LONG DECIMAL(5,2) PATH AvgLongitude, LAT DECIMAL(5,2) PATH AvgLatitude ) X;

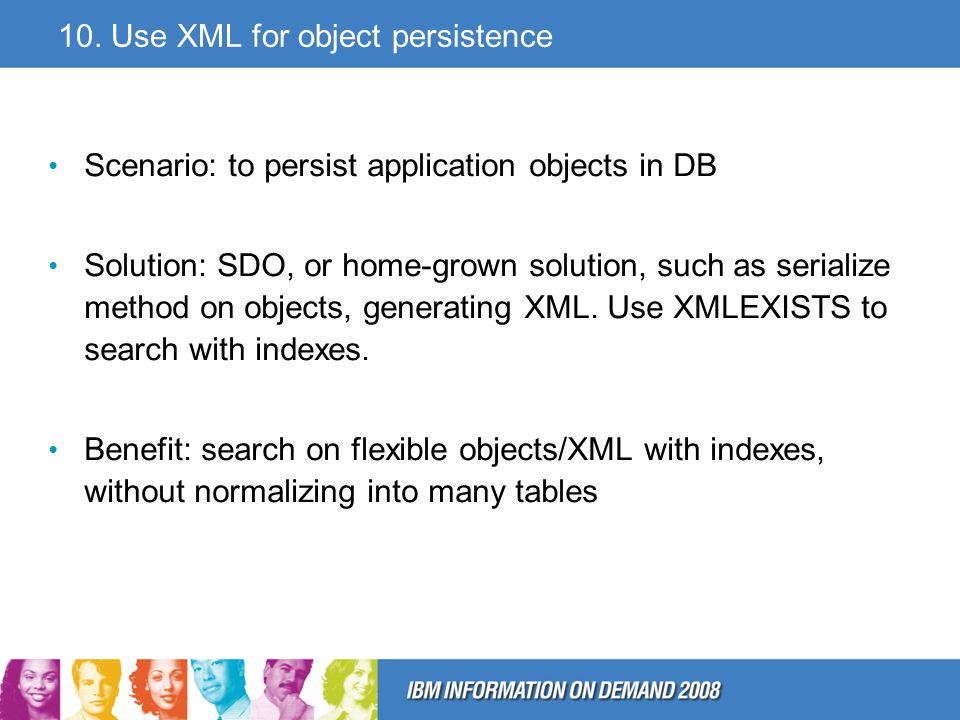

38 10. Use XML for object persistence Scenario: to persist application objects in DB Solution: SDO, or home-grown solution, such as serialize method on objects, generating XML. Use XMLEXISTS to search with indexes. Benefit: search on flexible objects/XML with indexes, without normalizing into many tables

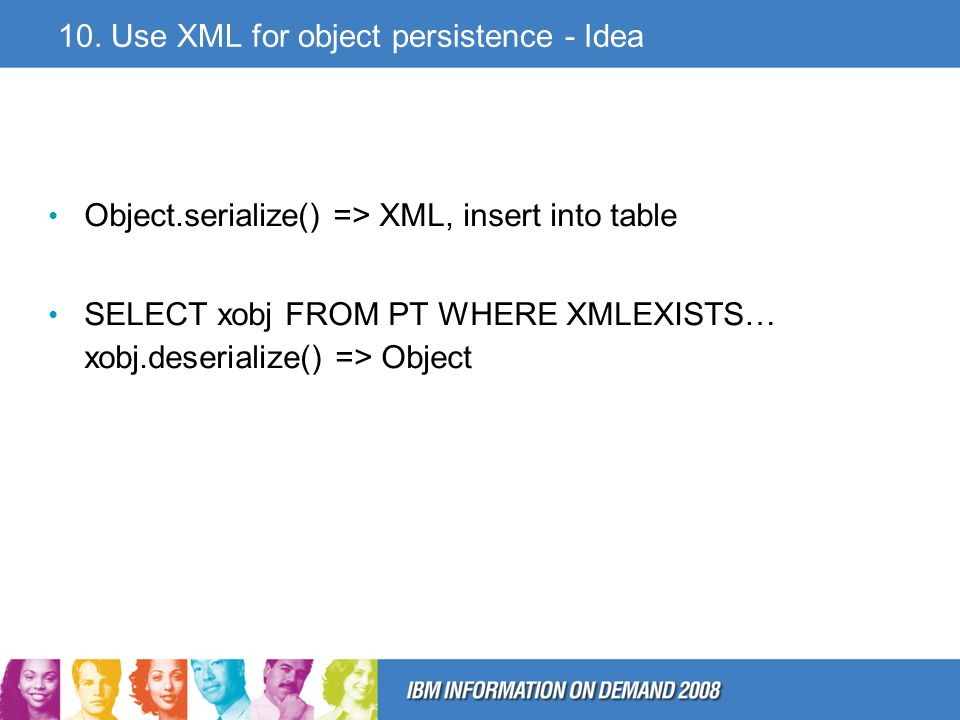

39 10. Use XML for object persistence - Idea Object.serialize() => XML, insert into table SELECT xobj FROM PT WHERE XMLEXISTS… xobj.deserialize() => Object

40 Q & A send s to

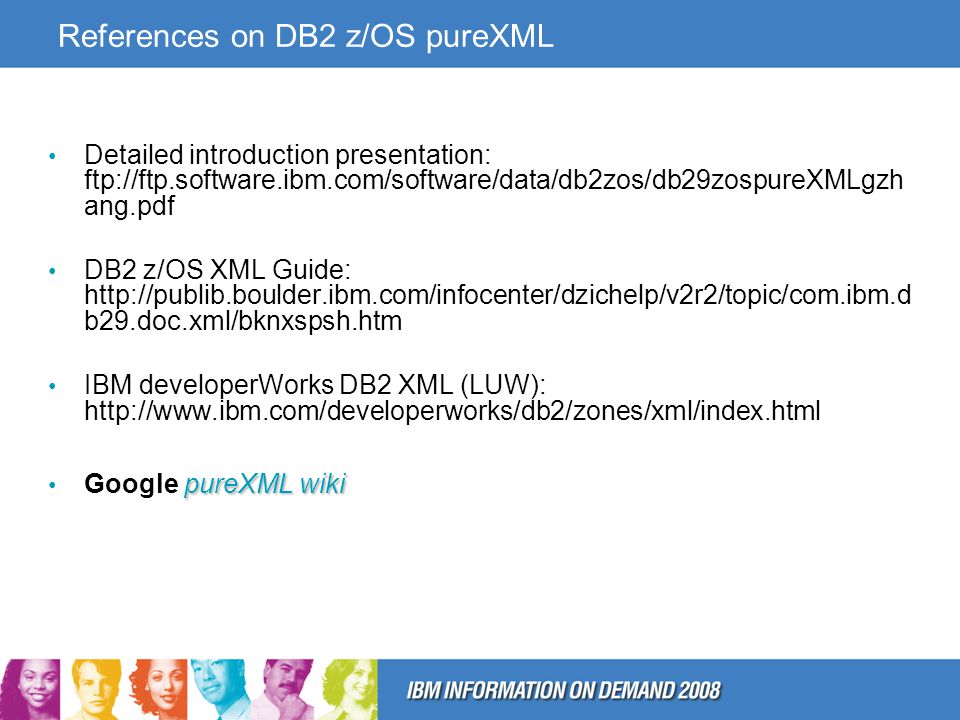

41 References on DB2 z/OS pureXML Detailed introduction presentation: ftp://ftp.software.ibm.com/software/data/db2zos/db29zospureXMLgzh ang.pdf DB2 z/OS XML Guide: b29.doc.xml/bknxspsh.htm IBM developerWorks DB2 XML (LUW): pureXML wiki Google pureXML wiki
