**Lesson 6 PROPERTY DIAGRAMS AND STEAM TABLES**

DETERMINE any unknown properties for a fluid given a Mollier diagram and sufficient information to indicate the state of the fluid. DETERMINE any unknown properties for a fluid, given a set of steam tables and sufficient information to indicate the state of the fluid. DETERMINE the change in the enthalpy of a fluid as it passes through a system component, given the state of the fluid at the inlet and outlet of the component and either steam tables or a Mollier diagram.

2
**Property Diagrams Pressure- Temperature (P-T) diagrams**

Pressure-Specific Volume (P-v) diagrams Pressure-Enthalpy (P-h) diagrams Enthalpy-Temperature (h-T) diagrams Temperature-Entropy (T-s) diagrams Enthalpy-Entropy (h-s) or Mollier diagrams.

3
**Pressure- Temperature (P-T) diagram**

4
**Pressure-Specific Volume (P-v) Diagram**

5
**Pressure-Enthalpy (P-h) Diagram**

6
**Enthalpy-Temperature (h-T) Diagram**

7
**Temperature-Entropy (T-s) Diagram**

8
**Enthalpy-Entropy (h-s) or Mollier Diagram**

10
**Steam Tables Saturated steam tables Superheated steam tables**

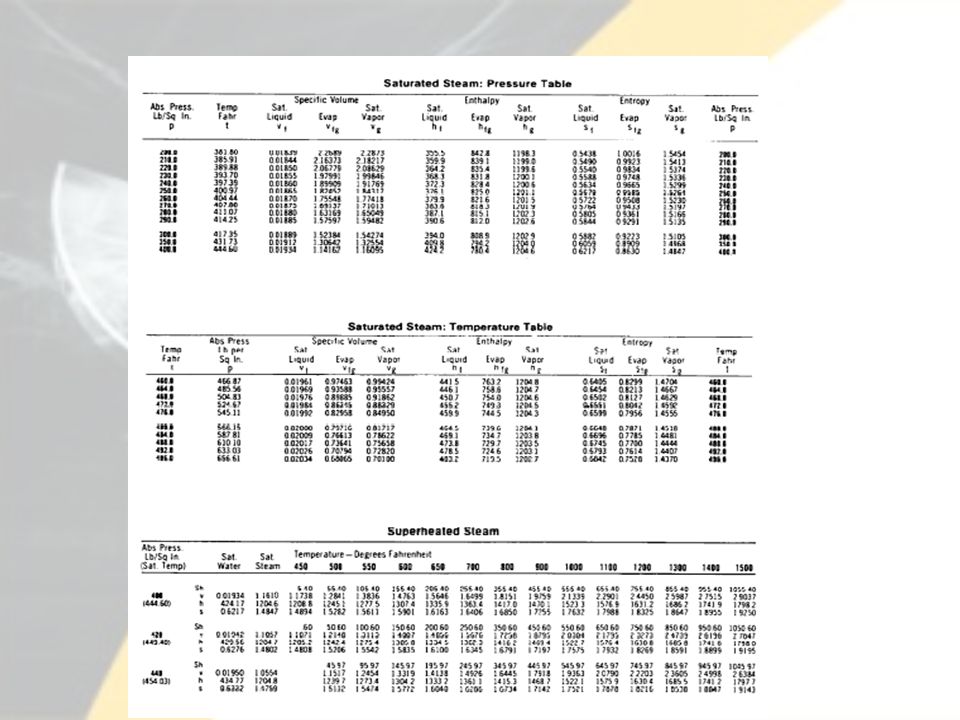

Both sets of tables are tabulations of pressure (P), temperature (T), specific volume (v), specific enthalpy (h), and specific entropy (s)

11
**Saturated Steam Tables**

Provide energy transfer properties of saturated water and saturated steam for temperatures from 32 to °F (the critical temperature) and for the corresponding pressure from to psi. Divided into two parts: Temperature Tables – Lists properties according to saturation temperature (Tsat) Pressure Tables - Lists properties according to saturation pressure (Psat).

13
**Property Diagrams and Steam Tables Summary**

The Mollier diagram can be used to determine various properties of a fluid. Mollier diagram is an h versus s plot. Can only be used when quality is greater than 50% and for superheated steam. Contains a series of constant temperature, constant pressure, constant moisture content, and constant superheat lines.

14
**Property Diagrams and Steam Tables Summary (continued)**

The steam tables can be used to determine various properties of water using the following equations.

15
**Property Diagrams and Steam Tables Summary (continued)**

The change in enthalpy of a fluid as it passes through a component can be determined using a Mollier diagram on steam tables.
