1 Chapter 5 Normalization of Database Tables Database Systems: Design, Implementation, and Management Peter Rob & Carlos Coronel

2 In this chapter, you will learn: 4What normalization is and what role it plays in database design 4About the normal forms 1NF, 2NF, 3NF, BCNF, and 4NF 4How normal forms can be transformed from lower normal forms to higher normal forms 4That normalization and E-R modeling are used concurrently to produce a good database design 4That some situations require denormalization to generate information efficiently

3 Database Tables and Normalization 4Normalization is a process for assigning attributes to entities. It u reduces data redundancies u helps eliminate data anomalies. u produces controlled redundancies to link tables 4Normalization works through a series of stages called normal forms: u First normal form (1NF) u Second normal form (2NF) u Third normal form (3NF) u Fourth normal form (4NF) 4The highest level of normalization is not always desirable.

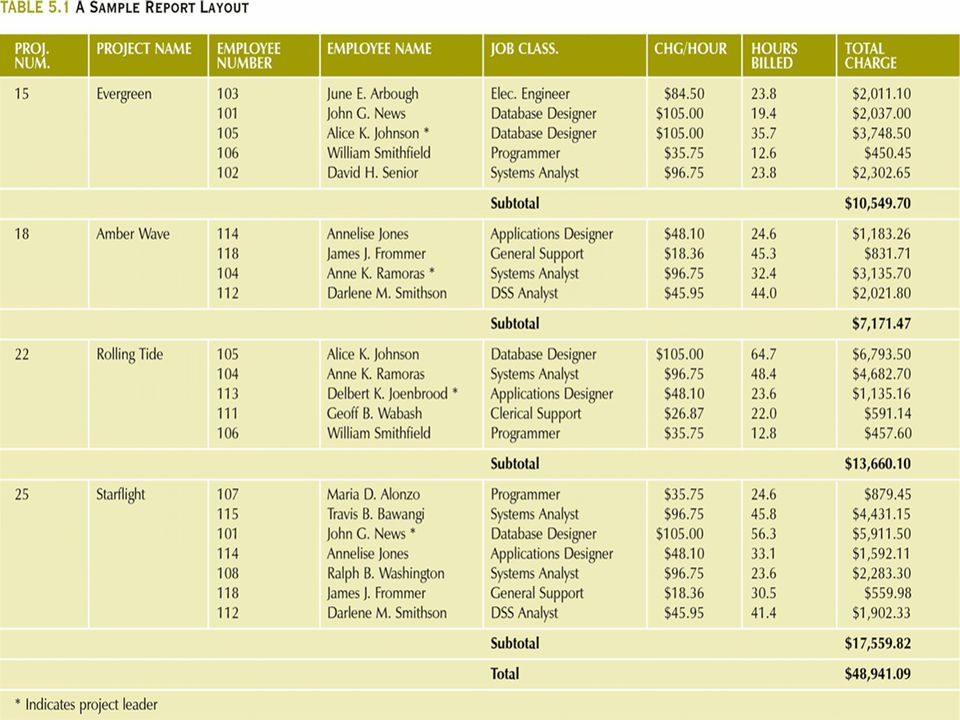

4 Database Tables and Normalization 4The Need for Normalization u Case of a Construction Company l Building project -- Project number, Name, Employees assigned to the project. l Employee -- Employee number, Name, Job classification l The company charges its clients by billing the hours spent on each project. The hourly billing rate is dependent on the employees position. l Periodically, a report is generated. Table 5.1 l The easiest way to generate the required report might seem to be a table whose contents correspond to the reporting requirements. Figure 5.1

5

6

7 4Need for Normalization: Problems with the Figure 5.1 u The project number is intended to be a primary key, but it contains nulls. u The table displays data redundancies. u The table entries invite data inconsistencies. u The data redundancies yield the following anomalies: l Update anomalies. (modify JOB_CLASS for Employee 105) l Insertion anomalies. (a new Employee not yet assigned) l Deletion anomalies. ( Employee 103 quits) Database Tables and Normalization

8 4Conversion to 1NF u Repeating groups – a group of multiple entries can exist for any single key attribute occurrence. u Repeating groups must be eliminated Any project number (PROJ_NUM) can have a group of several data entries. u A relational table must not contain repeating groups. Database Tables and Normalization

9 Step 1: Eliminate the Repeating Groups – Repeating groups can be eliminated by adding the appropriate entry in at least the primary key column(s). Step 2: Identify the Primary Key Uniquely identifies attribute values (rows) Combination of PROJ_NUM and EMP_NUM

10 4Step 3: Identify all Dependencies u Dependency Diagram l The primary key components are bold, underlined, and shaded in a different color. l The arrows above entities indicate all desirable dependencies ( dependencies based on PK ) l The arrows below the dependency diagram indicate less desirable dependencies – –partial dependencies ( dependencies based on only a part of PK ) –transitive dependencies ( nonprime attribute nonprime attribute ) l Prime attribute = Key attribute l Nonprime attribute = Nonkey attribute Database Tables and Normalization

11 EMP_NUM EMP_NAME, JOB_CLASS_, CHG_HOUR PROJ_NUM PROJ_NAME JOB_CLASS CHG_HOUR

12 41NF Definition u The term first normal form (1NF) describes the tabular format in which: l All the key attributes are defined. l There are no repeating groups in the table. Each row/col intersection can contain one and only one value, not set of values. l All attributes are dependent on the primary key. 4All relational tables satisfy the 1NF requirements. 41NF Drawback u Partial dependencies (EMP_NUM EMP_NAME, JOB_CLASS_, CHG_HOUR ) data redundancies data anomalies Database Tables and Normalization

13 4Conversion to 2NF u Step 1: Identify All Key Components l Writing each key component on a separate line, and then l writing the original key on the last line and PROJ_NUM EMP_NUM PROJ_NUM, EMP_NUM u Step 2: Identify the Dependent Attributes l Writing the dependent attributes after each new key. PROJECT ( PROJ_NUM, PROJ_NAME) EMPLOYEE ( EMP_NUM, EMP_NAME, JOB_CLASS, CHG_HOUR ) ASSIGN ( PROJ_NUM, EMP_NUM, HOURS) Database Tables and Normalization

14

15 42NF Definition u A table is in 2NF if: l It is in 1NF and l It includes no partial dependencies; that is, no attribute is dependent on only a portion of the primary key. u A table whose primary key is not composite must automatically be in 2NF. BECAUSE a partial dependency can exist only if a table has a composite primary key u It is still possible for a table in 2NF to exhibit transitive dependency; that is, one or more attributes may be functionally dependent on nonkey attributes. 42NF Drawback u Transitive dependencies (JOB_CLASS CHG_HOUR) data redundancies data anomalies Database Tables and Normalization

16 4Conversion to 3NF u Create a separate table with attributes in a transitive functional dependence relationship. l Step 1: Identify Each New Determinant JOB_CLASS l Step 2: Identify the Dependent Attributes JOB_CLASS CHG_HOUR l Step 3: Remove the Dependent Attributes from Transitive Dependencies EMPLOYEE (EMP_NUM, EMP_NAME, JOB_CLASS) JOB (JOB_CLASS, CHG_HOUR) PROJECT (PROJ_NUM, PROJ_NAME) ASSIGN (PROJ_NUM, EMP_NUM, HOURS) Database Tables and Normalization

17

18 43NF Definition u A table is in 3NF if: l It is in 2NF and l It contains no transitive dependencies. Database Tables and Normalization

19 Improving the Design 4Table structures are cleaned up to eliminate the troublesome initial partial and transitive dependencies 4Normalization cannot, by itself, be relied on to make good designs 4It is valuable because its use helps eliminate data redundancies

20 Improving the Design ( continued ) 4The following changes were made: u PK assignment u Naming conventions u Attribute atomicity u Adding attributes u Adding relationships u Refining PKs u Maintaining historical accuracy u Using derived attributes

21 Improving the Design u Adding relationships l Projects manager l EMP_NUM as a FK in PROJECT. Project manager 3NF

22 Improving the Design u PK assignment l JOB_CODE u Naming conventions l JOB_CHG_HOUR l JOB_CLASS >> JOB_DESCRIPTION 2NF

23 Improving the Design u Attribute atomicity l EMP_NAME >> EMP_LNAME,EMP_FNAME,EMP_INITIAL u Adding attributes l EMP_HIREDATE JOB_CLASS 3NF

24 Improving the Design u Refining PKs l (EMP_NUM+PROJ_NUM) >> ASSIGN_NUM u Maintaining historical accuracy l ASSIGN_CHG_HOUR > JOB_CHG_HOUR u Using derived attributes l ASSIGN_CHARGE = ASSIGN_HOURS × ASSIGN_CHG_HOUR 3NF

25 The Completed Database

26 The Completed Database ( continued )

27 4Boyce-Codd Normal Form (BCNF) u A table is in Boyce-Codd normal form (BCNF) if every determinant in the table is a candidate key. (A determinant is any attribute whose value determines other values with a row.) u If a table contains only one candidate key, the 3NF and the BCNF are equivalent. u BCNF can be violated only if the table contains more than one candidate key u BCNF is a special case of 3NF. u Figure 5.7 illustrates a table that is in 3NF but not in BCNF. u Figure 5.8 shows how the table can be decomposed to conform to the BCNF form. Database Tables and Normalization

28 A Table That Is In 3NF But Not In BCNF u A + B C, D C B : Not transitive dependencies (A nonkey attribute is the determinant of a key attribute) 3NF C : Not candidate key Not In BCNF Figure 5.7

29 The Decomposition of a Table Structure to meet BCNF Requirements u A + B C, D C B u A + C D u C B Figure 5.8 1NF u A + C B, D C B Change the PK to A+C

30 Sample Data for a BCNF Conversion

31 Decomposition into BCNF Figure 5.9

32 Normalization and Database Design 4Normalization should be part of the design process 4E-R Diagram provides macro view 4Normalization provides micro view of entities u Focuses on characteristics of specific entities u A micro view of the entities within the ER diagram 4Difficult to separate normalization from E-R diagramming 4Two techniques should be used concurrently

33 Normalization and Database Design 4Database Design and Normalization Example: (Construction Company) u Summary of Operations: l The company manages many projects. l Each project requires the services of many employees. l An employee may be assigned to several different projects. l Some employees are not assigned to a project and perform duties not specifically related to a project. l Some employees are part of a labor pool, to be shared by all project teams. l Each employee has a (single) primary job classification. This job classification determines the hourly billing rate. l Many employees can have the same job classification.

34 4Two Initial Entities: u PROJECT (PROJ_NUM, PROJ_NAME) [ 3NF ] u EMPLOYEE ( EMP_NUM, EMP_LNAME, EMP_FNAME, EMP_INITIAL, JOB_DESCRIPTION, JOB_CHG_HOUR ) No partial dep. Transitive dep. JOB_DESCRIPTION JOB_CHG_HOUR [ 2NF ] Normalization and Database Design

35 4Three Entities After Transitive Dependency Removed PROJECT (PROJ_NUM, PROJ_NAME) EMPLOYEE ( EMP_NUM, EMP_LNAME, EMP_FNAME, EMP_INITIAL, JOB_CODE) JOB ( JOB_CODE, JOB_DESCRIPTION, JOB_CHG_HOUR) Normalization and Database Design EMPLOYEE

36 The Modified ERD For A Contracting Company Because the normalization process yields an additional entity (JOB), we modify the initial ERD. M Is held by

37 4Creation of the Composite Entity ASSIGNMENT Normalization and Database Design The Final ( Implementable) ERD for the Contracting Company Is held by ASSIGNMENT

38 4Attribute ASSIGN_HOUR is assigned to the composite entity ASSIGN. 4Manages relationship is created between EMPLOYEE and PROJECT. PROJECT (PROJ_NUM, PROJ_NAME, EMP_NUM) ASSIGNMENT (ASSIGN_NUM, ASSIGN_DATE, ASSIGN_HOURS, ASSIGN_CHG_HOUR, ASSIGN_CHARGE, EMP_NUM, PROJ_NUM) EMPLOYEE (EMP_NUM, EMP_LNAME, EMP_FNAME, EMP_INITIAL, EMP_HIREDATE, JOB_CODE) JOB (JOB_CODE, JOB_DESCRIPTION, JOB_CHG_HOUR) Normalization and Database Design Manages

39

40 Higher-Level Normal Forms 4In some databases, multiple multivalued attributes exist 44NF Definition u A table is in 4NF if it is in 3NF and has no multiple sets of multivalued dependencies.

41 Higher-Level Normal Forms u An employee can have multiple assignments and can also be involved in multiple service organization. u EMP_SERVICE (volunteer work) and EMP_ASSIGN (assigned project) each may have many different values. u The table contain two sets of multivalued dependencies. 1 Independent

42 4The solution is to eliminate the problems caused by independent multivalued dependencies. A Set of Tables in 4NF

43

44 Denormalization 4Creation of normalized relations is important database design goal 4Processing requirements should also be a goal 4If tables decomposed to conform to normalization requirements u Number of database tables expands 4Joining larger number of tables takes additional disk input/output (I/O) operations and processing logic u Reduces system speed

45 Denormalization 4Normalization is only one of many database design goals. 4Normalized (decomposed) tables require additional processing, ( Join : additional I/O operations ) reduce system speed. 4CUSTOMER( CUS_NUM, CUS_NAME, …, ZIP_CODE, CITY) Is it really practical? ZIP(ZIP_CODE, CITY) 4Some degree of denormalization increase processing speed transitive dep.

46 Denormalization 4Normalization purity is often difficult to sustain in the modern database environment. 4The conflict between design efficiency, information requirements, and processing speed are often resolved through compromises that include denormalization. 4In fact, we used a 2NF structure in the JOB table (Fig.5.6) to decrease the likelihood of referential integrity violations. u JOB table l Original PK: JOB_CLASS l New PK: JOB_CODE u EMPLOYEE table l Original FK: JOB_CLASS l New FK: JOB_CODE 4Use denormalization cautiously.

47 The Initial 1NF Structure

48 Identifying the Possible PK Attributes

49 Table Structures Based On The Selected PKs Foreign key
