TV Optical Head Description:TV Optical Head GIG No.:348479 Sec Ref No.:810PGW Part No.:G-3435818 Cost:Rs. 10, 92, 720/-(Assessed) 7B/PECHORA/SNR-125/PR/01/06-11.

Similar presentations


Presentation on theme: "TV Optical Head Description:TV Optical Head GIG No.:348479 Sec Ref No.:810PGW Part No.:G-3435818 Cost:Rs. 10, 92, 720/-(Assessed) 7B/PECHORA/SNR-125/PR/01/06-11."— Presentation transcript:

1 TV Optical Head Description:TV Optical Head GIG No.: Sec Ref No.:810PGW Part No.:G Cost:Rs. 10, 92, 720/-(Assessed) 7B/PECHORA/SNR-125/PR/01/06-11 Qty-07 (1st & 2nd line servicing requirement)

2 TV optical tracker used in Pechora (MGR) is comprised of the following components: (a)Optical section (Optical head) (b)Light to signal converter (vidicon tube) (c)Video channel (d)Signal to light converter (picture tube ) (e)Scanning devices & (f)Synchronizing device COMPOSITION OF TV OPTICAL TRACKER

3 FUNCTION OF THE ITEM To enhance the operational capability of Pechora (MGR) under anti radiation missile attack and EW environment, Pechora MGR has been provided with facility for optical tracking of the target.

4 LOCATION ON THE MAJOR ASSEMBLY TV camera is located on the YHB post And display units in the cabin.

5 ROLE IT PLAYS TV optical system is intended for observations of remote objects and determination of their angular co-ordinates. There are two types of CC TV namely 9 Sha 33 A and 9 Sha 38-1 used in Pechora MGR. 9 Sha 38-1 TV optical tracking system is also used in OSA-AK & SPAGU weapon system of Army.

6 LOAD IT TAKES 220 V±5%,400Hz±2.5% ±27V±10% Power Consumption:- Max 450VA for 220V 400Hz mains Max 200W for 27V mains

7 THE EFFECTS OF ITS FAILURE During Anti Radiation Missile attack and EW environment the target can not be tracked without the help of TV system.

8 ASPECTS THAT MAKE IT NON-FEASIBLE/COMPLEX OR DIFFICULT FOR INDIGENISATION Adaptability to the existing Radar system and availability of a system which has night/ IR capability and limitations of tracking range.

9 TECHNICAL AND FUNCTIONAL SPECIFICATIONS

10 SL No CHARACTERISTICSSPECIFICATIONSREMARKS a.Temperature range:--40 deg C to + 50 deg C b.Relative humidity95 to 98 % at a temperature of +20 deg C ± 2 deg C c.Field of vision angleNarrow - 1°27 x 1°5Area covered in space will be 1°27x 1°5 Wide - 4°50 x 3°38Area covered in space will be 4°50 x 3°38 d.Vertical resolutionAt centre – 500 lines At corner – 450 lines It is a distinction between rasters in the test chart at centre which is 500 lines and at corner 450 lines to give a clear display

11 SL No CHARACTERISTICSSPECIFICATIONSREMARKS e.Horizontal resolutionAt centre – 600 lines At corner – 500 lines It is a distinction between rasters in the test chart at centre,which is 600 lines and at corner 500 lines to give a clear display f.Warm up time03 minutesIt is to provide sufficient warming up time after application of filament voltages to vidicon and CRT before the application of high voltages at their respective electrodes and thus increase the life of vidicon and CRT

12 SL No CHARACTERISTICSSPECIFICATIONSREMARKS g.Permissible continuous operation 12 hoursParameters may get deviated if operated continuously beyond 12 hours h.Magnification factorNarrow – F = 500mm – Wide - F = 150mm – 4.4 j.Maximum distance between the centre of cross line and test chart on monitor screen 15 mm

13 SL No CHARACTERISTICSSPECIFICATIONSREMARKS k.Adjustment of TV camera with respect to the mounting flat (a)In horizontal direction - ± 2° (b)In vertical direction - ± 2° Mechanical adjustment for TV allignment l.Supply voltage 220 v ± 5%, 400 Hz ± 2.5 % ± 27 V ± 10% m. Power consumptionMax 450 VA for 220 V 400Hz Max 200 W for 27 V mains

14 LIMITATIONS TV camera can not be operated during night due to its limitations which affects the operational capability of the squadron during night in case under ARM attack and EW environment.

15 FEATURES TO BE IMPROVED (a)Existing Range and field of vision of angle needs to be improved. (b)Resolution needs to be improved. (c)Night operation facility needs to be incorporated. (d)Operating temperature range, relative humidity and continuous operation limit should be at least as per existing system.

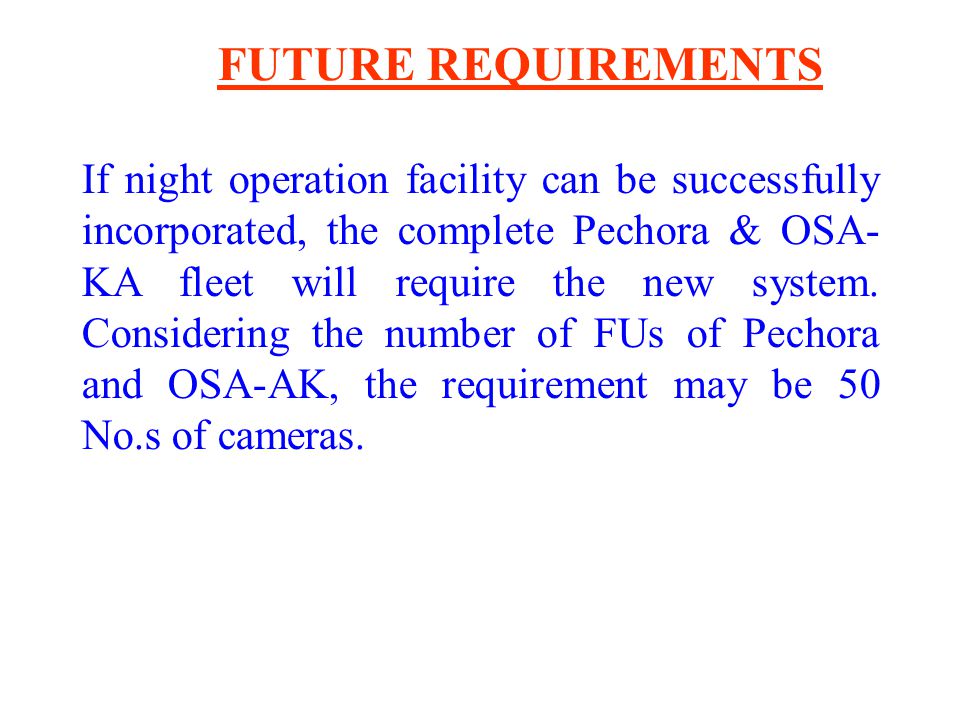

16 FUTURE REQUIREMENTS If night operation facility can be successfully incorporated, the complete Pechora & OSA- KA fleet will require the new system. Considering the number of FUs of Pechora and OSA-AK, the requirement may be 50 No.s of cameras.

17 FILTER & TEST CHART CHANGE OVER ASSEMBLY

18

19

20 CIRCUIT OF TV OPTICAL HEAD

21 MAIN LENS

22

23 BLOCK OF PRISM

24 MAGNIFICATION CHANGE OVER ASSEMBLY

25

26 COVER OPENING MECHANISM

27 OUTLINE OF TV CAMERA

28

29

30 BACK TO LIST
