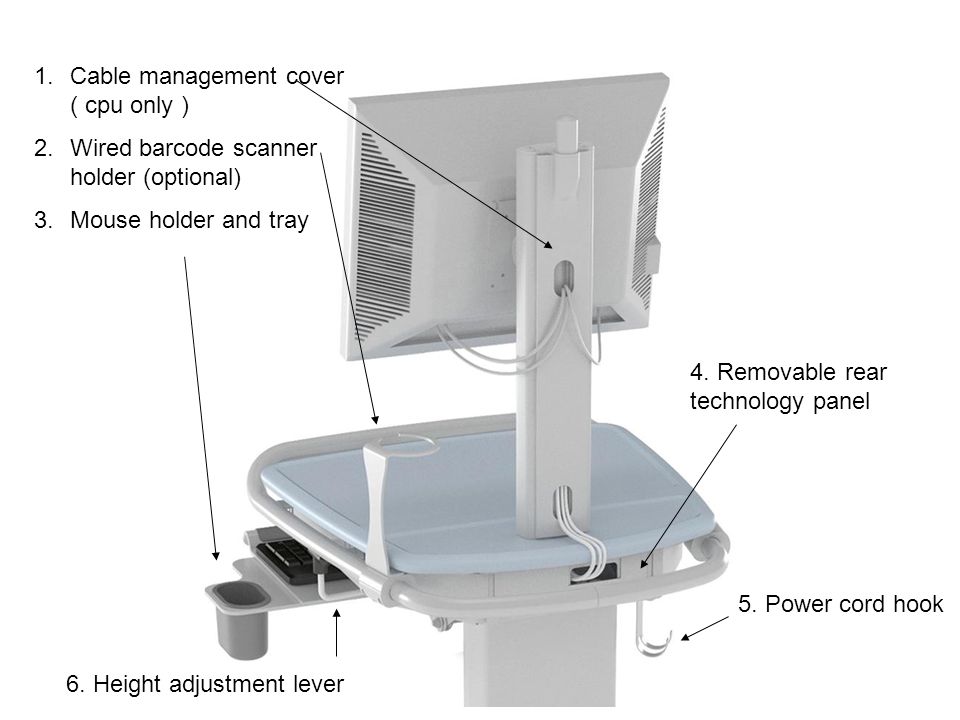

1 1.Cable management cover ( cpu only ) 2.Wired barcode scanner holder (optional) 3.Mouse holder and tray 4. Removable rear technology panel 5. Power cord hook 6. Height adjustment lever

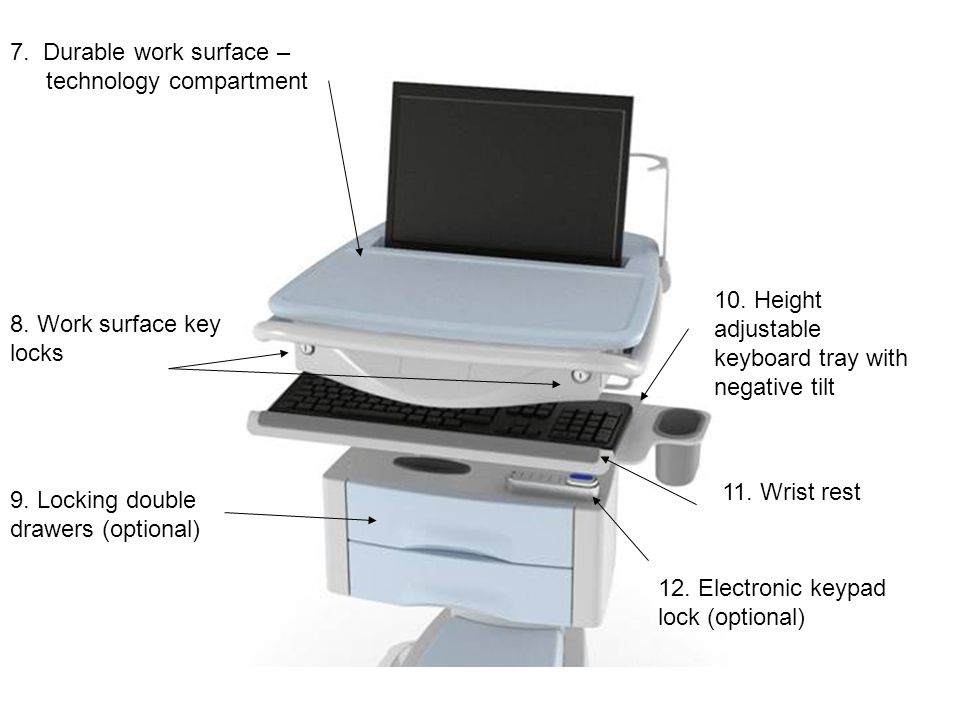

2 7. Durable work surface – technology compartment 8. Work surface key locks 9. Locking double drawers (optional) 10. Height adjustable keyboard tray with negative tilt 11. Wrist rest 12. Electronic keypad lock (optional)

3 13. Dual locking front casters 14. Medical grade sealed casters 15. Durable metal die cast wheel base 16. Light weight durable aluminum lift column 17. Blood pressure cuff holder

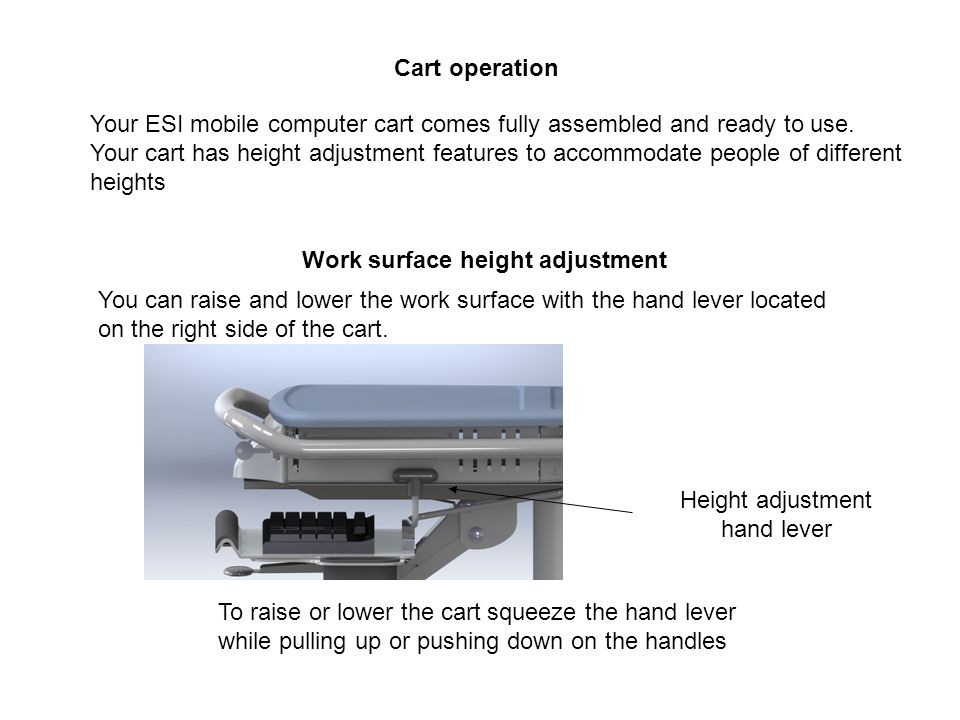

4 Cart operation Your ESI mobile computer cart comes fully assembled and ready to use. Your cart has height adjustment features to accommodate people of different heights Work surface height adjustment You can raise and lower the work surface with the hand lever located on the right side of the cart. To raise or lower the cart squeeze the hand lever while pulling up or pushing down on the handles Height adjustment hand lever

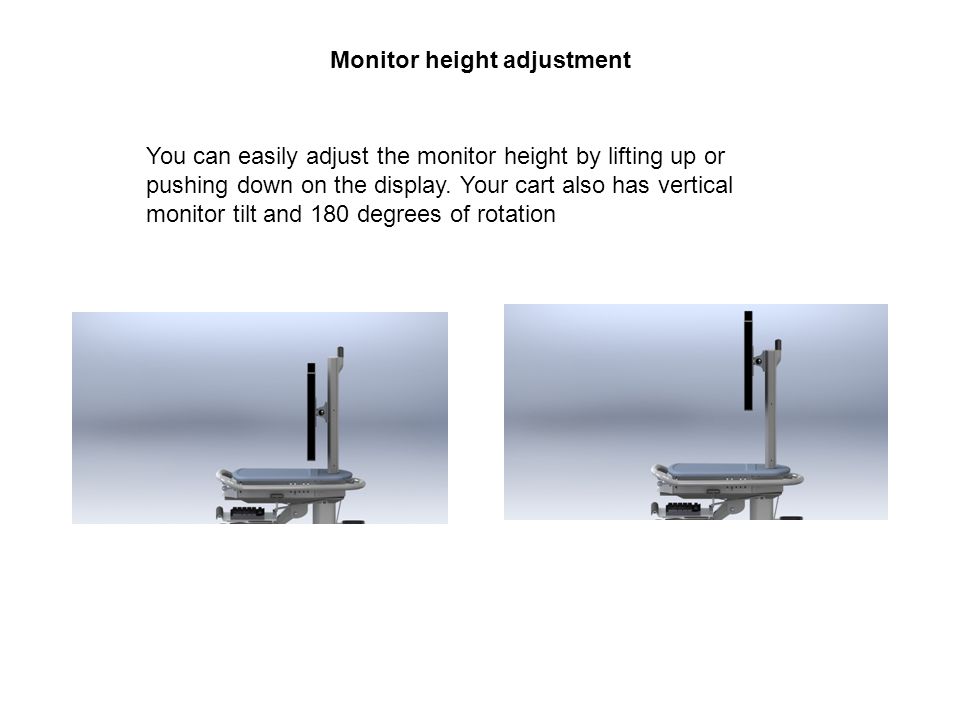

5 Monitor height adjustment You can easily adjust the monitor height by lifting up or pushing down on the display. Your cart also has vertical monitor tilt and 180 degrees of rotation

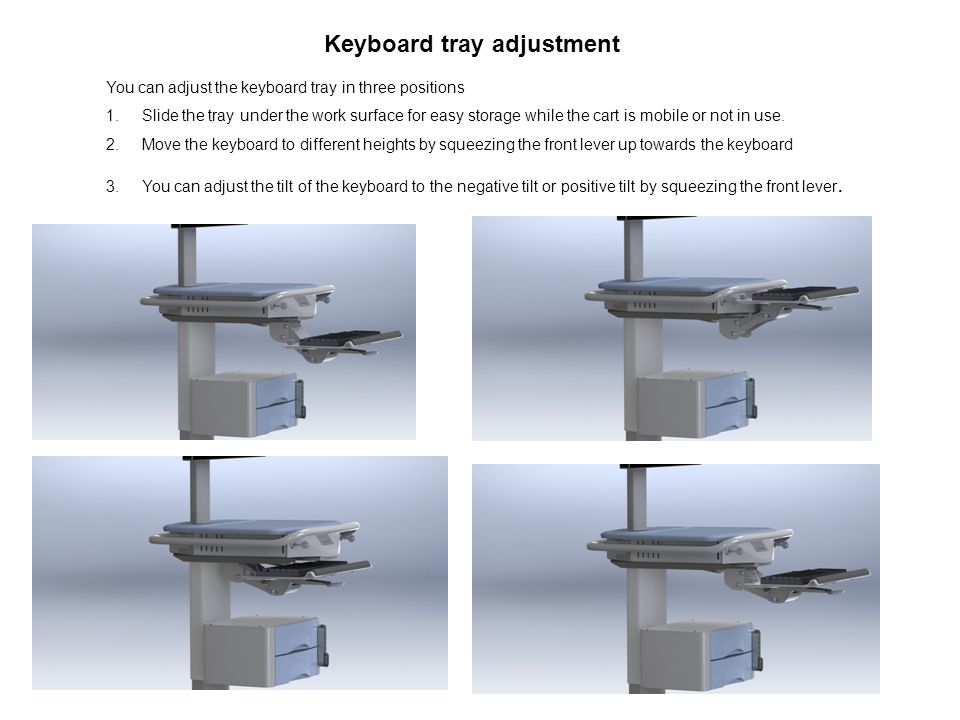

6 Keyboard tray adjustment You can adjust the keyboard tray in three positions 1.Slide the tray under the work surface for easy storage while the cart is mobile or not in use. 2.Move the keyboard to different heights by squeezing the front lever up towards the keyboard 3.You can adjust the tilt of the keyboard to the negative tilt or positive tilt by squeezing the front lever.

7 Mouse holder and Tray You can store the mouse while not in use in the mouse holder. Switching the mouse holder from the right side to the left side allows you to slide the tray to the right hand or left hand mouse positions.

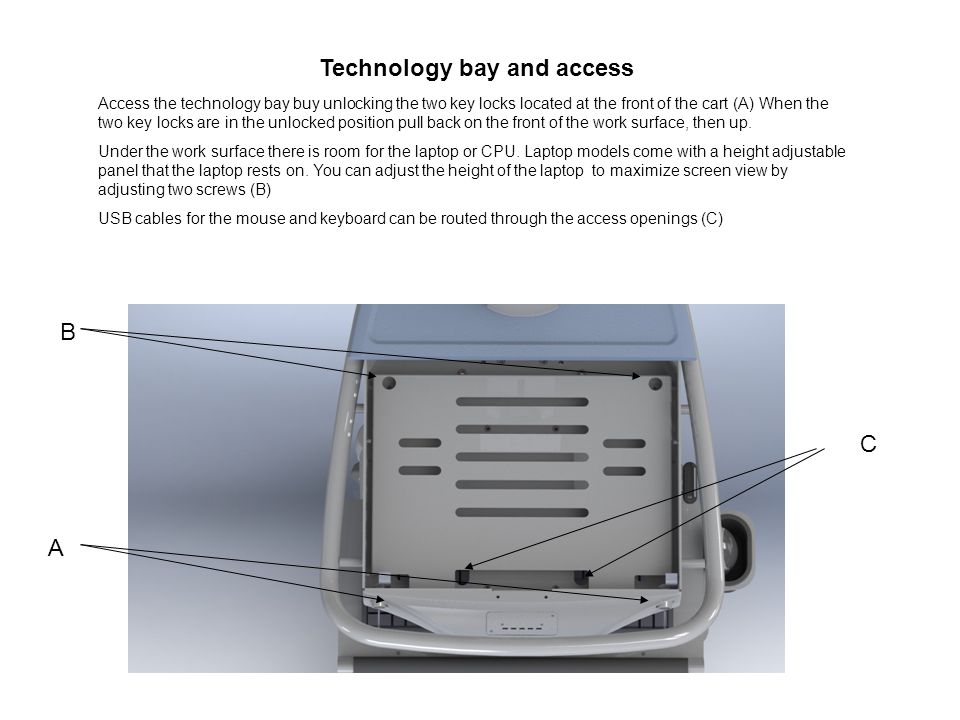

8 Technology bay and access Access the technology bay buy unlocking the two key locks located at the front of the cart (A) When the two key locks are in the unlocked position pull back on the front of the work surface, then up. Under the work surface there is room for the laptop or CPU. Laptop models come with a height adjustable panel that the laptop rests on. You can adjust the height of the laptop to maximize screen view by adjusting two screws (B) USB cables for the mouse and keyboard can be routed through the access openings (C) A B C

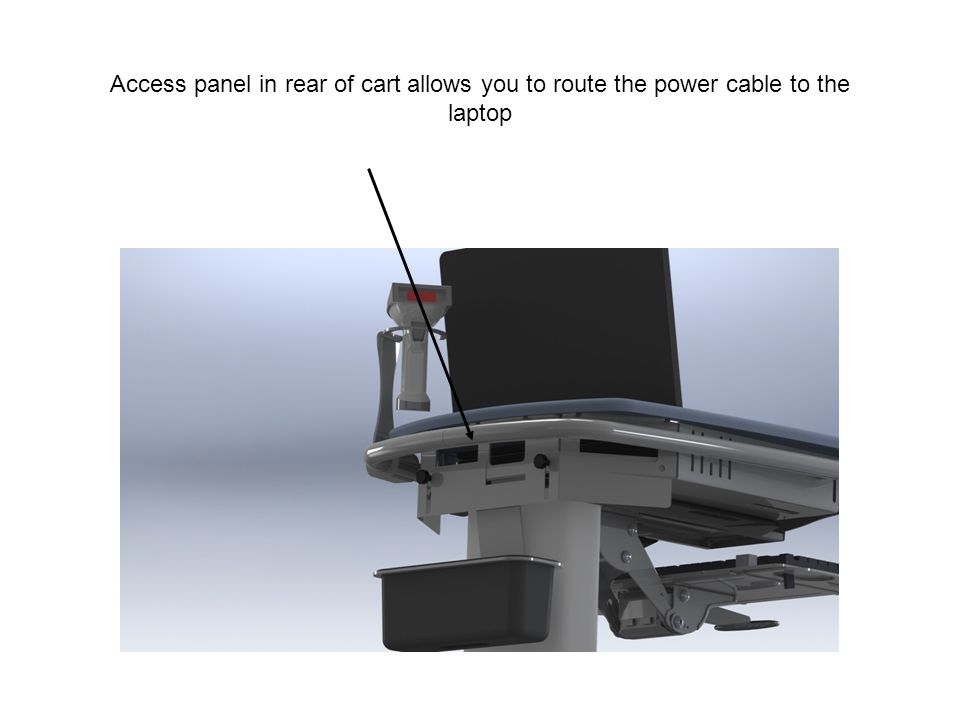

9 Access panel in rear of cart allows you to route the power cable to the laptop

10 Electronic keypad lock The default master lock code is To unlock, enter the code on the keypad. The blue LED will turn on indicating the acceptance of the code. Rotate the lever to the right. To lock rotate the lever to the left. Tamper time out / penalty time Entering three incorrect codes will cause the lock to shut down for 10 seconds. Battery power The electronic lock is powered by (2) AAA 1.5v batteries. The lock will provide over 15,000 openings before the low battery signal starts.

11 Low power When the battery power is low, the red LED will flash 3 times after a code has been entered. Batteries should not be changed immediately. The lock will operate on low batteries for approximately 100 openings. Battery replacement See separate instruction sheet Programming and coding See the CodeLocks instruction manual located inside the lower drawer.
