The Revolutionary Sidewinder Pan / Tilt / Zoom Camera features 360° continuous unlimited pan and tilt camera rotation with 0.05° preset repeatability accuracy! In addition, the camera technology utilized in the Sidewinder employs a newly developed 35X optical zoom lens with 520 lines of resolution and electronic image stabilization. The Sidewinder also features day/night DSP camera technology that delivers vivid color images during daylight and high sensitivity monochrome images during nighttime.

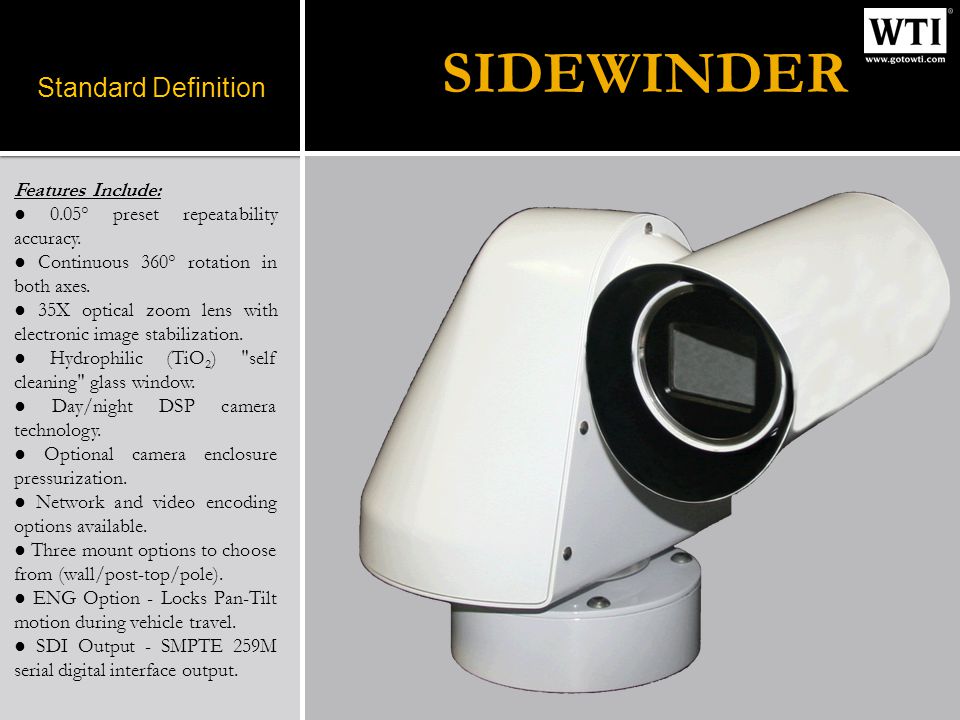

Standard Definition Features Include: 0.05° preset repeatability accuracy. Continuous 360° rotation in both axes. 35X optical zoom lens with electronic image stabilization. Hydrophilic (TiO 2 ) "self cleaning" glass window. Day/night DSP camera technology. Optional camera enclosure pressurization. Network and video encoding options available. Three mount options to choose from (wall/post-top/pole). ENG Option - Locks Pan-Tilt motion during vehicle travel. SDI Output - SMPTE 259M serial digital interface output. SIDEWINDER
The richest viewing experience possible! WTIs HD Sidewinder allows your viewers to see high resolution broadcast video with a notably sharper, crisper and clearer picture, regardless of what type of television (HD or standard) they watch.

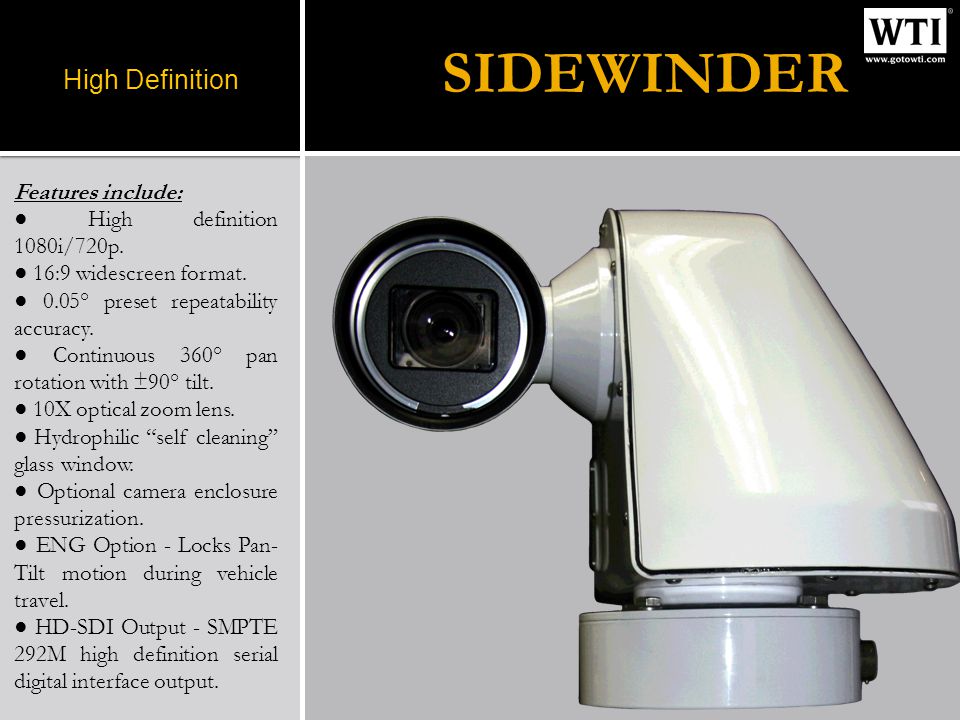

High Definition Features include: High definition 1080i/720p. 16:9 widescreen format. 0.05° preset repeatability accuracy. Continuous 360° pan rotation with ±90° tilt. 10X optical zoom lens. Hydrophilic self cleaning glass window. Optional camera enclosure pressurization. ENG Option - Locks Pan- Tilt motion during vehicle travel. HD-SDI Output - SMPTE 292M high definition serial digital interface output. SIDEWINDER
Provides Powerful Capabilities for Critical Applications! The SW-TI will see through smoke, dust and fog with no problems! You cant hide your heat.

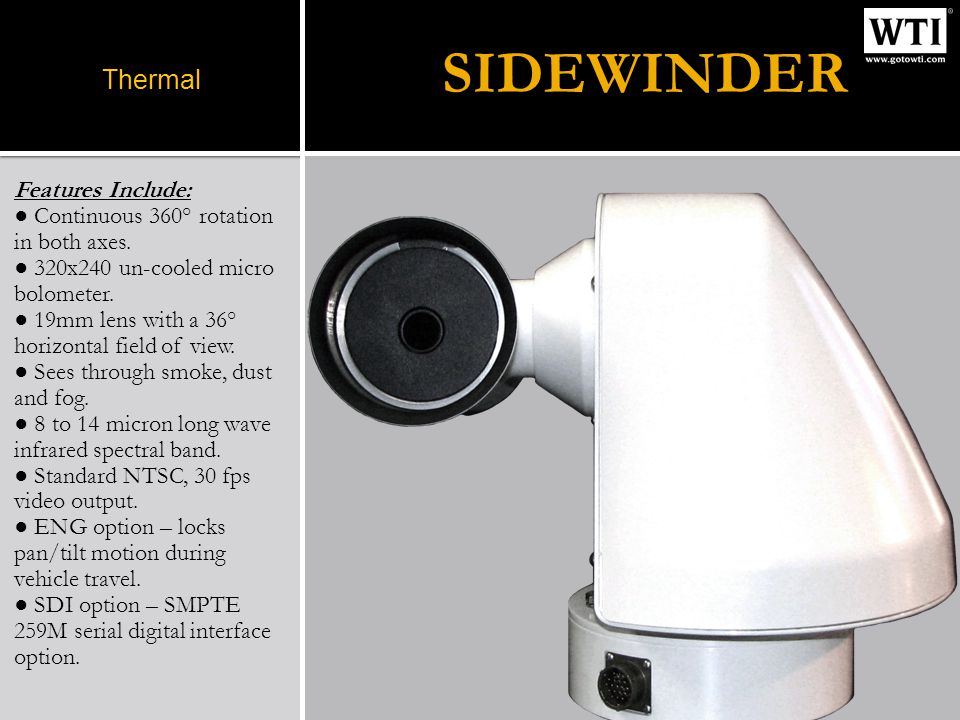

Thermal Features Include: Continuous 360° rotation in both axes. 320x240 un-cooled micro bolometer. 19mm lens with a 36° horizontal field of view. Sees through smoke, dust and fog. 8 to 14 micron long wave infrared spectral band. Standard NTSC, 30 fps video output. ENG option – locks pan/tilt motion during vehicle travel. SDI option – SMPTE 259M serial digital interface option. SIDEWINDER

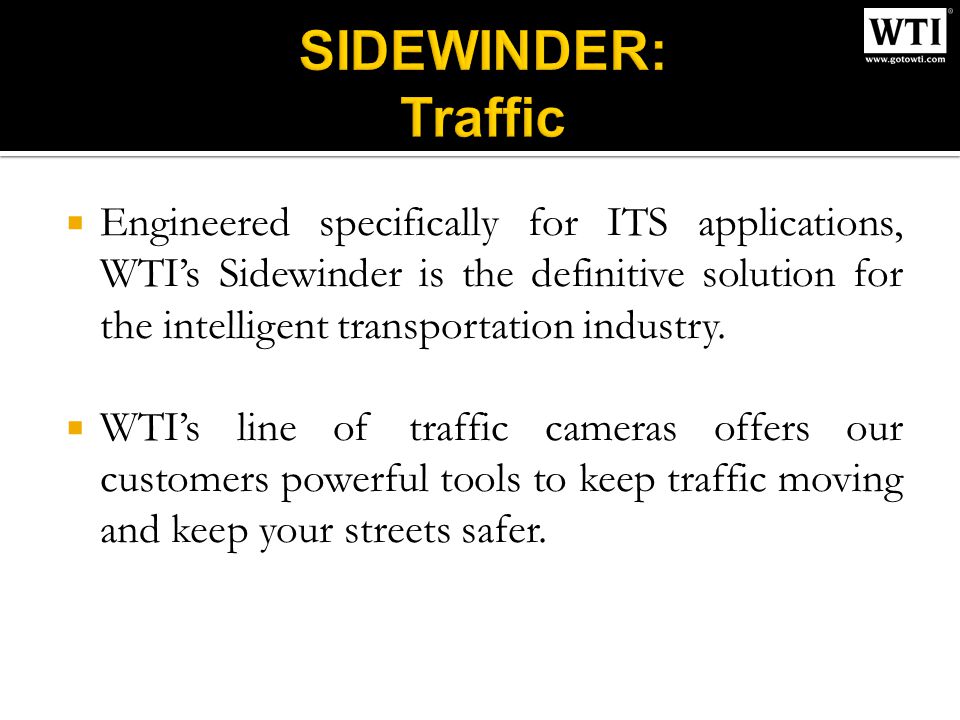

Engineered specifically for ITS applications, WTIs Sidewinder is the definitive solution for the intelligent transportation industry. WTIs line of traffic cameras offers our customers powerful tools to keep traffic moving and keep your streets safer.
Traffic Features Include: 0.05° preset repeatability accuracy. Continuous 360° rotation in both axes. 35X optical zoom lens with electronic image stabilization. Hydrophilic (TiO 2 ) "self cleaning" glass window. Day/night DSP camera technology. SIDEWINDER
NOTE: The Sidewinder requires mounting in vertical orientation with camera head at top.

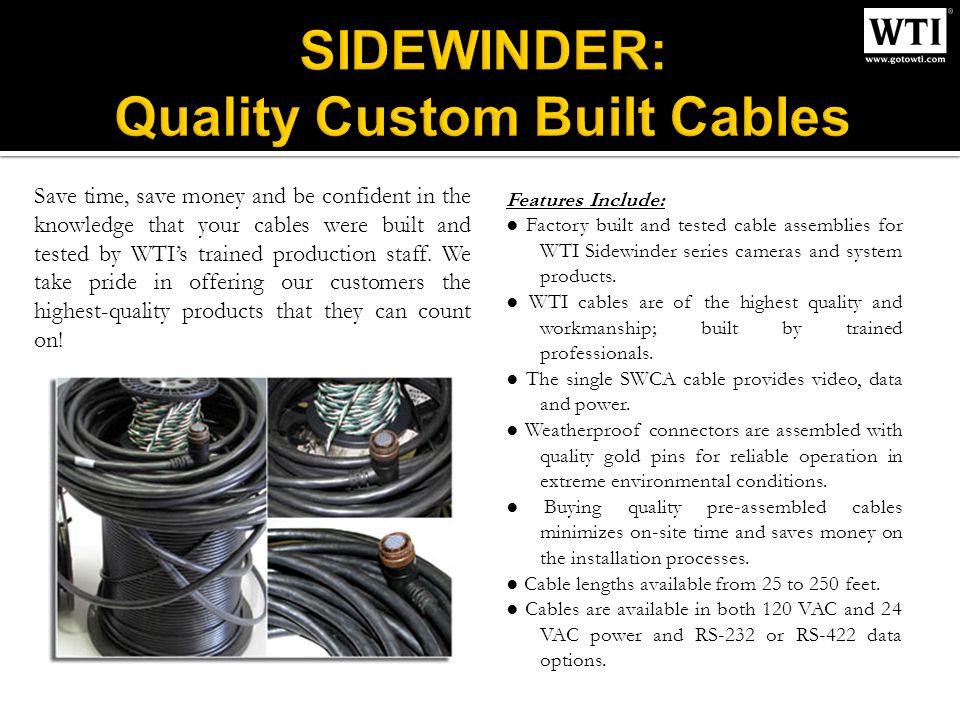

Features Include: Factory built and tested cable assemblies for WTI Sidewinder series cameras and system products. WTI cables are of the highest quality and workmanship; built by trained professionals. The single SWCA cable provides video, data and power. Weatherproof connectors are assembled with quality gold pins for reliable operation in extreme environmental conditions. Buying quality pre-assembled cables minimizes on-site time and saves money on the installation processes. Cable lengths available from 25 to 250 feet. Cables are available in both 120 VAC and 24 VAC power and RS-232 or RS-422 data options. Save time, save money and be confident in the knowledge that your cables were built and tested by WTIs trained production staff. We take pride in offering our customers the highest-quality products that they can count on!

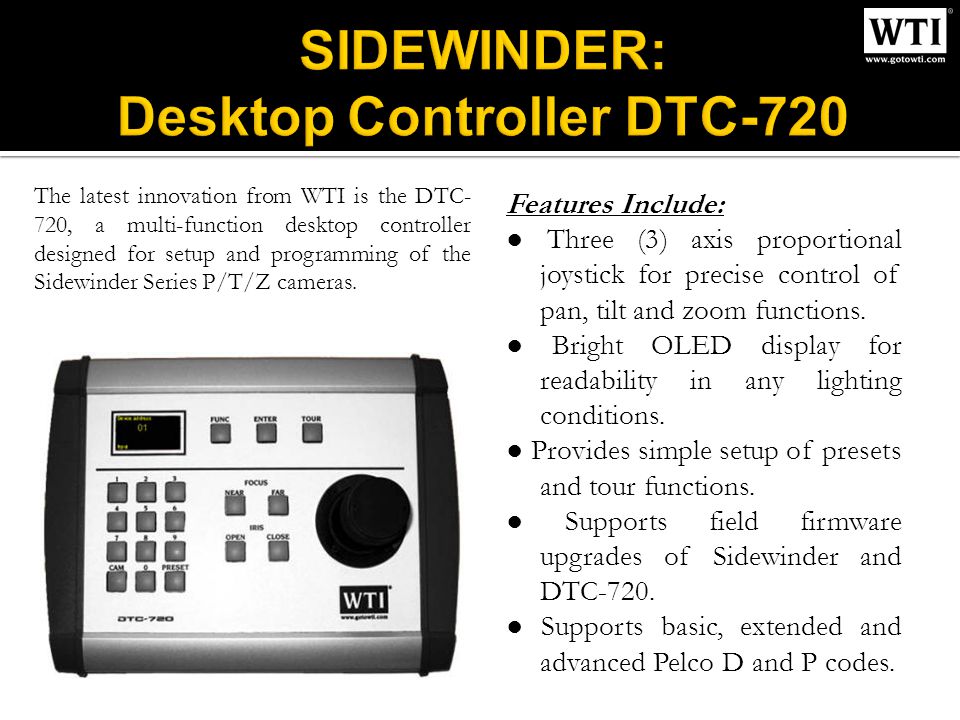

Features Include: Three (3) axis proportional joystick for precise control of pan, tilt and zoom functions. Bright OLED display for readability in any lighting conditions. Provides simple setup of presets and tour functions. Supports field firmware upgrades of Sidewinder and DTC-720. Supports basic, extended and advanced Pelco D and P codes. The latest innovation from WTI is the DTC- 720, a multi-function desktop controller designed for setup and programming of the Sidewinder Series P/T/Z cameras.
Features include: Compatible with WTI's C-Max Ultra Dome Series and Sidewinder P/T/Z cameras. No additional control wiring required to adjust all camera functions. Adjust camera operating parameters such as custom tours, alarm settings and all pre-set functions using only front panel high durability pushbuttons. High contrast display works in any lighting situation. Field upgradeable firmware for future enhancements. Rugged weather resistant and shock resistant housing. WTIs HHC-SW Hand-Held Controller is designed for field control and set-up of the C-Max Ultra Dome and the Sidewinder Pan/Tilt/Zoom cameras. Communication with the camera is implemented over the standard RS-485 data link, requiring no additional control wiring. Front panel control buttons allow quick, easy camera adjustment and set-up of every camera function during installation. This time saving tool enables every camera function to be remotely adjusted and fine tuned for optimum performance! Low power operation and an auto shutoff timer maximize battery life.
