1 1 Guide to Network Cabling Fundamentals Chapter 4

2 2 Chapter 4 - Installing Cables and Supporting Structures Identify the different pathways and why they are necessary Understand the layouts of equipment rooms and telecommunications rooms Discuss proper cable installation procedures Identify good cable management practices and understand their importance Document your network

3 3 Pathways provide the means for placing cables between the equipment room, the telecommunications rooms, and work areas Two types of pathways exist: horizontal and vertical Choosing proper pathway components at the design stage makes it easier to perform cable-related work and maintenance later Generally, cabling choices do not dictate pathway choices; the pathway must accommodate all standards- compliant cabling and allow for necessary changes later Pathways

4 4 Horizontal pathway systems: Horizontal pathway systems are designed to distribute, support, and provide access to the horizontal cabling, which is the cable that links the distribution field of the cross-connect system in the telecommunications room to the telecommunications outlet/connector in each work area The horizontal distribution system includes the pathway itself (cable trays, conduit, and J-hooks), as well as related spaces such as pull boxes, splice boxes, and consolidation points that provide access to the cable and connecting hardware Pathways

5 5 Horizontal pathway systems (cont.): There are a number of methods for routing horizontal cables to the work area; one of the most common methods is zone cabling, in which cable bundles are run to a particular area from the telecommunications room along J-shaped hooks suspended in a plenum or above a ceiling Upon reaching the zone, cables are fanned out and dropped though interior walls, support columns, or raceways, and then terminated at the telecommunications out/connector (work area outlet) Pathways

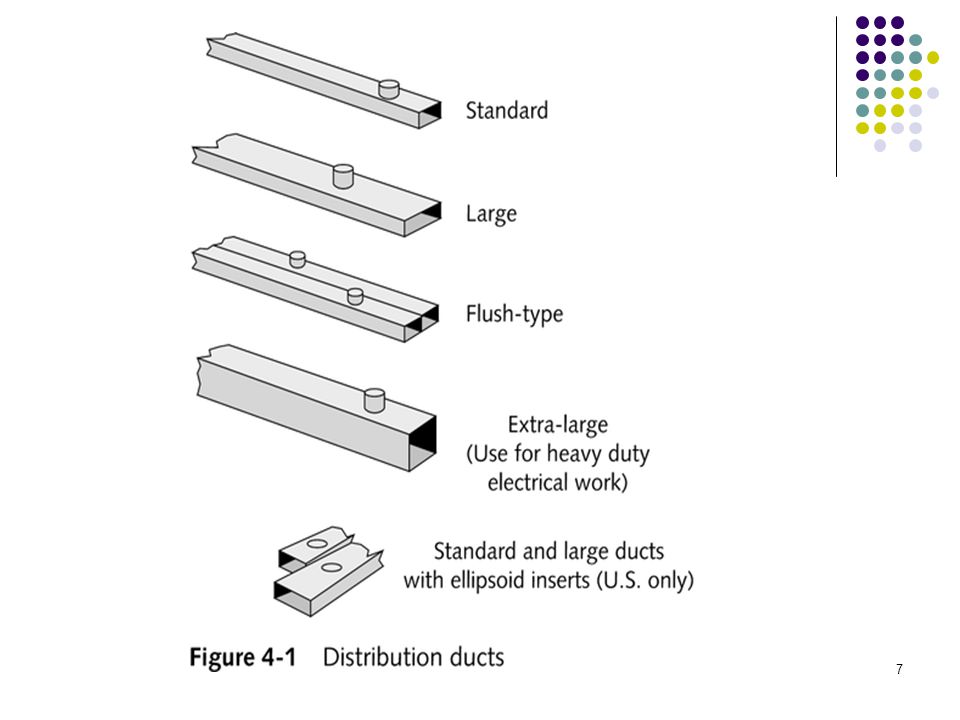

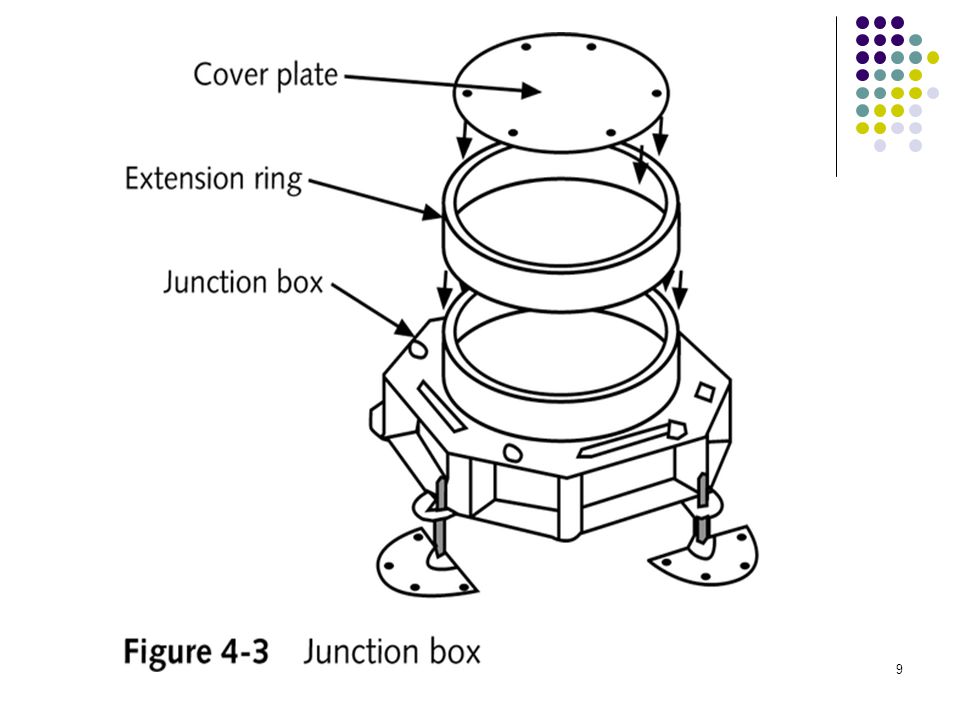

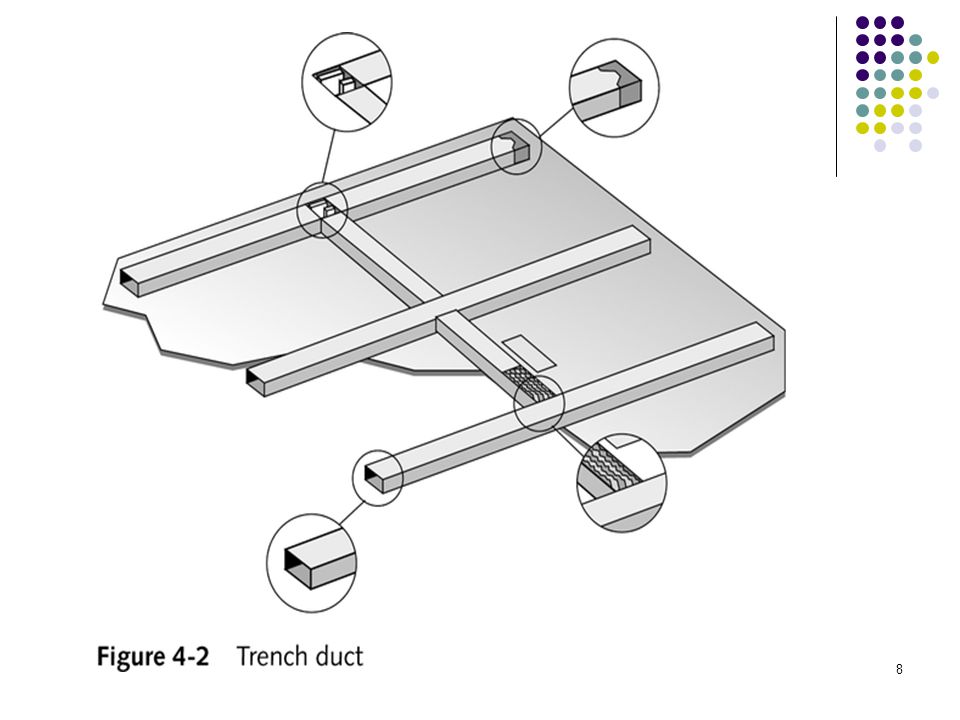

6 6 Horizontal pathway systems (cont.): An underfloor duct system is a network of metal raceways that are embedded in concrete The underfloor duct system includes the main feeder ducts, which carry the cables from the telecommunications room to the distribution area, which in turn carry the cables to a specific floor area The system also includes junction boxes, which permit the changes in the direction of the cable, and a splice box, which is an opening in the system providing access for making connections Pathways

7 7

8 8

9 9

10 10 Horizontal pathway systems (cont.): Conduits are pipes that cable is placed in and pulled through; they are installed from telecommunications rooms to work area outlets in floors, walls, columns The following conduits are rated as suitable for buildings: rigid metal made of steel; intermediate metal conduit; electrical metal tubing; PVC conduit When using conduit for your pathways, observe these design and installation guidelines: run cable in the most direct route; continuous sections no longer than 30 m and no more than two 90° angles; each conduit must be bonded to ground Pathways

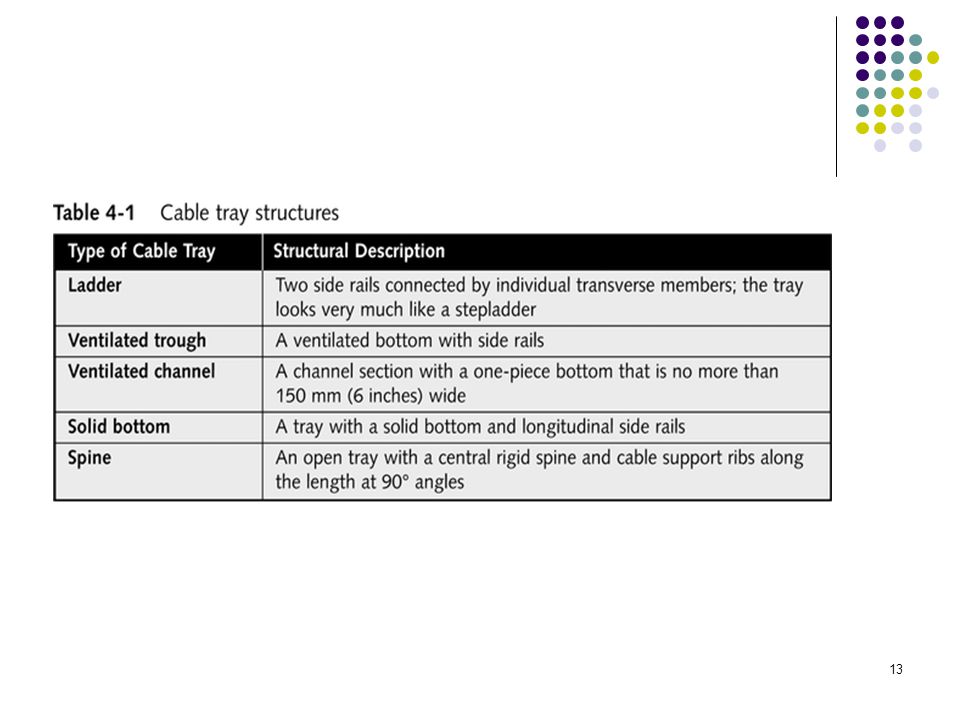

11 11 Horizontal pathway systems (cont.): Cable tray systems are commonly used as distribution systems for cabling within a building They are often preferred to conduit and raceways Cable trays are prefabricated structures that route and support telecommunications or power cables Cable trays are open and equipped with sides that allow cable to be laid within the trays entire length When cable trays are used in the ceiling area, conduit should be provided from the end of the tray to the telecommunications outlets Pathways

12 12

13 13

14 14 Horizontal pathway systems (cont.): Access (raised) floors sit above the existing subfloor and provide access to the space under its panels; Access floors are most often found in computer and equipment rooms There are two basic types of access flooring: standard and low-profile floors Access floors consist of the following components: steel footing which rest on the subfloor; pedestals support and interlock with lateral bracing and panels; modular floor panels rest on bracing and pedestals Pathways

15 15

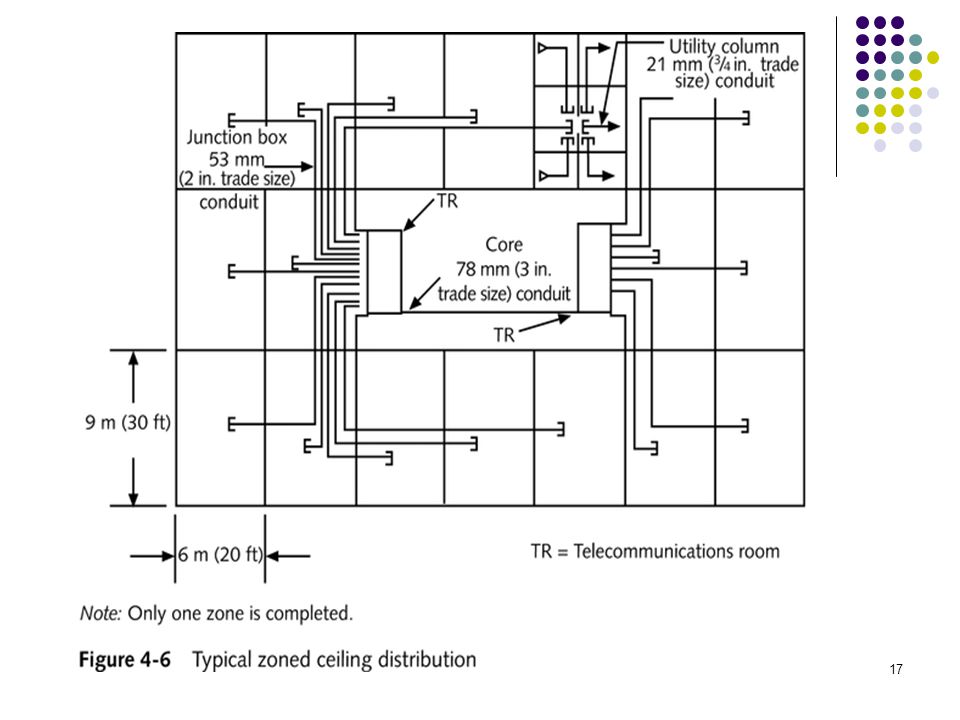

16 16 Horizontal pathway systems (cont.): To distribute horizontal cable from the telecommunications room to the work area, ceiling distribution systems use the open, interstitial space between the structural ceiling and an accessible grid ceiling hanging below it Guidelines for ceiling distribution include: the ceiling space is only used for horizontal cabling serving the floor below; the areas used are fully accessible from the floor below; the ceiling tiles are removable The ceiling zone method is commonly used Pathways

17 17

18 18 Vertical pathways: Vertical pathways are the spaces that provide distribution access of backbone cabling between communications rooms in multistory buildings Follow these vertical pathway design requirements: the pathways should be stacked above each other and be accessible from each floor; they must contain at least three 4-inch conduits, or sleeves; the pathways should have a 100-watt fixture with a bulb and a 20-amp, 100-volt electrical outlet, and the pathway entrances should be secured with a mortised combination lock Pathways

19 19 Vertical pathway installation guidelines: All installation personnel have adequate preparation Establish adequate spacing between cables and any other facilities that use the same/adjacent pathway Remove any hazards from each floor Complete all necessary preparations before install Choose the raising or lowering method and then set up all necessary associated hardware, including shoes, sheaves, and winches Set up safety measures such as perimeters, cones, and reel and sheave blocks Pathways

20 20

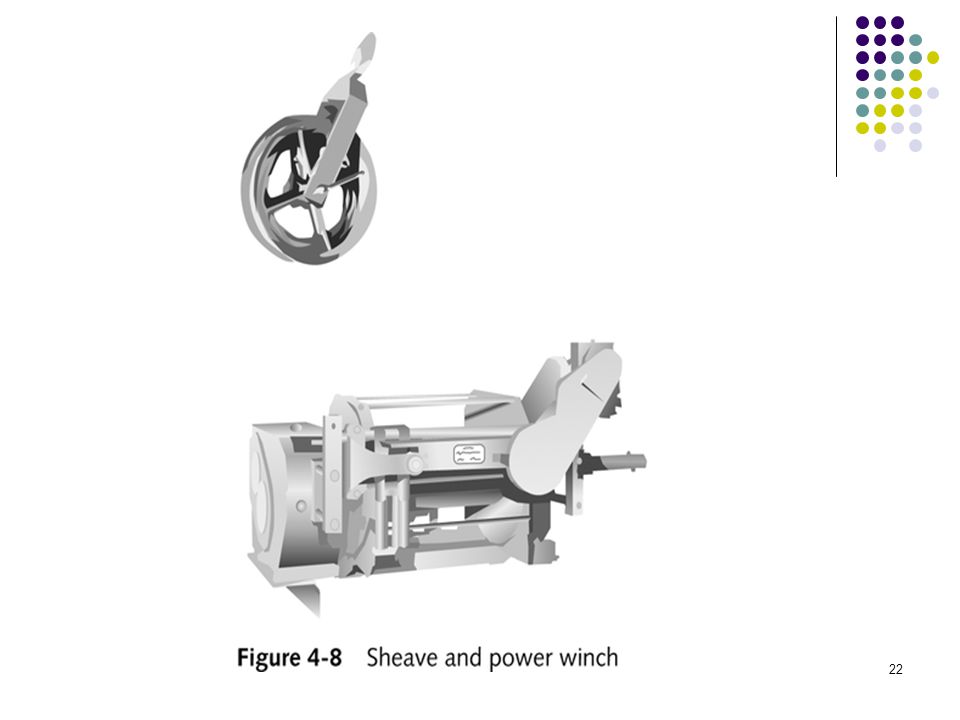

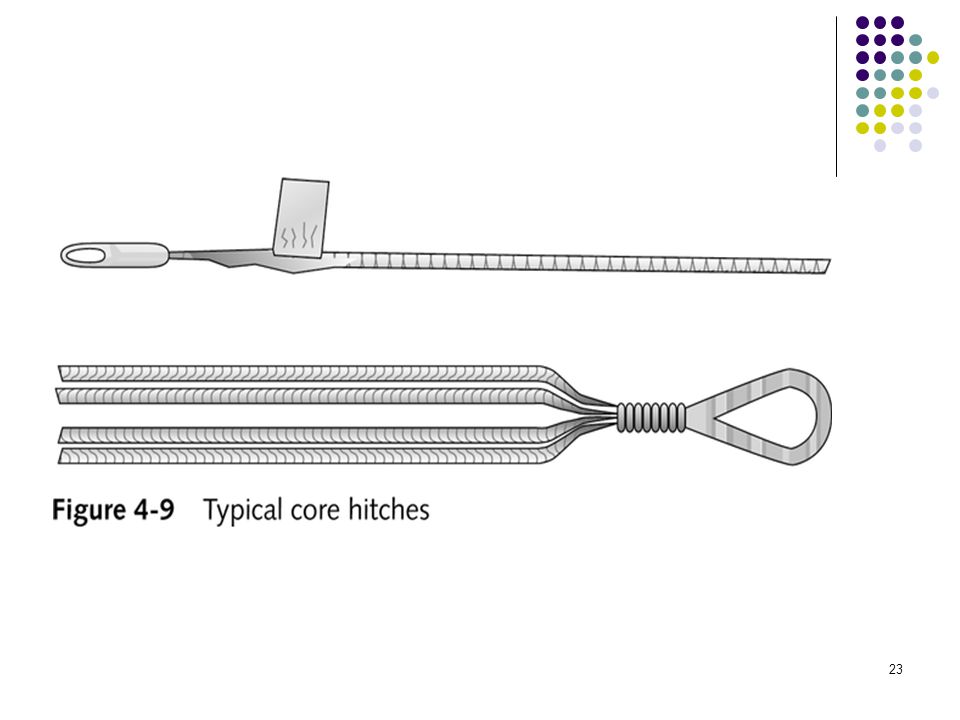

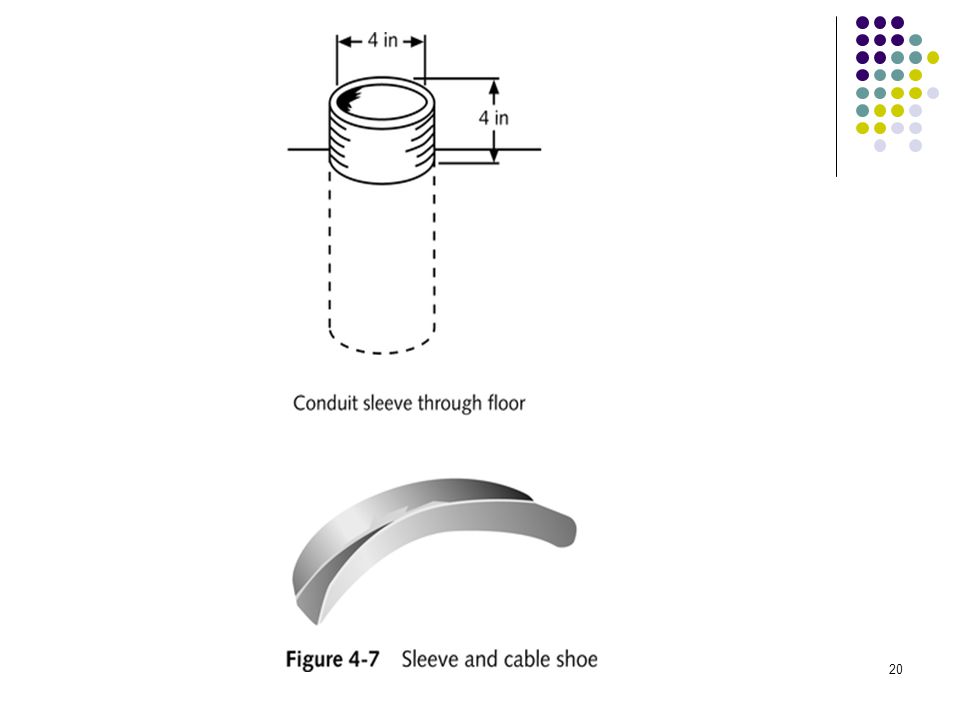

21 21 Vertical pathway installation guidelines (cont.): When lowering cable, position the cable reel away from the opening; use a shoe or sheave to direct the cable into the opening; ensure that adequate braking measures are set up; secure the cable once it is in position, starting at the bottom level When raising cable, secure an opening sheave and power winch; lower the pulling line from the top floor; ensure that adequate braking measures are set up; use the manufacturers pulling eye or a core hitch; secure the cable once it is in position, starting at the bottom level Pathways

22 22

23 23

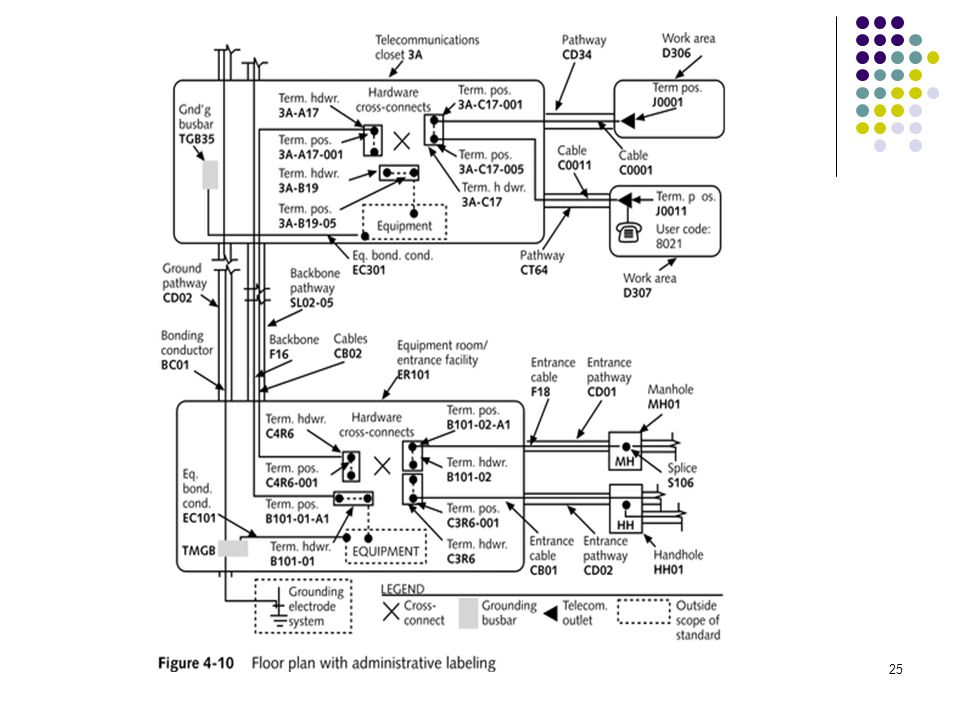

24 24 Choosing the right cable and documenting it before installation involves: Creating a detailed floor plan that identifies every relevant piece of equipment Identifying floor plan elements with a unique ID Before running the cable, consulting the floor plan for the cable ID number and apply this ID to the end of the cable you are pulling and to the box or reel from which the cable is fed Understand the information on the cable jacket Record the length of each cable run Pathways

25 25

26 26 Equipment rooms and telecommunications rooms in a building act as junctions between the backbone and horizontal pathways Both may house such items as the main distribution frame, small telephone systems (PBXs), secondary voltage protection, active voice and data telecommunications equipment, termination fields, and cross-current wiring, which connects a circuit from one facility to another in a network Standard ANSI/EIA/TIA-569-A provides a design guide for telecommunications/equipment rooms Equipment Rooms and Telecommunications Rooms

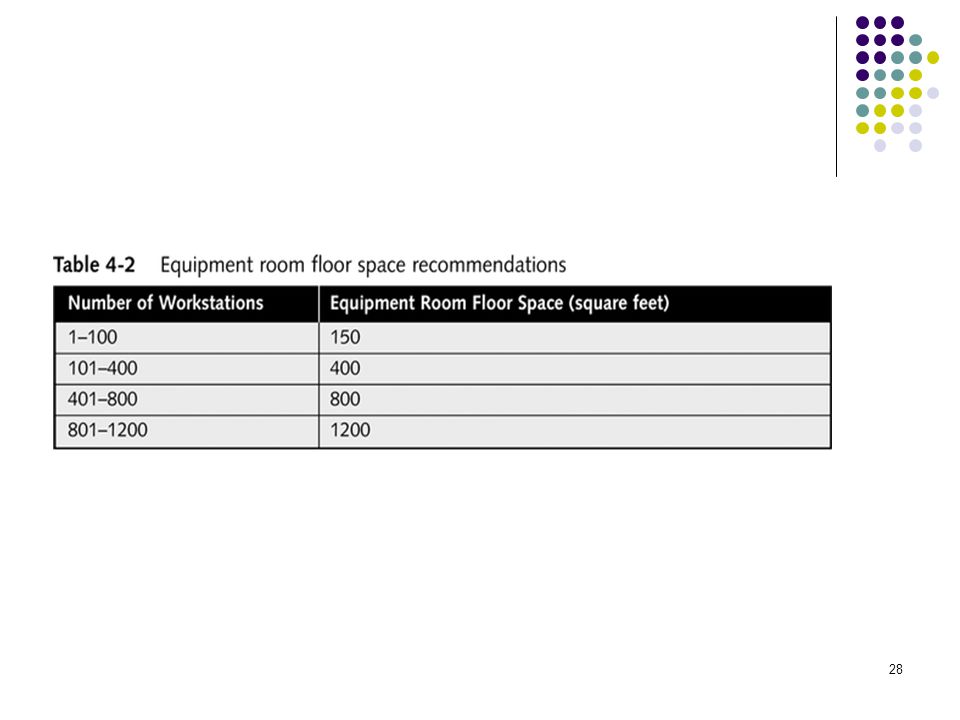

27 27 Equipment rooms: The equipment room houses the main distribution frame, a steel-bar framework that typically holds the phone companys central office protective devices, serves as the major cross-connect point for the central office lines and the customers wiring, and interconnects loop cable pairs and line-equipment terminals on a switching system This room is often appended to the entrance facility or computer room to allow sharing of air conditioning, security, fire control, and lighting Equipment Rooms and Telecommunications Rooms

28 28

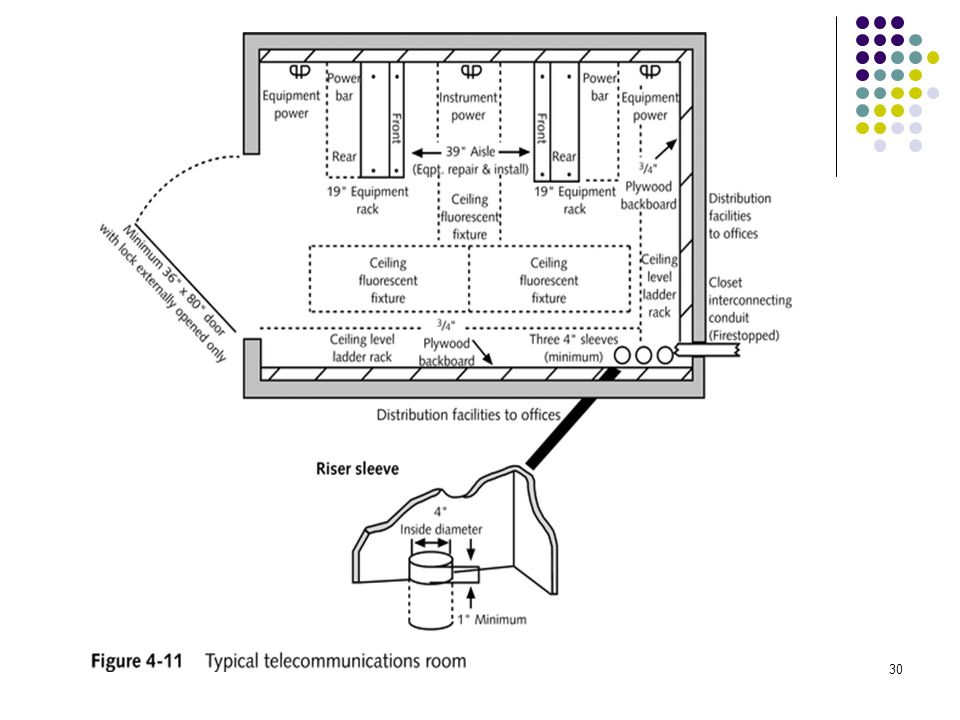

29 29 Telecommunications rooms: The telecommunications closet on each floor provides the junction point between the backbone and horizontal pathways; these rooms contain active voice/data telecommunications equipment, termination fields, and cross-connect wiring More than one telecommunications closet per floor is required if the distance to a work area exceeds 100 m, or if the floor area served exceeds 10,000 sf Requirements for power, lighting, air conditioning and access are the same as for equipment rooms Equipment Rooms and Telecommunications Rooms

30 30

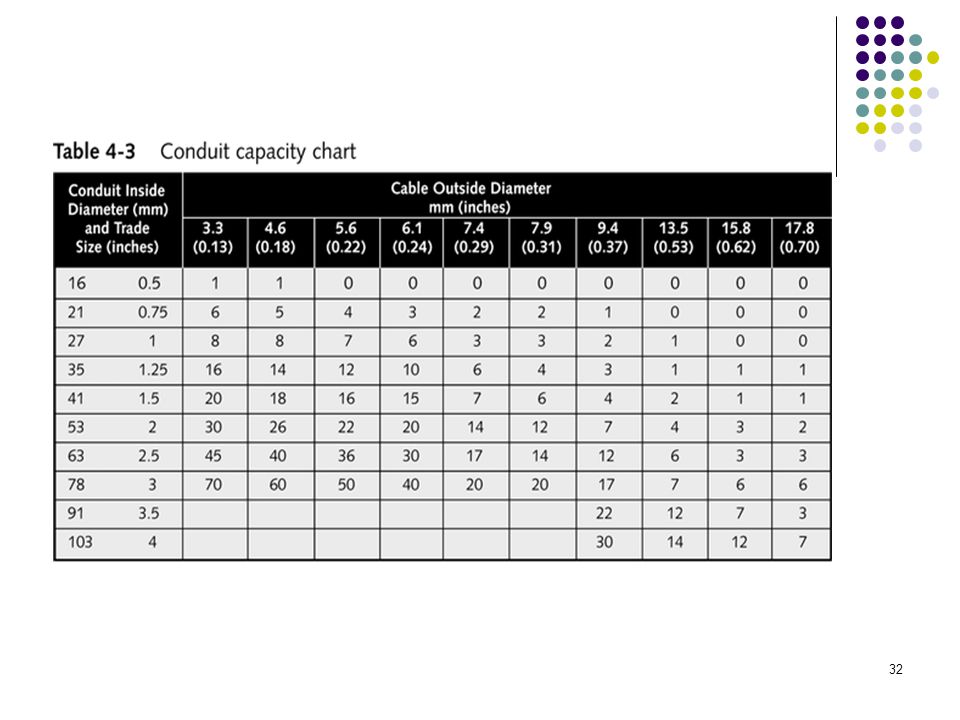

31 31 The ANSI/EIA/TIA-569-A standard provides instructions and guidelines for ensuring successful installations: Conduit capacity, the number of cables it can hold, depends on the size of the cables and the conduit Typically, the conduit size for outlets of data and voice cables is 21 mm In general, high- and low-signal cables should not be run in the same conduit; in addition, the NEC forbids the installation of telecommunications cables in the same conduit as power cables Cable Installation Guidelines

32 32

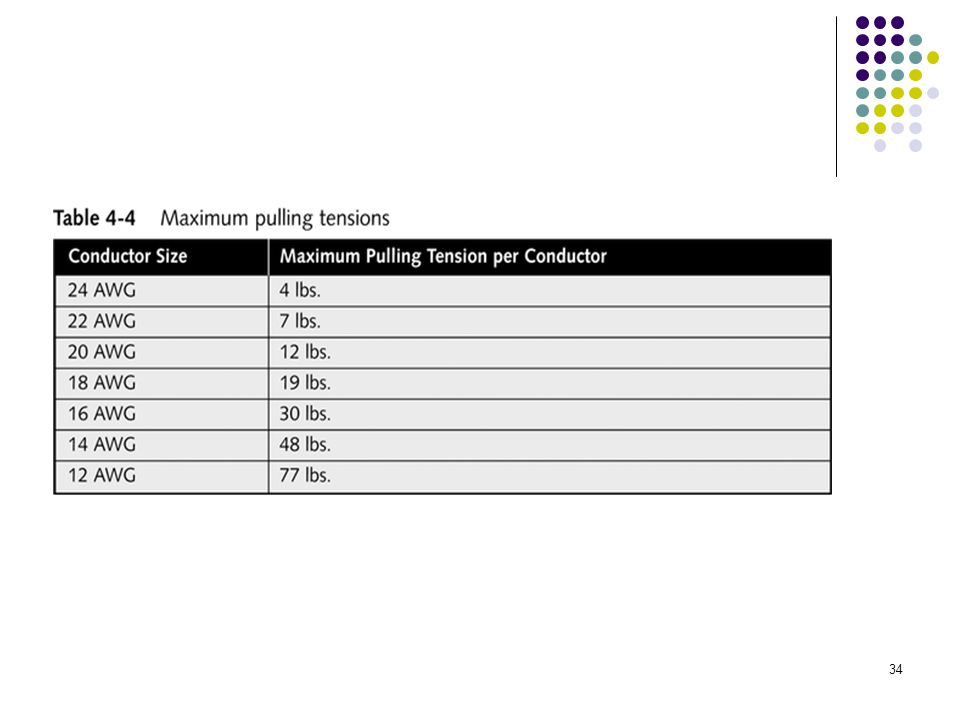

33 33 Instructions and guidelines (cont.): There are maximum recommended pulling tensions for conductors since copper will begin to permanently stretch under approximately 15,000 pounds per square inch During installation, the total pulling tension must be equally distributed among all conductors The following factors determine pull force: cable type, number of pairs and quantity of cable; conduit type, size, and length; number and configuration of conduit bends; use of cable lubricants Cable Installation Guidelines

34 34

35 35 Instructions and guidelines (cont.): Every ceiling distribution system must properly support cables from the telecommunications room to the work area it serves Ceiling conduits, raceways, cable trays, and cabling must be suspended from or attached to the structural ceiling or walls, using hardware specifically designed to support their weight Where building codes permit cables to be placed in suspended ceilings without conduit, ceiling zone distribution pathways may consist of cable trays Cable Installation Guidelines

36 36

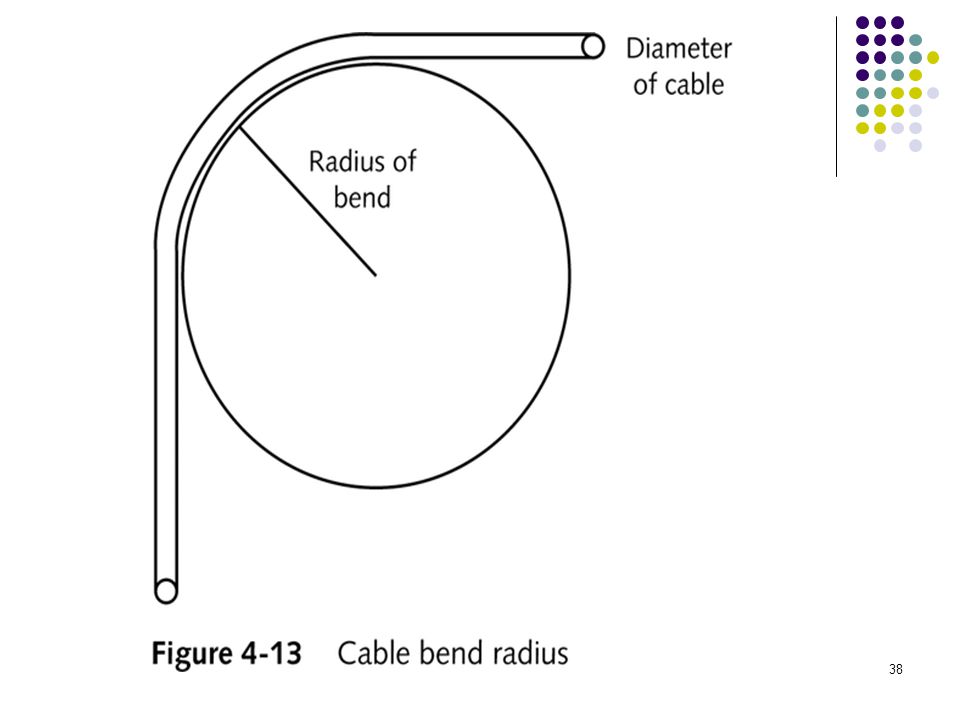

37 37 Instructions and guidelines (cont.): Cable bend radius is the amount a cable can bend before it is damaged or its performance is impaired; maintaining correct bend radius is critical when terminating wire pairs and creating service loops The minimum bend radius for cable (six or fewer pairs) is four times the cables outside diameter Cable stress is avoided by: supporting suspended cables every four to five feet; fastening cable ties; not exceeding pulling tensions during installation; not allowing cables to snag during installation Cable Installation Guidelines

38 38

39 39 Instructions and guidelines (cont.): Proper cable termination leads to communications systems that require little or no service Terminate horizontal and backbone cables on appropriate connecting hardware; since these cables are always terminated on separate connectors, use patch cords or jumpers To prevent the effects of improper termination practices: remove only as much cable jacket as needed for termination and trimming; follow the manufacturers instructions; minimize untwisting Cable Installation Guidelines

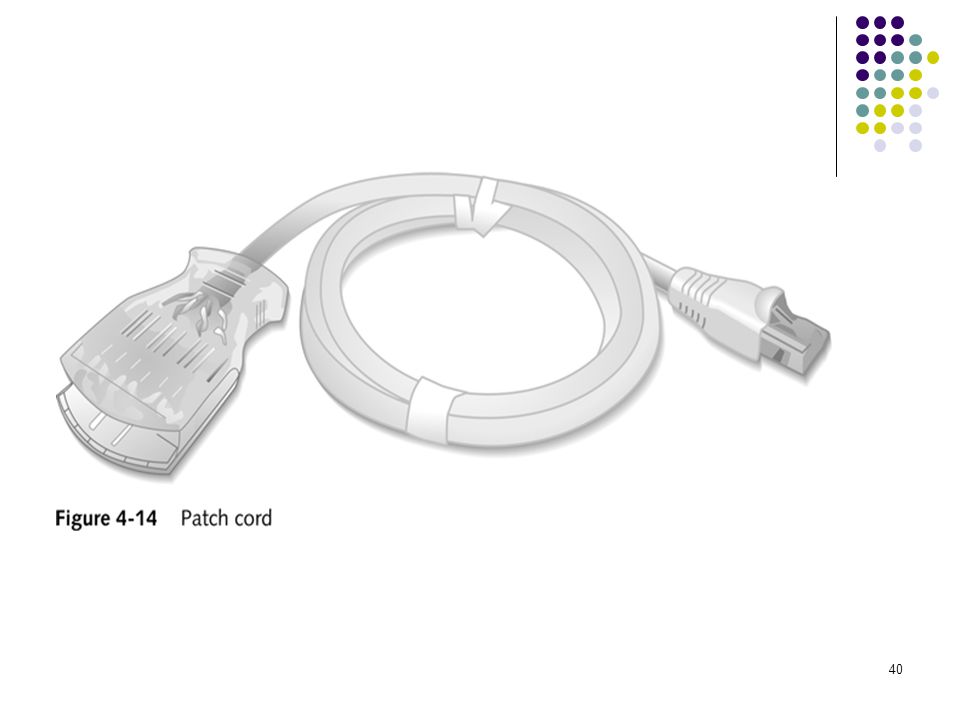

40 40

41 41 Cable system performance is degraded by: Connector terminations Cable installation and management Use of cross-connect jumpers and patch cords Multiple connections in close proximity It is important to follow proper guidelines to manage horizontal and backbone cables, cross- connects, vertical and horizontal pathways, and ceiling and zone distribution Cable Management Practices

42 42 Horizontal and backbone cable management: Be especially compliant to cable bend radius and pull- force guidelines during cable installation In both the cable pathways and telecommunications room, use appropriate cable routing and dressing fixtures to organize and manage the cable types This type of management can eliminate cable stress caused by: tension in suspended cable; tightly clinched cable bundles, which damage jackets; twisting cable jackets during installation Cable Management Practices

43 43 Cross-connect management: The two most common cross-connect systems are the BIX and the 110 systems Keep voice and data fields separate Use color-coding to identify termination areas Avoid patch cord or jumper slack Manage cross-connects by following these precautions: After each cross-connection is completed, eliminate patch cord and jumper slack; be especially aware of patch cord bend radius for twisted-pair and fiber Cable Management Practices

44 44

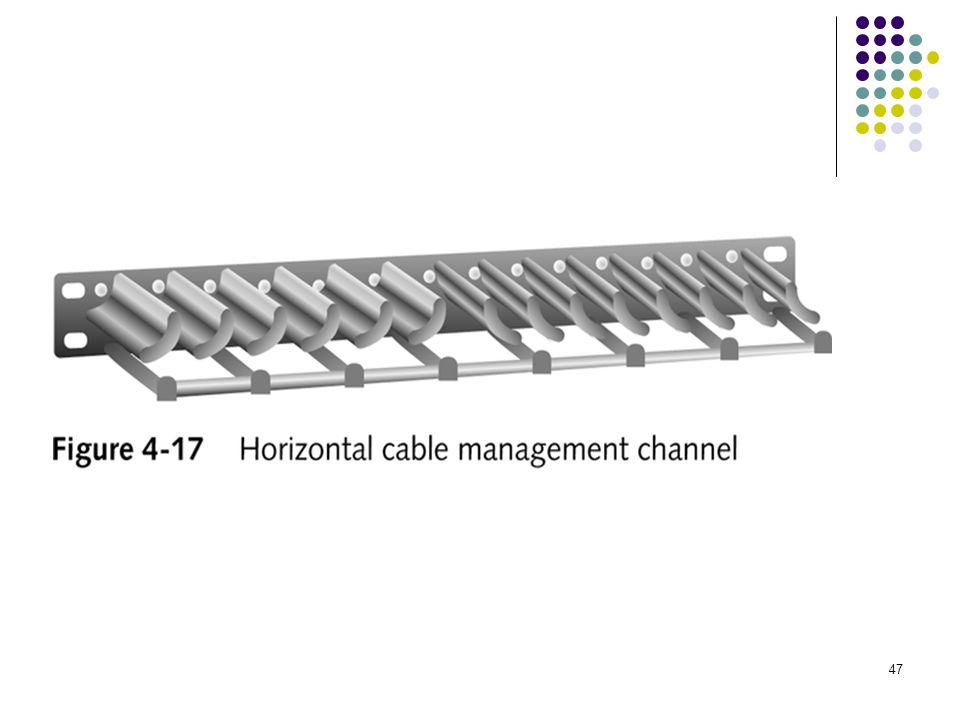

45 45 Vertical and horizontal pathway management: Vertical cable management channels made of copper provide cable and patch cord protection and routing space; those made of fiber contain uniquely designed wire guides to maintain bend radius Vertical cable management channels can be easily fastened on either side of the racks Horizontal cable management channels also provide patch cord protection and routing space; they are usually equipped with a front-cover panel fastened with plastic rivets Cable Management Practices

46 46

47 47

48 48 Ceiling zone distribution management: Perform these steps: place cables into the zone pathway; leave sufficient slack to reach work area outlets; run all cables to the center point of their zone and from there, distribute cables to work areas; support all cables with Velcro cable ties; coil cable not in service; label cables and pathways Cable management and ANSI/EIA/TIA-606 ANSI/EIA/TIA-606 defines administration as a necessary foundation for effective cable management and reliable infrastructure Cable Management Practices

49 49 Good network documentation accounts for: A diagram of the physical network The topologies and network architecture in use Protocols and logical addressing schemes Operating systems and directory services Cabling standards and network conventions The documenting of manufacturers and vendors Documenting Your Network

50 50 Chapter Summary Cabling pathways provide the means for placing cables between the equipment room, the telecommunications rooms, and the work areas. These pathways can be horizontal or vertical A common method of horizontal cabling is zone cabling, in which cable bundles are run to a particular area from the telecommunications room along J-hooks suspended above a plenum ceiling. Upon reaching the zone, cables are fanned out and dropped through interior walls, support columns, or raceways, and terminated at the work area outlet

51 51 Chapter Summary The equipment room and telecommunications rooms in a building act as junctions between the backbone and horizontal pathways. Both rooms may house such items as the main distribution frame, PBXs, secondary voltage protection, active voice and data telecommunications equipment, termination fields, and cross-connect wiring

52 52 Chapter Summary Cabling installations begin with the placement of all the large backbone and intrabuilding cables, followed by the smaller horizontal cabling, and then the interconnect cables. The ANSI/EIA/TIA- 569-A standard provides important instructions for ensuring successful installations, including information on conduit capacity, cable pulling tensions, pathway and cable support, bend radius, cable stress, termination practices, and jackets

53 53 Chapter Summary Connector and cable components that meet transmission performance requirements are crucial to your installed cabling system, but they do not ensure success. Performance may be degraded by poor or improper cabling practices related to connector terminations, cable installation and management, use of cross- connect jumpers and patch cords, and multiple connections in close proximity

54 54 Chapter Summary Make your network documentation more effective by including a compete network diagram, along with specific information about hardware, software, topologies, conventions, cabling standards, and configuration. The more you document the network, the better equipped everyone will be to work on it. Remember to keep this documentation up to date; incorrect information can be worse than none at all
