1 Ethernet Cable Local Area Networks, 2009 Spring

2 Outline Introduction Ethernet Cable Category How to wire Straight through Crossover Reference 2 Ethernet Cable 2014/6/9

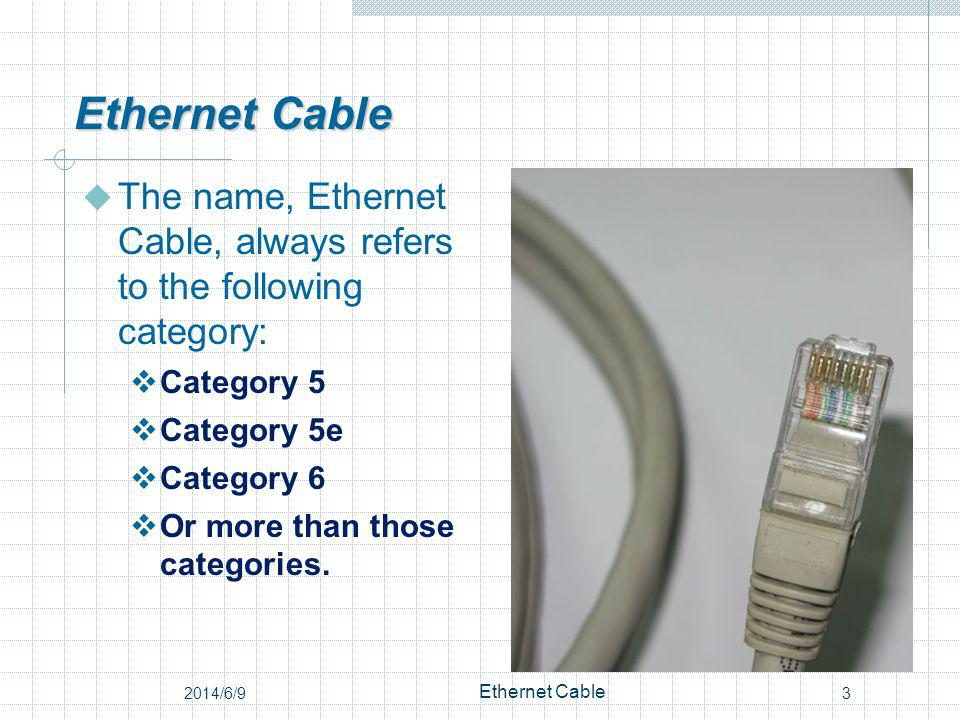

3 Ethernet Cable The name, Ethernet Cable, always refers to the following category: Category 5 Category 5e Category 6 Or more than those categories. 3 Ethernet Cable 2014/6/9

4 Category CategoryData RateSignal FrequencyStandard Cat5100 Mbps100 MHzTIA/EIA Cat5e100 Mbps /1 Gbps100 MHzTIA/EIA-568-B Cat61Gbps / 10 Gbps250 MHzTIA/EIA-568-B Cat6a1Gbps / 10 Gbps500 MHz ANSI/TIA/EIA- 568-B.2-10 TIA/EIA is a set of three telecommunications standards from the Telecommunications Industry Association. 4 Ethernet Cable 2014/6/9

5 Ethernet Cable It is composed of 4- pair twist wirings. Orange Green Blue Brown Cat5e cable 5 Ethernet Cable 2014/6/9

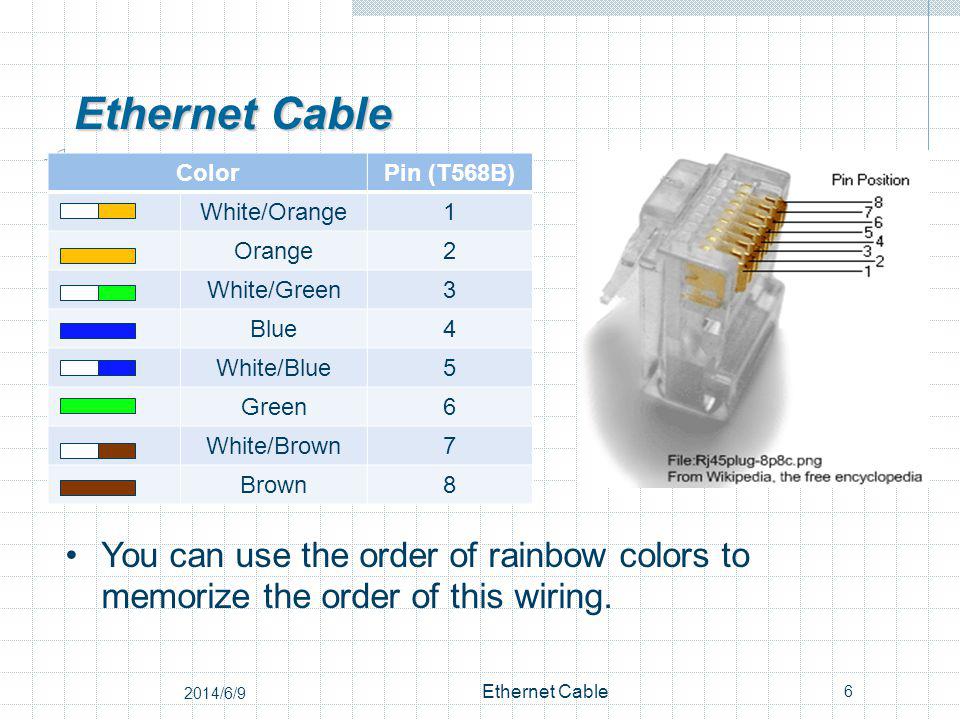

6 Ethernet Cable ColorPin (T568B) White/Orange1 Orange2 White/Green3 Blue4 White/Blue5 Green6 White/Brown7 Brown8 You can use the order of rainbow colors to memorize the order of this wiring. 6 Ethernet Cable 2014/6/9

7 Ethernet Cable PinUsage 1Transmission (Tx+) 2Transmission (Tx-) 3Receive (Rx+) Receive (Rx-) We can use the concept to justify the order of the wiring colors of straight through and crossover. 7 Ethernet Cable 2014/6/9

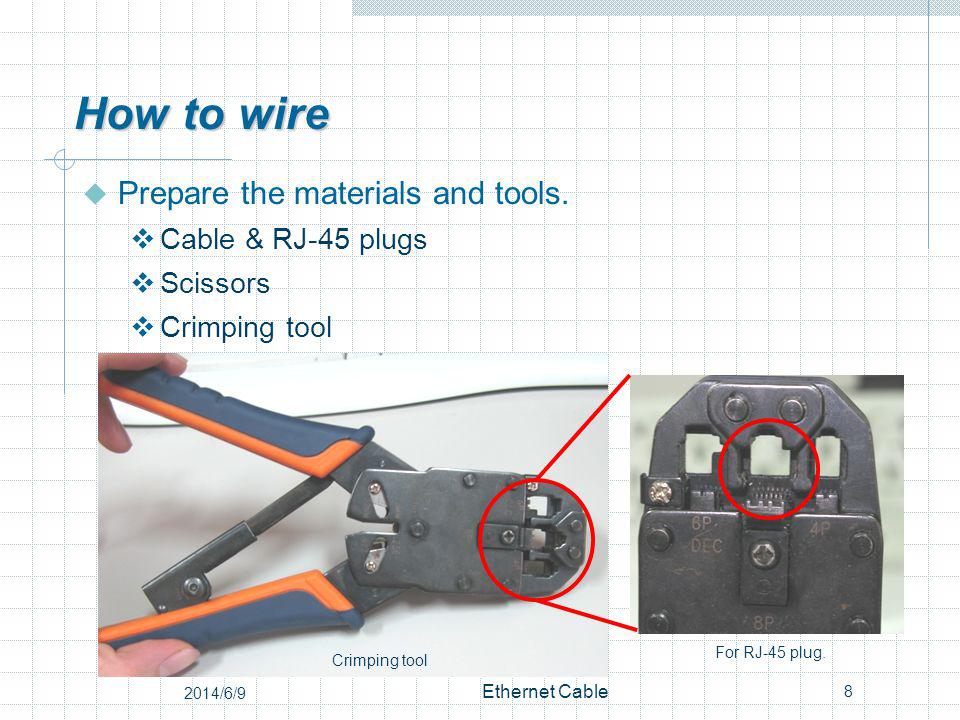

8 How to wire Prepare the materials and tools. Cable & RJ-45 plugs Scissors Crimping tool 8 For RJ-45 plug. Ethernet Cable 2014/6/9 Crimping tool

9 How to wire Strip off suitable length of the cable sheath. About cm You can mark the position first. 9 Ethernet Cable 2014/6/9

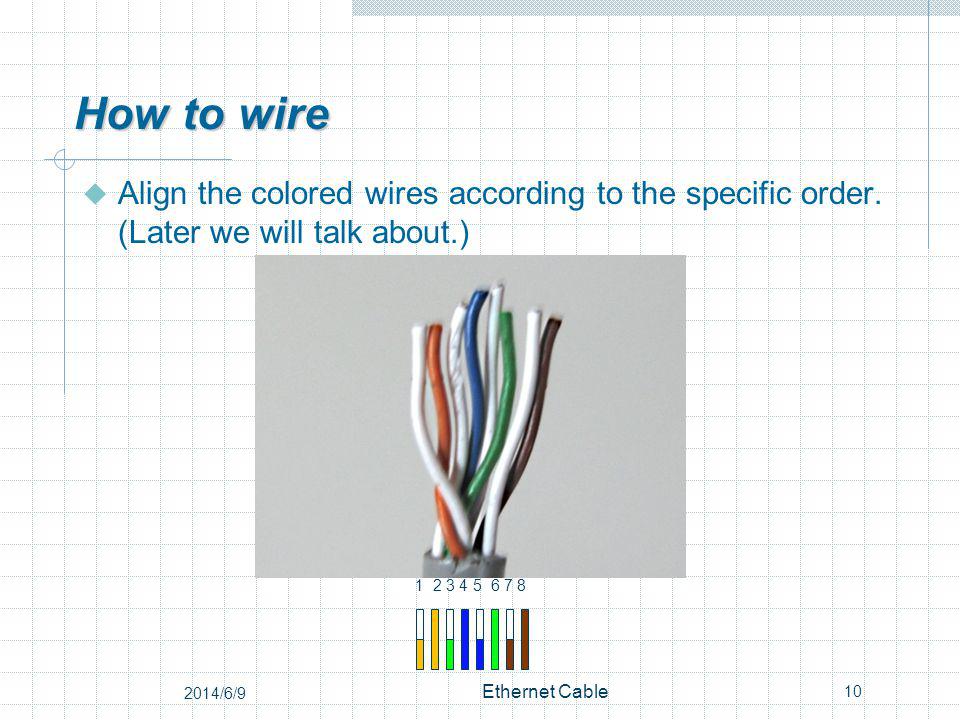

10 How to wire Align the colored wires according to the specific order. (Later we will talk about.) 10 Ethernet Cable 2014/6/

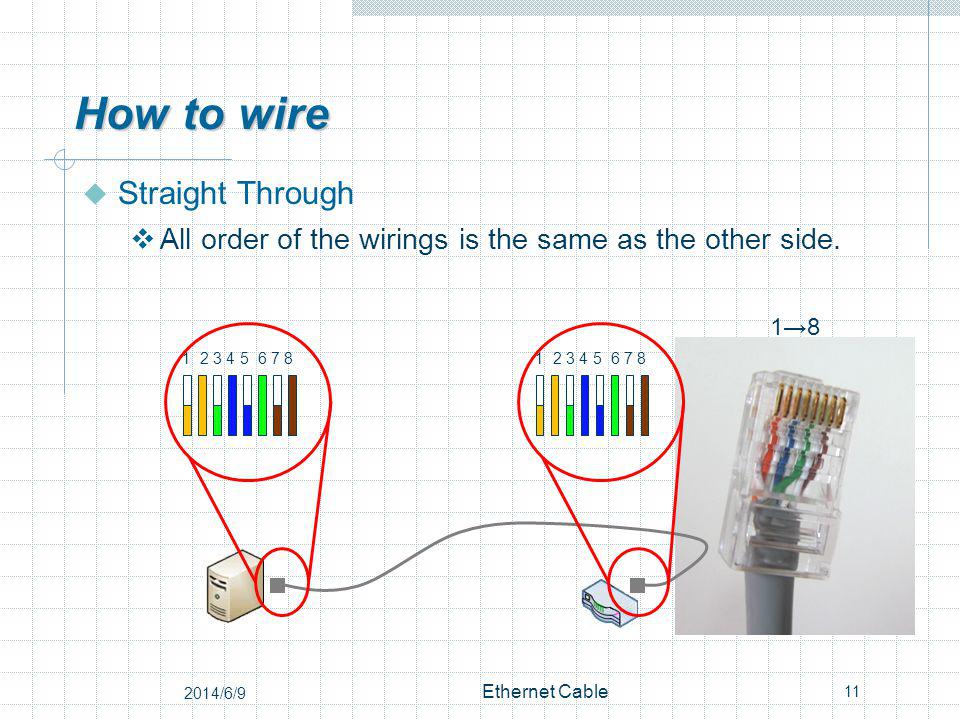

11 18 How to wire Straight Through All order of the wirings is the same as the other side Ethernet Cable 2014/6/9

12 Straight Through Host AHost B PinUsageColor UsagePin 1Tx+ 1 2Tx- 2 3Rx Rx Ethernet Cable 2014/6/9

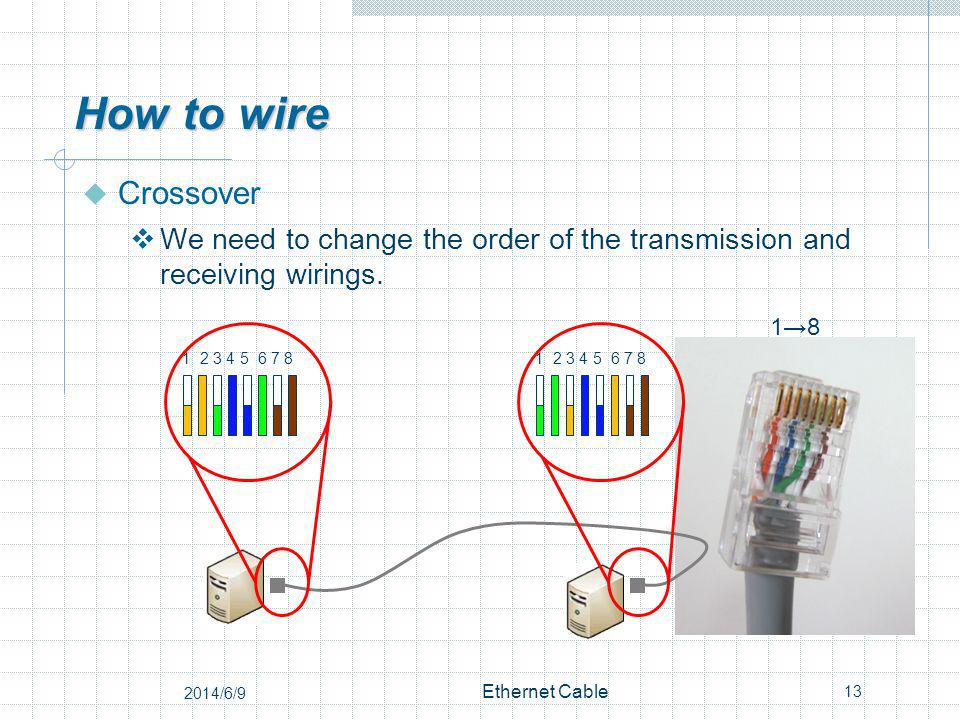

13 18 How to wire Crossover We need to change the order of the transmission and receiving wirings Ethernet Cable 2014/6/9

14 Crossover Host AHost B PinUsageColor UsagePin 1Tx+ 1 2Tx- 2 3Rx Rx Ethernet Cable 2014/6/9

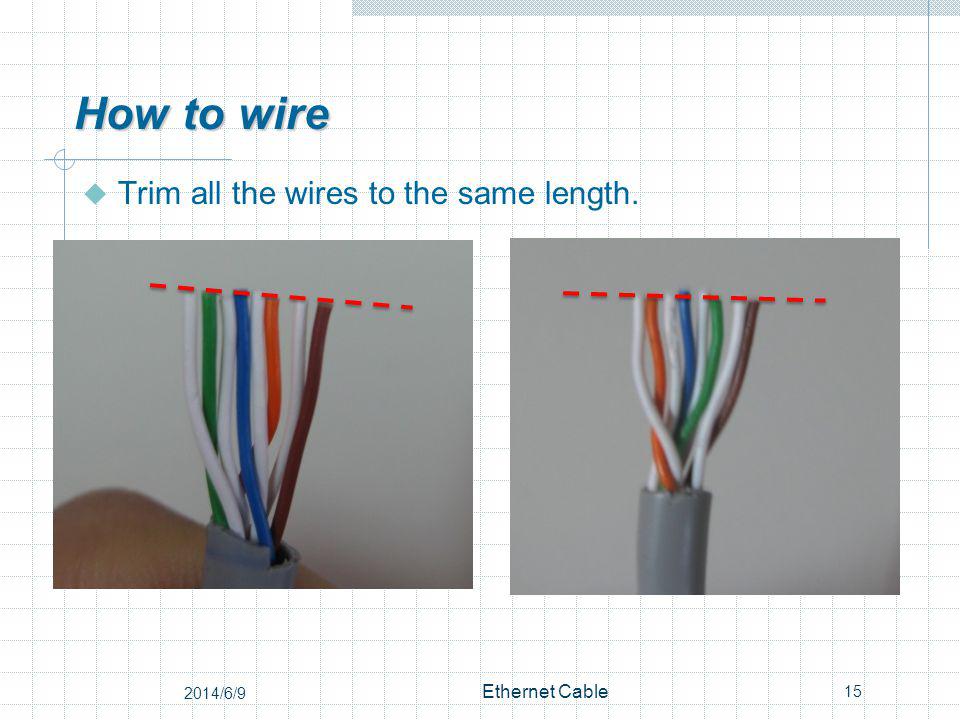

15 How to wire Trim all the wires to the same length. 15 Ethernet Cable 2014/6/9

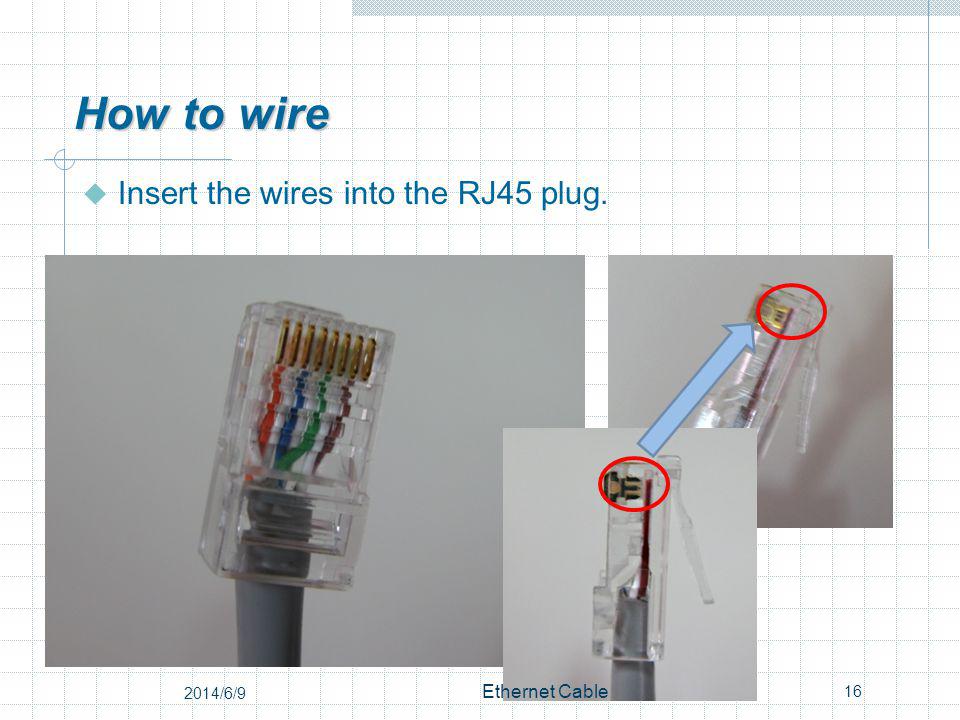

16 How to wire Insert the wires into the RJ45 plug. 16 Ethernet Cable 2014/6/9

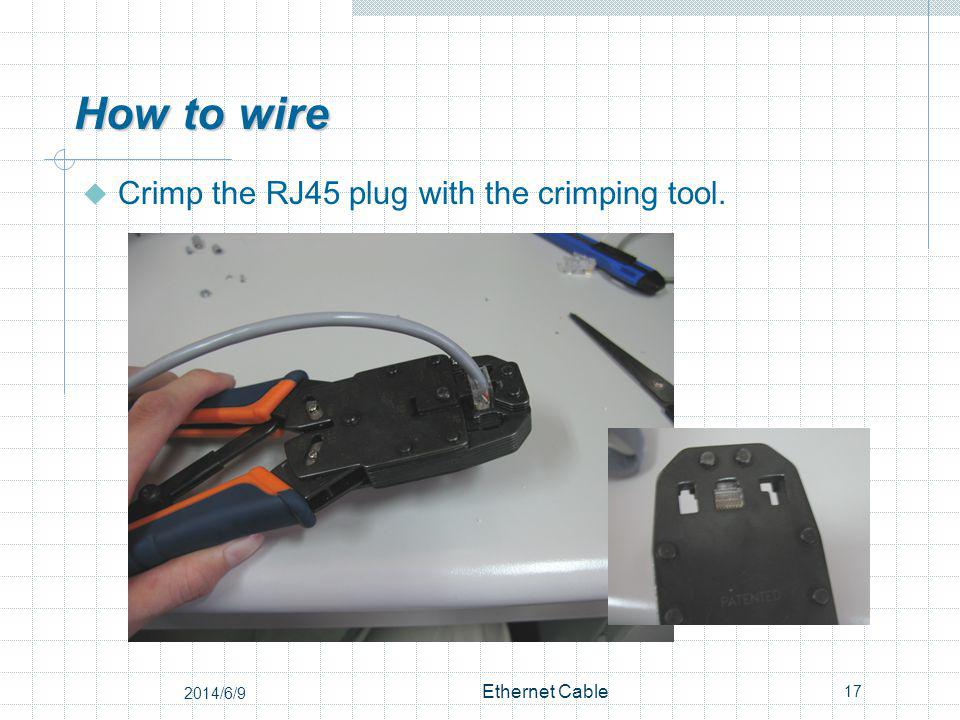

17 How to wire Crimp the RJ45 plug with the crimping tool. 17 Ethernet Cable 2014/6/9

18 How to wire Verify the order of the wires is correct and all the wires are correctly making good contact with the metal contacts in the RJ45 plug. 18 Incorrect Correct Ethernet Cable 2014/6/9

19 How to wire Cut the cable into suitable length and repeat the below steps for the other side. Please be sure what kind of the cable you are wiring. Testing 19 Straight Through Crossover Ethernet Cable 2014/6/9

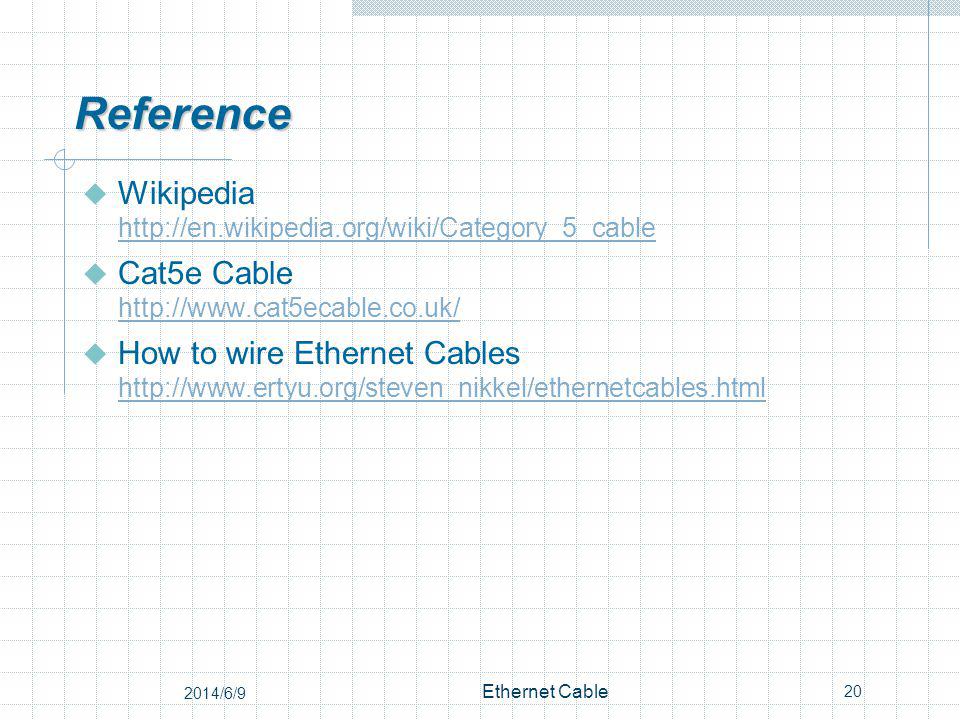

20 Reference Wikipedia Cat5e Cable How to wire Ethernet Cables 20 Ethernet Cable 2014/6/9
