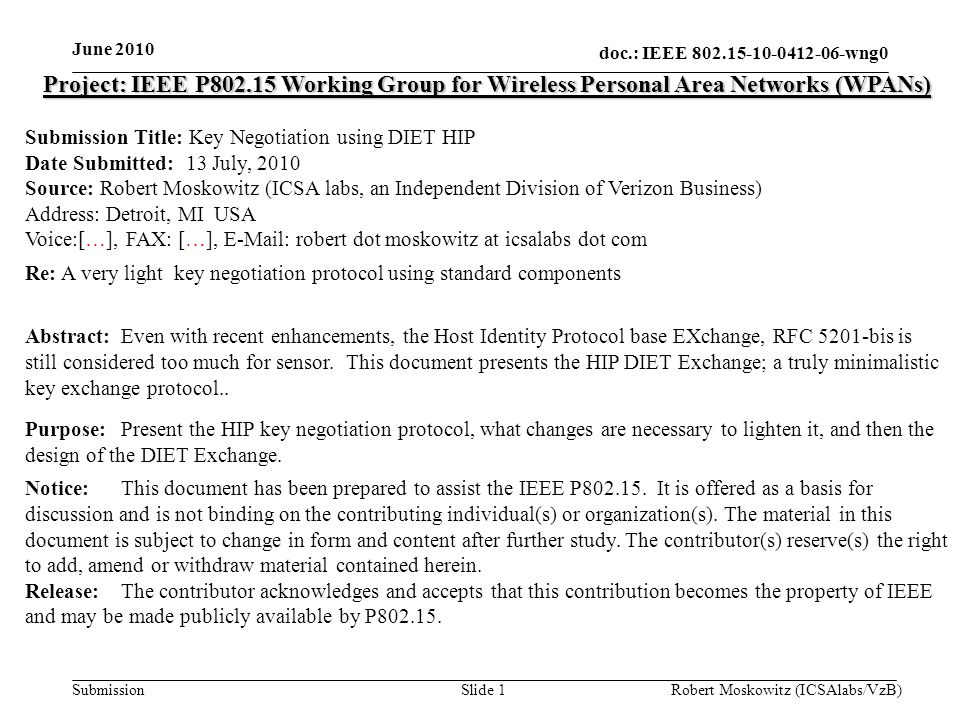

1 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 1 Project: IEEE P Working Group for Wireless Personal Area Networks (WPANs) Submission Title: Key Negotiation using DIET HIP Date Submitted: 13 July, 2010 Source: Robert Moskowitz (ICSA labs, an Independent Division of Verizon Business) Address: Detroit, MI USA Voice:[…], FAX: […], robert dot moskowitz at icsalabs dot com Re: A very light key negotiation protocol using standard components Abstract:Even with recent enhancements, the Host Identity Protocol base EXchange, RFC 5201-bis is still considered too much for sensor. This document presents the HIP DIET Exchange; a truly minimalistic key exchange protocol.. Purpose:Present the HIP key negotiation protocol, what changes are necessary to lighten it, and then the design of the DIET Exchange. Notice:This document has been prepared to assist the IEEE P It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release:The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P

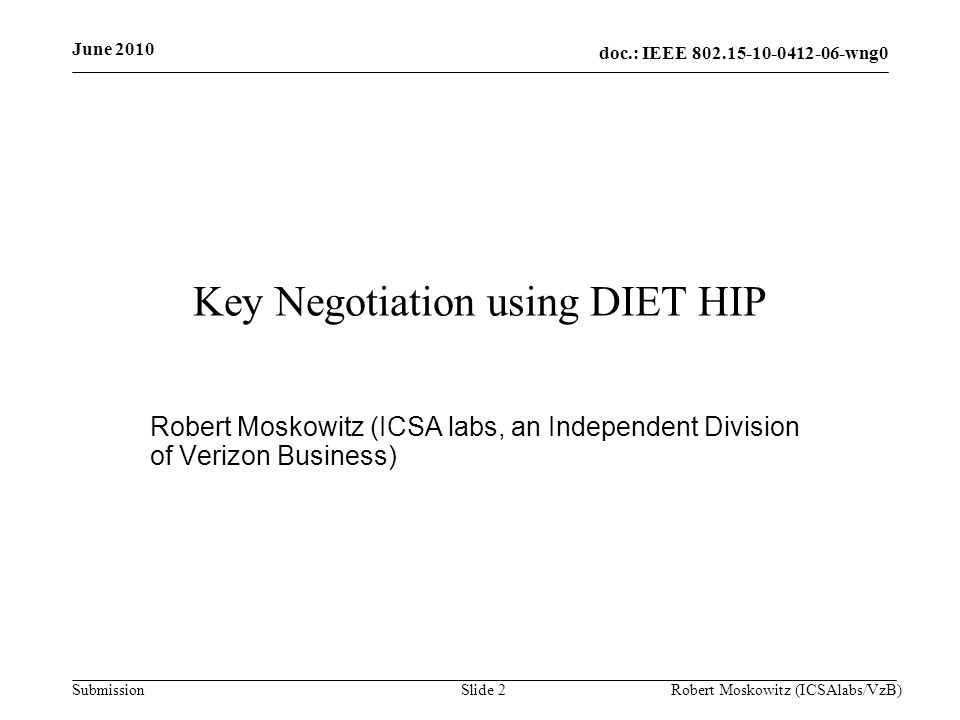

2 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 2 Key Negotiation using DIET HIP Robert Moskowitz (ICSA labs, an Independent Division of Verizon Business)

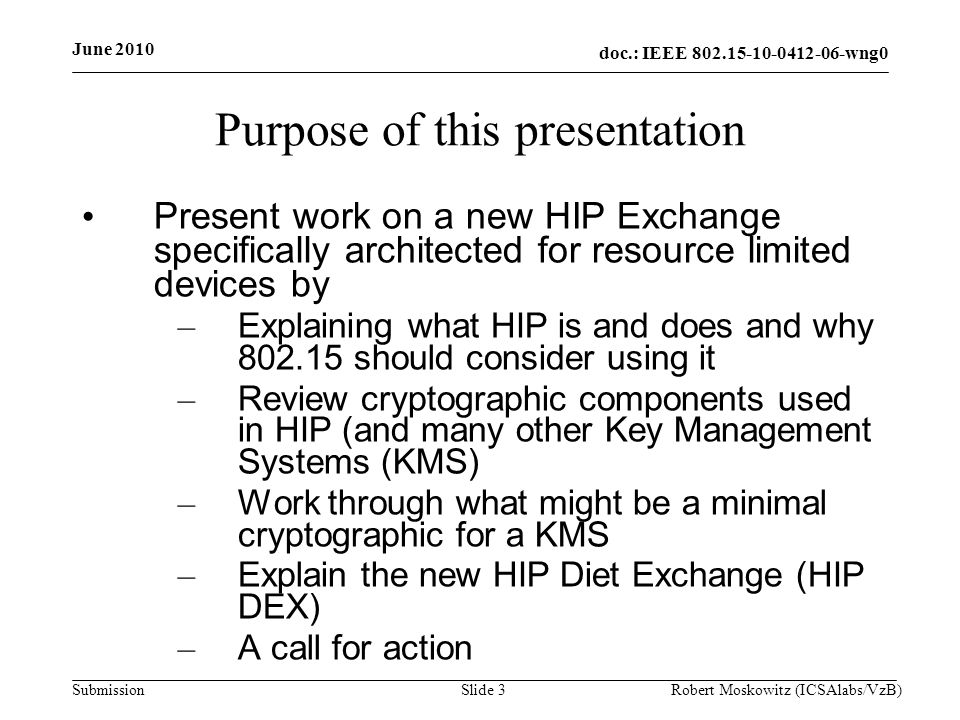

3 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 3 Purpose of this presentation Present work on a new HIP Exchange specifically architected for resource limited devices by – Explaining what HIP is and does and why should consider using it – Review cryptographic components used in HIP (and many other Key Management Systems (KMS) – Work through what might be a minimal cryptographic for a KMS – Explain the new HIP Diet Exchange (HIP DEX) – A call for action

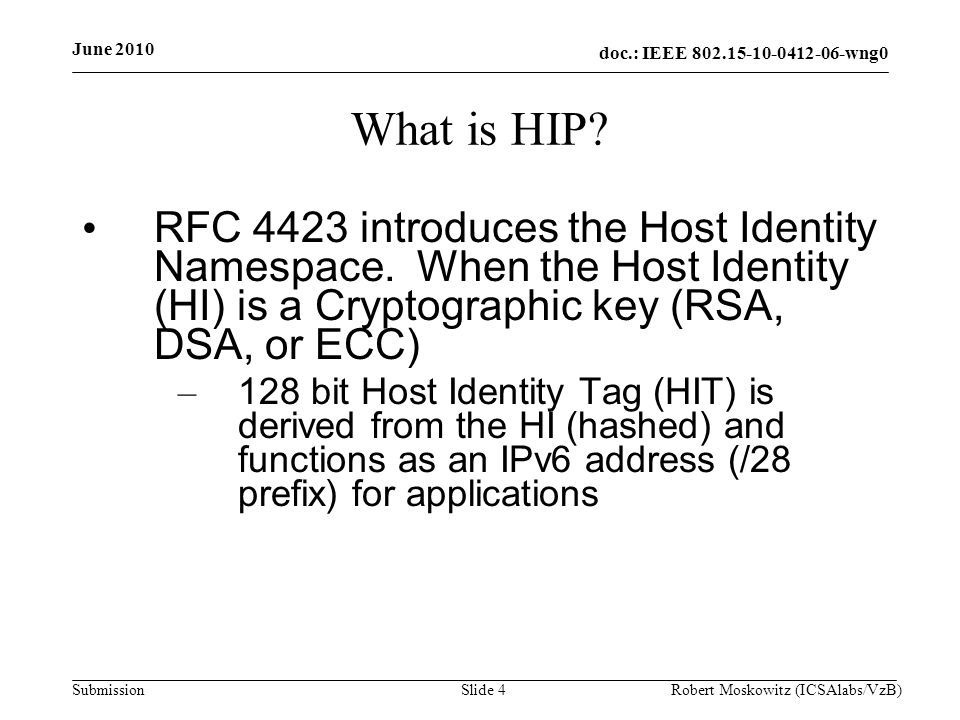

4 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 4 What is HIP? RFC 4423 introduces the Host Identity Namespace. When the Host Identity (HI) is a Cryptographic key (RSA, DSA, or ECC) – 128 bit Host Identity Tag (HIT) is derived from the HI (hashed) and functions as an IPv6 address (/28 prefix) for applications

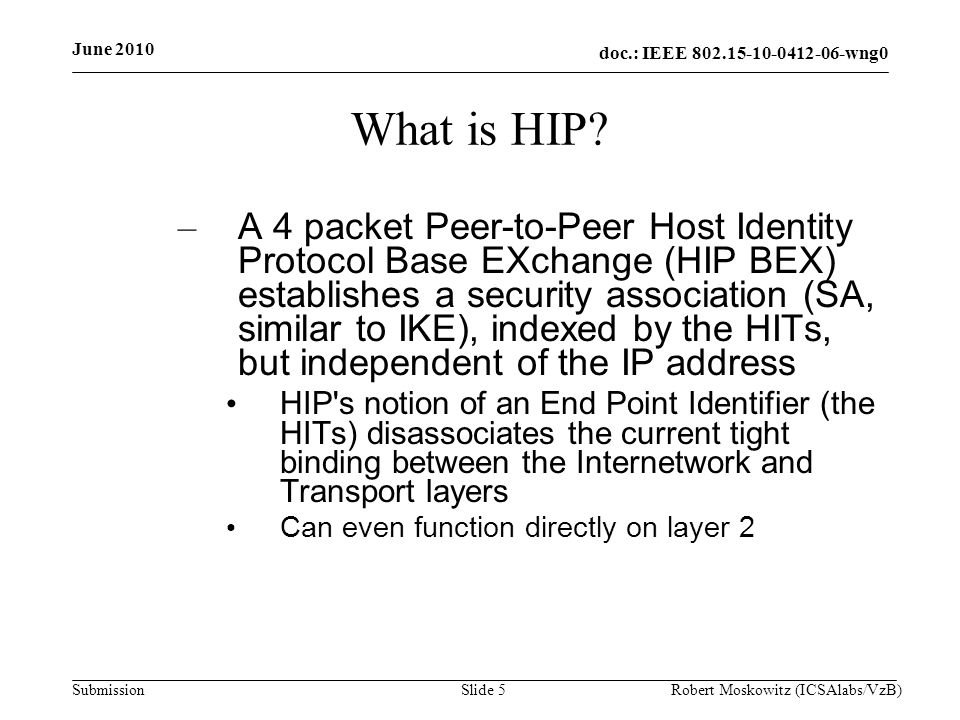

5 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 5 What is HIP? – A 4 packet Peer-to-Peer Host Identity Protocol Base EXchange (HIP BEX) establishes a security association (SA, similar to IKE), indexed by the HITs, but independent of the IP address HIP's notion of an End Point Identifier (the HITs) disassociates the current tight binding between the Internetwork and Transport layers Can even function directly on layer 2

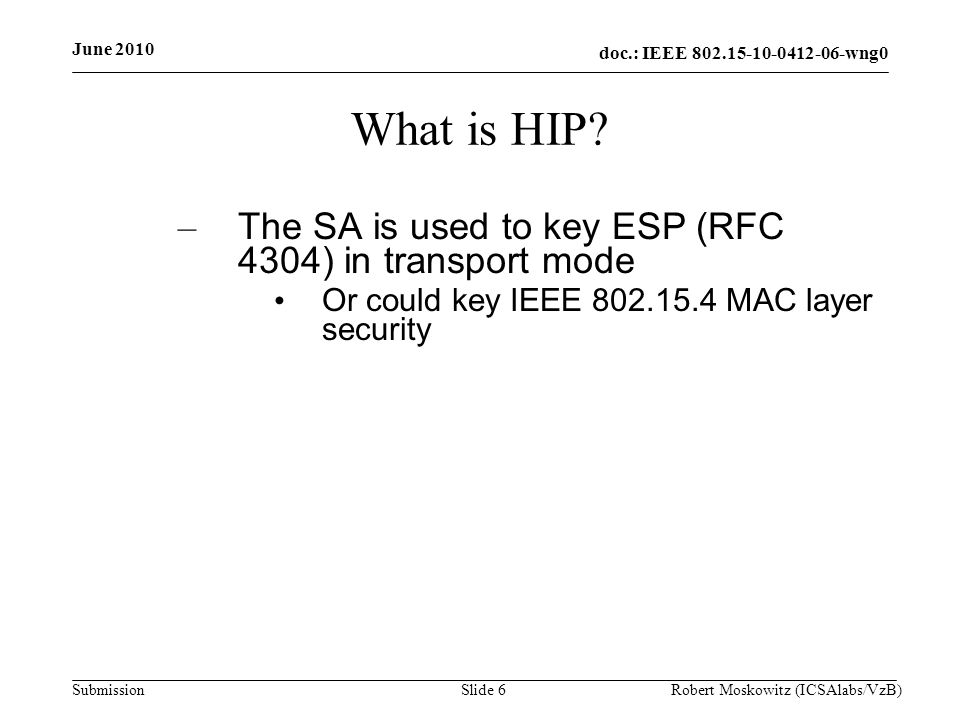

6 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 6 What is HIP? – The SA is used to key ESP (RFC 4304) in transport mode Or could key IEEE MAC layer security

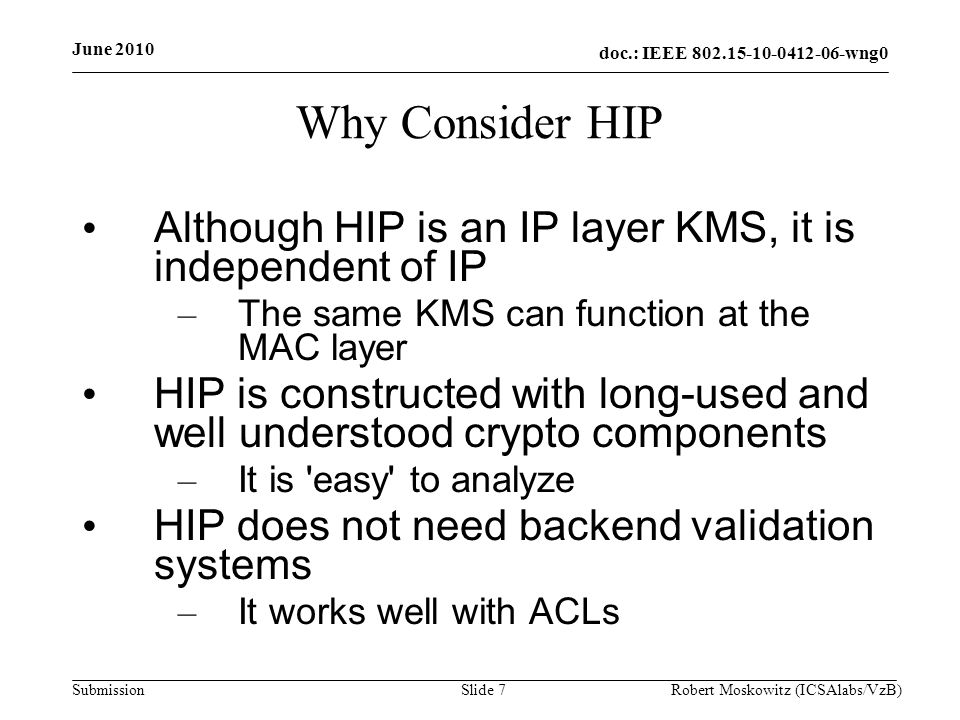

7 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 7 Why Consider HIP Although HIP is an IP layer KMS, it is independent of IP – The same KMS can function at the MAC layer HIP is constructed with long-used and well understood crypto components – It is 'easy' to analyze HIP does not need backend validation systems – It works well with ACLs

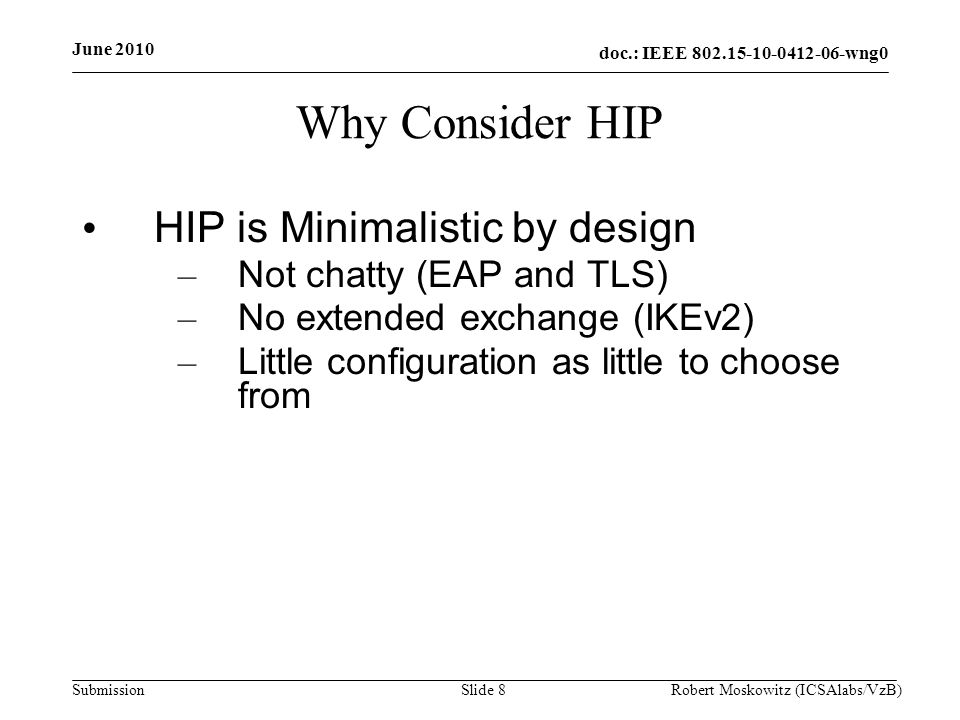

8 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 8 Why Consider HIP HIP is Minimalistic by design – Not chatty (EAP and TLS) – No extended exchange (IKEv2) – Little configuration as little to choose from

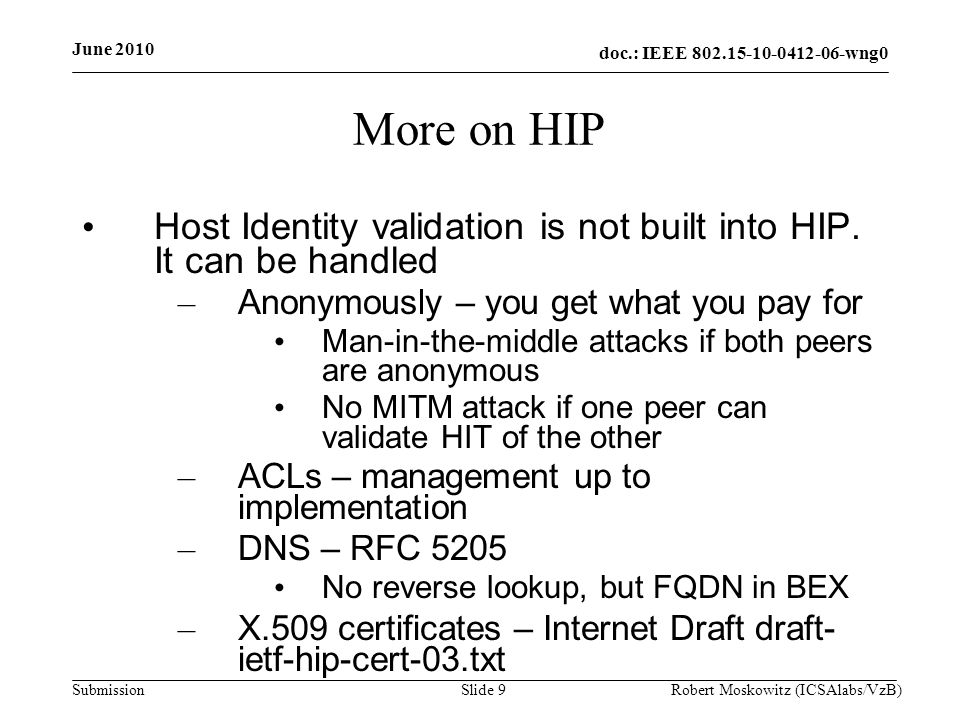

9 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 9 More on HIP Host Identity validation is not built into HIP. It can be handled – Anonymously – you get what you pay for Man-in-the-middle attacks if both peers are anonymous No MITM attack if one peer can validate HIT of the other – ACLs – management up to implementation – DNS – RFC 5205 No reverse lookup, but FQDN in BEX – X.509 certificates – Internet Draft draft- ietf-hip-cert-03.txt

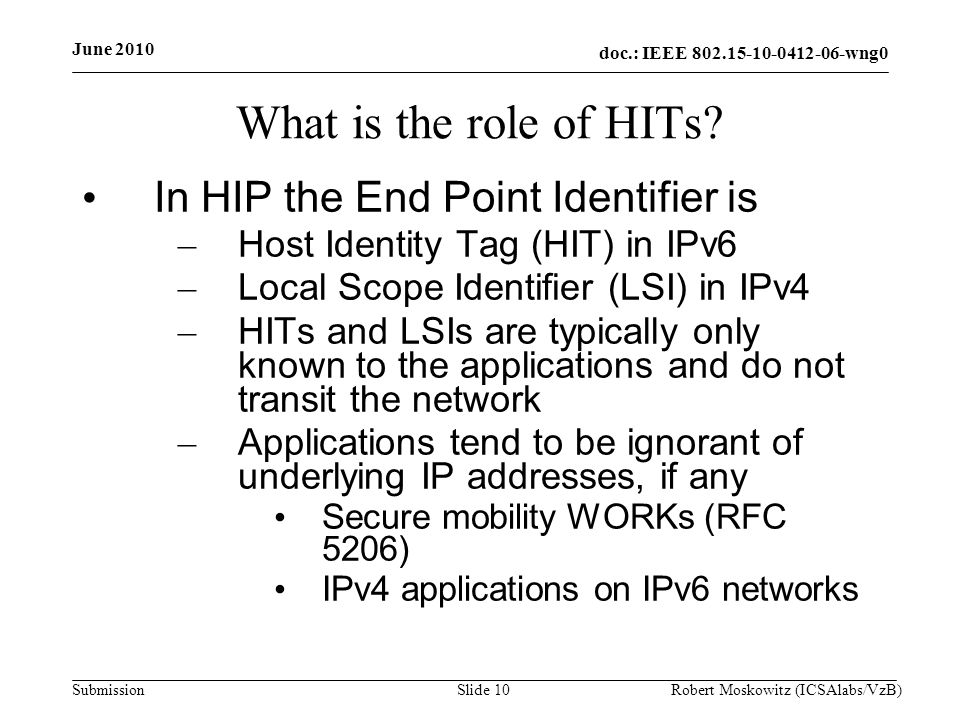

10 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 10 What is the role of HITs? In HIP the End Point Identifier is – Host Identity Tag (HIT) in IPv6 – Local Scope Identifier (LSI) in IPv4 – HITs and LSIs are typically only known to the applications and do not transit the network – Applications tend to be ignorant of underlying IP addresses, if any Secure mobility WORKs (RFC 5206) IPv4 applications on IPv6 networks

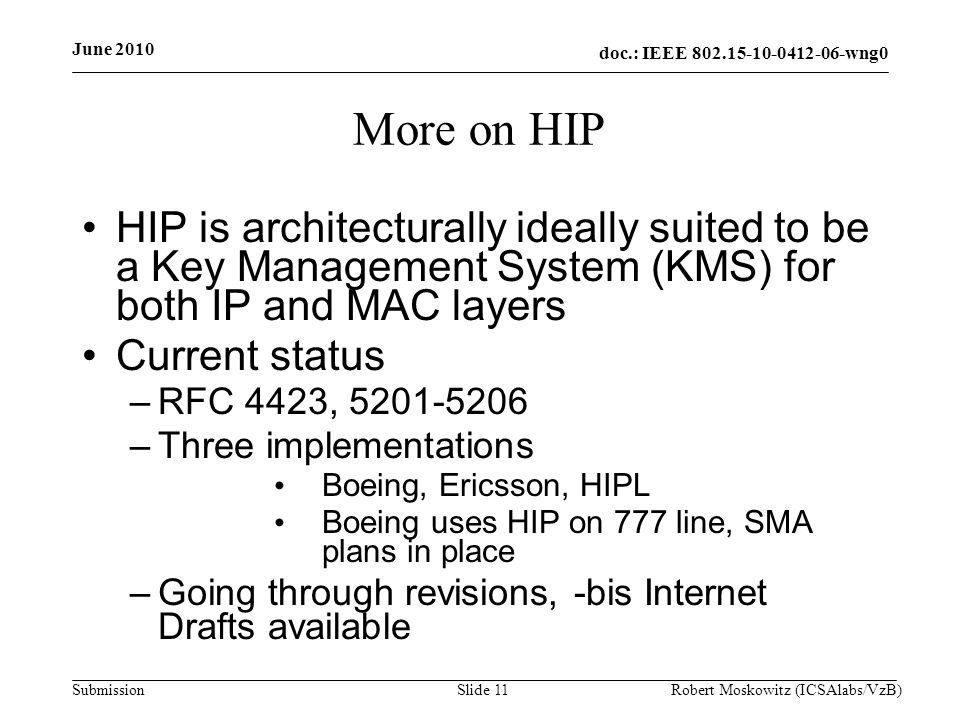

11 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 11 More on HIP HIP is architecturally ideally suited to be a Key Management System (KMS) for both IP and MAC layers Current status –RFC 4423, –Three implementations Boeing, Ericsson, HIPL Boeing uses HIP on 777 line, SMA plans in place –Going through revisions, -bis Internet Drafts available

12 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 12 HIP BEX is SIGMA Compliant Authenticate Diffie-Hellman key exchange with SIGning and MACing –Also used by IKEv2 –Defined by Hugo Krawczy k Technion University and IBM –Origin and theory: –Diffie-Hellman based 3 packets typical Ephemeral Diffie-Hellman provides Perfect Forward Secrecy (PFS) Use of MAC proves correctness of the DH key and thereby guarantees freshness

13 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 13 The Basics of the HIP exchange DH-list ::= List of Diffie-Hellman formats supported Puzzle ::= computational challenge to limit flooding attacks Solution ::= solution to puzzle DH ::= Diffie-Hellman public key HI ::= Host Identity Public key Sig ::= Digital Signature using Host Identity Mac ::= Message Authentication using Diffie-Hellman derived key

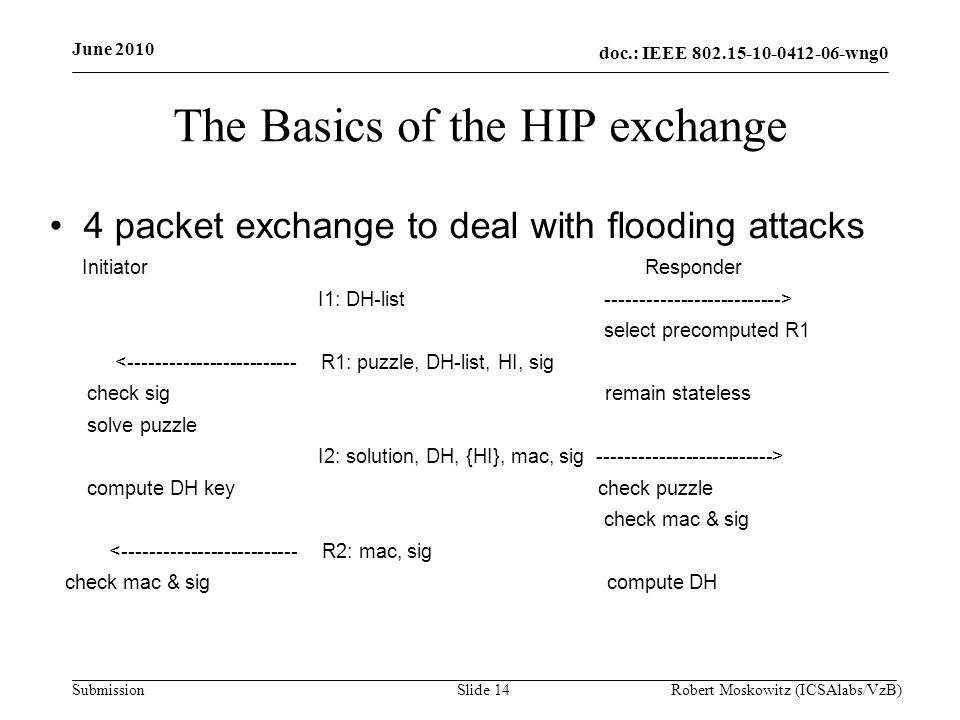

14 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 14 The Basics of the HIP exchange 4 packet exchange to deal with flooding attacks Initiator Responder I1: DH-list > select precomputed R1 < R1: puzzle, DH-list, HI, sig check sig remain stateless solve puzzle I2: solution, DH, {HI}, mac, sig > compute DH key check puzzle check mac & sig < R2: mac, sig check mac & sig compute DH

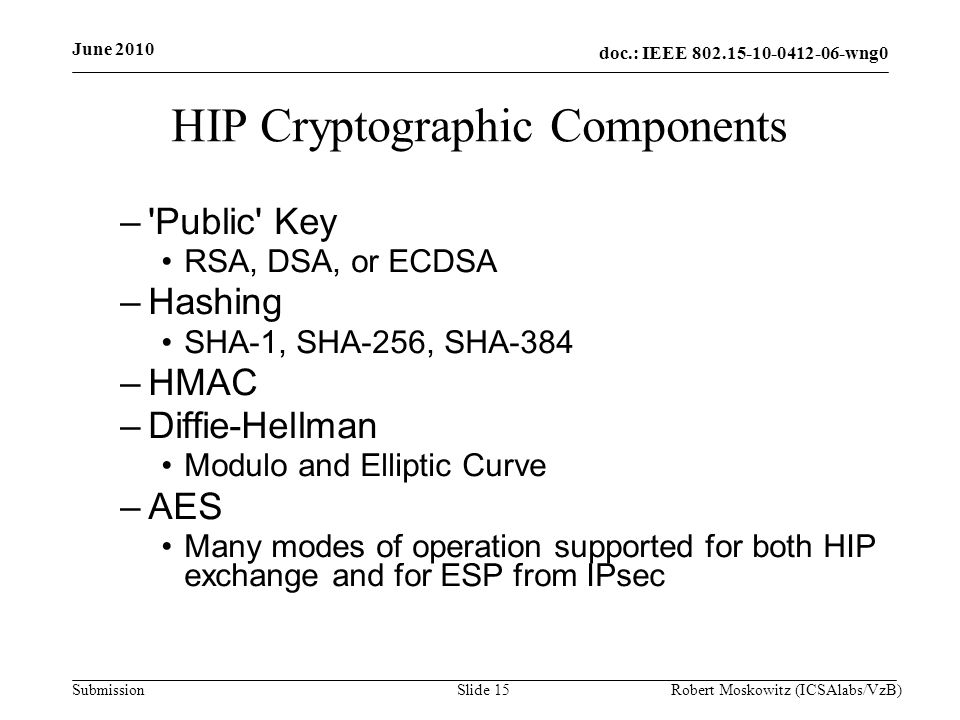

15 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 15 HIP Cryptographic Components –'Public' Key RSA, DSA, or ECDSA –Hashing SHA-1, SHA-256, SHA-384 –HMAC –Diffie-Hellman Modulo and Elliptic Curve –AES Many modes of operation supported for both HIP exchange and for ESP from IPsec

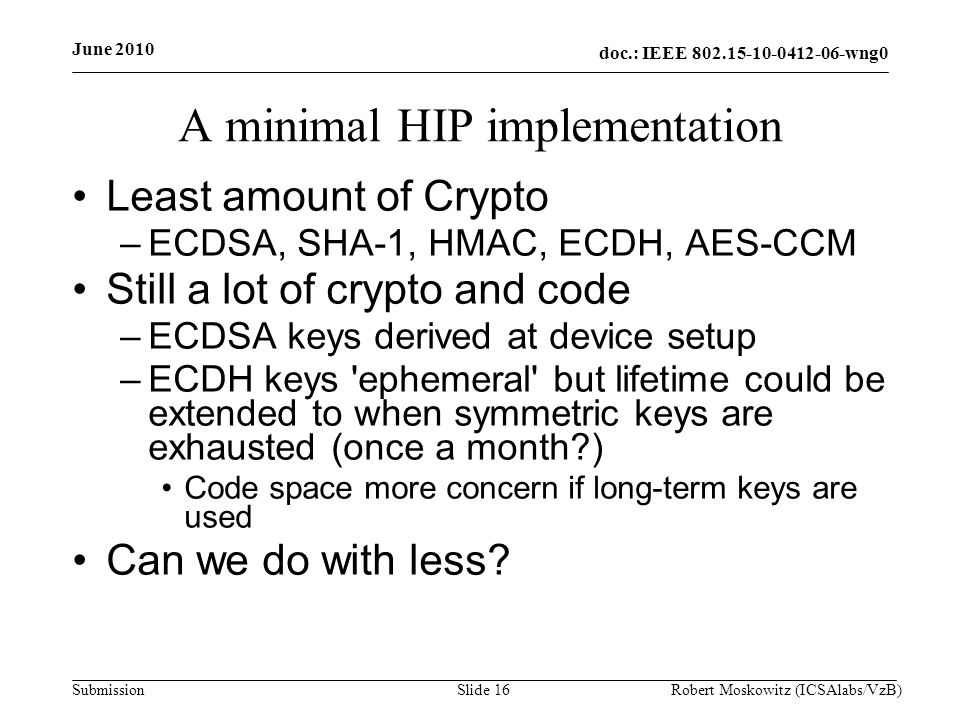

16 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 16 A minimal HIP implementation Least amount of Crypto –ECDSA, SHA-1, HMAC, ECDH, AES-CCM Still a lot of crypto and code –ECDSA keys derived at device setup –ECDH keys 'ephemeral' but lifetime could be extended to when symmetric keys are exhausted (once a month?) Code space more concern if long-term keys are used Can we do with less?

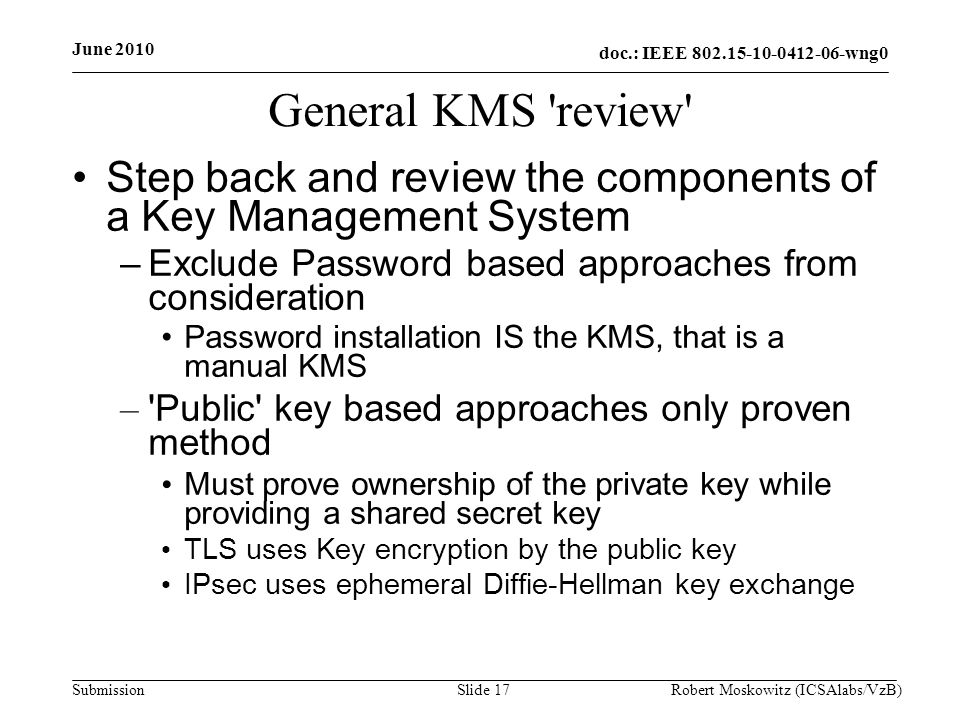

17 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 17 General KMS 'review' Step back and review the components of a Key Management System –Exclude Password based approaches from consideration Password installation IS the KMS, that is a manual KMS – 'Public' key based approaches only proven method Must prove ownership of the private key while providing a shared secret key TLS uses Key encryption by the public key IPsec uses ephemeral Diffie-Hellman key exchange

18 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 18 Crypto 'review' –Diffie-Hellman based secrets are NOT uniformly distributed (this IS important!) From draft-irtf-cfrg-kdf-uses-00.txt Secret is longer than 'bits of entropy', thus: Must be passed through a Key Derivation Function to 'Extract' a uniformly random key (e.g. HMAC) MACs (e.g. CMAC) CANNOT be used directly to expand the Diffie-Hellman derived key for session keys This is mitigated if first 'compressed' then used to encrypt a uniformly random session key

19 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 19 Attack on Diffie-Hellman Keys – Hugo Krawczyk pdf This method described in D1 sec seems vulnerable – E.G. An Insulin pump trusting this security in its link to a controller could be using a weaker key than thought. This could allow an attacker to compute the kye and tricked the pump into injecting Insulin by an attacker We can do better

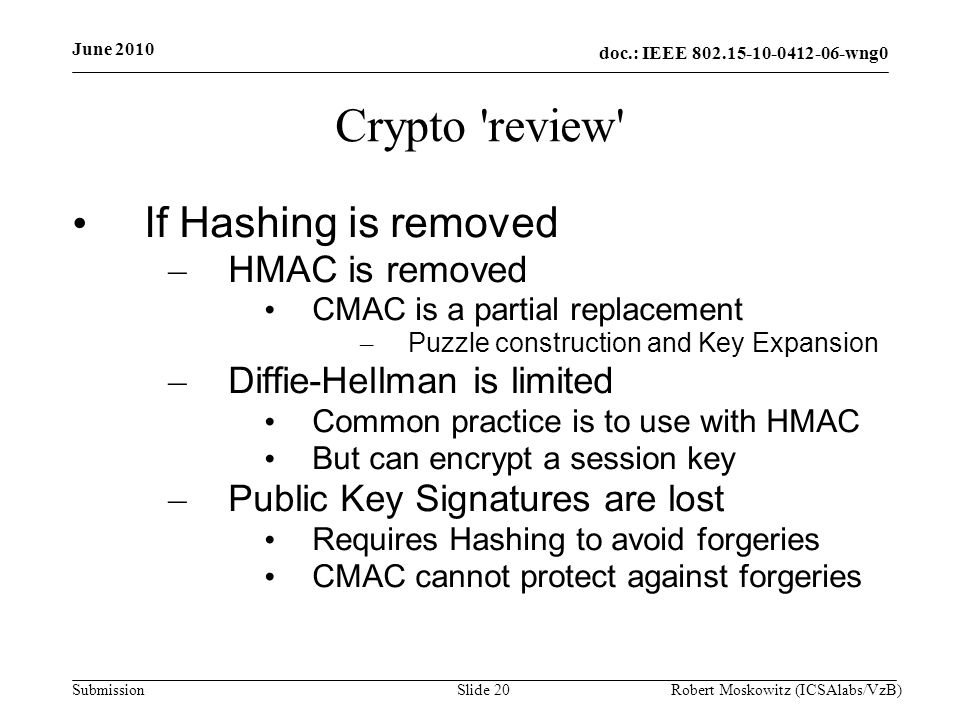

20 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 20 Crypto 'review' If Hashing is removed – HMAC is removed CMAC is a partial replacement – Puzzle construction and Key Expansion – Diffie-Hellman is limited Common practice is to use with HMAC But can encrypt a session key – Public Key Signatures are lost Requires Hashing to avoid forgeries CMAC cannot protect against forgeries

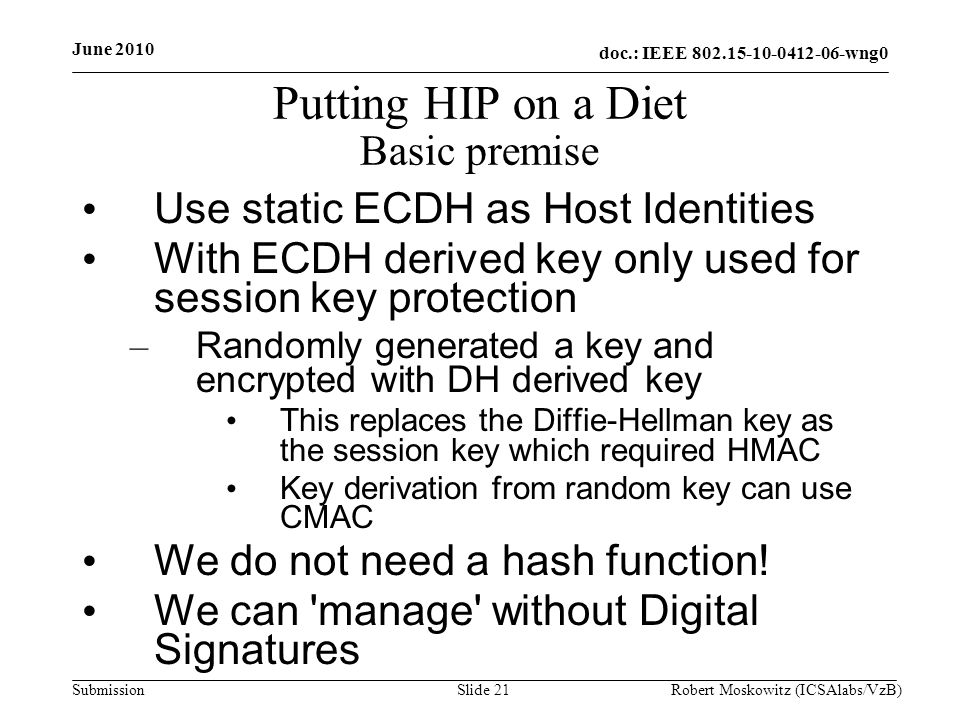

21 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 21 Putting HIP on a Diet Basic premise Use static ECDH as Host Identities With ECDH derived key only used for session key protection – Randomly generated a key and encrypted with DH derived key This replaces the Diffie-Hellman key as the session key which required HMAC Key derivation from random key can use CMAC We do not need a hash function! We can 'manage' without Digital Signatures

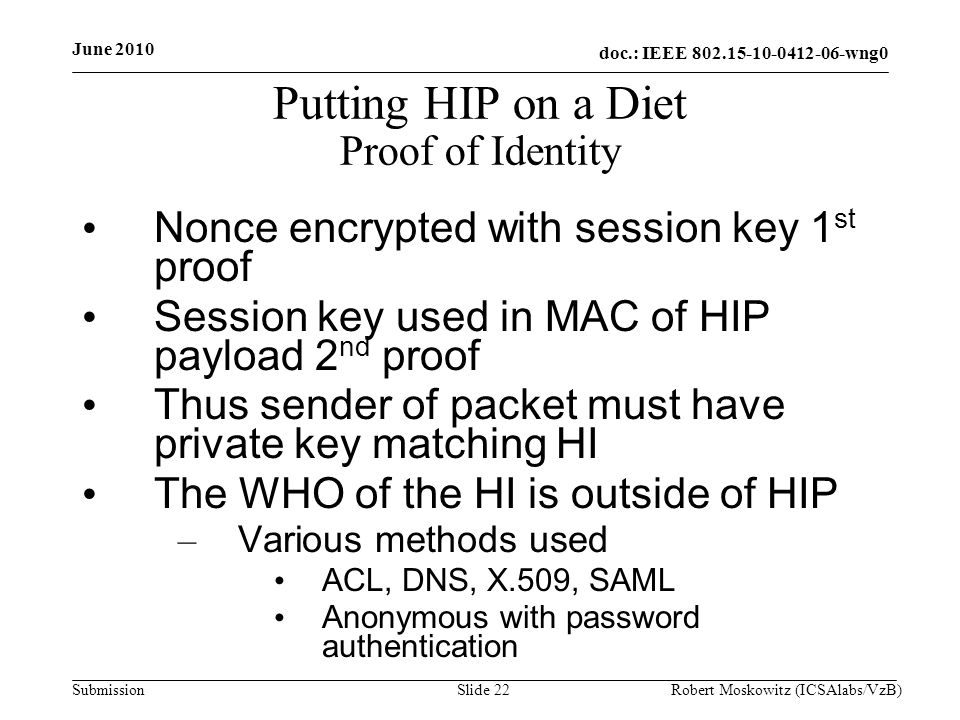

22 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 22 Putting HIP on a Diet Proof of Identity Nonce encrypted with session key 1 st proof Session key used in MAC of HIP payload 2 nd proof Thus sender of packet must have private key matching HI The WHO of the HI is outside of HIP – Various methods used ACL, DNS, X.509, SAML Anonymous with password authentication

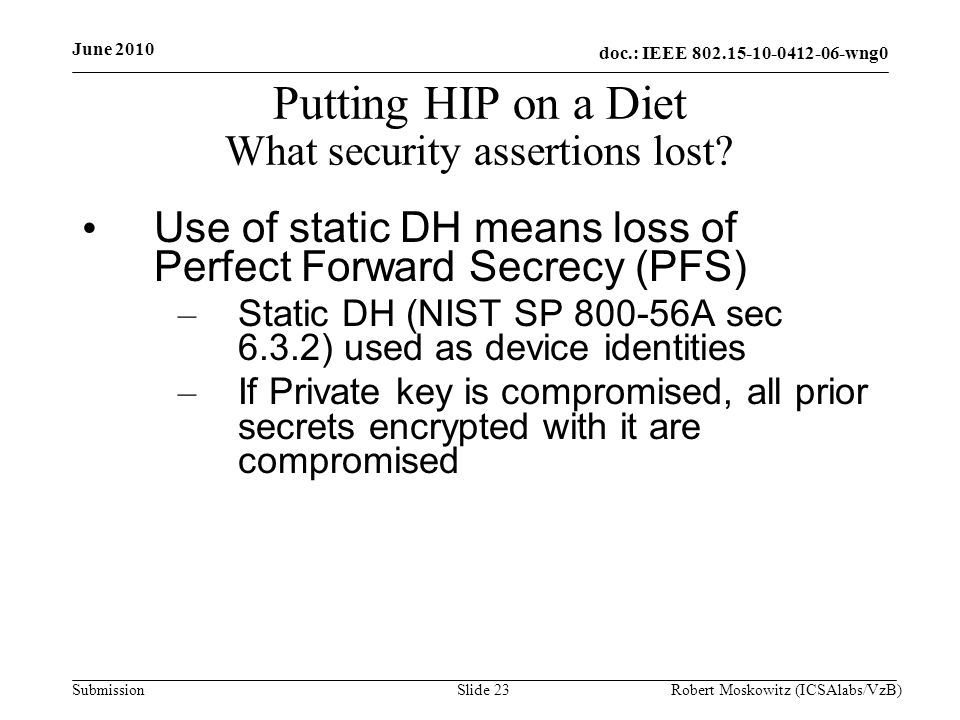

23 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 23 Putting HIP on a Diet What security assertions lost? Use of static DH means loss of Perfect Forward Secrecy (PFS) – Static DH (NIST SP A sec 6.3.2) used as device identities – If Private key is compromised, all prior secrets encrypted with it are compromised

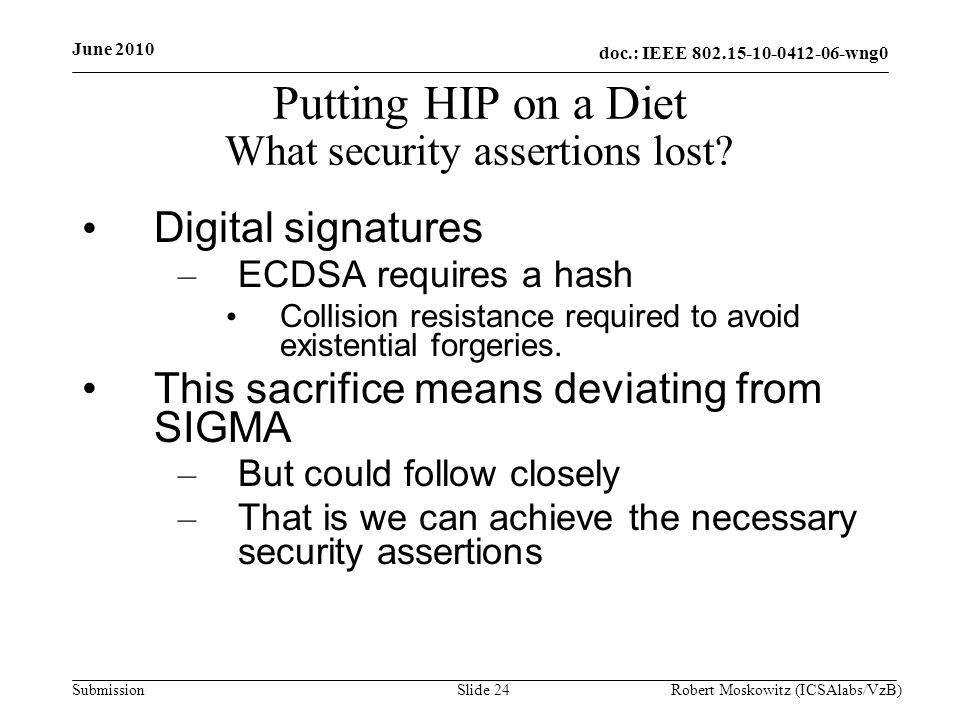

24 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 24 Putting HIP on a Diet What security assertions lost? Digital signatures – ECDSA requires a hash Collision resistance required to avoid existential forgeries. This sacrifice means deviating from SIGMA – But could follow closely – That is we can achieve the necessary security assertions

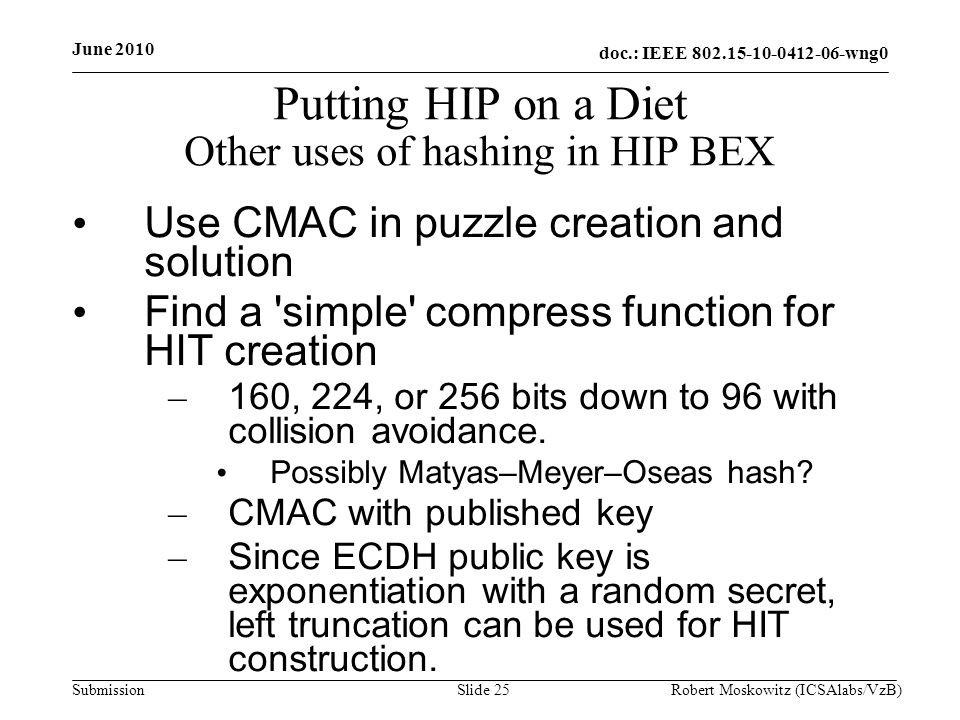

25 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 25 Putting HIP on a Diet Other uses of hashing in HIP BEX Use CMAC in puzzle creation and solution Find a 'simple' compress function for HIT creation – 160, 224, or 256 bits down to 96 with collision avoidance. Possibly Matyas–Meyer–Oseas hash? – CMAC with published key – Since ECDH public key is exponentiation with a random secret, left truncation can be used for HIT construction.

26 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 26 Putting HIP on a Diet Summary of Crypto Components A 'Dietetic' HIP exchange CAN be achieved with – AES-CBC (and CMAC) AES-CCM used by ESP or MACsec –Static ECDH Proves private key ownership Following is DEX protocol – The network is the attacker model used Assume both malicious Responder and Initiator

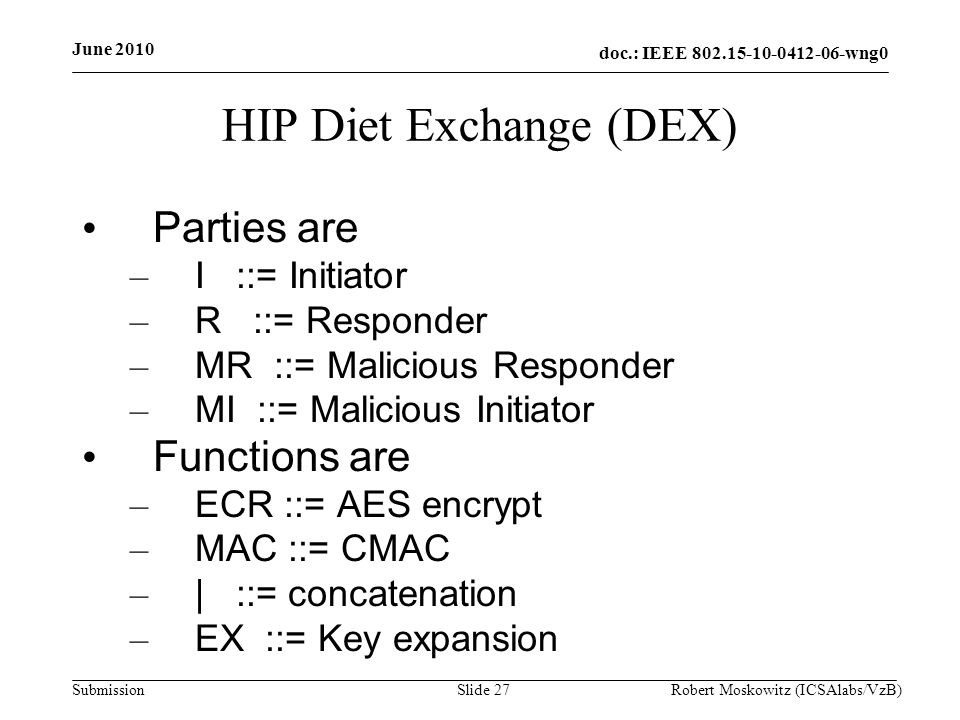

27 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 27 HIP Diet Exchange (DEX) Parties are – I ::= Initiator – R ::= Responder – MR ::= Malicious Responder – MI ::= Malicious Initiator Functions are – ECR ::= AES encrypt – MAC ::= CMAC – | ::= concatenation – EX ::= Key expansion

28 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 28 HIP Diet Exchange (DEX) Values are – PK ::= Public key of e.g. Pki is Public key of I – DHk ::= Derived Diffie-Hellman key compressed via CMAC with nonce as key – n ::= nonce – Pn ::= Puzzle based on and containing nonce n – Sn ::= Puzzle solution based on nonce n – x,y ::= random secrets

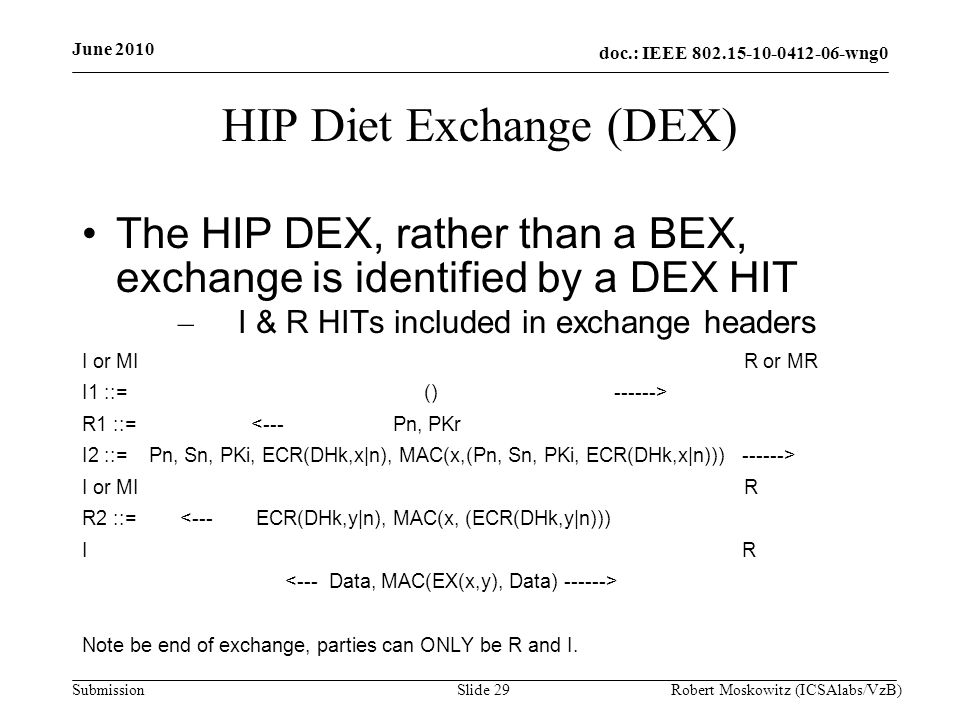

29 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 29 HIP Diet Exchange (DEX) The HIP DEX, rather than a BEX, exchange is identified by a DEX HIT – I & R HITs included in exchange headers I or MI R or MR I1 ::= () > R1 ::= <--- Pn, PKr I2 ::= Pn, Sn, PKi, ECR(DHk,x|n), MAC(x,(Pn, Sn, PKi, ECR(DHk,x|n))) > I or MI R R2 ::= <--- ECR(DHk,y|n), MAC(x, (ECR(DHk,y|n))) I R Note be end of exchange, parties can ONLY be R and I.

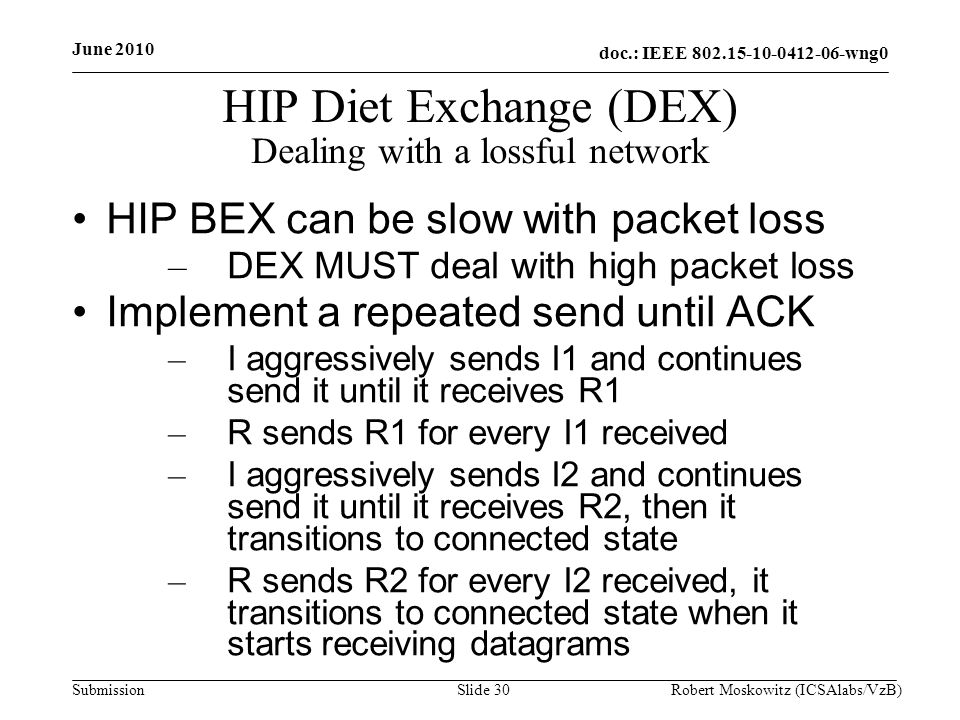

30 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 30 HIP Diet Exchange (DEX) Dealing with a lossful network HIP BEX can be slow with packet loss – DEX MUST deal with high packet loss Implement a repeated send until ACK – I aggressively sends I1 and continues send it until it receives R1 – R sends R1 for every I1 received – I aggressively sends I2 and continues send it until it receives R2, then it transitions to connected state – R sends R2 for every I2 received, it transitions to connected state when it starts receiving datagrams

31 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 31 HIP Diet Exchange (DEX) Dealing with a lossful network – Plus error handling events. E.G. I ignores R1s unless it has sent an I1 – This does have a battery drain attack M sends an I1 to R that looks as if it came from sensor Q On analysis really not different from any other reflector battery attack

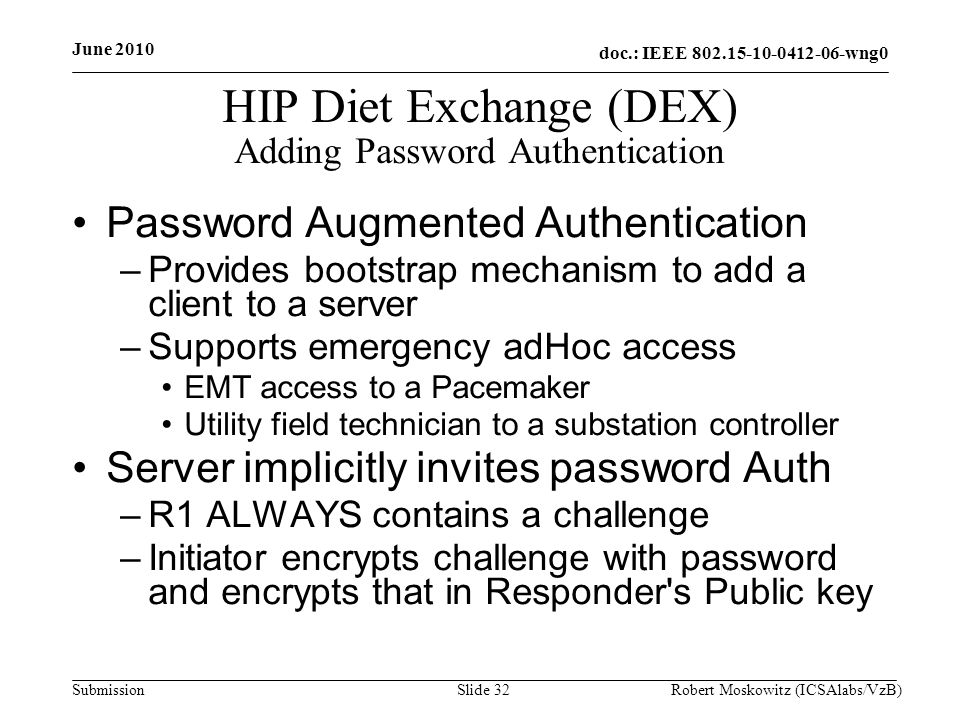

32 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 32 HIP Diet Exchange (DEX) Adding Password Authentication Password Augmented Authentication –Provides bootstrap mechanism to add a client to a server –Supports emergency adHoc access EMT access to a Pacemaker Utility field technician to a substation controller Server implicitly invites password Auth –R1 ALWAYS contains a challenge –Initiator encrypts challenge with password and encrypts that in Responder's Public key

33 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 33 HIP Diet Exchange (DEX) Adding Password Authentication Challenge Encryption –Use password as CMAC key MAC nonce from R1 puzzle –RFC 4615 (AES-CMAC-PRF-128) is starting point Encrypting a challenge from R1 prevents replay attacks –R1 cannot be reused if password response is accepted – 'Rogue' Responder attack I cannot tell if R1 came from Responder or attacker unless PKr from another source – Need zero knowledge alternative As in IEEE s SAE

34 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 34 The Importance of Randomness HIP DEX is HIGHLY dependent on good Random numbers – No Hash function typically used in pseudo random number generators – Many underlying assumptions on randomness An analog approach is in Annex H RFC 4615 starting with a REAL random seed

35 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 35 Using HIP DEX for MACsec Use 6lowpan for HIP directly over MAC layer – Sec 5 for fragmentation Develop broadcast/multicast key distribution – Use Group key model ICMP error messages – Remove IP header and run directly over 6lowpan No other considerations Work this out in 6lowpan

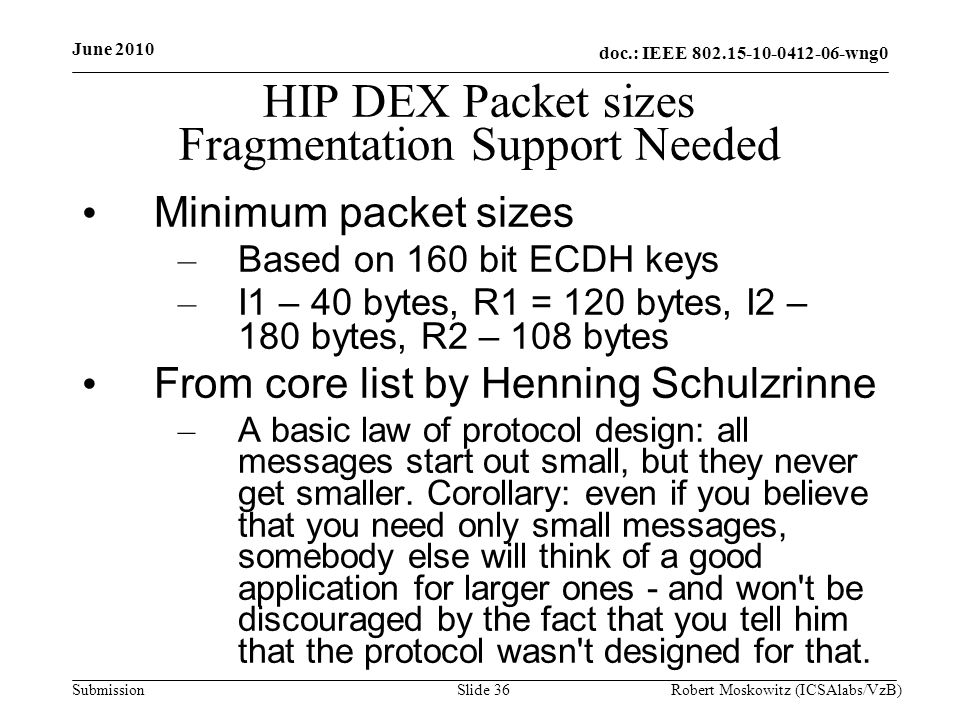

36 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 36 HIP DEX Packet sizes Fragmentation Support Needed Minimum packet sizes – Based on 160 bit ECDH keys – I1 – 40 bytes, R1 = 120 bytes, I2 – 180 bytes, R2 – 108 bytes From core list by Henning Schulzrinne – A basic law of protocol design: all messages start out small, but they never get smaller. Corollary: even if you believe that you need only small messages, somebody else will think of a good application for larger ones - and won't be discouraged by the fact that you tell him that the protocol wasn't designed for that.

37 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 37 Conclusions HIP DEX significantly reduced requirements over HIP BEX Uses established cryptographic functions – Easily analysed Full state machine for all event conditions KMS for both IP and MAC layers – Further coding advantage Performs over lossful networks

38 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 38 Developing HIP DEX Publish HIP DEX Internet Draft – draft-moskowitz-hip-rg-dex-01.txt Present at IETF in Maastricht – To HIP and 6lowpan/core groups – Work with potential implementers/testers Develop Interest Group for Hawaii – Or include in existing work in various Task Groups Or liaison with IETF – 6lowpan, but focused on IP, not MAC security

39 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 39 Using HIP within HIP DEX in – and sensors HIP RFID – draft-irtf-hiprg-rfid-00.txt – f Still to review – Currently copying 'verbatim'

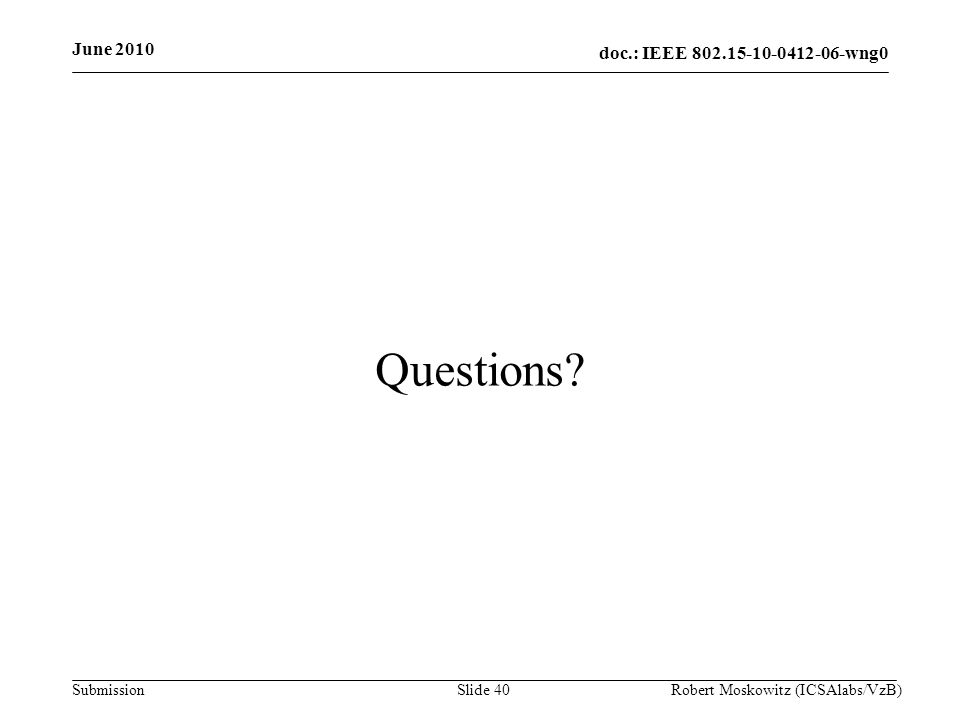

40 doc.: IEEE wng0 Submission June 2010 Robert Moskowitz (ICSAlabs/VzB)Slide 40 Questions?
