1 Firaxis LORE And other uses of D3D11

2 Low Overhead Rendering Engine Or, how I learned to Render 15,000+ batches at 60 FPS

3 Overview Civ 5 is a big game, covers 6000 years of history The entire map can be populated/ polluted with all sorts of things the user creates Need to be able to render a huge amount of possibly disparate types

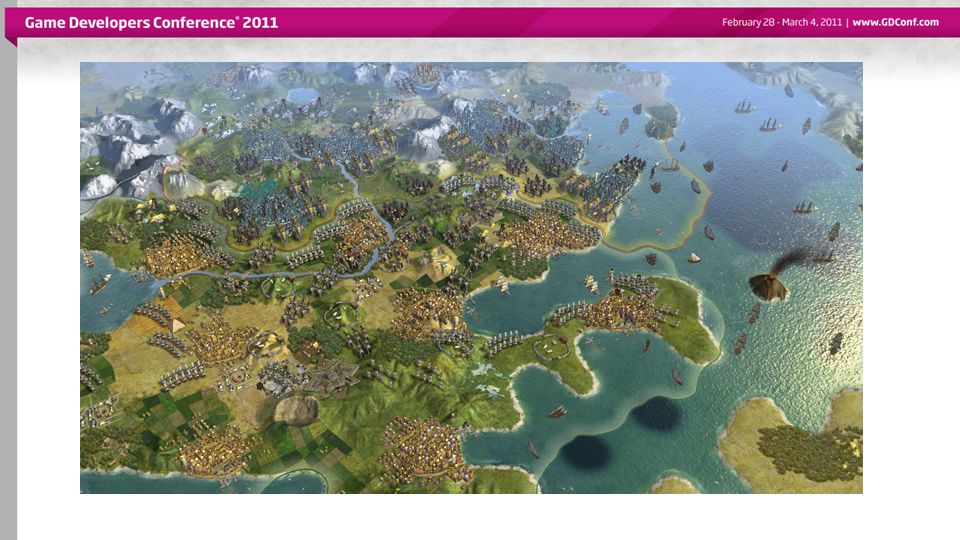

4

5 Early Goals Build brand new Engine for Civilization V Like the game, we wanted graphics engine to be able to stand the test of time Decided while D3D11 was in Alpha to build the engine natively for D3D11 architecture, and map backwards to DX9

6 Step 1: Cutting the overhead down FSL Files CPP / HTemplate Code Compile Time Glue Code Shaders start in Firaxis Shading Language (FSL) superset of HLSL Compiles into CPP and Header file – all shader constants are mapped to structs, grouped into packages where all packages have same bindings Model Code is templated – FSL generated header is then bound with template code Result is tiny amount of code that fills out required shading, barely shows up on profiling

7 Step 2: Abstracting the Rendering Still have to Support DX9, might have to support consoles in future Might have to write a driver Our solution: Make DX9 look like DX11 Started with as a restricted design as possible, and expanded as we needed to

8 Packetized Rendering Stateless rendering, much simpler then D3D Command based – all rendering is performed by self contained command A command set may contain a list of surfaces to render, each with shader constant payload A surface is an immutable bundle of an IB, VB, textures, shader def, etc All state is bundled into a packages Alpha State, Z State, etc. Commands reference one of these state packages Entire Frame is queued up Minimal per frame allocation

9 Only 5 Types of commands COMMAND_RENDER_BATCHES – A List of surfaces to render into 1 or more rendertargets, with alpha and Zstate bundles – Surfaces have IB, VB, sampler and texture bundles. All required state is specified COMMAND_GENERATE_MIPS COMMAND_RESOLVE_RENDERTEXTURE COMMAND_COPY_RENDERTEXTURE COMMAND_COPY_RESOURCE

10 Packetized Rendering Command Stream Rendering System Command Stream Rendering Engine D3D/Driver

11 Step 3: Threading Command Stream Job Job Manager Job Rendering System

12 Why do we queue up entire Frame? Would seem like additional overhead, but perf analysis shows it is a net win – Internal command setup is super-cheap, just some mem copies – Engine cache coherency is vastly better – D3D driver cache coherency is much better with one giant dump – Very low % of total CPU time spent in submission – Allows us to filter redundant D3D calls. Call overhead adds up – Fast even in DX9

13 Implementation advantages Once stateless concept grasped, code maintaince easy Next to no state-leaking (flickering alpha, textures etc) Because rendering is packetized, individual jobs need little or no communication between each other NO THREADING BUGS

14 Threaded D3D11 submission Top issues: – Generally High driver overhead for batch submission – But: D3D11 has multithreaded submission – Command Streams not necessarily map 1:1 to CommandLists – Civilization V can change how it submits via settings the config files

15 Step 4: Gloating over results Wildly surpassed commonly held beliefs on # of batches possible, especially with threading TestDriver with native CL supportDriver without CL support Units1686*931 Landmarks1152*673 Lategame3616*2052 *Believed to be GPU limited

16

17 Conclusions High throughput rendering is possible: IF: – care taken to reduce application overhead – Job based, pay-load based rendering – Redundant state and calls filtered – Use D3D11 command lists – Engine can peg 12 threads at 97% (sans driver)

18 D3D11 Features: Tessellation Major addition to D3D11 API [Screenshot]

19 Terrain Civ5 contains one of the most complex terrain systems ever made Complete procedural process Use GPU to raytrace and anti-alias shadows Caching system to deal with cases where terrain is too big

20 Tessellation Terrain very high detail, roughly 64x64 heightmap data per hex Triangle count, when zoomed out, can be in the millions Used Tessellation as a drop-in

21 Tessellation Cont Simple Bicupic Beta Spline patches Adjusted global tessellation as camera moved in and out A strict performance increase : 10%-40% faster, on both AMD and Nvidia hardware. More Adapative techinques would work even better, but didnt have time to implement them

22 Leaders

23 Leader Rendering Largely done with DX10.1 rendering tech New Variable bit rate compression technology implemented for D3D GBs of texture data reduced to 150mbs, can be decompressed on the GPU Details forthcoming, research is in publication submission process – extensive use of UAVs

24 Future Stuff, NO AO

25 Future Stuff (CS), AO

26 Q&A
