H OW TO CREATE A PARTS LIST IN INVENTOR Mr.Ruley
T HE INVENTOR SHEET READY FOR A PARTS LIST AND VIEW
P LACING THE IPN FILE Click on base to place view Click and find the IPN File you want to use
E DITING THE IPN Edit scale if needed Edit view if needed
T HE INVENTOR SHEET READY FOR A PARTS LIST Go to the annotate Tab Click on the create part List icon The dialog box will come up. Make sure you placed Item is selected.
T HE INVENTOR SHEET READY FOR A PARTS LIST Parts list will Generate. Place in a Good location.

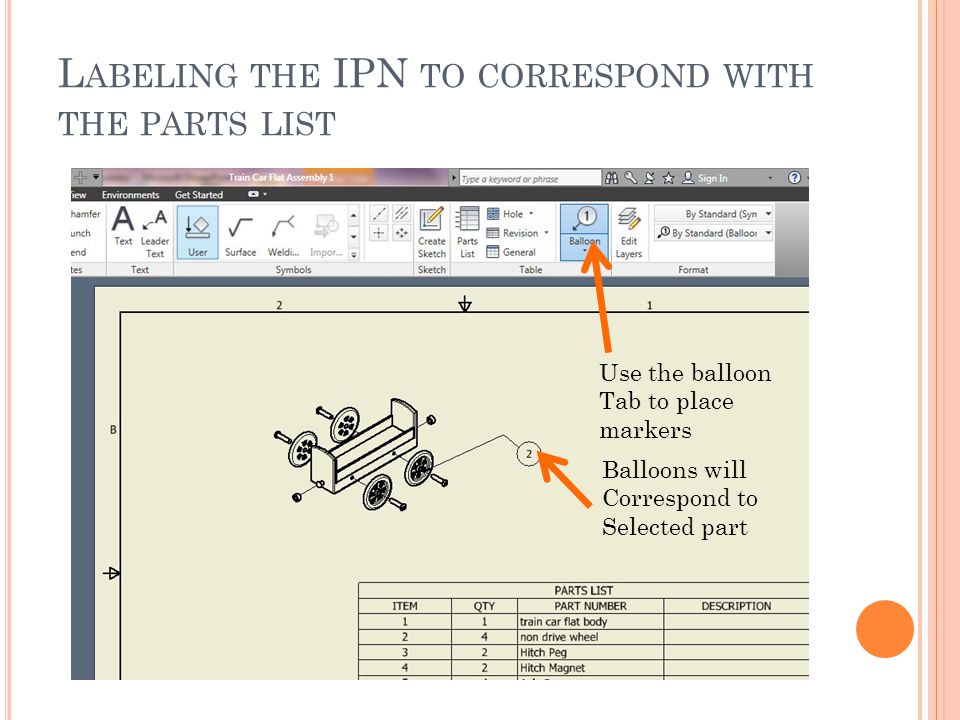

L ABELING THE IPN TO CORRESPOND WITH THE PARTS LIST Use the balloon Tab to place markers Balloons will Correspond to Selected part
