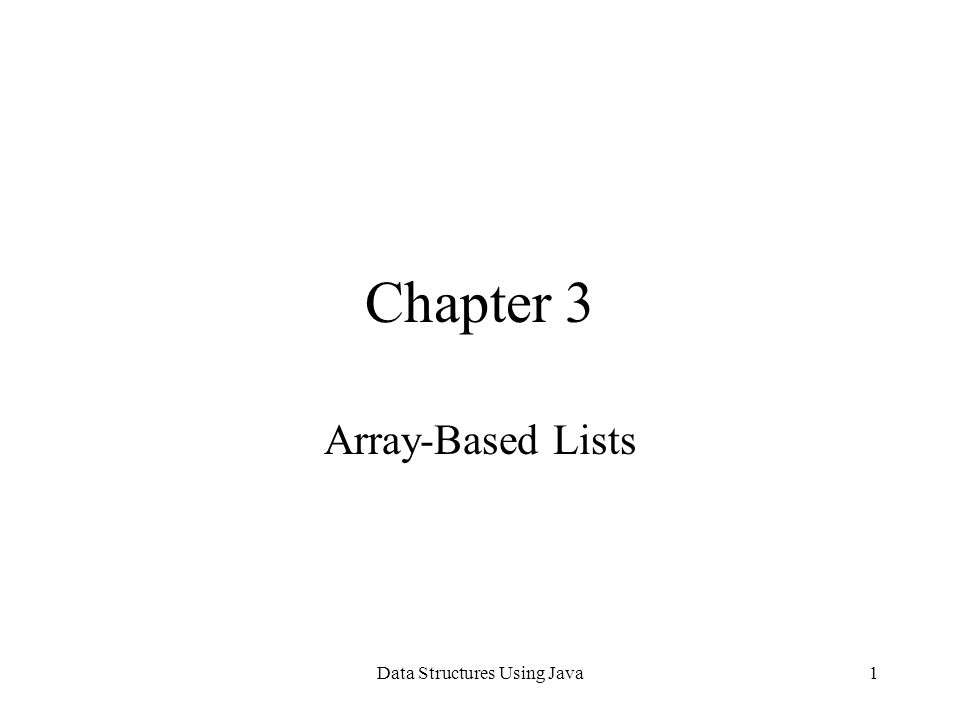

1. Data Structures Using Java1 Chapter 3 Array-Based Lists

2. Data Structures Using Java2 Chapter Objectives Learn about lists Explore how various operations, such as search, insert, and remove, on lists are implemented Learn how to design and implement a generic class to process various types of lists Become aware of the class Vector

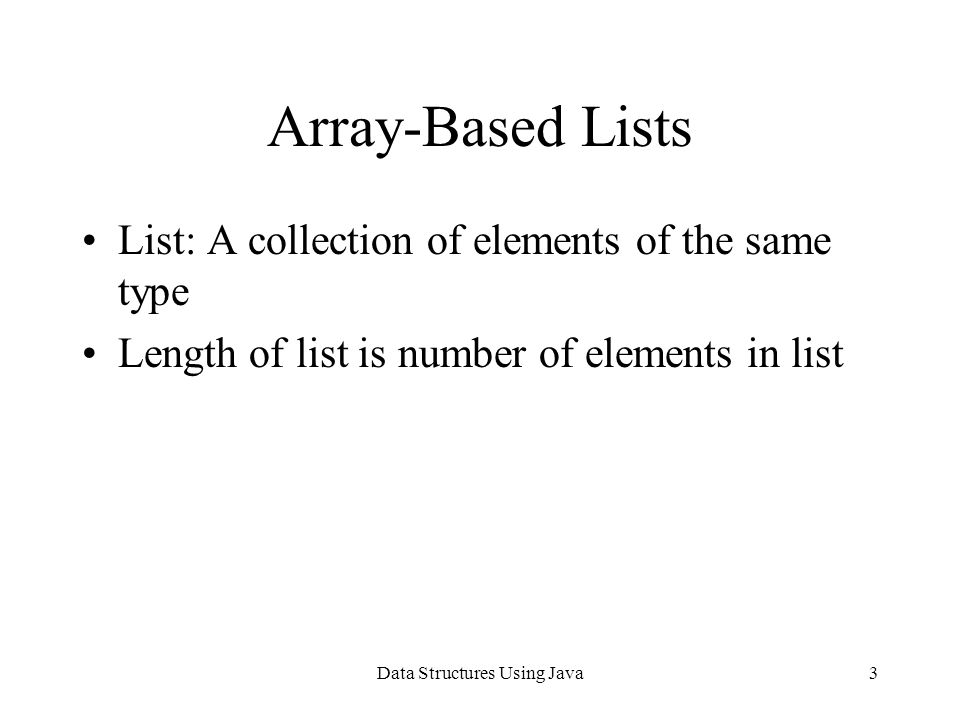

3. Data Structures Using Java3 Array-Based Lists List: A collection of elements of the same type Length of list is number of elements in list

4. Data Structures Using Java4 Operations Performed on a List Create the list: initialize to an empty state Determine whether the list is empty Determine whether the list is full Find the size of the list Destroy (clear) the list Determine whether an item is the same as a given list element

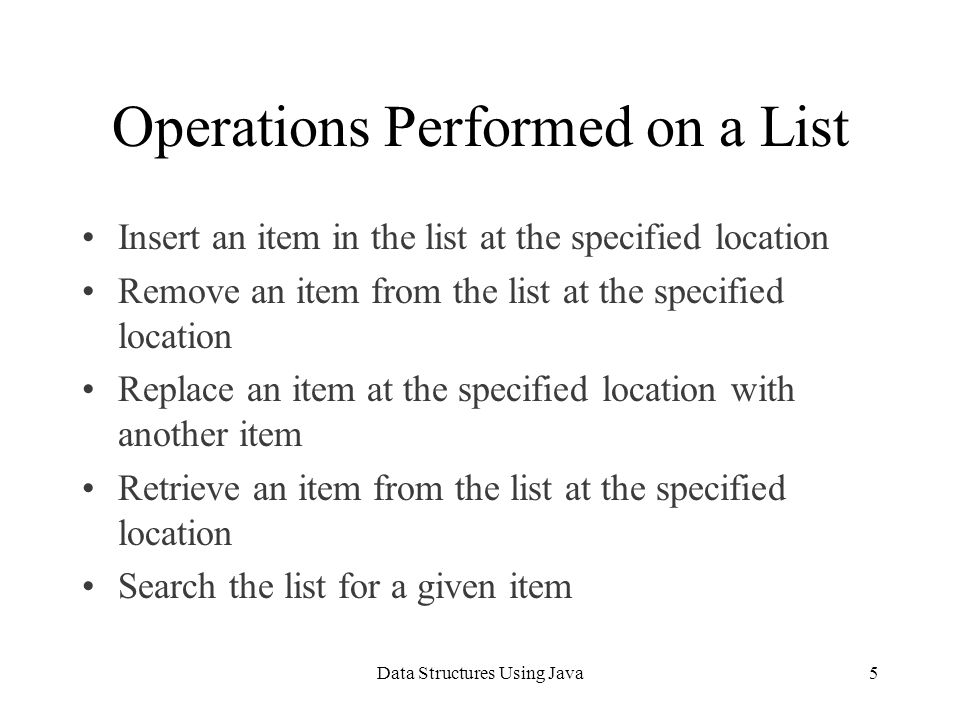

5. Data Structures Using Java5 Operations Performed on a List Insert an item in the list at the specified location Remove an item from the list at the specified location Replace an item at the specified location with another item Retrieve an item from the list at the specified location Search the list for a given item

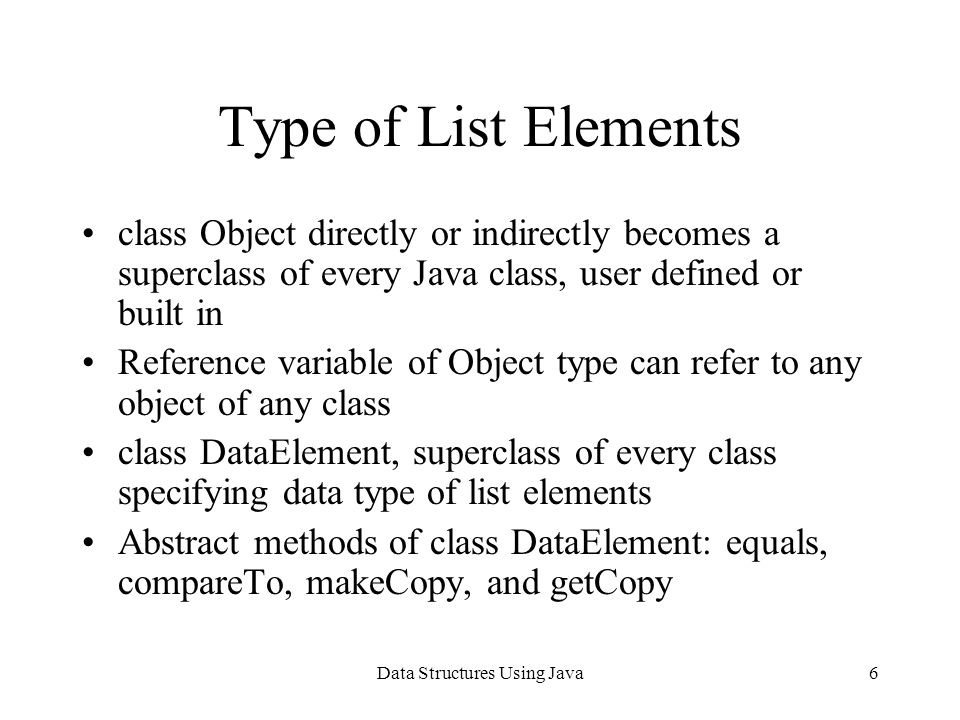

6. Data Structures Using Java6 Type of List Elements class Object directly or indirectly becomes a superclass of every Java class, user defined or built in Reference variable of Object type can refer to any object of any class class DataElement, superclass of every class specifying data type of list elements Abstract methods of class DataElement: equals, compareTo, makeCopy, and getCopy

7. Data Structures Using Java7 Type of List Elements

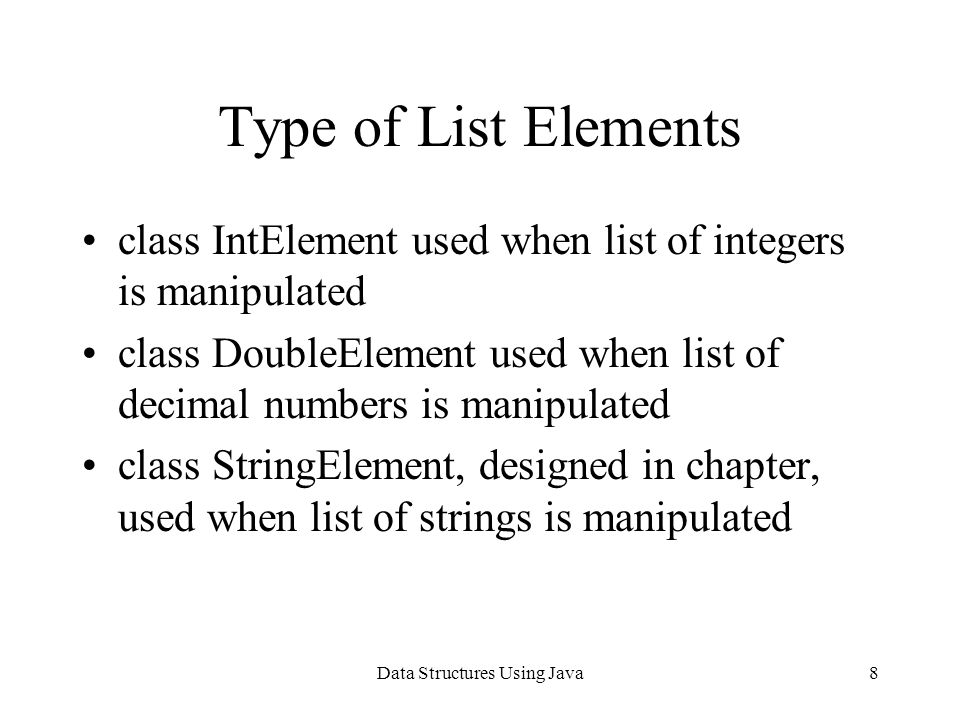

8. Data Structures Using Java8 Type of List Elements class IntElement used when list of integers is manipulated class DoubleElement used when list of decimal numbers is manipulated class StringElement, designed in chapter, used when list of strings is manipulated

9. Data Structures Using Java9 class IntElement

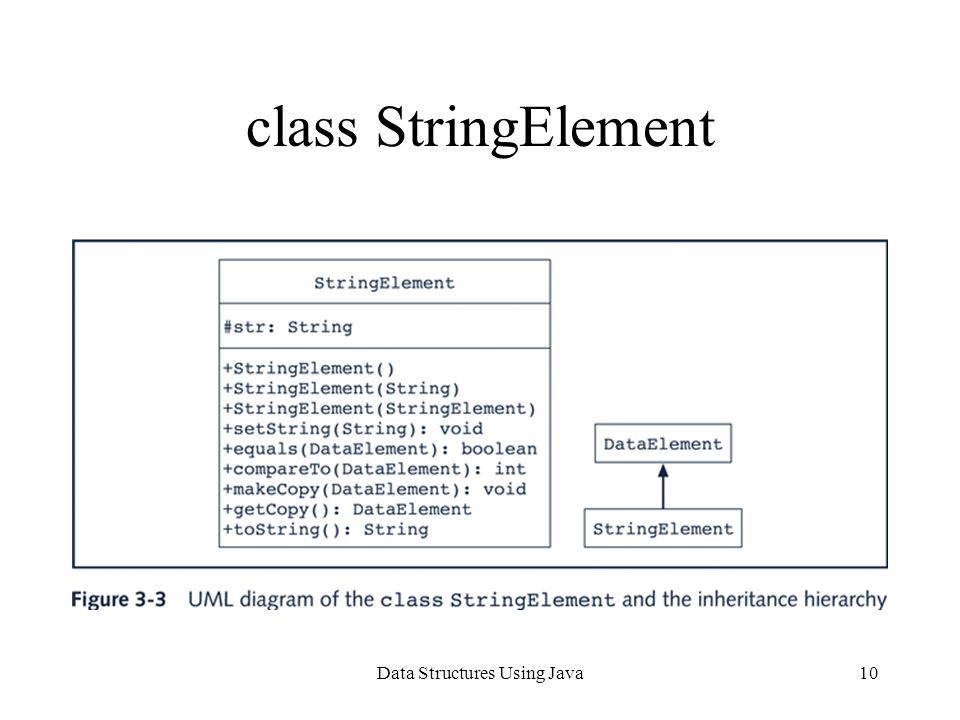

10. Data Structures Using Java10 class StringElement

11. Data Structures Using Java11 class ArrayListClass An abstract class Is superclass of the classes that implement a list Has three instance variables –length: specifies the number of elements currently in the list –maxSize: specifies the maximum number of elements that can be processed by the list –list: an array of reference variables

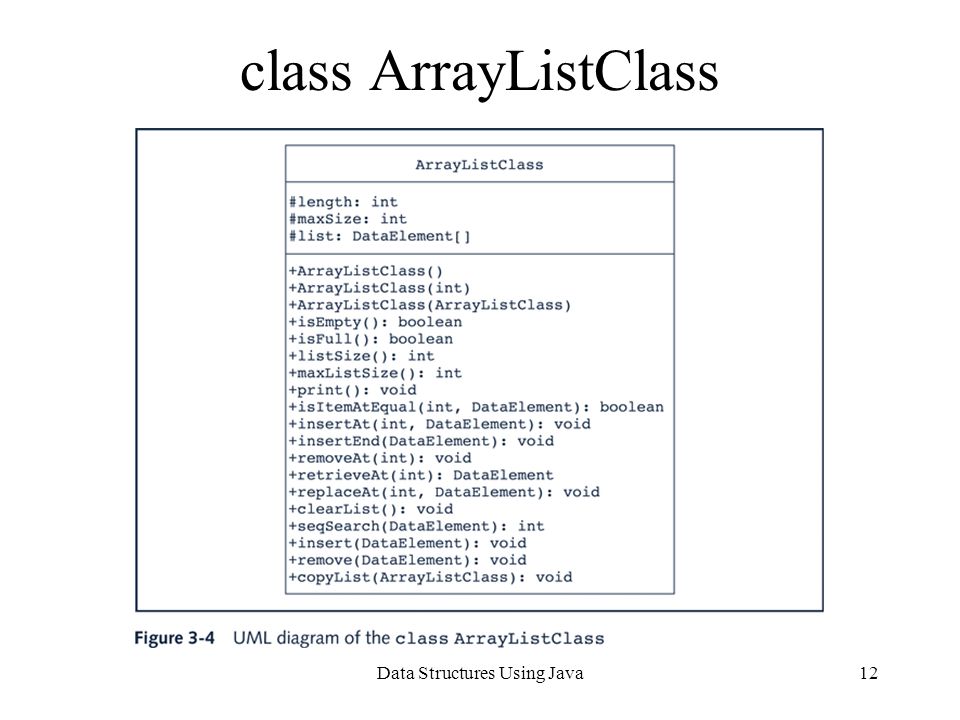

12. Data Structures Using Java12 class ArrayListClass

13. Data Structures Using Java13 Definitions of Nonabstract Methods of ArrayListClass public boolean isEmpty() { return (length == 0); } public boolean isFull() { return (length == maxSize); } public int listSize() { return length; } public int maxListSize() { return maxSize; }

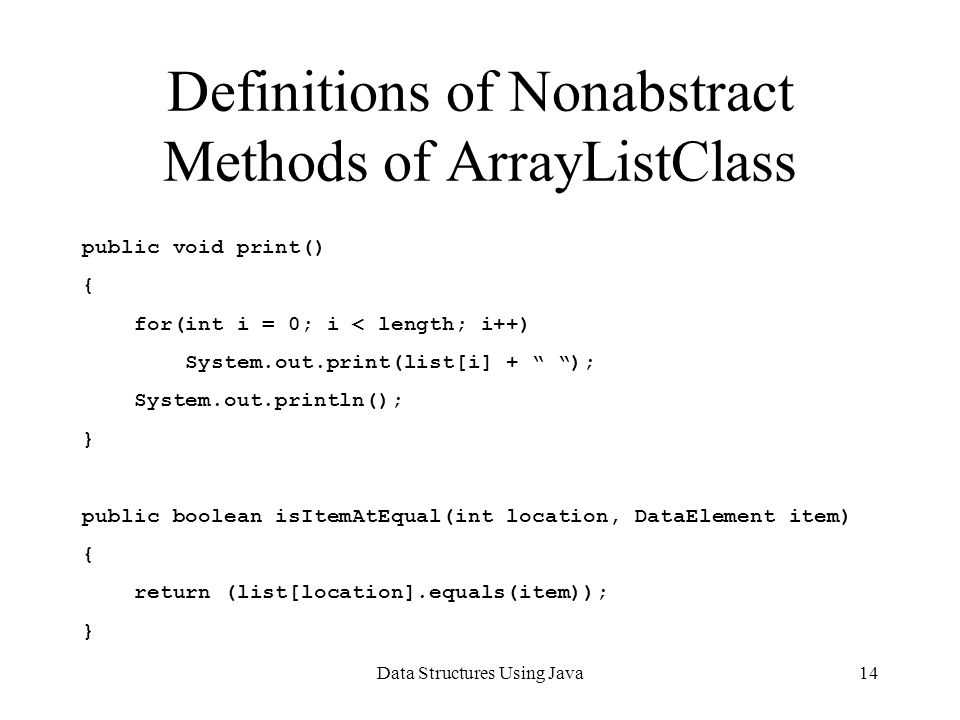

14. Data Structures Using Java14 Definitions of Nonabstract Methods of ArrayListClass public void print() { for(int i = 0; i < length; i++) System.out.print(list[i] + ); System.out.println(); } public boolean isItemAtEqual(int location, DataElement item) { return (list[location].equals(item)); }

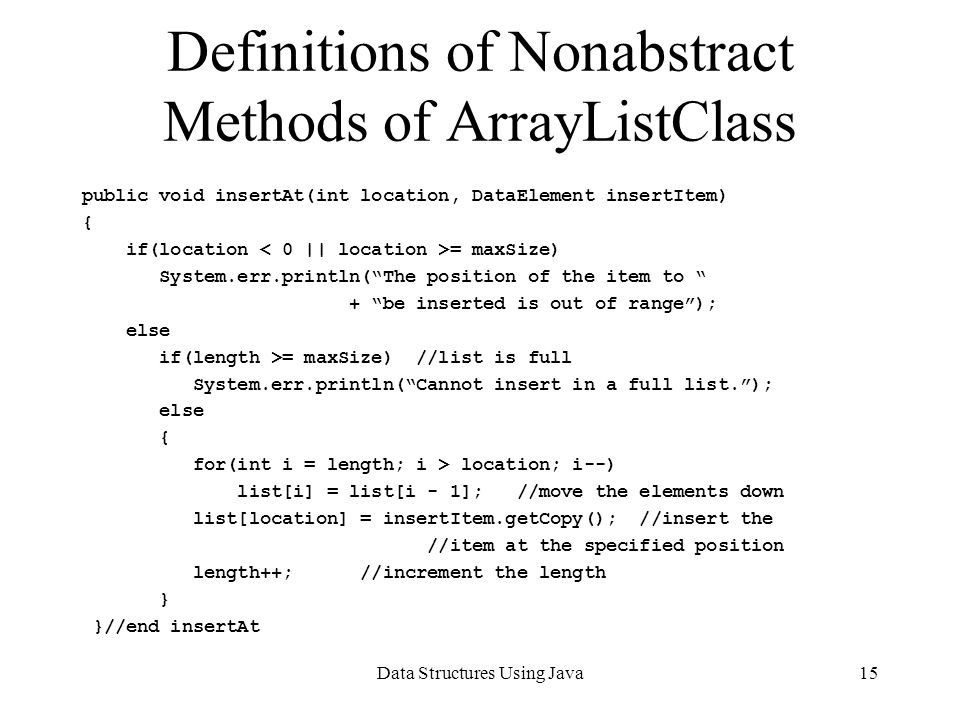

15. Data Structures Using Java15 Definitions of Nonabstract Methods of ArrayListClass public void insertAt(int location, DataElement insertItem) { if(location = maxSize) System.err.println(The position of the item to + be inserted is out of range); else if(length >= maxSize) //list is full System.err.println(Cannot insert in a full list.); else { for(int i = length; i > location; i--) list[i] = list[i - 1]; //move the elements down list[location] = insertItem.getCopy(); //insert the //item at the specified position length++; //increment the length } }//end insertAt

16. Data Structures Using Java16 Definitions of Nonabstract Methods of ArrayListClass public void insertEnd(DataElement insertItem) { if(length >= maxSize) //the list is full System.err.println(Cannot insert in a full list.); else { list[length] = insertItem.getCopy(); //insert item //at end length++; //increment the length } }//end insertEnd

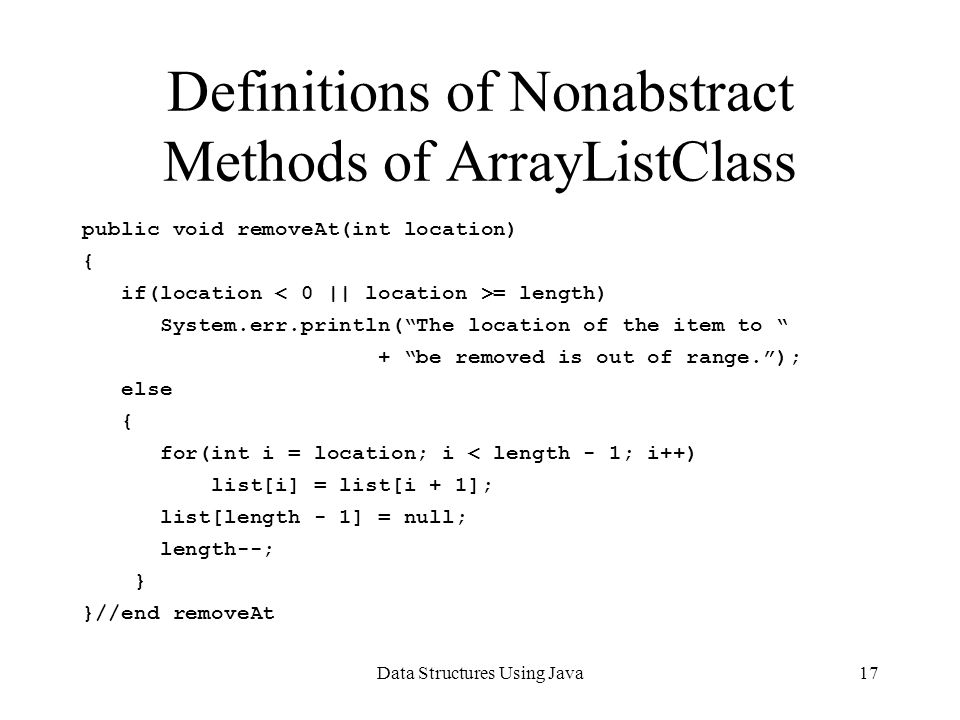

17. Data Structures Using Java17 Definitions of Nonabstract Methods of ArrayListClass public void removeAt(int location) { if(location = length) System.err.println(The location of the item to + be removed is out of range.); else { for(int i = location; i < length - 1; i++) list[i] = list[i + 1]; list[length - 1] = null; length--; } }//end removeAt

18. Data Structures Using Java18 Definitions of Nonabstract Methods of ArrayListClass public DataElement retrieveAt(int location) { if(location = length) { System.err.println("The location of the item to be " + "retrieved is out of range."); return null; } else return list[location].getCopy(); }//end retrieveAt

19. Data Structures Using Java19 Definitions of Nonabstract Methods of ArrayListClass public void replaceAt(int location, DataElement repItem) { if(location = length) System.err.println(The location of the item to + be replaced is out of range.); else list[location].makeCopy(repItem); }//end replaceAt public void clearList() { for(int i = 0; i < length; i++) list[i] = null; length = 0; System.gc(); }//end clearList

20. Data Structures Using Java20 Definition of ArrayListClass public abstract class ArrayListClass { protected int length; //to store the length //of the list protected int maxSize; //to store the maximum //size of the list protected DataElement[] list; //array to hold //list elements //Place the definitions of the instance // methods and abstract methods here. }

21. Data Structures Using Java21 Unordered List class UnorderedArrayList is a subclass of the class ArrayListClass Elements are not necessarily sorted class UnorderedList implements operations search, insert, and remove

22. Data Structures Using Java22 class UnorderedArrayList

23. Data Structures Using Java23 Search Necessary components to search a list: –Array containing the list –Length of the list –Item for which you are searching After search completed: –If item found, report success, return location in array –If item not found, report failure

24. Data Structures Using Java24 Search public int seqSearch(DataElement searchItem) { int loc; boolean found = false; for(loc = 0; loc < length; loc++) if(list[loc].equals(searchItem)) { found = true; break; } if(found) return loc; else return -1; }//end seqSearch

25. Data Structures Using Java25 Insert and Remove Insert –Inserts a new item in the list –Uses method seqSearch to determine whether insertItem is already in list Remove –deletes an item from the list –uses the methods seqSearch and removeAt to remove an item from the list

26. Data Structures Using Java26 Insert public void insert(DataElement insertItem) { int loc; if(length == 0) //list is empty list[length++] = insertItem; //insert the item and //increment the length else if(length == maxSize) System.err.println(Cannot insert in a full list.); else { loc = seqSearch(insertItem); if(loc == -1) //the item to be inserted //does not exist in the list list[length++] = insertItem.getCopy(); else System.err.println(The item to be inserted is + already in the list. No + duplicates are allowed.); } }//end insert

27. Data Structures Using Java27 Remove public void remove(DataElement removeItem) { int loc; if(length == 0) System.err.println(Cannot delete from an empty list.); else { loc = seqSearch(removeItem); if(loc != -1) removeAt(loc); else System.out.println(The item to be deleted is + not in the list.); } }//end remove

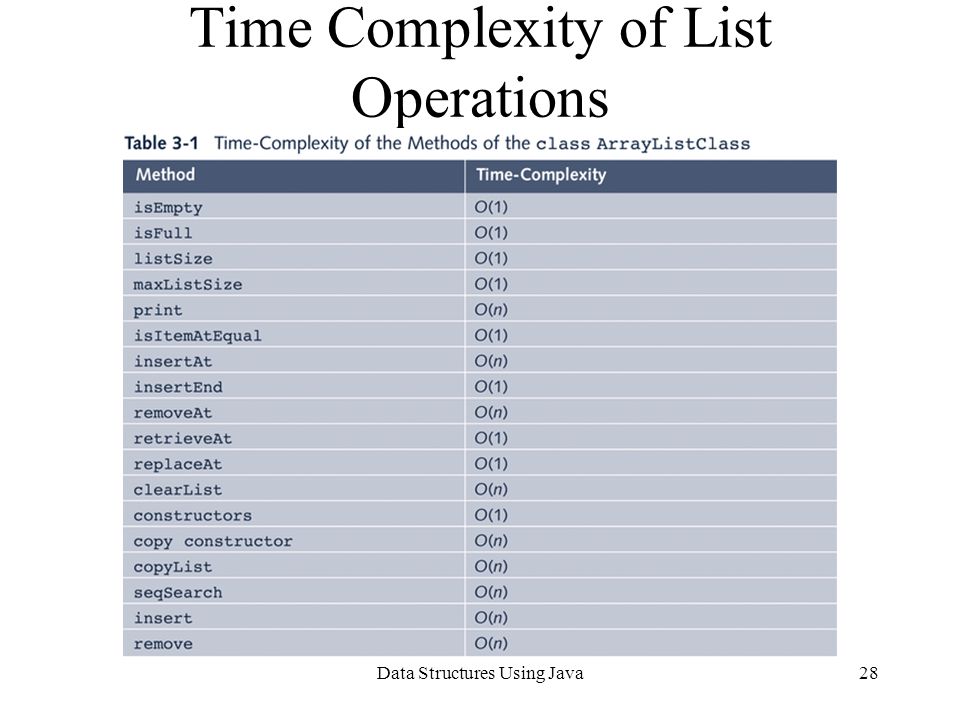

28. Data Structures Using Java28 Time Complexity of List Operations

29. Data Structures Using Java29 Vectors Class Vector can be used to implement a list Unlike array, size of Vector object can grow/shrink during program execution Do not need to worry about number of data elements in vector

30. Data Structures Using Java30 Members of the class Vector protected int elementCount; protected Object[] elementData; public Vector() public Vector (int size) public void addElement (Object insertObj) public void insertElementAt (Object insertObj, int index) public Object clone ( ) public boolean contains (Object obj)

31. Data Structures Using Java31 Members of the class Vector public void copyInto (Object[] dest) public Object elementAt (int index) public Object firstElement () public Object lastElement () public int indexOf (Object obj) public int indexOf (Object obj, int index) public boolean isEmpty () public int lastIndexOf (Object obj)

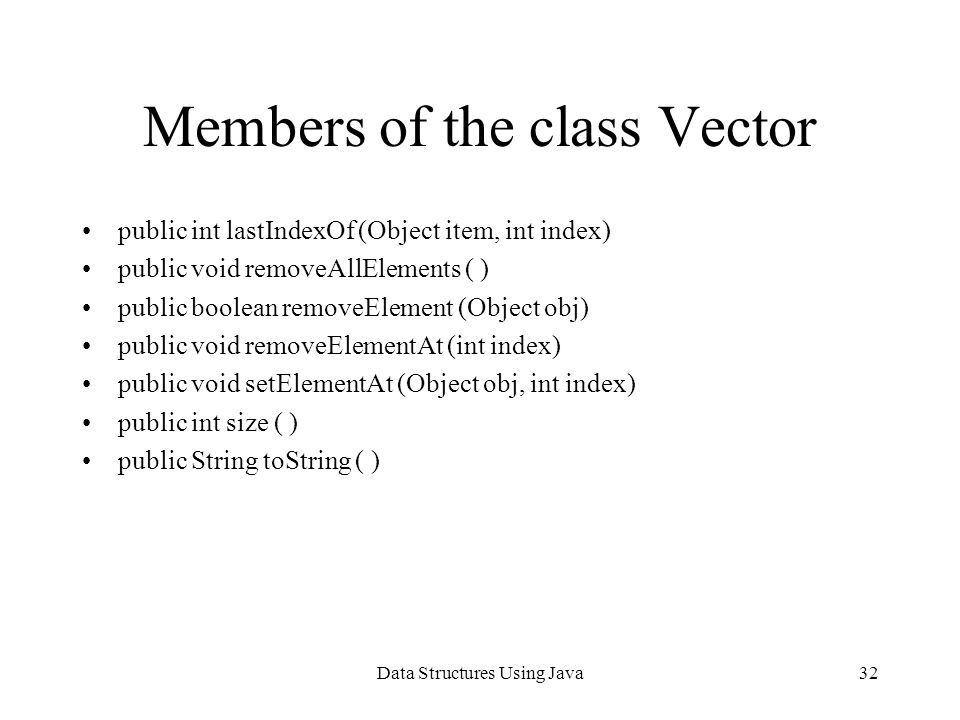

32. Data Structures Using Java32 Members of the class Vector public int lastIndexOf (Object item, int index) public void removeAllElements ( ) public boolean removeElement (Object obj) public void removeElementAt (int index) public void setElementAt (Object obj, int index) public int size ( ) public String toString ( )

33. Data Structures Using Java33 Vectors Every element of Vector object is reference variable of type Object To add element into Vector object –Create appropriate object –Store data into object –Store address of object holding data into Vector object element

34. Data Structures Using Java34 Vector StringList stringList.addElement(Spring); stringList.addElement(Summer); stringList.addElement(Fall); stringList.addElement(Winter);

35. Data Structures Using Java35 Vector StringList stringList.addElement(Cool, 1);

36. Data Structures Using Java36 Programming Example: Polynomials Purpose: To design and implement the class Polynomial to perform various polynomial operations in a program Program implements the following polynomial operations: 1. Evaluate a polynomial at a given value 2. Add polynomials 3. Subtract polynomials 4. Multiply polynomials

37. Data Structures Using Java37 Programming Example: Polynomials

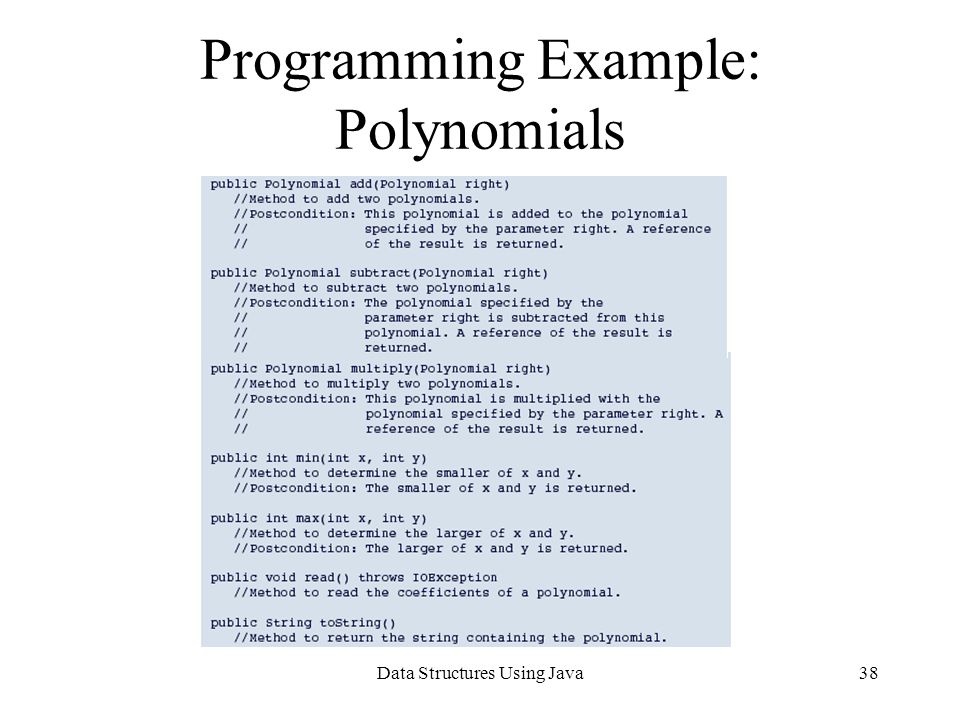

38. Data Structures Using Java38 Programming Example: Polynomials

39. Data Structures Using Java39 Chapter Summary Operations performed on a list Type of list elements Abstract class DataElement Classes IntElement, DoubleElement, StringElement class ArrayListClass –Definitions of Nonabstract Methods of ArrayListClass –Definition of ArrayListClass

40. Data Structures Using Java40 Chapter Summary Unordered List Class UnorderedArrayList –Implementations of search, insert and remove Time Complexity of List Operations Vectors –Members of the class Vector Programming examples
