1 Renewable Energy Pricing

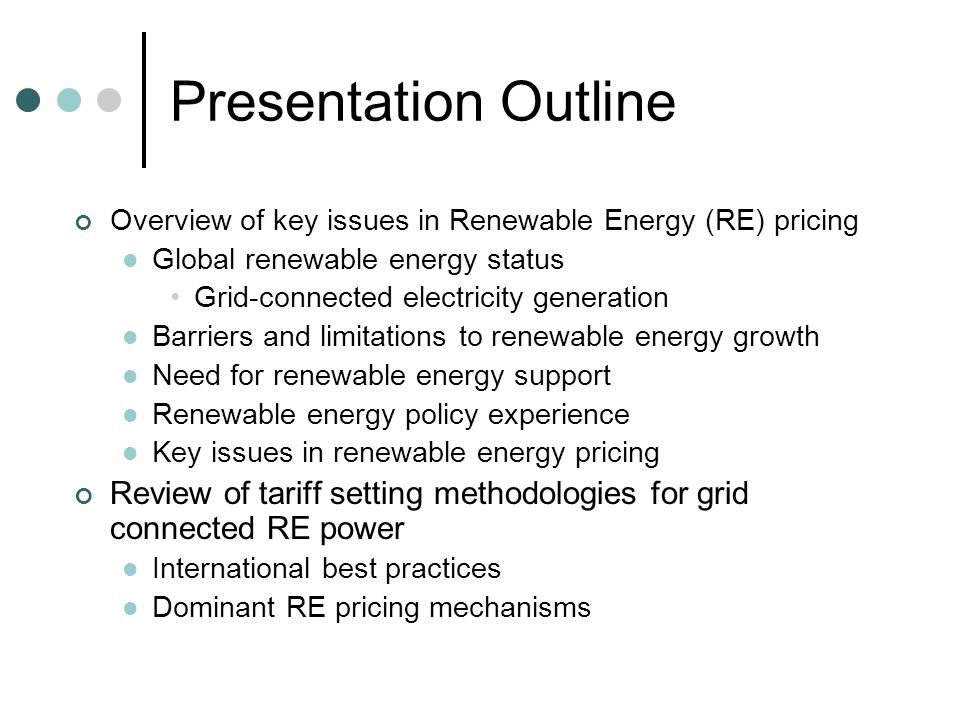

2 Presentation Outline Overview of key issues in Renewable Energy (RE) pricing Global renewable energy status Grid-connected electricity generation Barriers and limitations to renewable energy growth Need for renewable energy support Renewable energy policy experience Key issues in renewable energy pricing Review of tariff setting methodologies for grid connected RE power International best practices Dominant RE pricing mechanisms

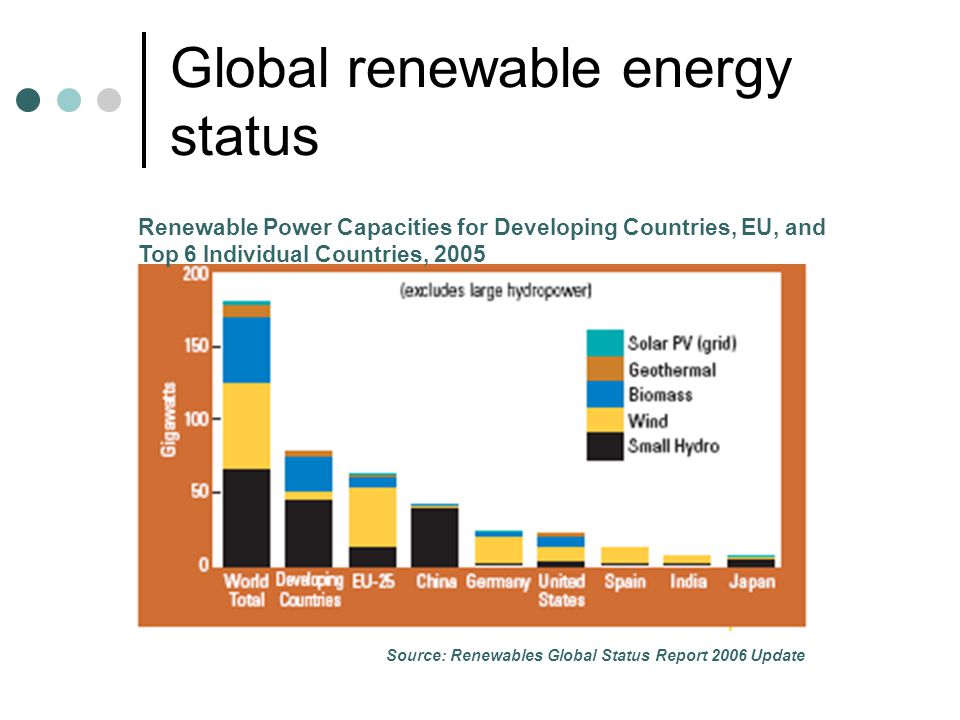

3 Global renewable energy status Renewable Power Capacities for Developing Countries, EU, and Top 6 Individual Countries, 2005 Source: Renewables Global Status Report 2006 Update

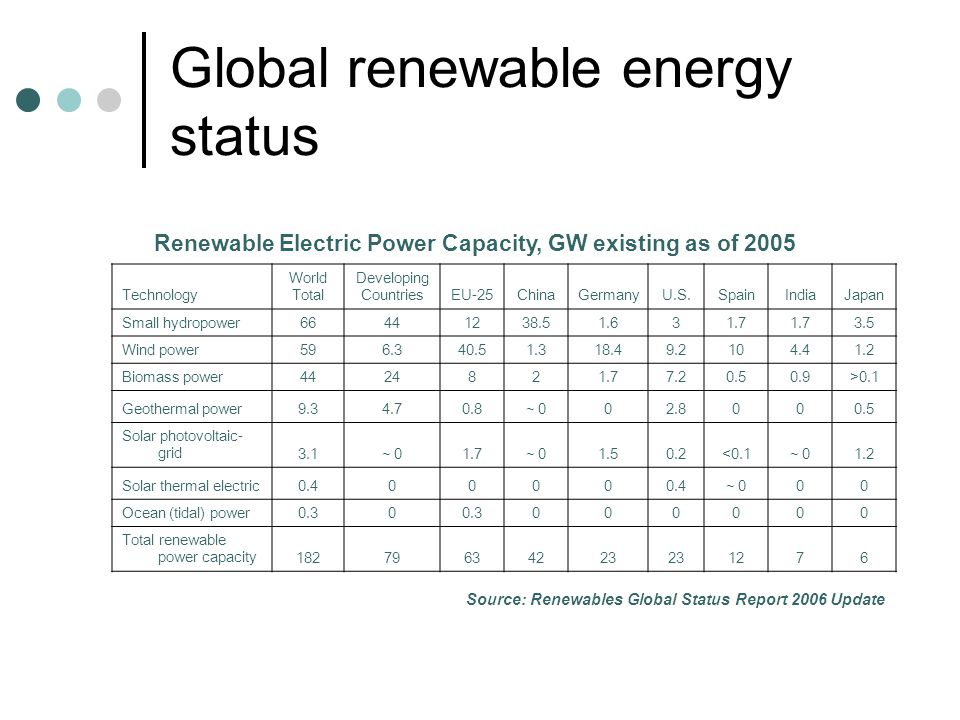

4 Global renewable energy status Technology World Total Developing CountriesEU-25ChinaGermanyU.S.SpainIndiaJapan Small hydropower Wind power Biomass power >0.1 Geothermal power ~ Solar photovoltaic- grid3.1~ 01.7~ <0.1~ 01.2 Solar thermal electric ~ 000 Ocean (tidal) power Total renewable power capacity Renewable Electric Power Capacity, GW existing as of 2005 Source: Renewables Global Status Report 2006 Update

5 Global renewable energy status Cumulative Number of Countries/States/Provinces Enacting Feed-in Policies Source: Renewables Global Status Report 2006 Update

6 Barriers and limitations to renewable energy growth Economical and Technological Market Related Institutional Barriers Investment costs, technology maturity level, etc Electricity pricing, unbundling and restructuring, power purchase structure, etc Nature and allocation of incentives, availability of finance, etc

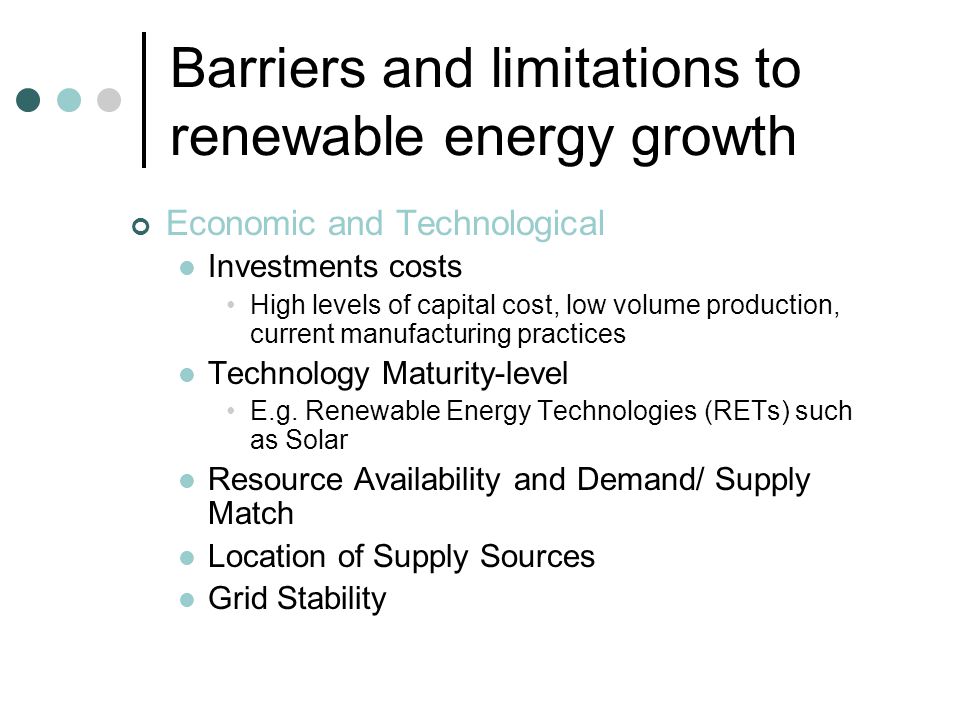

7 Barriers and limitations to renewable energy growth Economic and Technological Investments costs High levels of capital cost, low volume production, current manufacturing practices Technology Maturity-level E.g. Renewable Energy Technologies (RETs) such as Solar Resource Availability and Demand/ Supply Match Location of Supply Sources Grid Stability

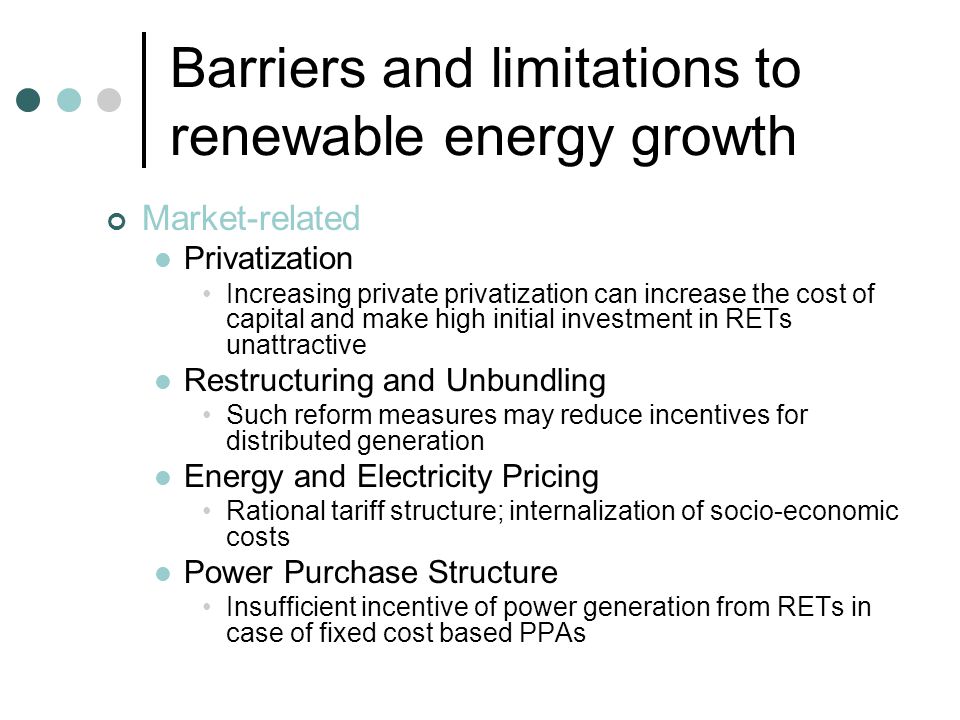

8 Barriers and limitations to renewable energy growth Market-related Privatization Increasing private privatization can increase the cost of capital and make high initial investment in RETs unattractive Restructuring and Unbundling Such reform measures may reduce incentives for distributed generation Energy and Electricity Pricing Rational tariff structure; internalization of socio-economic costs Power Purchase Structure Insufficient incentive of power generation from RETs in case of fixed cost based PPAs

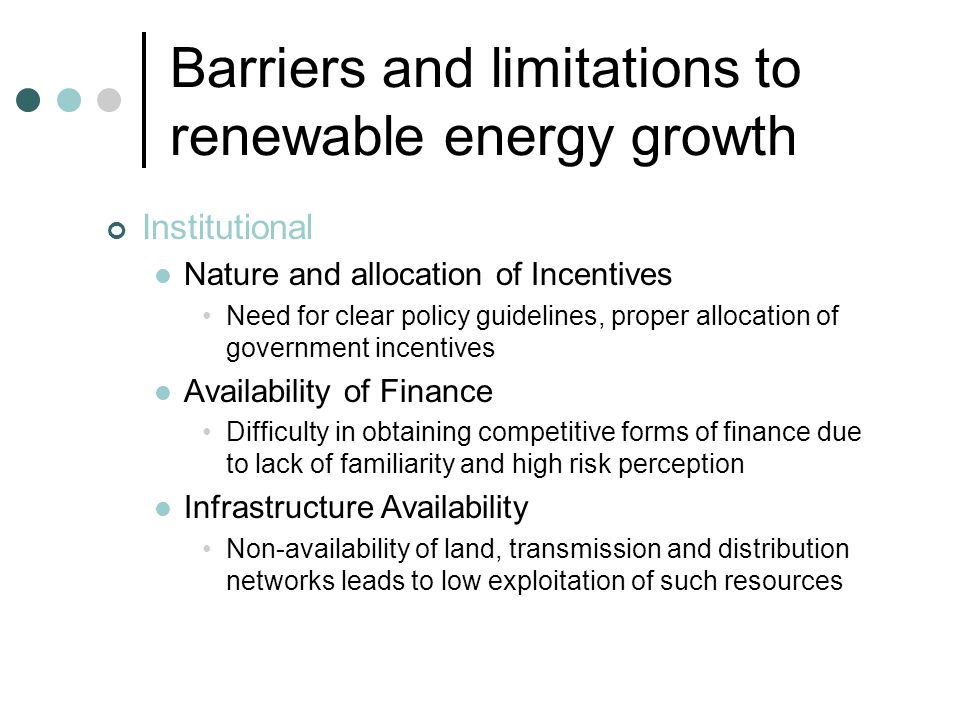

9 Barriers and limitations to renewable energy growth Institutional Nature and allocation of Incentives Need for clear policy guidelines, proper allocation of government incentives Availability of Finance Difficulty in obtaining competitive forms of finance due to lack of familiarity and high risk perception Infrastructure Availability Non-availability of land, transmission and distribution networks leads to low exploitation of such resources

10 Need for renewable energy support Regulatory and Policy Intervention Pricing of power generated from renewable energy sources Intermittent nature of electricity from wind and small hydropower Restrictions on siting and access to grid Lack of access to credit

11 Renewable energy policy experience Feed-in Tariffs (E.g. Germany, Denmark) A minimum guaranteed price per unit of produced electricity to be paid to the producer; it is a premium that is paid in excess of the market price for electricity Renewable Energy Obligation/ Renewable Portfolio Standard (E.g. UK, Texas) This is an obligation on licensed suppliers to supply a specified proportion of their electricity supplies to their customers from renewable sources of energy Renewable Energy Credits Tendering System Other Fiscal Incentives and Subsidies (Germany, Thailand, China) Production Tax Credits, Investment Tax Credits

12 Key issues in renewable energy pricing Characteristics of Renewable Energy Plants Small size (installed capacity) Large in number Dispersed High Initial Capital Costs Intermittency and Grid Interconnection Is it possible to integrate small RE power plants into the system despatch schedule? Problems of ensuring grid discipline Who (the developer or power purchaser or the transmission/distribution company) should bear the cost of evacuation facility up to the nearest receiving sub-station?

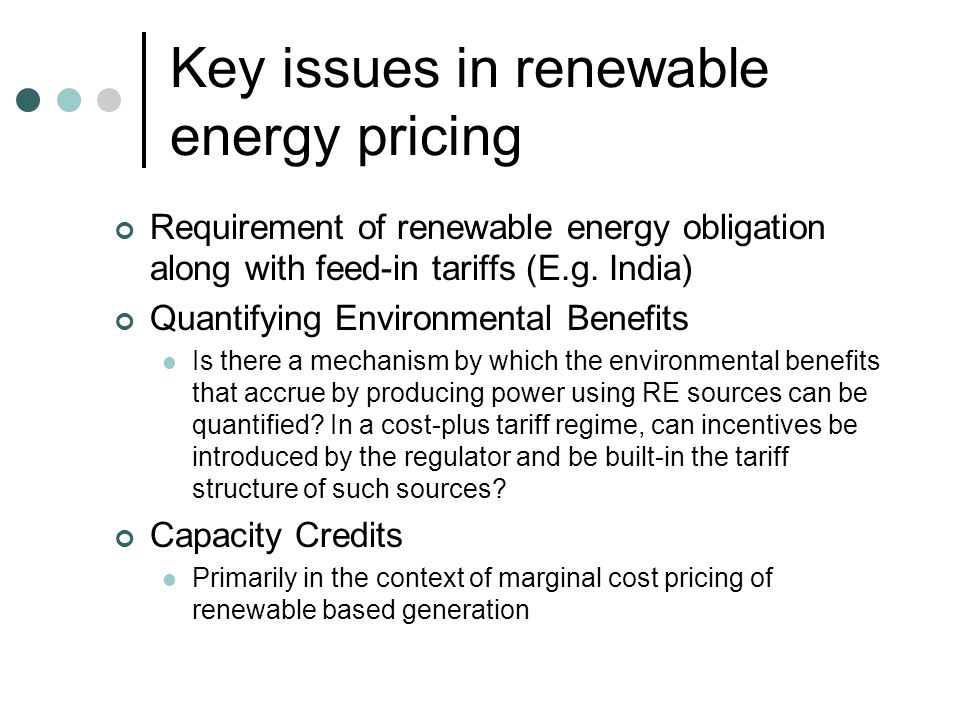

13 Key issues in renewable energy pricing Requirement of renewable energy obligation along with feed-in tariffs (E.g. India) Quantifying Environmental Benefits Is there a mechanism by which the environmental benefits that accrue by producing power using RE sources can be quantified? In a cost-plus tariff regime, can incentives be introduced by the regulator and be built-in the tariff structure of such sources? Capacity Credits Primarily in the context of marginal cost pricing of renewable based generation

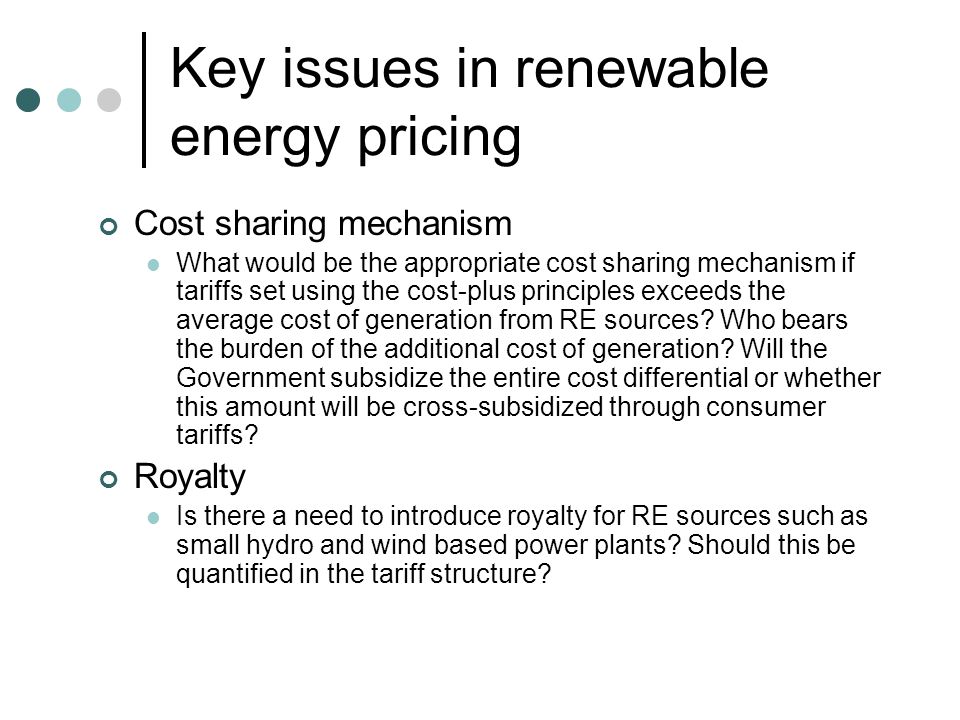

14 Key issues in renewable energy pricing Cost sharing mechanism What would be the appropriate cost sharing mechanism if tariffs set using the cost-plus principles exceeds the average cost of generation from RE sources? Who bears the burden of the additional cost of generation? Will the Government subsidize the entire cost differential or whether this amount will be cross-subsidized through consumer tariffs? Royalty Is there a need to introduce royalty for RE sources such as small hydro and wind based power plants? Should this be quantified in the tariff structure?

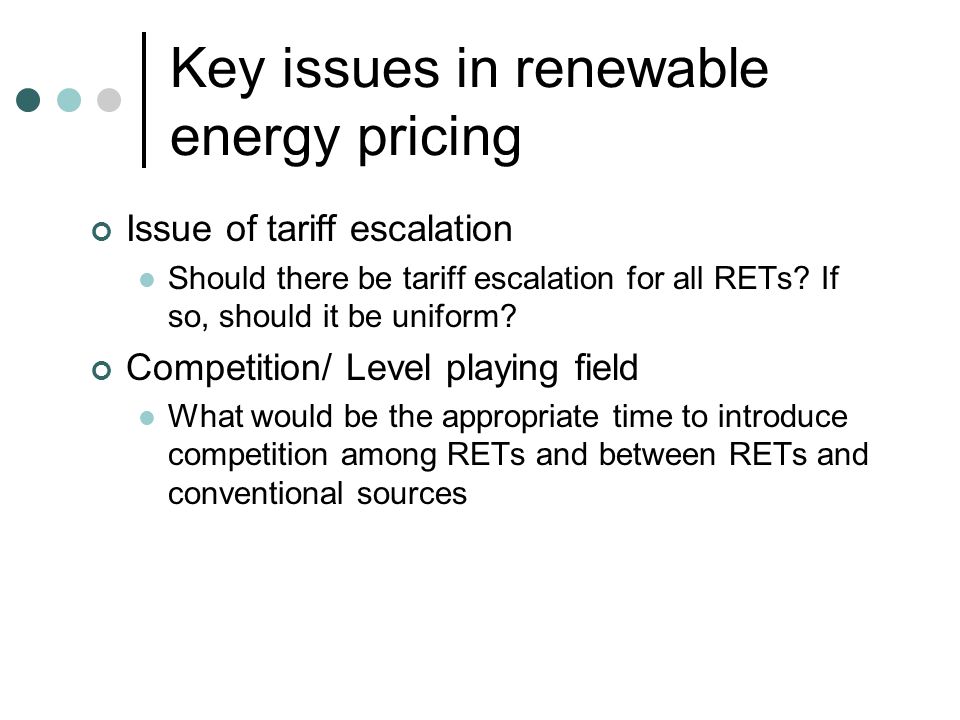

15 Key issues in renewable energy pricing Issue of tariff escalation Should there be tariff escalation for all RETs? If so, should it be uniform? Competition/ Level playing field What would be the appropriate time to introduce competition among RETs and between RETs and conventional sources

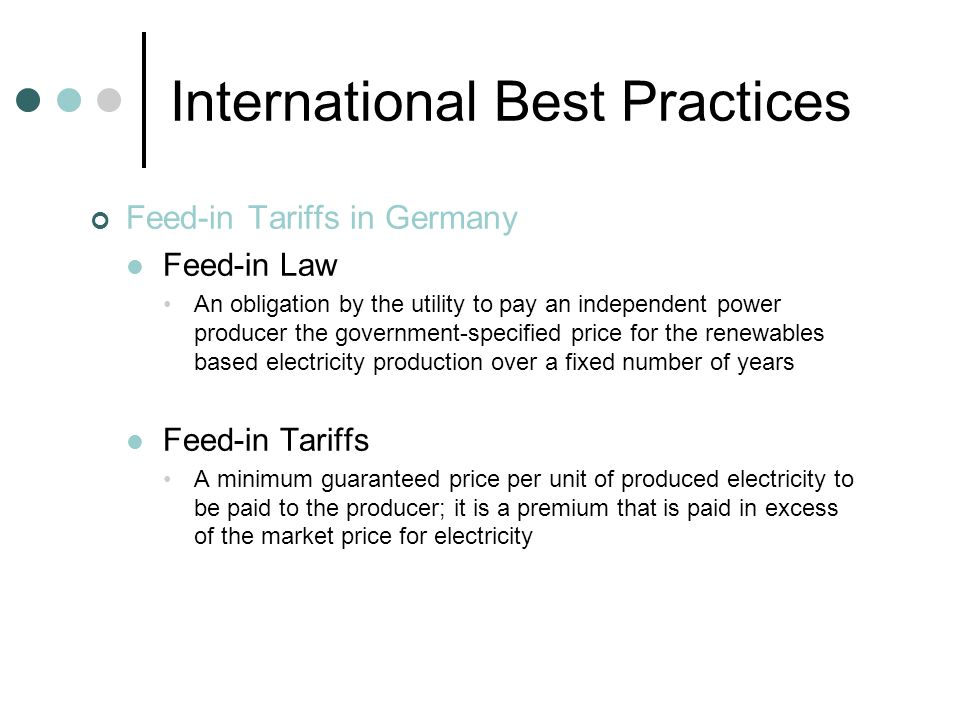

16 International Best Practices Feed-in Tariffs in Germany Feed-in Law An obligation by the utility to pay an independent power producer the government-specified price for the renewables based electricity production over a fixed number of years Feed-in Tariffs A minimum guaranteed price per unit of produced electricity to be paid to the producer; it is a premium that is paid in excess of the market price for electricity

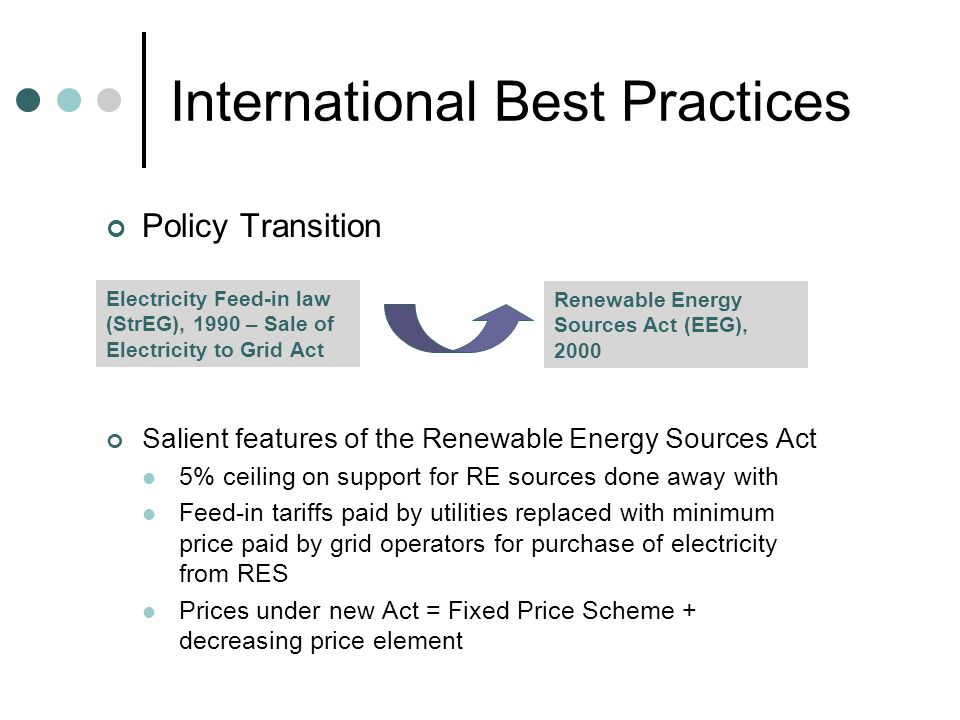

17 International Best Practices Policy Transition Salient features of the Renewable Energy Sources Act 5% ceiling on support for RE sources done away with Feed-in tariffs paid by utilities replaced with minimum price paid by grid operators for purchase of electricity from RES Prices under new Act = Fixed Price Scheme + decreasing price element Electricity Feed-in law (StrEG), 1990 – Sale of Electricity to Grid Act Renewable Energy Sources Act (EEG), 2000

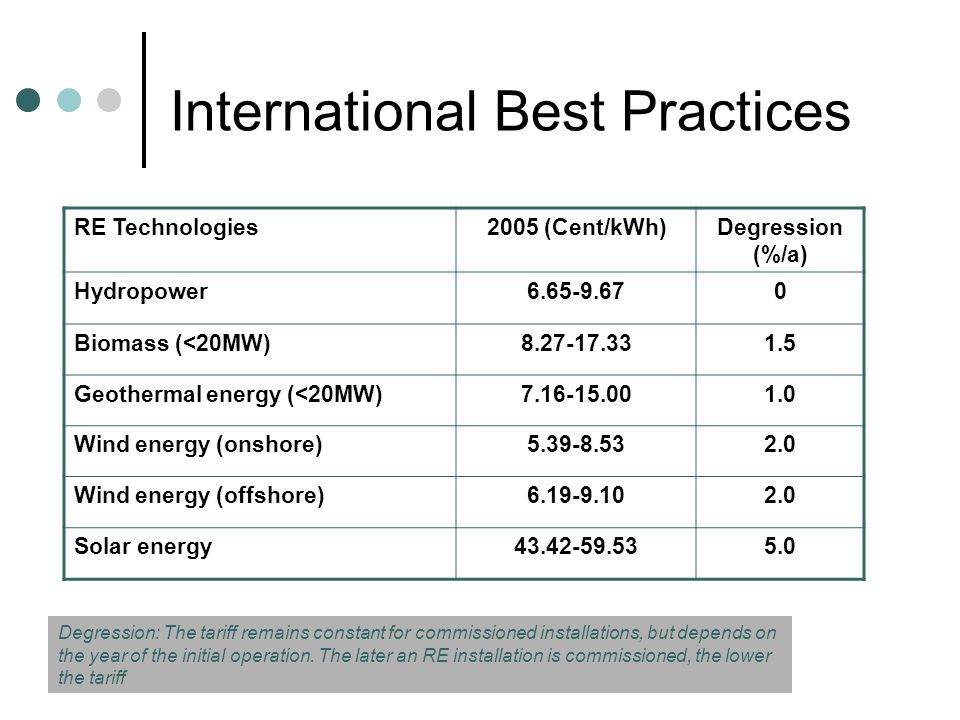

18 RE Technologies2005 (Cent/kWh)Degression (%/a) Hydropower Biomass (<20MW) Geothermal energy (<20MW) Wind energy (onshore) Wind energy (offshore) Solar energy International Best Practices Degression: The tariff remains constant for commissioned installations, but depends on the year of the initial operation. The later an RE installation is commissioned, the lower the tariff

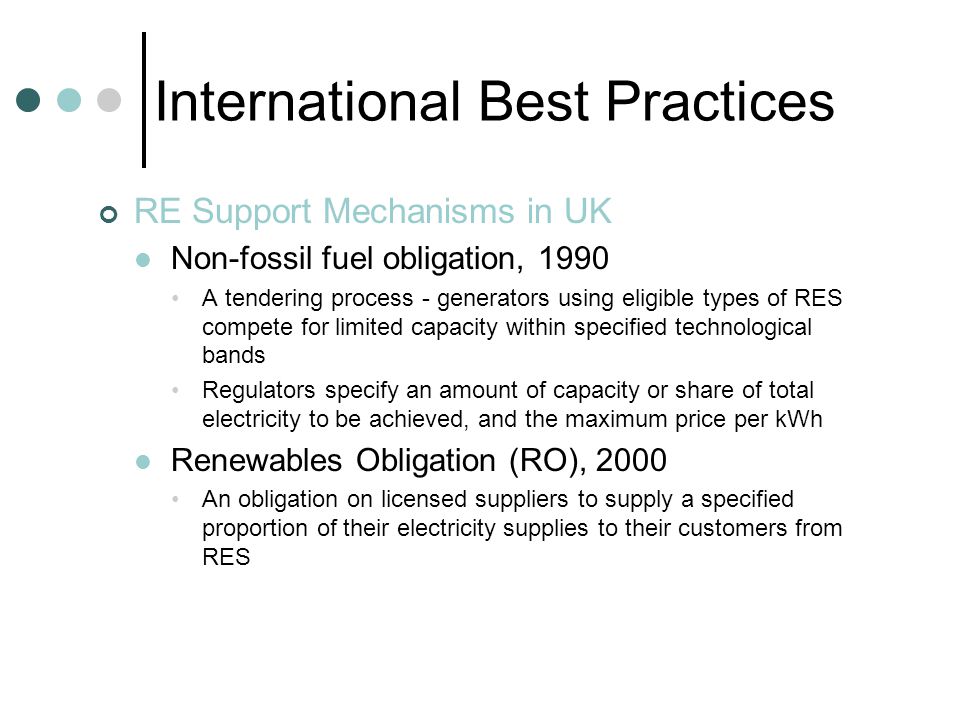

19 International Best Practices RE Support Mechanisms in UK Non-fossil fuel obligation, 1990 A tendering process - generators using eligible types of RES compete for limited capacity within specified technological bands Regulators specify an amount of capacity or share of total electricity to be achieved, and the maximum price per kWh Renewables Obligation (RO), 2000 An obligation on licensed suppliers to supply a specified proportion of their electricity supplies to their customers from RES

20 Mechanism of operation of RO An obligation is placed on a supplier to meet a certain percentage of the previous years supply from eligible renewable electricity Proven to Ofgem by ROCs (1 ROC = I kWh) The supplier can either meet the obligation by purchasing ROCs or by paying a penalty of 3p/kWh in 2001 (raised each year) The penalty fund is recycled back to the suppliers in the proportion that they met the total annual RO target Renewable electricity only has value up to annual obligation % Supplier and renewable generator agrees price, contract length, volume International Best Practices

21 Electricity suppliers are allowed to buy out all or part of their Obligation in any particular year, as an alternative to supplying RE or purchasing Green Certificates Buy-out Price sets a Price Cap that suppliers are willing to pay for electricity from renewables; an Upper Limit to the impact of Renewables Obligation on consumer prices International Best Practices Total Cost of Renewables Electricity needed to meet the Obligation = + Cost of Alternative Electricity Supplies (Non-Renewable Power Purchase Price); 2.3p/kWh Buy-out Price (paid to OFGEM); 2p/kWh

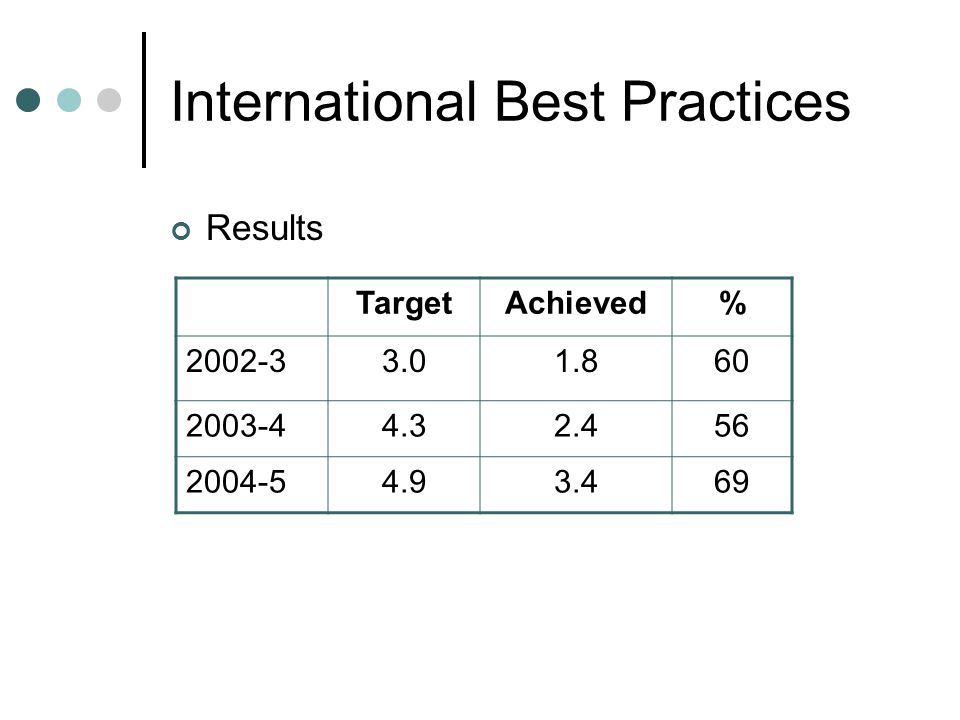

22 International Best Practices Results TargetAchieved%

23 International Best Practices RE Support Mechanisms in US Renewable Portfolio Standard A market driven policy ensuring the benefits of wind, solar, biomass and geothermal energy to the public, as electricity markets become more competitive RPS requires the utility to include some portion of renewable energy based generation in its power portfolio. Percentage can vary from programme to programme Renewable Energy Credit A tradable certificate of proof that 1kWh of electricity has been generated by a renewable-fueled source Denominated in kWh; separate commodity from the power itself

24 Salient Features of the Texas RPS Renewable Energy Purchase Obligations Capacity targets of 400 MW of eligible new renewables by 2003, 850 MW by 2005, 1400 MW by 2007, and 200 MW by 2009 and through 2019 Annual energy based purchase obligations beginning in 2002 and ending in 2019 derived based on capacity targets and average capacity factor of renewable generation Obligated Parties All electricity retailers in competitive markets share this obligation based on their proportionate yearly electricity sales International Best Practices

25 Tracking and accounting method Tradable RECs with yearly compliance period 3 month grace period after compliance period allowed for fulfillment Certificates Issued on production, unit 1 MWh, 2 years of banking allowed after year of issuance, borrowing of up to 5% of the obligation in first 2 compliance periods allowed, development of web-based certificates tracking system International Best Practices

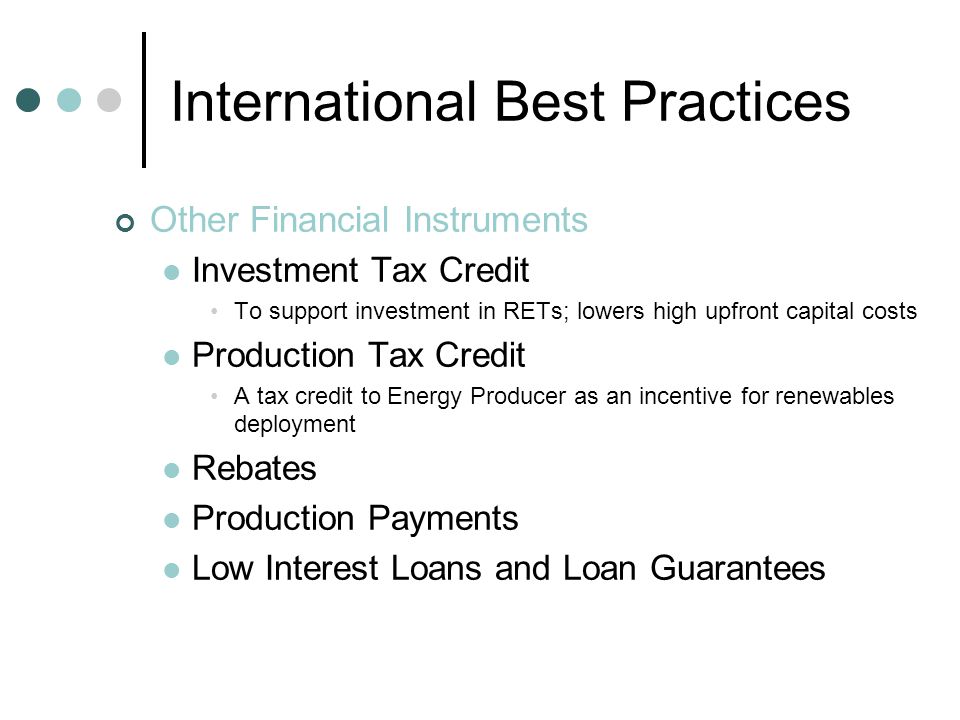

26 Other Financial Instruments Investment Tax Credit To support investment in RETs; lowers high upfront capital costs Production Tax Credit A tax credit to Energy Producer as an incentive for renewables deployment Rebates Production Payments Low Interest Loans and Loan Guarantees

27 Dominant Renewable Energy Pricing mechanisms Emerging generation tariff setting methodologies based on international experience Avoided cost based tariffs Energy only Energy and Capacity Credits Cost based tariffs Levelized tariff Tiered tariff Performance benchmarked tariffs Tariffs set on the basis of Yardstick Regulation

28 Dominant Renewable Energy Pricing mechanisms Salient features of avoided cost based tariffs Incremental cost to the electric utility that the utility would either generate itself or purchase elsewhere if it did not purchase from a (renewable energy) supplier Prices being set equal to marginal cost results in market equilibrium at a certain level and pattern of electricity supply that leads to the most efficient allocation of scarce resources A detailed performance data of all conventional power plants, in terms of plant availability and energy generation is required

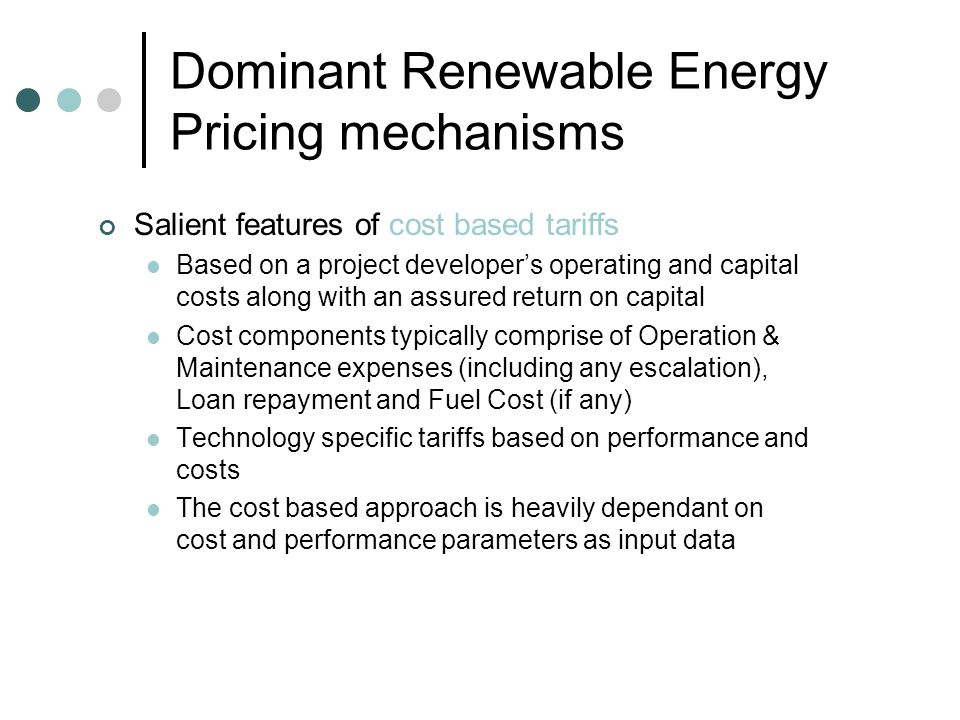

29 Dominant Renewable Energy Pricing mechanisms Salient features of cost based tariffs Based on a project developers operating and capital costs along with an assured return on capital Cost components typically comprise of Operation & Maintenance expenses (including any escalation), Loan repayment and Fuel Cost (if any) Technology specific tariffs based on performance and costs The cost based approach is heavily dependant on cost and performance parameters as input data

30 Analysis of renewable energy pricing options Marginal cost based pricing Short run marginal cost analysis done for the state of Andhra Pradesh has estimated the approximate SRMC as Rs. 2.21/ kWh in The marginal cost is estimated as the weighted average of variable costs of all plants operating in margin with the time for which they are operational in the margin being used as the weighting factor The data for variable costs of thermal plants in Andhra Pradesh has been obtained from APTRANSCO

31 Analysis of renewable energy pricing options Analysis of total cost of power procurement Approximate marginal cost of power purchase Estimated for Andhra Pradesh for FY Rs. 3.32/ kWh, which is the total power procurement cost of the most expensive power plant

32 Analysis of renewable energy pricing options Tariffs based on cost plus approach Tariffs for renewable power in India as determined by the SERCs is presently based on the Cost Plus principles E.g. of tariff rates for renewable power in Andhra Pradesh S. No RETsTariff Rates 1WindRs /kWh with 5% simple escalation 2Small Hydropower Rs 2.60/Unit for the first year 3Bagasse based cogeneration Fixed cost Rs.1.72/unit in 1st year reducing to Rs.0.90 in 10th year+ variable cost Rs.1.02 in escalating to Rs.1.24 in BiomassFixed cost Rs. 1.61/ kWh in 1st year decreasing to Rs.0.87 in 10th year. The variable cost for Rs.1.27 escalating to Rs.1.54 in

33 Analysis of renewable energy pricing options Marginal cost/avoided cost Application under energy deficit scenario ? Present energy deficit 3% to 21% Projected peak deficit of 16% and energy deficit of 13% (assuming 10 th plan capacity additions of 32000MW, till May 2006 achievement is about 14300MW) Estimation of marginal cost Uncertainty Frequency Uniform across technologies?

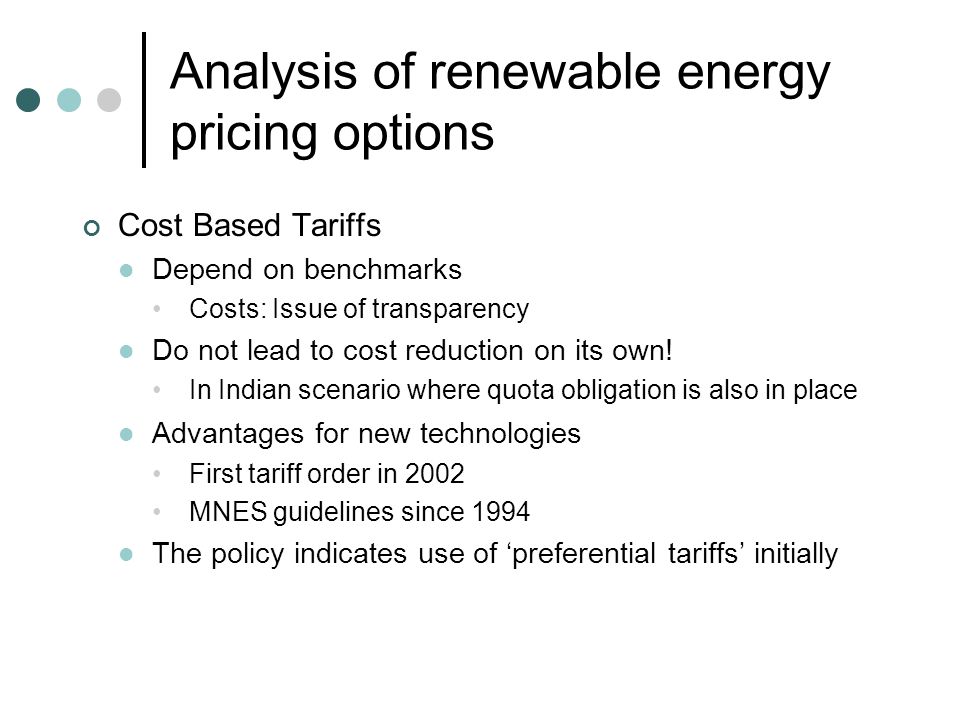

34 Analysis of renewable energy pricing options Cost Based Tariffs Depend on benchmarks Costs: Issue of transparency Do not lead to cost reduction on its own! In Indian scenario where quota obligation is also in place Advantages for new technologies First tariff order in 2002 MNES guidelines since 1994 The policy indicates use of preferential tariffs initially

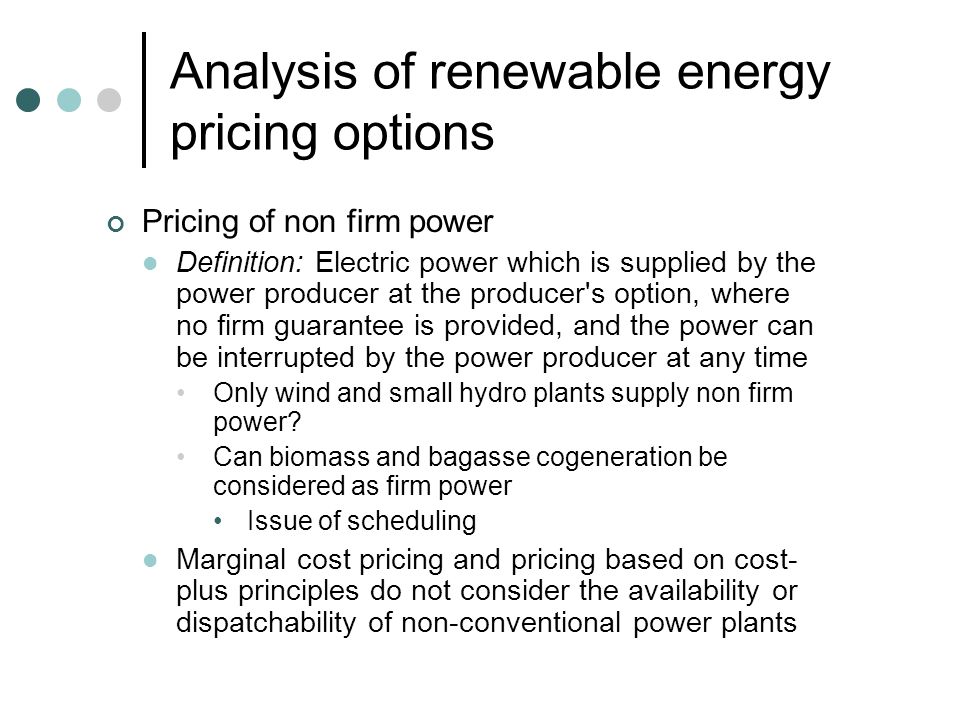

35 Analysis of renewable energy pricing options Pricing of non firm power Definition: Electric power which is supplied by the power producer at the producer's option, where no firm guarantee is provided, and the power can be interrupted by the power producer at any time Only wind and small hydro plants supply non firm power? Can biomass and bagasse cogeneration be considered as firm power Issue of scheduling Marginal cost pricing and pricing based on cost- plus principles do not consider the availability or dispatchability of non-conventional power plants

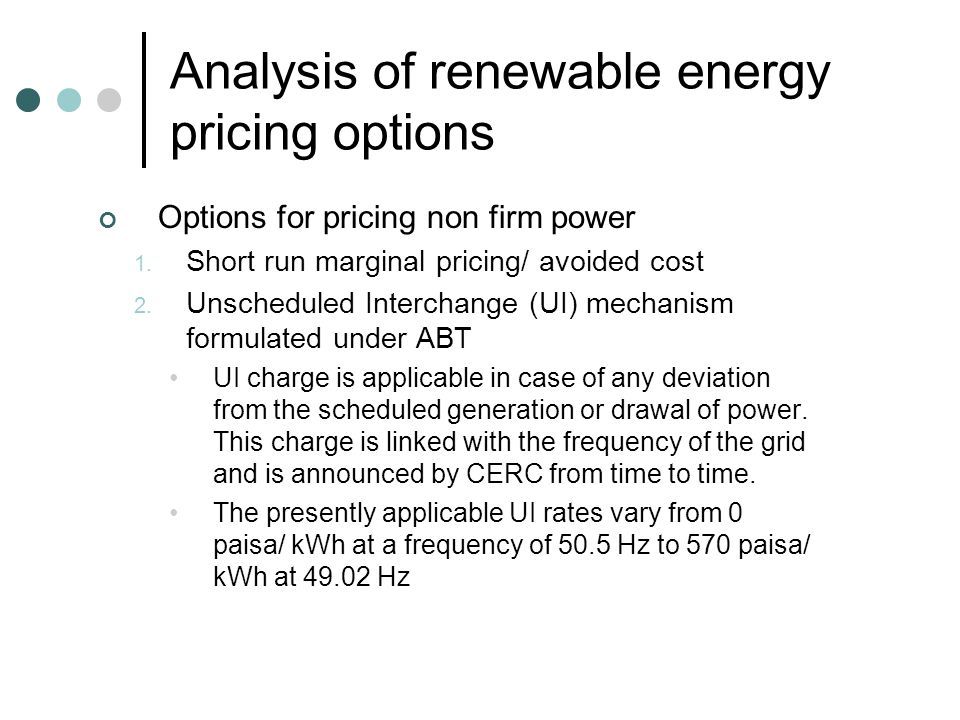

36 Analysis of renewable energy pricing options Options for pricing non firm power 1. Short run marginal pricing/ avoided cost 2. Unscheduled Interchange (UI) mechanism formulated under ABT UI charge is applicable in case of any deviation from the scheduled generation or drawal of power. This charge is linked with the frequency of the grid and is announced by CERC from time to time. The presently applicable UI rates vary from 0 paisa/ kWh at a frequency of 50.5 Hz to 570 paisa/ kWh at Hz

37 Analysis of renewable energy pricing options Trend of Average UI rates in the months of April and August 2005

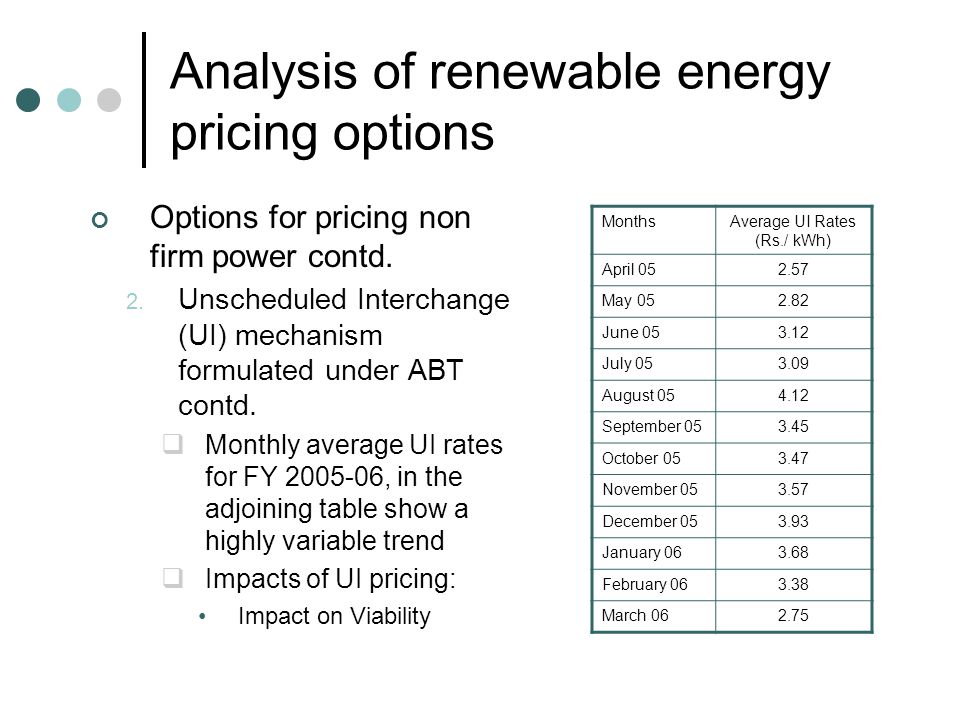

38 Analysis of renewable energy pricing options Options for pricing non firm power contd. 2. Unscheduled Interchange (UI) mechanism formulated under ABT contd. Monthly average UI rates for FY , in the adjoining table show a highly variable trend Impacts of UI pricing: Impact on Viability MonthsAverage UI Rates (Rs./ kWh) April May June July August September October November December January February March

39 Analysis of renewable energy pricing options Options for pricing non firm power contd. 3. Renewable Energy Certificates (RECs) RECs are used to demonstrate the compliance with quota obligation without actually buying power from non conventional energy sources It serves to separate the actual power generation and the quota obligation The REC represents the renewable energy part, of the power generated, which can be tradable, independent of the power

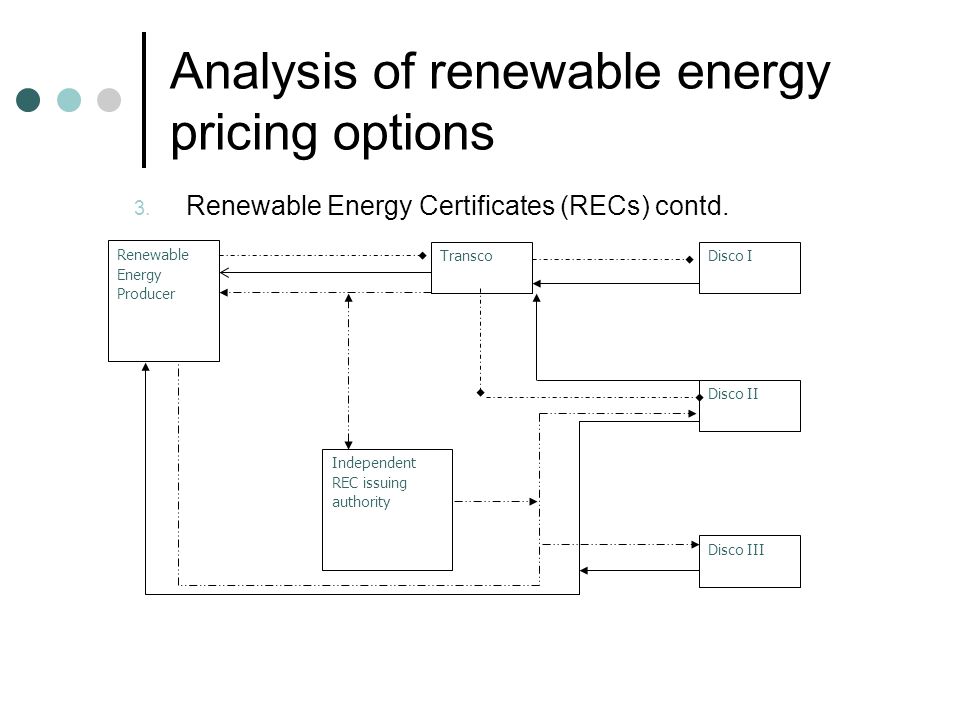

40 Analysis of renewable energy pricing options 3. Renewable Energy Certificates (RECs) contd. Renewable Energy Producer TranscoDisco I Disco II Disco III Independent REC issuing authority
