1 WorldSID debut for UN / WP 29 WorldSID Tri Chair Committee On behalf of the WorldSID Task Group of the ISO/TC22/SC12/WG5 133 rd session of UN / WP 29 Geneva, June 22, 2004 WorldSID Tri Chair Committee On behalf of the WorldSID Task Group of the ISO/TC22/SC12/WG5 133 rd session of UN / WP 29 Geneva, June 22, 2004

2 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, OutlineOutline Background Scope Organization Worldwide Participation Timeline Design Worldwide Evaluation Production Release Documentation Other Activities Next Steps Background Scope Organization Worldwide Participation Timeline Design Worldwide Evaluation Production Release Documentation Other Activities Next Steps

3 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, BackgroundBackground Need for improved side impact dummy biofidelity Need for harmonization No biomechanical reason for having different dummies in different markets – no corresponding safety benefit Need for improved side impact dummy biofidelity Need for harmonization No biomechanical reason for having different dummies in different markets – no corresponding safety benefit Dummy Type ISO Rating (1-10) SID2.3 Eurosid-14.2 Biosid5.9

4 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, Worldwide program to design, develop, fabricate and test a harmonized mid-sized male side impact dummy ISO TR 9790 Biofidelity classification: good to excellent Design documentation to be in public domain Worldwide program to design, develop, fabricate and test a harmonized mid-sized male side impact dummy ISO TR 9790 Biofidelity classification: good to excellent Design documentation to be in public domain ScopeScope

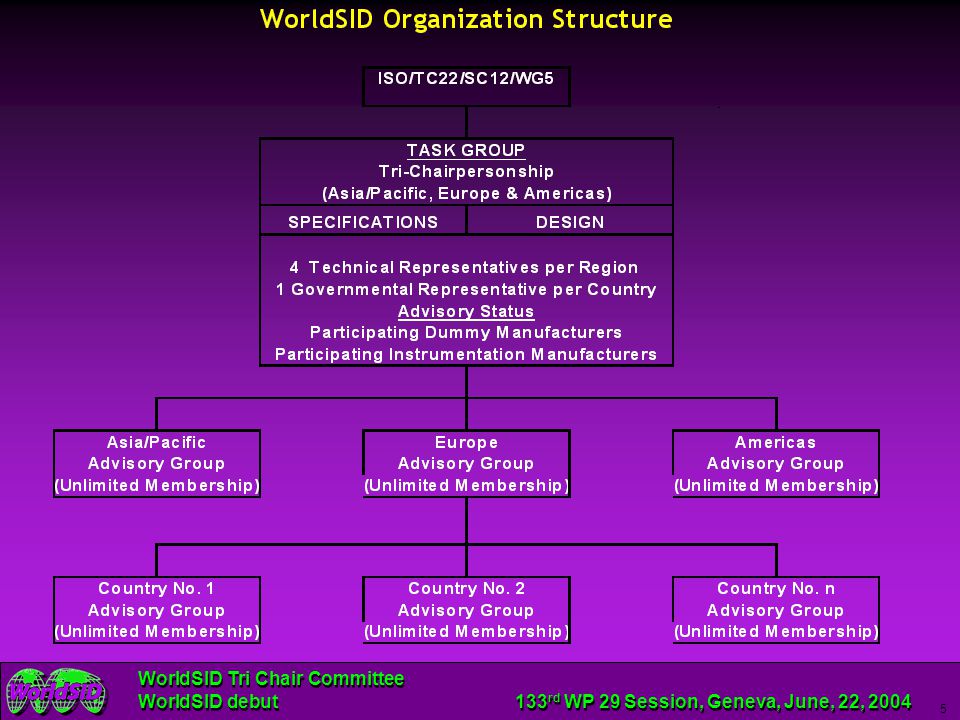

5 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22,

6 6 AAMA ACEA Alliance Autoliv AUDI BASt BMW Group CEESAR DaimlerChrysler DOTRS – Australia AAMA ACEA Alliance Autoliv AUDI BASt BMW Group CEESAR DaimlerChrysler DOTRS – Australia Worldwide participation Fiat Ford GM Honda INRETS ISO JAMA JARI JMLIT LAB Fiat Ford GM Honda INRETS ISO JAMA JARI JMLIT LAB Lear MIRA NHTSA Nissan OSRP PDB PSA Porsche Renault SIBER* Lear MIRA NHTSA Nissan OSRP PDB PSA Porsche Renault SIBER* * EC Sponsored TNO TRC Toyota Transport Canada TRL TRW Volvo VW TNO TRC Toyota Transport Canada TRL TRW Volvo VW

7 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, TimelineTimeline Set up program and develop specifications Set up program and develop specifications Prototype development and evaluations Prototype development and evaluations Pre-production development and evaluations Prototype Rev. 1 development and evaluations Prototype Rev. 1 development and evaluations Release Finalize Production Documents

8 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, DesignDesign Developed by hundreds of engineers, scientists and technicians Over 45 organizations from around the world Governmental agencies, research institutes, industry Design Team working under the direction of the Task Group Dynamic Research Inc. (Project Management) Denton ATD DTS FTSS R.A. Denton, Inc. Developed by hundreds of engineers, scientists and technicians Over 45 organizations from around the world Governmental agencies, research institutes, industry Design Team working under the direction of the Task Group Dynamic Research Inc. (Project Management) Denton ATD DTS FTSS R.A. Denton, Inc.

9 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, DesignDesign Available Instrumentation Head 14 channels Neck 9 channels Shoulder 7 channels Thorax 19 channels Abdomen 8 channels Lumbar Spine 9 channels Pelvis 24 channels Leg 25 channels per leg Full Arm (optional) 20 channels per arm

10 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, DesignDesign

11 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, pre-production dummies were evaluated Organizations from around the world Governmental agencies, research institutes, industry 11 pre-production dummies were evaluated Organizations from around the world Governmental agencies, research institutes, industry Worldwide Evaluation

12 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, Biofidelity testing ISO TR 9790 tests IHRA proposed tests Sled and pendulum tests Durability Sensitivity (impact location, offset, impact angle) Repeatability Reproducibility Certification and component testing Repeatability and reproducibility Developed certification corridors Biofidelity testing ISO TR 9790 tests IHRA proposed tests Sled and pendulum tests Durability Sensitivity (impact location, offset, impact angle) Repeatability Reproducibility Certification and component testing Repeatability and reproducibility Developed certification corridors Worldwide Evaluation

13 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, Full scale crash tests (25 +) In-vehicle performance Durability, handling, repeatability Comparison of WorldSID and other side impact dummy responses including ES-2, ES-2re Full scale crash tests (25 +) In-vehicle performance Durability, handling, repeatability Comparison of WorldSID and other side impact dummy responses including ES-2, ES-2re Worldwide Evaluation

14 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, Test procedures ECE-R-95 EURO-NCAP barrier EURO-NCAP pole FMVSS 201 pole FMVSS 214 Test procedures ECE-R-95 EURO-NCAP barrier EURO-NCAP pole FMVSS 201 pole FMVSS 214 Worldwide Evaluation SINCAP IHRA proposed IIHS barrier IHRA proposed AEMDB barrier IHRA proposed oblique pole Vehicle- to-vehicle tests SINCAP IHRA proposed IIHS barrier IHRA proposed AEMDB barrier IHRA proposed oblique pole Vehicle- to-vehicle tests More than 1000 component, sled and crash tests

15 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, WorldSID unacceptable marginal fair good excellent 0 2,6 4,4 6,5 8,6 10 unacceptable marginal fair good excellent 0 2,6 4,4 6,5 8,6 10 DOT-SID 2,3 Worldwide Evaluation Highest ISO TR 9790 Biofidelity Rating for WorldSID 7,6 ES-2 4,7 ES-2 re 4,2

16 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, WorldSID kinematics in 201 pole test Shoulder shrugs and flexes WorldSID kinematics in 201 pole test Shoulder shrugs and flexes Worldwide Evaluation

17 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, World Evaluation US SINCAP test Crabbed barrier 62 km/h US SINCAP test Crabbed barrier 62 km/h

18 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, Predicts abdominal injury risk Worldwide Evaluation ES-2ES-2reWorldSID Risk of Injury Abdomen Rib 1 Displacement Abdomen Rib 2 Displacement Abdominal Load Sum Abdomen Rib 1 Displacement Abdomen Rib 2 Displacement Abdominal Load Sum

19 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, Two repeat ECE-R-95 tests Worldwide Evaluation Middle thoracic rib deflection Upper thoracic rib acceleration Thoracic spine accleration at T1 Thoracic spine accleration at T12

20 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, Worldwide Evaluation Superior biofidelity Superior injury assessment capability Good repeatability Good reproducibility Excellent handling Good durability Superior biofidelity Superior injury assessment capability Good repeatability Good reproducibility Excellent handling Good durability

21 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, Worldwide evaluation completed in February 2004 Production design sign off occurred on February 12 th, 2004 Production release on March 9 th, 2004 Worldwide evaluation completed in February 2004 Production design sign off occurred on February 12 th, 2004 Production release on March 9 th, 2004 Production Release Production Dummy available (approx. 12 weeks lead time) Production Dummy available (approx. 12 weeks lead time)

22 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, ISO documentation to support GTR Working draft approved by ISO/TC22/SC12/WG5 May 2004 Currently for review and balloting by ISO/TC22/SC12 Committee Draft Late 2004: review and balloting by ISO/TC22 Start process for ISO DIS ISO documentation to support GTR Working draft approved by ISO/TC22/SC12/WG5 May 2004 Currently for review and balloting by ISO/TC22/SC12 Committee Draft Late 2004: review and balloting by ISO/TC22 Start process for ISO DIS DocumentationDocumentation ISO available in 2005

23 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, Injury risk curves ISO/TC22/SC12/WG6 is developing injury risk curves for the WorldSID Injury risk curves ISO/TC22/SC12/WG6 is developing injury risk curves for the WorldSID Other Activities Draft presented at ISO/WG 6 Meeting in May 2004 Seating procedure ISO/TC22/SC10 is developing a seating procedure for the WorldSID Seating procedure ISO/TC22/SC10 is developing a seating procedure for the WorldSID Draft is included in ISO/CD 15830

24 WorldSID Tri Chair Committee WorldSID debut 133 rd WP 29 Session, Geneva, June, 22, Evaluation of WorldSID by the NHTSA beginning in August 2004 WorldSID Task Group to manage comments and revisions Continue updates to GRSP WorldSID Task Group to work with safety regulators to seek agreement for WorldSID to be the globally harmonized side impact dummy by 2007 Evaluation of WorldSID by the NHTSA beginning in August 2004 WorldSID Task Group to manage comments and revisions Continue updates to GRSP WorldSID Task Group to work with safety regulators to seek agreement for WorldSID to be the globally harmonized side impact dummy by 2007 Next Steps

25 Thank you!
