CM_PWR Drop Test Structural FEA

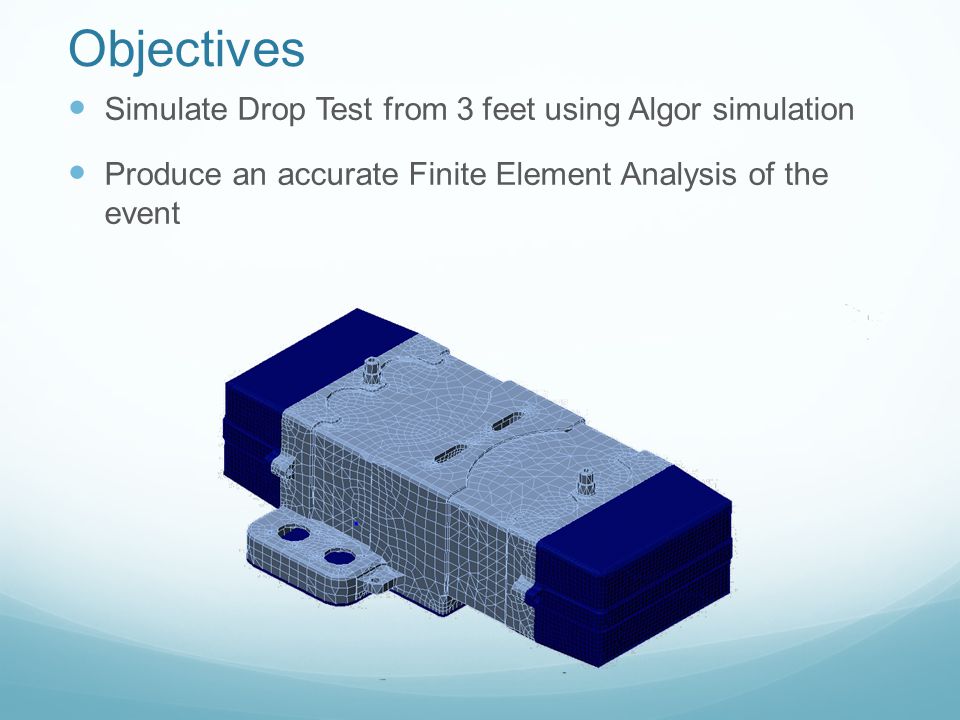

Objectives Simulate Drop Test from 3 feet using Algor simulation Produce an accurate Finite Element Analysis of the event
Materials Test 1 - Aluminum

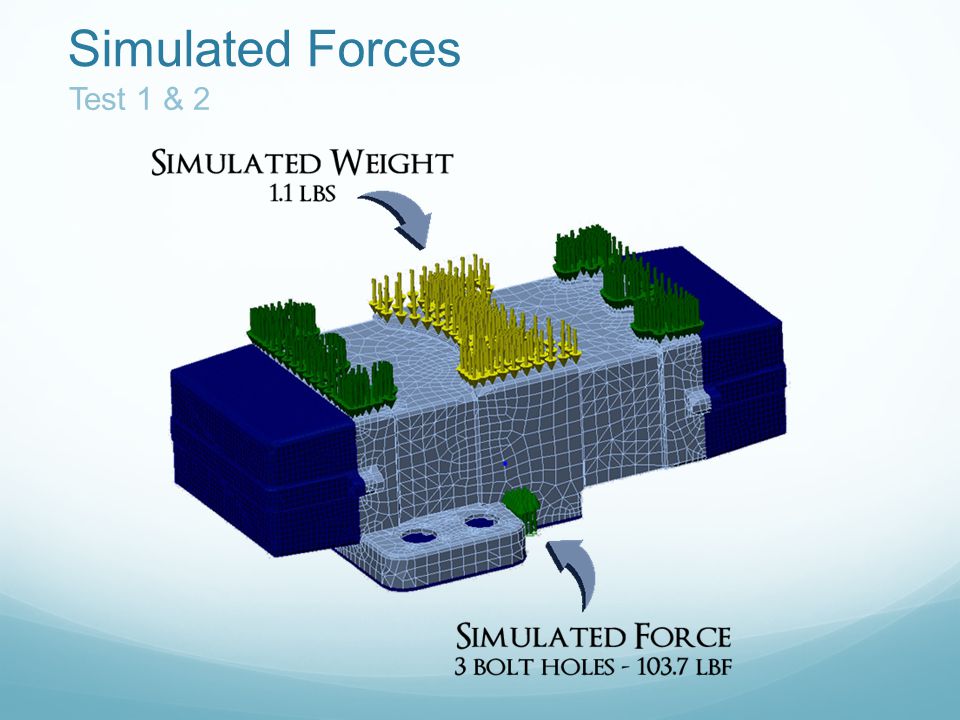

Simulated Forces Test 1 & 2

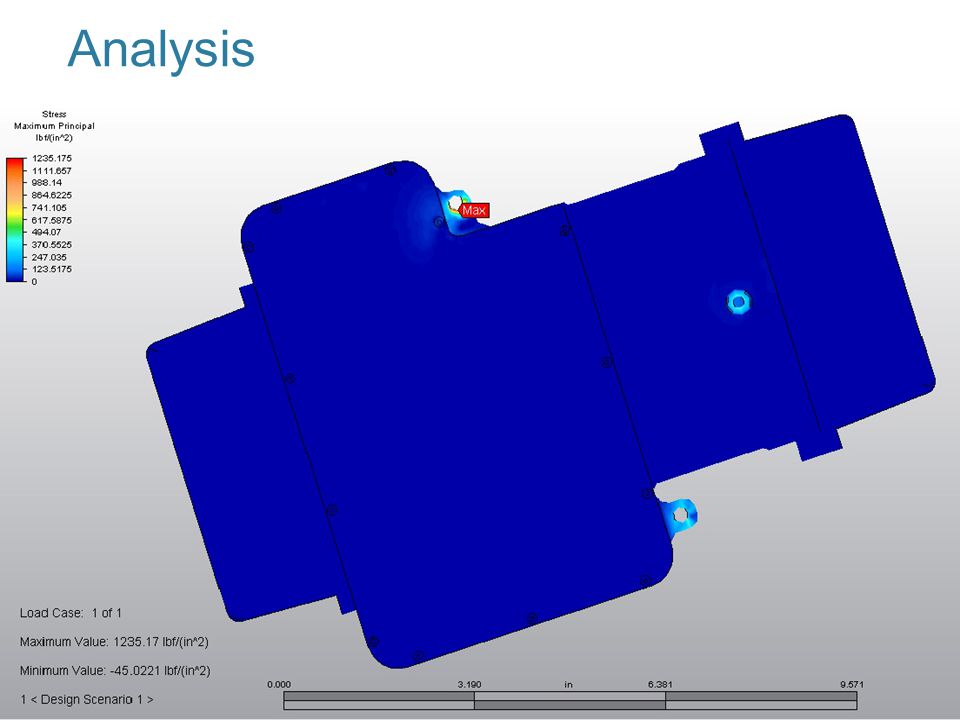

Results Maximum Principal Stress – 1235 psi 6061- O temper Aluminum Max Yield Strength ~ 8000 psi 6061- T6 Aluminum Max Yield Strength ~ 35000 psi
Materials Test 2 - Delrin

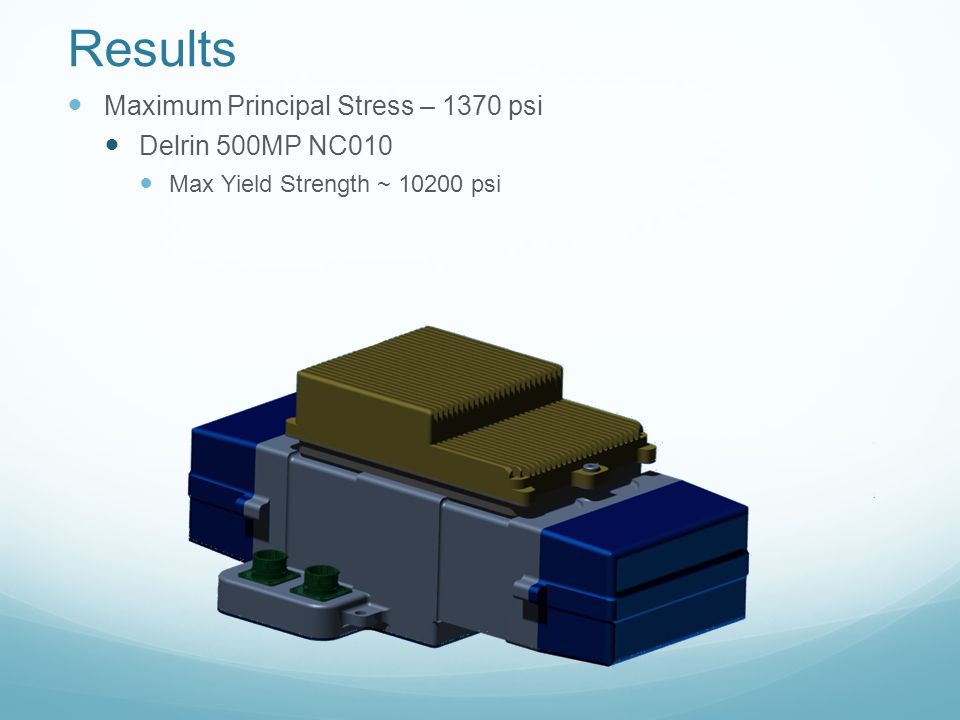

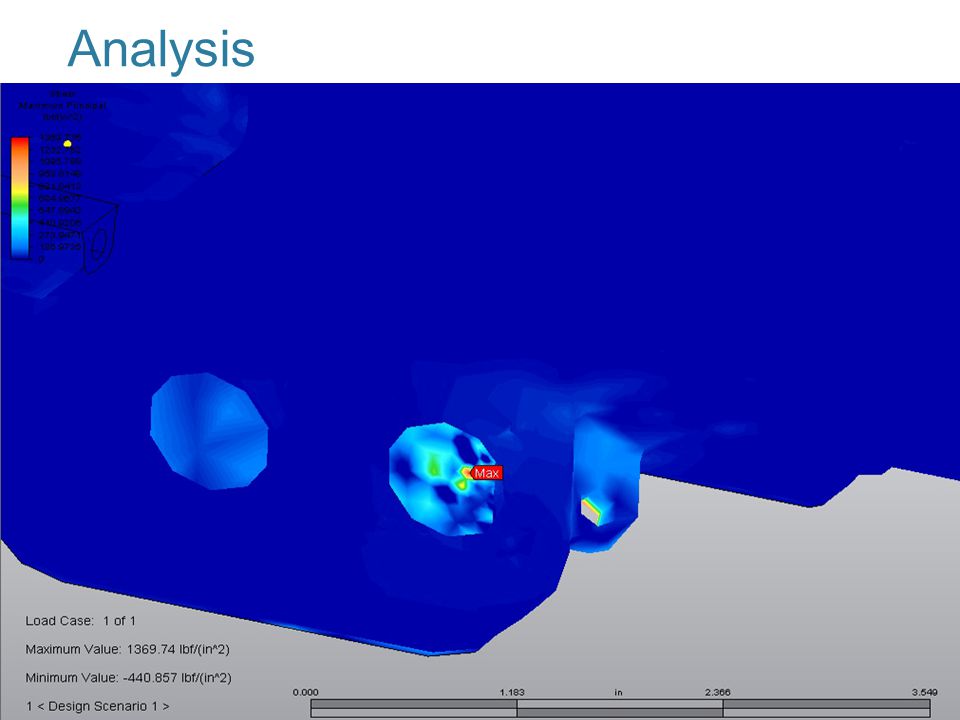

Results Maximum Principal Stress – 1370 psi Delrin 500MP NC010 Max Yield Strength ~ 10200 psi
CM_PWR Thermal Test Structural FEA
Simulated Test Conditions Transient Thermal Analysis 3 Hot Spots 0-6 min – 15 watts of Heat Generated 6-7 min – ramp up to 45 watts of Heat Generated 7-8 min – Full 45 watts of Heat Generated
Simulated Test Conditions Initial Temperature – 32º C (90º F) Convection Coefficient – 3.2 J/(sºCm 2) Surrounding air at 32º C Density – 1.2096 kg/m 3 Prandtl No. – 0.71 Thermal Conductivity – 0.0257 W/mºC

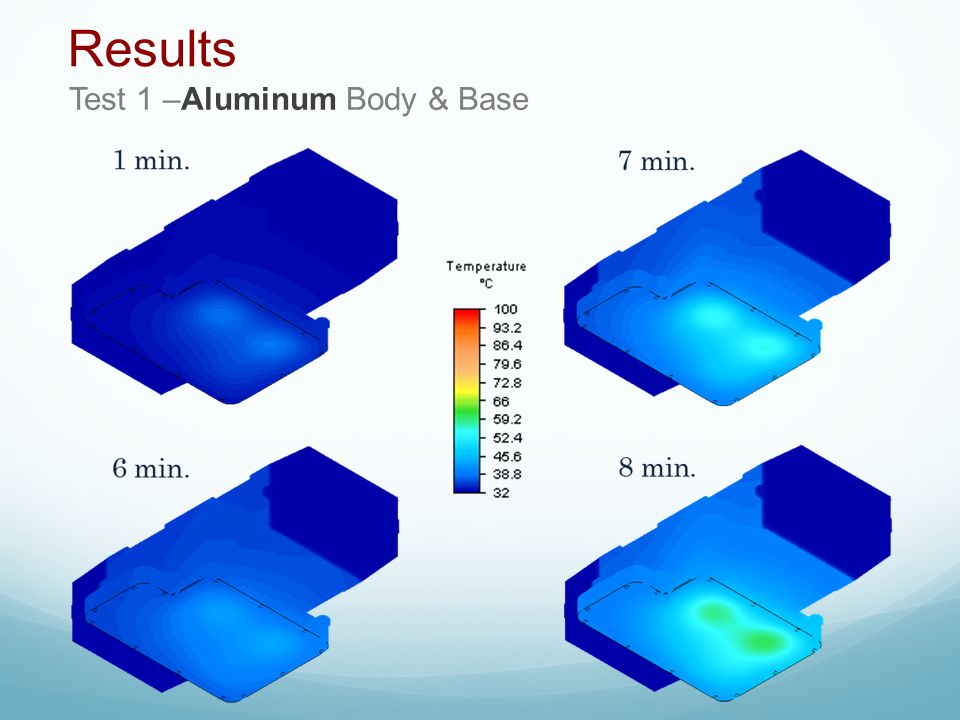

Results Test 1 –Aluminum Body & Base
Results Test 2 – DuPont Delrin Body & Aluminum Base
Alternate Design Heat sink on the bottom of the base plate 5º C reduction at 6 minutes 12º C reduction at 8 minutes 48 in 2 increase in area 0.038 lbm mass addition
Results Test 3 – DuPont Delrin Body & Aluminum (w/ Fins) Base
