Towards Shape Analysis for Device Drivers Hongseok Yang (Queen Mary, University of London) (Joint work with Josh Berdine, Cristiano Calcagno, Byron Cook,

Similar presentations


Presentation on theme: "Towards Shape Analysis for Device Drivers Hongseok Yang (Queen Mary, University of London) (Joint work with Josh Berdine, Cristiano Calcagno, Byron Cook,"— Presentation transcript:

1 Towards Shape Analysis for Device Drivers Hongseok Yang (Queen Mary, University of London) (Joint work with Josh Berdine, Cristiano Calcagno, Byron Cook, Dino Distefano, Peter OHearn and Thomas Wies)

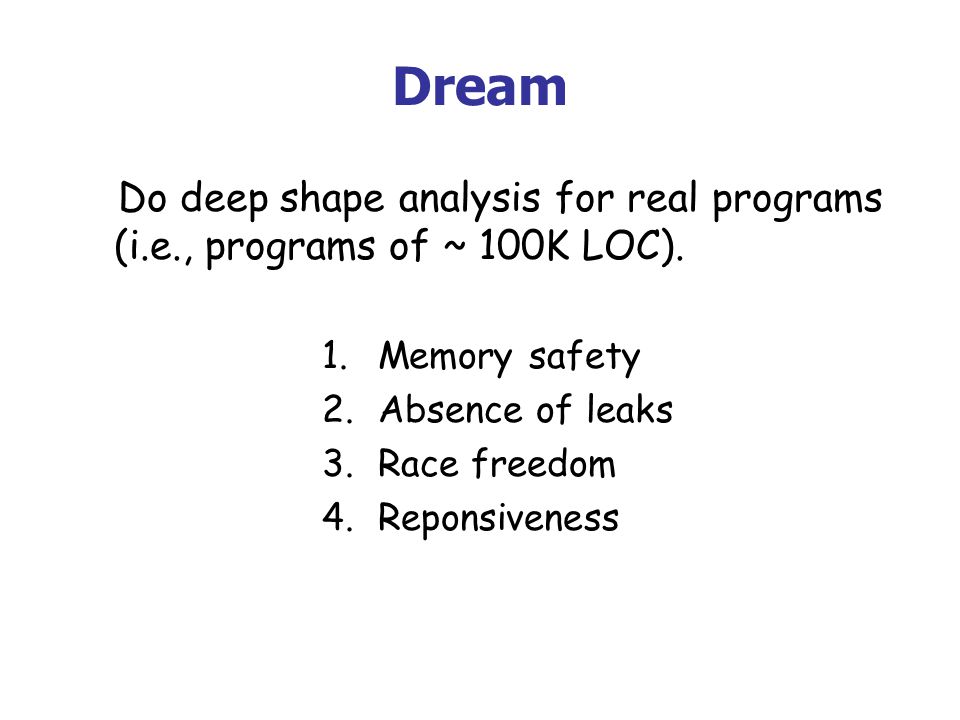

2 Dream Do deep shape analysis for real programs (i.e., programs of ~ 100K LOC). 1.Memory safety 2.Absence of leaks 3.Race freedom 4.Reponsiveness

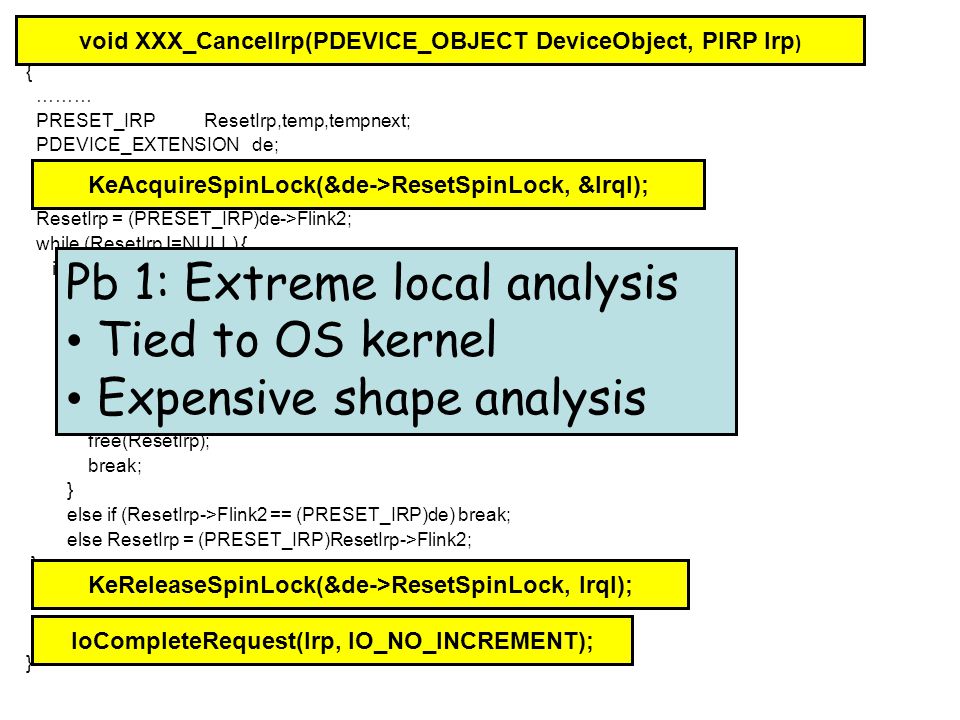

3 void XXX_CancelIrp(PDEVICE_OBJECT DeviceObject, PIRP Irp) { ……… PRESET_IRP ResetIrp,temp,tempnext; PDEVICE_EXTENSION de; ……… KeAcquireSpinLock(&de->ResetSpinLock, &Irql); ResetIrp = (PRESET_IRP)de->Flink2; while (ResetIrp !=NULL) { if (ResetIrp->Irp == Irp) { temp = (PRESET_IRP)de; tempnext = temp->Flink2; while (tempnext != ResetIrp) { temp = tempnext; tempnext = temp->Flink2; } temp->Flink2 = ResetIrp->Flink2; free(ResetIrp); break; } else if (ResetIrp->Flink2 == (PRESET_IRP)de) break; else ResetIrp = (PRESET_IRP)ResetIrp->Flink2; } KeReleaseSpinLock(&de->ResetSpinLock, Irql); …… IoCompleteRequest(Irp, IO_NO_INCREMENT); } void XXX_CancelIrp(PDEVICE_OBJECT DeviceObject, PIRP Irp ) Pb 1: Extreme local analysis Tied to OS kernel Expensive shape analysis KeReleaseSpinLock(&de->ResetSpinLock, Irql); KeAcquireSpinLock(&de->ResetSpinLock, &Irql); IoCompleteRequest(Irp, IO_NO_INCREMENT);

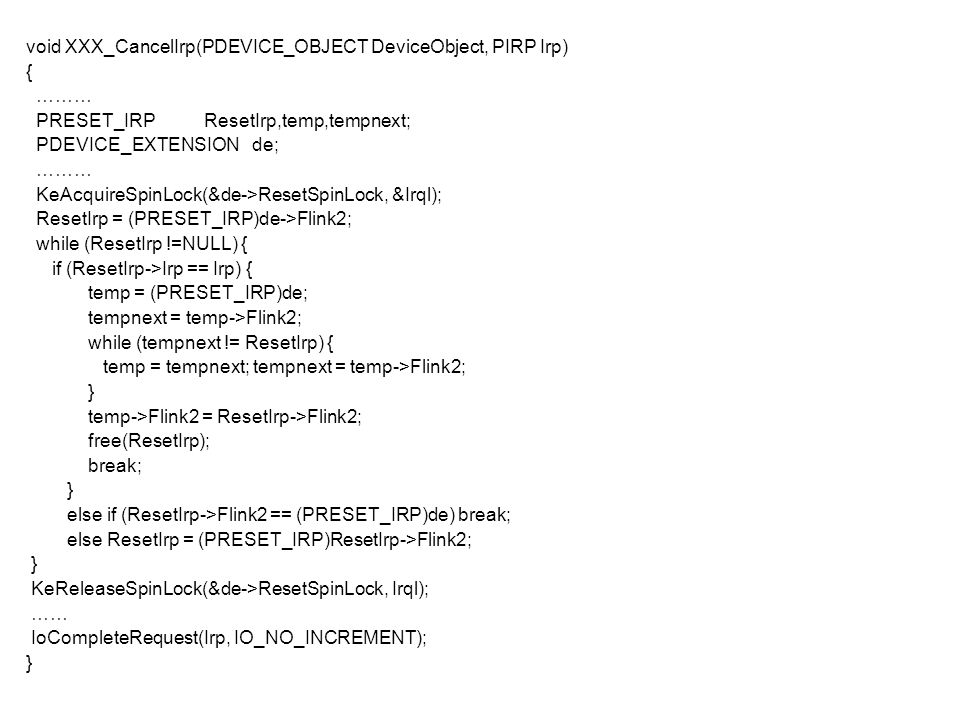

4 void XXX_CancelIrp(PDEVICE_OBJECT DeviceObject, PIRP Irp) { ……… PRESET_IRP ResetIrp,temp,tempnext; PDEVICE_EXTENSION de; ……… KeAcquireSpinLock(&de->ResetSpinLock, &Irql); ResetIrp = (PRESET_IRP)de->Flink2; while (ResetIrp !=NULL) { if (ResetIrp->Irp == Irp) { temp = (PRESET_IRP)de; tempnext = temp->Flink2; while (tempnext != ResetIrp) { temp = tempnext; tempnext = temp->Flink2; } temp->Flink2 = ResetIrp->Flink2; free(ResetIrp); break; } else if (ResetIrp->Flink2 == (PRESET_IRP)de) break; else ResetIrp = (PRESET_IRP)ResetIrp->Flink2; } KeReleaseSpinLock(&de->ResetSpinLock, Irql); …… IoCompleteRequest(Irp, IO_NO_INCREMENT); }

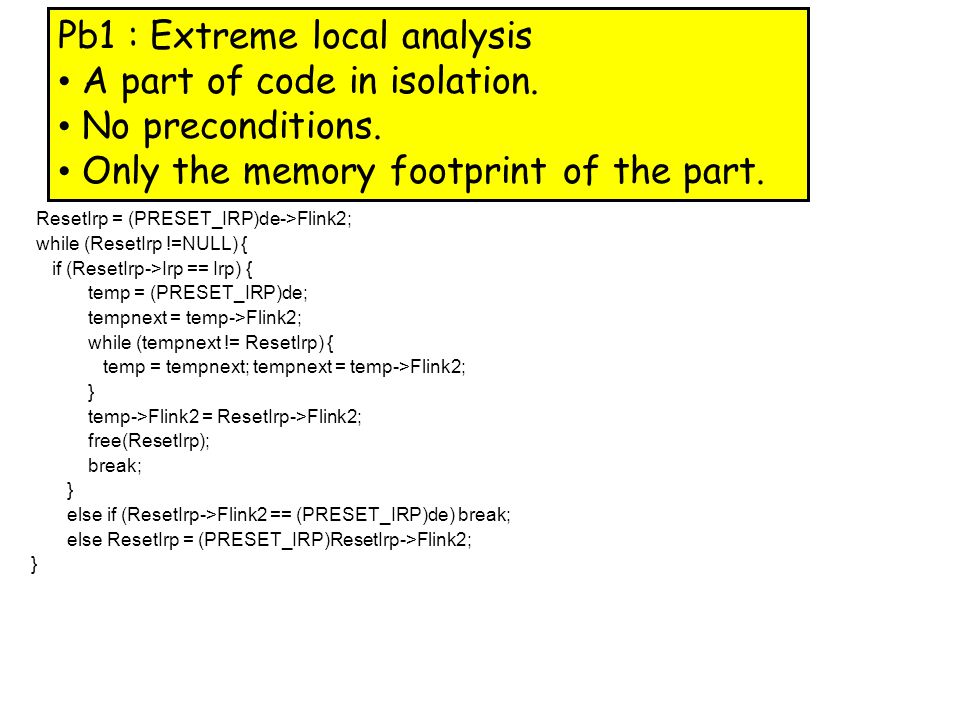

5 void XXX_CancelIrp(PDEVICE_OBJECT DeviceObject, PIRP Irp) { ……… PRESET_IRP ResetIrp,temp,tempnext; PDEVICE_EXTENSION de; ……… KeAcquireSpinLock(&de->ResetSpinLock, &Irql); ResetIrp = (PRESET_IRP)de->Flink2; while (ResetIrp !=NULL) { if (ResetIrp->Irp == Irp) { temp = (PRESET_IRP)de; tempnext = temp->Flink2; while (tempnext != ResetIrp) { temp = tempnext; tempnext = temp->Flink2; } temp->Flink2 = ResetIrp->Flink2; free(ResetIrp); break; } else if (ResetIrp->Flink2 == (PRESET_IRP)de) break; else ResetIrp = (PRESET_IRP)ResetIrp->Flink2; } KeReleaseSpinLock(&de->ResetSpinLock, Irql); …… IoCompleteRequest(Irp, IO_NO_INCREMENT); } Pb1 : Extreme local analysis A part of code in isolation. No preconditions. Only the memory footprint of the part.

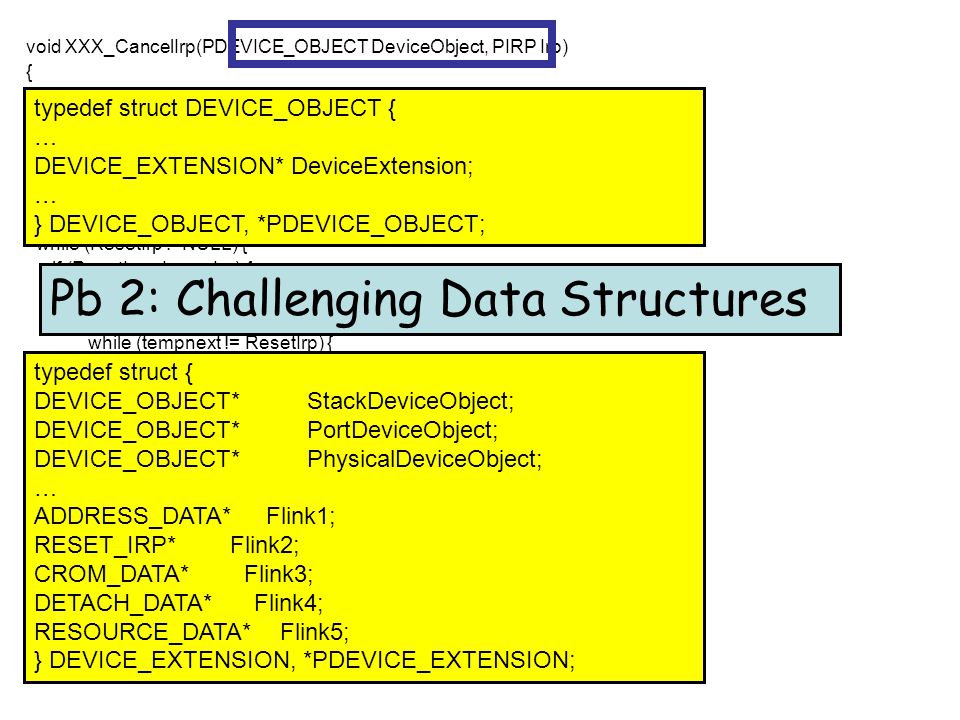

6 void XXX_CancelIrp(PDEVICE_OBJECT DeviceObject, PIRP Irp) { ……… PRESET_IRP ResetIrp,temp,tempnext; PDEVICE_EXTENSION de; ……… KeAcquireSpinLock(&de->ResetSpinLock, &Irql); ResetIrp = (PRESET_IRP)de->Flink2; while (ResetIrp !=NULL) { if (ResetIrp->Irp == Irp) { temp = (PRESET_IRP)de; tempnext = temp->Flink2; while (tempnext != ResetIrp) { temp = tempnext; tempnext = temp->Flink2; } temp->Flink2 = ResetIrp->Flink2; free(ResetIrp); break; } else if (ResetIrp->Flink2 == (PRESET_IRP)de) break; else ResetIrp = (PRESET_IRP)BusResetIrp->Flink2; } KeReleaseSpinLock(&de->ResetSpinLock, Irql); …… IoCompleteRequest(Irp, IO_NO_INCREMENT); } Pb 2: Challenging Data Structures typedef struct { DEVICE_OBJECT* StackDeviceObject; DEVICE_OBJECT* PortDeviceObject; DEVICE_OBJECT* PhysicalDeviceObject; … ADDRESS_DATA* Flink1; RESET_IRP* Flink2; CROM_DATA* Flink3; DETACH_DATA* Flink4; RESOURCE_DATA* Flink5; } DEVICE_EXTENSION, *PDEVICE_EXTENSION; typedef struct DEVICE_OBJECT { … DEVICE_EXTENSION* DeviceExtension; … } DEVICE_OBJECT, *PDEVICE_OBJECT;

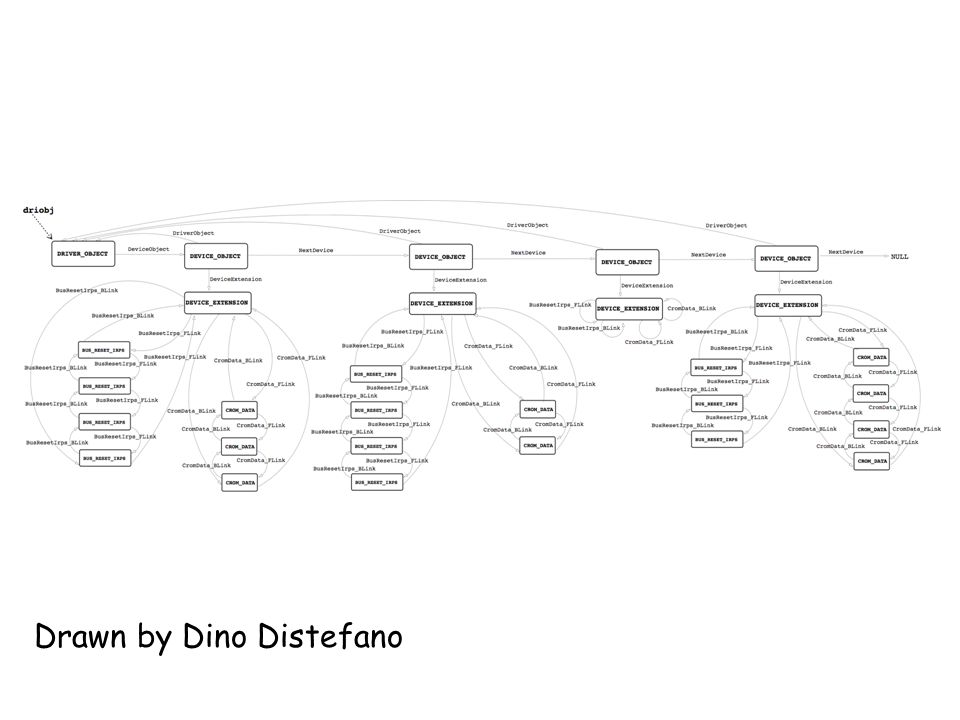

7 Drawn by Dino Distefano

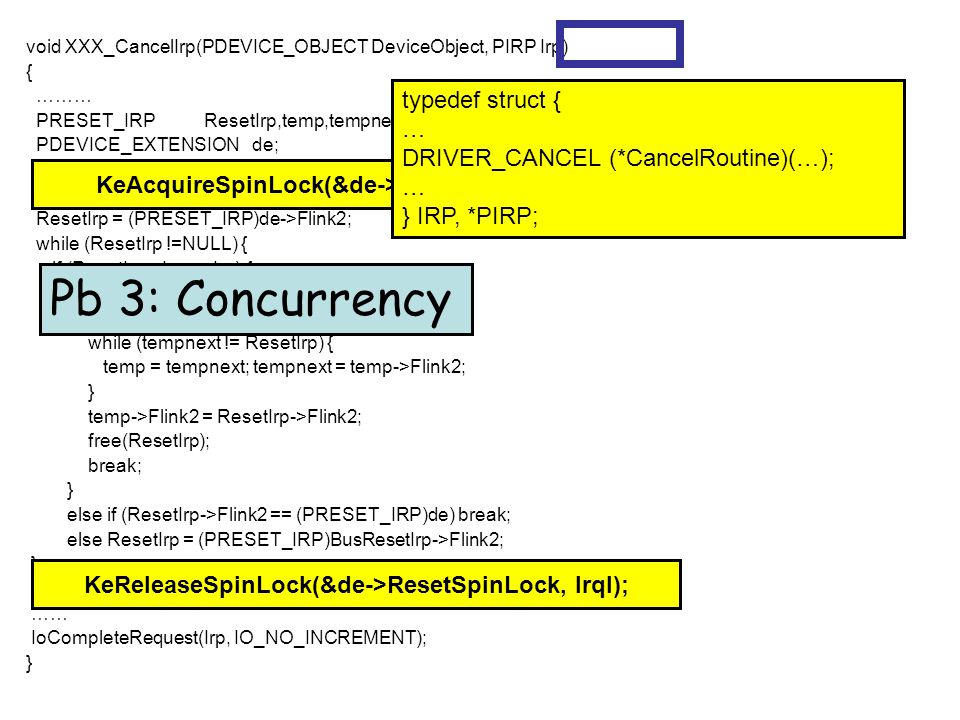

8 void XXX_CancelIrp(PDEVICE_OBJECT DeviceObject, PIRP Irp) { ……… PRESET_IRP ResetIrp,temp,tempnext; PDEVICE_EXTENSION de; ……… KeAcquireSpinLock(&de->ResetSpinLock, &Irql); ResetIrp = (PRESET_IRP)de->Flink2; while (ResetIrp !=NULL) { if (ResetIrp->Irp == Irp) { temp = (PRESET_IRP)de; tempnext = temp->Flink2; while (tempnext != ResetIrp) { temp = tempnext; tempnext = temp->Flink2; } temp->Flink2 = ResetIrp->Flink2; free(ResetIrp); break; } else if (ResetIrp->Flink2 == (PRESET_IRP)de) break; else ResetIrp = (PRESET_IRP)BusResetIrp->Flink2; } KeReleaseSpinLock(&de->ResetSpinLock, Irql); …… IoCompleteRequest(Irp, IO_NO_INCREMENT); } Pb 3: Concurrency KeReleaseSpinLock(&de->ResetSpinLock, Irql); KeAcquireSpinLock(&de->ResetSpinLock, &Irql); typedef struct { … DRIVER_CANCEL (*CancelRoutine)(…); … } IRP, *PIRP;

9 Status of Separation-logic based Shape Analysis (London/Cambridge) Problem 1: Extreme local analysis Extreme local shape analysis [Calcagno, Distefano, OHearn, Yang] Problem 2: Challenging data structures Adaptive shape analysis [Berdine, Calcagno, Disetafano, Cook, Wies, OHearn, Yang] Problem 3: Concurrency Thread-modular shape analysis [Gotsman, Berdine, Cook, Sagiv]

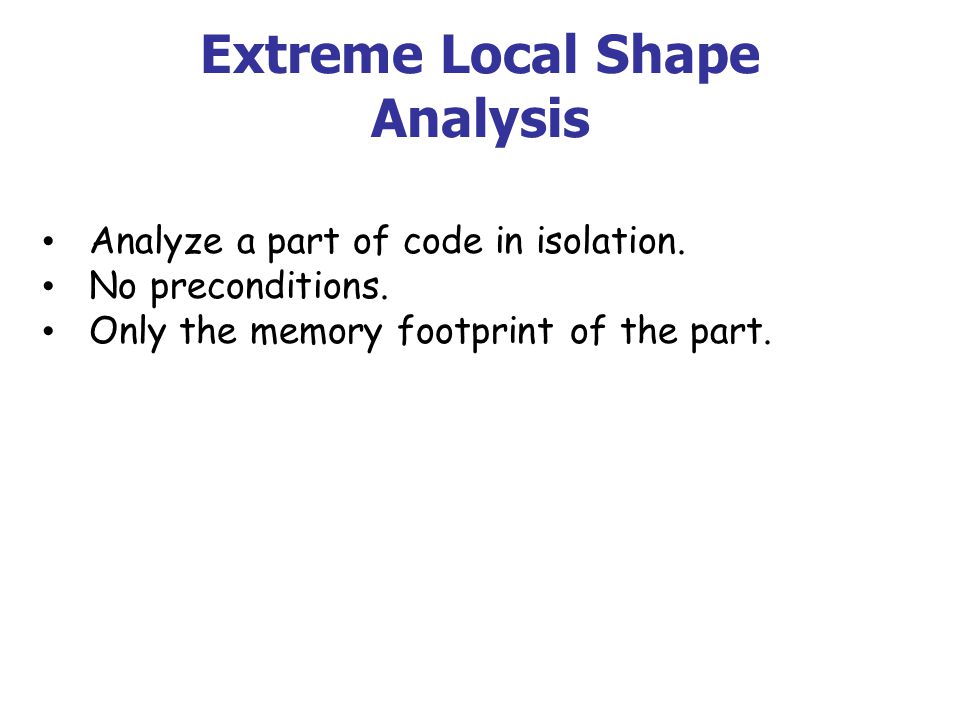

10 Extreme Local Shape Analysis Analyze a part of code in isolation. No preconditions. Only the memory footprint of the part.

11 void XXX_CancelIrp(PDEVICE_OBJECT DeviceObject, PIRP Irp) { ……… PRESET_IRP ResetIrp,temp,tempnext; PDEVICE_EXTENSION de; ……… KeAcquireSpinLock(&de->ResetSpinLock, &Irql); ResetIrp = (PRESET_IRP)de->Flink2; while (ResetIrp !=NULL) { if (ResetIrp->Irp == Irp) { temp = (PRESET_IRP)de; tempnext = temp->Flink2; while (tempnext != ResetIrp) { temp = tempnext; tempnext = temp->Flink2; } temp->Flink2 = ResetIrp->Flink2; free(ResetIrp); break; } else if (ResetIrp->Flink2 == (PRESET_IRP)de) break; else ResetIrp = (PRESET_IRP)BusResetIrp->Flink2; } KeReleaseSpinLock(&de->ResetSpinLock, Irql); …… IoCompleteRequest(Irp, IO_NO_INCREMENT); }

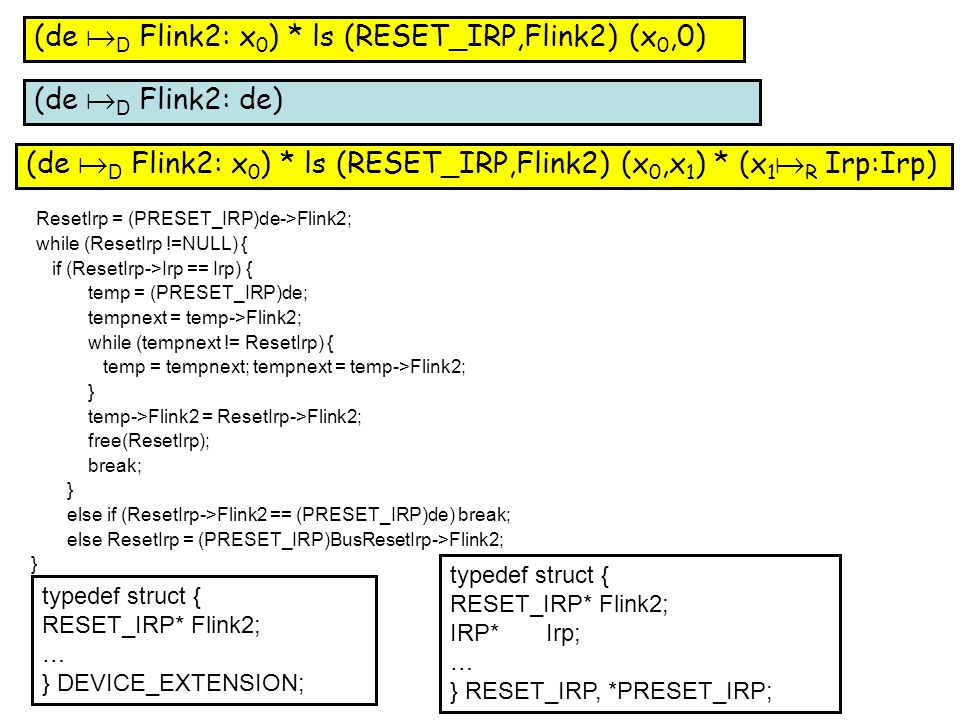

12 void XXX_CancelIrp(PDEVICE_OBJECT DeviceObject, PIRP Irp) { ……… PXXX_RESET_IRP XXXResetIrp,temp,tempnext; PDEVICE_EXTENSION deviceExtension; ……… KeAcquireSpinLock(&deviceExtension->ResetSpinLock, &Irql); ResetIrp = (PRESET_IRP)de->Flink2; while (ResetIrp !=NULL) { if (ResetIrp->Irp == Irp) { temp = (PRESET_IRP)de; tempnext = temp->Flink2; while (tempnext != ResetIrp) { temp = tempnext; tempnext = temp->Flink2; } temp->Flink2 = ResetIrp->Flink2; free(ResetIrp); break; } else if (ResetIrp->Flink2 == (PRESET_IRP)de) break; else ResetIrp = (PRESET_IRP)BusResetIrp->Flink2; } KeReleaseSpinLock(&deviceExtension->ResetSpinLock, Irql); …… IoCompleteRequest(Irp, IO_NO_INCREMENT); } (de D Flink2: x 0 ) * ls (RESET_IRP,Flink2) (x 0,de) typedef struct { RESET_IRP* Flink2; IRP* Irp; … } RESET_IRP, *PRESET_IRP; typedef struct { RESET_IRP* Flink2; … } DEVICE_EXTENSION; (de D Flink2: x 0 ) * ls (RESET_IRP,Flink2) (x 0,x 1 ) * (x 1 R Irp:Irp) (de D Flink2: x 0 ) * ls (RESET_IRP,Flink2) (x 0,0) (de D Flink2: x 0 ) * ls (RESET_IRP,Flink2) (x 0,de)(de D Flink2: de)

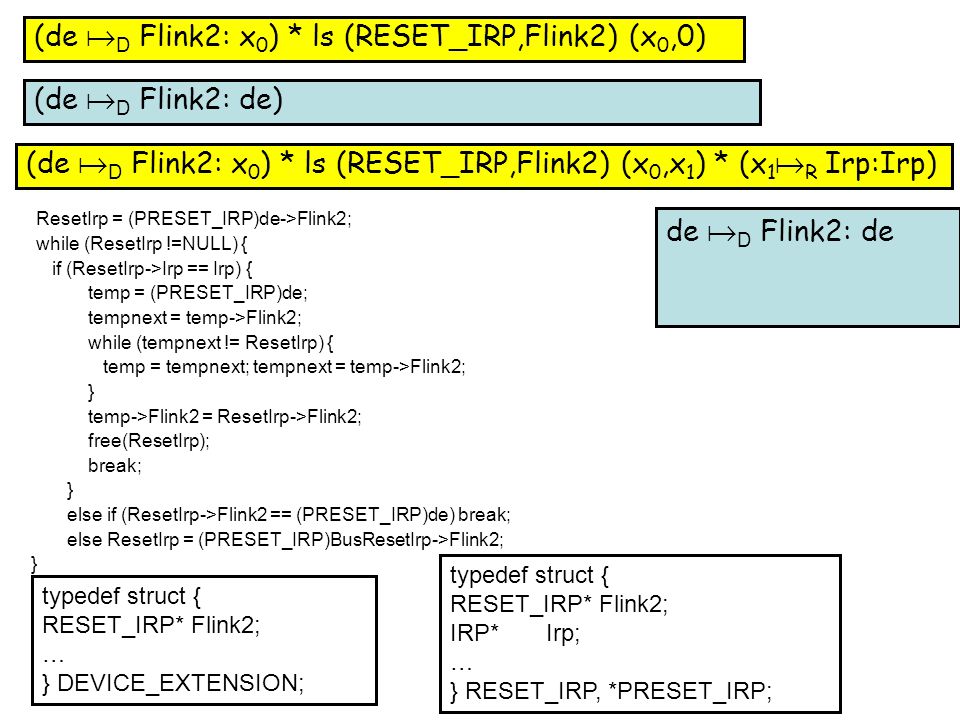

13 void XXX_CancelIrp(PDEVICE_OBJECT DeviceObject, PIRP Irp) { ……… PXXX_RESET_IRP XXXResetIrp,temp,tempnext; PDEVICE_EXTENSION deviceExtension; ……… KeAcquireSpinLock(&deviceExtension->ResetSpinLock, &Irql); ResetIrp = (PRESET_IRP)de->Flink2; while (ResetIrp !=NULL) { if (ResetIrp->Irp == Irp) { temp = (PRESET_IRP)de; tempnext = temp->Flink2; while (tempnext != ResetIrp) { temp = tempnext; tempnext = temp->Flink2; } temp->Flink2 = ResetIrp->Flink2; free(ResetIrp); break; } else if (ResetIrp->Flink2 == (PRESET_IRP)de) break; else ResetIrp = (PRESET_IRP)BusResetIrp->Flink2; } KeReleaseSpinLock(&deviceExtension->ResetSpinLock, Irql); …… IoCompleteRequest(Irp, IO_NO_INCREMENT); } (de Flink2: x 0 ) * ls (RESET_IRP,Flink2) (x 0,de) typedef struct { RESET_IRP* Flink2; IRP* Irp; … } RESET_IRP, *PRESET_IRP; typedef struct { RESET_IRP* Flink2; … } DEVICE_EXTENSION; (de D Flink2: x 0 ) * ls (RESET_IRP,Flink2) (x 0,x 1 ) * (x 1 R Irp:Irp) (de D Flink2: x 0 ) * ls (RESET_IRP,Flink2) (x 0,0) (de Flink2: x 0 ) * ls (RESET_IRP,Flink2) (x 0,de)(de D Flink2: de) de D Flink2: de

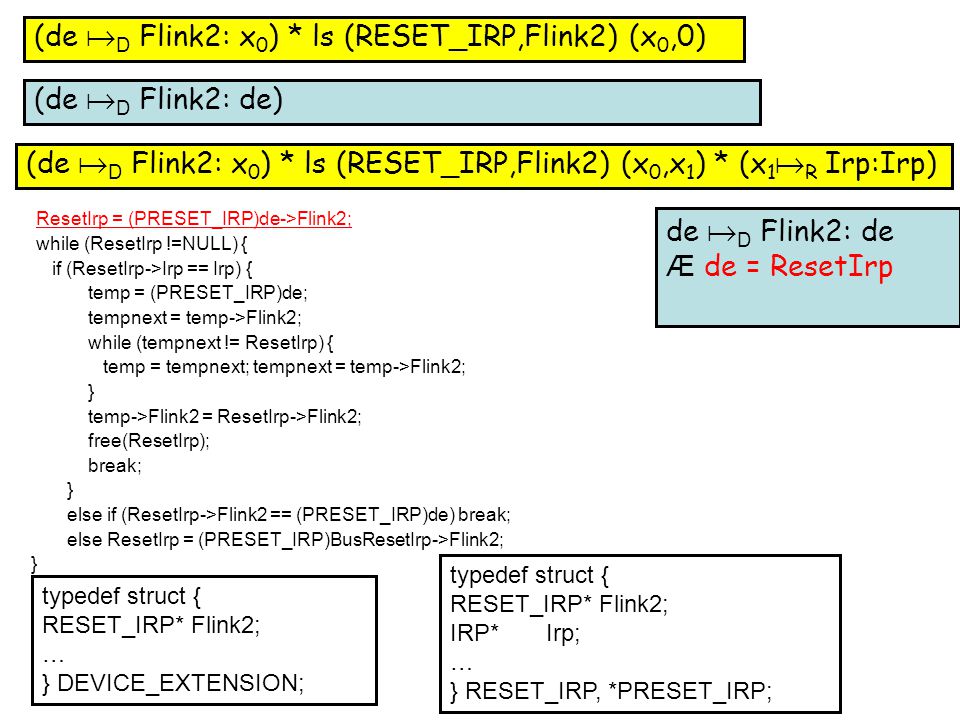

14 void XXX_CancelIrp(PDEVICE_OBJECT DeviceObject, PIRP Irp) { ……… PXXX_RESET_IRP XXXResetIrp,temp,tempnext; PDEVICE_EXTENSION deviceExtension; ……… KeAcquireSpinLock(&deviceExtension->ResetSpinLock, &Irql); ResetIrp = (PRESET_IRP)de->Flink2; while (ResetIrp !=NULL) { if (ResetIrp->Irp == Irp) { temp = (PRESET_IRP)de; tempnext = temp->Flink2; while (tempnext != ResetIrp) { temp = tempnext; tempnext = temp->Flink2; } temp->Flink2 = ResetIrp->Flink2; free(ResetIrp); break; } else if (ResetIrp->Flink2 == (PRESET_IRP)de) break; else ResetIrp = (PRESET_IRP)BusResetIrp->Flink2; } KeReleaseSpinLock(&deviceExtension->ResetSpinLock, Irql); …… IoCompleteRequest(Irp, IO_NO_INCREMENT); } (de Flink2: x 0 ) * ls (RESET_IRP,Flink2) (x 0,de) typedef struct { RESET_IRP* Flink2; IRP* Irp; … } RESET_IRP, *PRESET_IRP; typedef struct { RESET_IRP* Flink2; … } DEVICE_EXTENSION; (de D Flink2: x 0 ) * ls (RESET_IRP,Flink2) (x 0,x 1 ) * (x 1 R Irp:Irp) (de D Flink2: x 0 ) * ls (RESET_IRP,Flink2) (x 0,0) (de Flink2: x 0 ) * ls (RESET_IRP,Flink2) (x 0,de)(de D Flink2: de) de D Flink2: de Æ de = ResetIrp

15 void XXX_CancelIrp(PDEVICE_OBJECT DeviceObject, PIRP Irp) { ……… PXXX_RESET_IRP XXXResetIrp,temp,tempnext; PDEVICE_EXTENSION deviceExtension; ……… KeAcquireSpinLock(&deviceExtension->ResetSpinLock, &Irql); ResetIrp = (PRESET_IRP)de->Flink2; while (ResetIrp !=NULL) { if (ResetIrp->Irp == Irp) { temp = (PRESET_IRP)de; tempnext = temp->Flink2; while (tempnext != ResetIrp) { temp = tempnext; tempnext = temp->Flink2; } temp->Flink2 = ResetIrp->Flink2; free(ResetIrp); break; } else if (ResetIrp->Flink2 == (PRESET_IRP)de) break; else ResetIrp = (PRESET_IRP)BusResetIrp->Flink2; } KeReleaseSpinLock(&deviceExtension->ResetSpinLock, Irql); …… IoCompleteRequest(Irp, IO_NO_INCREMENT); } (de Flink2: x 0 ) * ls (RESET_IRP,Flink2) (x 0,de) typedef struct { RESET_IRP* Flink2; IRP* Irp; … } RESET_IRP, *PRESET_IRP; typedef struct { RESET_IRP* Flink2; … } DEVICE_EXTENSION; (de D Flink2: x 0 ) * ls (RESET_IRP,Flink2) (x 0,x 1 ) * (x 1 R Irp:Irp) (de D Flink2: x 0 ) * ls (RESET_IRP,Flink2) (x 0,0) (de Flink2: x 0 ) * ls (RESET_IRP,Flink2) (x 0,de)(de D Flink2: de) de D Flink2: de Æ de = ResetIrp

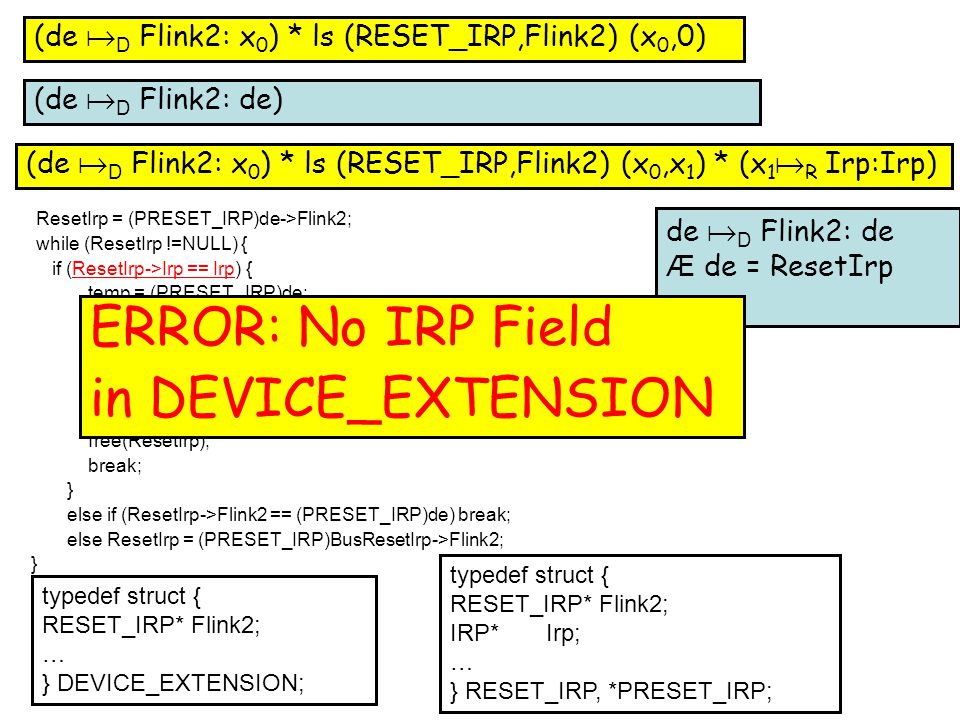

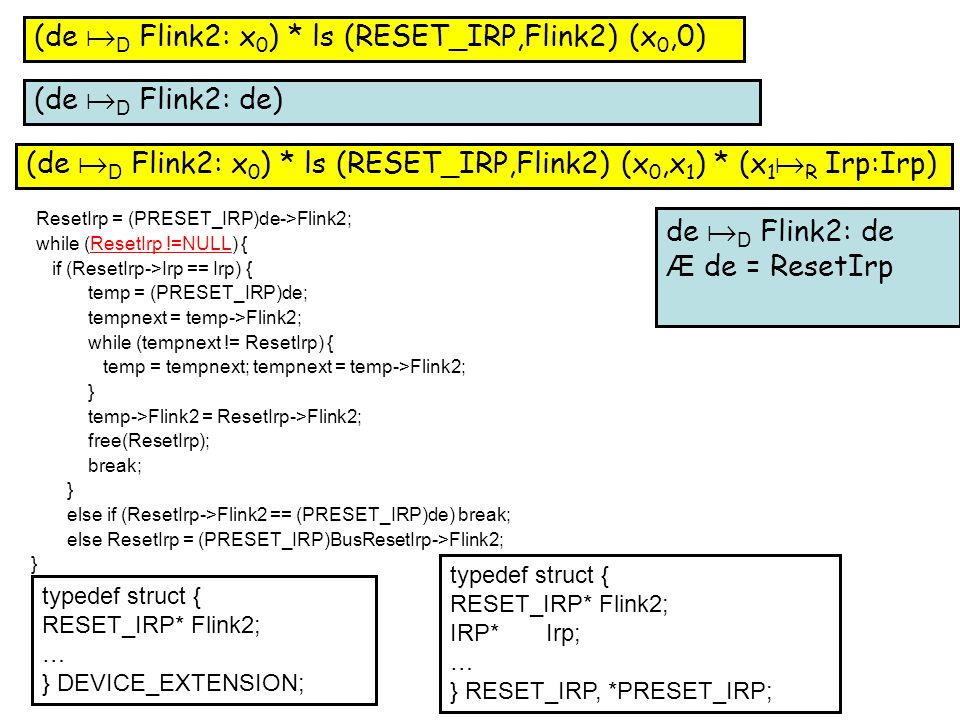

16 void XXX_CancelIrp(PDEVICE_OBJECT DeviceObject, PIRP Irp) { ……… PXXX_RESET_IRP XXXResetIrp,temp,tempnext; PDEVICE_EXTENSION deviceExtension; ……… KeAcquireSpinLock(&deviceExtension->ResetSpinLock, &Irql); ResetIrp = (PRESET_IRP)de->Flink2; while (ResetIrp !=NULL) { if (ResetIrp->Irp == Irp) { temp = (PRESET_IRP)de; tempnext = temp->Flink2; while (tempnext != ResetIrp) { temp = tempnext; tempnext = temp->Flink2; } temp->Flink2 = ResetIrp->Flink2; free(ResetIrp); break; } else if (ResetIrp->Flink2 == (PRESET_IRP)de) break; else ResetIrp = (PRESET_IRP)BusResetIrp->Flink2; } KeReleaseSpinLock(&deviceExtension->ResetSpinLock, Irql); …… IoCompleteRequest(Irp, IO_NO_INCREMENT); } (de Flink2: x 0 ) * ls (RESET_IRP,Flink2) (x 0,de) typedef struct { RESET_IRP* Flink2; IRP* Irp; … } RESET_IRP, *PRESET_IRP; typedef struct { RESET_IRP* Flink2; … } DEVICE_EXTENSION; (de D Flink2: x 0 ) * ls (RESET_IRP,Flink2) (x 0,x 1 ) * (x 1 R Irp:Irp) (de D Flink2: x 0 ) * ls (RESET_IRP,Flink2) (x 0,0) (de Flink2: x 0 ) * ls (RESET_IRP,Flink2) (x 0,de)(de D Flink2: de) de D Flink2: de Æ de = ResetIrp ERROR: No IRP Field in DEVICE_EXTENSION

17 Extreme Local Shape Analysis Trace Generation Footprint Computation list t*; while (x!=0) { t = x; x = x->next; free(t); } assert(x!=0); t=x; x=x->next; free(x); assert(x=0); assert(x!=0); t=x; x=x->next; free(x); assert(x!=0); t=x; x=x->next; free(x); assert(x=0);

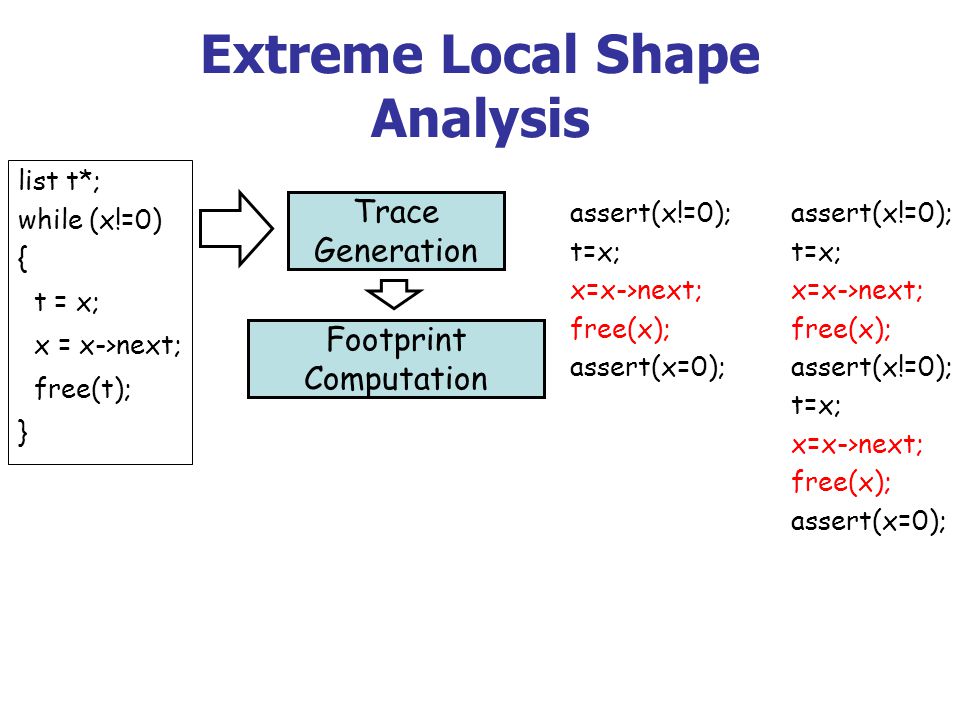

18 Extreme Local Shape Analysis Trace Generation Footprint Computation list t*; while (x!=0) { t = x; x = x->next; free(t); } assert(x!=0); t=x; x=x->next; free(x); assert(x=0); assert(x!=0); t=x; x=x->next; free(x); assert(x!=0); t=x; x=x->next; free(x); assert(x=0);

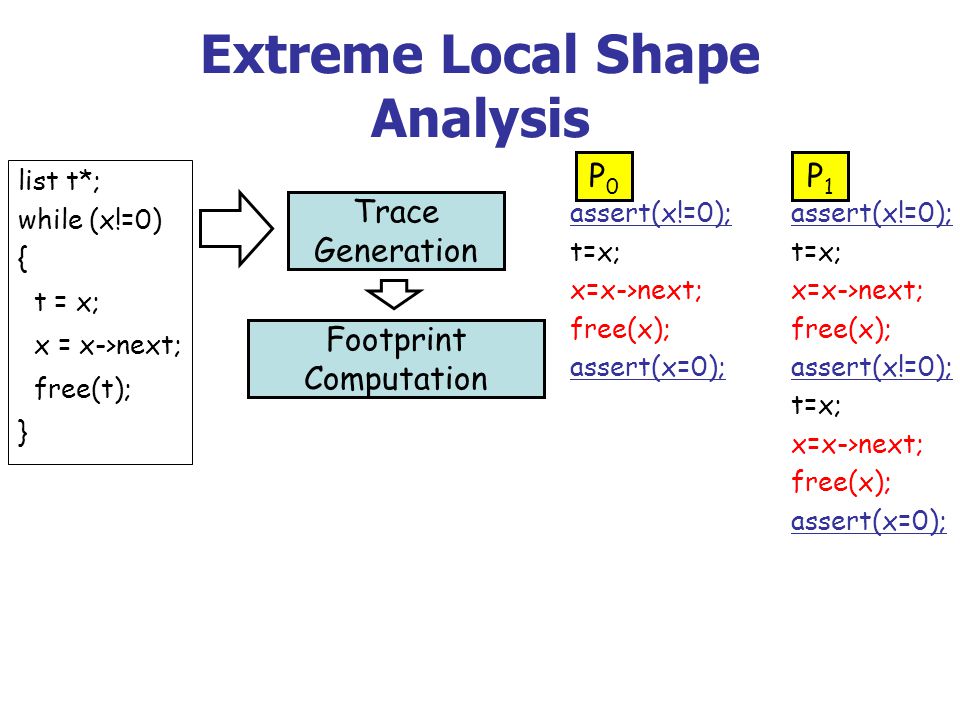

19 Extreme Local Shape Analysis Trace Generation Footprint Computation list t*; while (x!=0) { t = x; x = x->next; free(t); } assert(x!=0); t=x; x=x->next; free(x); assert(x=0); assert(x!=0); t=x; x=x->next; free(x); assert(x!=0); t=x; x=x->next; free(x); assert(x=0); P0P0 P1P1

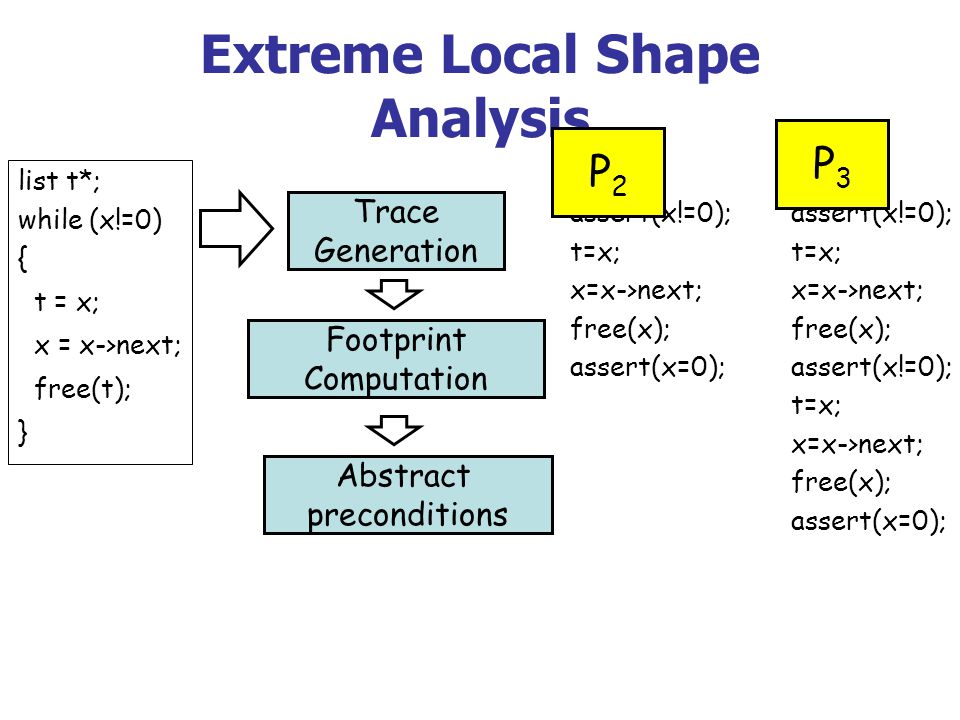

20 Extreme Local Shape Analysis Trace Generation Footprint Computation list t*; while (x!=0) { t = x; x = x->next; free(t); } assert(x!=0); t=x; x=x->next; free(x); assert(x=0); assert(x!=0); t=x; x=x->next; free(x); assert(x!=0); t=x; x=x->next; free(x); assert(x=0); P0P0 P1P1 Abstract preconditions P2P2 P3P3

21 Extreme Local Shape Analysis Trace Generation Footprint Computation list t*; while (x!=0) { t = x; x = x->next; free(t); } assert(x!=0); t=x; x=x->next; free(x); assert(x=0); assert(x!=0); t=x; x=x->next; free(x); assert(x!=0); t=x; x=x->next; free(x); assert(x=0); P0P0 P1P1 Abstract preconditions P2P2 P3P3 SpaceInvader {P 2,P 3,…,P n } {Q 1,Q 2,…,Q k } {I 1,I 2,…,I m }

22 Extreme Local Shape Analysis Trace Generation Footprint Computation Abstract preconditions SpaceInvader Sound precondition Footprint only

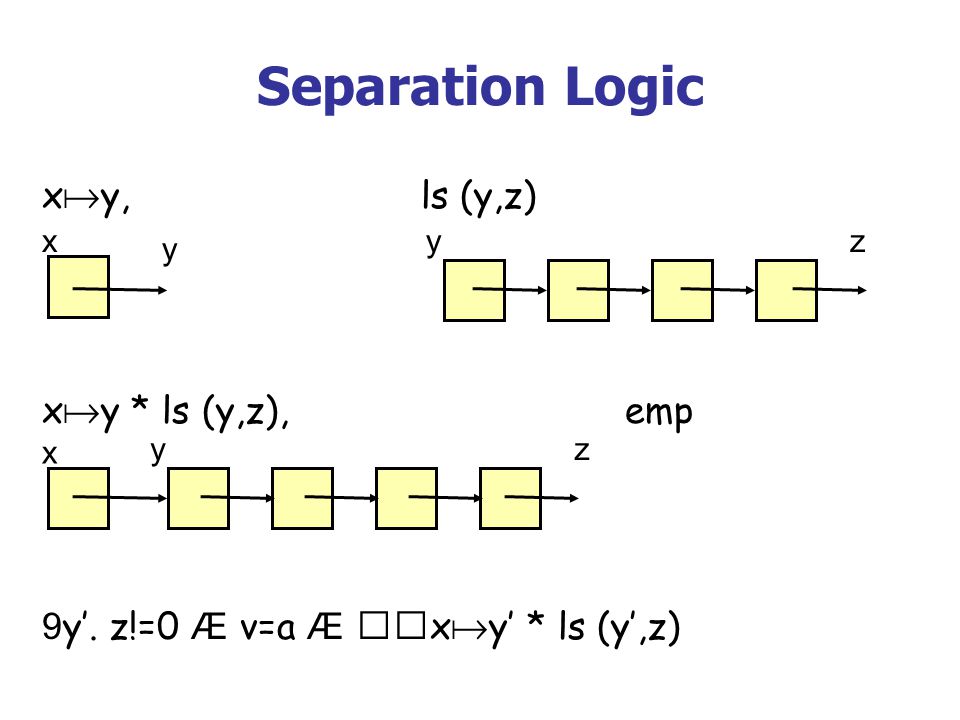

23 Separation Logic x y, ls (y,z) x y * ls (y,z), emp 9 y. z!=0 Æ v=a Æ x y * ls (y,z) x y yz yz x

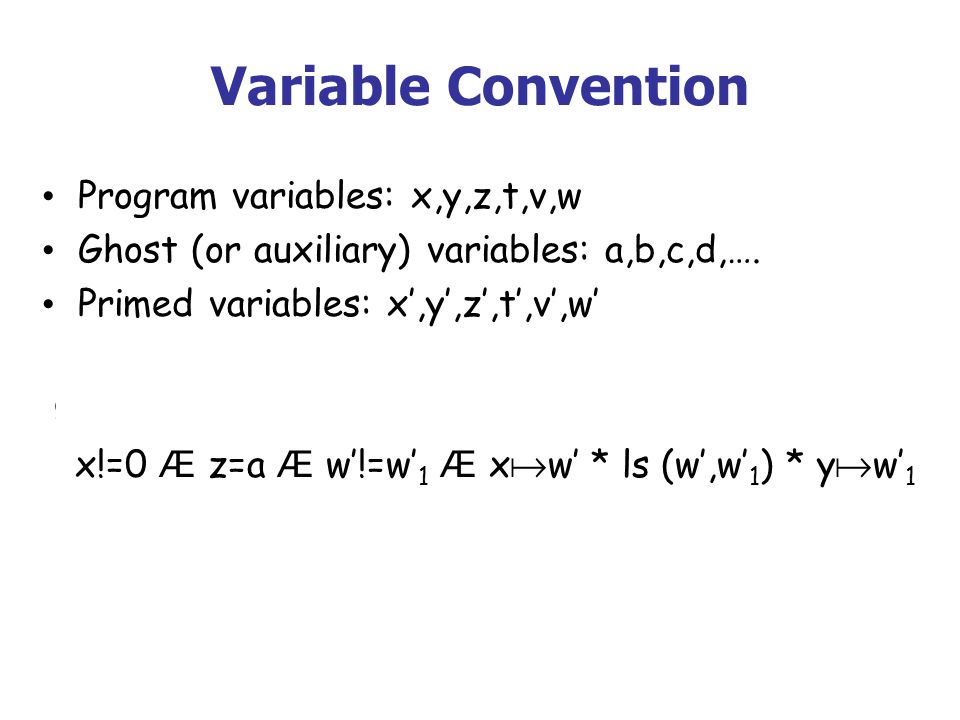

24 Variable Convention Program variables: x,y,z,t,v,w Ghost (or auxiliary) variables: a,b,c,d,…. Primed variables: x,y,z,t,v,w 9 w,w 1. x!=0 Æ z=a Æ w!=w 1 Æ x w * ls (w,w 1 ) * y w 1

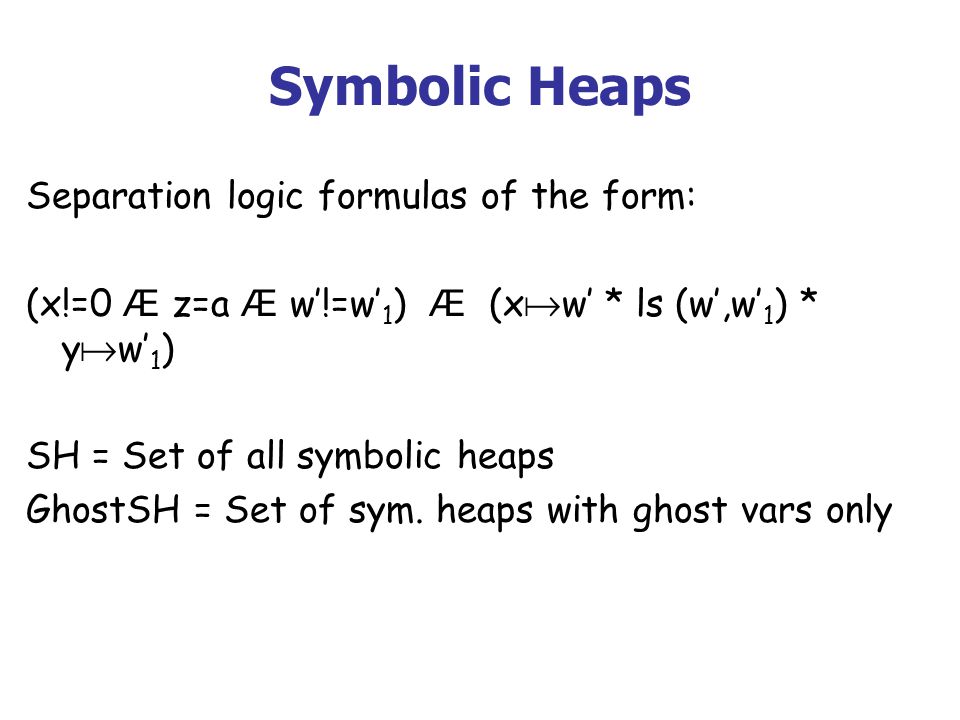

25 Symbolic Heaps Separation logic formulas of the form: (x!=0 Æ z=a Æ w!=w 1 ) Æ (x w * ls (w,w 1 ) * y w 1 ) SH = Set of all symbolic heaps GhostSH = Set of sym. heaps with ghost vars only

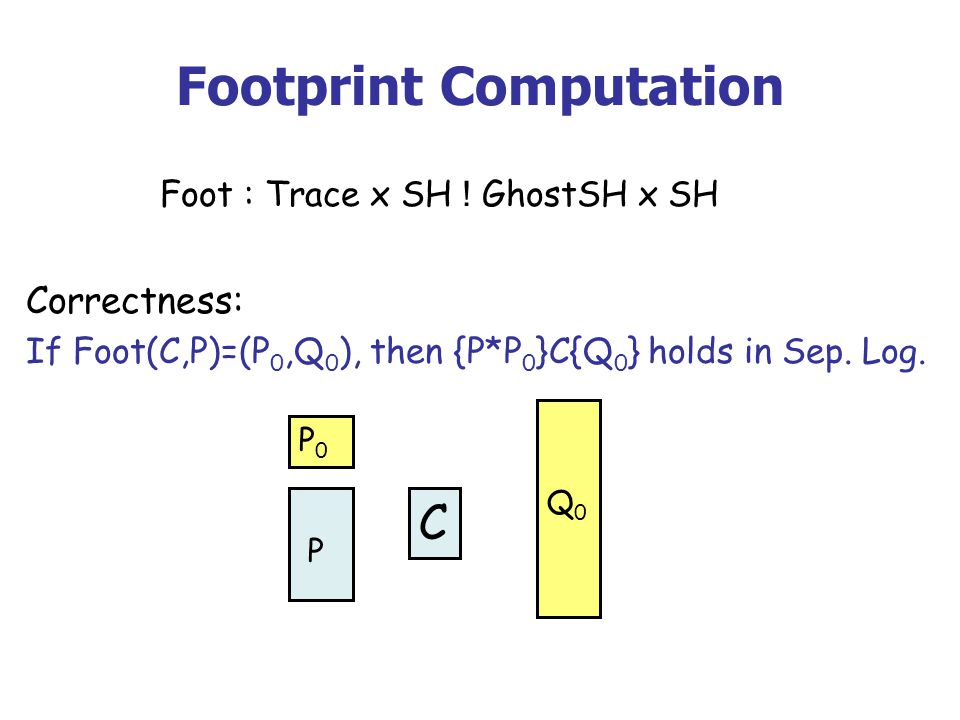

26 Footprint Computation Foot : Trace x SH ! GhostSH x SH Correctness: If Foot(C,P)=(P 0,Q 0 ), then {P*P 0 }C{Q 0 } holds in Sep. Log. Q0Q0 P P0P0 C

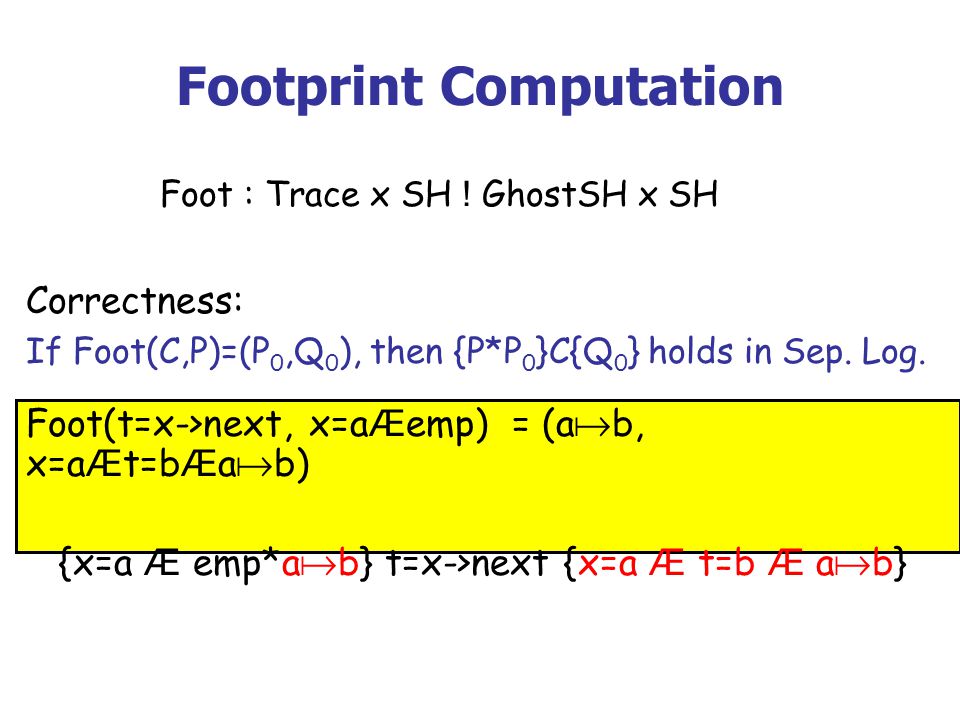

27 Footprint Computation Foot : Trace x SH ! GhostSH x SH Correctness: If Foot(C,P)=(P 0,Q 0 ), then {P*P 0 }C{Q 0 } holds in Sep. Log. Foot(t=x->next, x=a Æ emp) = (a b, x=a Æ t=b Æ a b) {x=a Æ emp*a b} t=x->next {x=a Æ t=b Æ a b}

28 Footprint Computation Foot : Trace x SH ! GhostSH x SH Correctness: If Foot(C,P)=(P 0,Q 0 ), then {P*P 0 }C{Q 0 } holds in Sep. Log.

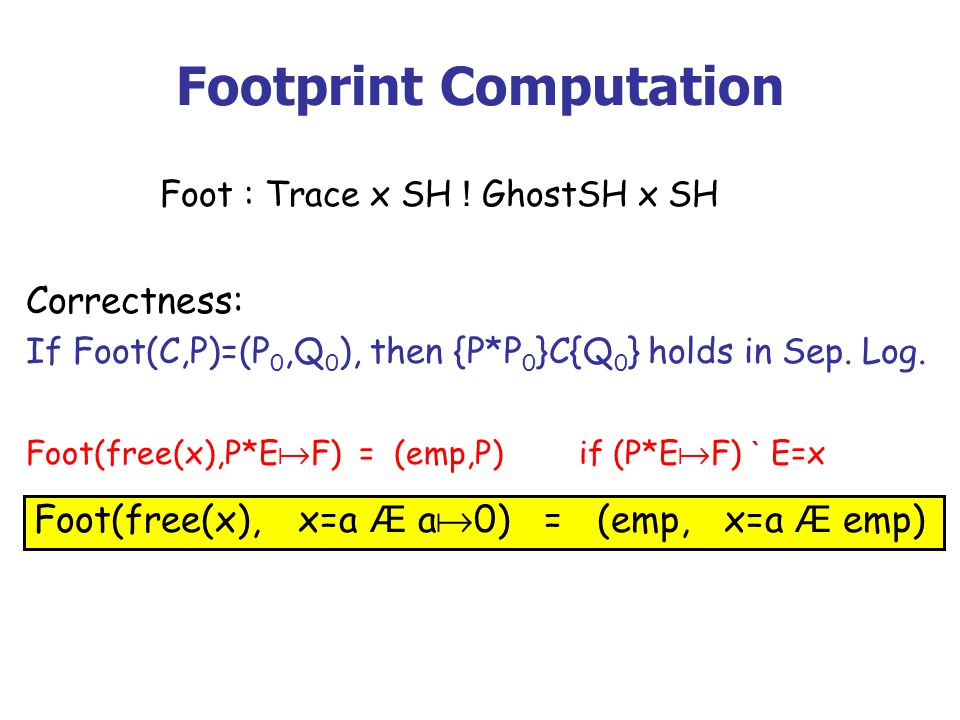

29 Footprint Computation Foot : Trace x SH ! GhostSH x SH Correctness: If Foot(C,P)=(P 0,Q 0 ), then {P*P 0 }C{Q 0 } holds in Sep. Log. Foot(free(x),P*E F) = (emp,P) if (P*E F) ` E=x Foot(free(x), x=a Æ a 0) = (emp, x=a Æ emp)

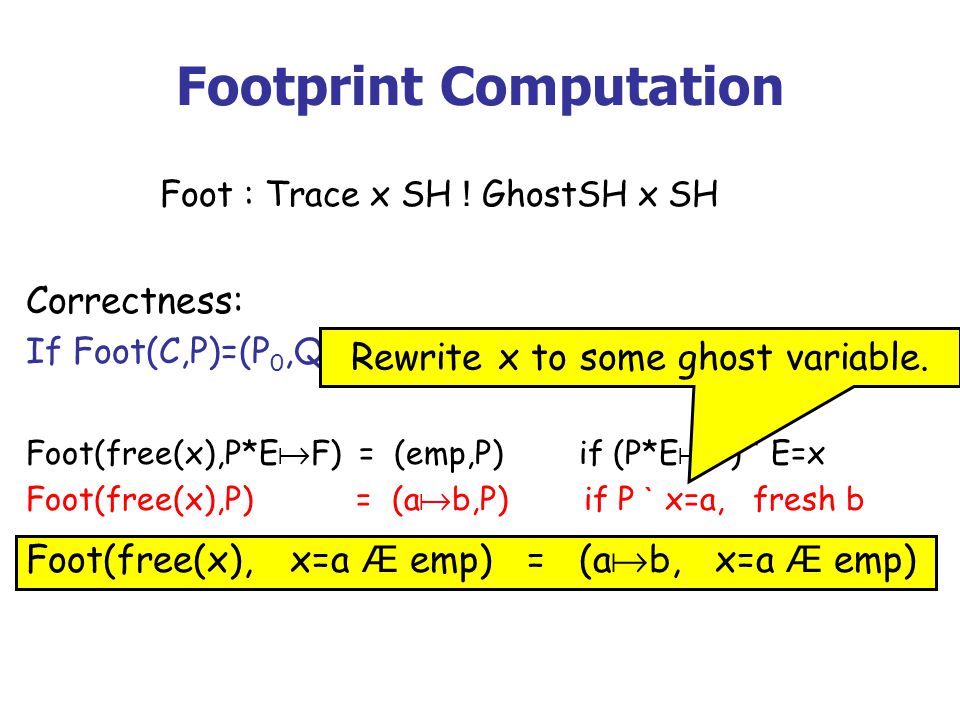

30 Footprint Computation Foot : Trace x SH ! GhostSH x SH Correctness: If Foot(C,P)=(P 0,Q 0 ), then {P*P 0 }C{Q 0 } holds in Sep. Log. Foot(free(x),P*E F) = (emp,P) if (P*E F) ` E=x Foot(free(x),P) = (a b,P) if P ` x=a, fresh b Rewrite x to some ghost variable. Foot(free(x), x=a Æ emp) = (a b, x=a Æ emp)

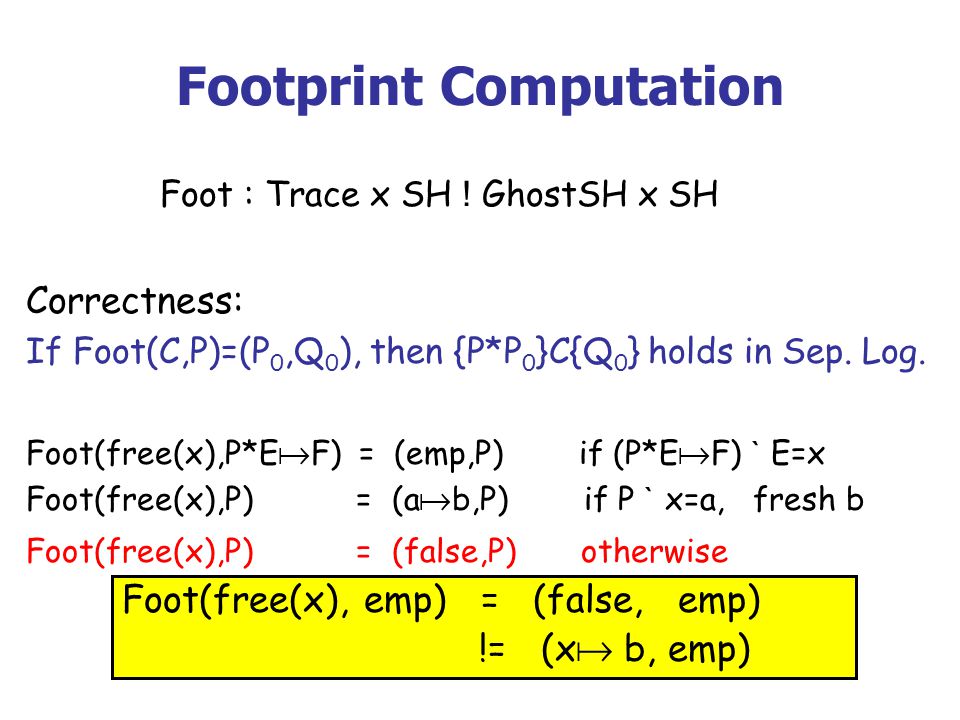

31 Footprint Computation Foot : Trace x SH ! GhostSH x SH Correctness: If Foot(C,P)=(P 0,Q 0 ), then {P*P 0 }C{Q 0 } holds in Sep. Log. Foot(free(x),P*E F) = (emp,P) if (P*E F) ` E=x Foot(free(x),P) = (a b,P) if P ` x=a, fresh b Foot(free(x),P) = (false,P) otherwise Foot(free(x), emp) = (false, emp) != (x b, emp)

32 Footprint Computation Foot : Trace x SH ! GhostSH x SH Correctness: If Foot(C,P)=(P 0,Q 0 ), then {P*P 0 }C{Q 0 } holds in Sep. Log.

33 Footprint Computation Foot : Trace x SH ! GhostSH x SH Correctness: If Foot(C,P)=(P 0,Q 0 ), then {P*P 0 }C{Q 0 } holds in Sep. Log. Foot(A;C,P) = let (P 0,Q 0 )=Foot(A,P) and (P 1,Q 1 )=Foot(C,Q 0 ) in (P 0 *P 1, Q 1 ) P Q1Q1 P0P0 Q0Q0 P1P1 A C P1P1

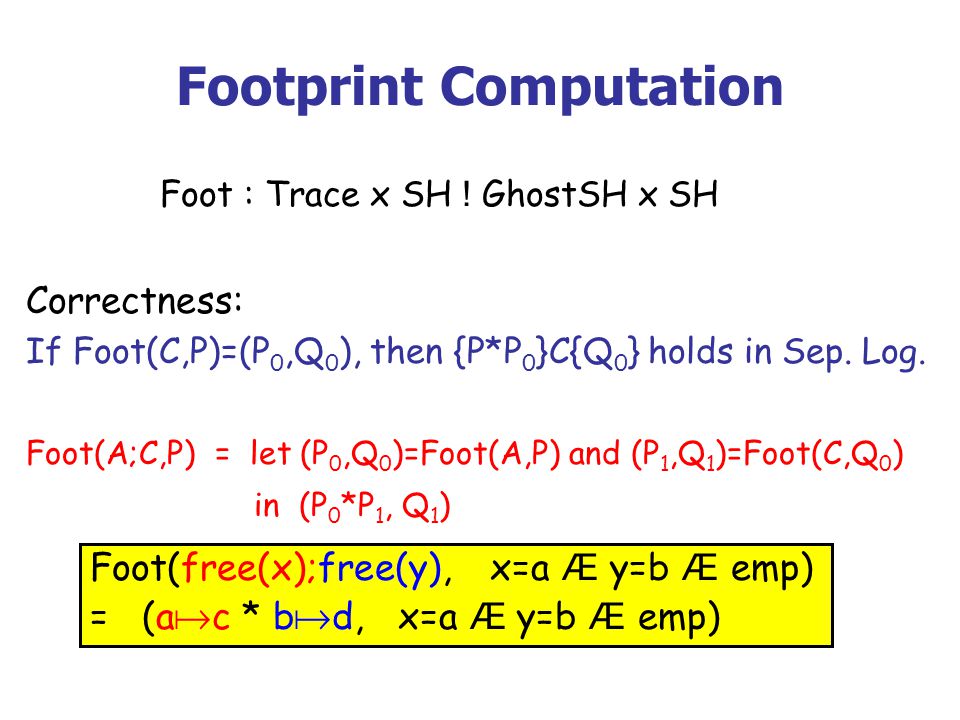

34 Footprint Computation Foot : Trace x SH ! GhostSH x SH Correctness: If Foot(C,P)=(P 0,Q 0 ), then {P*P 0 }C{Q 0 } holds in Sep. Log. Foot(A;C,P) = let (P 0,Q 0 )=Foot(A,P) and (P 1,Q 1 )=Foot(C,Q 0 ) in (P 0 *P 1, Q 1 ) Foot(free(x);free(y), x=a Æ y=b Æ emp) = (a c * b d, x=a Æ y=b Æ emp)

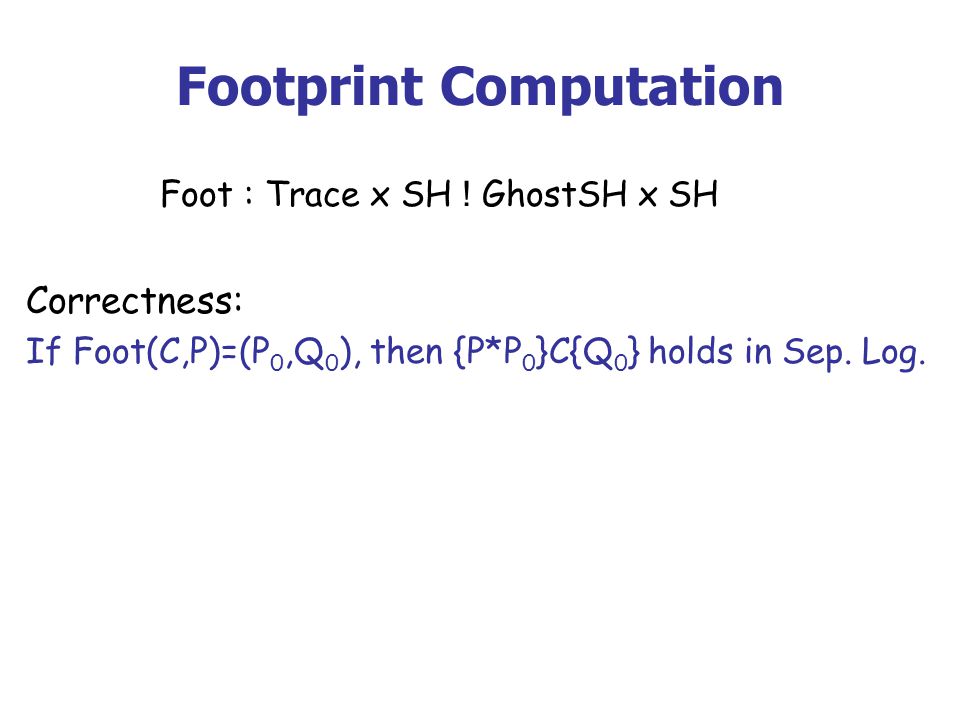

35 Footprint Computation Foot : Trace x SH ! GhostSH x SH Correctness: If Foot(C,P)=(P 0,Q 0 ), then {P*P 0 }C{Q 0 } holds in Sep. Log.

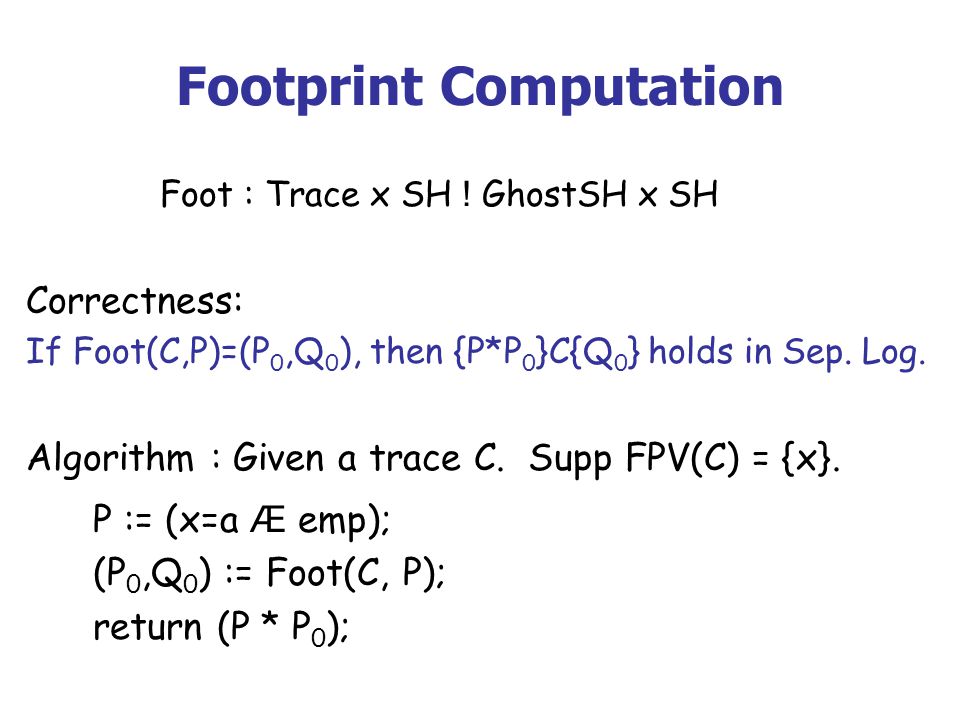

36 Footprint Computation Foot : Trace x SH ! GhostSH x SH Correctness: If Foot(C,P)=(P 0,Q 0 ), then {P*P 0 }C{Q 0 } holds in Sep. Log. Algorithm : Given a trace C. Supp FPV(C) = {x}. P := (x=a Æ emp); (P 0,Q 0 ) := Foot(C, P); return (P * P 0 );

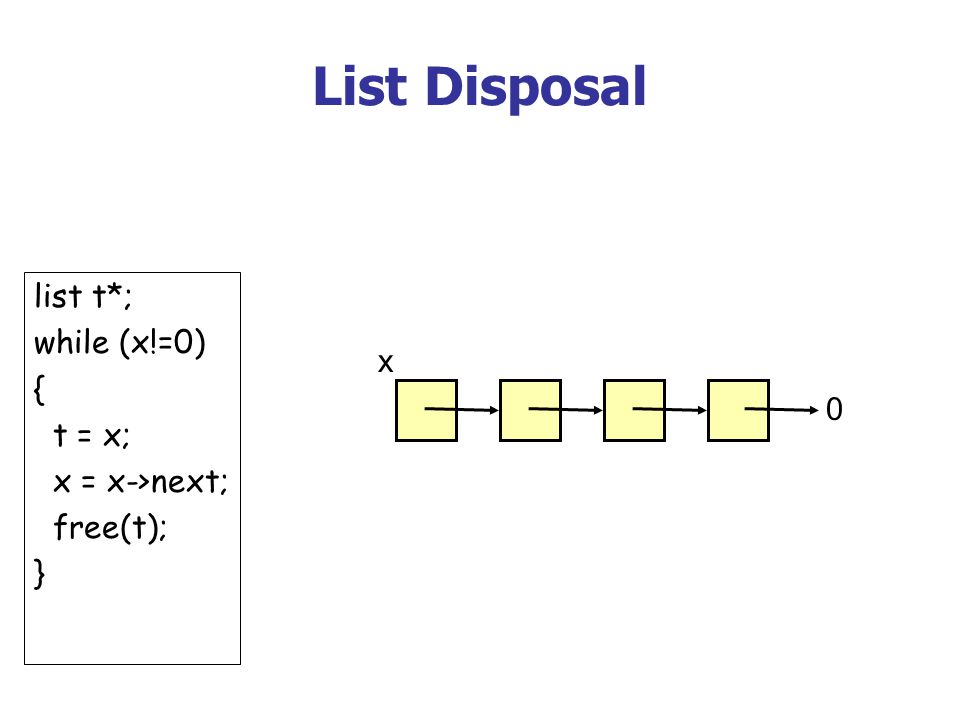

37 List Disposal list t*; while (x!=0) { t = x; x = x->next; free(t); } x 0

38 List Disposal list t*; while (x!=0) { t = x; x = x->next; free(t); } x 0

39 List Disposal list t*; while (x!=0) { t = x; x = x->next; free(t); } x 0 t

40 List Disposal list t*; while (x!=0) { t = x; x = x->next; free(t); } x 0 t

41 List Disposal list t*; while (x!=0) { t = x; x = x->next; free(t); } x 0 t

42 Footprint Computation list t*; while (x!=0) { t = x; x = x->next; free(t); }

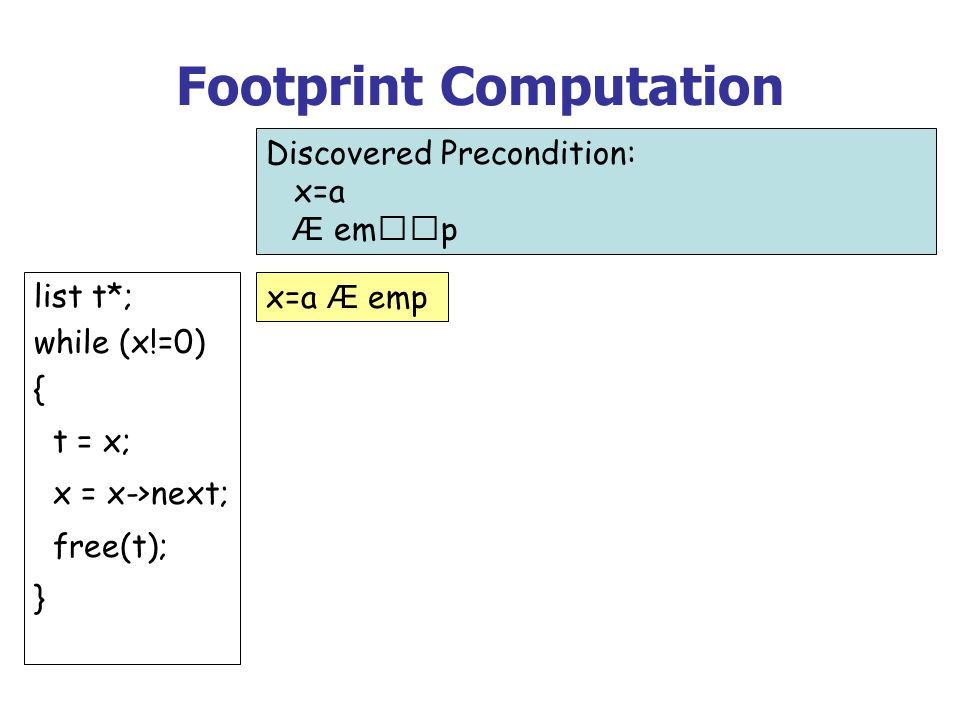

43 Footprint Computation list t*; while (x!=0) { t = x; x = x->next; free(t); } Discovered Precondition: x=a Æ emp x=a Æ emp

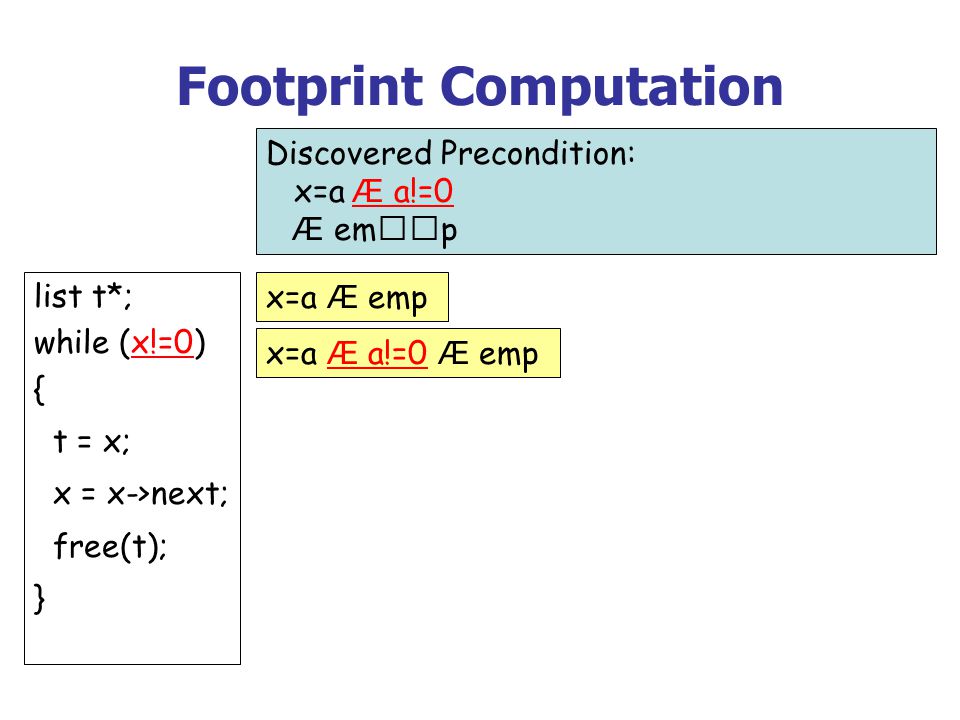

44 Footprint Computation list t*; while (x!=0) { t = x; x = x->next; free(t); } Discovered Precondition: x=a Æ a!=0 Æ emp x=a Æ emp x=a Æ a!=0 Æ emp

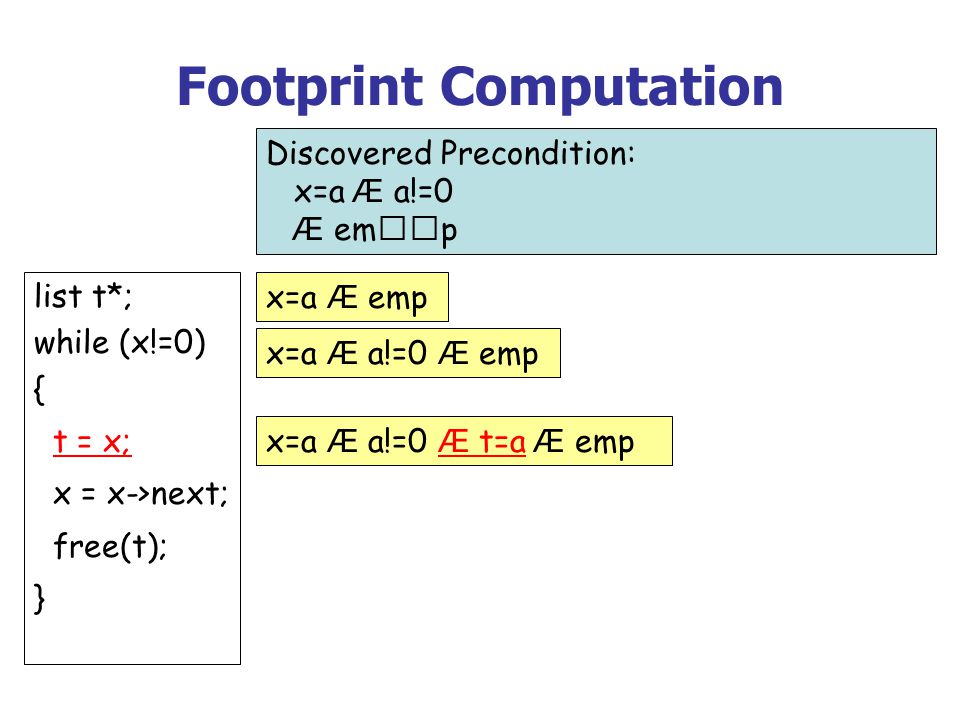

45 Footprint Computation list t*; while (x!=0) { t = x; x = x->next; free(t); } Discovered Precondition: x=a Æ a!=0 Æ emp x=a Æ emp x=a Æ a!=0 Æ emp x=a Æ a!=0 Æ t=a Æ emp

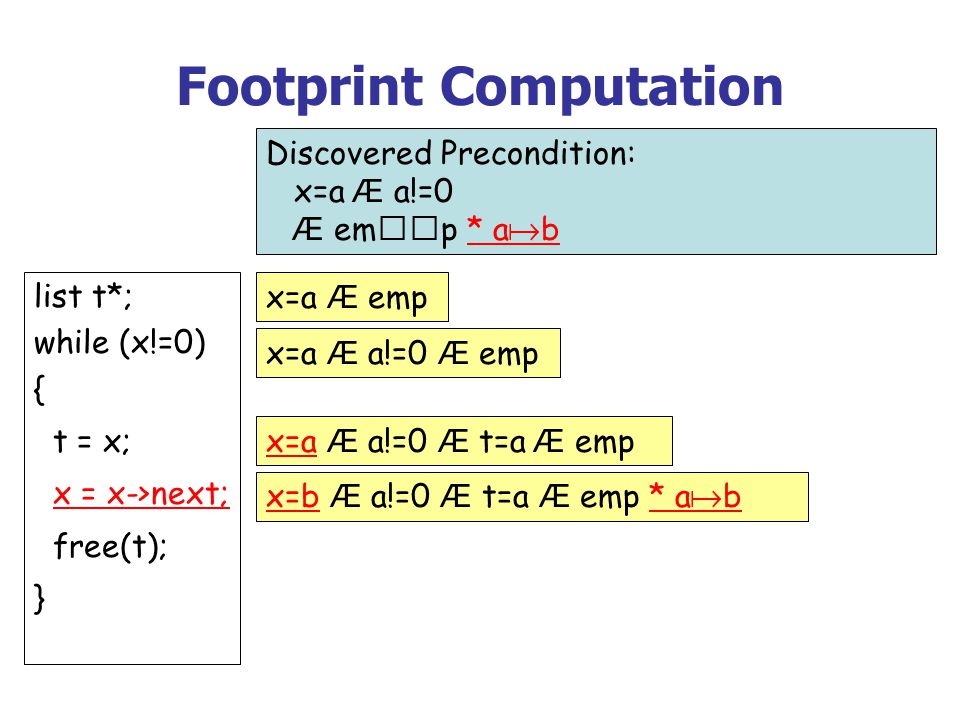

46 Footprint Computation list t*; while (x!=0) { t = x; x = x->next; free(t); } Discovered Precondition: x=a Æ a!=0 Æ emp * a b x=a Æ emp x=a Æ a!=0 Æ emp x=a Æ a!=0 Æ t=a Æ emp x=b Æ a!=0 Æ t=a Æ emp * a b

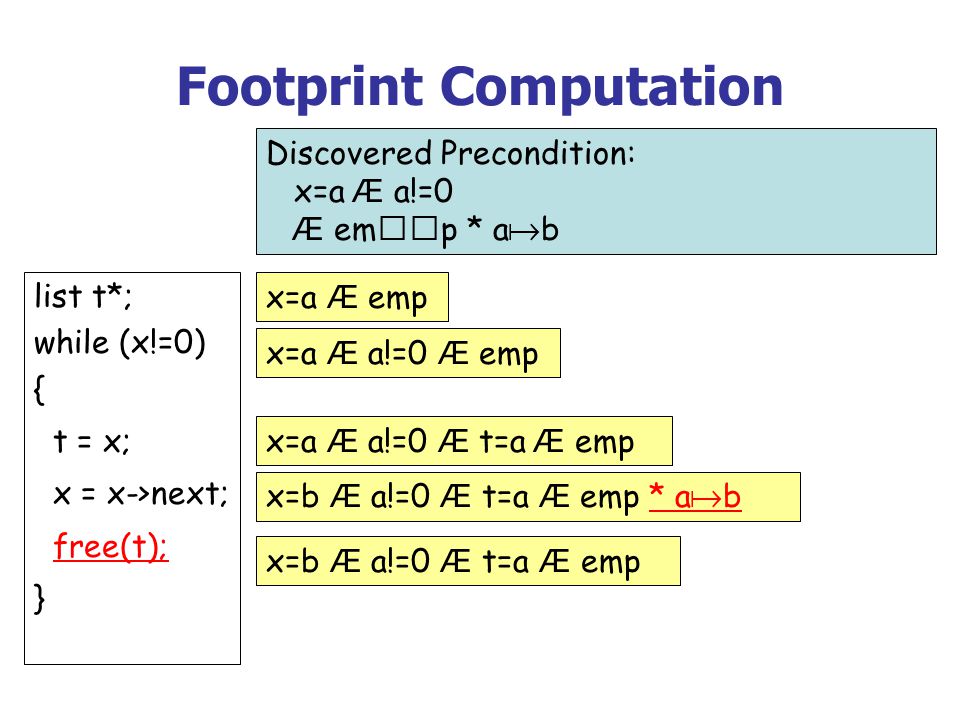

47 Footprint Computation list t*; while (x!=0) { t = x; x = x->next; free(t); } Discovered Precondition: x=a Æ a!=0 Æ emp * a b x=a Æ emp x=a Æ a!=0 Æ emp x=a Æ a!=0 Æ t=a Æ emp x=b Æ a!=0 Æ t=a Æ emp x=b Æ a!=0 Æ t=a Æ emp * a b

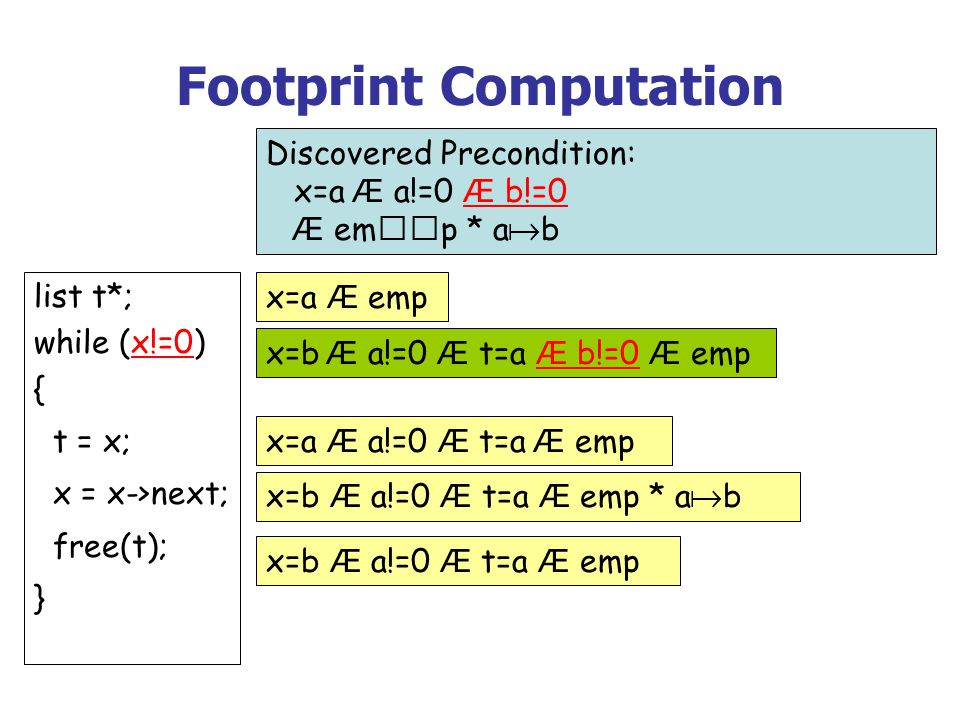

48 Footprint Computation list t*; while (x!=0) { t = x; x = x->next; free(t); } Discovered Precondition: x=a Æ a!=0 Æ b!=0 Æ emp * a b x=b Æ a!=0 Æ t=a Æ emp x=a Æ emp x=a Æ a!=0 Æ emp x=a Æ a!=0 Æ t=a Æ emp x=b Æ a!=0 Æ t=a Æ emp * a b x=b Æ a!=0 Æ t=a Æ b!=0 Æ emp

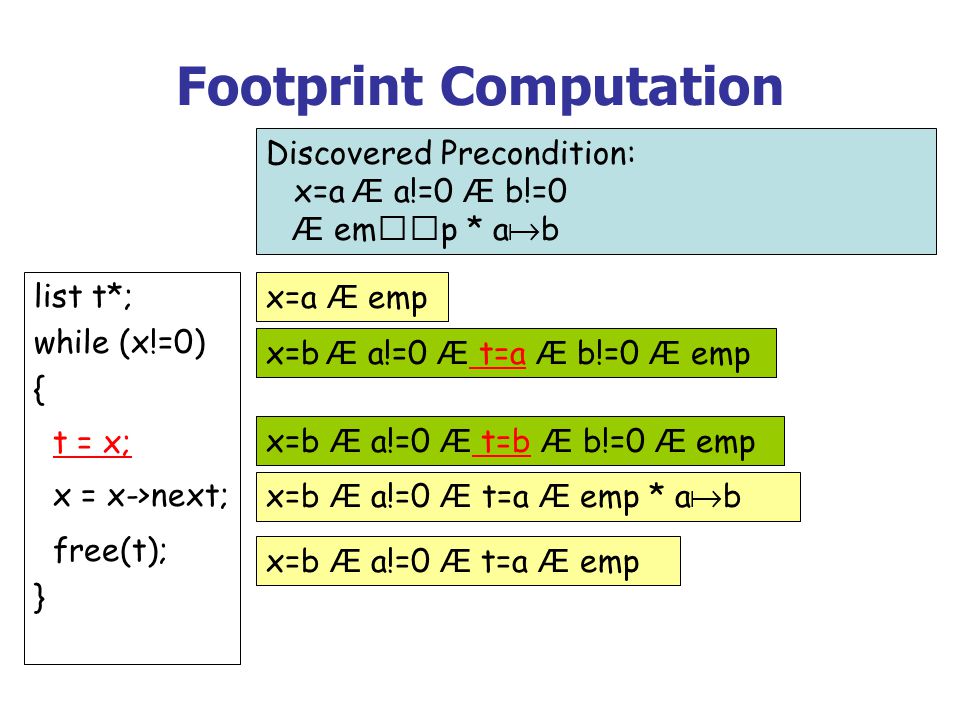

49 Footprint Computation list t*; while (x!=0) { t = x; x = x->next; free(t); } Discovered Precondition: x=a Æ a!=0 Æ b!=0 Æ emp * a b x=b Æ a!=0 Æ t=a Æ emp x=a Æ emp x=a Æ a!=0 Æ emp x=a Æ a!=0 Æ t=a Æ emp x=b Æ a!=0 Æ t=a Æ emp * a b x=b Æ a!=0 Æ t=a Æ b!=0 Æ emp x=b Æ a!=0 Æ t=b Æ b!=0 Æ emp

50 Footprint Computation list t*; while (x!=0) { t = x; x = x->next; free(t); } Discovered Precondition: x=a Æ a!=0 Æ b!=0 Æ emp * a b * b c x=b Æ a!=0 Æ t=a Æ emp x=a Æ emp x=a Æ a!=0 Æ emp x=a Æ a!=0 Æ t=a Æ emp x=b Æ a!=0 Æ t=a Æ emp * a b x=b Æ a!=0 Æ t=a Æ b!=0 Æ emp x=b Æ a!=0 Æ t=b Æ b!=0 Æ emp x=c Æ a!=0 Æ t=b Æ b!=0 Æ emp * b c

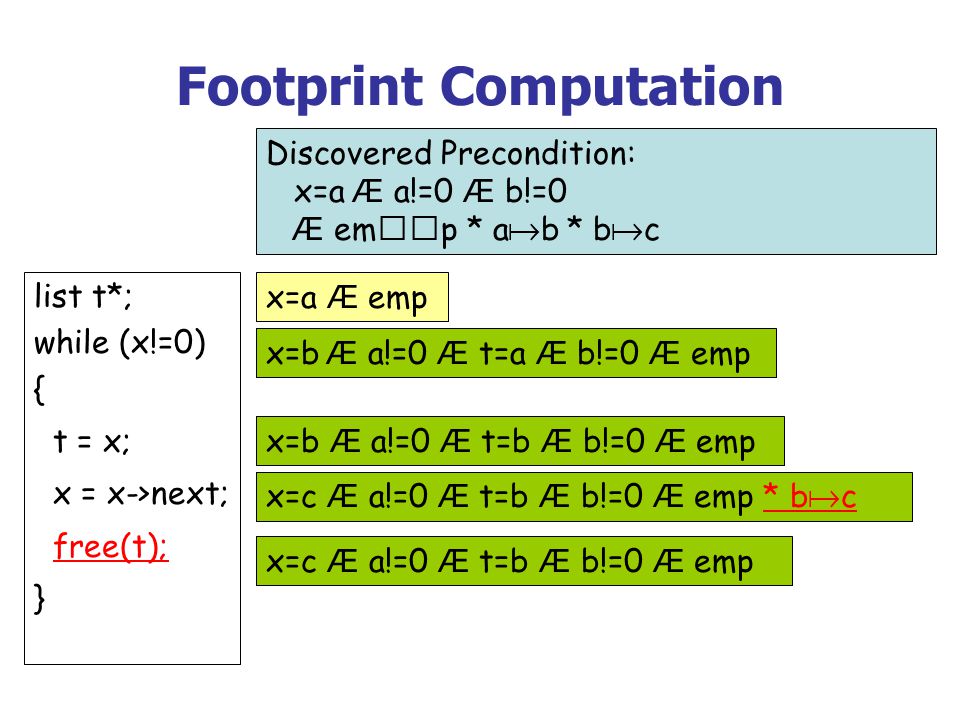

51 Footprint Computation list t*; while (x!=0) { t = x; x = x->next; free(t); } Discovered Precondition: x=a Æ a!=0 Æ b!=0 Æ emp * a b * b c x=b Æ a!=0 Æ t=a Æ emp x=a Æ emp x=a Æ a!=0 Æ emp x=a Æ a!=0 Æ t=a Æ emp x=b Æ a!=0 Æ t=a Æ emp * a b x=b Æ a!=0 Æ t=a Æ b!=0 Æ emp x=b Æ a!=0 Æ t=b Æ b!=0 Æ emp x=c Æ a!=0 Æ t=b Æ b!=0 Æ emp * b c x=c Æ a!=0 Æ t=b Æ b!=0 Æ emp

52 Footprint Computation list t*; while (x!=0) { t = x; x = x->next; free(t); } Discovered Precondition: x=a Æ a!=0 Æ b!=0 Æ c=0 Æ emp * a b * b c x=c Æ a!= 0 Æ t=b Æ b!=0 Æ c=0 Æ emp x=b Æ a!=0 Æ t=a Æ emp x=a Æ emp x=a Æ a!=0 Æ emp x=a Æ a!=0 Æ t=a Æ emp x=b Æ a!=0 Æ t=a Æ emp * a b x=b Æ a!=0 Æ t=a Æ b!=0 Æ emp x=b Æ a!=0 Æ t=b Æ b!=0 Æ emp x=c Æ a!=0 Æ t=b Æ b!=0 Æ emp * b c x=c Æ a!=0 Æ t=b Æ b!=0 Æ emp

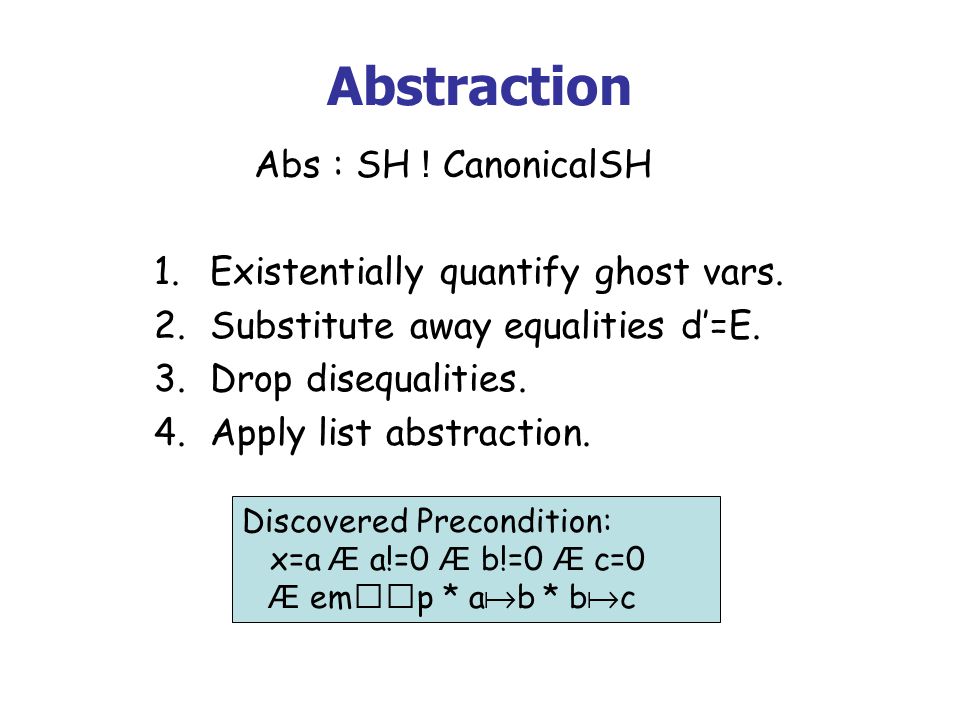

53 Abstraction Discovered Precondition: x=a Æ a!=0 Æ b!=0 Æ c=0 Æ emp * a b * b c Abs : SH ! CanonicalSH 1.Existentially quantify ghost vars. 2.Substitute away equalities d=E. 3.Drop disequalities. 4.Apply list abstraction.

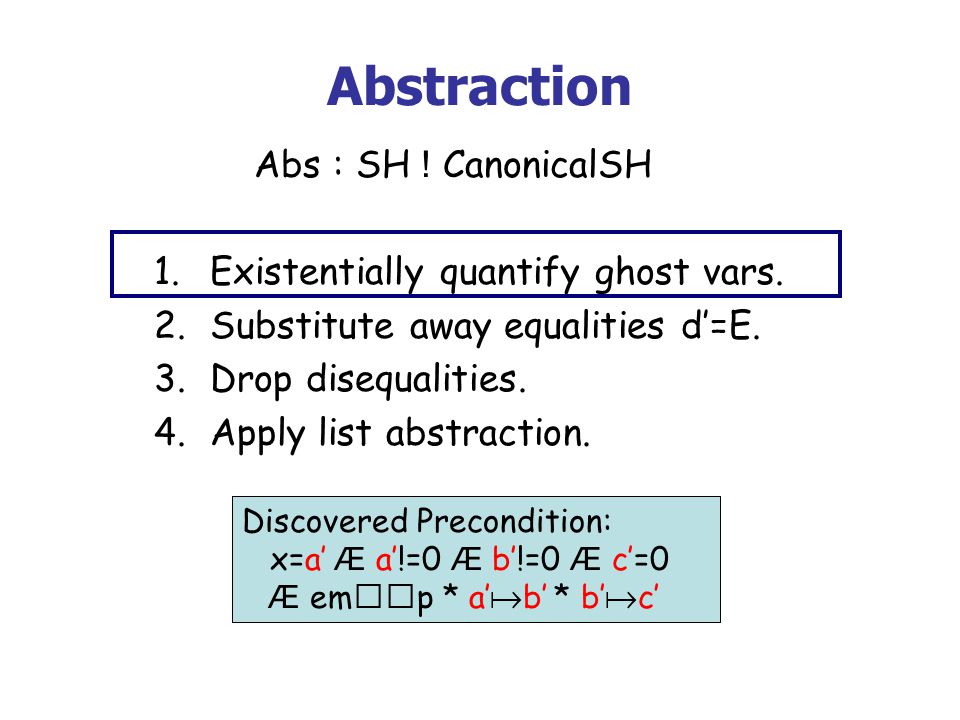

54 Abstraction Discovered Precondition: x=a Æ a!=0 Æ b!=0 Æ c=0 Æ emp * a b * b c Abs : SH ! CanonicalSH 1.Existentially quantify ghost vars. 2.Substitute away equalities d=E. 3.Drop disequalities. 4.Apply list abstraction. Discovered Precondition: x=a Æ a!=0 Æ b!=0 Æ c=0 Æ emp * a b * b c

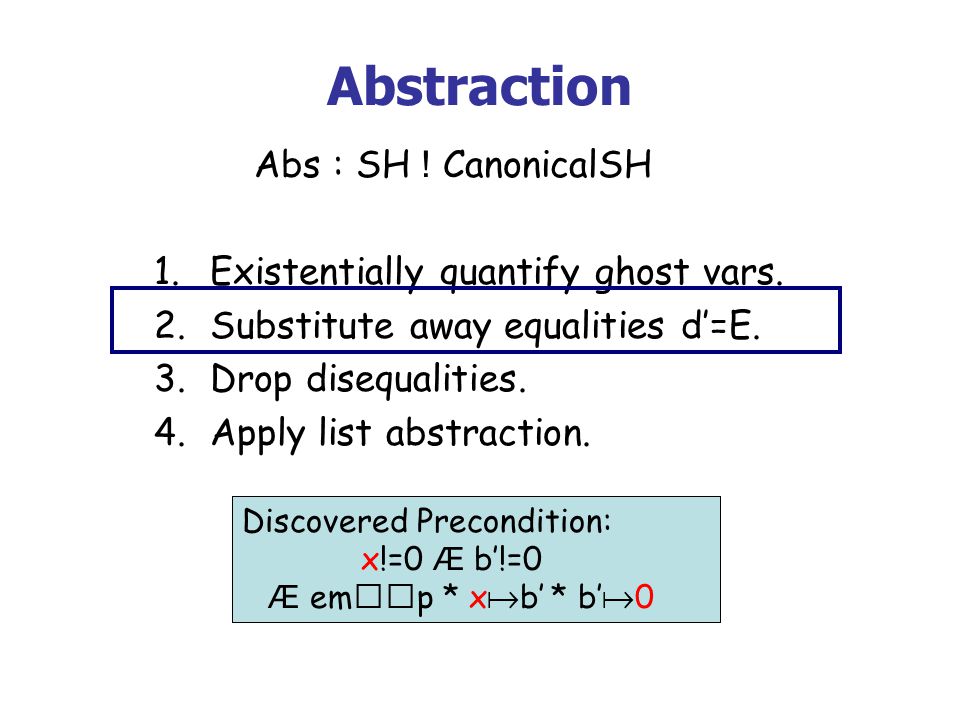

55 Abstraction Discovered Precondition: x=a Æ a!=0 Æ b!=0 Æ c=0 Æ emp * a b * b c Abs : SH ! CanonicalSH 1.Existentially quantify ghost vars. 2.Substitute away equalities d=E. 3.Drop disequalities. 4.Apply list abstraction. Discovered Precondition: x=a Æ a!=0 Æ b!=0 Æ c=0 Æ emp * a b * b c Discovered Precondition: x!=0 Æ b!=0 Æ emp * x b * b 0

56 Abstraction Discovered Precondition: x=a Æ a!=0 Æ b!=0 Æ c=0 Æ emp * a b * b c Abs : SH ! CanonicalSH 1.Existentially quantify ghost vars. 2.Substitute away equalities d=E. 3.Drop disequalities. 4.Apply list abstraction. Discovered Precondition: x=a Æ a!=0 Æ b!=0 Æ c=0 Æ emp * a b * b c Discovered Precondition: x!=0 Æ b!=0 Æ emp * x b * b 0 Discovered Precondition: emp * x b * b 0

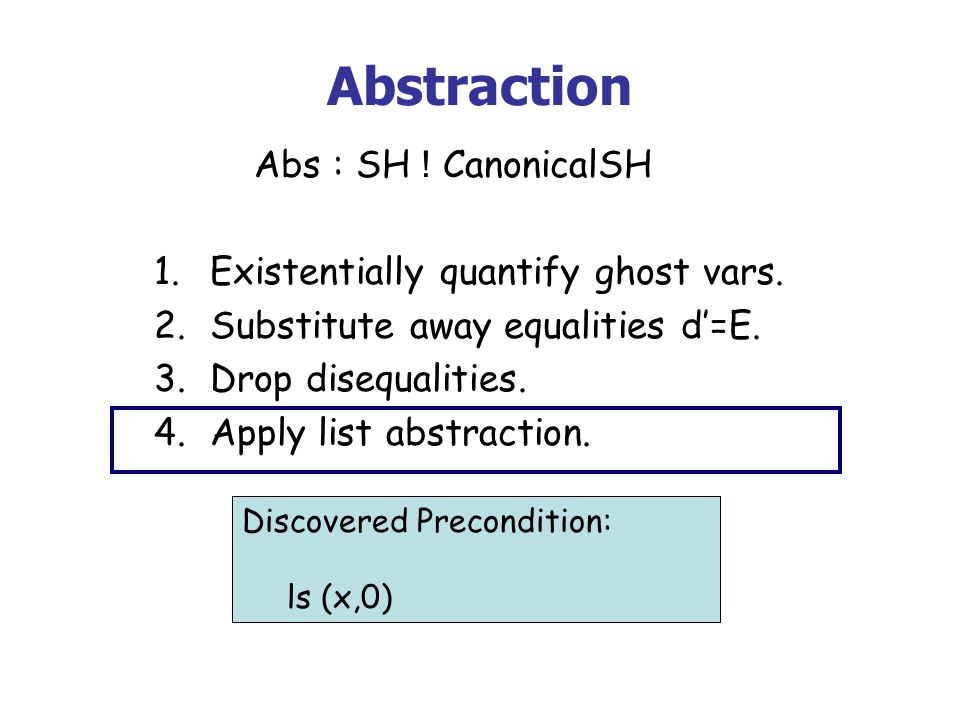

57 Abstraction Discovered Precondition: x=a Æ a!=0 Æ b!=0 Æ c=0 Æ emp * a b * b c Abs : SH ! CanonicalSH 1.Existentially quantify ghost vars. 2.Substitute away equalities d=E. 3.Drop disequalities. 4.Apply list abstraction. Discovered Precondition: x=a Æ a!=0 Æ b!=0 Æ c=0 Æ emp * a b * b c Discovered Precondition: x!=0 Æ b!=0 Æ emp * x b * b 0 Discovered Precondition: emp * x b * b 0 Discovered Precondition: ls (x,0)

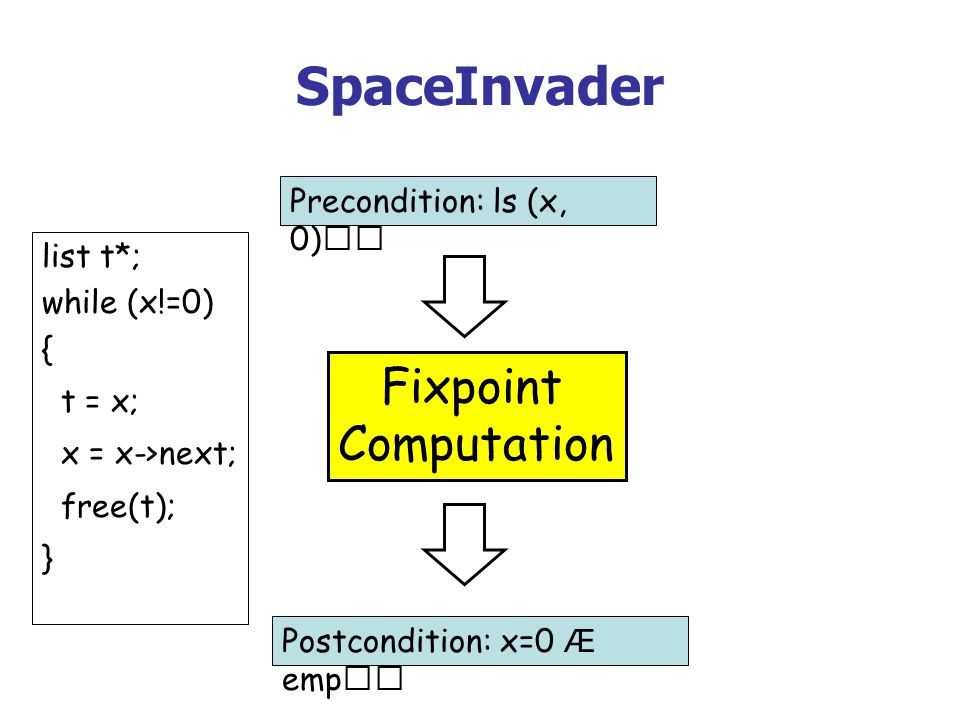

58 SpaceInvader list t*; while (x!=0) { t = x; x = x->next; free(t); } Precondition: ls (x, 0) Postcondition: x=0 Æ emp Fixpoint Computation

59 Backward Footprint Computation list t*; while (x!=0) { t = x; x = x->next; free(t); } Backward: assert(x!=0); t = x; x = x->next; free(t); assert(x=0); Forward: assert(x!=0); t = x; x = x->next; free(t); assert(x=0);

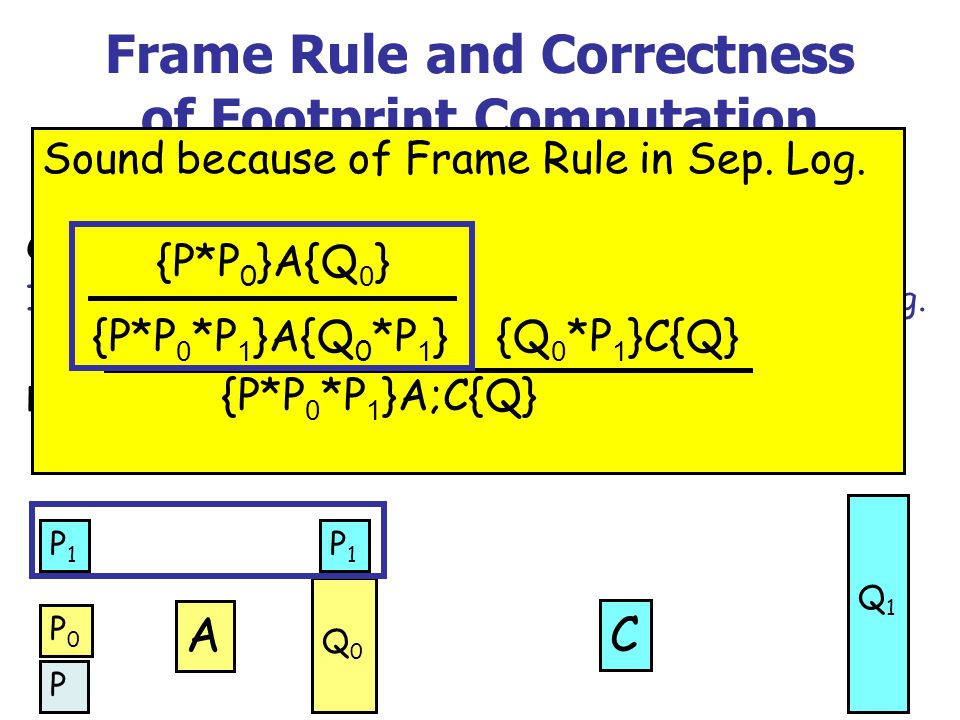

60 Frame Rule and Correctness of Footprint Computation Foot : Trace x SH ! GhostSH x SH Correctness: If Foot(C,P)=(P 0,Q 0 ), then {P*P 0 }C{Q 0 } holds in Sep. Log. Foot(A;C,P) = let (P 0,Q 0 )=Foot(A,P) and (P 1,Q 1 )=Foot(C,Q 0 ) in (P 0 *P 1, Q 1 ) P Q1Q1 P0P0 Q0Q0 P1P1 A C P1P1 Sound because of Frame Rule in Sep. Log. {P*P 0 }A{Q 0 } {P*P 0 *P 1 }A{Q 0 *P 1 } {Q 0 *P 1 }C{Q} {P*P 0 *P 1 }A;C{Q}

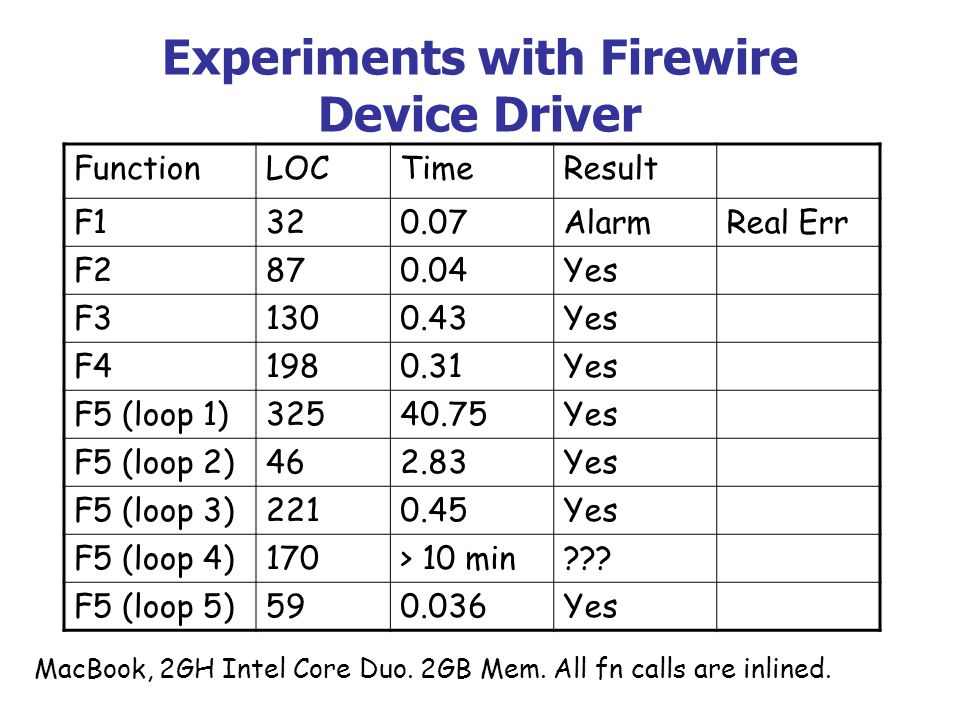

61 Experiments with Firewire Device Driver MacBook, 2GH Intel Core Duo. 2GB Mem. All fn calls are inlined. FunctionLOCTimeResult F AlarmReal Err F Yes F Yes F Yes F5 (loop 1) Yes F5 (loop 2)462.83Yes F5 (loop 3) Yes F5 (loop 4)170> 10 min??? F5 (loop 5) Yes

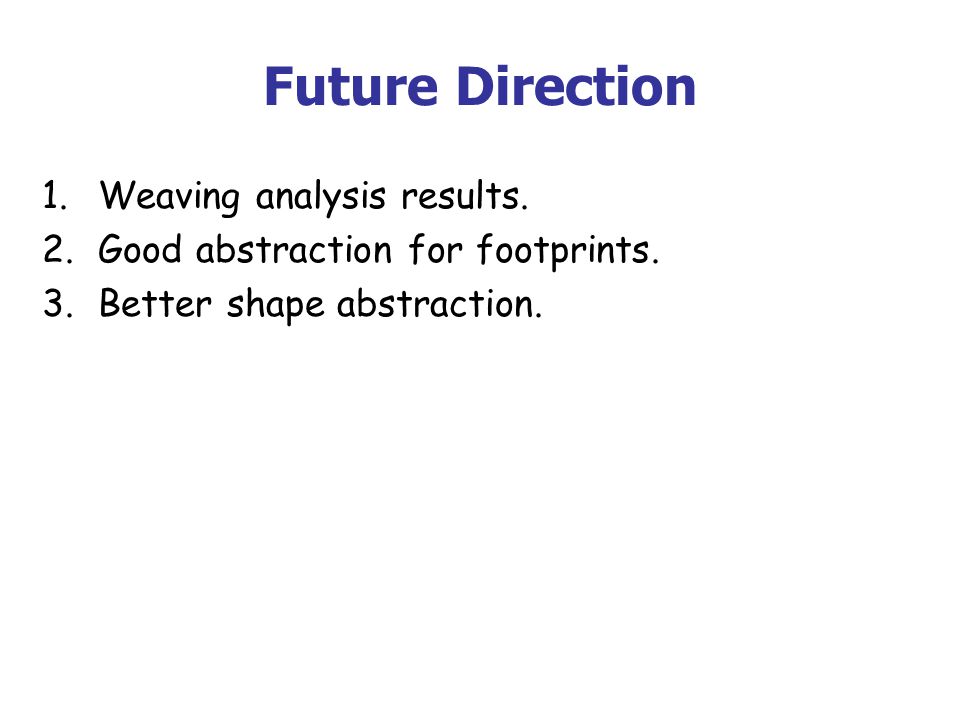

62 Future Direction 1.Weaving analysis results. 2.Good abstraction for footprints. 3.Better shape abstraction.

63 Footprint Computation Foot : Trace x SH ! GhostSH x SH Correctness: If Foot(C,P)=(P 0,Q 0 ), then {P*P 0 }C{Q 0 } holds in Sep. Log. Foot(assert(x!=0),P) = (a!=0 Æ emp, a!=0 Æ P) if P ` x=a

64 Footprint Computation Foot : Trace x SH ! GhostSH x SH Correctness: If Foot(C,P)=(P 0,Q 0 ), then {P*P 0 }C{Q 0 } holds in Sep. Log. Foot(assert(x!=0),P) = (a!=0 Æ emp, a!=0 Æ P) if P ` x=a Foot(assert(x!=0),P) = (false, P) otherwise
