1 Geologic time

2 Geologic Time Geologic time scale Relative dating principles Absolute dating w/ radioactivity Correlation of rock layers

3 The relative geologic time scale has a sequence of eons eras periods epochs –but no numbers indicating how long ago each of these times occurred Relative Geologic Time Scale

4 Geologic time scale Eons Phanerozoic - last 570 million years Cenozoic - recent life Mesozoic - age of middle life Paleozoic - ancient life Precambrian - from birth of Earth up to before complex life forms developed Eras m.y.a m.y.a m.y.a (mammals, humans) (dinosaurs, 1st scrawny mammals) (fish, trilobites, clams, corals, ferns ) (algae, bacteria, some fossils without shells like jellyfish)

5

6 Telling time geologically v Earths history concealed in rocks v Goal of geology: unraveling Earths history v Principle time keeping devices: Relative dating - putting rocks/events in proper order Absolute dating - determining events actual time Relative Dating: Key principles

7 Law of superposition Principle of original horizontality Principle of cross-cutting relationships InclusionsUnconformities A bed of rock is older than that above, younger than that below

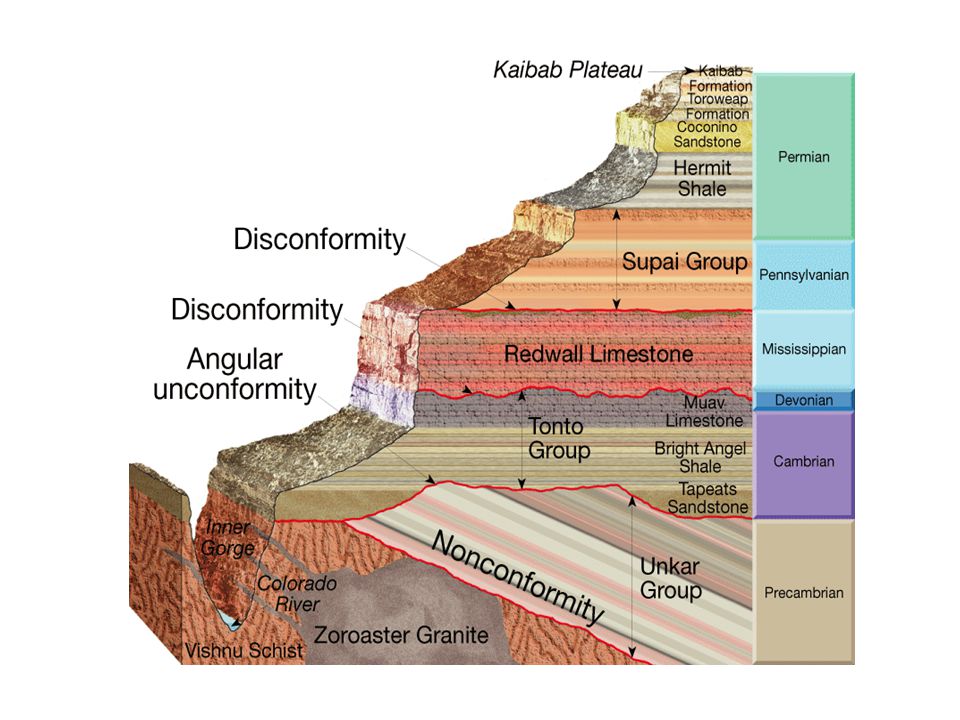

8

9 Law of superposition Principle of original horizontality Principle of cross-cutting relationships InclusionsUnconformities A bed of rock is older than that above, younger than that below Relative Dating: Key principles Sedimentary layers deposited flat

10 Law of superposition Principle of original horizontality Principle of cross-cutting relationships InclusionsUnconformities A bed of rock is older than that above, younger than that below Sedimentary layers deposited flat Faults & dikes are younger than beds they cross Relative Dating: Key principles

11 InclusionsUnconformities Fragments of one rock enclosed in another Relative Dating: Key principles

12 Fragments of one rock enclosed in another

13 InclusionsUnconformities Break in time in deposition (Conformable layers: deposited w/out interruption) Relative Dating: Key principles An unconformity represents a long period during which deposition stopped, erosion removed previously formed rocks, and then deposition resumed.

14 Relative Dating: Key principles Unconformities 3 types v Angular unconformity v Disconformity v Nonconformity A disconformity is when two sedimentary rock layers are separated by an erosional surface. A nonconformity is when the erosional surface separates older metamorphic or intrusive igneous rocks from younger sedimentary rocks. An angular unconformity indicates that during the pause in deposition, a period of deformation (folding or tilting) and erosion occurred.

15 Relative Dating: Key principles Unconformities 3 types v Angular unconformity v Disconformity v Nonconformity Tilted/folded sedimentary rocks overlain by younger, more flat layers

16 Deposition Folding/Uplift Erosion Subsidence/more erosion Recipe for an angular unconformity

17 Relative Dating: Key principles Unconformities 3 types v Angular unconformity v Disconformity v Nonconformity Layers on either side of unconformity are parallel

18 Relative Dating: Key principles Unconformities 3 types v Angular unconformity v Disconformity v Nonconformity Interface between sedimentary layers and metamorphic or igneous rock

19 Unconformity Types

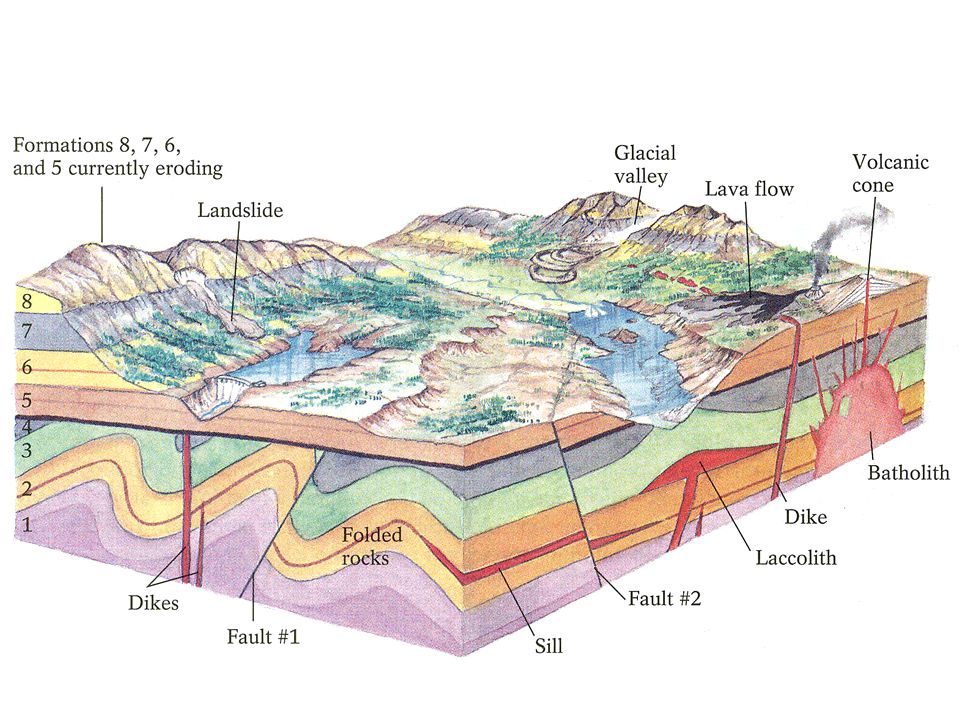

20

21 Relative Dating Principles

22 Correlation of rock layers Matching up rocks from different places that are similar in age u Physical criteria u Fossils

23 Correlation of rock layers u Physical criteria (OK for short distances) è position of a bed in sequence of beds è distinct/uncommon minerals

24 Correlation of rock layers u Fossils è fossil organisms succeed each other in systematic fashion è any time period can be determined by fossil content principle of fossil succession

25 Correlation of rock layers Index fossils ègeographically wide-spread èshort span of time T&L Figure 8.10

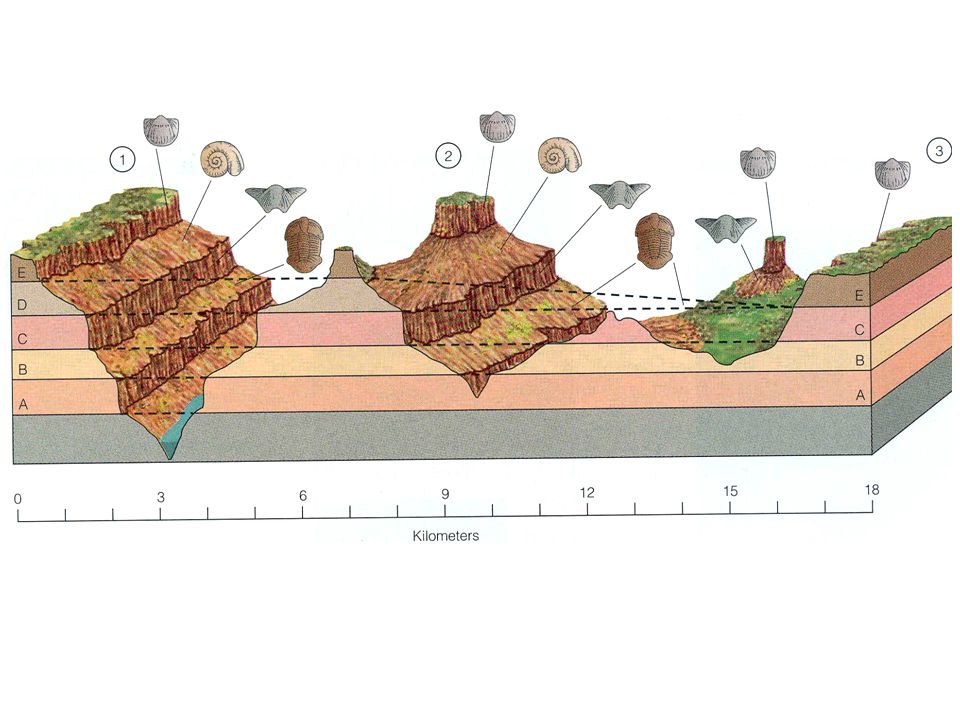

26

27 Overlapping Ranges of Fossils

28 correlated sequence Mostly nonmarine limestone 1 Kansas 2 Indiana 3 Ohio 4 Pennsylvania

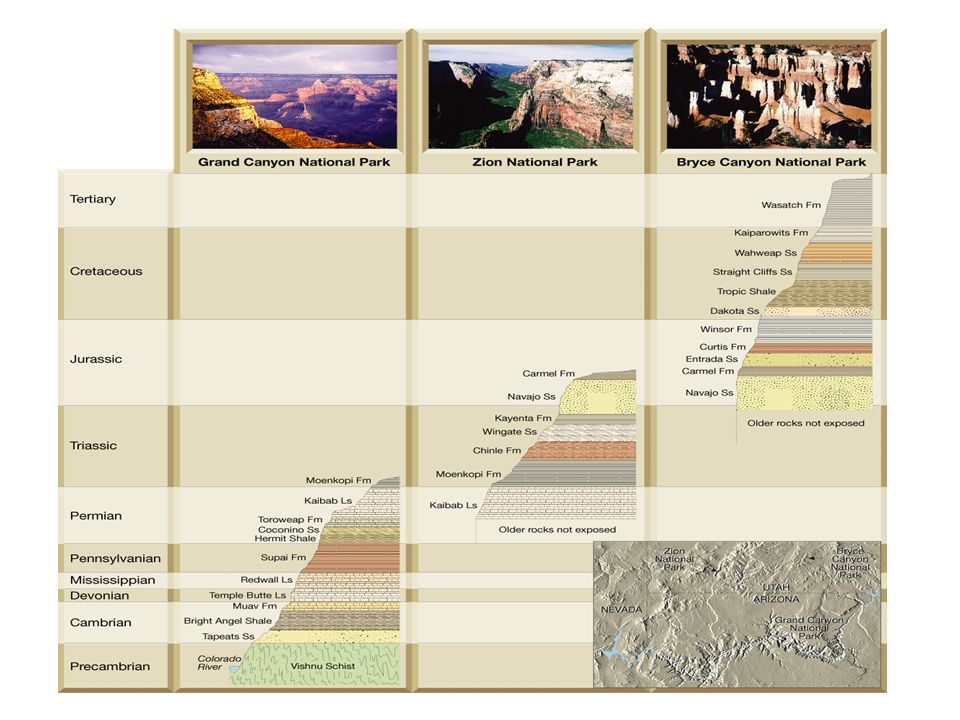

29

30 Absolute dating w/ radioactivity Atom model u Chemistry review nucleus electrons protrons neutrons # protrons = atomic #, defines the element # neutrons can vary: isotopes

31 Absolute dating w/ radioactivity ParentDaughter Now Next year yrs from now yrs from now yrs from now1 999 Example: an isotope with a half life of 1 year # of atoms

32 Radioactive Decay

33 Absolute dating w/ radioactivity
