1 Fossils and evolution Rates of deposition of sediments Cooling of the Earth from a molten state Radiometric Dating Methods for Estimating the Age of the Earth

2 Radiometric Dating of Rocks Radioactivity discovered by: Henri Becquerel and Marie and Pierre Curie.

3 Phenomenon of Radioactivity Some elements, such as uranium (U) and thorium (Th), are unstable: They decay spontaneously.

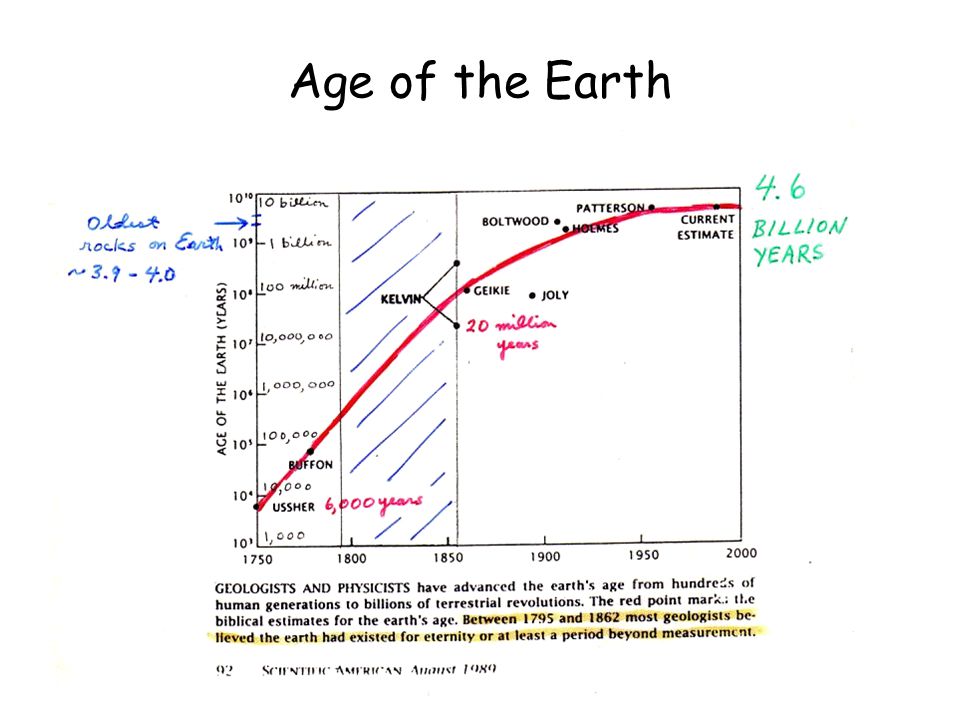

4 Age of the Earth

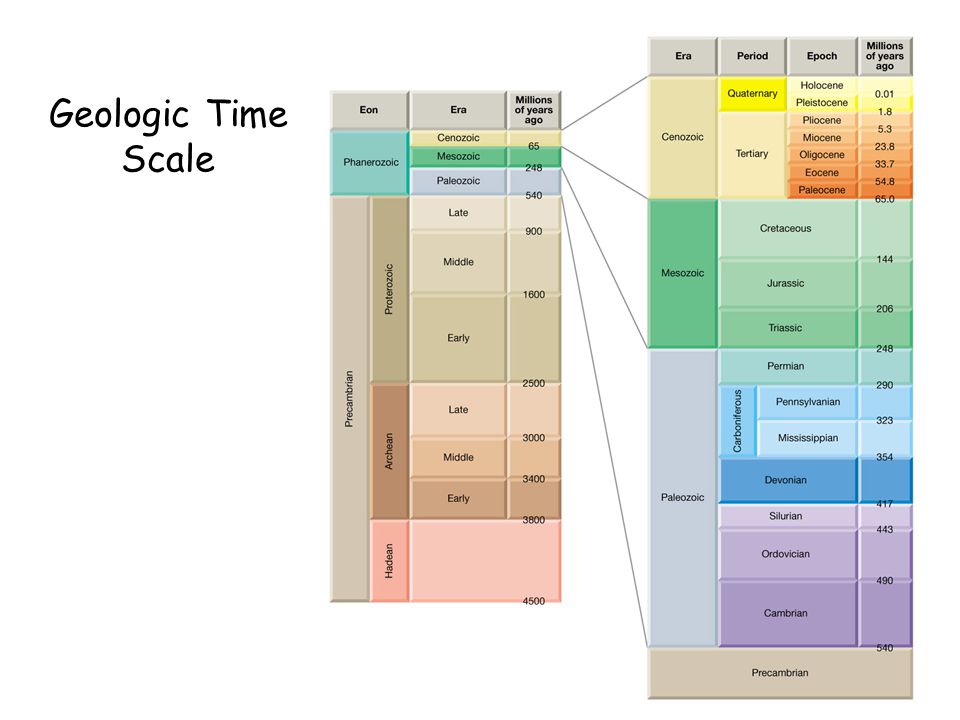

5 Geologic Time Scale

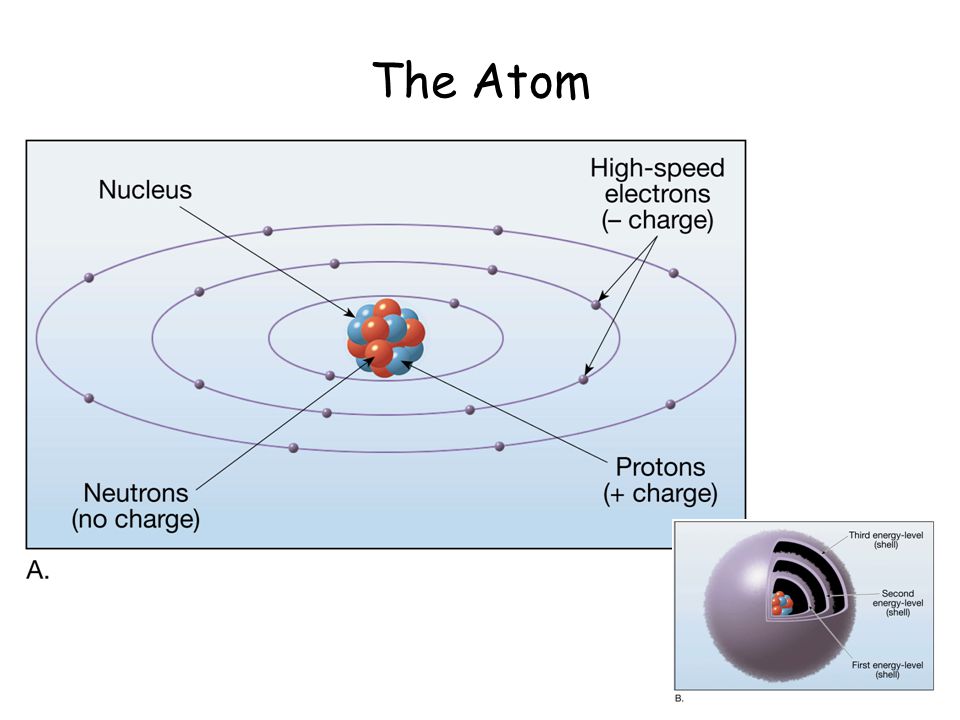

6 The Atom

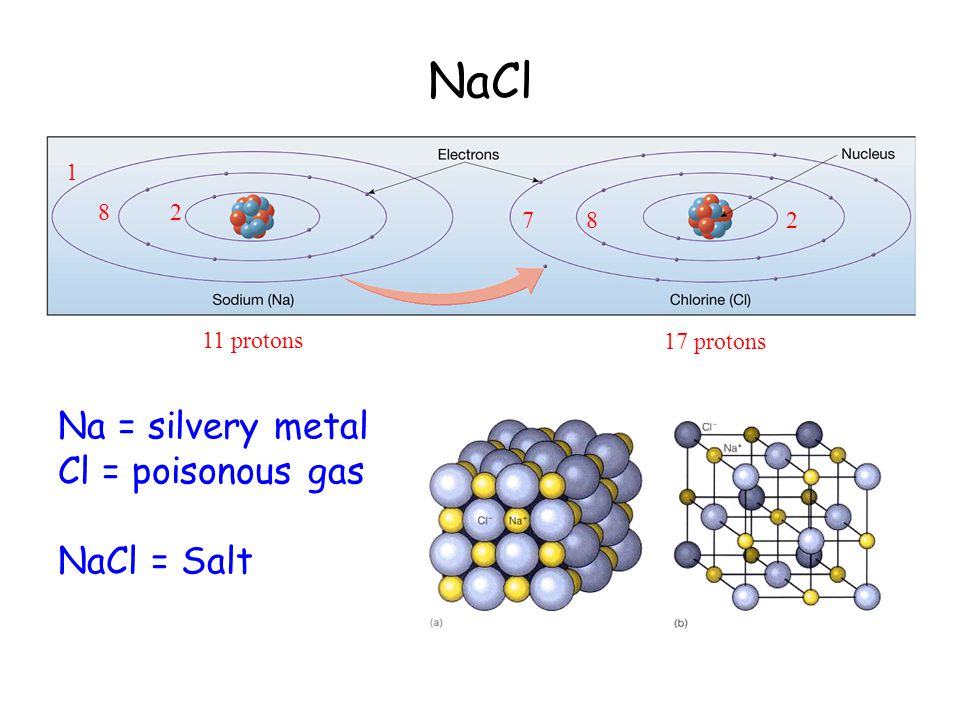

7 NaCl Na = silvery metal Cl = poisonous gas NaCl = Salt protons 17 protons

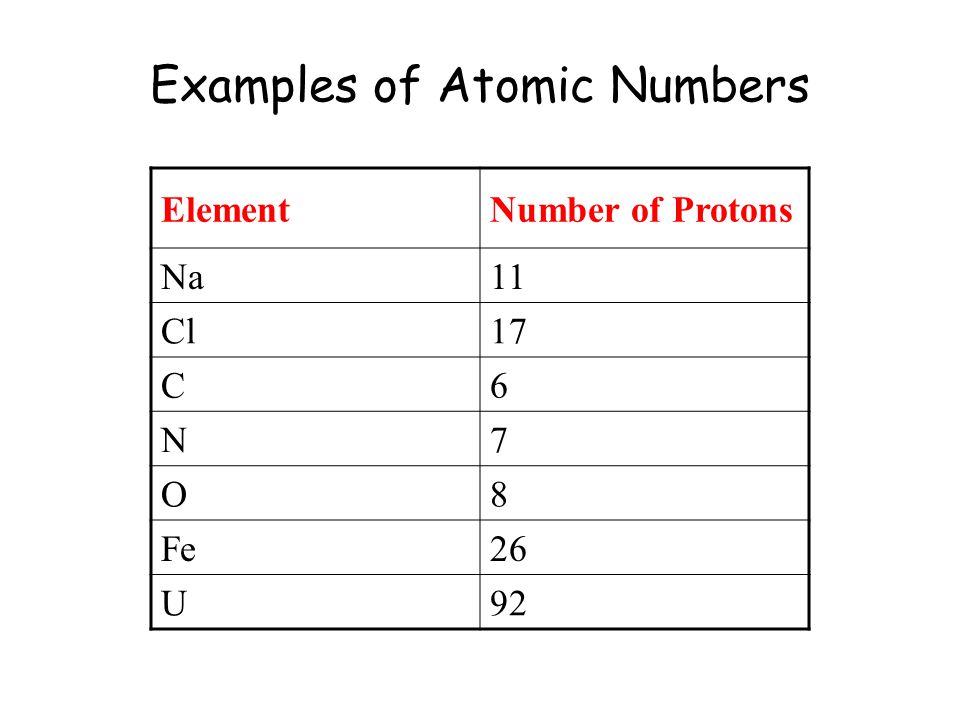

8 Examples of Atomic Numbers ElementNumber of Protons Na11 Cl17 C6 N7 O8 Fe26 U92

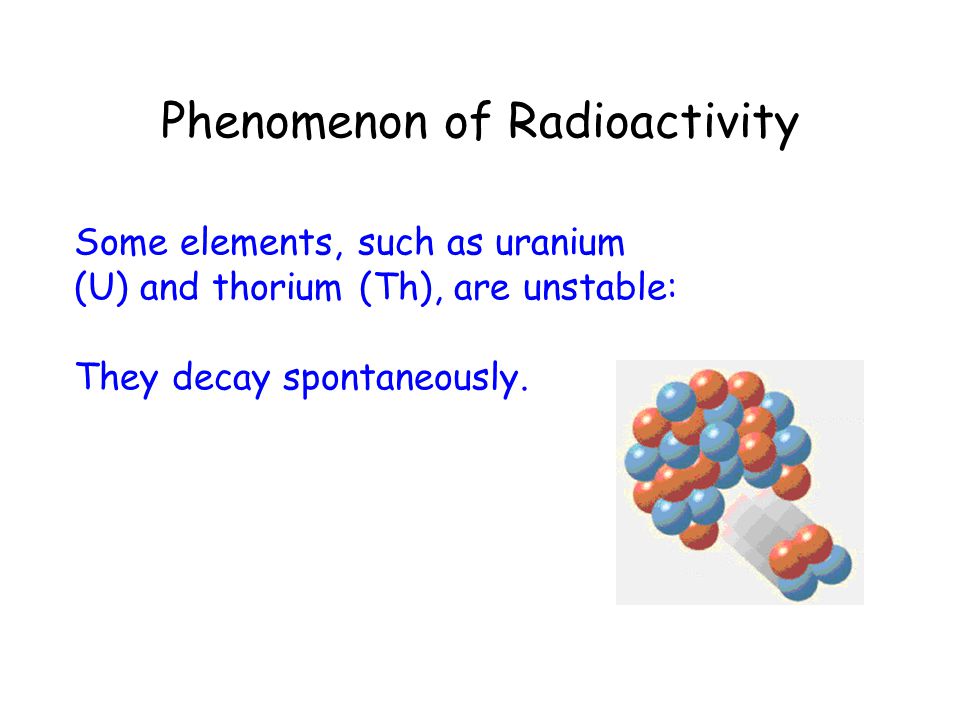

9 Phenomenon of Radioactivity Some elements, such as uranium (U) and thorium (Th), are unstable: They decay spontaneously.

10 Uranium Nucleus spontaneously emits a particle from its nucleus called an alpha particle (2 protons + 2 neutrons).

11 Alpha Particle emits a particle from its nucleus called an alpha particle (2 protons + 2 neutrons).

12 Uranium - Thorium Decay U He + Th spontaneous decay parentdaughter product alpha particle = 2 protons + 2 neutrons = positively charged ion of Helium Thorium: 90 protons neutrons

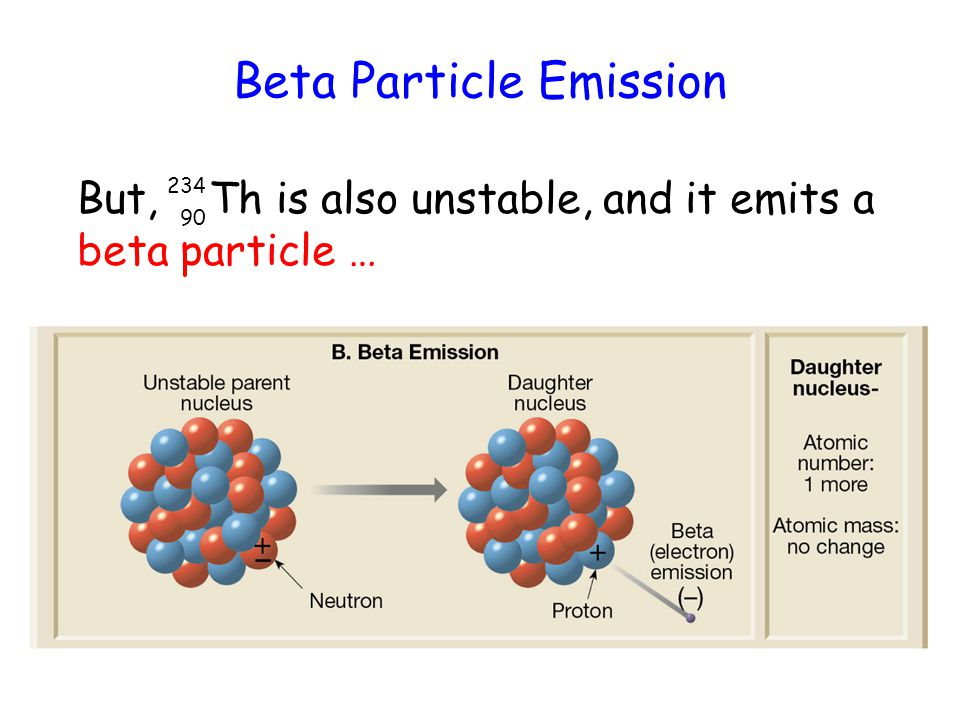

13 Beta Particle Emission But, Th is also unstable, and it emits a beta particle …

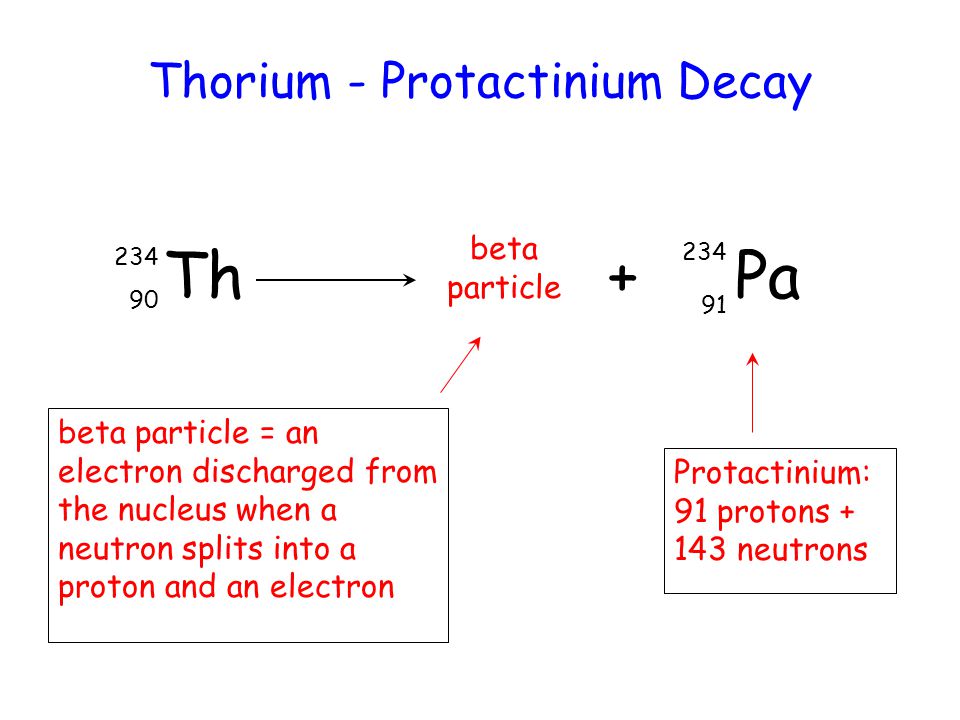

14 Th + Pa Thorium - Protactinium Decay beta particle beta particle = an electron discharged from the nucleus when a neutron splits into a proton and an electron Protactinium: 91 protons neutrons

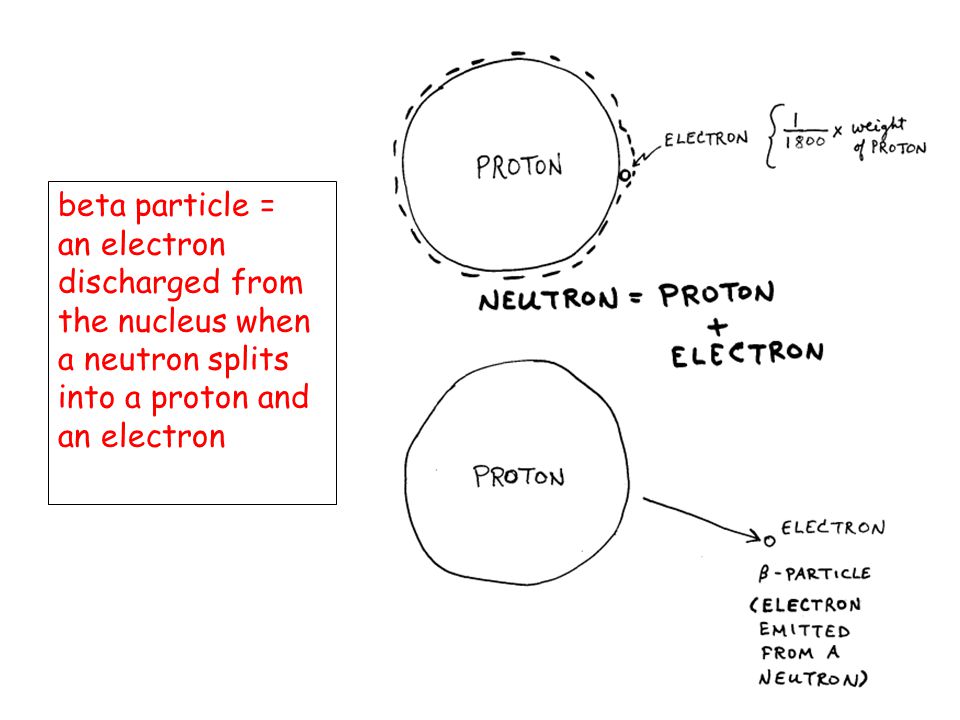

15 Title beta particle = an electron discharged from the nucleus when a neutron splits into a proton and an electron

16 U Pb Series This process is called radioactive decay, and eventually uranium (parent) decays to lead (daughter product).

17 U Pb Series The rate at which this process occurs is measured in terms of the half life.

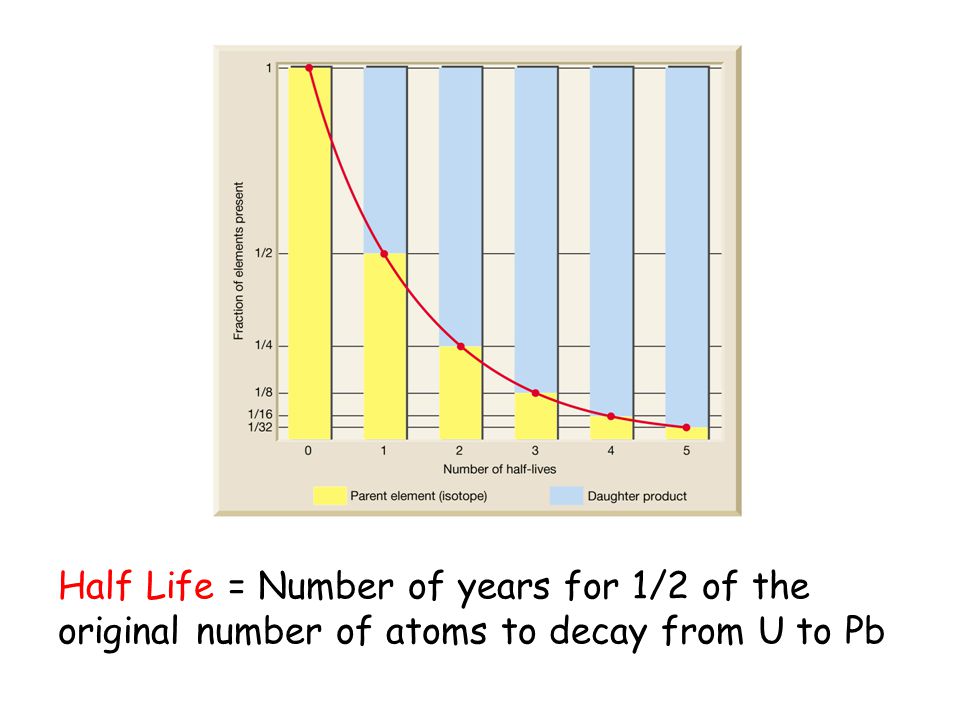

18 Half Life Half Life = Number of years for 1/2 of the original number of atoms to decay from U to Pb

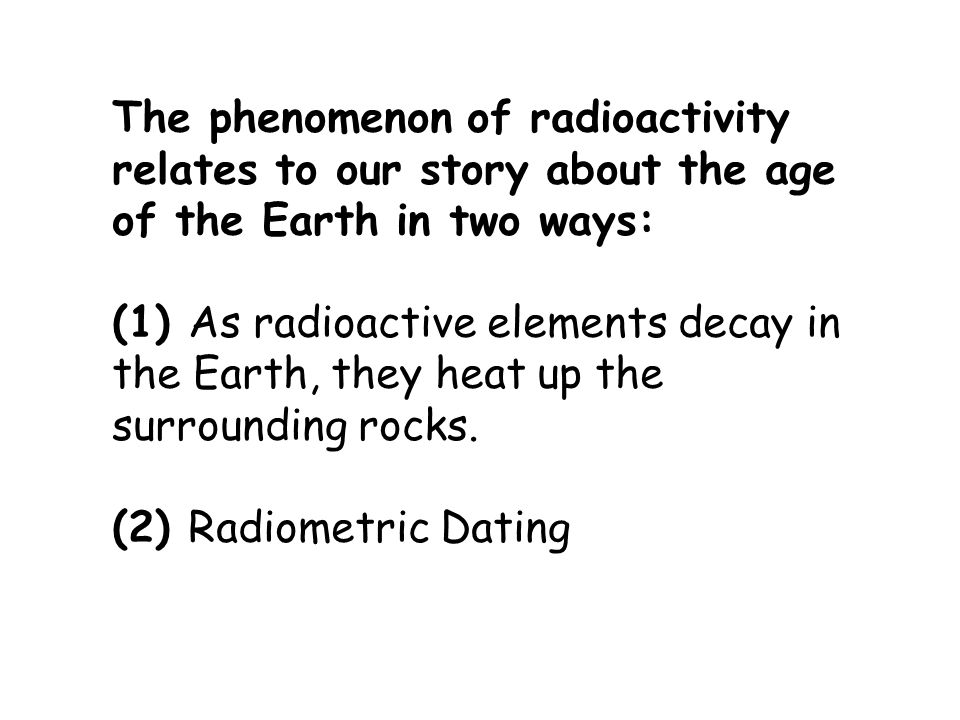

19 The phenomenon of radioactivity relates to our story about the age of the Earth in two ways: (1) As radioactive elements decay in the Earth, they heat up the surrounding rocks. (2) Radiometric Dating

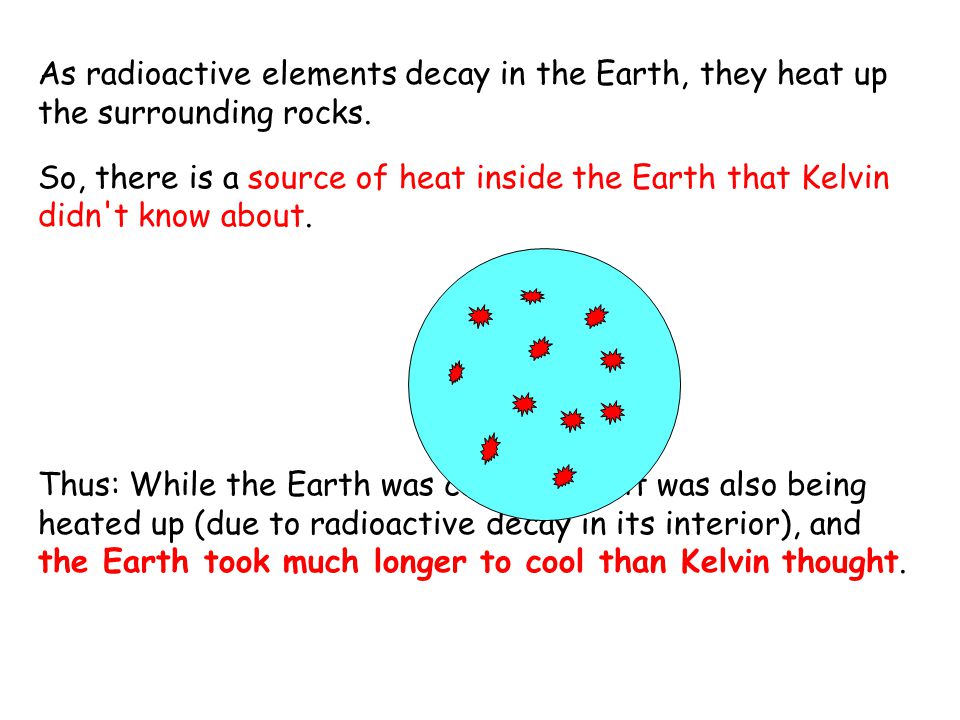

20 As radioactive elements decay in the Earth, they heat up the surrounding rocks. So, there is a source of heat inside the Earth that Kelvin didn't know about. Thus: While the Earth was cooling off, it was also being heated up (due to radioactive decay in its interior), and the Earth took much longer to cool than Kelvin thought.

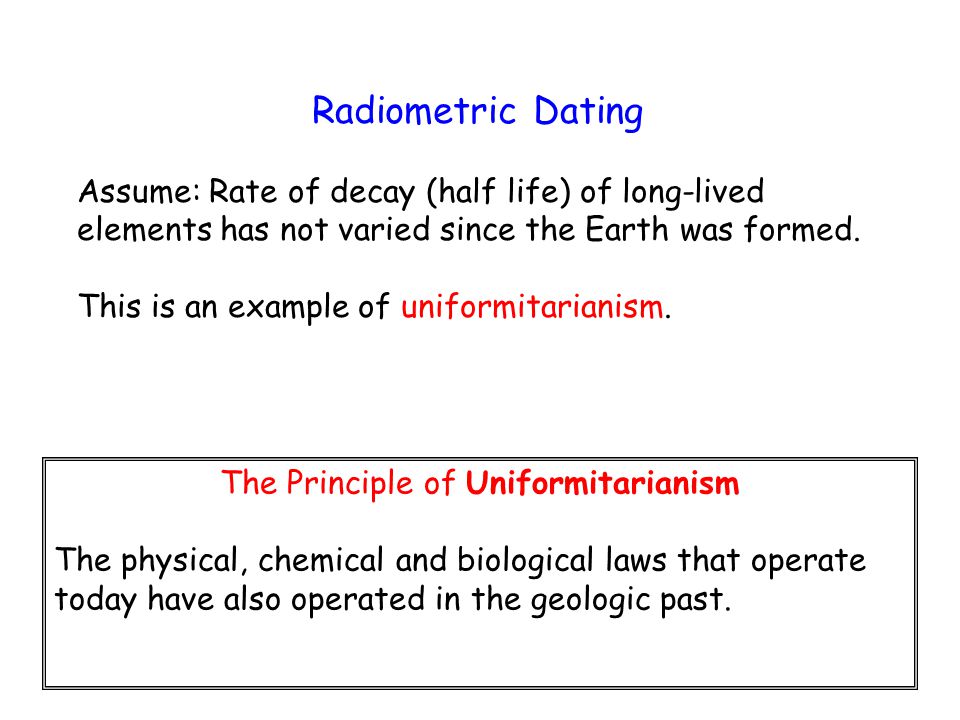

21 Radiometric Dating Assume: Rate of decay (half life) of long-lived elements has not varied since the Earth was formed. This is an example of uniformitarianism. The Principle of Uniformitarianism The physical, chemical and biological laws that operate today have also operated in the geologic past.

22 To estimate the age of a rock: D = amount of daughter product. P = amount of parent. For a particular radioactive element in a rock, determine the present ratio = D/P. D P

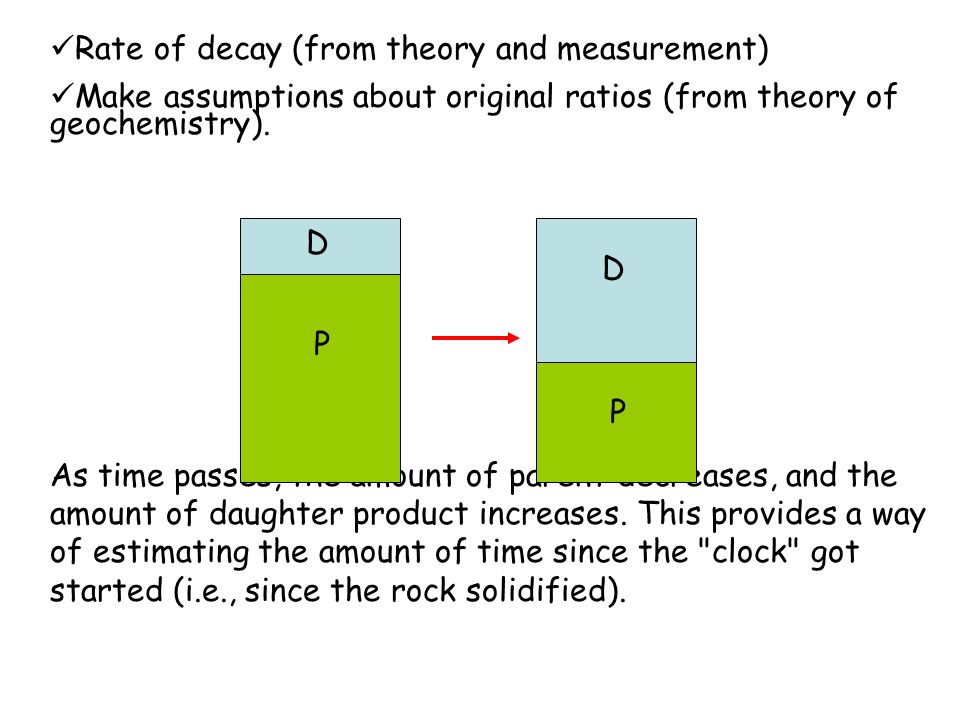

23 Rate of decay (from theory and measurement) Make assumptions about original ratios (from theory of geochemistry). As time passes, the amount of parent decreases, and the amount of daughter product increases. This provides a way of estimating the amount of time since the "clock" got started (i.e., since the rock solidified). D P D P

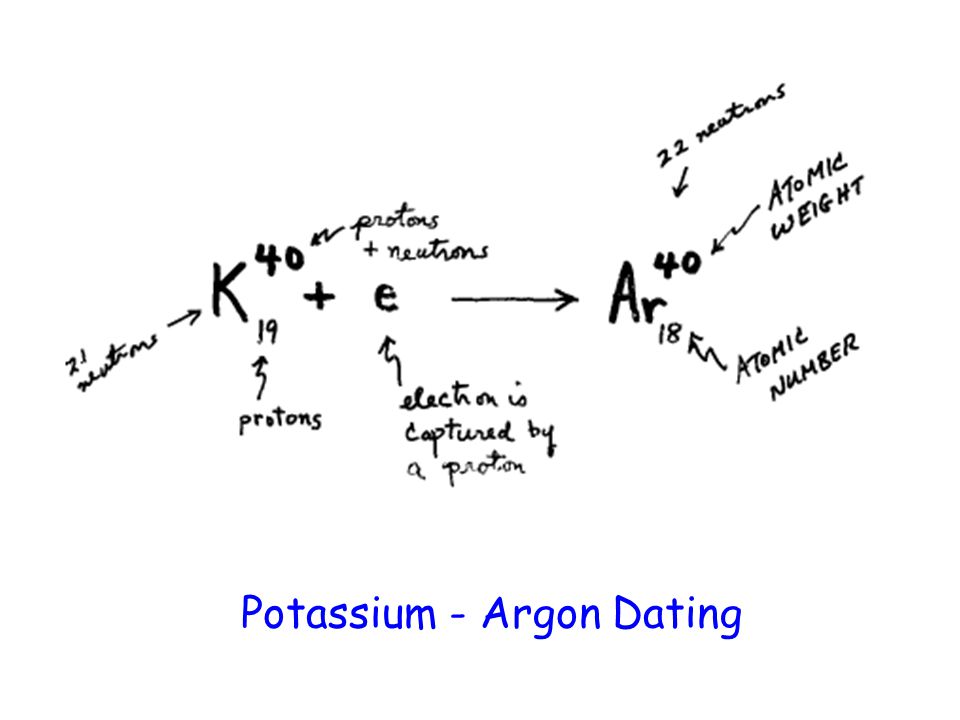

24 Title Potassium - Argon Dating

25 Electron Capture

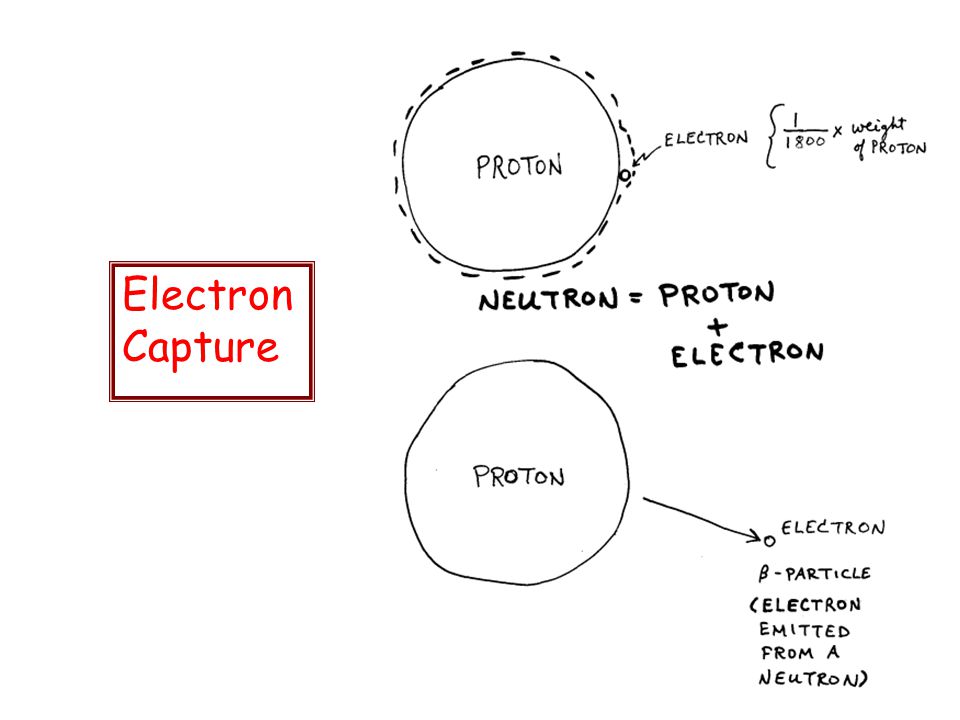

26 Title Electron Capture

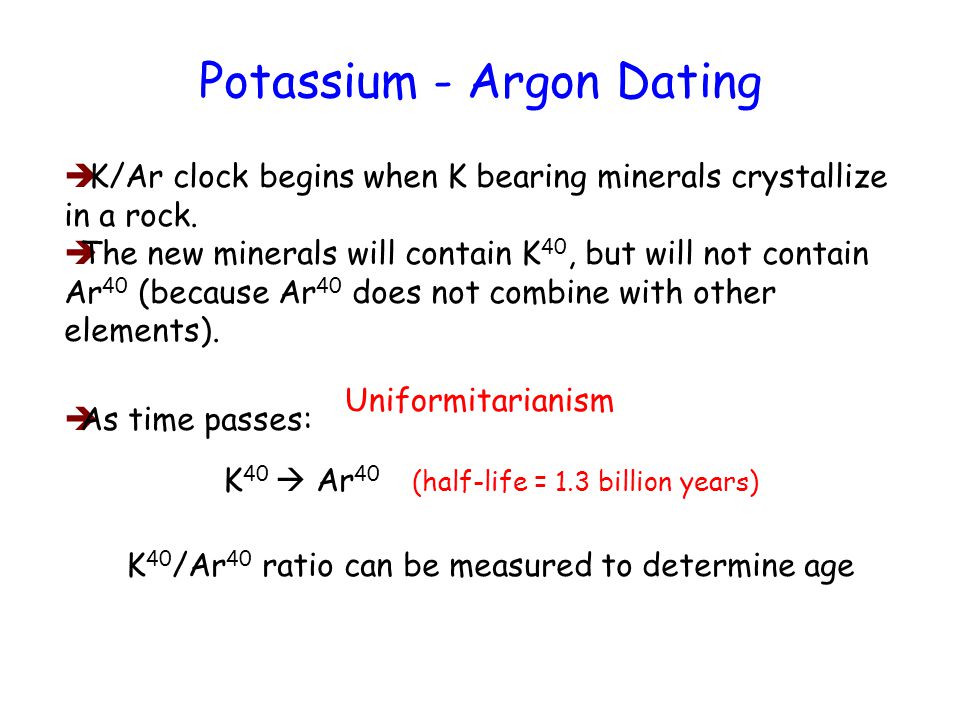

27 Potassium - Argon Dating K/Ar clock begins when K bearing minerals crystallize in a rock. The new minerals will contain K 40, but will not contain Ar 40 (because Ar 40 does not combine with other elements). As time passes: K 40 Ar 40 (half-life = 1.3 billion years) K 40 /Ar 40 ratio can be measured to determine age Uniformitarianism

28 Potassium - Argon Dating K 40 /Ar 40 ratio can be measured to determine age. K 40 Ar 40 (half-life = 1.3 billion years) K 40 /Ar 40 > 1 less than 1.3 billion years old K 40 /Ar 40 = billion years old K 40 /Ar 40 < 1 more than 1.3 billion years old

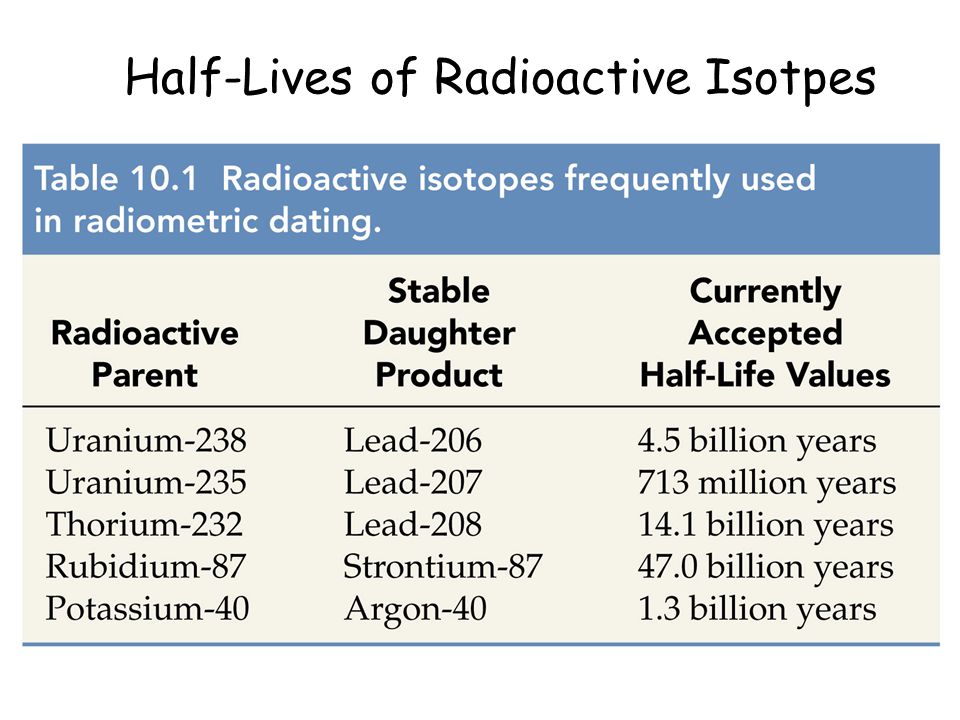

29 Half-Lives of Radioactive Isotpes

30 Examples of Very Old Rocks Found on Earth: 3.4 billion year old granites - South Africa. 3.7 billion year old granites - Greenland. Oldest terrestrial rocks > 3.8 billion years. Oldest terrestrial rocks (4.0 billion years?) are deep in the interiors of continents.

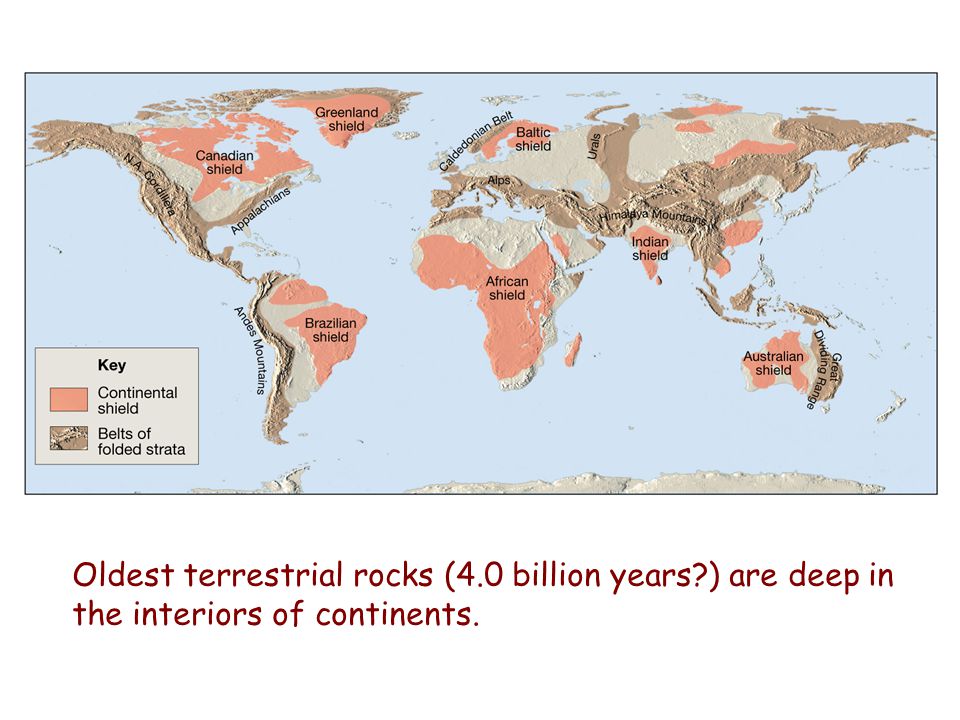

31

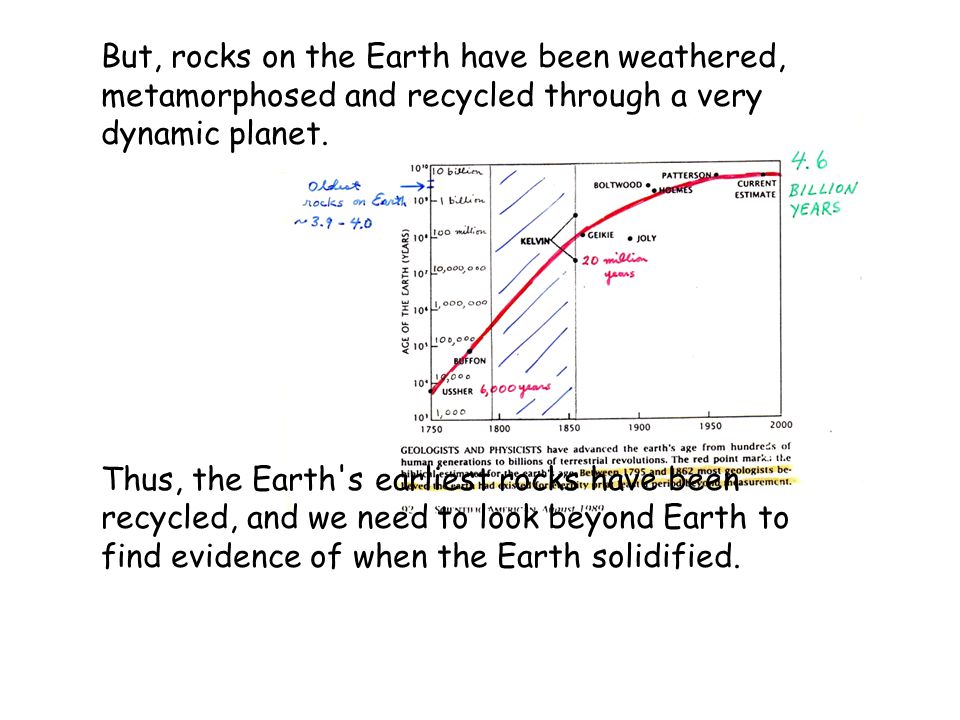

32 But, rocks on the Earth have been weathered, metamorphosed and recycled through a very dynamic planet. Thus, the Earth's earliest rocks have been recycled, and we need to look beyond Earth to find evidence of when the Earth solidified.

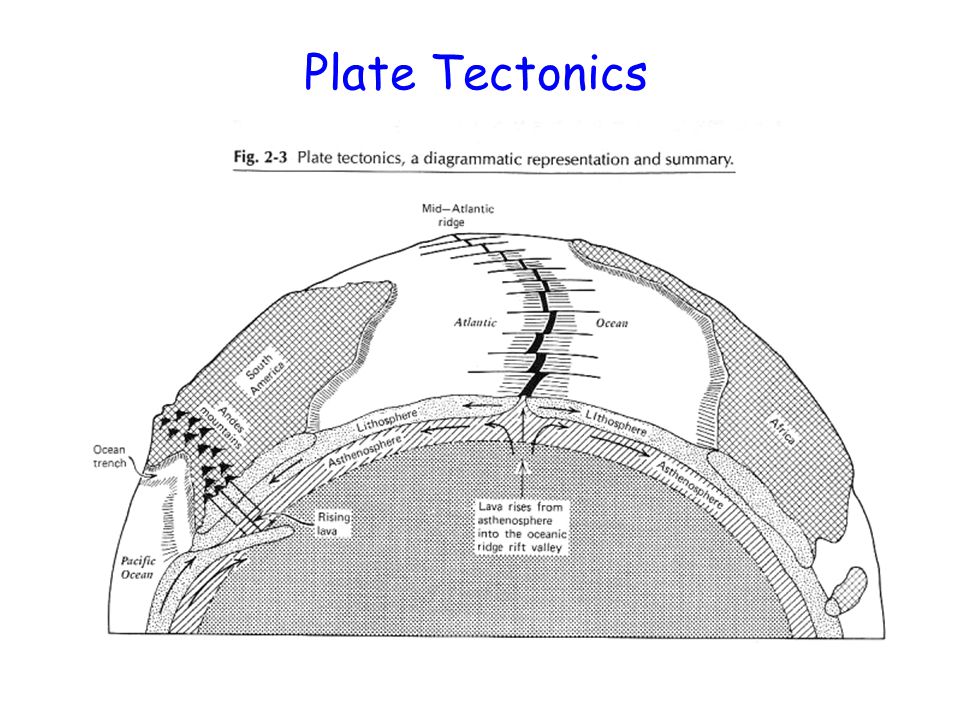

33 Plate Tectonics

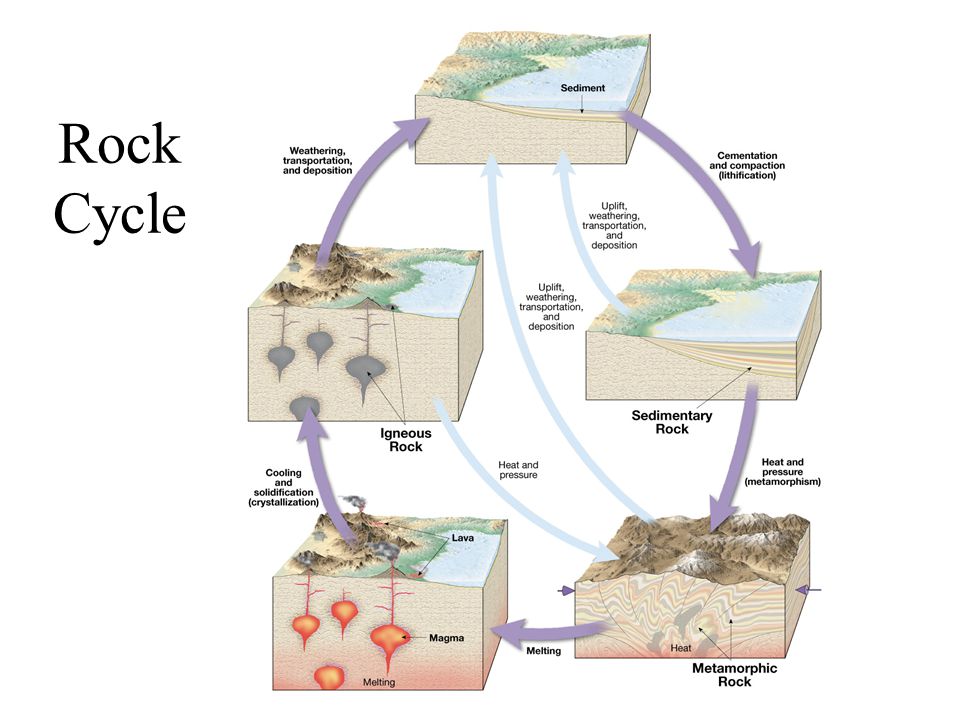

34 Rock Cycle

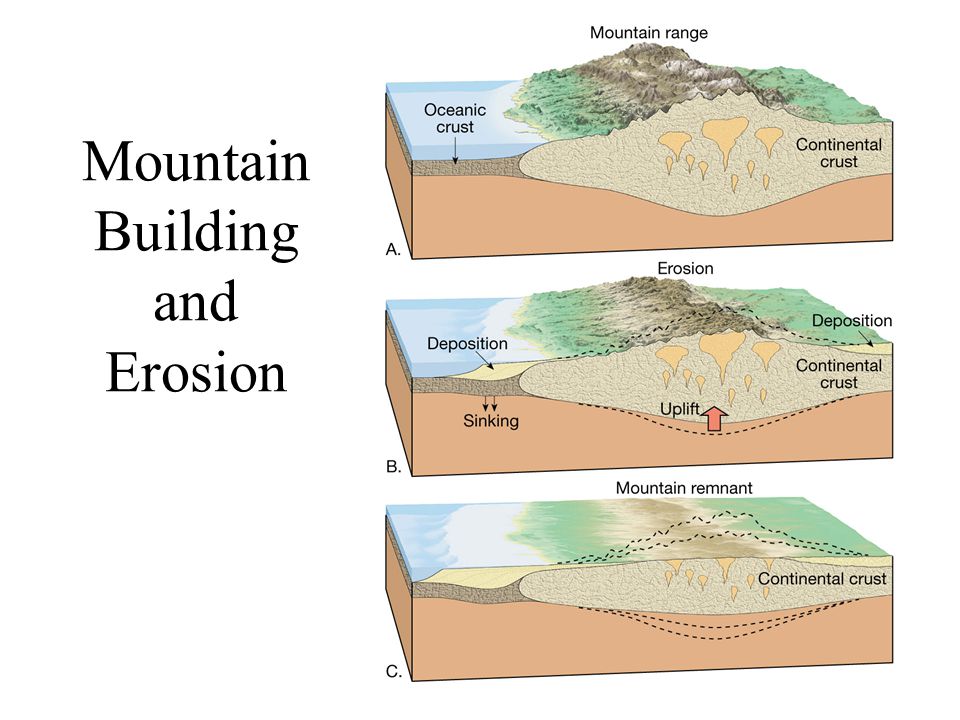

35 Mountain Building and Erosion

36 Oldest terrestrial rocks (4.0 billion years?) are deep in the interiors of continents.

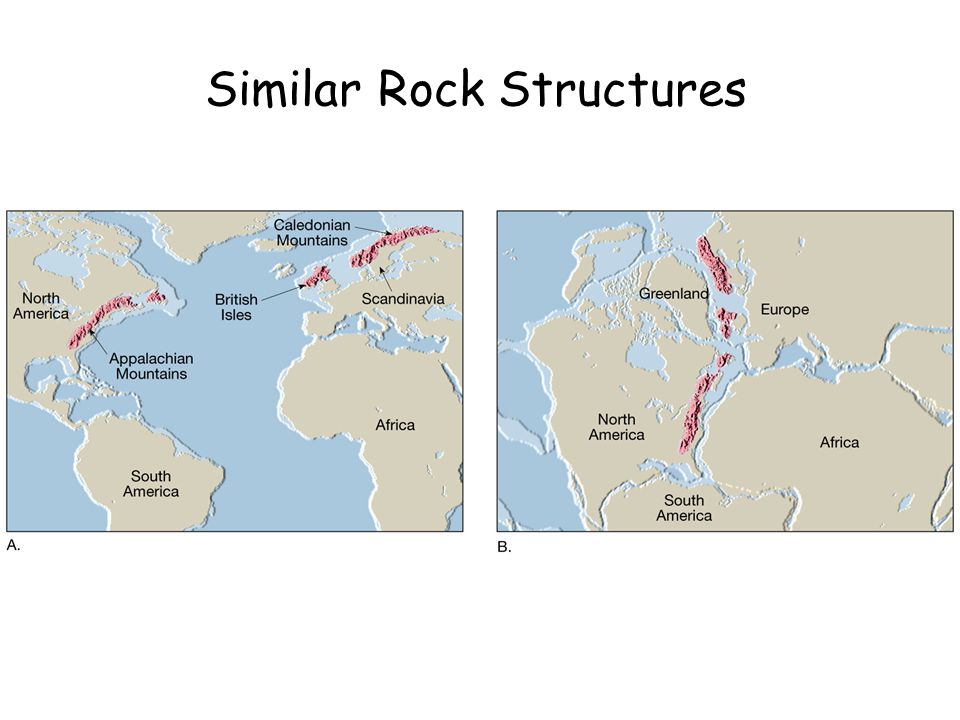

37 Similar Rock Structures

38 The Earth's earliest rocks have been weathered, metamorphosed and recycled through a very dynamic planet. We need to look beyond Earth to find evidence of when the Earth solidified.
