ENERGY EFFICIENT LIGHTING UTILITY WRAP FIXTURES ver. 120513 Utility Wrap Fixtures.1.1 LSU2406SU2041 LSU2406SU2050 Linear Utility Wrap/24"/6" width/Surface.

Similar presentations


Presentation on theme: "ENERGY EFFICIENT LIGHTING UTILITY WRAP FIXTURES ver. 120513 Utility Wrap Fixtures.1.1 LSU2406SU2041 LSU2406SU2050 Linear Utility Wrap/24"/6" width/Surface."— Presentation transcript:

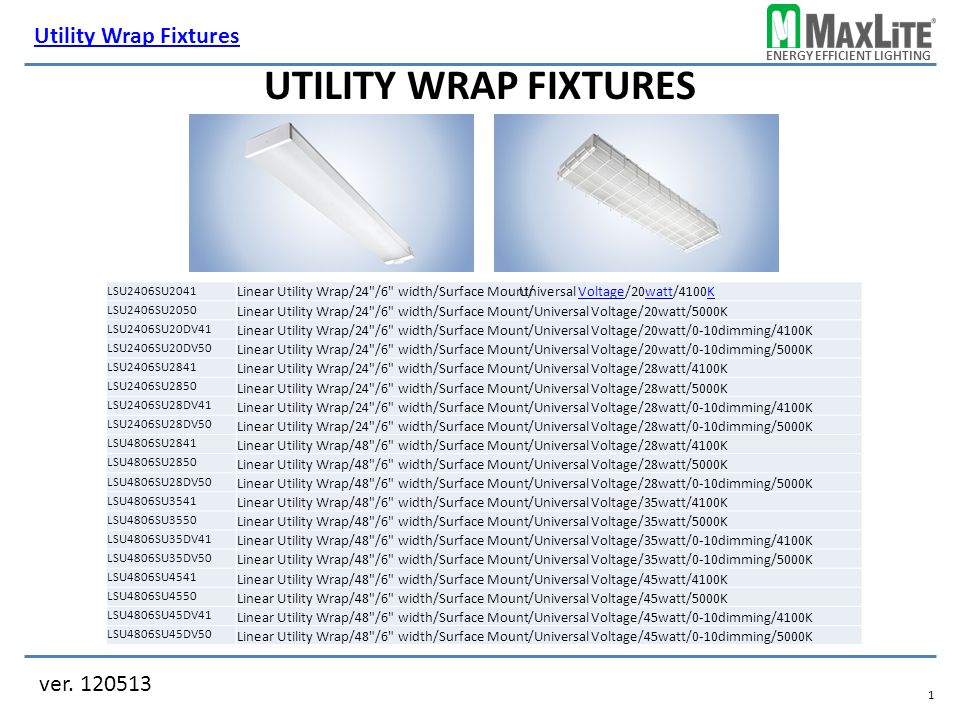

1 ENERGY EFFICIENT LIGHTING UTILITY WRAP FIXTURES ver Utility Wrap Fixtures.1.1 LSU2406SU2041 LSU2406SU2050 Linear Utility Wrap/24"/6" width/Surface Mount/Universal Voltage/20watt/5000K LSU2406SU20DV41 Linear Utility Wrap/24"/6" width/Surface Mount/Universal Voltage/20watt/0-10dimming/4100K LSU2406SU20DV50 Linear Utility Wrap/24"/6" width/Surface Mount/Universal Voltage/20watt/0-10dimming/5000K LSU2406SU2841 Linear Utility Wrap/24"/6" width/Surface Mount/Universal Voltage/28watt/4100K LSU2406SU2850 Linear Utility Wrap/24"/6" width/Surface Mount/Universal Voltage/28watt/5000K LSU2406SU28DV41 Linear Utility Wrap/24"/6" width/Surface Mount/Universal Voltage/28watt/0-10dimming/4100K LSU2406SU28DV50 Linear Utility Wrap/24"/6" width/Surface Mount/Universal Voltage/28watt/0-10dimming/5000K LSU4806SU2841 Linear Utility Wrap/48"/6" width/Surface Mount/Universal Voltage/28watt/4100K LSU4806SU2850 Linear Utility Wrap/48"/6" width/Surface Mount/Universal Voltage/28watt/5000K LSU4806SU28DV50 Linear Utility Wrap/48"/6" width/Surface Mount/Universal Voltage/28watt/0-10dimming/5000K LSU4806SU3541 Linear Utility Wrap/48"/6" width/Surface Mount/Universal Voltage/35watt/4100K LSU4806SU3550 Linear Utility Wrap/48"/6" width/Surface Mount/Universal Voltage/35watt/5000K LSU4806SU35DV41 Linear Utility Wrap/48"/6" width/Surface Mount/Universal Voltage/35watt/0-10dimming/4100K LSU4806SU35DV50 Linear Utility Wrap/48"/6" width/Surface Mount/Universal Voltage/35watt/0-10dimming/5000K LSU4806SU4541 Linear Utility Wrap/48"/6" width/Surface Mount/Universal Voltage/45watt/4100K LSU4806SU4550 Linear Utility Wrap/48"/6" width/Surface Mount/Universal Voltage/45watt/5000K LSU4806SU45DV41 Linear Utility Wrap/48"/6" width/Surface Mount/Universal Voltage/45watt/0-10dimming/4100K LSU4806SU45DV50 Linear Utility Wrap/48"/6" width/Surface Mount/Universal Voltage/45watt/0-10dimming/5000K Linear Utility Wrap/24"/6" width/Surface Mount/ Universal Voltage/20watt/4100KVoltagewattK

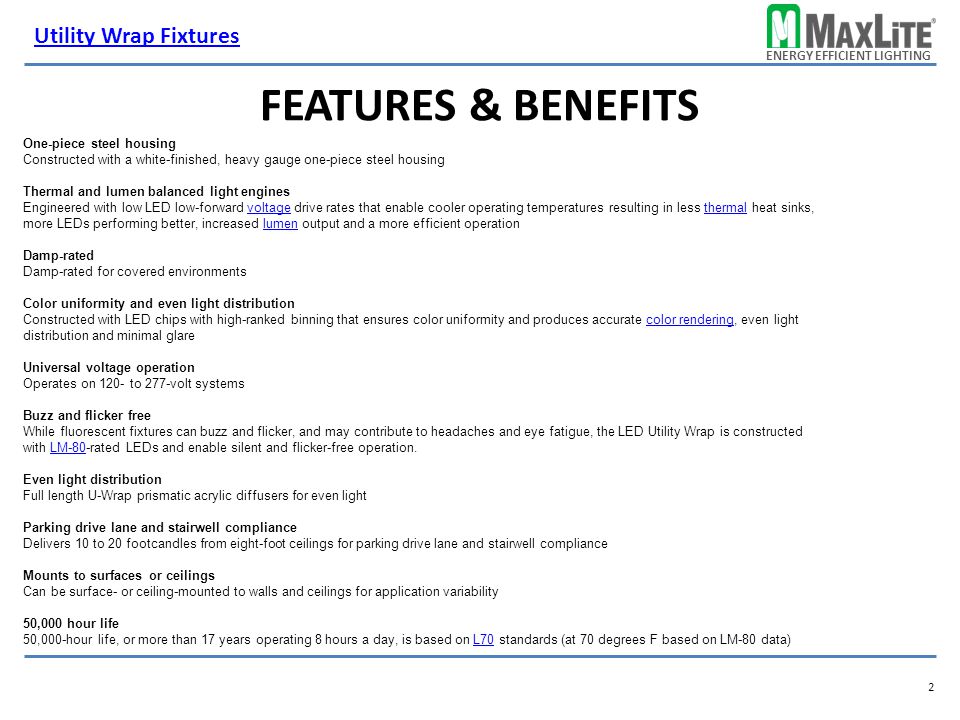

2 ENERGY EFFICIENT LIGHTING FEATURES & BENEFITS 2 One-piece steel housing Constructed with a white-finished, heavy gauge one-piece steel housing Thermal and lumen balanced light engines Engineered with low LED low-forward voltage drive rates that enable cooler operating temperatures resulting in less thermal heat sinks,voltagethermal more LEDs performing better, increased lumen output and a more efficient operation lumen Damp-rated Damp-rated for covered environments Color uniformity and even light distribution Constructed with LED chips with high-ranked binning that ensures color uniformity and produces accurate color rendering, even lightcolor rendering distribution and minimal glare Universal voltage operation Operates on 120- to 277-volt systems Buzz and flicker free While fluorescent fixtures can buzz and flicker, and may contribute to headaches and eye fatigue, the LED Utility Wrap is constructed with LM-80-rated LEDs and enable silent and flicker-free operation. LM-80 Even light distribution Full length U-Wrap prismatic acrylic diffusers for even light Parking drive lane and stairwell compliance Delivers 10 to 20 footcandles from eight-foot ceilings for parking drive lane and stairwell compliance Mounts to surfaces or ceilings Can be surface- or ceiling-mounted to walls and ceilings for application variability 50,000 hour life 50,000-hour life, or more than 17 years operating 8 hours a day, is based on L70 standards (at 70 degrees F based on LM-80 data)L70 Utility Wrap Fixtures

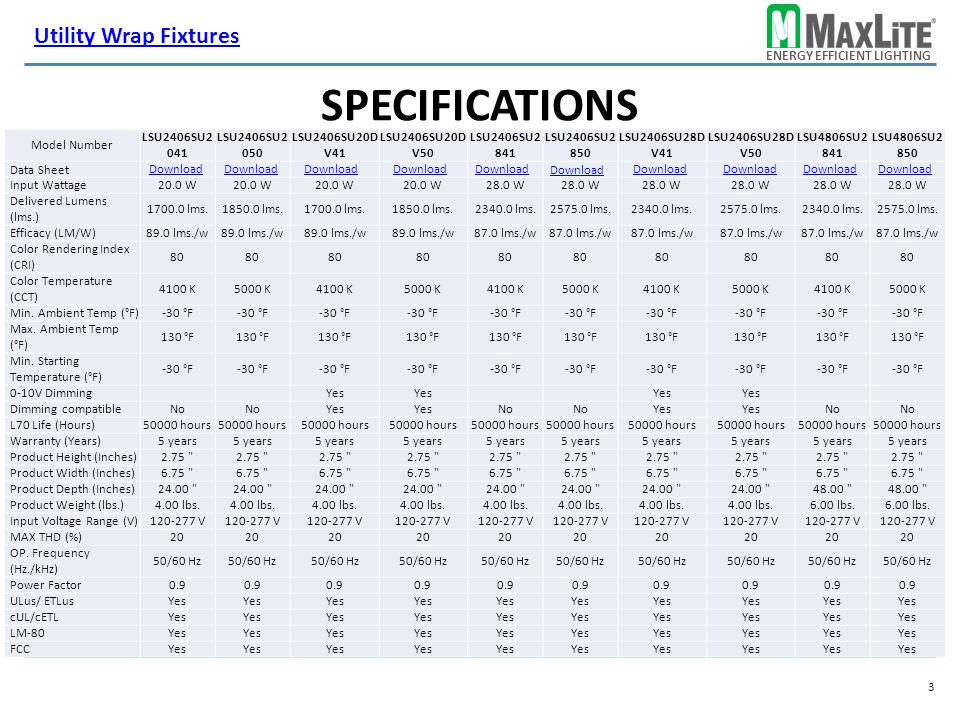

3 ENERGY EFFICIENT LIGHTING SPECIFICATIONS 3 Model Number LSU2406SU2 041 LSU2406SU2 050 LSU2406SU20D V41 LSU2406SU20D V50 LSU2406SU2 841 LSU2406SU2 850 LSU2406SU28D V41 LSU2406SU28D V50 LSU4806SU2 841 LSU4806SU2 850 Data Sheet Input Wattage20.0 W 28.0 W Delivered Lumens (lms.) lms lms lms lms lms lms lms lms lms lms. Efficacy (LM/W)89.0 lms./w 87.0 lms./w Color Rendering Index (CRI) 80 Color Temperature (CCT) 4100 K5000 K4100 K5000 K4100 K5000 K4100 K5000 K4100 K5000 K Min. Ambient Temp (°F)-30 °F Max. Ambient Temp (°F) 130 °F Min. Starting Temperature (°F) -30 °F 0-10V Dimming Yes Dimming compatibleNo Yes No Yes No L70 Life (Hours)50000 hours Warranty (Years)5 years Product Height (Inches)2.75 " Product Width (Inches)6.75 " Product Depth (Inches)24.00 " " Product Weight (lbs.)4.00 lbs lbs. Input Voltage Range (V) V MAX THD (%)20 OP. Frequency (Hz./kHz) 50/60 Hz Power Factor0.9 ULus/ ETLusYes cUL/cETLYes LM-80Yes FCCYes Utility Wrap Fixtures Download

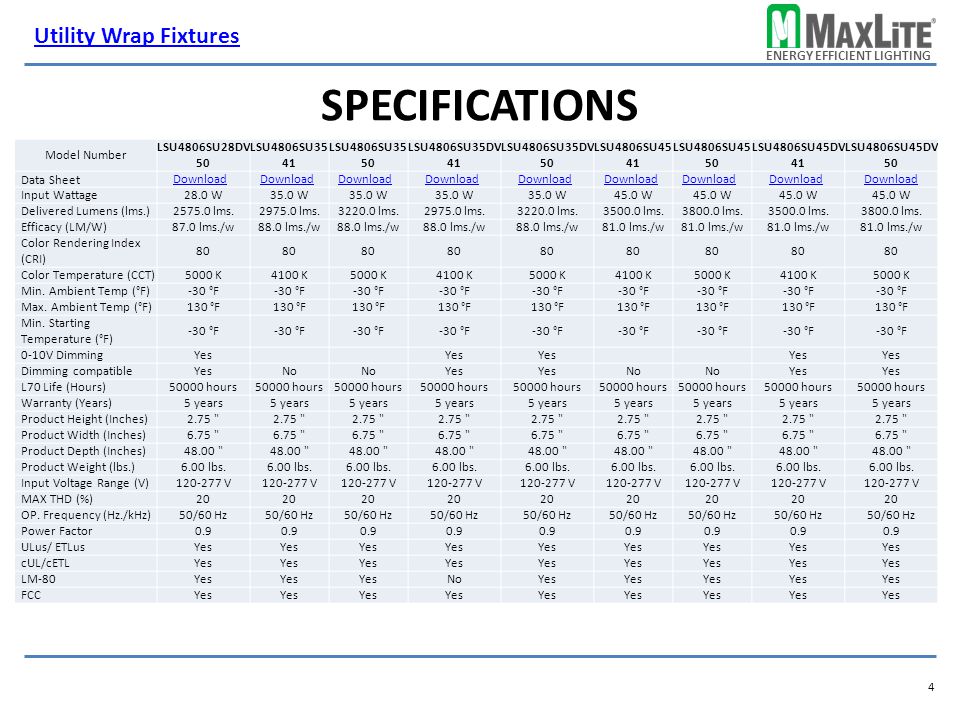

4 ENERGY EFFICIENT LIGHTING SPECIFICATIONS 4 Model Number LSU4806SU28DV 50 LSU4806SU35 41 LSU4806SU35 50 LSU4806SU35DV 41 LSU4806SU35DV 50 LSU4806SU45 41 LSU4806SU45 50 LSU4806SU45DV 41 LSU4806SU45DV 50 Data Sheet Input Wattage28.0 W35.0 W 45.0 W Delivered Lumens (lms.) lms lms lms lms lms lms lms lms lms. Efficacy (LM/W)87.0 lms./w88.0 lms./w 81.0 lms./w Color Rendering Index (CRI) 80 Color Temperature (CCT)5000 K4100 K5000 K4100 K5000 K4100 K5000 K4100 K5000 K Min. Ambient Temp (°F)-30 °F Max. Ambient Temp (°F)130 °F Min. Starting Temperature (°F) -30 °F 0-10V DimmingYes Dimming compatibleYesNo Yes No Yes L70 Life (Hours)50000 hours Warranty (Years)5 years Product Height (Inches)2.75 " Product Width (Inches)6.75 " Product Depth (Inches)48.00 " Product Weight (lbs.)6.00 lbs. Input Voltage Range (V) V MAX THD (%)20 OP. Frequency (Hz./kHz)50/60 Hz Power Factor0.9 ULus/ ETLusYes cUL/cETLYes LM-80Yes NoYes FCCYes Utility Wrap Fixtures Download

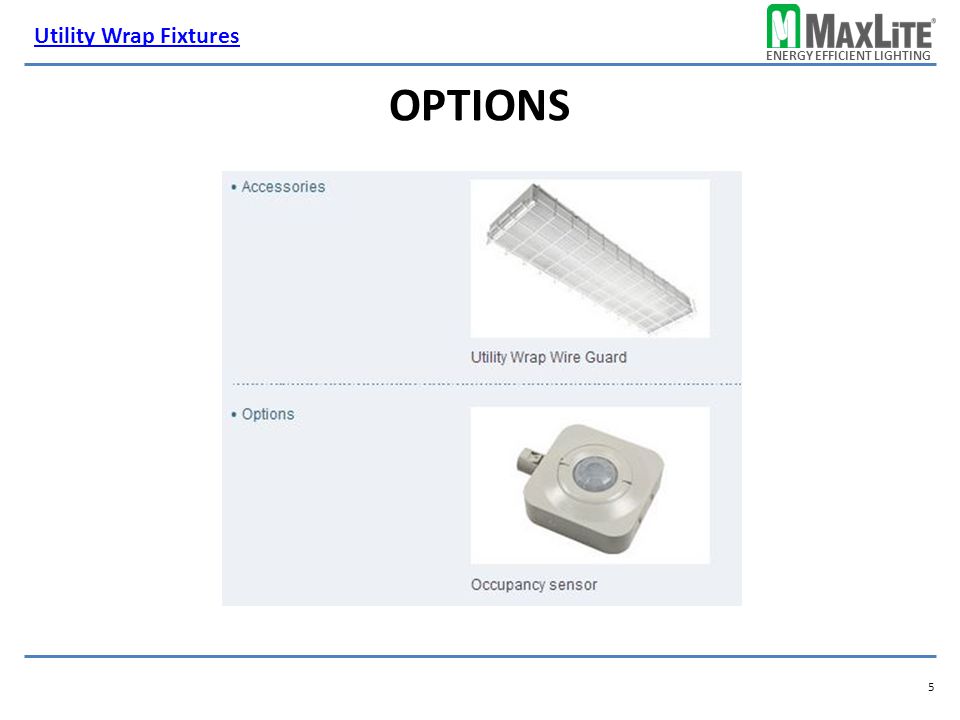

5 ENERGY EFFICIENT LIGHTING OPTIONS 5 Utility Wrap Fixtures

6 ENERGY EFFICIENT LIGHTING 6 UTILITY WRAP FIXTURES OVERVIEW Click here or on the image above to launch the presentation. Utility Wrap Fixtures

7 ENERGY EFFICIENT LIGHTING CERTIFYING BODIES Yes - ULUL Yes - RohsRohs Yes - CulCul No - Energy StarEnergy Star No - DLCDLC Yes - Lighting FactsLighting Facts 7 Utility Wrap Fixtures
