Presentation on theme: "Module 13: Performance Tuning. Overview Performance tuning methodologies Instance level Database level Application level Overview of tools and techniques."— Presentation transcript:

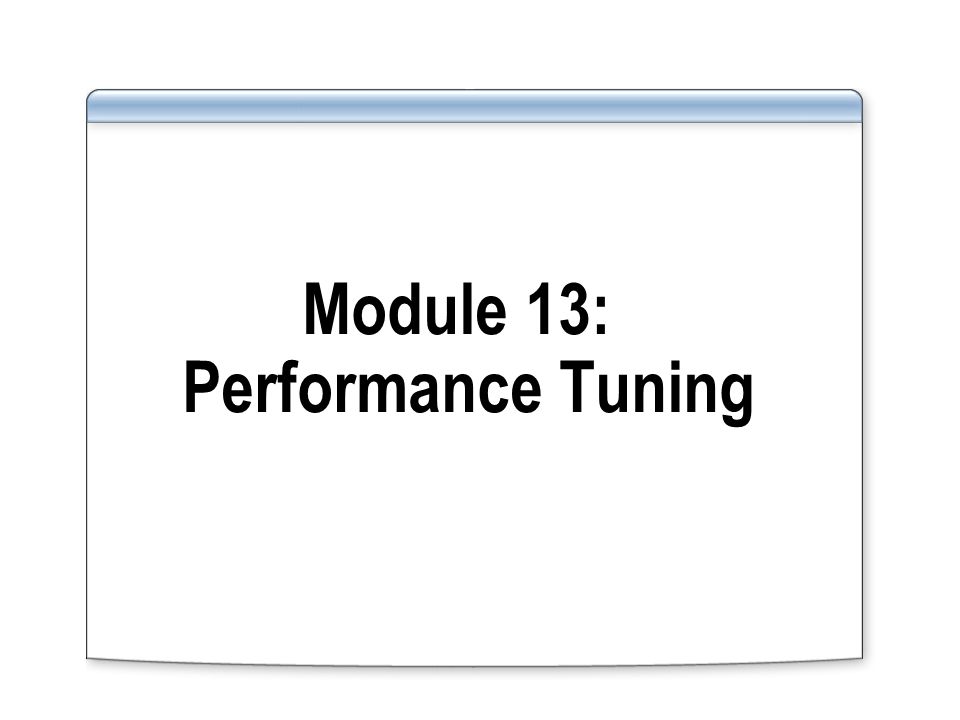

Module 13: Performance Tuning
Overview Performance tuning methodologies Instance level Database level Application level Overview of tools and techniques for performance analysis and tuning

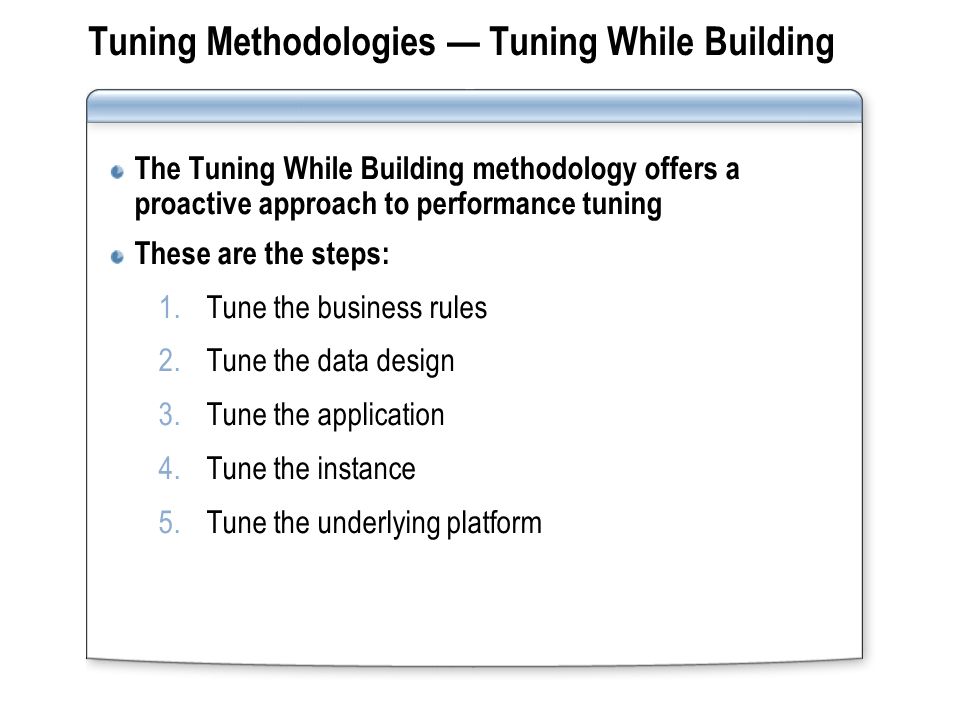

Tuning Methodologies Tuning While Building The Tuning While Building methodology offers a proactive approach to performance tuning These are the steps: 1.Tune the business rules 2.Tune the data design 3.Tune the application 4.Tune the instance 5.Tune the underlying platform
Tuning Methodologies Performance Tuning Performance tuning is an ongoing, interactive process Performance Improvement Method offers steps in improving performance of a system in production: Define the problem Examine the host system and the Oracle statistics Examine documentation to help identify the problem Generate a prognosis based on captured data Propose a course of action and implement the changes Evaluate the causes of the changes If unsuccessful, repeat previous two steps
Application Tuning Tune Application Design Leverage RDBMS features Example: Perform calculations and summaries on the database before fetching the results so as to leverage database resources as well as to reduce network traffic Tune Logical Structure of Database Leverage supporting schema objects Example: choose appropriate indexes Tune Database Operations Find statements that consume most resources Use statistics available in system catalog, such as parses, CPU time, physical reads Tune the statements to use fewer resources Use coding standards and tools to analyze and tune SQL Tune Access Paths Aid Optimizer in finding optimal access path, creating indexes, clustered indexes, and providing optimizer hints

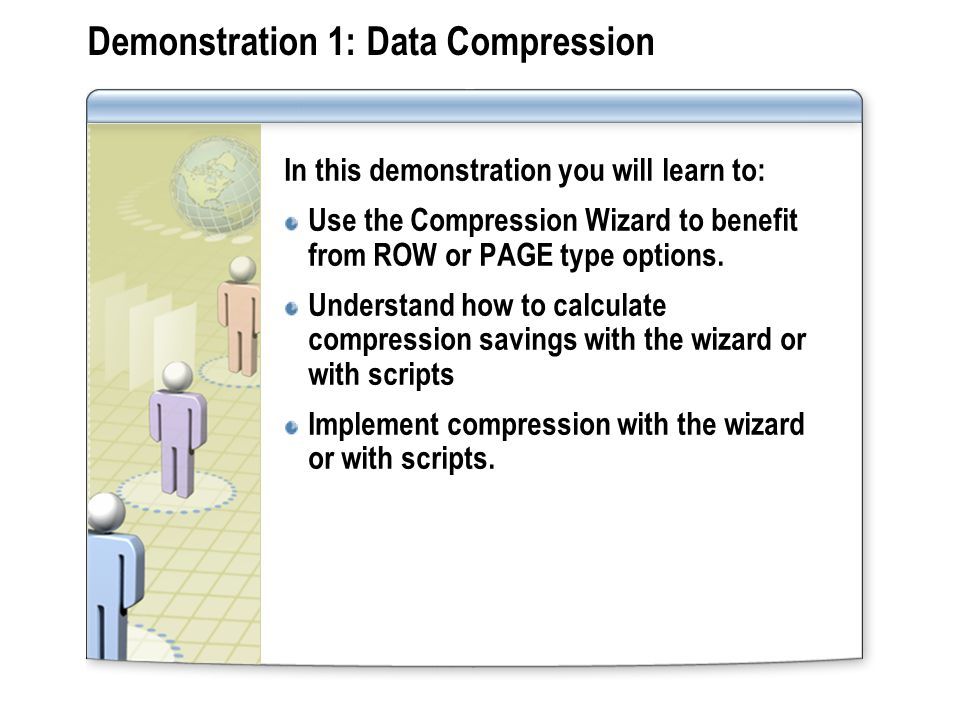

Demonstration 1: Data Compression In this demonstration you will learn to: Use the Compression Wizard to benefit from ROW or PAGE type options. Understand how to calculate compression savings with the wizard or with scripts Implement compression with the wizard or with scripts.
Demonstration 2: SQL Server Profiler In this demonstration you will learn to: Use the SQL Server Profiler to capture events within SQL Server as it is being used. Choose the type of events to monitor Review the activities by Replaying the trace at a later time. Generate script templates for traces.
Demonstration 3: Hints (T-SQL) In this demonstration you will learn to: Enforce a MERGE JOIN in a query. Benefit from the OPTIMIZE FOR hint. Override the row locking default with a TABLOCK hint. Remove all shared locks with the NOLOCK hint.

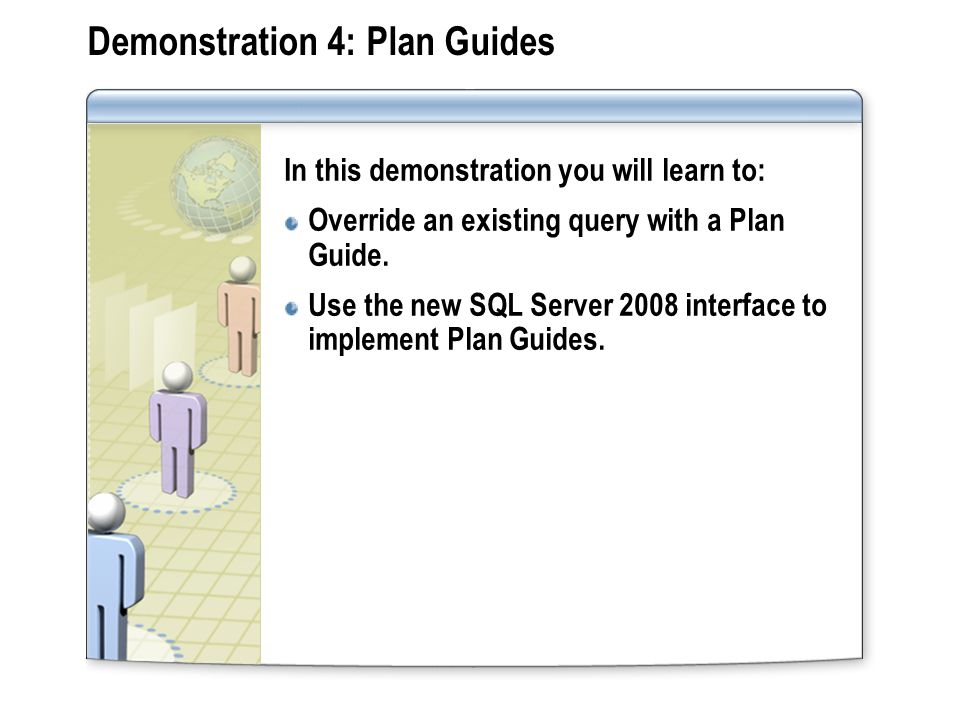

Demonstration 4: Plan Guides In this demonstration you will learn to: Override an existing query with a Plan Guide. Use the new SQL Server 2008 interface to implement Plan Guides.
Tune Memory Allocation Proper configuration and use of the caches that make up the SGA (Oracle) and memory pool (SQL Server) Tune I/O and Physical Structures Separation of files based on access Distribution of I/O load across files and devices Tune Resource Contention Reduce and/or eliminate contention for locks, latches, block (page) headers, and queues Instance Tuning
SQL Server Performance Tuning Tools Profiler records detailed information on activity on the database server, including I/O statistics, CPU statistics, index and table scans, execution plans and several other statistics to aid in tuning SQL and T-SQL Performance Data Collector fully integrated tool that collects a variety of performance metrics on one or more SQL Servers and stores the data in a central data warehouse Build custom reports showing trends Query Editor in SSMS graphical tool used to execute and debug queries to resolve performance issues Database Engine Tuning Advisor database physical design tool to optimize indexes and partitioning Replaces Index Tuning Wizard from previous SQL Server releases Performance Monitor Windows tool that records counters at hardware, operating system, database, and application levels Task Manager used for initial review of high-level counters on the system, including utilization at a process level
Review We learned performance tuning methodologies, including Tuning While Building to be used starting with application design process and Performance Improvement Method to be used to tune production systems We discussed steps in tuning an application, including tuning application design, access paths, logical structure, and operations at the database We went over steps in tuning an instance, including tuning memory allocation, resource contention, and I/O and physical structures We were introduced to a set of tools available in SQL Server and Microsoft Windows that aid in tuning at hardware, operating system, database, and application levels, and achieving overall optimal performance
