1 ECMWF 1 COM HPCF 2004: Profiling and optimisation Serial optimisation and profiling Computer User Training Course 2004 Carsten Maaß User Support This unit is derived from presentations by John Hague and Daniel Boulet

2 ECMWF 2 COM HPCF 2004: Profiling and optimisation Topics Tuning methodology Timing Profiling Serial optimisation

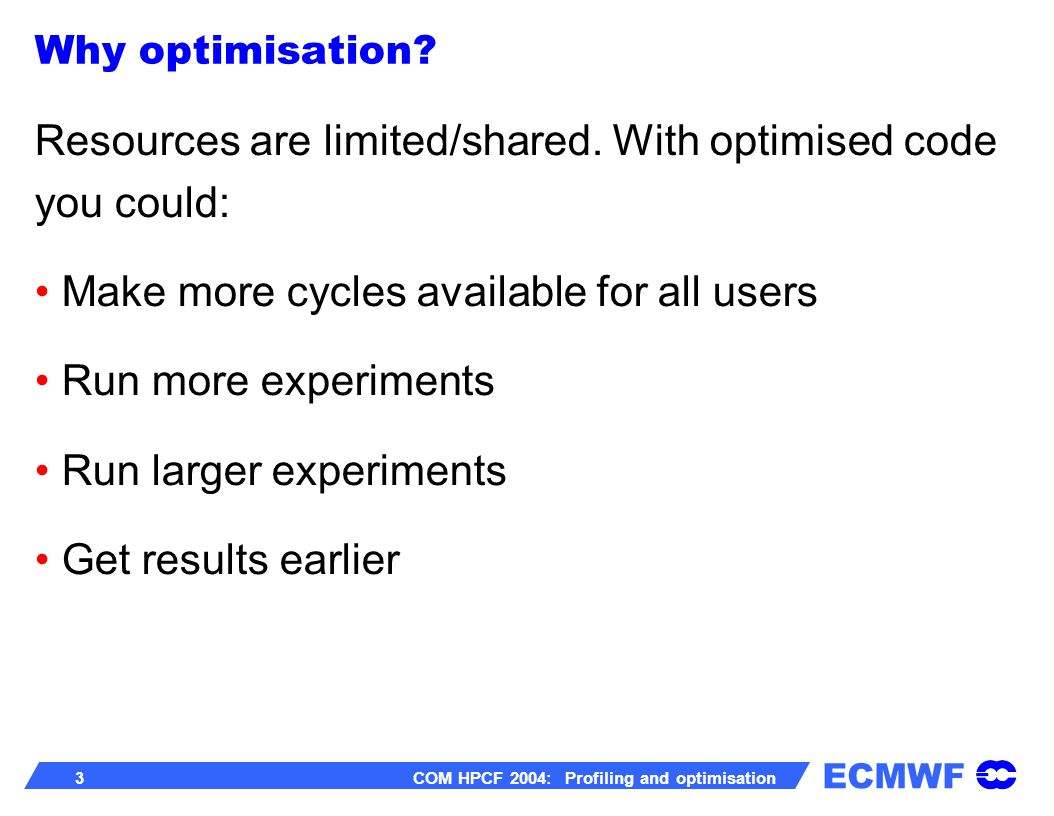

3 ECMWF 3 COM HPCF 2004: Profiling and optimisation Why optimisation? Resources are limited/shared. With optimised code you could: Make more cycles available for all users Run more experiments Run larger experiments Get results earlier

4 ECMWF 4 COM HPCF 2004: Profiling and optimisation Performance measure M1: Science / time-unit using computer M2: Computations / time-unit M1/M2 = ?

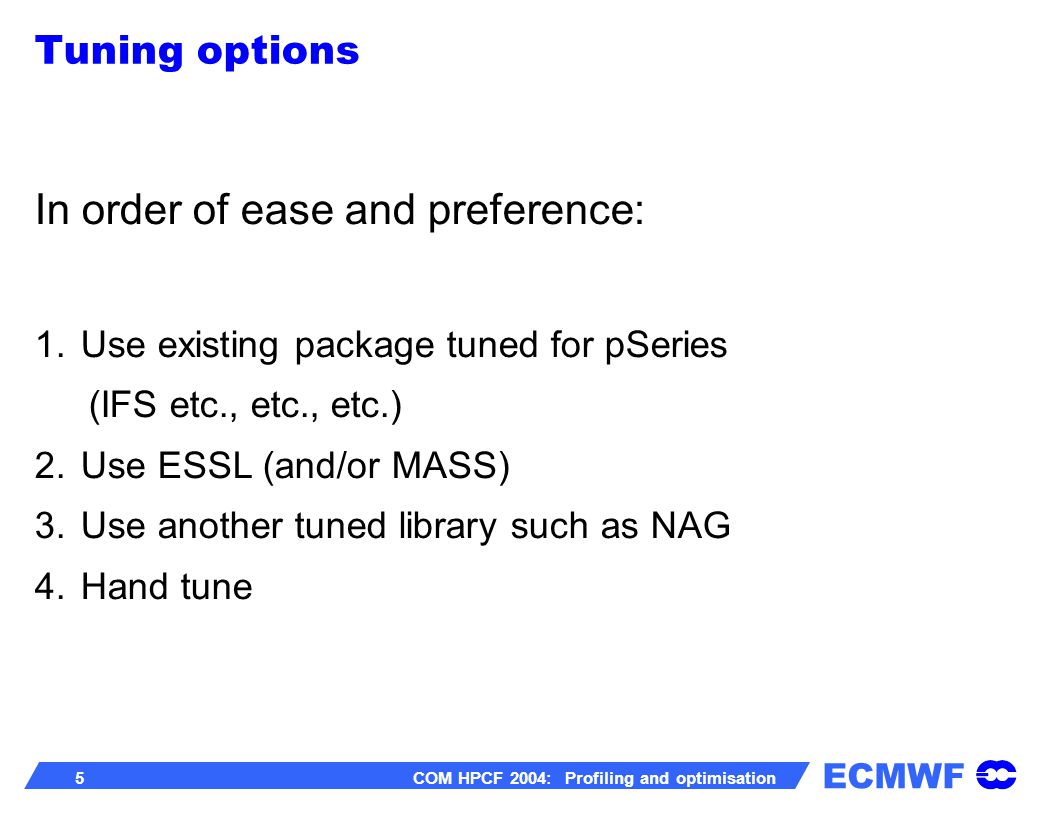

5 ECMWF 5 COM HPCF 2004: Profiling and optimisation Tuning options In order of ease and preference: 1.Use existing package tuned for pSeries (IFS etc., etc., etc.) 2.Use ESSL (and/or MASS) 3.Use another tuned library such as NAG 4.Hand tune

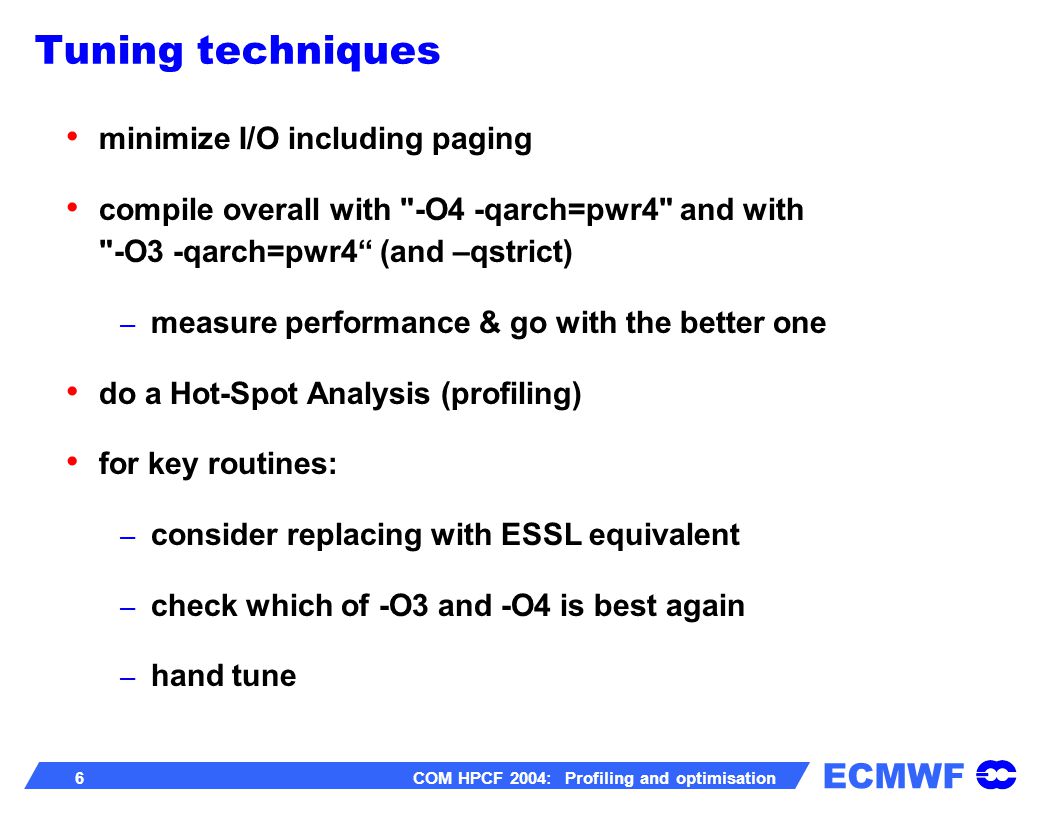

6 ECMWF 6 COM HPCF 2004: Profiling and optimisation minimize I/O including paging compile overall with "-O4 -qarch=pwr4" and with "-O3 -qarch=pwr4 (and –qstrict) – measure performance & go with the better one do a Hot-Spot Analysis (profiling) for key routines: – consider replacing with ESSL equivalent – check which of -O3 and -O4 is best again – hand tune Tuning techniques

7 ECMWF 7 COM HPCF 2004: Profiling and optimisation Don't abandon an otherwise successful tuning approach just because the program starts to generate wrong answers as it may be possible to fix the answers while still getting faster results. measure / profile tune bottlenecks fast enoug h un-optimised correct code correct results optimised code check code Yes No Tuning methodology Define a performance target!

8 ECMWF 8 COM HPCF 2004: Profiling and optimisation Neither hand tuning or the compiler's optimizer are likely to triple or even double the performance of most programs. The only realistic exceptions are –very careful tuning of certain matrix intensive applications (check out the SMP aware ESSL library) –parallelization techniques Never underestimate the potential improvements to be gained by switching to a better algorithm – after which, hand tuning and the compiler's optimizer can make things even faster Some reminders...

9 ECMWF 9 COM HPCF 2004: Profiling and optimisation Remember why bank robbers rob banks: because that's where the money is! Apply the same logic to performance tuning: 1. identify which parts of the program are the most expensive 2. concentrate tuning efforts on the expensive parts REMEMBER: different input data may result in very different activity patterns Profiling or "Hot Spot Analysis" (1/2)

10 ECMWF 10 COM HPCF 2004: Profiling and optimisation Rule of thumb: Trying to double or triple the performance of a program by optimizing parts that each use less than 20% of the time is like trying to get rich by robbing lots of small grocery stores. i.e. you have to be incredibly lucky to succeed! Profiling or "Hot Spot Analysis" (2/2)

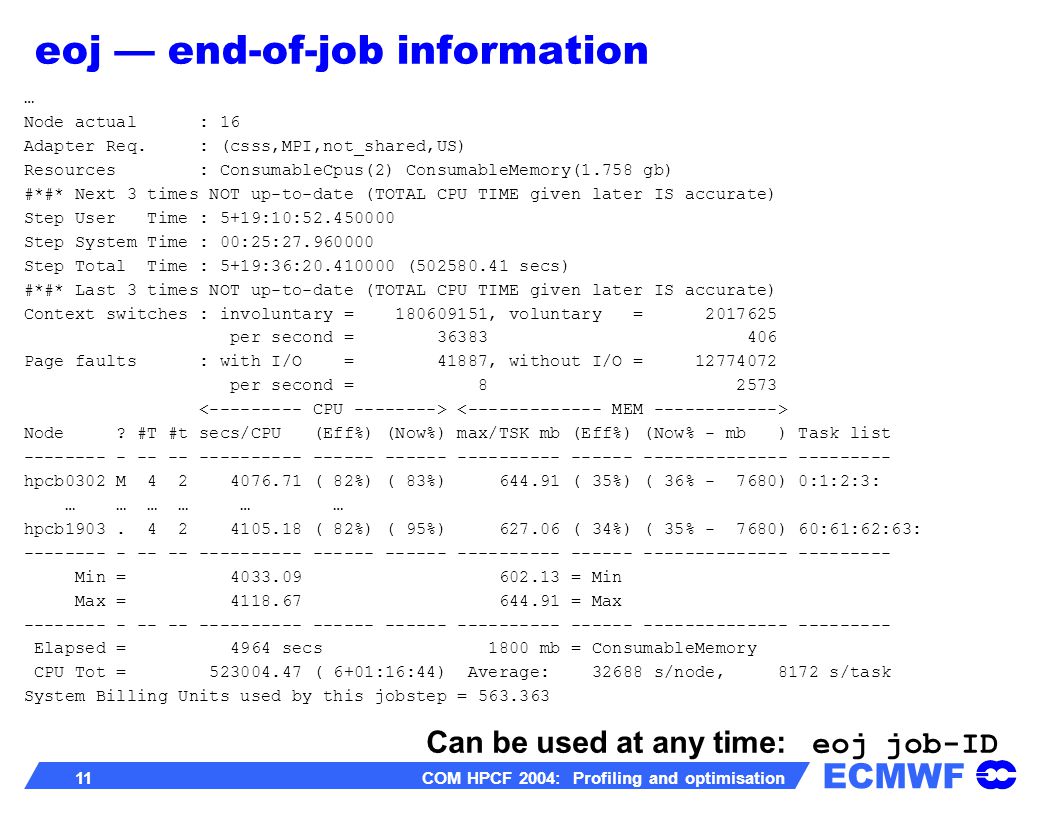

11 ECMWF 11 COM HPCF 2004: Profiling and optimisation … Node actual : 16 Adapter Req. : (csss,MPI,not_shared,US) Resources : ConsumableCpus(2) ConsumableMemory(1.758 gb) #*#* Next 3 times NOT up-to-date (TOTAL CPU TIME given later IS accurate) Step User Time : 5+19:10: Step System Time : 00:25: Step Total Time : 5+19:36: ( secs) #*#* Last 3 times NOT up-to-date (TOTAL CPU TIME given later IS accurate) Context switches : involuntary = , voluntary = per second = Page faults : with I/O = 41887, without I/O = per second = Node ? #T #t secs/CPU (Eff%) (Now%) max/TSK mb (Eff%) (Now% - mb ) Task list hpcb0302 M ( 82%) ( 83%) ( 35%) ( 36% ) 0:1:2:3: … … … … … … hpcb ( 82%) ( 95%) ( 34%) ( 35% ) 60:61:62:63: Min = = Min Max = = Max Elapsed = 4964 secs 1800 mb = ConsumableMemory CPU Tot = ( 6+01:16:44) Average: s/node, 8172 s/task System Billing Units used by this jobstep = eoj end-of-job information Can be used at any time: eoj job-ID

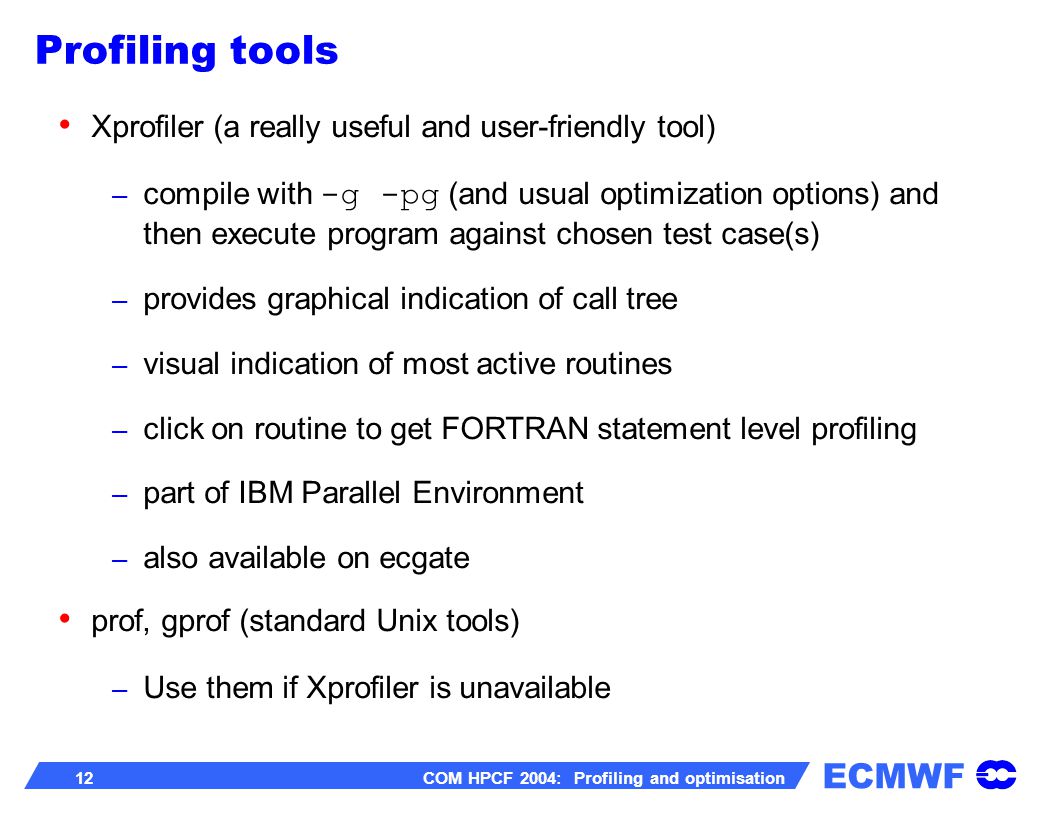

12 ECMWF 12 COM HPCF 2004: Profiling and optimisation Xprofiler (a really useful and user-friendly tool) – compile with -g -pg (and usual optimization options) and then execute program against chosen test case(s) – provides graphical indication of call tree – visual indication of most active routines – click on routine to get FORTRAN statement level profiling – part of IBM Parallel Environment – also available on ecgate prof, gprof (standard Unix tools) – Use them if Xprofiler is unavailable Profiling tools

13 ECMWF 13 COM HPCF 2004: Profiling and optimisation compile and link the program with the -g and -pg options: $ xlf -c -g -pg -O4 main.f $ xlf -c -g -pg -O4 qq.f $ xlf -g -pg main.o qq.o -o prog run the program (creates a gmon.out file) $./prog data1 invoke Xprofiler on the binary and the gmon.out file $ xprofiler prog gmon.out Using Xprofiler

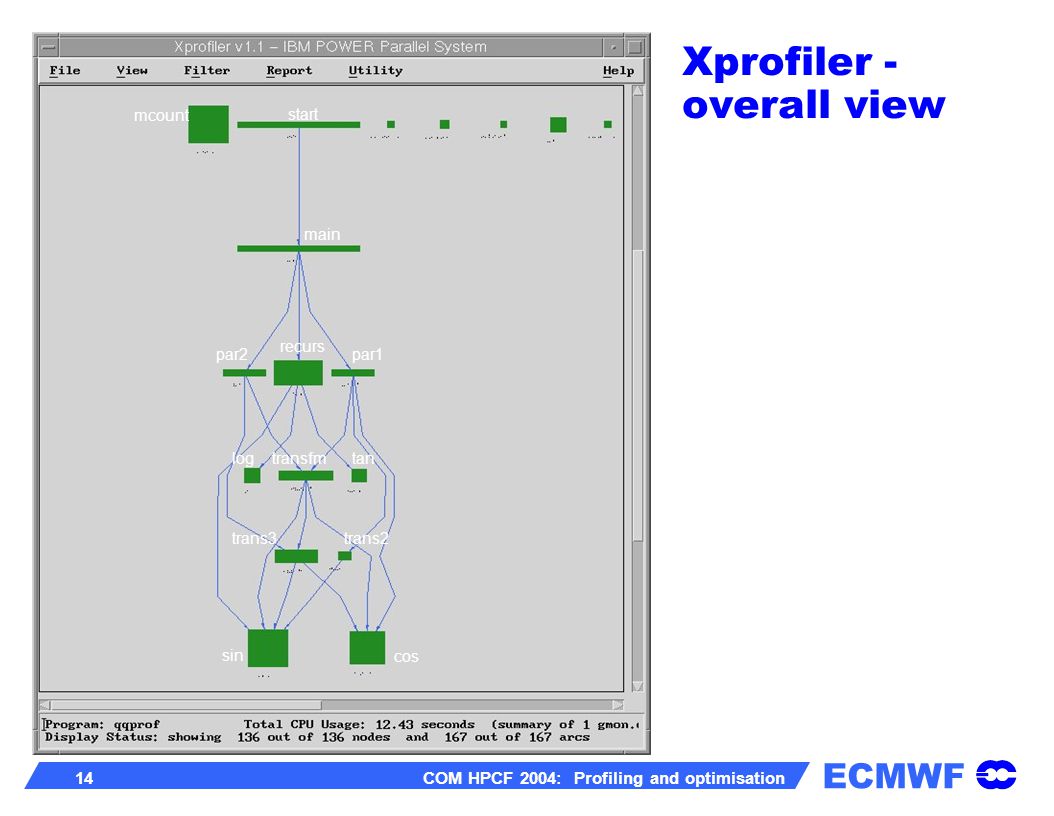

14 ECMWF 14 COM HPCF 2004: Profiling and optimisation start main recurs par2par1 logtransfmtan trans3trans2 sin cos mcount Xprofiler - overall view

15 ECMWF 15 COM HPCF 2004: Profiling and optimisation Xprofiler - zoomed view Hints : To obtain a clear overview of the call tree for your executable only, use the option Filter -> Hide All Library Calls followed by Filter -> Uncluster View -> Zoom In to see labels right-click function box for Function menu

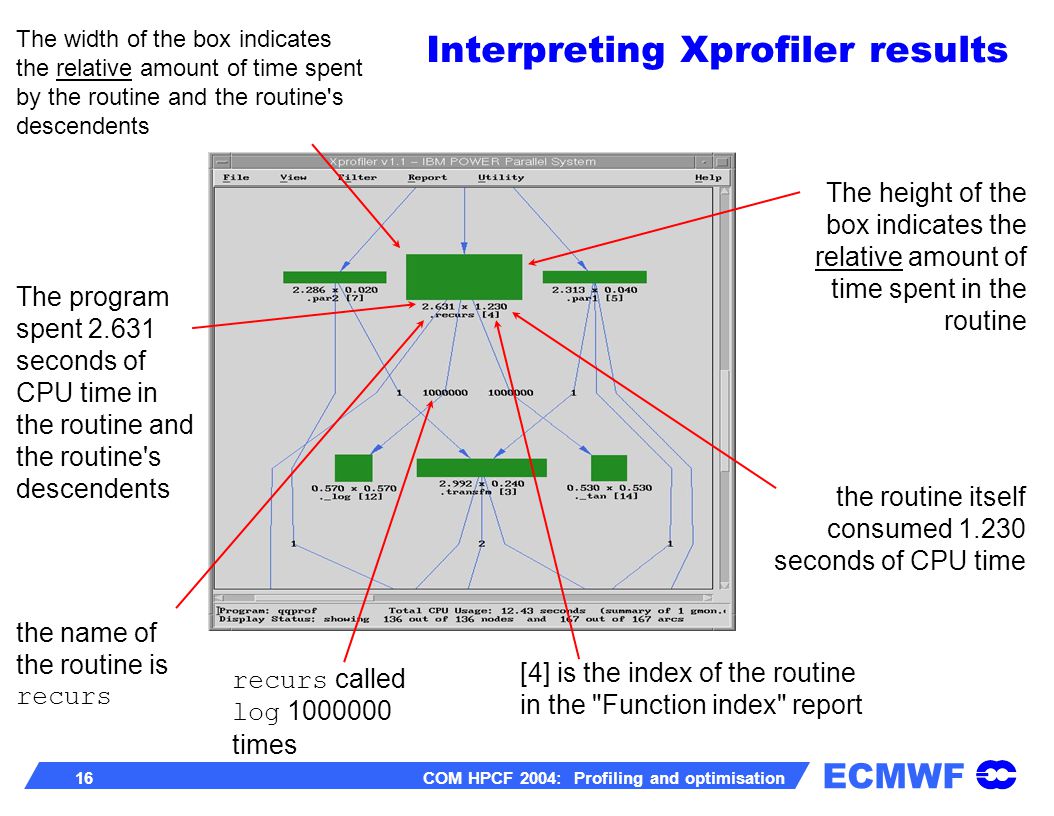

16 ECMWF 16 COM HPCF 2004: Profiling and optimisation The width of the box indicates the relative amount of time spent by the routine and the routine's descendents The height of the box indicates the relative amount of time spent in the routine The program spent seconds of CPU time in the routine and the routine's descendents the routine itself consumed seconds of CPU time the name of the routine is recurs [4] is the index of the routine in the "Function index" report recurs called log times Interpreting Xprofiler results

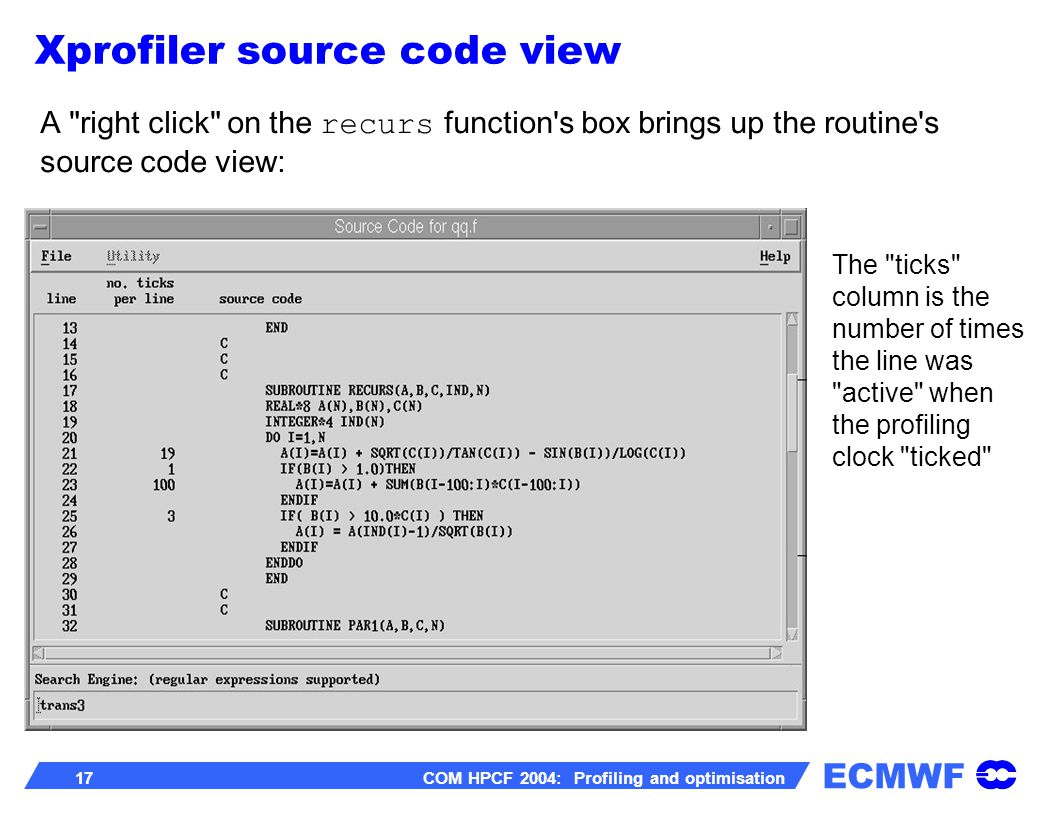

17 ECMWF 17 COM HPCF 2004: Profiling and optimisation A "right click" on the recurs function's box brings up the routine's source code view: The "ticks" column is the number of times the line was "active" when the profiling clock "ticked" Xprofiler source code view

18 ECMWF 18 COM HPCF 2004: Profiling and optimisation each run of the program will create a new gmon.out file (overwriting any existing gmon.out file) – rename the old gmon.out file first if you want to keep it recompiling the program invalidates all older gmon.out files – saving the old binary before recompiling can be used to keep older gmon.out files valid modifying the source file invalidates the information shown in xprofiler's "Source Code" window gmon.out file issues

19 ECMWF 19 COM HPCF 2004: Profiling and optimisation In program: – mclock() returns CPU time INTEGER FUNCTION Returns 1/100ths of seconds – rtc() returns elapsed (wall clock) time REAL*8 FUNCTION Returns seconds with microsecond resolution AIX time(x) command gives: – 'Real' time (elapsed) – 'User' time (CPU) – 'System' time (CPU) – Total CPU time = User + System implicit (none) real*8 r0,rtc,cpu_secs,real_secs integer m0,mclock. r0=rtc() m0=mclock(). >code you want to time<. cpu_secs=(mclock()-m0)*0.01 real_secs=rtc()-r0 Timing a program

20 ECMWF 20 COM HPCF 2004: Profiling and optimisation timed code must take significantly longer than 1/100th sec – an AIX restriction - not FORTRAN wrap the loop in "time multiplier" loop to improve timing results: T0=MCLOCK() C===MMM LOOP IS TO INCREASE TOTAL CPU TIME DO MMM=1,10000 DO I=1,2000 A(I)=A(I)+S*B(I) ENDDO TLOOP=(MCLOCK()-T0)/100./MMM BE CAREFUL: this may wrongly hide cache miss effects The solution is to use rtc() and run CPU-bound on an otherwise quiet system. MCLOCK granularity

21 ECMWF 21 COM HPCF 2004: Profiling and optimisation m0=rtc(). ml = rtc() delta = ml – m0 the optimizer might move calls to rtc() and mclock() insert print statements to force serialization call dummy(m0) call dummy(ml) use –qstrict flush Beware of the optimizer …

22 ECMWF 22 COM HPCF 2004: Profiling and optimisation counters provided by processor can be used via libraries in /usr/local/lib/trace – libmpihpm.a ( and –lpmapi) see /usr/local/lib/trace/README Hardware performance monitor (1/2) No. of floating point operations: FPU_FMA + FPU0_FIN + FPU1_FIN - FPU_STF Performance monitoring was developed for hardware engineers!

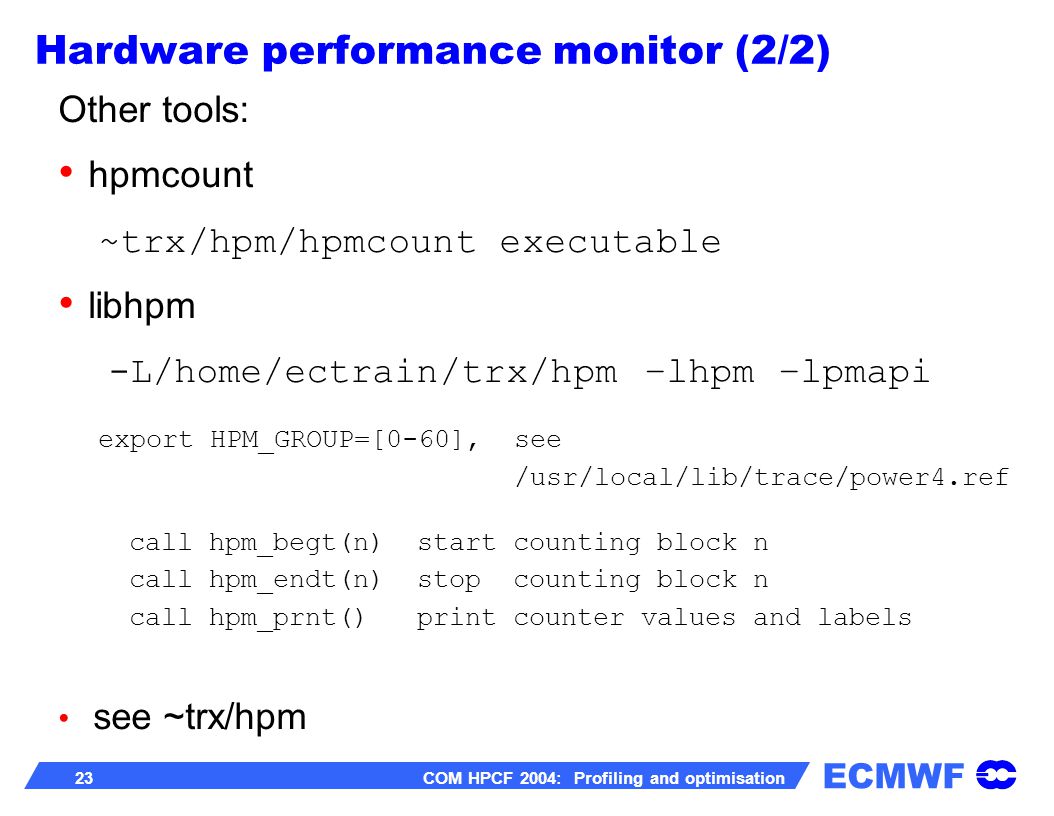

23 ECMWF 23 COM HPCF 2004: Profiling and optimisation Other tools: hpmcount ~trx/hpm/hpmcount executable libhpm -L/home/ectrain/trx/hpm –lhpm –lpmapi export HPM_GROUP=[0-60], see /usr/local/lib/trace/power4.ref call hpm_begt(n) start counting block n call hpm_endt(n) stop counting block n call hpm_prnt() print counter values and labels see ~trx/hpm Hardware performance monitor (2/2)

24 ECMWF 24 COM HPCF 2004: Profiling and optimisation instrument the code (i.e. mclock() and rtc() ) try different optimization flags use optimised libraries (ESSL, MASS, (NAG)) use stride 1 use cache effectively keep pipelines and FPUs busy maximize: Floating Point ops / (Load+Store ops) replace DIVIDEs remove IF statements help the compiler replace ** with EXP of LOG recode getting fractional part of a number The serial tuning top 10 list

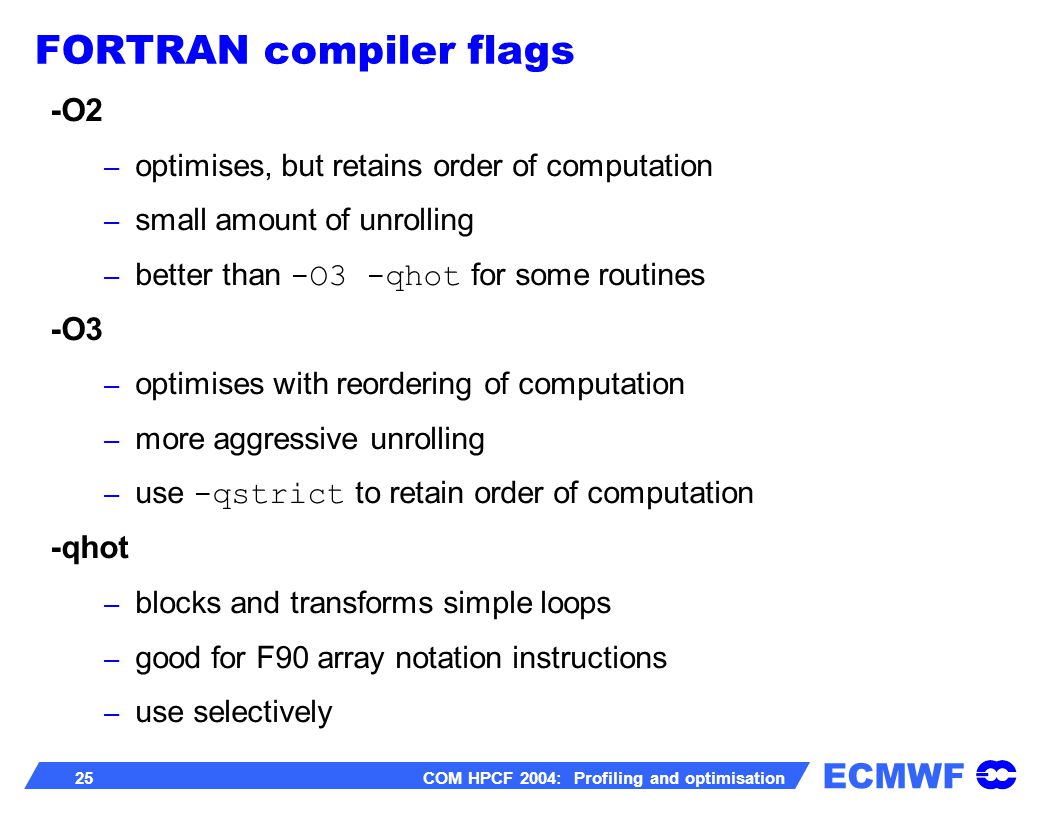

25 ECMWF 25 COM HPCF 2004: Profiling and optimisation -O2 – optimises, but retains order of computation – small amount of unrolling – better than -O3 -qhot for some routines -O3 – optimises with reordering of computation – more aggressive unrolling – use -qstrict to retain order of computation -qhot – blocks and transforms simple loops – good for F90 array notation instructions – use selectively FORTRAN compiler flags

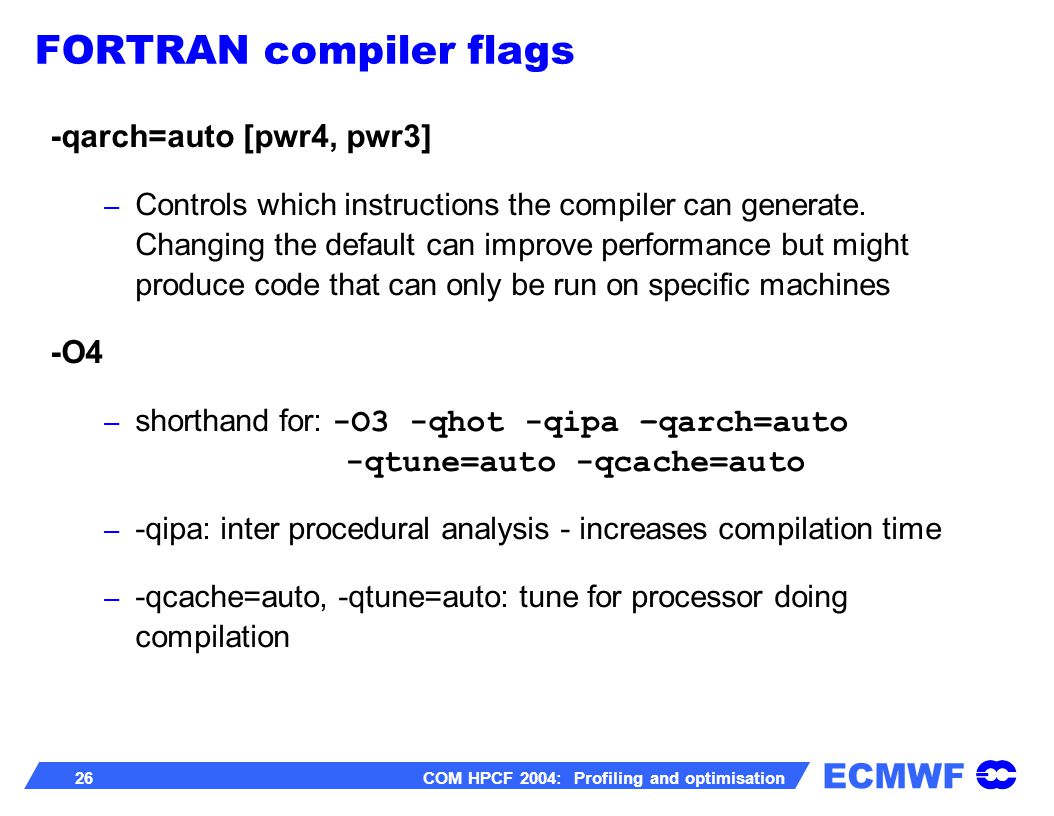

26 ECMWF 26 COM HPCF 2004: Profiling and optimisation -qarch=auto [pwr4, pwr3] – Controls which instructions the compiler can generate. Changing the default can improve performance but might produce code that can only be run on specific machines -O4 – shorthand for: -O3 -qhot -qipa –qarch=auto -qtune=auto -qcache=auto – -qipa: inter procedural analysis - increases compilation time – -qcache=auto, -qtune=auto: tune for processor doing compilation FORTRAN compiler flags

27 ECMWF 27 COM HPCF 2004: Profiling and optimisation -qessl – will substitute Fortran intrinsic functions from ESSL library when it is safe to do so (-lessl must be specified at link time). Controls which instructions the compiler can generate. Changing the default can improve performance but might produce code that can only be run on specific machines Try various combinations as many optimisations interfere with each other FORTRAN compiler flags

28 ECMWF 28 COM HPCF 2004: Profiling and optimisation MASS library – Mathematical Acceleration SubSystem ESSL – Engineering and Scientific Subroutine Library NAG – Numerical Algorithms Groups (not particularly optimised for POWER4!) link with $NAGLIB Performance libraries

29 ECMWF 29 COM HPCF 2004: Profiling and optimisation automatically provides high-performance alternative to maths intrinsics re-link only vector versions require source code change some are very slightly less accurate (normally only one ULP, i.e. one bit) at high optimization levels (-O4), xlf may automatically use routines from MASS -L/usr/local/lib/mass –lmass -lmassv MASS library

30 ECMWF 30 COM HPCF 2004: Profiling and optimisation scalar library – no change to code (i.e. compiler uses them) – exp, log, **, sin, cos, tan, dnint speed up by a factor of about 2 vector library – code change may be required – exp, log, sin, cos, tan, dnint, dint speed up by a factor of about 6 – if exp with IF statement, create reduced vector (which may not be long enough) MASS library

31 ECMWF 31 COM HPCF 2004: Profiling and optimisation Examples for performance gains on POWER3 architecture – log: 1.57vlog: 10.4 – sin: 2.42vsin: 10.0 – (reciprocal)vrec: 2.6 Compiler flags: -qarch=pwr4enables hardware SQRT (very important) -qnounrollto be avoided for small loops -qhotcompiler uses vector MASS SQRT and 1/x -qstrictdisables vector MASS functions Hand coded use of MASS generally best MASS library

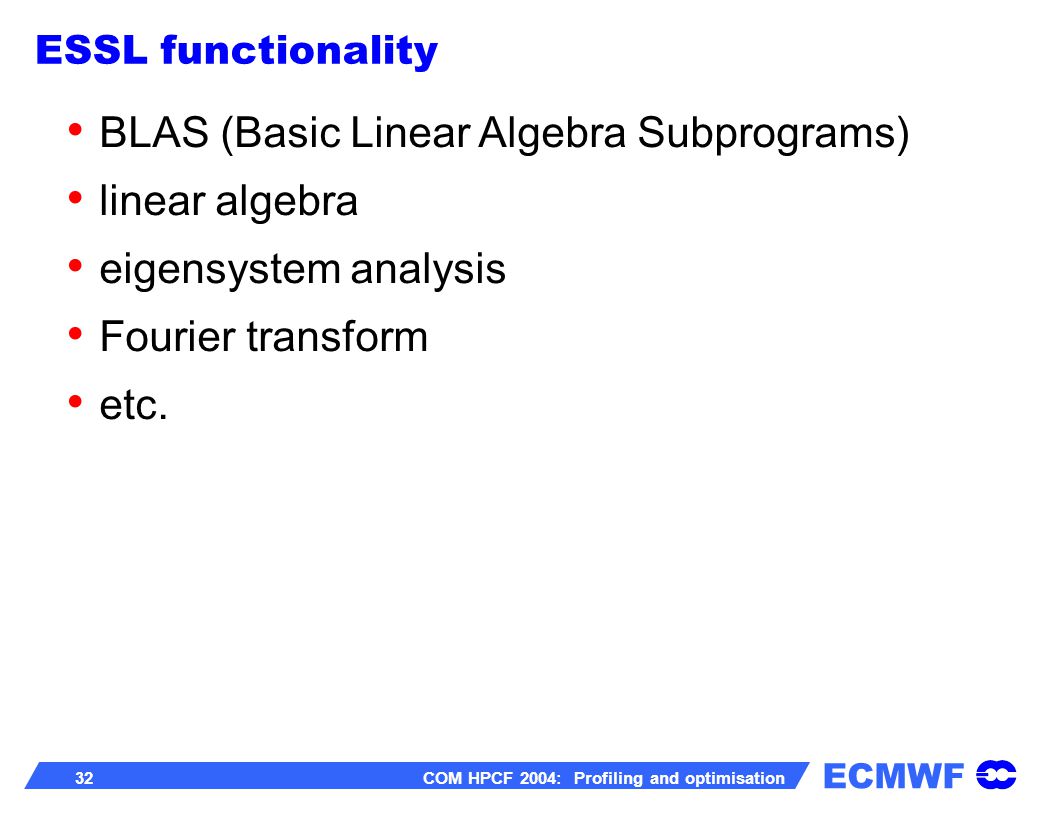

32 ECMWF 32 COM HPCF 2004: Profiling and optimisation BLAS (Basic Linear Algebra Subprograms) linear algebra eigensystem analysis Fourier transform etc. ESSL functionality

33 ECMWF 33 COM HPCF 2004: Profiling and optimisation three "levels" – Level 1: vector-vector: e.g. dot product – Level 2: vector-matrix: e.g. DAXPY – Level 3: matrix-matrix: e.g. matrix multiply, DGEMM standardised – portable across systems – hardware vendors are encouraged to supply high- performance BLAS – IBM's high performance BLAS is ESSL BLAS

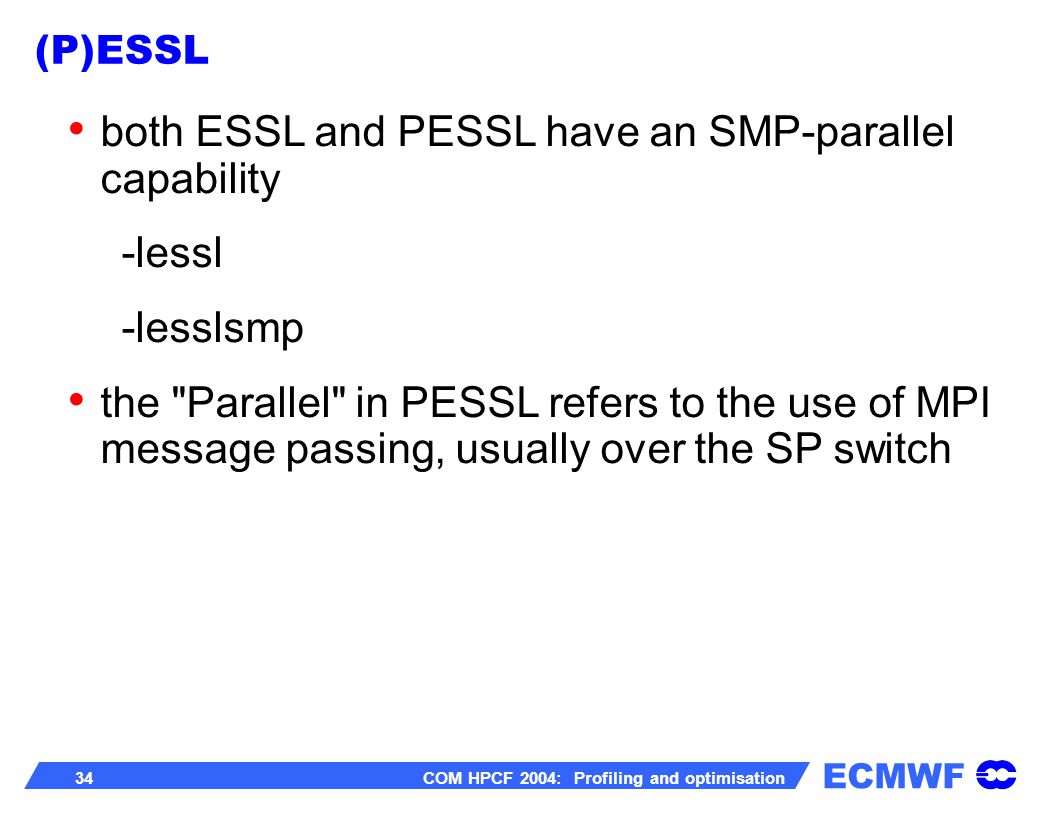

34 ECMWF 34 COM HPCF 2004: Profiling and optimisation both ESSL and PESSL have an SMP-parallel capability -lessl -lesslsmp the "Parallel" in PESSL refers to the use of MPI message passing, usually over the SP switch (P)ESSL

35 ECMWF 35 COM HPCF 2004: Profiling and optimisation particularly good for: – FFT's – matrix manipulation – linear equation solvers – sort FORTRAN often better for level 2 BLAS – get benefits of inlining etc: CALL DAXPY(N,A,P,1,R,1) S=DDOT(N,R,1,P,1) DO I=1,N R(I)=R(I)+A*P(I) S=S+P(I)*R(I) ENDDO ESSL library

36 ECMWF 36 COM HPCF 2004: Profiling and optimisation DO I=1,N DO J=1,N C(I,J)=C(I,J)+A(I,J) ENDDO Note: the compiler may do this with -qhot (or -O4) DO J=1,N DO I=1,N C(I,J)=C(I,J)+A(I,J) ENDDO Use stride 1 (leftmost Fortan index in array)

37 ECMWF 37 COM HPCF 2004: Profiling and optimisation stores may flush caches – stores may have to load caches first don't zero array as a precaution – mix store zeros with storing data or – use CACHE_ZERO directive zeroes whole cache line without loading from memory need to put in subroutine to handle partial line zeroing stores only go at half speed on POWER4 (unless cache lines interleaved) Avoid stores

38 ECMWF 38 COM HPCF 2004: Profiling and optimisation do i=1,n y(i)=c*x(i) enddo. do=1,n z(i)=1.0+y(i) enddo do i=1,n z(i)=1.0+c*x(i) enddo Avoid stores

39 ECMWF 39 COM HPCF 2004: Profiling and optimisation do i=1,N a(i)=x(i)/z(i) b(i)=y(i)/z(i) enddo do i=1,N t=1.d0/z(i) a(i)=x(i)*t b(i)=y(i)*t enddo Note: compiler usually uses reciprocal with -O3 (without -qstrict) Remove DIVIDEs

40 ECMWF 40 COM HPCF 2004: Profiling and optimisation do i=1,N z(i)=a/x(i)+b/y(i) enddo do i=1,N z(i)=(a*y(i)+b*x(i))/(x(i)*y(i)) enddo Remember: DIVIDEs take about 14 cycles but extra multiplies only take from 1 cycle (pipelined) to 6 cycles (totally unpipelined) Remove DIVIDEs

41 ECMWF 41 COM HPCF 2004: Profiling and optimisation create reciprocal array if DIVIDE uses same denominator more than once try to use MASS library VDIV (vector divide) – use call vdiv(out,nom,div,len) – may need to split loop – compiler will try to do this if -qhot, and not conditional Remove DIVIDEs

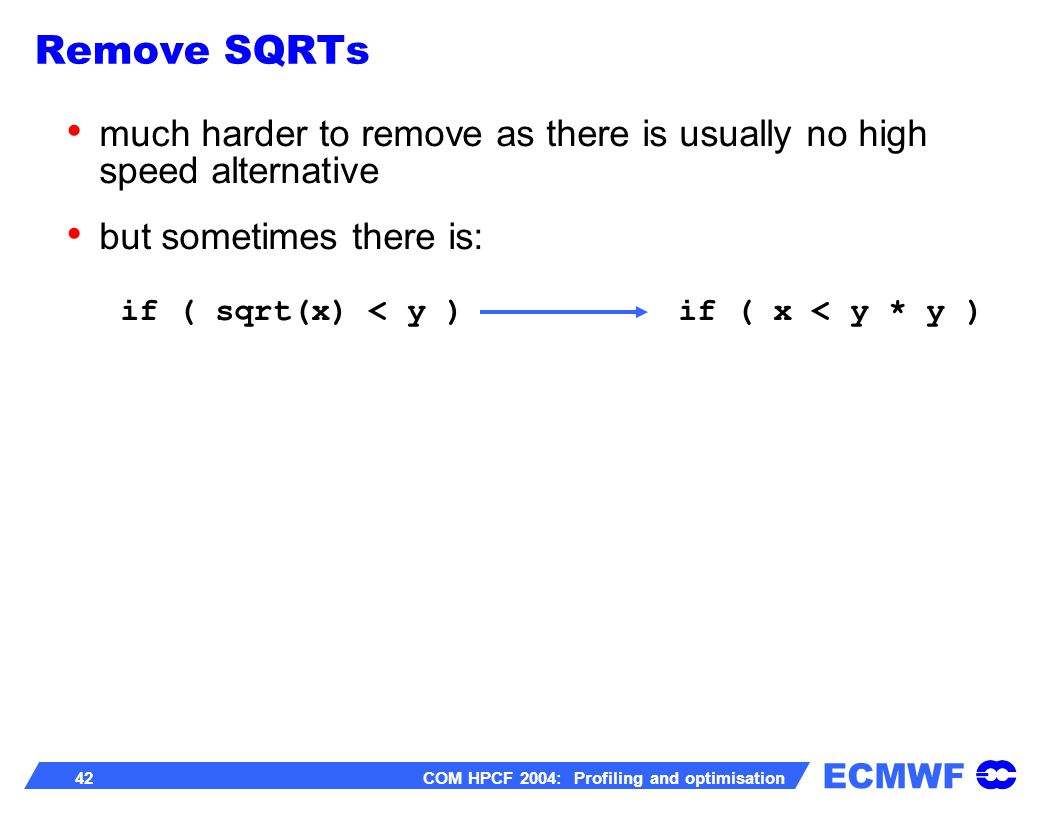

42 ECMWF 42 COM HPCF 2004: Profiling and optimisation much harder to remove as there is usually no high speed alternative but sometimes there is: if ( sqrt(x) < y ) if ( x < y * y ) Remove SQRTs

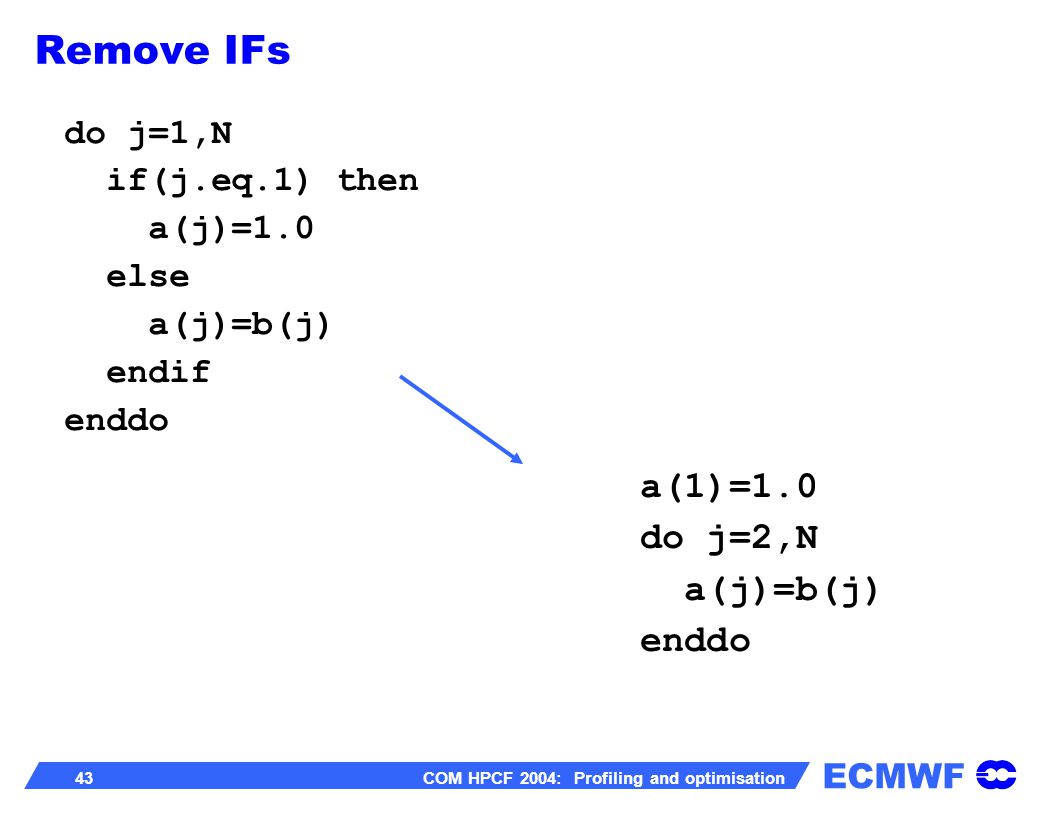

43 ECMWF 43 COM HPCF 2004: Profiling and optimisation do j=1,N if(j.eq.1) then a(j)=1.0 else a(j)=b(j) endif enddo a(1)=1.0 do j=2,N a(j)=b(j) enddo Remove IFs

44 ECMWF 44 COM HPCF 2004: Profiling and optimisation do j=1,N if(k(i).eq.0)x(j)=0.0 a(j)=x(j)+c*b(j) enddo if(k(i).eq.0)then do j=1,N x(j)=0.0 a(j)=c*b(j) enddo else do j=1,N a(j)=x(j)+c*b(j) enddo endif Remove IFs

45 ECMWF 45 COM HPCF 2004: Profiling and optimisation do j=1,N if(a(j).lt.0) then b(j)=0.0 else b(j)=a(j) endif enddo do j=1,N b(j)= max(0.0,a(j)) enddo Use MAX or MIN instead of IF: Remove IFs

46 ECMWF 46 COM HPCF 2004: Profiling and optimisation DO I=1,N A(I)=B(I)*C(J)*D(J) X(I)=Y(I)*C(J)*D(J) ENDDO DO I=1,N A(I)=B(I)*(C(J)*D(J)) X(I)=Y(I)*(C(J)*D(J)) ENDDO If –qstrict is used, put parentheses around common expressions: Help the compiler

47 ECMWF 47 COM HPCF 2004: Profiling and optimisation DO J=1,M,6 S1=S1+C*X(J) S2=S2+C*X(J+1) S3=S3+C*X(J+2) S4=S4+C*X(J+3) S5=S5+C*X(J+4) S6=S6+C*X(J+5) ENDDO S=S1+S2+S3+S4+S5+S6 DO J=1,M S=S+C*X(J) ENDDO Notes: need at least 6 independent FMAs for max MFLOPS compiler may unroll with -O3 (without -qstrict) don't forget to handle the case where M isn't a multiple of 6! Enable overlapping (pipelining): Help the compiler

48 ECMWF 48 COM HPCF 2004: Profiling and optimisation do j=1,N do i=2,M y(i,j)=y(i,j)-c*y(i-1,j) enddo do j=1,N,4 do i=2,M y(i,j )=y(i,j )-c*y(i-1,j ) y(i,j+1)=y(i,j+1)-c*y(i-1,j+1) y(i,j+2)=y(i,j+2)-c*y(i-1,j+2) y(i,j+3)=y(i,j+3)-c*y(i-1,j+3) enddo Unroll outer loop: Help the compiler

49 ECMWF 49 COM HPCF 2004: Profiling and optimisation poor use of cache can reduce performance by a factor of 10 or more thorough understanding of cache enables efficient program design....but remember Feynman: – if you think you understand how the cache works … then you don't understand how the cache works Use the cache effectively

50 ECMWF 50 COM HPCF 2004: Profiling and optimisation do ii=1,N,NB do j=1,N do i=ii,ii+NB-1 y(i,j)=x(j,i) enddo 4 Kwords Block inner strided loop e.g. matrix transpose: Use the cache effectively

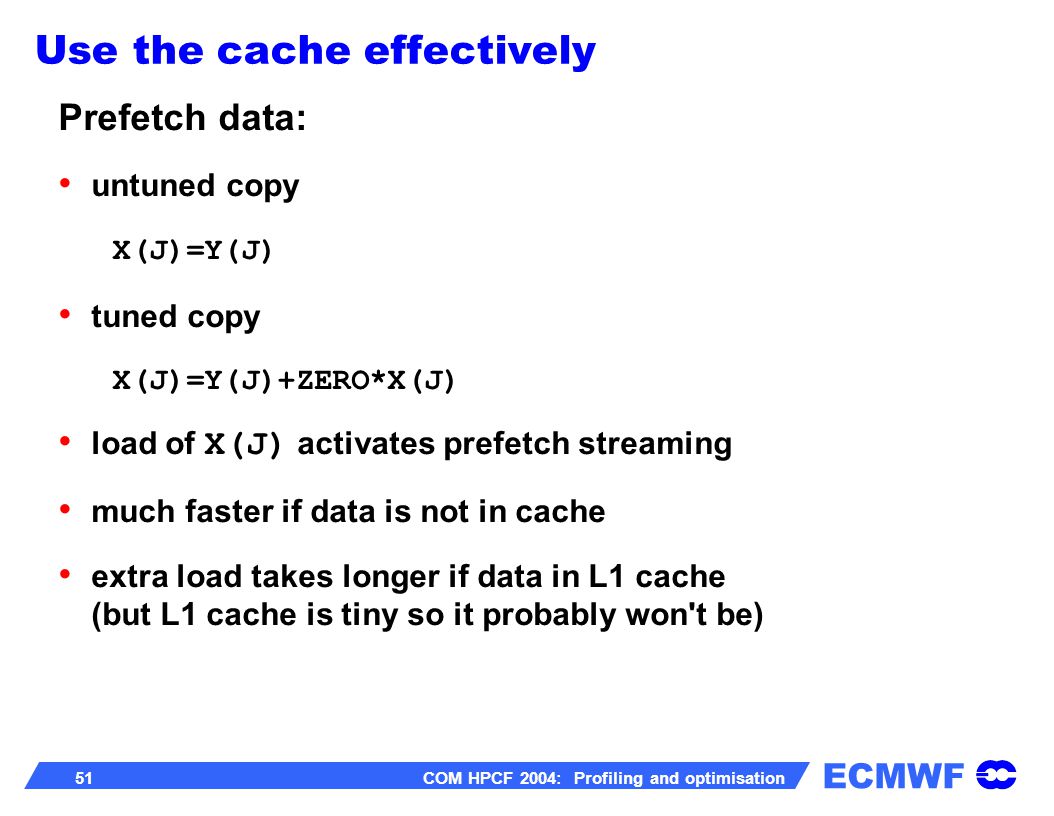

51 ECMWF 51 COM HPCF 2004: Profiling and optimisation Prefetch data: untuned copy X(J)=Y(J) tuned copy X(J)=Y(J)+ZERO*X(J) load of X(J) activates prefetch streaming much faster if data is not in cache extra load takes longer if data in L1 cache (but L1 cache is tiny so it probably won't be) Use the cache effectively

52 ECMWF 52 COM HPCF 2004: Profiling and optimisation Compiler directives to prefetch data PREFETCH_FOR_STORE or PREFETCH_FOR_LOAD issues command to load cache line with specified address use for semi sequential access where hardware will not activate streaming prefetch address a few loop counts ahead but remember POWER4 hardware also looks ahead and can have 8 outstanding cache misses PREFETCH_BY_LOAD issues load instruction can be used for "fast start" streaming but must start in first 3/4 of cache line for forward streaming See XL Fortran User's Guide for details Use the cache effectively

53 ECMWF 53 COM HPCF 2004: Profiling and optimisation Create outer loop to limit inner loop count DO J1=1,N,NCHUNK DO J=J1,MIN(J1+NCHUNK-1,N).... ENDDO DO J=J1,MIN(J1+NCHUNK-1,N).... ENDDO... ENDDO Reduce cache misses

54 ECMWF 54 COM HPCF 2004: Profiling and optimisation do i=1,n do j=1,n do k=1,n d(i,j)=d(i,j)+a(j,k)*b(k,i) enddo Reduce cache misses - Blocking ! 3 blocking loops do ii=1,n,nb do jj=1,n,nb do kk=1,n,nb ! In-cache loops do i=ii,min(n,ii+nb-1) do j=jj,min(n,jj+nb-1) do k=kk,min(n,kk+nb-1) d(i,j)=d(i,j)+a(j,k)*b(k,i) enddo ! enddo Matrix multiply Best value of nb needs to be determined experimentally! See e.g. IBM Redbook The POWER4 Processor Introduction and Tuning Guide

55 ECMWF 55 COM HPCF 2004: Profiling and optimisation Usual: f = x - float(int(x)) Tuned: data RND/z' '/ ! D.P. x = x - sign(0.5d0,x) f = x - ((RND+x)-RND) data RND/z'4b400000'/ ! S.P. pwr3 data RND/z'59C00000'/ ! S.P. pwr2 Fractional part of a number

56 ECMWF 56 COM HPCF 2004: Profiling and optimisation To get y(i)=mod(x(i),c) parameter(rnd=2d0**52+2d0**51)... do i=1,N t=x(i)*(1.d0/c) x=t-sign(0.5d0,t) t=t-((rnd+x)-rnd) y(i)=c*t enddo Mod function

57 ECMWF 57 COM HPCF 2004: Profiling and optimisation argument of LOG must be greater than zero can also use VEXP and VLOG X(I)=Y(I)**Z X(I)=EXP(Z*LOG(Y(I)) Replace **: Replace ** with EXP of LOG

58 ECMWF 58 COM HPCF 2004: Profiling and optimisation What else? listings -qreport=hotlist inlining -Q, directives – NOOPT, NOSTRICT #ifdef NOOPT #endif

59 ECMWF 59 COM HPCF 2004: Profiling and optimisation operate efficiently within the L1 and L2 caches no DIVIDEs (or SQRTs or function calls or...) in loops take advantage of Fused Multiply Add (FMA) – FMAs must be independent and at least 12 in number to keep both FPU's pipelines busy – use loop unrolling and decoupling to achieve that i.e. sum into six variables and then add up the six later loops should be FMA bound – more FMAs than loads and stores Getting close to peak performance

60 ECMWF 60 COM HPCF 2004: Profiling and optimisation Unit summary Tuning methodology Timing Profiling Serial optimisation
