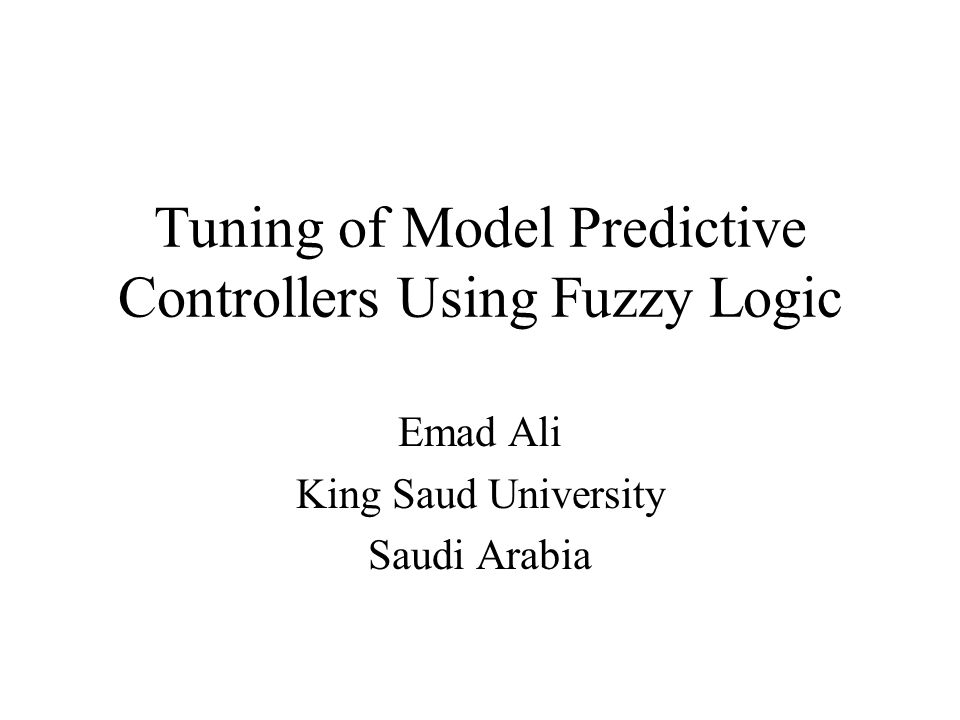

Tuning of Model Predictive Controllers Using Fuzzy Logic Emad Ali King Saud University Saudi Arabia

2

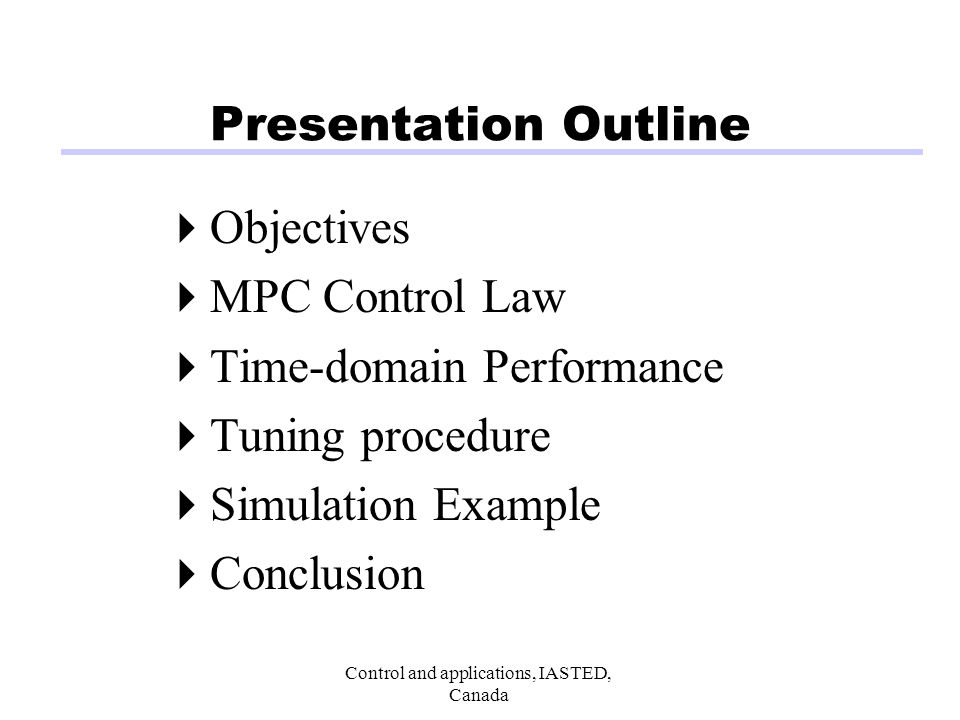

Control and applications, IASTED, Canada Presentation Outline Objectives MPC Control Law Time-domain Performance Tuning procedure Simulation Example Conclusion

3

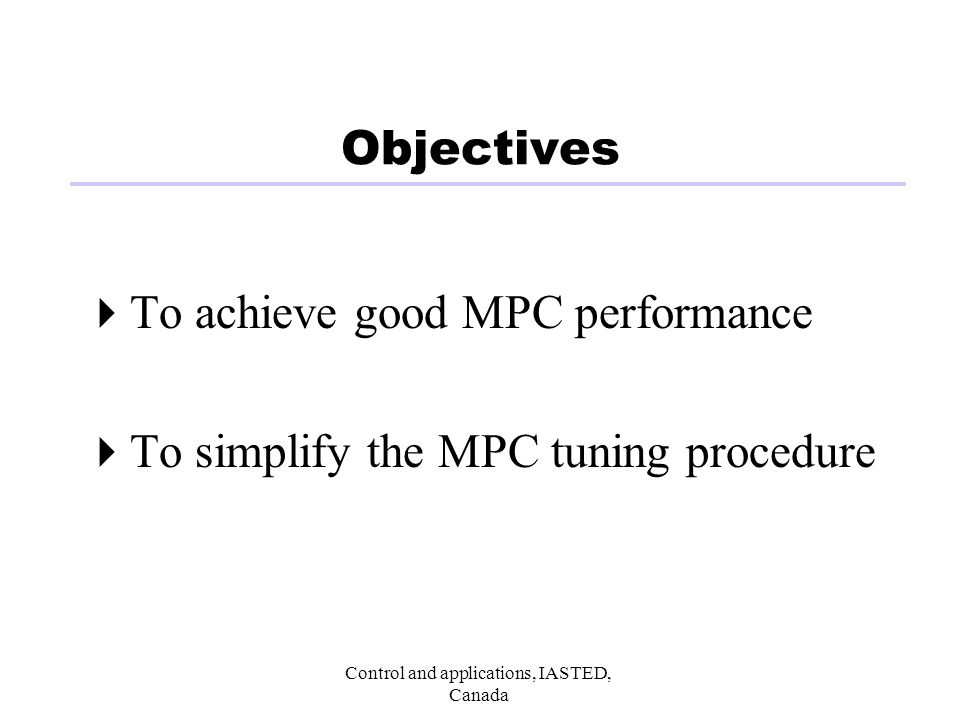

Control and applications, IASTED, Canada Objectives To achieve good MPC performance To simplify the MPC tuning procedure

4

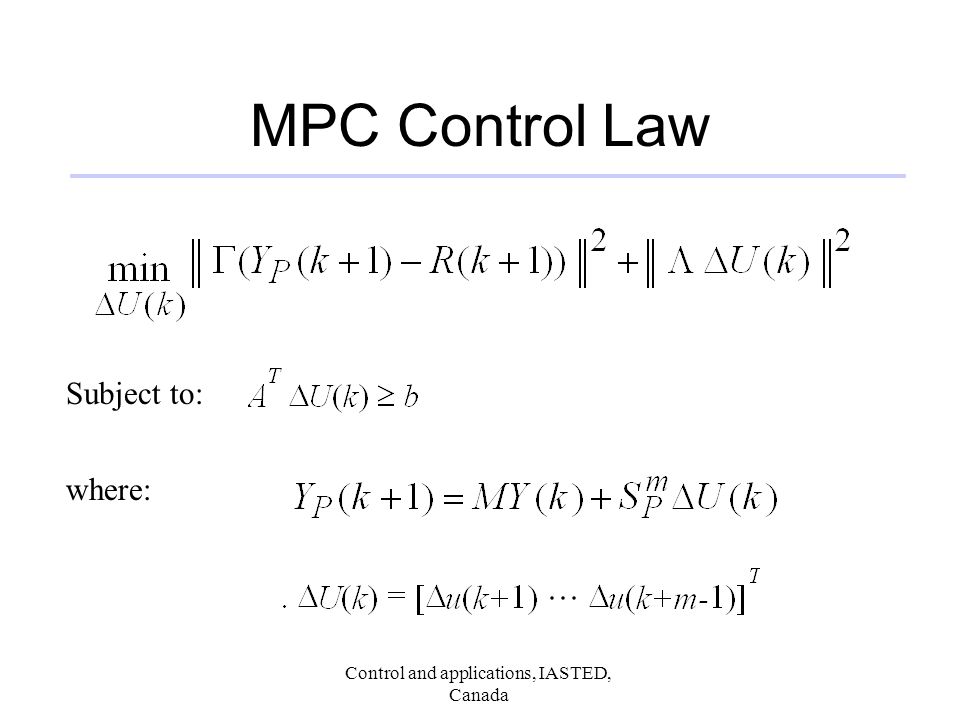

Control and applications, IASTED, Canada MPC Control Law Subject to: where:

5
Control and applications, IASTED, Canada Time Domain Specification

6

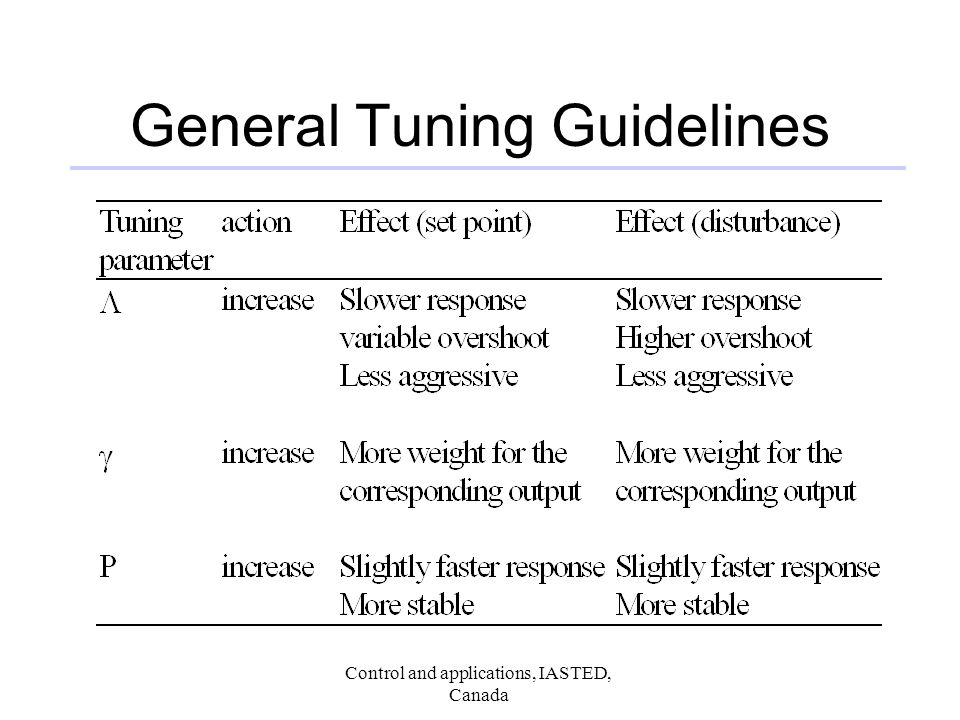

Control and applications, IASTED, Canada General Tuning Guidelines

7
Control and applications, IASTED, Canada Specification violation measure Upper bound violation: Lower bound violation: Bound violation rate:

8
Control and applications, IASTED, Canada Fuzzification of the bound violation

9
Control and applications, IASTED, Canada Inference Rules

10
Control and applications, IASTED, Canada Defuzzification

11

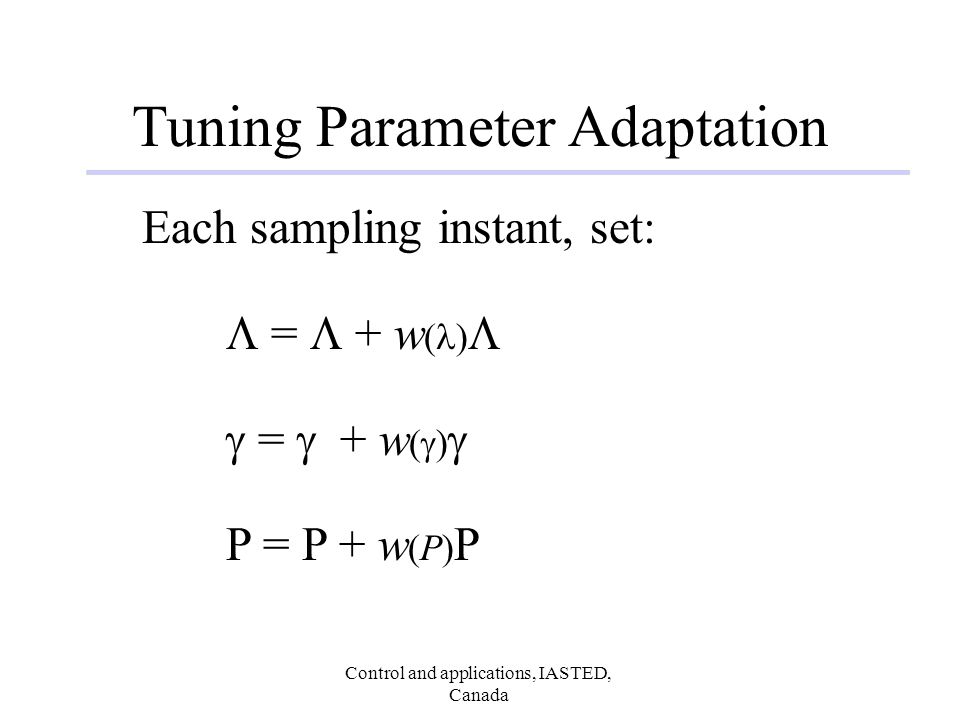

Control and applications, IASTED, Canada Tuning Parameter Adaptation Each sampling instant, set: = + w ( ) P = P + w (P) P

12

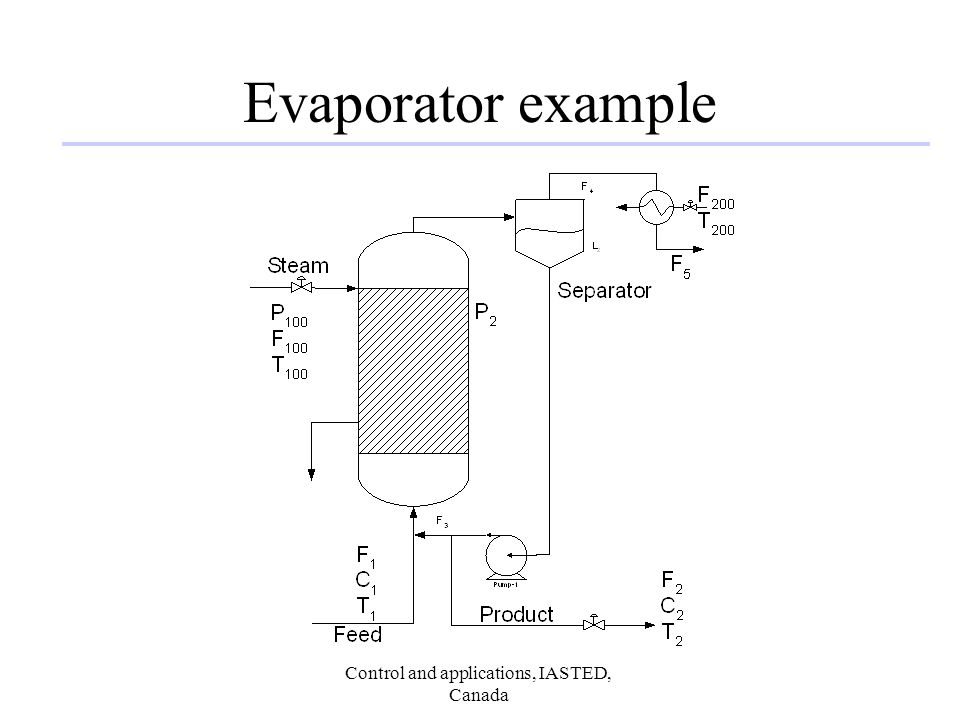

Control and applications, IASTED, Canada Evaporator example

13
Control and applications, IASTED, Canada A series of set point changes

14
Control and applications, IASTED, Canada Conclusions Tuning of MPC parameters is simplified using Fuzzy logic General well-known tuning guidelines are easily incorporated Improved feedback performances are obtained Computational load is kept at minimum
