1 Fastening technique 2009

2 Michael Polworth ITW Befestigungssysteme GmbH 2 Marktpartner

3 3 Future market

4 4 Future market

5 5 haubold-Certificate

6 6 New!! 220 mm Nails Nails

7 7 RN 220 R

8 8 Staples

9 9 Applications: Upholstered indu*stry, Chairs, Toy industrys, HiFi housings and isolation material PN 1414 G / PN 814 G Serie KL 800 und 1400 Serie KL 1400/800

10 10 Applications: Ideal for fixings of hard to get into places z.B. fabrication of HiFi TV housings. The 50 mm nose extension, that enables the user to reach into corners. PN 814 G 50 L PN 1414 G 50 L Serie KL 1400/800 Serie KL 800 und 1400

11 11 Applications: Uphostered industry, chairs, radio and TV cabinets, rattan furniture, baby carriages, installing insulation, cabinetry, and automotive industry Serie KL 1400 PN 1414 JG / Automatik

12 12 Applications: Furniture industry, rear walls of cabinets etc., drawer bottoms, plastic tracks, linear strips, upholstered furniture PN 4025 JN Serie KL 4000 PN 4014 G

13 13 Applications: The installation of moulding and panelling in interior finishing with and without fastenings clips, gypsum boards, coffered panels, smooth-edged boards, etc. PN 6040 L-I Serie KL 5000/6000 Serie KL 5000 Serie KL 6000

14 14 Applications: Upholstered furniture, gypsum board, other furniture, caravan/camper, timber construction, timber forms, plastic board etc. PN 530 L / Automatic Serie KL 500 Serie KL 500 PN 540 L-I

15 15 Applications: Furniture industry, hinge clips, frames, shelving, sub.framing, partition walls, panelling, ceiling panels, plaster board, one-way pallets, crates, boxes Serie KG 700 PN 750 A Serie KG 700

16 16 Applications: gypsum boards, pre-fabricated housing industry, wooden crates, wooden boxes, wall elements, framing, Fermacell, casing Serie KG 700 PN 775 XII PN 755 XI Automatic kit up to max. 65 mm Serie KG 700

17 17 Applications: gypsum boards, pre-fabricated housing industry, wooden crates, wooden boxes, wall elements, framing, Fermacell, casing Serie SD 9100 PN 9180 XII Serie HD 7900 Serie HD 7900/SD 9100 Automatic kit up to max. 65 mm

18 18 Applications: Timber frame constructions, prefabricated housing industry. Planking or stiffening with OSB panels, derived timber boards, mineral bonded plates, cement treated chipboards), fibrous plaster boards etc. Serie SD 9100 Serie HD 7900 Serie KG 700 Your advantages: Quality-conforming use of staples, Line-controlled application by using a guide rail Stapler can also be used without the guide rail Egde spacing can be kept exactly Penetration depth can be adjusted individually Staples will be positioned precisely within the ideal 30 degree haubold Inliner

19 19 Applications: Wall panelling, pre-fabricated housing industry, Planking and statical use of OSB-boards, Holzwerkstoffplatten, mineralisch gebundenen Holzwerkstoffplatten (cement boards), gypsum fibre boards, gypsum boards Serie SD Serie HD 7900 Serie KG 700 Technical data: Length/Height/Width:482/446/205 Weight:15 kg Max. firing frequency per sec.:12 ½ Air consumption per shoot:2,1 liter Noise level:96 dB A Magazine capacity / Stag. magazine:ca Staples PN Modul II - Ref. no for staple series KG 700 of mm PN Modul II - Ref. no for staple series KG 700 of mm PN Modul II - Ref. no for staple series HD 7900 of mm and SD 9100 of mm Technical alterations reserved haubold-Modul

20 20 Applications: pre-fabricated housing industry, Wooden sub frames, fire protection boards, roof casings, wooden subframes for facades and roofs PN D Serie SD

21 21 Applications: Furniture Production, shipping boxes, securing steel strapping, installing insilation, shingles PN 2550 A Serie BK 2500 Serie KL 2500

22 22 Applications: Fixation of woodwool insulation boards, Rockwool panels e.g. Heraklith, Styrofoam plates, insulation boards made of cellulose (e.g. Homatherm), mineral plates, etc. PN 2550 A Serie BK 2500 PN 2575 A / HWL

23 23 PN D Film ModulApplications: Fixation of woodwool insulation boards, Rockwool panels e.g. Heraklith, Styrofoam plates, insulation boards made of cellulose (e.g. Homatherm), mineral plates, etc. Serie BS

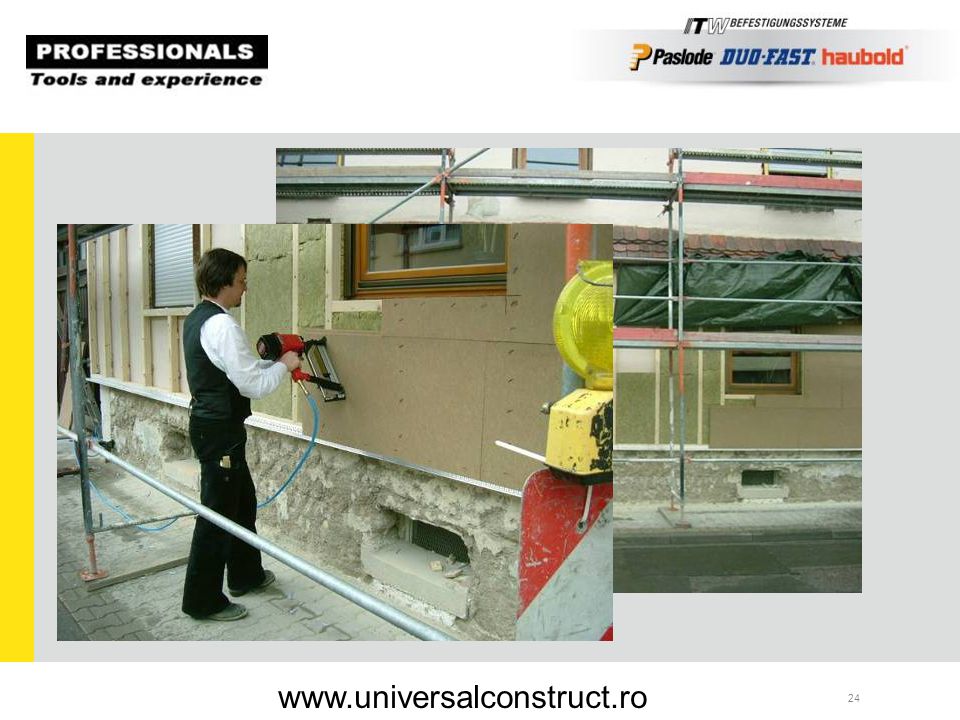

24 24

25 25 Applications: Roofing,temporary window covering, cardboard on wooden pallets PN 3030 A Serie FD 3000 Flat wire staples Serie FD 3000

26 26 Applications: Nailing window strips, profiles, ornaments, decorative moldings, door jamb lining, shoe repairs, cabinets SN 618 F / 6 Serie ST 06/00

27 27 Applications: Nailing window strips, profiles, ornaments, decorative moldings, door jamb lining, shoe repairs, cabinets SKN 40 L 12 Variant Serie ST 10/00 Serie ST 12/00 Serie ST 10/00

28 28 Applications: Nailing window strips, profiles, ornaments, decorative moldings, door jamb lining, shoe repair SKN 40 L / 12 Variant Serie ST 12/00 SKN 50 L / 12 SKN 30 JN SKN 12/00

29 29 Applications: Nailing window strips, profiles, ornaments, decorative moldings, door jamb lining, shoe repairs, cabinets SKN 64 A / 16 Serie SKN 16/00 SKN 50 L /16 Serie SKN 16/00

30 30 Applications: Doors, Schlagleisten, Laufleisten, window stripes and wall elements SKN 64 A / 20 Serie SKN 20/00

31 31 Applications: wooden crates, Paletten, wooden boxesn, laying of parquet flooring and fixation of steel profiles Serie TN 22/00 TN 64 A / 22 Nails suitable for steel fixations up to mm available!! Serie TN 22/00

32 32 Applications: Fastening of special hooks for sheet metal roofs up to 1,0 mm diameter Serie RB 25/00 RN 35 A / Haften Serie RB 25/00

33 33 Applications: pre-fabricated housing industry, interior decorating, carpentries, wooden crates, wooden boxes, palletes, flooring, wodden casings, roof trusses, wooden sub-frames Serie RB 29/00 Serie RB 31/00 Serie RB 34/00 RN 100 B haubold-nails series RB 29/00, RB 31/00 and RB 34/00 are categorized into weight bearing capacity class III accord. to DIN 1052 !! Serie RB 29/ /00

34 34 Applications: Barrack buildings, statical constructions, wooden crates, wooden boxes, repair of palletes, noise protection walls Serie RB 34/00 Serie RB 38/00 Serie RB 42/00 Serie RB 46/00 Serie RB 50/00 RN 130 R RN 160 R RN 220 R Serie RB 34/00 – 50/00

35 35 RNC S 22/40 C-Profil NK ballistic Applications: Fixation of gypsum boards onto metal subframes up to 1,2 mm RNC S-Profil

36 36 Applications: Fixation of Eternit roof- and facade shingles Serie RNC-E 23/00 Serie RNC-E 25/00 RNC-E Eterfix RNC-E 23/00

37 37 Applications: Fixation of metal hooks of material thickness up to 0,8 mm Serie RNC - S 25/00 RNC 50 S/W Haften Serie RNC-S 25/00

38 38 Applications: Plankings, wall panelling, gypsum boards, gabel- and ledge facings, wooden crates and wooden packaging, rear wall cabinets Serie RNC - MS 22/00 RN 50 W / MS I Serie RNCW - MS 22/00 Serie RNC-MS 22/00

39 39 RNC 65 SW II Serie RNCS 22/00 – 28/00 Serie RNCS 28/00 Nailscrews Serie RNCW 22/00 – 28/00 Serie RNCW 28/00 Nailscrews Applications: Wooden crates, wooden boxes, palletes, clinch nailings, visible nailings, lathings, florings, wooden fences, nail screws Serie RNCW/ RNC-S 22/00-28/00

40 40 Applications: Wooden crates, wooden boxes, palletes, clinch nailings, visible nailings, lathings, florings, wooden fences RNC 90 W II RNC 65 SW II Serie RNCW 25/00 Serie RNCW 28/00 Serie RNCW 31/00 Serie RNCW 38/00 RNCW 25/ /00

41 41 RNC W 30 / 00 RNC 45 W Applications: Fixation of sensible foils and roof papers as well as roof shingles Hot dipped galv. and stainless steel nails in ring version are permitted for the fixation of roofing paper. RNCW 30/00

42 42 Applications: Coffin industry, butt joint, window corners, mitre joints WN 15 Also available: - Corrugated fasteners in stainless steel accord. to DIN and elongated driver blade for jobs in corners or - Wellennagler WN 15 F for window corners Serie Corrugated Nails

43 43 Applications: Fixation of frame structures for roofs and walls within the pre-fabricated houses wooden, joineries, carpenteries, etc. WN 25 XII WN 18 XI Also available: - corrugated nails in stainless steel accord. to DIN Serie Corrugated Nails

44 Michael Polworth ITW Befestigungssysteme GmbH 44 Holzbaupreis 2007 Gewinner des Holzbaupreises für innovative Bauprodukte 2007

45 45 Procedure of fastening

46 46 Good work high competence. haubold and its partners in joint co-operations.

47 47
