1 MODU System Company Profile 2014

2 MODU System Company Profile 1 Product Introduction 2 Industrial Solutions 3

3 CompanyProfile Company Profile Established In Singapore in 1995 based on the simple concept of Modular & Flexible Conveyor Systems Today, MODU System stands firmly among its competitor in providing Modular Conveyor Systems worldwide. MODU USA Established in 2010 to serve the US, Canada, and Mexico.

4 Mission Statement We strive to ensure our customers satisfaction by providing superior products with outstanding quality attributes We recognize that our customers and partners are a key to our business success and we embrace this relationship and treat them as members of our family We conduct our business utilizing the highest ethical and professional standards

5 Milestones 1995Established Moduveyor in Singapore. 1996Launched MODU MM-M1 83mm model(Delta) 1998Established Moduveyor Head Factory in Shah Alam, Malaysia. 1999Moduveyor converted to MODU System Launched MODU MS 63mm model. 2000Launched MODU MM M2 83mm & MX 305mm 2001 Launched MODU ML 140mm Launched MODU SL Crescent chain for Sushi Conveyors 2003 Awarded ISO ISO 9001: 2000 Certificate from UKAS 2005Launched MODU MM M3 83mm 2006Launched MODU MS S2 63mm 2007Establish MODU China and MODU Europe 2008Launched MODU SM Crescent chain for Sushi Launched MODU ML2 140mm. Launched MODU D Series (Stainless Steel Conveyor). 2010Established Modu System America 2011Launched (RWA) Rapid Width Adjust System 2012Launched Gripper Walk Under module, line access 2012Created Moduusa.com website 2013Launched new Lift gate modules in 24 and 36 openings Release of Mat Top conveyors in the following widths; 6.5, 14, and 20 Moved to new factory location, 8,000 sq. ft Updated website, add express delivery, working on price configurator due spring 2014

6 Worldwide Europe MODU Europe, UK o Hungary o Poland o Austria Asia MODU Malaysia MODU China o Japan o Singapore o India o UAE o Saudi Arabia o Egypt o Indonesia o Taiwan o Thailand o Vietnam North America o Canada America o Mexico Australia o Australia Legend MODU System Company/Factory o MODU System Authorized Agent

7 Quality Policy MODU System is committed to its Quality Management System and aspires to be the leading producer of modular conveyor system throughout the world.

8 Product Introduction

9 To help distinguish the different types of conveyors, MODU has categorized its conveyor into SERIES. Currently MODU has 3 different types of series. Product Introduction M Series (Aluminium Conveyor) D Series (Stainless Steel Conveyor) S series (Crescent Conveyor), Sushi Conveyor

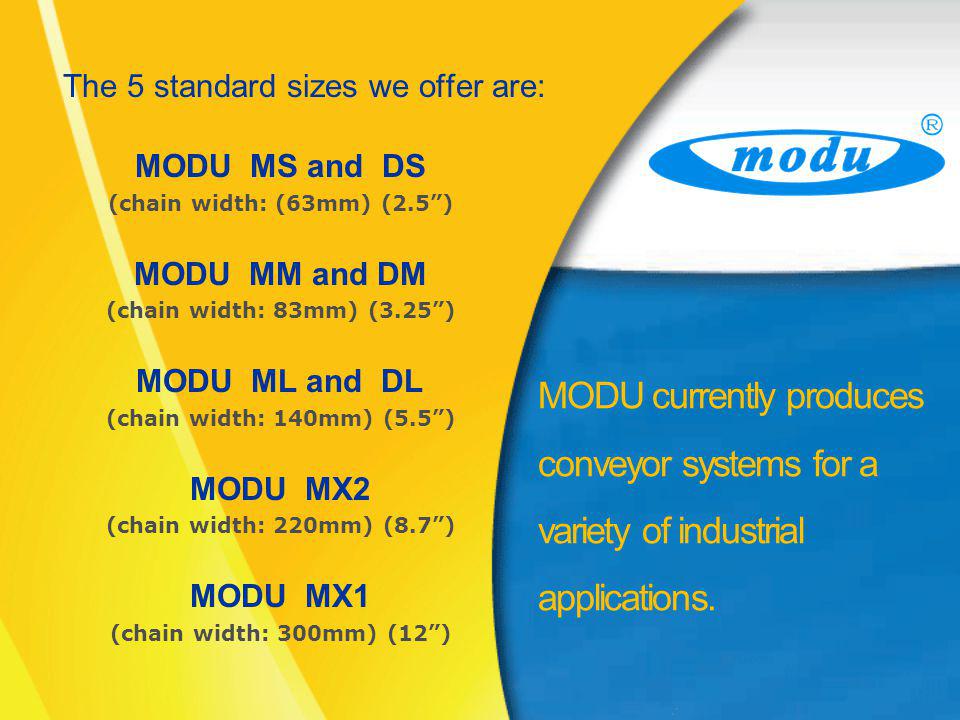

10 The 5 standard sizes we offer are: MODU MS and DS (chain width: (63mm) (2.5) MODU MM and DM (chain width: 83mm) (3.25) MODU ML and DL (chain width: 140mm) (5.5) MODU MX2 (chain width: 220mm) (8.7) MODU MX1 (chain width: 300mm) (12) MODU currently produces conveyor systems for a variety of industrial applications.

11 Vertical Bend Conveyor Chain Conveyor Accessories Wheel Bend Conveyor Beam Guide Rail Standard Components

12 MODU System – Product Introduction Diagrams below show the cross sectional view of MODU M Series conveyor beams MM Plain ChainML Plain Chain MS Plain Chain BeamSlide Rail MODU MSMODU MMMODU ML M Series

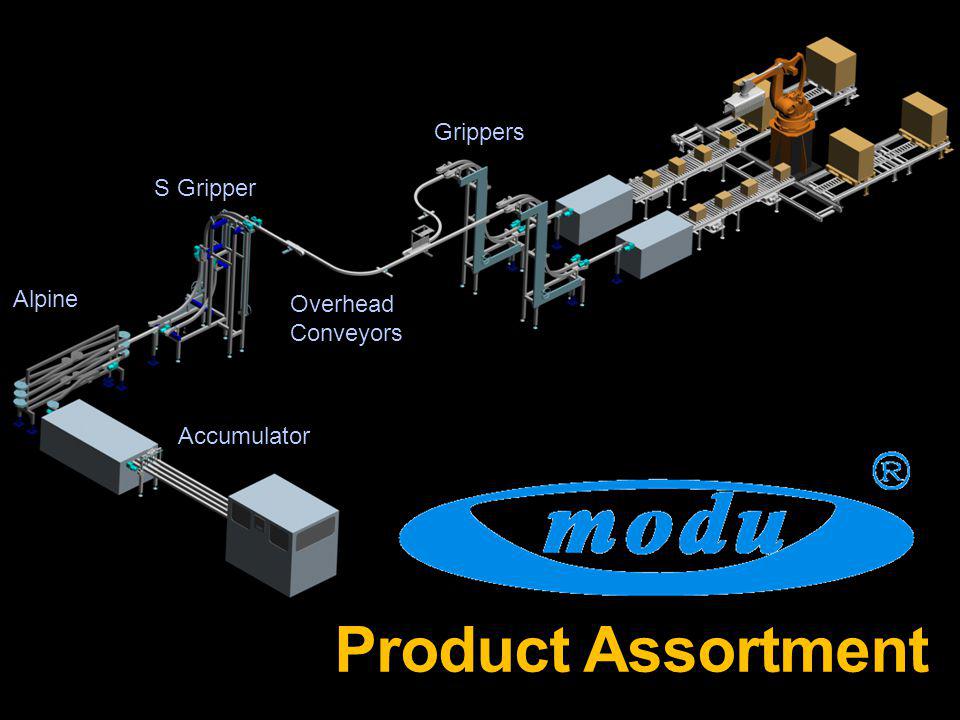

13 Product Assortment Alpine Accumulator S Gripper Overhead Conveyors Grippers

14 STANDARD MODULES

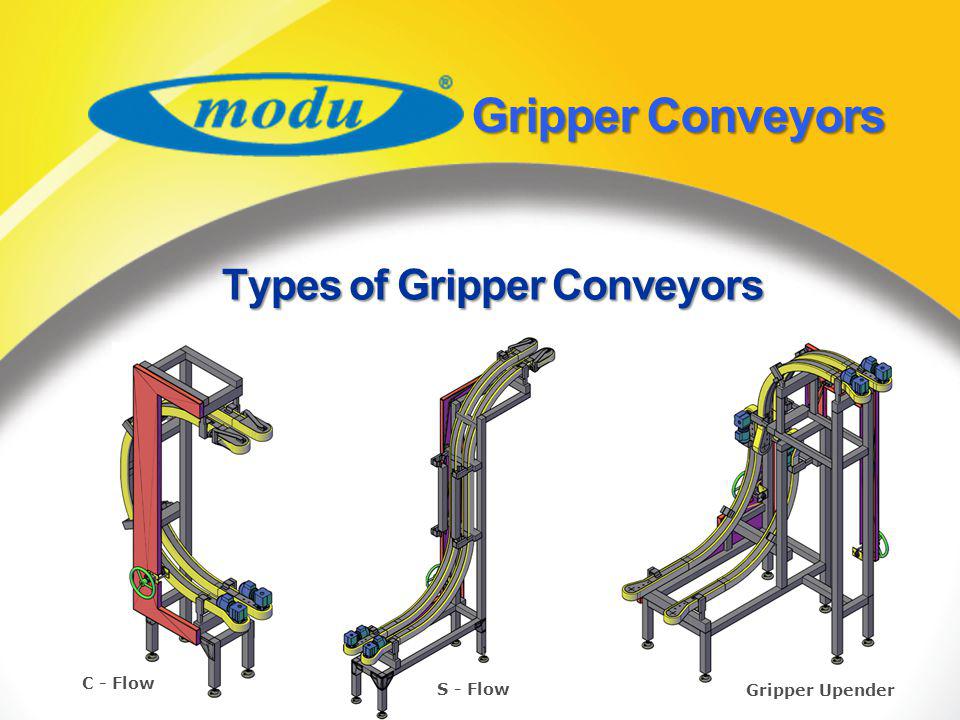

15 GripperConveyors Gripper Conveyors C - Flow S - Flow Gripper Upender Types of Gripper Conveyors

16 Walk Under Gripper

17 Accumulation Before Product Accumulation After Product Accumulation

18 Automated side guide adjustment (RWA) The Rapid Width Adjust System is offered with manual hand crank, or automatic width adjust system. The automatic width adjust system uses a stepper control system to automatically change the rail settings. Adjustment process usually takes less than a minute. MODU is currently working on the next generation of the RWA system to be available spring of 2014 Automated side guide installed on straight section Hand Crank version of (RWA)

19 MODU System – Product IntroductionApplications Food & Packaging Industry Tea Cereal Metal Can Confectionery Accumulator Juice Margarine Snack Biscuit Soft Drink Ice Cream

20 MODU System – Product Introduction PersonalProduct, Pharmaceutical & Chemical Industry Personal Product, Pharmaceutical & Chemical Industry Applications Insect Repellant Body lotion Powder Detergent Eye care product Soap Bars Health Supplement Hospital Medical Dispenser Toothpaste Hair Care Product

21 MODU System – Product Introduction Paper Converting Paper Converting Applications Tissue Roll Wrapped bag Kitchen Towel Wrapped Bundle

22 Automotive & Machined Automotive & Machined Part Industry Oil Filter Hard Disk Casing Bearing Applications Door Winding Set Gear Wheel Air Conditioning Compressor

23 Electronic & Electrical Industry Electronic & Electrical Industry Applications Battery Substrate Hard Disk Compact Disk Mobile Phone Cathode Ray Tube (CRT) Liquid Crystal Display (LCD) Audio & Video

24 Alpine system with gripper infeed module Applications

25 D Series Thermoplastic Chain with Stainless Steel Structure for Dry Environments

26 What is D series Conveyor? It is a new modular conveyor made of stainless steel frame which is equipped with standard MODU chain widths 63 mm (MS), 83 mm (MM), 140 mm (ML), and 220mm (MX2). From drive unit to idler end unit, this conveyor is built 100% from stainless steel, in order to meet the most stringent demands of our customers. The D Series conveyors are designed with similar concept as M Series, they are easy to install & reconfigure, flexible and reliable for your daily operation in production floor.

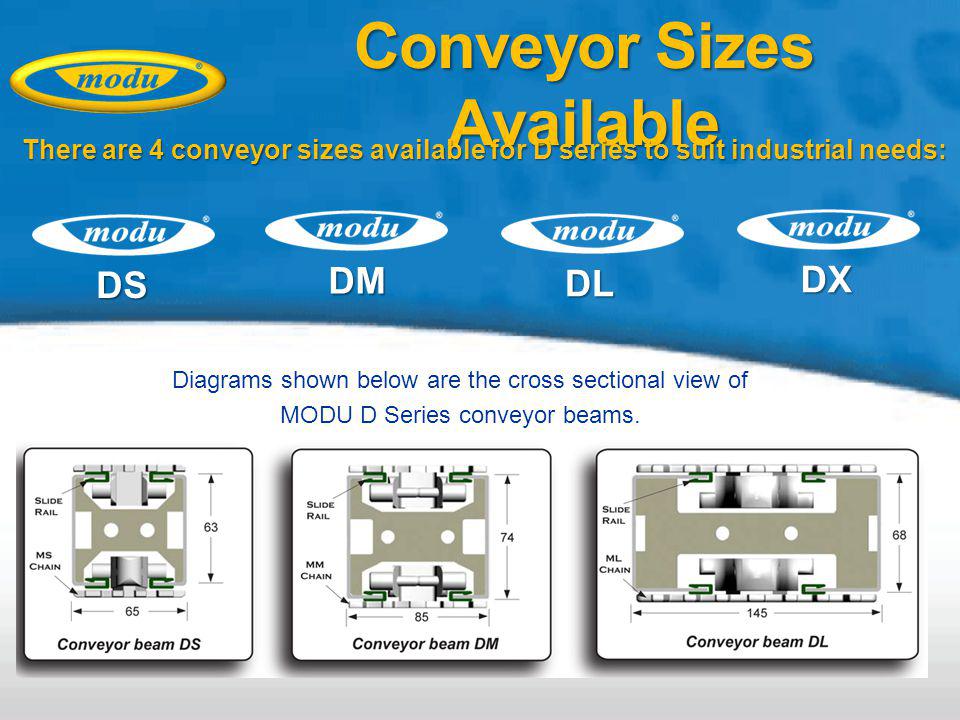

27 Conveyor Sizes Available Diagrams shown below are the cross sectional view of MODU D Series conveyor beams. There are 4 conveyor sizes available for D series to suit industrial needs: DS DM DL DX

28 D Series Conveyor Overview

29 Applications MODU DM multiple straight section in dairy production.

30 MODU DL spiral conveyor for elevation. Applications

31 Industrial Solutions

32 Composite Can Handling MODU Supplies: 1.Combined Polycord Conveyor 2.Accumulator 3.Can Cleaner 4.C-Gripper Combined Polycord ConveyorAccumulatorCan Cleaner C-Gripper

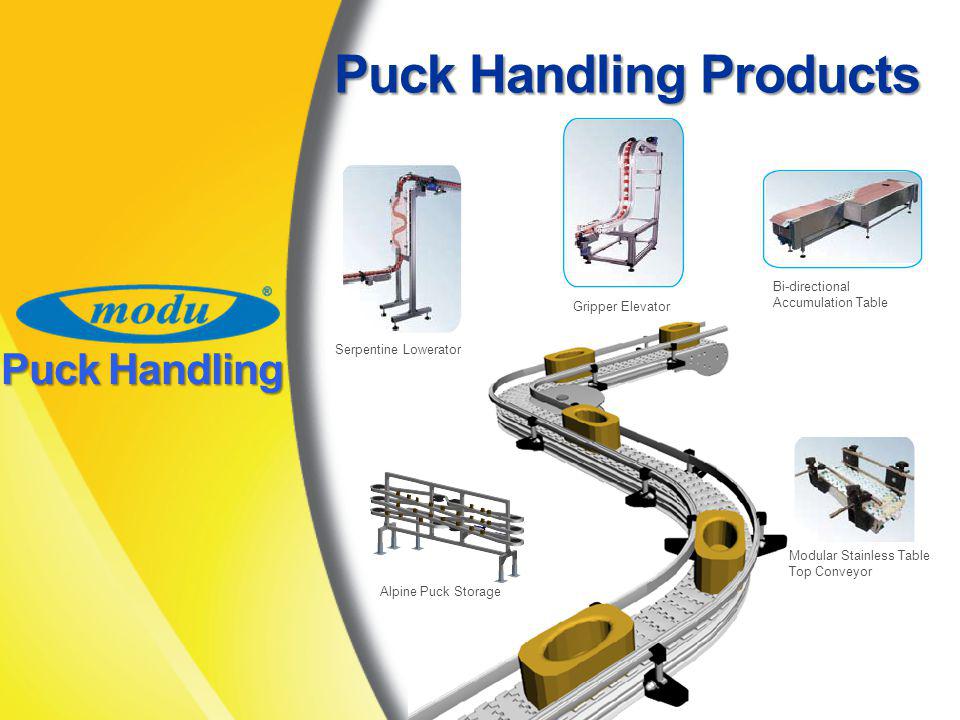

33 Puck Handling Products Serpentine Lowerator Gripper Elevator Bi-directional Accumulation Table Alpine Puck Storage Modular Stainless Table Top Conveyor Puck Handling

34 MODU System – Product Introduction Puck Handling

35 MODU System – Product Introduction Optical Lens Handling To complete our systems we incorporate standard modules including Stop Gates, Lane Diverters, Side Tray Pushers, Tray Turners and Vertical Lifters. We are experienced in distributing to the worlds leading machines from companys like Automation & Robotics (A&R), Schneider Gmbh, Satisloh, and Nidek. We design and install system for the small lens manufacturer up to Specsavers, Vision Optical, and Nikon Optical.

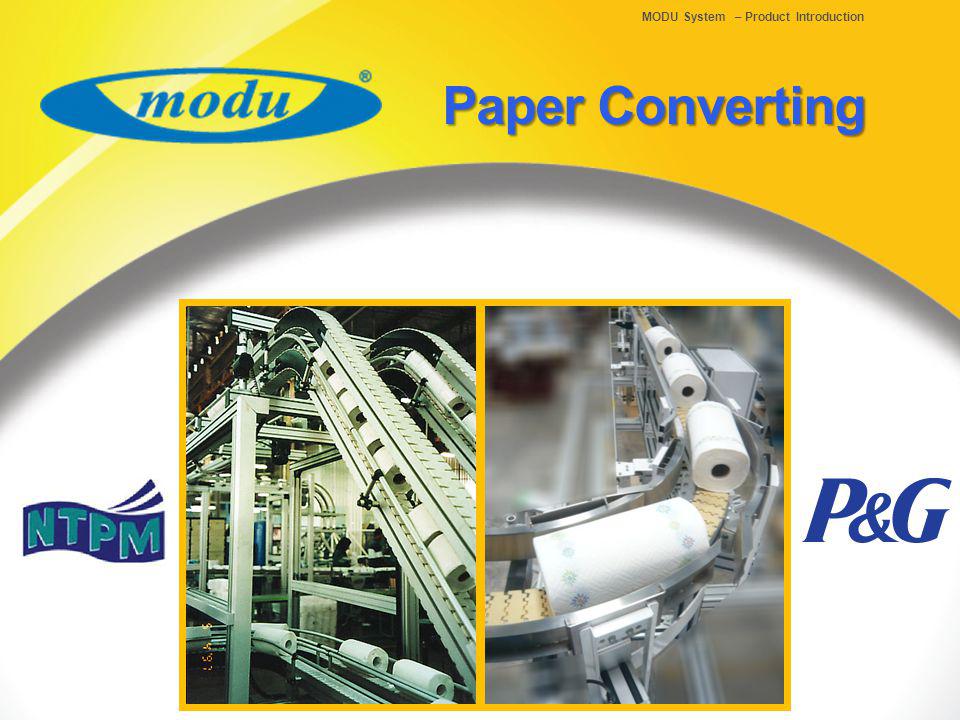

36 MODU System – Product Introduction Paper Converting

37 MODU System – Product Introduction Tea Bags Packaging

38 The End
