1 Germann Instruments A/S Emdrupvej 102, DK-2400 Copenhagen, Denmark Phone: Fax: Web: GI

2 For timing of safe and early loading operations 25 years of substantial construction savings documented Instant and reliable information on the actual in-situ strength Simple and quick to perform ASTM C & BS 1881: Part 207 BCA & BRE Best Practice Guide for in- situ concrete frame buildings Early age strength assessment with LOK-TEST and COMA-Meter Lok-Test for compressive strength timed by COMA-Meter maturity readings

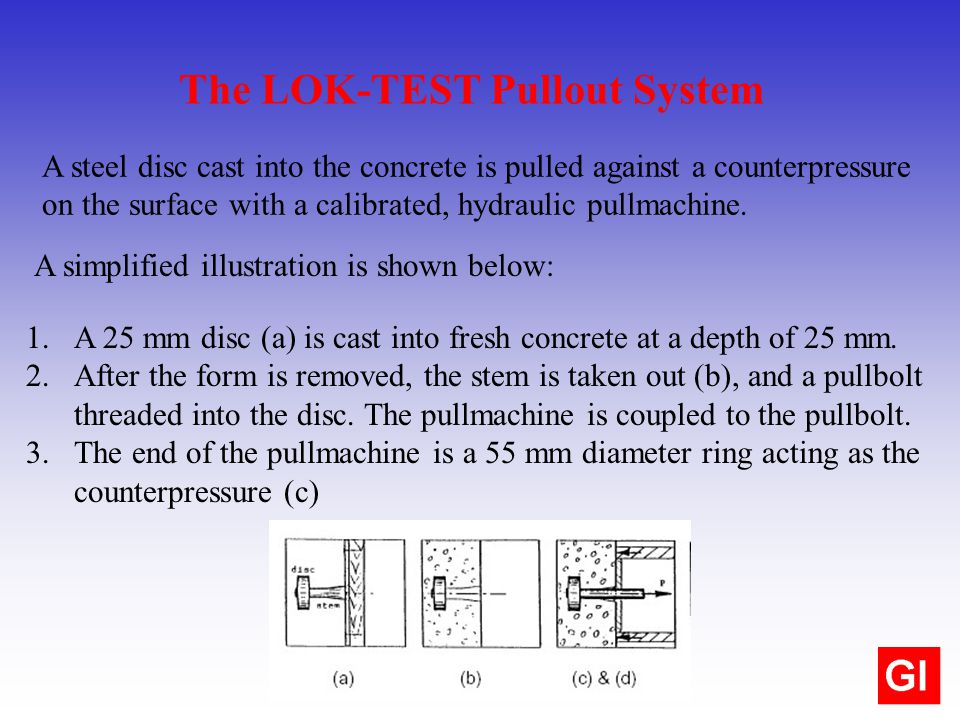

3 A steel disc cast into the concrete is pulled against a counterpressure on the surface with a calibrated, hydraulic pullmachine. The LOK-TEST Pullout System 1.A 25 mm disc (a) is cast into fresh concrete at a depth of 25 mm. 2.After the form is removed, the stem is taken out (b), and a pullbolt threaded into the disc. The pullmachine is coupled to the pullbolt. 3.The end of the pullmachine is a 55 mm diameter ring acting as the counterpressure (c) A simplified illustration is shown below:

4 The concrete between the disc and the counterpressure is being compressed (d), hence the pullforce is a direct measure of the compressive strength. The LOK-TEST Pullout System A sample pullout LOK-TEST cone, removed for inspection is illustrated in figure (f). Pulling is done only to failure of the concrete or to a required strength. The disc is usually left in the structure (e) leaving the surface almost undamaged.

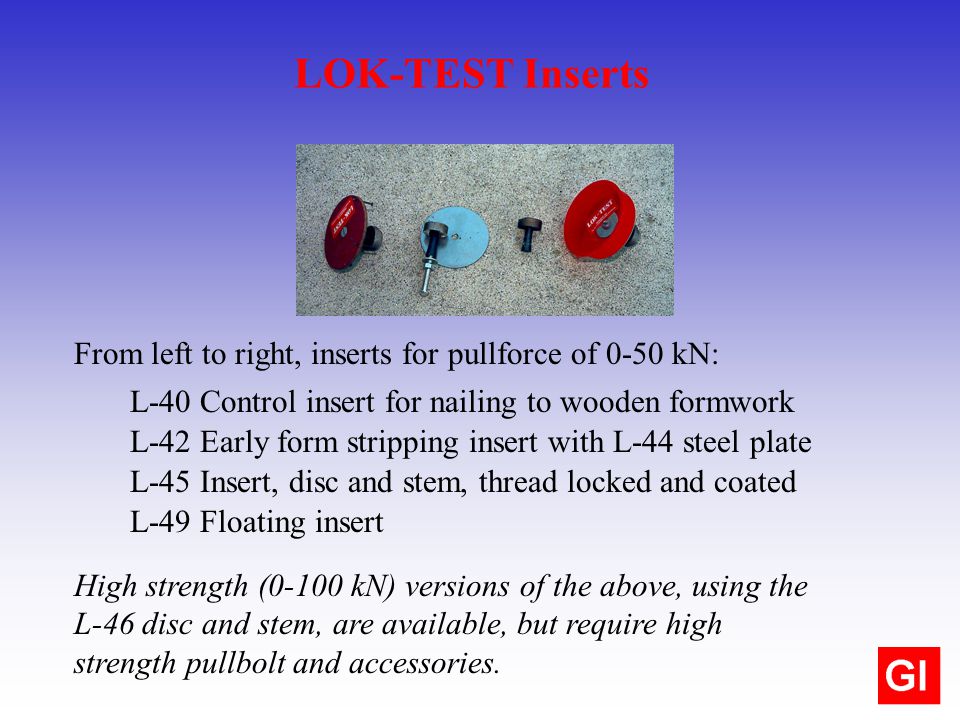

5 LOK-TEST Inserts From left to right, inserts for pullforce of 0-50 kN: High strength (0-100 kN) versions of the above, using the L-46 disc and stem, are available, but require high strength pullbolt and accessories. L-40 Control insert for nailing to wooden formwork L-42 Early form stripping insert with L-44 steel plate L-45 Insert, disc and stem, thread locked and coated L-49 Floating insert

6 LOK-TEST Inserts L-40 Control insert is an L-45 with a Masonite plate screwed to the stem. Four nails are used to attach the plate to the wooden formwork. When the formwork is removed, the plate breaks, leaving the L- 45 insert in the concrete. The screw and stem are removed for LOK-TEST testing.

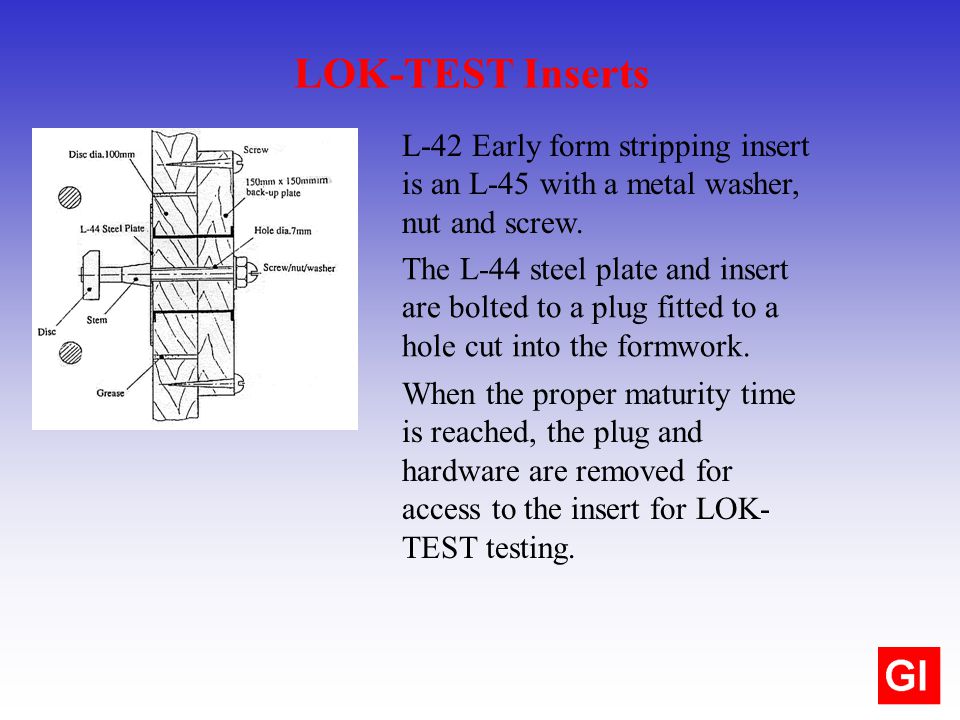

7 LOK-TEST Inserts L-42 Early form stripping insert is an L-45 with a metal washer, nut and screw. The L-44 steel plate and insert are bolted to a plug fitted to a hole cut into the formwork. When the proper maturity time is reached, the plug and hardware are removed for access to the insert for LOK- TEST testing.

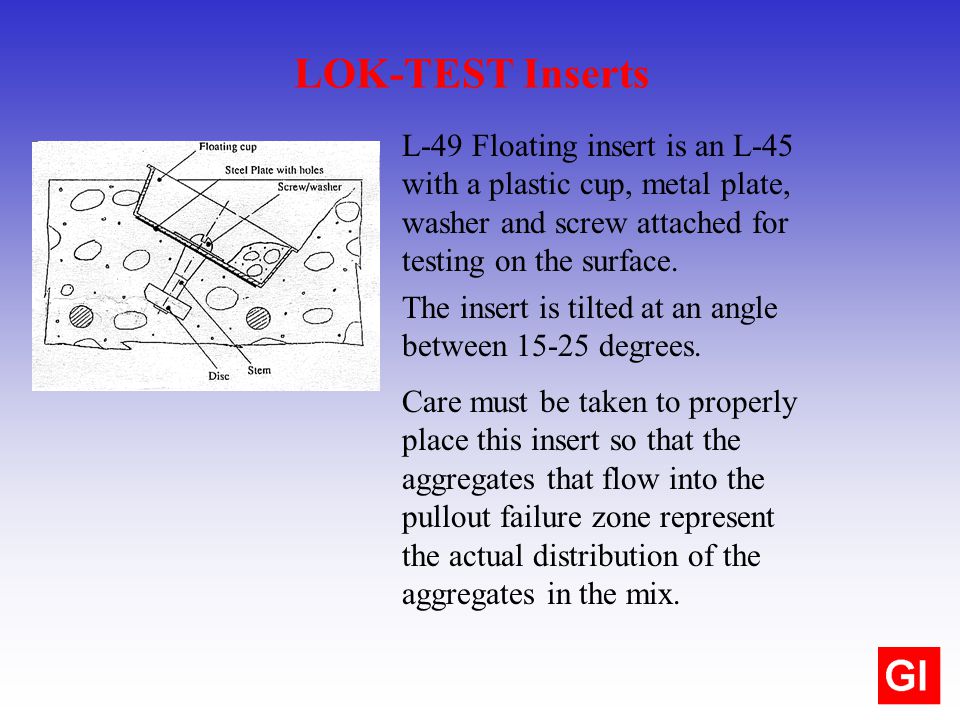

8 LOK-TEST Inserts L-49 Floating insert is an L-45 with a plastic cup, metal plate, washer and screw attached for testing on the surface. The insert is tilted at an angle between degrees. Care must be taken to properly place this insert so that the aggregates that flow into the pullout failure zone represent the actual distribution of the aggregates in the mix.

9 Pullout testing is the only reliable and repeatable method for on-site determination of the compressive strength of concrete. Unlike the poor correlations derived from methods like ultrasound or the rebound hammer, the LOK-TEST readings are converted directly into compressive strength. Advantage of the LOK-TEST Numerous major correlations taken over the past 20 years have consistently shown that the stability of the LOK-Test correlation is unaffected by variations in types of cement, w/c-ratio, age, curing conditions, air entrainment, admixtures, flyash, and shape/type and size of aggregates up to maximum of 40 mm. Only the use of lightweight aggregates has produced a significantly different correlation.

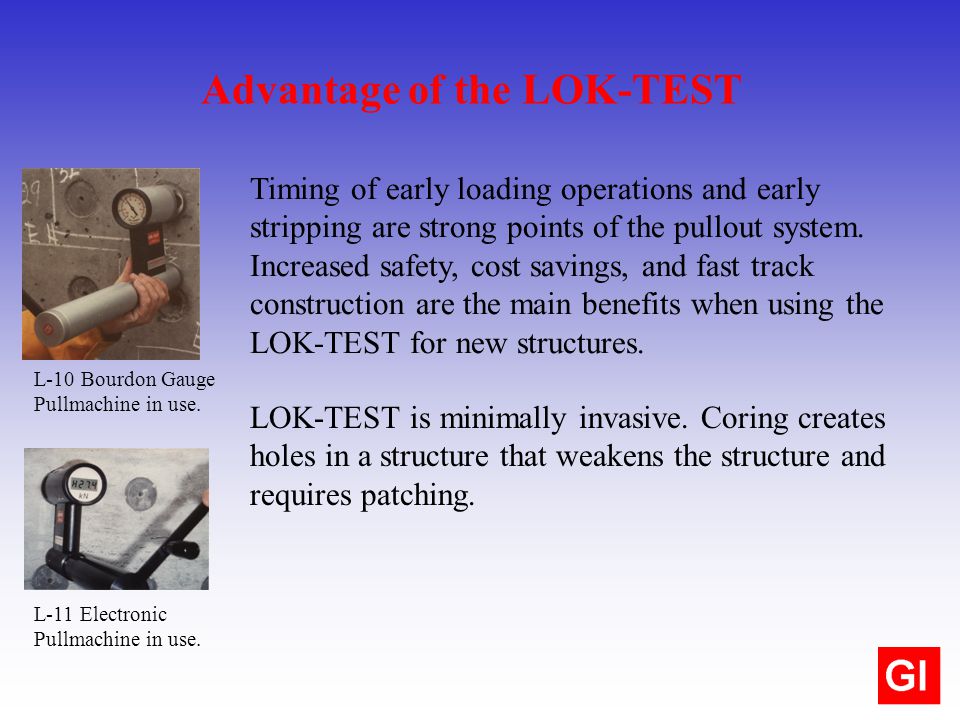

10 Timing of early loading operations and early stripping are strong points of the pullout system. Increased safety, cost savings, and fast track construction are the main benefits when using the LOK-TEST for new structures. Advantage of the LOK-TEST L-10 Bourdon Gauge Pullmachine in use. L-11 Electronic Pullmachine in use. LOK-TEST is minimally invasive. Coring creates holes in a structure that weakens the structure and requires patching.

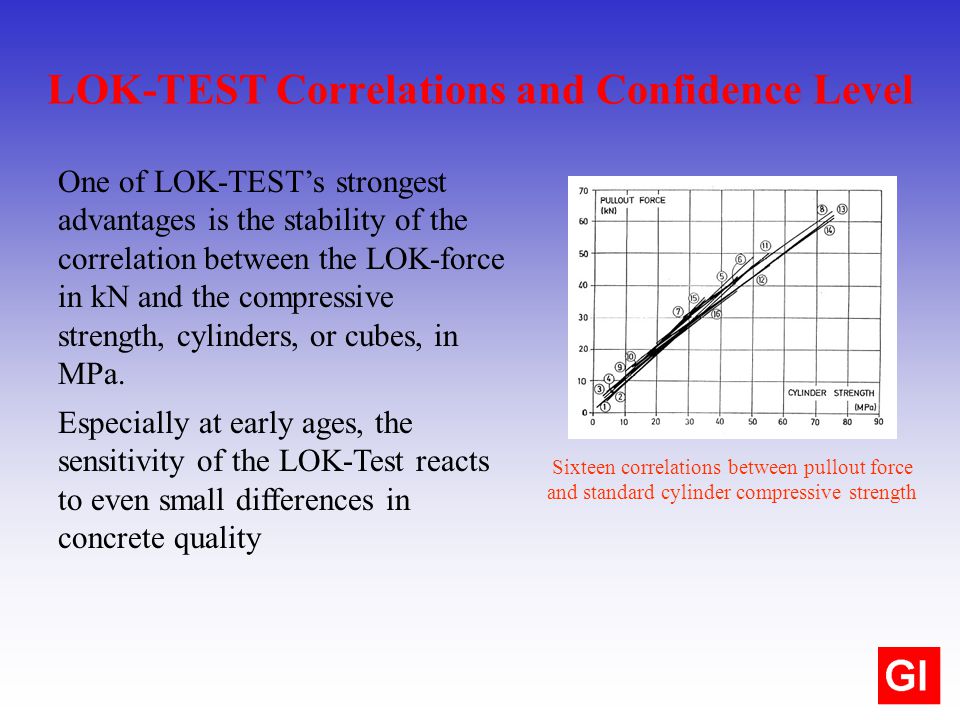

11 One of LOK-TESTs strongest advantages is the stability of the correlation between the LOK-force in kN and the compressive strength, cylinders, or cubes, in MPa. LOK-TEST Correlations and Confidence Level Sixteen correlations between pullout force and standard cylinder compressive strength Especially at early ages, the sensitivity of the LOK-Test reacts to even small differences in concrete quality

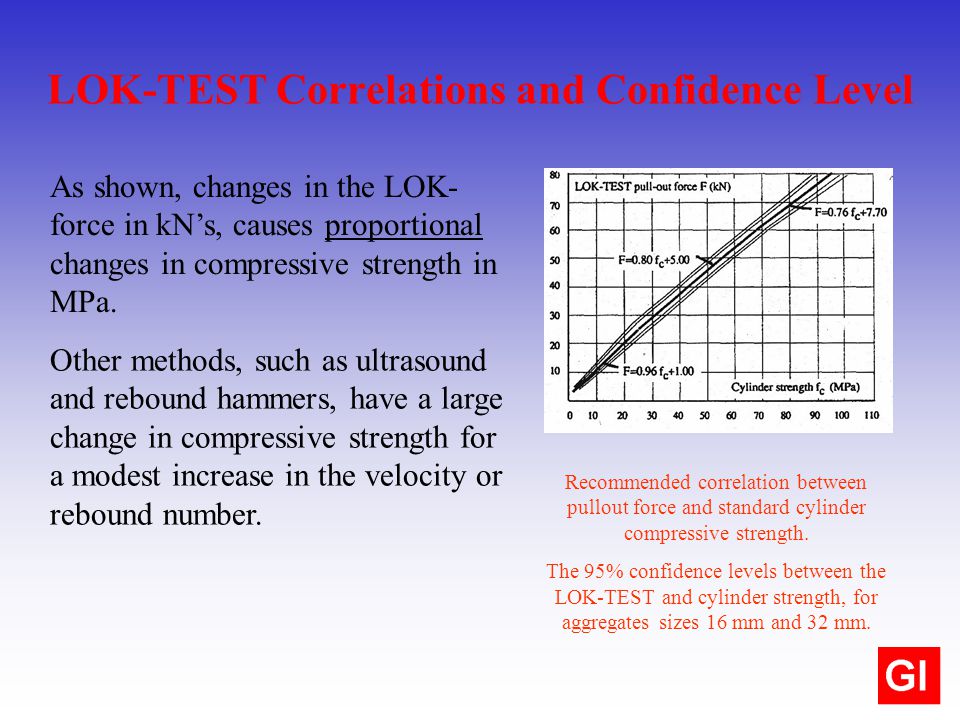

12 As shown, changes in the LOK- force in kNs, causes proportional changes in compressive strength in MPa. LOK-TEST Correlations and Confidence Level Recommended correlation between pullout force and standard cylinder compressive strength. The 95% confidence levels between the LOK-TEST and cylinder strength, for aggregates sizes 16 mm and 32 mm. Other methods, such as ultrasound and rebound hammers, have a large change in compressive strength for a modest increase in the velocity or rebound number.

13 L-10 LOK-TEST kit LOK-TEST Pullmachine Consists of: Standard pullmachine, Bourdon Gauge, 0-60 kN, 0.6% accuracy Calibration table in MPa or PSI Accessories and tools Manual Carrying case

14 L-11 LOK-TEST kit LOK-TEST Pullmachine Consists of: Standard pullmachine, Electronic Gauge, kN, 0.2% accuracy Amigas II software on CD-ROM for data transfer Connecting cable between LOK- TEST and computer Calibration table in MPa or PSI Accessories and tools Manual Carrying case

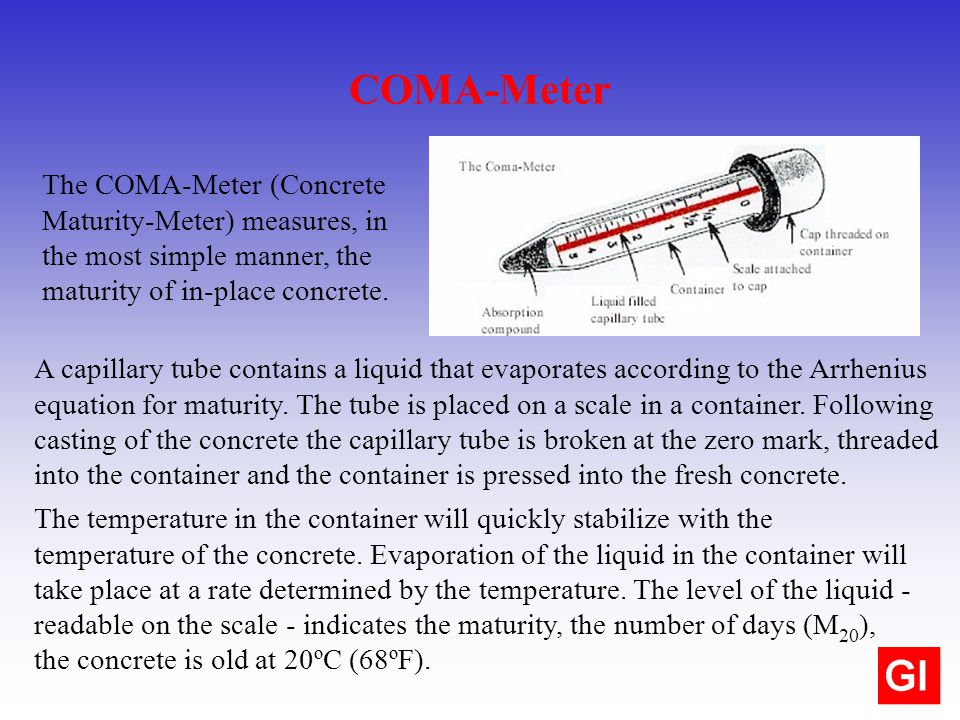

15 The COMA-Meter (Concrete Maturity-Meter) measures, in the most simple manner, the maturity of in-place concrete. COMA-Meter A capillary tube contains a liquid that evaporates according to the Arrhenius equation for maturity. The tube is placed on a scale in a container. Following casting of the concrete the capillary tube is broken at the zero mark, threaded into the container and the container is pressed into the fresh concrete. The temperature in the container will quickly stabilize with the temperature of the concrete. Evaporation of the liquid in the container will take place at a rate determined by the temperature. The level of the liquid - readable on the scale - indicates the maturity, the number of days (M 20 ), the concrete is old at 20ºC (68ºF).

16 Training on the systems, along with NDT seminars and support, before, during, and after projects are available to our clients on the following web site: 1) General NDT Seminars 2) Training Courses 3) Implementation Support 4) Testing On-site NDT-TITANS Group members are all highly trained and experienced professionals (an average of over 20 years) who are consultants and system developers. Years of practical NDT field work have honed their skills to the highest level. Germann Instruments newly formed NDT-Titans group offer the following services on a worldwide basis.
