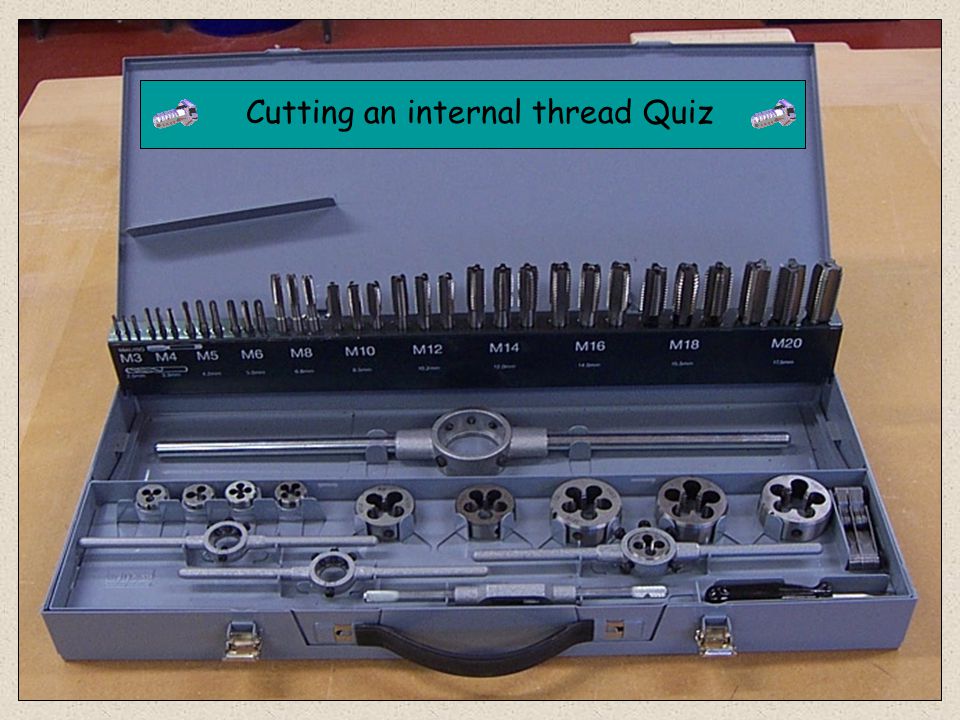

Cutting an internal thread Quiz
1. What is the correct name for this tool? Odd Leg Callipers Vernier Callipers Outside Callipers An Engineers Square A Centre Punch A Scriber Dividers

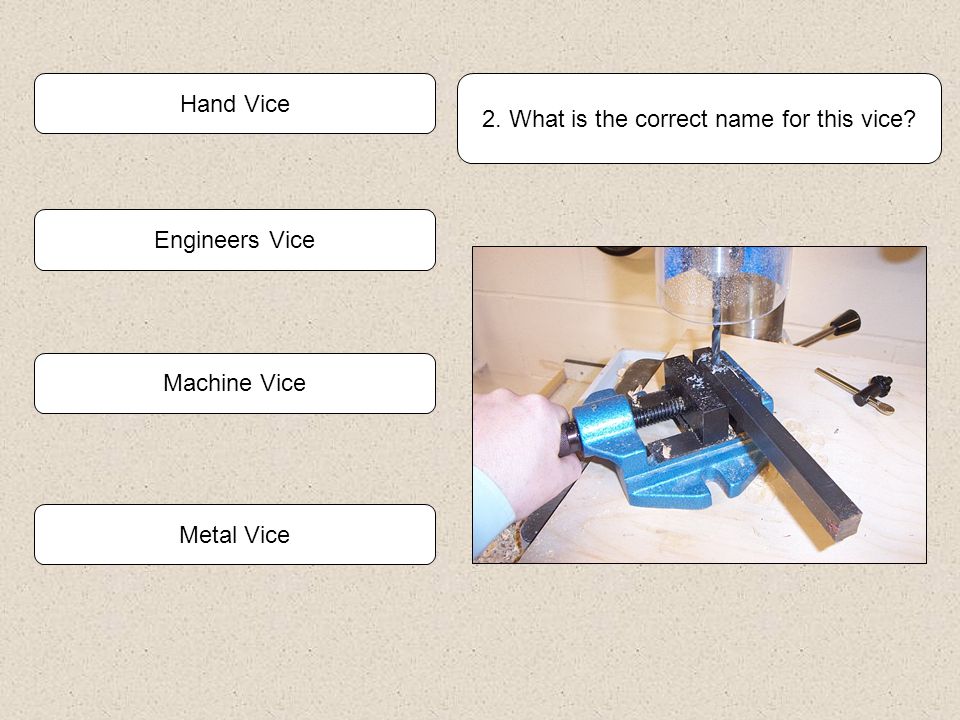

Machine Vice Metal Vice 2. What is the correct name for this vice? Engineers Vice Hand Vice
A Tap A Die Stock Holder A Tap Wrench A Die 3. What is the correct name for this tool?
7mm 8mm 4. What size of hole should be drilled for an internal M6 thread? 6mm 5mm M6 Tap Drill size ?

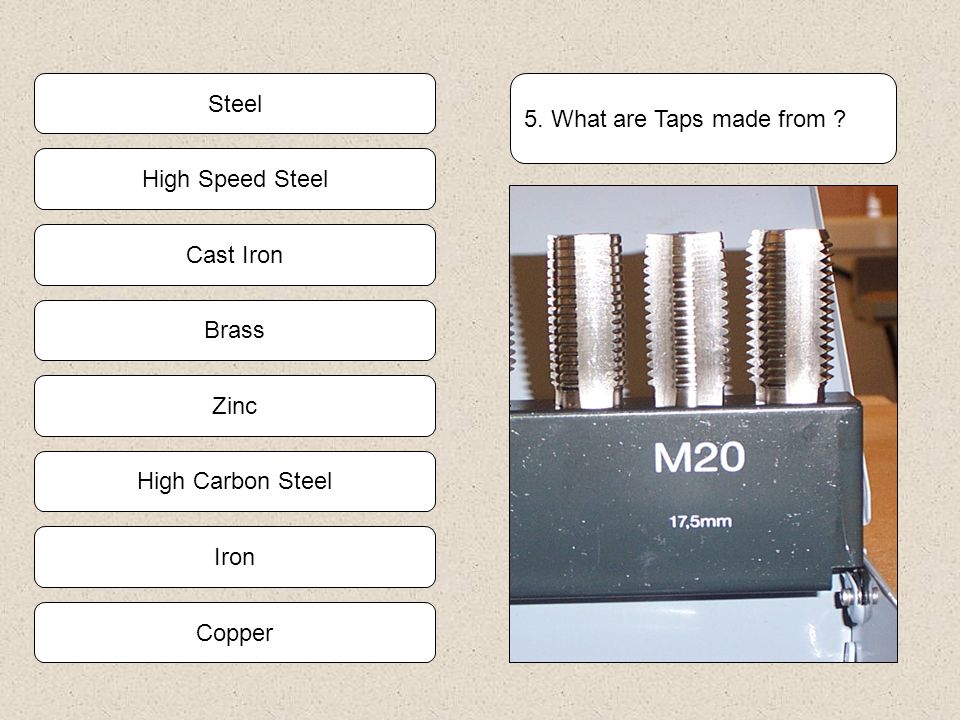

High Carbon Steel Iron Copper Zinc 5. What are Taps made from ? Brass Cast Iron High Speed Steel Steel

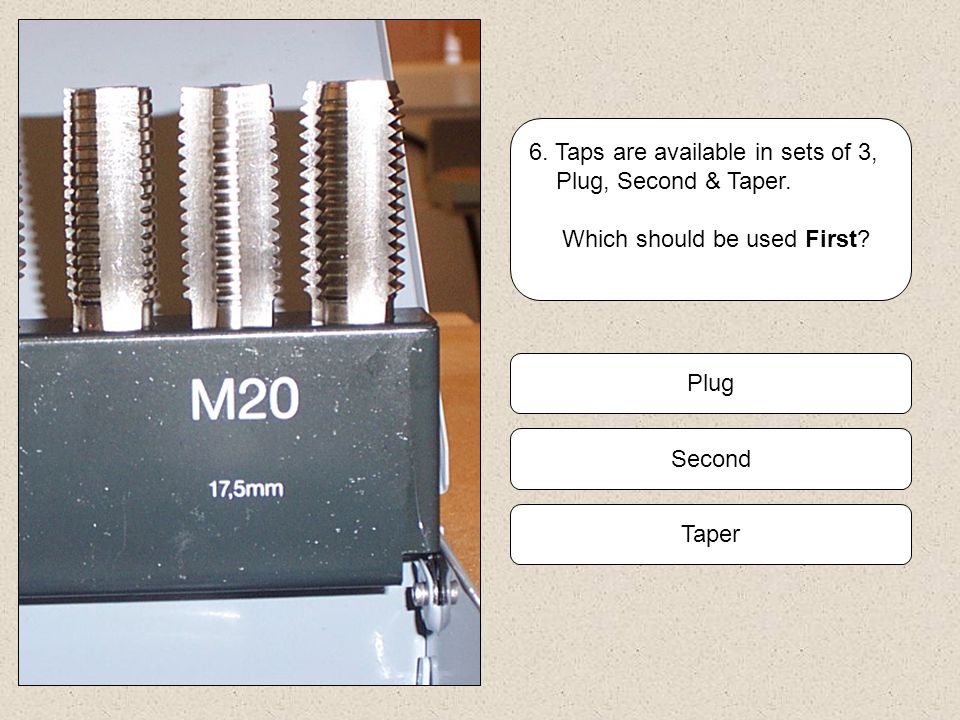

6. Taps are available in sets of 3, Plug, Second & Taper. Which should be used First? Taper Second Plug

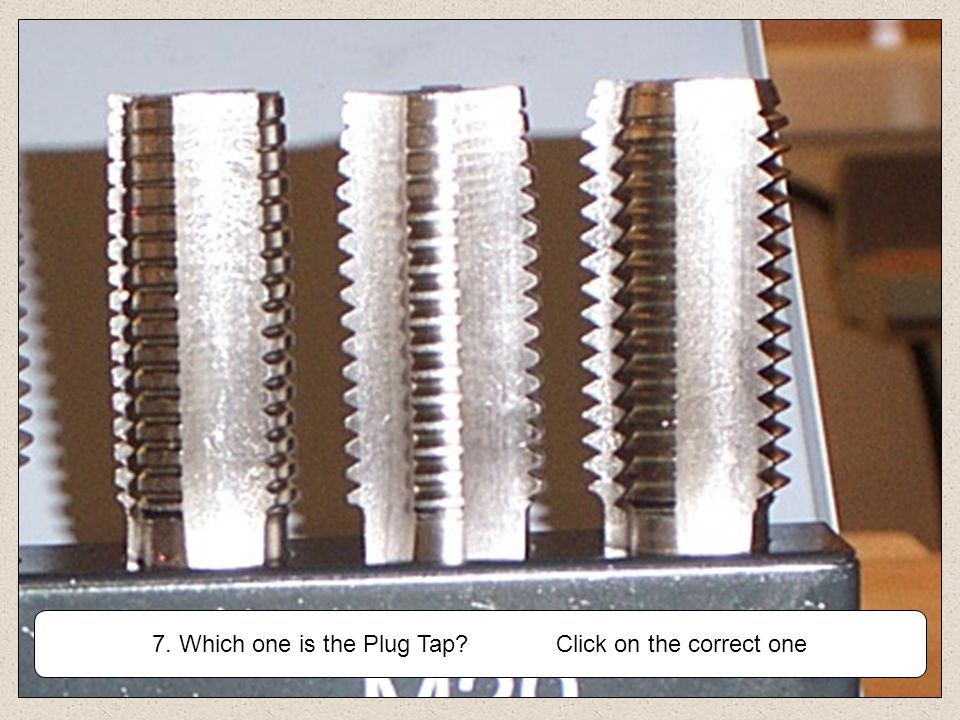

7. Which one is the Plug Tap? Click on the correct one

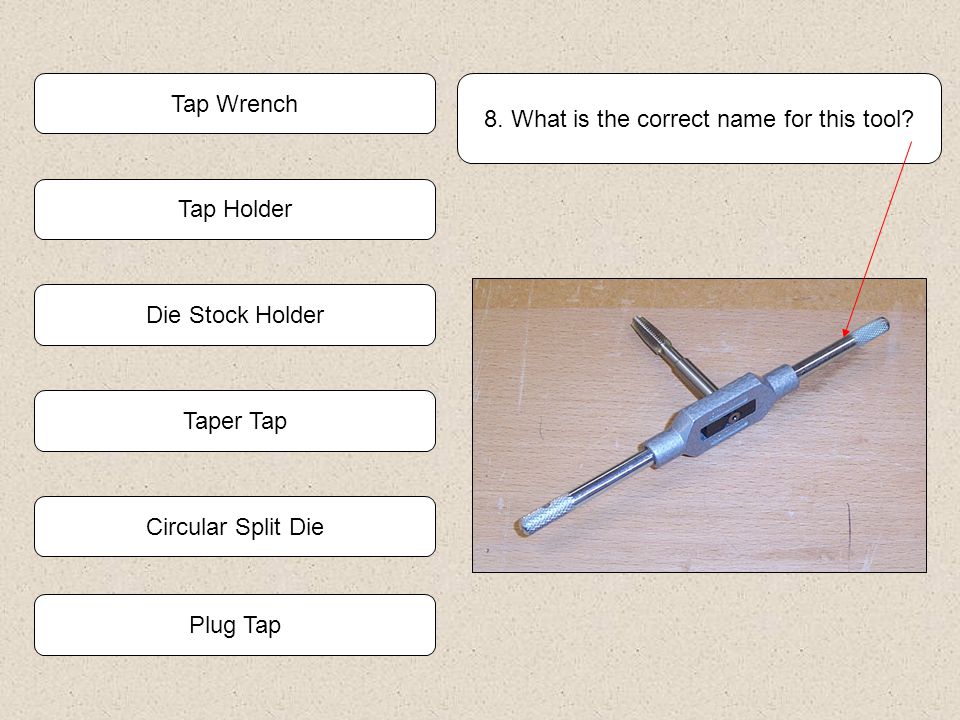

Circular Split Die Taper Tap Plug Tap Die Stock Holder 8. What is the correct name for this tool? Tap Holder Tap Wrench
9. Taps are available in sets of 3, Plug, Second & Taper. Which should be used Last? Taper Second Plug

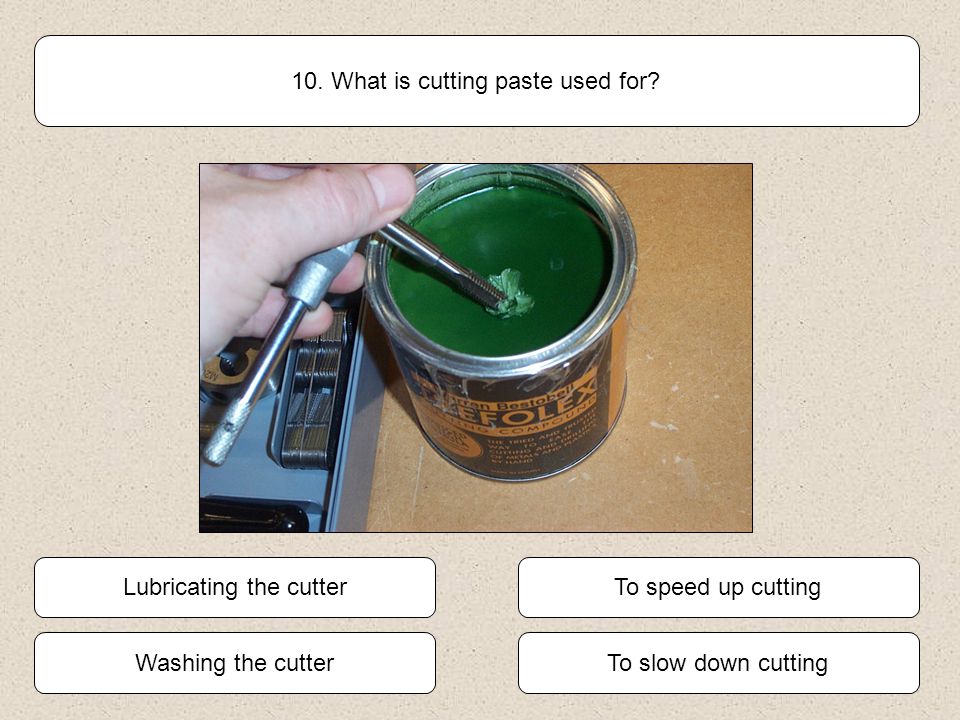

Lubricating the cutter To slow down cutting Washing the cutter To speed up cutting 10. What is cutting paste used for?
Well Done Quiz Completed
Wrong Click here to try again
