Av-Gad Systems Ltd. Products Catalog Year 2011 Part Three.

Similar presentations


Presentation on theme: "Av-Gad Systems Ltd. Products Catalog Year 2011 Part Three."— Presentation transcript:

1

2 Av-Gad Systems Ltd. Products Catalog Year 2011 Part Three

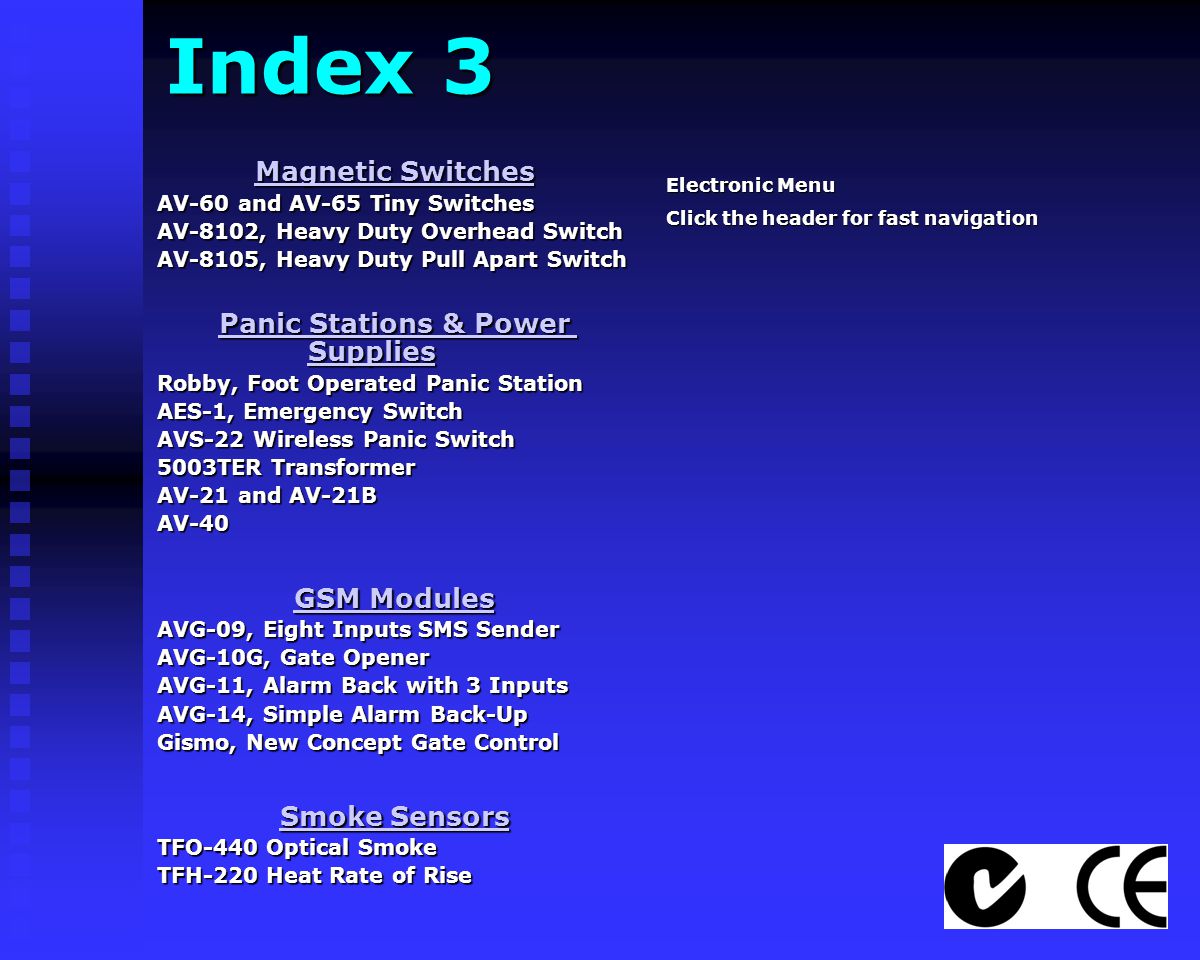

3 Index 3 Magnetic Switches Magnetic Switches AV-60 and AV-65 Tiny Switches AV-8102, Heavy Duty Overhead Switch AV-8105, Heavy Duty Pull Apart Switch Panic Stations & Power Supplies Panic Stations & Power Supplies Robby, Foot Operated Panic Station AES-1, Emergency Switch AVS-22 Wireless Panic Switch 5003TER Transformer AV-21 and AV-21B AV-40 GSM Modules GSM Modules AVG-09, Eight Inputs SMS Sender AVG-10G, Gate Opener AVG-11, Alarm Back with 3 Inputs AVG-14, Simple Alarm Back-Up Gismo, New Concept Gate Control Smoke Sensors Smoke Sensors TFO-440 Optical Smoke TFH-220 Heat Rate of Rise Electronic Menu Click the header for fast navigation

4 Magnetic Switches

5 AV-60 & AV-65 AV-60 & AV-65 AV-65: Wires soldering AV-60: Screws terminal Low Profile Design Mini contact with leads and snap-off tabs Alnico 5 magnet Wide Operation Gap Distance: Over two centimeters (1) Self-adhesive and/or screw Mount Supplied in Gift Bag, 10 Pieces Each Colors: Ivory, Brown Dimensions: L=33, W=6, H=7 mm

6 AV-8102 AV-8102 Main Features: 45 mm (2) operating gap N.C. Contacts Magnet side with aluminum L-bracket Switch enclosed in a solid Aluminum housing Highly stable surface mount Alnico 5 magnet55 cm (21) stainless steel armored cable Reed switch hermetically sealed Dimensions: 105 X 36 X 10 mm (4 X 1 1/2 X 1/2")Color: Metal Gray Packing: Two sets in carton box The AV-8102 overhead door contact Roller Shutter Magnetic switch designed for tough, rush traffic and outdoor installations Switch is housed in Aluminum case Installation wires are protected in a 55 cm (21) stainless steel armored flexible sleeve The AV mm (4) long magnet is mounted on an adjustable L shaped bracket designed for installation flexibility

7 AV-8105 AV-8105 Main Features: 24 mm (1) operating gap N.C. Contacts The reed switch is hermetically sealed Highly stable surface mount Alnico 5 magnet with 55 cm (21) stainless steel armored cable Dimensions: 105 X 36 X 10 mm (4 X 1 1/2 X 1/2") Color: Gray Packing: Two sets in carton box The AV-8105 Pull Apart switch designed for outdoor applications Protects air condition external units, ATMs, portable goods, boats and objects that are impossible to utilize constant magnetic proximity Installation wires are protected in a 55 cm (21) stainless steel armored flexible cable The AV-8105 magnet is housed in secured plastic housing

8 Panic Stations & Power Supplies

9 Robby Foot Panic Robby Foot Panic Two way cables entry protected with wires sleeves Customizing per project is optional Foot operated panic and robbery station Housed in heavy duty metal box Applicable for banks, diamonds sales & factories, military and police entries The Robby TM Foot Rail Panic switch has been carefully engineered for simple, easy to operate, still reliable foot activated hold-up device, with minimum false alarms SPDT or DPDT switch (optional, depends on version) Options: Reset key, LED Memory, Few switch typesTM

10 AES-1 Panic Button AES-1 Panic Button Emergency Switch Max. Switching Voltage: 200V DC, 200VACMax. Switching Current :0.5A DC Max. Carry Current: 1A DC Housing: UL VO Grade ABS Resin Epoxies Color: Standard Ivory Contact Type: SPST Contact rating 20VA Dimensions: 70 X 19 mm (2 3/4 X 3/4")

11 AVS-22 Wireless Key AVS-22 Wireless Key Available in All International Frequencies (European, Far East and USA bands) High Stability RF Circuitry Range up to 200 meters at open space AVS-4T Remote Wireless Remote Control Key Set Includes: RF Receiver plus two RF Remotes type AVS4T Dual Channels Micro Processor Receiver with 10A relay output Rolling Code Technology Simple and Fast Code Teach Setting Build-In Antenna for Extended Range Four Channel Transmitter, can use one or two buttons Application: Remote Alarm Arming, Panic, Door Opening Receiver Output Settings: Pulse, Latch or Momentary

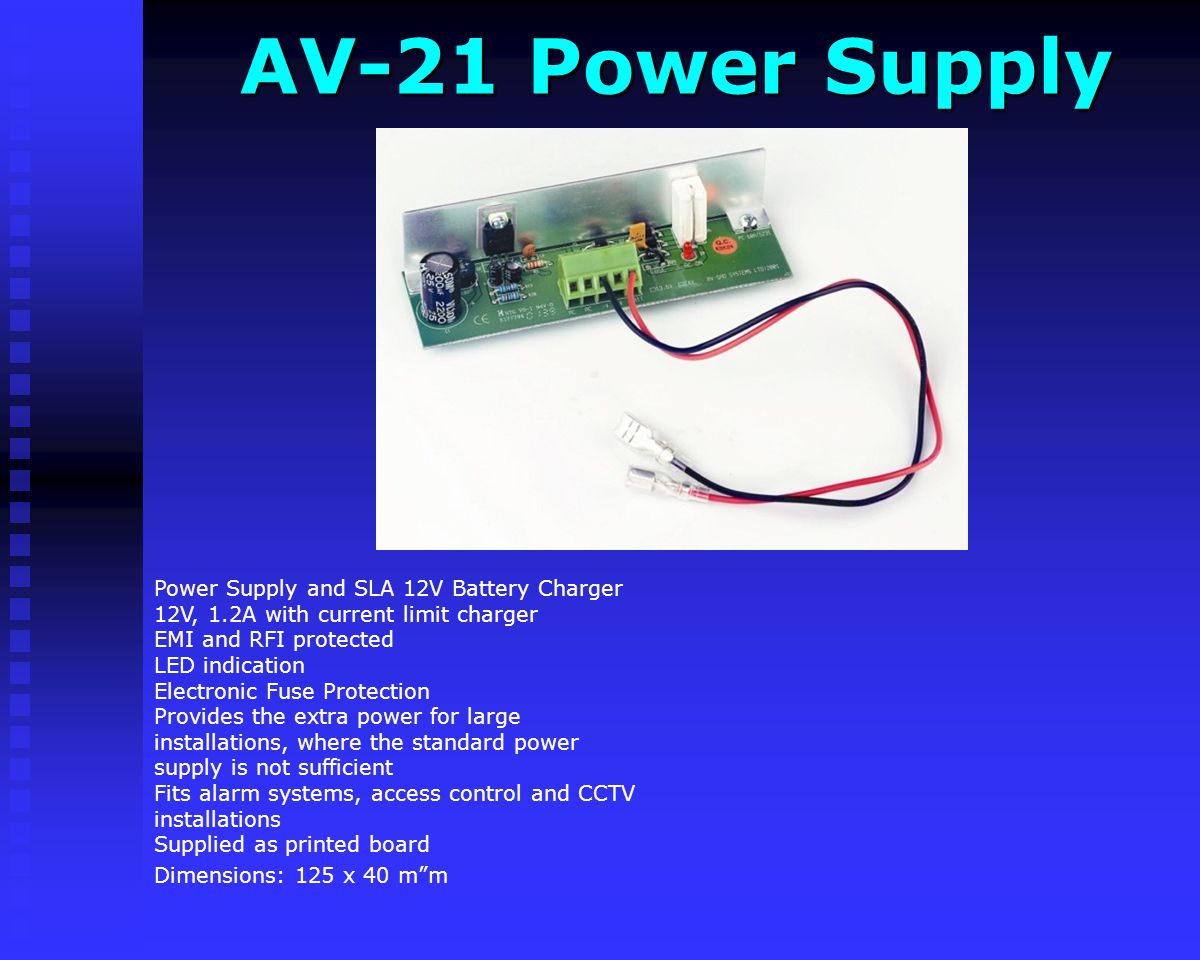

12 AV-21 Power Supply AV-21 Power Supply Power Supply and SLA 12V Battery Charger 12V, 1.2A with current limit charger EMI and RFI protected LED indication Electronic Fuse Protection Provides the extra power for large installations, where the standard power supply is not sufficient Fits alarm systems, access control and CCTV installations Supplied as printed board Dimensions: 125 x 40 mm

13 AV-21B Power Supply AV-21B Power Supply Supplied in ABS box with battery space Options: 5003TER Transformer Metal Box 24V DC 1A AV-21 in ABS box with battery space Power Supply and SLA 12V Battery Charger 12V, 1.2A with current limit charger EMI and RFI protected LED indication Electronic Fuse Protection Provides the extra power for large installations, where the standard power supply is not sufficient Fits alarm systems, access control and CCTV installations Supplied as printed board Dimensions: 310 x 220 x 85 mm

14 AV-40 Power Supply AV-40 Power Supply 12V - 4A Power Supply and Charger Main AC V Battery monitor protect the battery from overcharge and opposite polarity connection LED indication Supplied in ABS box with space for 12V - SLA battery 4 to 7.2 AH Provides the extra power for installations, where the standard power supply is not sufficient For alarm sensors and CCTV 12V DC cameras Dimensions: 310 x 220 x 85 mm

15 GSM Solutions

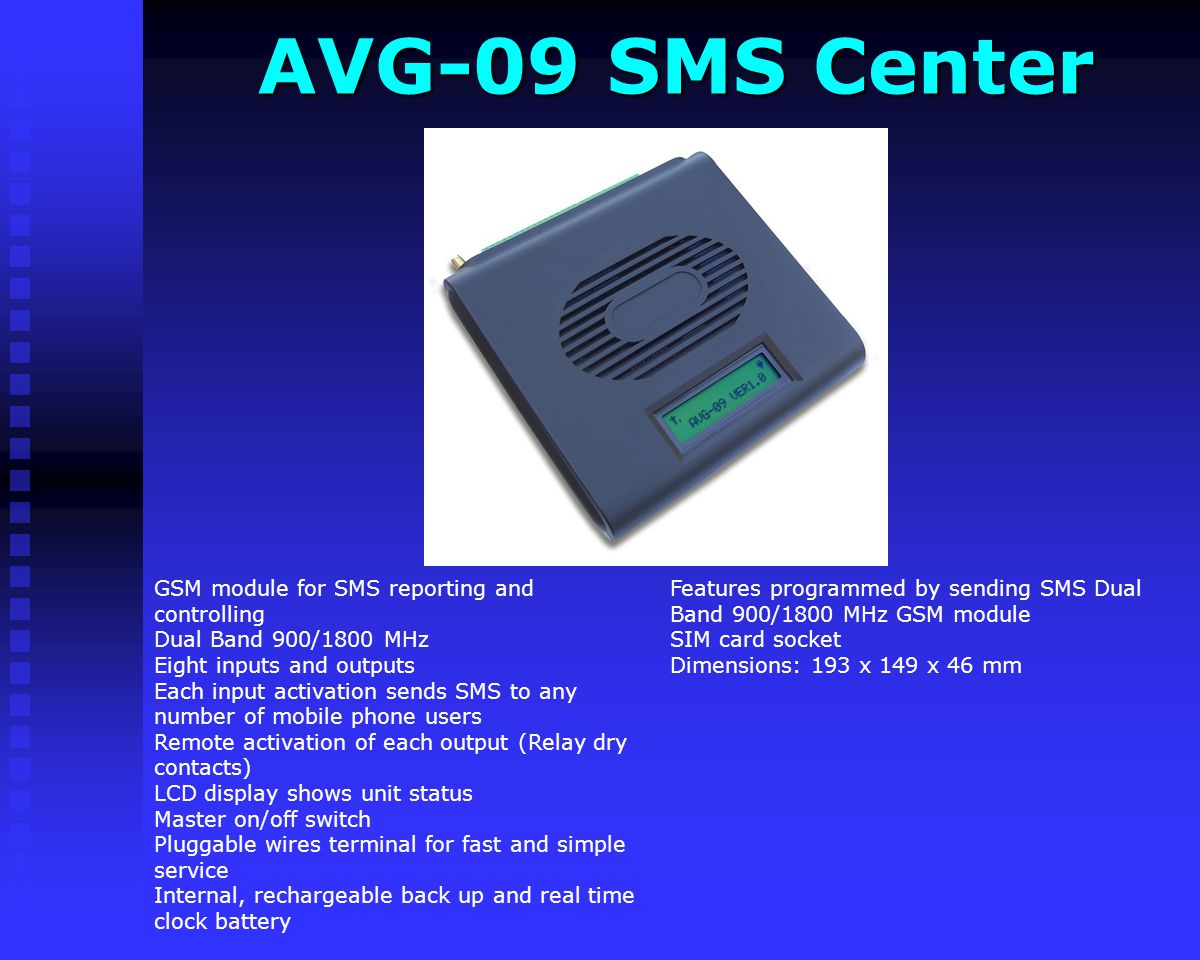

16 AVG-09 SMS Center AVG-09 SMS Center Features programmed by sending SMS Dual Band 900/1800 MHz GSM module SIM card socket Dimensions: 193 x 149 x 46 mm GSM module for SMS reporting and controlling Dual Band 900/1800 MHz Eight inputs and outputs Each input activation sends SMS to any number of mobile phone users Remote activation of each output (Relay dry contacts) LCD display shows unit status Master on/off switch Pluggable wires terminal for fast and simple service Internal, rechargeable back up and real time clock battery

17 AVG-10 Gate Open AVG-10 Gate Open Log report and remote programming via PC and AVG-10G modem (not included) Dimension: 80 x 98 x 29 mm New version for 2011! Option: Any call open Support up to 2000 numbers The AVG-10G is an innovative GSM system based on caller ID identification for gate control using mobile and standard phone The AVG-10G allows gate opening to authorized visitors at free of charge call, as the AVG-10G never answers the call Programmed phone number in the AVG-10G memory are access permitted DIN rail compatibility Relay output for gate or door activation Send SMS confirmation for every event Programming by PC and SMS

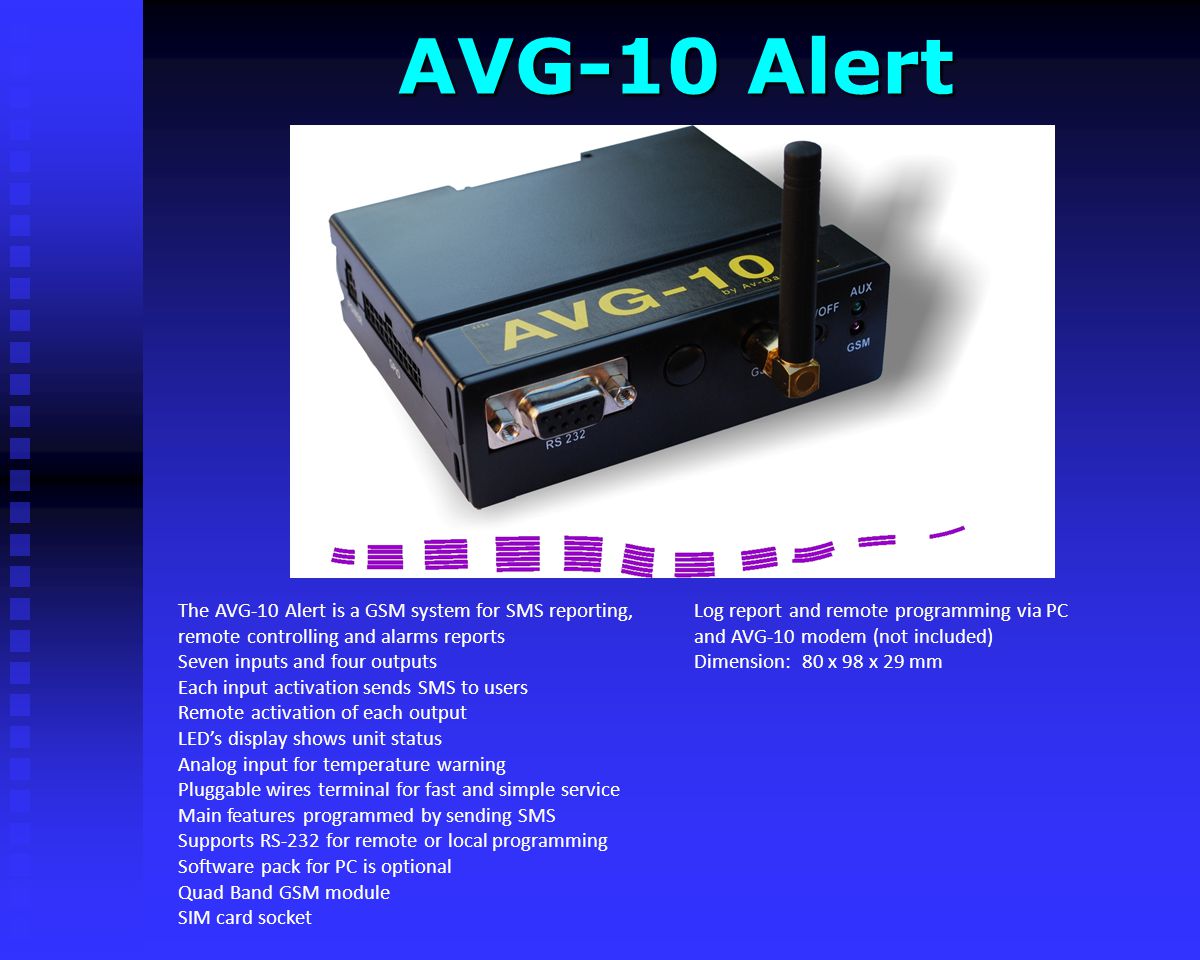

18 AVG-10 Alert AVG-10 Alert Log report and remote programming via PC and AVG-10 modem (not included) Dimension: 80 x 98 x 29 mm The AVG-10 Alert is a GSM system for SMS reporting, remote controlling and alarms reports Seven inputs and four outputs Each input activation sends SMS to users Remote activation of each output LEDs display shows unit status Analog input for temperature warning Pluggable wires terminal for fast and simple service Main features programmed by sending SMS Supports RS-232 for remote or local programming Software pack for PC is optional Quad Band GSM module SIM card socket

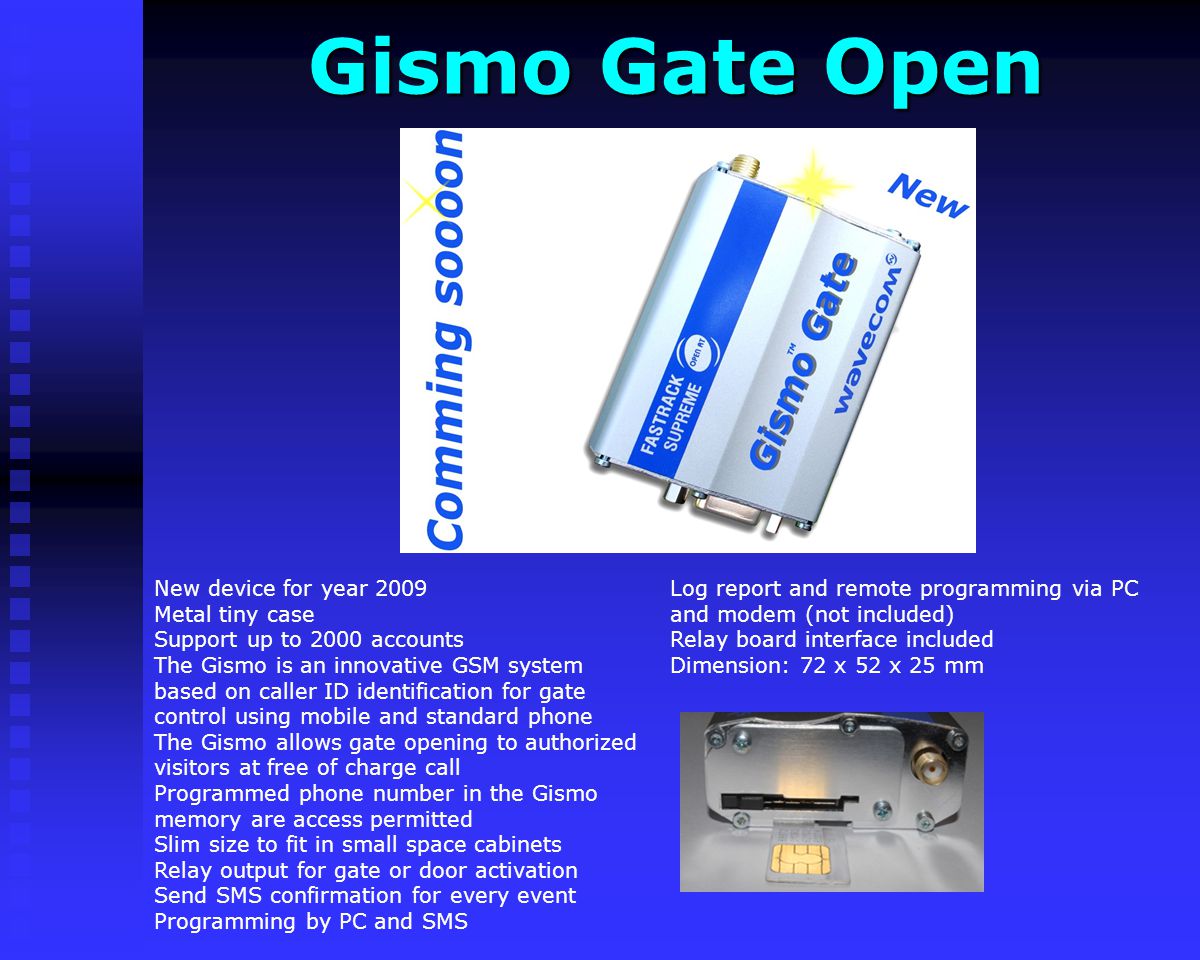

19 Gismo Gate Open Gismo Gate Open Log report and remote programming via PC and modem (not included) Relay board interface included Dimension: 72 x 52 x 25 mm New device for year 2009 Metal tiny case Support up to 2000 accounts The Gismo is an innovative GSM system based on caller ID identification for gate control using mobile and standard phone The Gismo allows gate opening to authorized visitors at free of charge call Programmed phone number in the Gismo memory are access permitted Slim size to fit in small space cabinets Relay output for gate or door activation Send SMS confirmation for every event Programming by PC and SMS

20 Gismo Software Pack Gismo Software Pack Software pack for Gismo Gate Provides up and download via PC Parameters settings, phone numbers import & export, GSM band settings, backup and more Log report and accounts backup Contains CD and PC cables Fits PC serial RS-232

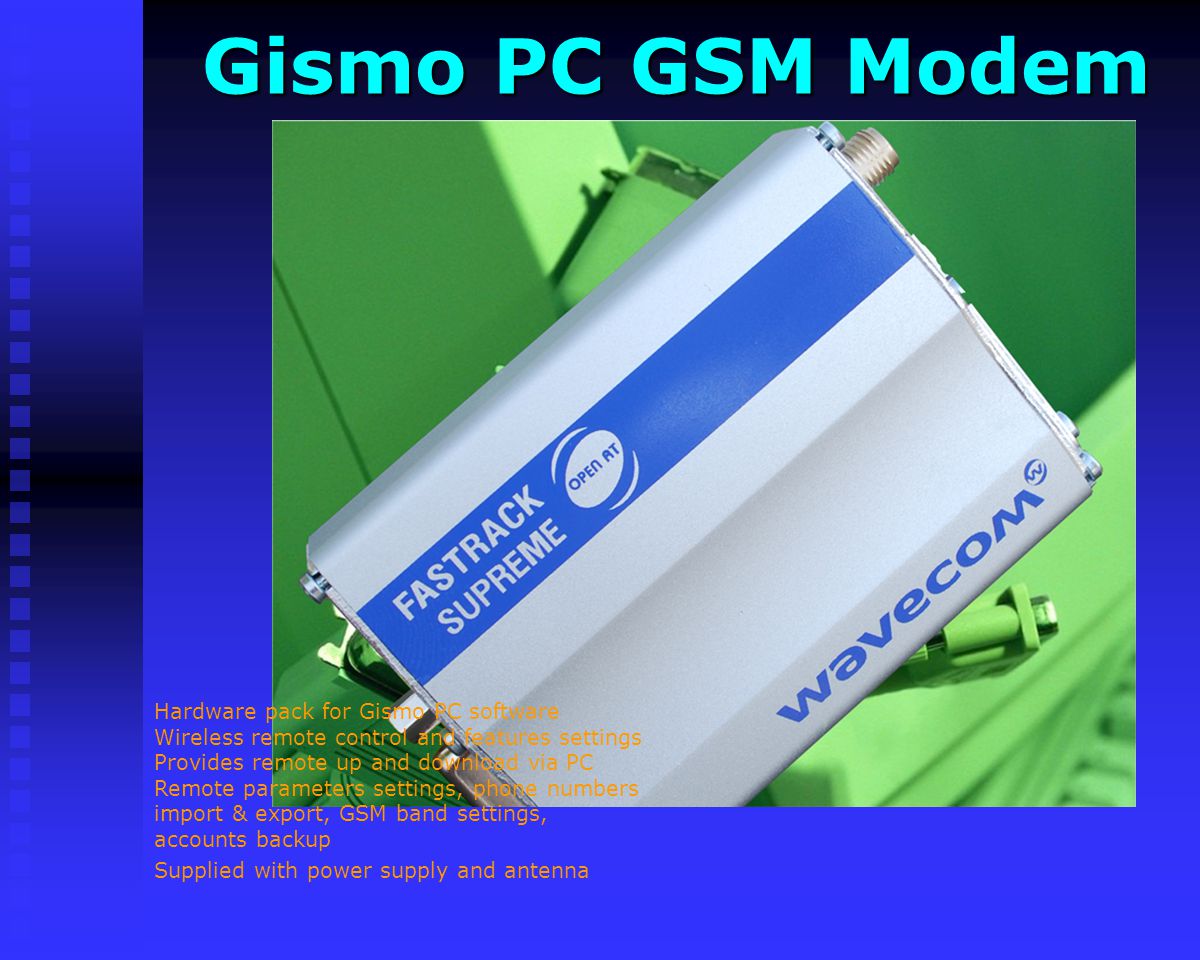

21 Gismo PC GSM Modem Gismo PC GSM Modem Hardware pack for Gismo PC software Wireless remote control and features settings Provides remote up and download via PC Remote parameters settings, phone numbers import & export, GSM band settings, accounts backup Supplied with power supply and antenna

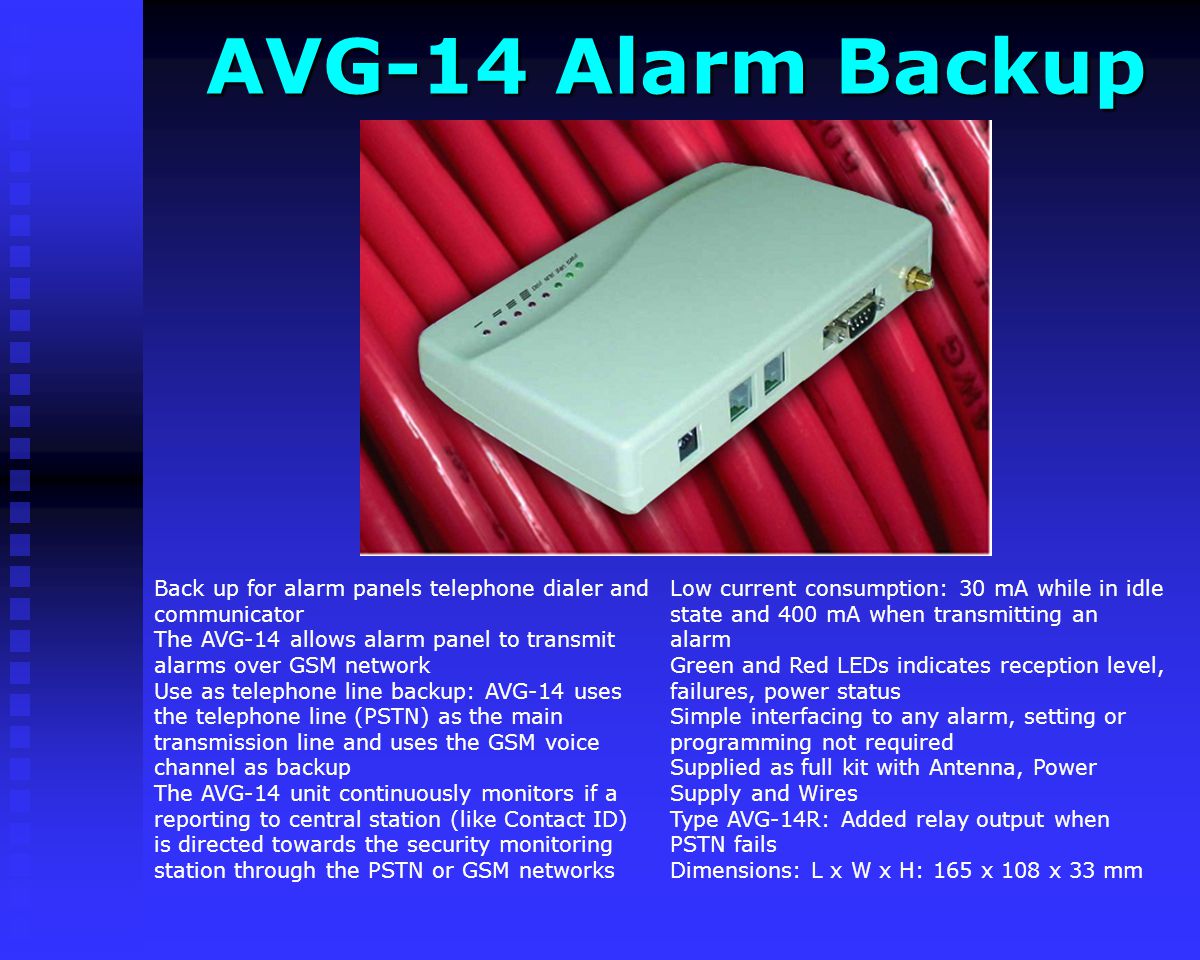

22 AVG-14 Alarm Backup AVG-14 Alarm Backup Low current consumption: 30 mA while in idle state and 400 mA when transmitting an alarm Green and Red LEDs indicates reception level, failures, power status Simple interfacing to any alarm, setting or programming not required Supplied as full kit with Antenna, Power Supply and Wires Type AVG-14R: Added relay output when PSTN fails Dimensions: L x W x H: 165 x 108 x 33 mm Back up for alarm panels telephone dialer and communicator The AVG-14 allows alarm panel to transmit alarms over GSM network Use as telephone line backup: AVG-14 uses the telephone line (PSTN) as the main transmission line and uses the GSM voice channel as backup The AVG-14 unit continuously monitors if a reporting to central station (like Contact ID) is directed towards the security monitoring station through the PSTN or GSM networks

23 Fire & Smoke

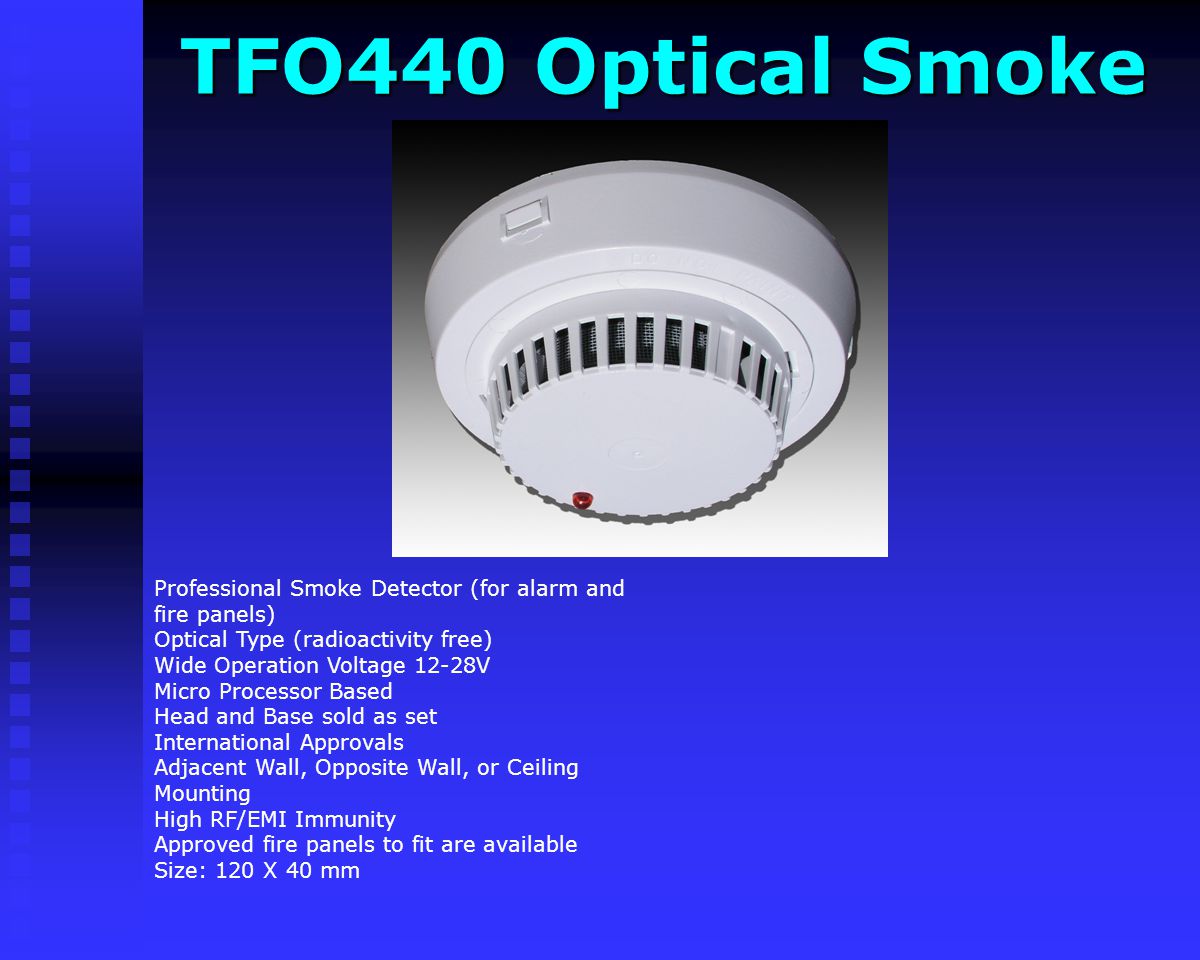

24 TFO440 Optical Smoke Professional Smoke Detector (for alarm and fire panels) Optical Type (radioactivity free) Wide Operation Voltage 12-28V Micro Processor Based Head and Base sold as set International Approvals Adjacent Wall, Opposite Wall, or Ceiling Mounting High RF/EMI Immunity Approved fire panels to fit are available Size: 120 X 40 mm

25 TFH220 Heat Detector Heat Detector, fix 65 C degrees Type (for alarm and fire panels) Wide Operation Voltage 12-28V Head and Base sold as set International Approvals Adjacent Wall, Opposite Wall, or Ceiling Mounting High RF/EMI Immunity Size: 120 X 40 mm Approved fire panels to fit are available

26 Thank you for your time
