History: 33 years experience in the HVAC Industry Market Focus: Replacement/OEM/Plan & Spec/Industrial Flexibility: Building coils to unique customer.

Similar presentations


Presentation on theme: "History: 33 years experience in the HVAC Industry Market Focus: Replacement/OEM/Plan & Spec/Industrial Flexibility: Building coils to unique customer."— Presentation transcript:

1

2 History: 33 years experience in the HVAC Industry Market Focus: Replacement/OEM/Plan & Spec/Industrial Flexibility: Building coils to unique customer requirements Reliability: Coil dimensions and On-time Shipments Support: Dedicated factory Sales Engineer Software: TP2 – Local Selection/Price/Drawings & On-line Order capability direct into our production

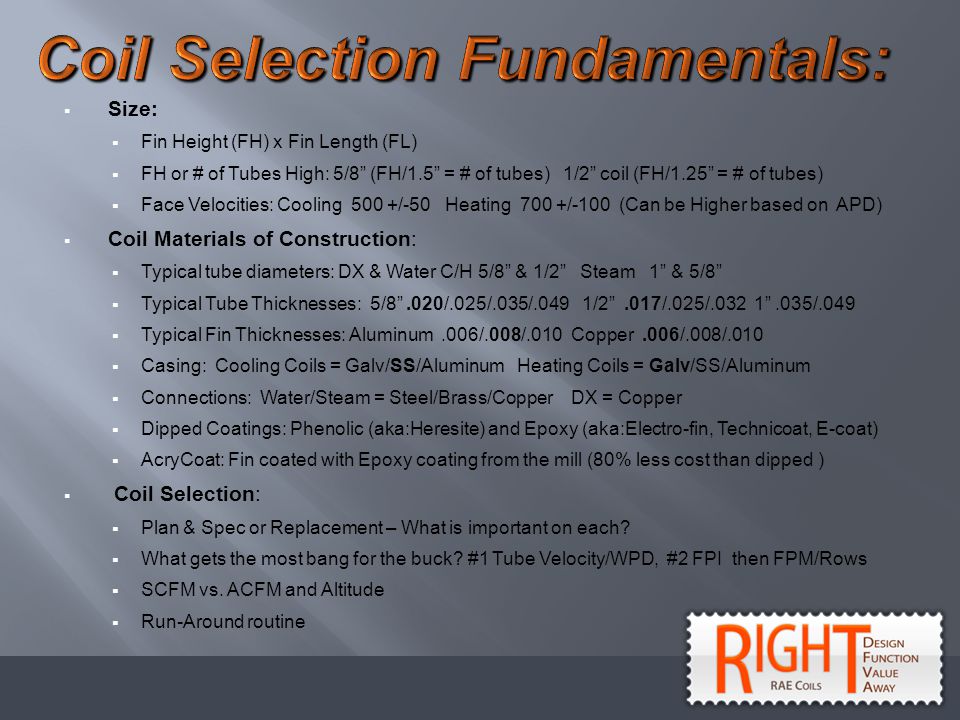

3 Size: Fin Height (FH) x Fin Length (FL) FH or # of Tubes High: 5/8 (FH/1.5 = # of tubes) 1/2 coil (FH/1.25 = # of tubes) Face Velocities: Cooling 500 +/-50 Heating 700 +/-100 (Can be Higher based on APD) Coil Materials of Construction: Typical tube diameters: DX & Water C/H 5/8 & 1/2 Steam 1 & 5/8 Typical Tube Thicknesses: 5/8.020/.025/.035/.049 1/2.017/.025/ /.049 Typical Fin Thicknesses: Aluminum.006/.008/.010 Copper.006/.008/.010 Casing: Cooling Coils = Galv/SS/Aluminum Heating Coils = Galv/SS/Aluminum Connections: Water/Steam = Steel/Brass/Copper DX = Copper Dipped Coatings: Phenolic (aka:Heresite) and Epoxy (aka:Electro-fin, Technicoat, E-coat) AcryCoat: Fin coated with Epoxy coating from the mill (80% less cost than dipped ) Coil Selection: Plan & Spec or Replacement – What is important on each? What gets the most bang for the buck? #1 Tube Velocity/WPD, #2 FPI then FPM/Rows SCFM vs. ACFM and Altitude Run-Around routine

4 Chilled Water Hot Water Direct Expansion Condenser Standard Steam Steam Distributing Stock Booster Coils Insulated Coil Boxes w/ Filter Rack

5

6 Available in 1/2, 5/8 and 1 copper tubes 3/8 Coils coming soon! Selection and Drawing Program Various Fin and Tube Thickness Separate return bends vs. Hairpin Commercial Coils

7 Sizes - 6 x 6 through 84 x 280 ARI Certified Commercial Coils

8 Multiple Circuits ARI Certified Optional - mounted TXV & Hot Gas Connection Commercial Coils

9 Same and Opposite end Connections ARI Certified Commercial Coils

10

11

12 Available in 61 Sizes Slip & Drive or Duct Flange Stocking Program w/ Shipments in 24 to 48 hrs. Commercial Coils

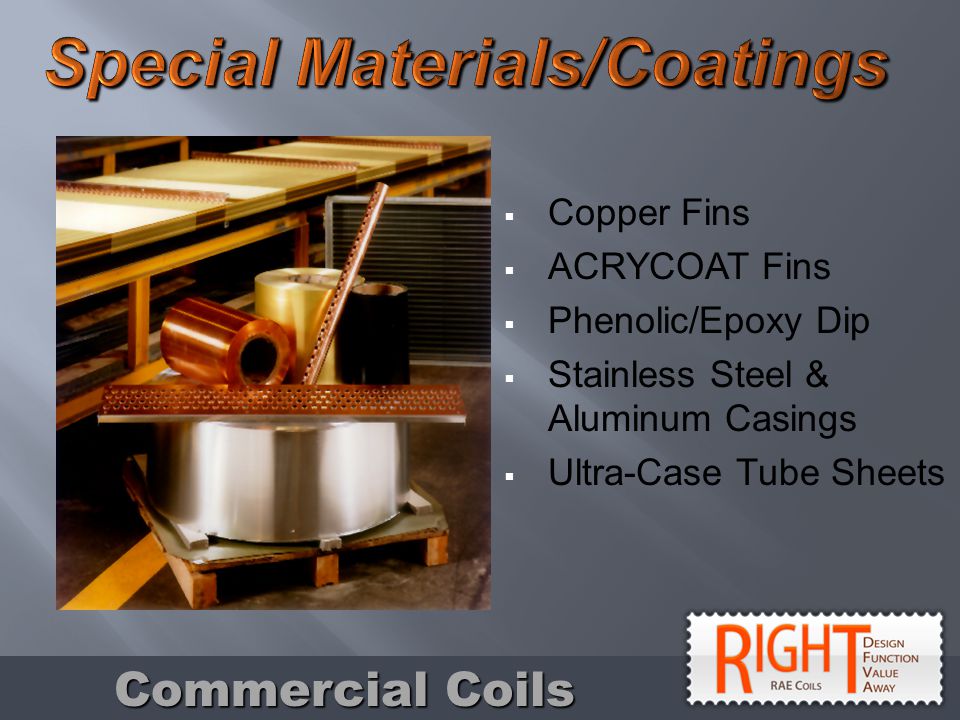

13 Copper Fins ACRYCOAT Fins Phenolic/Epoxy Dip Stainless Steel & Aluminum Casings Ultra-Case Tube Sheets Commercial Coils

14

15 Available with 5/8 or 7/8 tubing Materials of Construction: Stainless Steel Carbon Steel Aluminum Various Fin Materials and Thickness to Match Industrial Coils

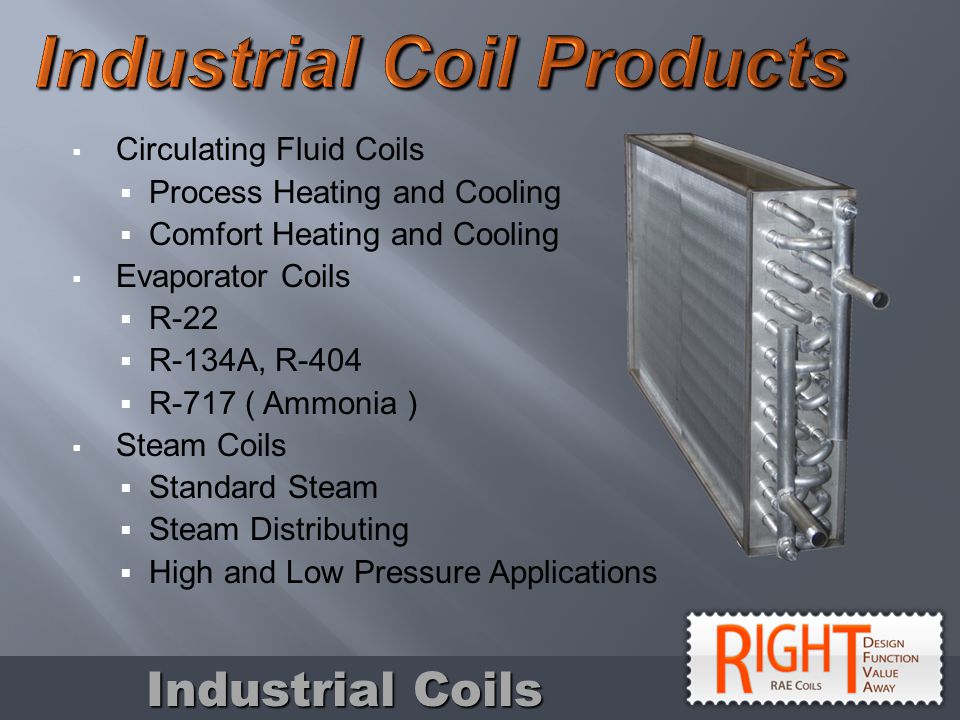

16 Circulating Fluid Coils Process Heating and Cooling Comfort Heating and Cooling Evaporator Coils R-22 R-134A, R-404 R-717 ( Ammonia ) Steam Coils Standard Steam Steam Distributing High and Low Pressure Applications Industrial Coils

17 Standard Construction based on 5/8 tubing. Contact factory for 7/8 tube requirements. Fin Height – Available in multiples of 1.5 up to 60 Fin Length – Any dimension up to 234 Rows – Available in 2,3,4,5,6,8,10 &12 rows deep FPI - 6 to 12 as standard Industrial Coils

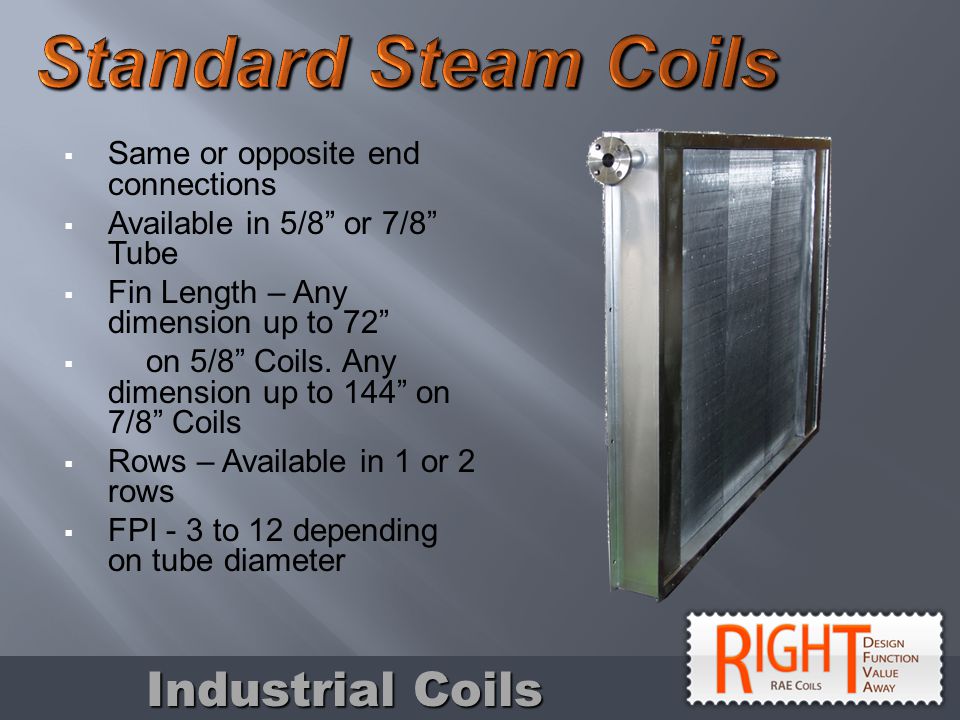

18 Same or opposite end connections Available in 5/8 or 7/8 Tube Fin Length – Any dimension up to 72 on 5/8 Coils. Any dimension up to 144 on 7/8 Coils Rows – Available in 1 or 2 rows FPI - 3 to 12 depending on tube diameter Industrial Coils

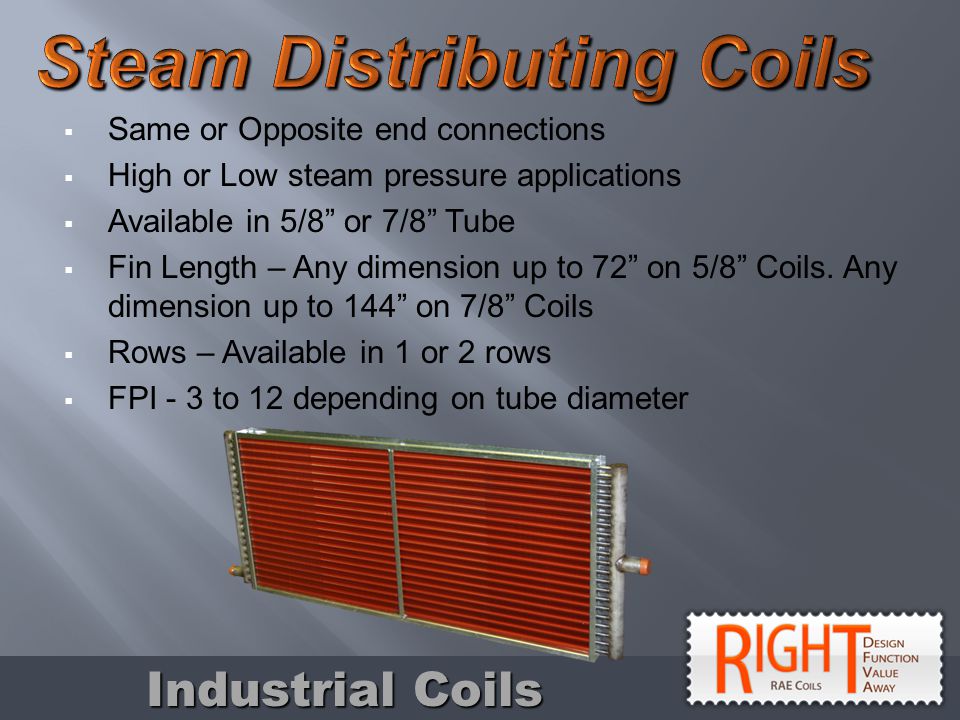

19 Same or Opposite end connections High or Low steam pressure applications Available in 5/8 or 7/8 Tube Fin Length – Any dimension up to 72 on 5/8 Coils. Any dimension up to 144 on 7/8 Coils Rows – Available in 1 or 2 rows FPI - 3 to 12 depending on tube diameter Industrial Coils

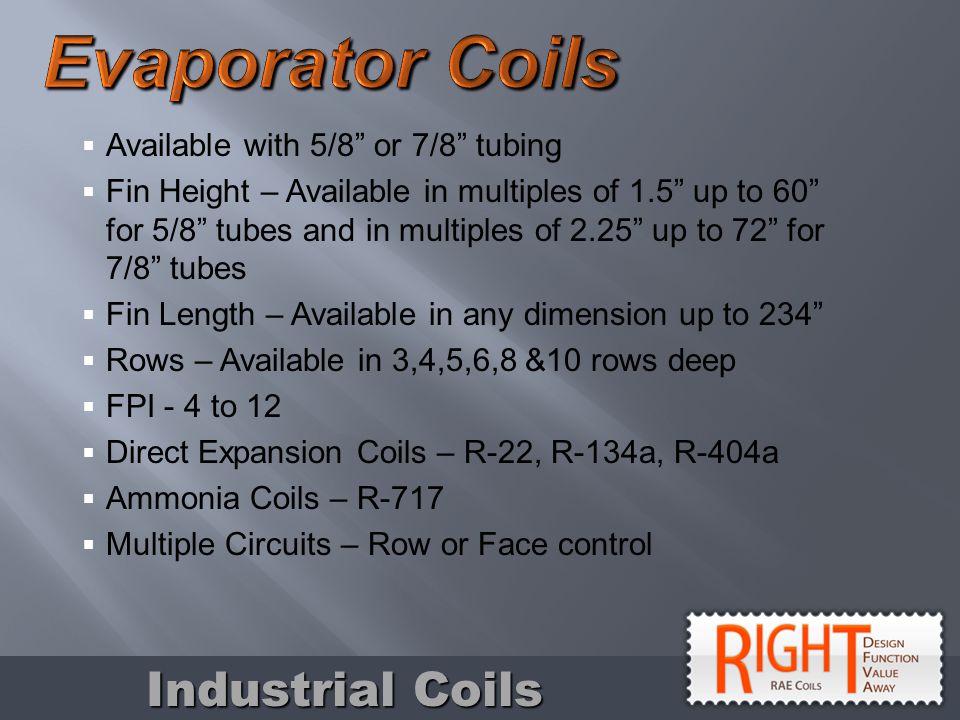

20 Available with 5/8 or 7/8 tubing Fin Height – Available in multiples of 1.5 up to 60 for 5/8 tubes and in multiples of 2.25 up to 72 for 7/8 tubes Fin Length – Available in any dimension up to 234 Rows – Available in 3,4,5,6,8 &10 rows deep FPI - 4 to 12 Direct Expansion Coils – R-22, R-134a, R-404a Ammonia Coils – R-717 Multiple Circuits – Row or Face control Industrial Coils

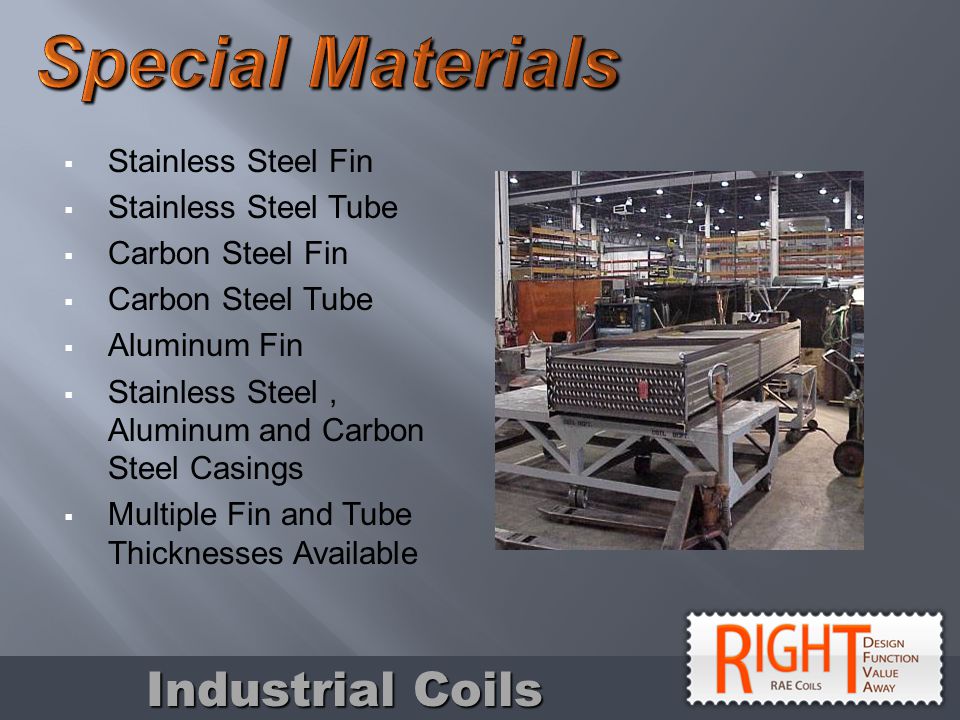

21 Stainless Steel Fin Stainless Steel Tube Carbon Steel Fin Carbon Steel Tube Aluminum Fin Stainless Steel, Aluminum and Carbon Steel Casings Multiple Fin and Tube Thicknesses Available Industrial Coils

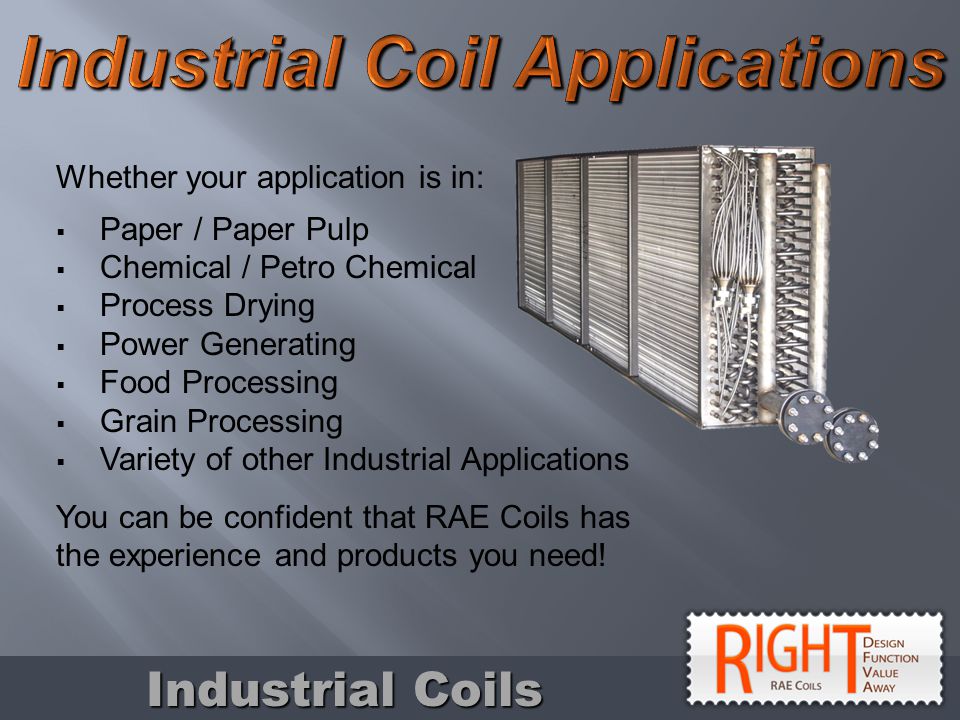

22 Whether your application is in: Paper / Paper Pulp Chemical / Petro Chemical Process Drying Power Generating Food Processing Grain Processing Variety of other Industrial Applications You can be confident that RAE Coils has the experience and products you need! Industrial Coils

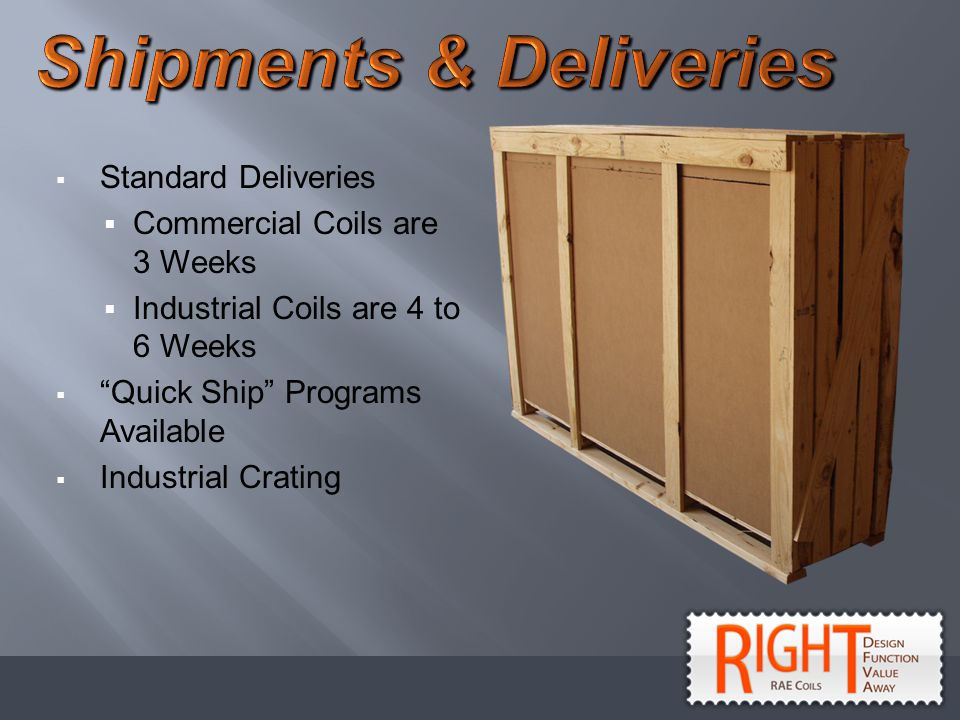

23 Standard Deliveries Commercial Coils are 3 Weeks Industrial Coils are 4 to 6 Weeks Quick Ship Programs Available Industrial Crating

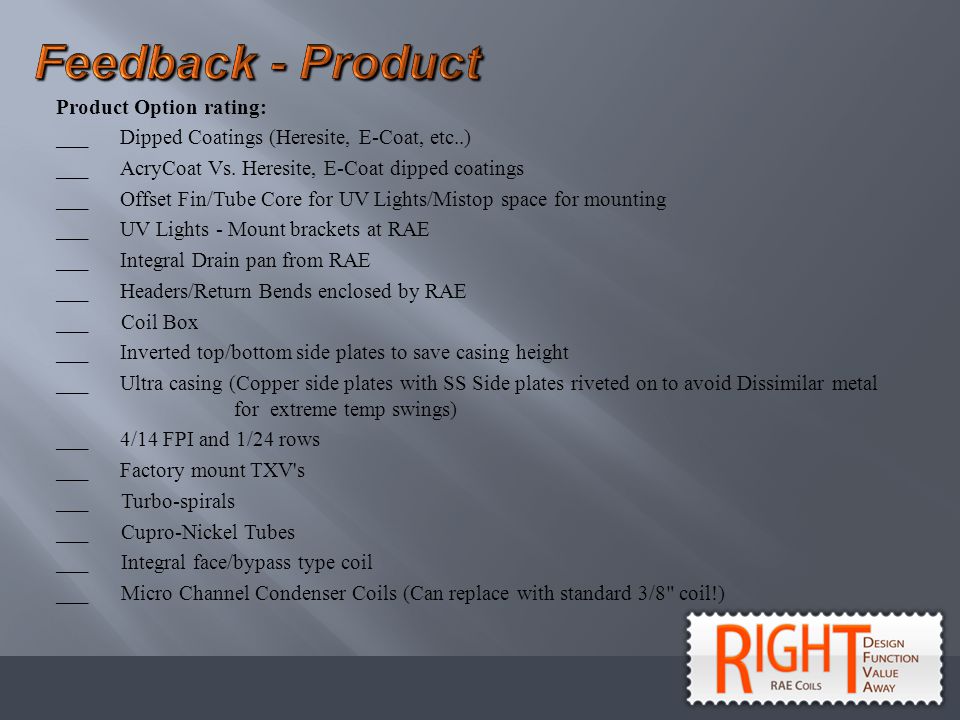

24 Product Option rating: ___ Dipped Coatings (Heresite, E-Coat, etc..) ___ AcryCoat Vs. Heresite, E-Coat dipped coatings ___ Offset Fin/Tube Core for UV Lights/Mistop space for mounting ___ UV Lights - Mount brackets at RAE ___ Integral Drain pan from RAE ___ Headers/Return Bends enclosed by RAE ___ Coil Box ___ Inverted top/bottom side plates to save casing height ___ Ultra casing (Copper side plates with SS Side plates riveted on to avoid Dissimilar metal for extreme temp swings) ___ 4/14 FPI and 1/24 rows ___ Factory mount TXV's ___ Turbo-spirals ___ Cupro-Nickel Tubes ___ Integral face/bypass type coil ___ Micro Channel Condenser Coils (Can replace with standard 3/8" coil!)

25 TP2 Software Rating: ___ Custom Circuiting in-between traditional circuit options ___ Unique drawing per selection with ability to adjust headers/connections/sheet metal/etc... ___ 3D capability on drawings ___ TP2 selections available across inter-company departments ___ On-line ordering ___ Quick price/rate if you know coil size/fins/rows/etc... ___ Import/Export coil runs ___ Company/user profiles saved for future use ___ Metric/English conversion ___ Search/find feature ___ Integrate TP2 into your pricing/selection program ___ RAE Ruler phone based app ___ Ability to select Industrial Coils (All SS, Aluminum or Steel)

26
