1 M ANUFACTURARS & S UPPLIERS O F W IDE RANGE O F F ORGED P IPE FITTINGS & F LANGES 1

2 2

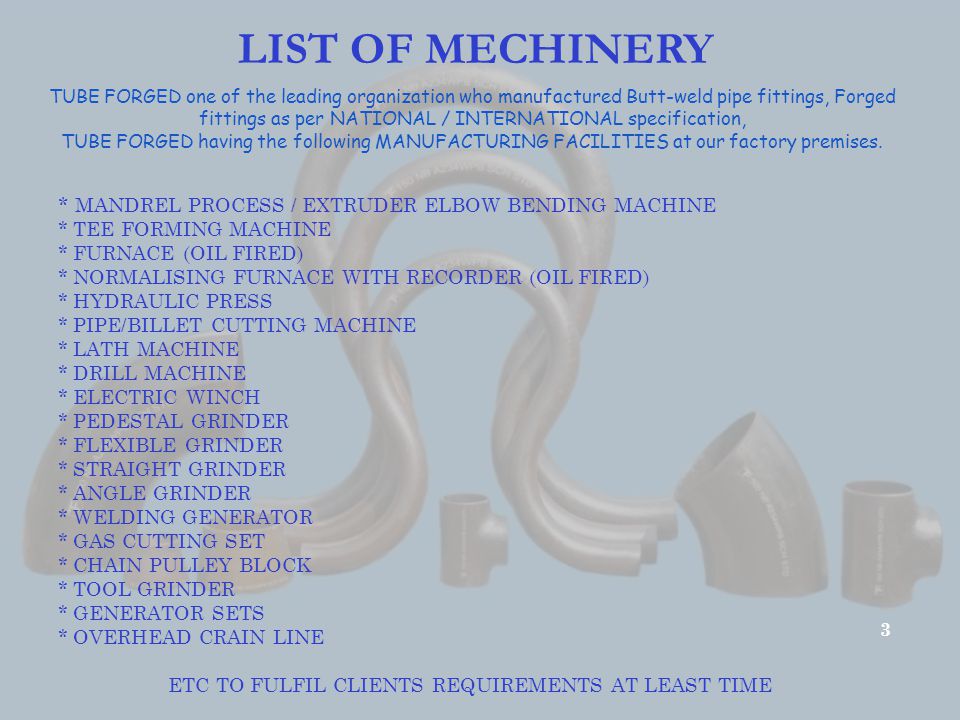

3 LIST OF MECHINERY 3 * MANDREL PROCESS / EXTRUDER ELBOW BENDING MACHINE * TEE FORMING MACHINE * FURNACE (OIL FIRED) * NORMALISING FURNACE WITH RECORDER (OIL FIRED) * HYDRAULIC PRESS * PIPE/BILLET CUTTING MACHINE * LATH MACHINE * DRILL MACHINE * ELECTRIC WINCH * PEDESTAL GRINDER * FLEXIBLE GRINDER * STRAIGHT GRINDER * ANGLE GRINDER * WELDING GENERATOR * GAS CUTTING SET * CHAIN PULLEY BLOCK * TOOL GRINDER * GENERATOR SETS * OVERHEAD CRAIN LINE ETC TO FULFIL CLIENTS REQUIREMENTS AT LEAST TIME TUBE FORGED one of the leading organization who manufactured Butt-weld pipe fittings, Forged fittings as per NATIONAL / INTERNATIONAL specification, TUBE FORGED having the following MANUFACTURING FACILITIES at our factory premises.

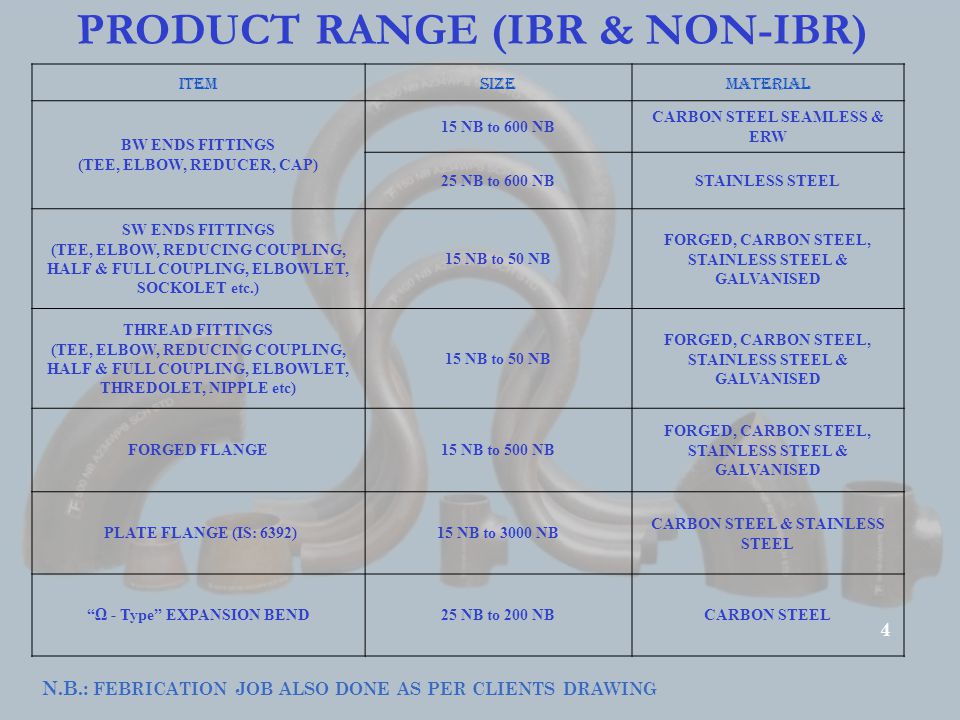

4 PRODUCT RANGE (IBR & NON-IBR) 4 N.B.: FEBRICATION JOB ALSO DONE AS PER CLIENTS DRAWING ITEMSIZEMATERIAL BW ENDS FITTINGS (TEE, ELBOW, REDUCER, CAP) 15 NB to 600 NB CARBON STEEL SEAMLESS & ERW 25 NB to 600 NBSTAINLESS STEEL SW ENDS FITTINGS (TEE, ELBOW, REDUCING COUPLING, HALF & FULL COUPLING, ELBOWLET, SOCKOLET etc.) 15 NB to 50 NB FORGED, CARBON STEEL, STAINLESS STEEL & GALVANISED THREAD FITTINGS (TEE, ELBOW, REDUCING COUPLING, HALF & FULL COUPLING, ELBOWLET, THREDOLET, NIPPLE etc) 15 NB to 50 NB FORGED, CARBON STEEL, STAINLESS STEEL & GALVANISED FORGED FLANGE15 NB to 500 NB FORGED, CARBON STEEL, STAINLESS STEEL & GALVANISED PLATE FLANGE (IS: 6392)15 NB to 3000 NB CARBON STEEL & STAINLESS STEEL - Type EXPANSION BEND25 NB to 200 NBCARBON STEEL

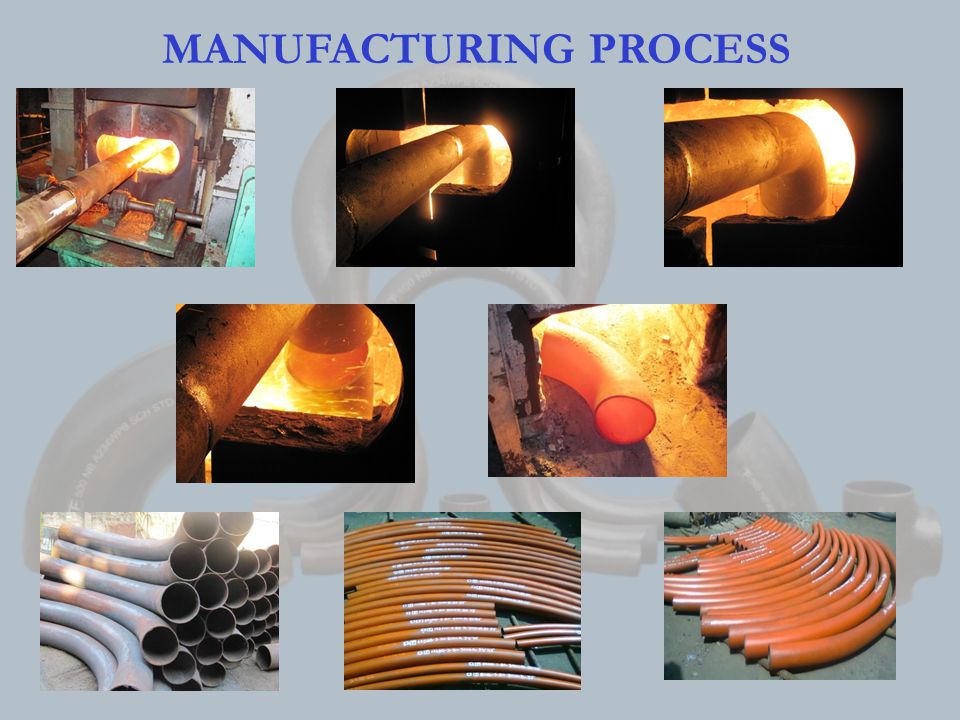

5 MANUFACTURING PROCESS 5

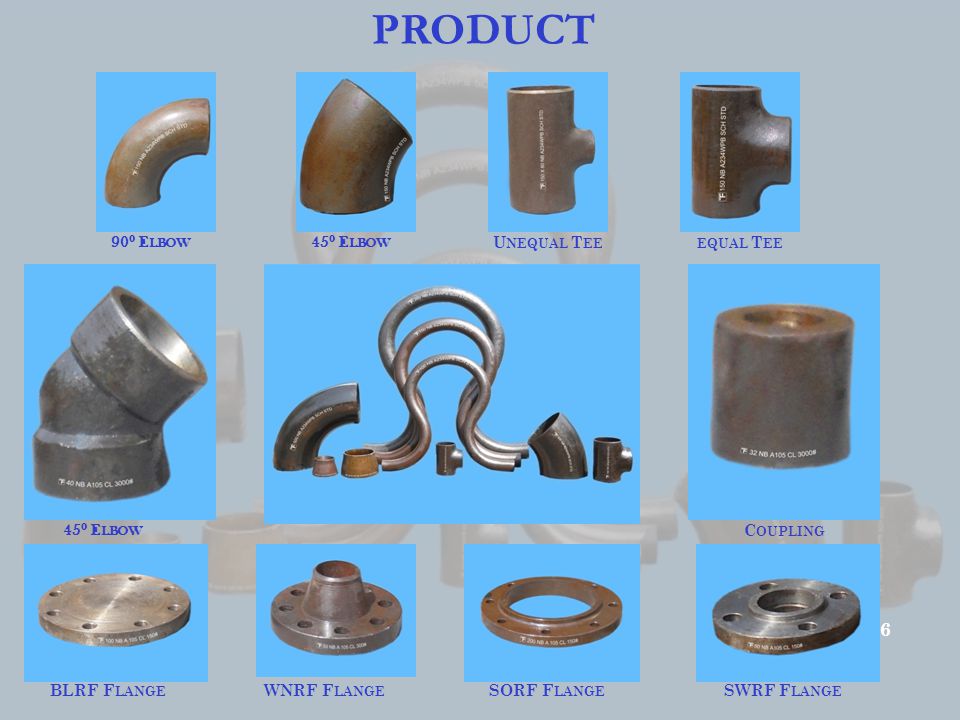

6 PRODUCT 6 U NEQUAL T EE 45 0 E LBOW 90 0 E LBOW EQUAL T EE C OUPLING BLRF F LANGE WNRF F LANGE SORF F LANGE SWRF F LANGE

7 TESTING & INSPECTION 7 * HARDNESS TEST MACHINE * ULTRASONIC THICKNESS GAUGE * TOUNG CALLIPER * ANGLE PLATE * VERNIER, INSIDE, OUTSIDE CALLIPER * D.P. TESTING ARRANGEMENT * DIAL, BEVEL GAUGE * HYDRO TEST MACHINE TUBE FORGED has fully equipped & inspection department managed by quality management system. Dimensionally checking is carried out by our companies experiences skilled worker for the basic needs in manufacturing quality fittings. We also carried out Chemical & physical test as per ASTM, IS, BS, DIN from govt. approved laboratories. * TO SATISFY CLIENTS WITH BEST QUALITY

8 8 The raw materials are procured with proper mill test certificate if mill test certificate is not available then check test analysis is carried out All products are visually checked for any defects shrinkage, cracks during manufacturing process. In case of any defect found during inspection send to take necessary action We also check hardness at random. All the fittings manufactured are frequently checked during machining in all dimension and thread. All thread are checked by go and no go gauges to ensure proper fittings for seal tightness. All machining products are checked by our quality management personnel. All finished products are marked with proper size, pressure rating, schedule, material specification, heat/lot no. as per required code. All fittings are surface coating/acid pickling, sort/sand blasting as per specified code and visually checked for any defect as well as packaging properly to avoid damages during storage or transit. QUALITY CONTROL

9 LIST OF CLIENTS 9 N. B. : W E SUPPLY OUR PRODUCT IN VARIOUS STEEL PLANTS, O IL SECTOR & F ERTILIZERS P LANTS T HROUGH OUR CLIENTS

10 REGISTRATION CERTIFICATE E LBOW EQUAL T EE MECON LIMITEDSAIL, DSP

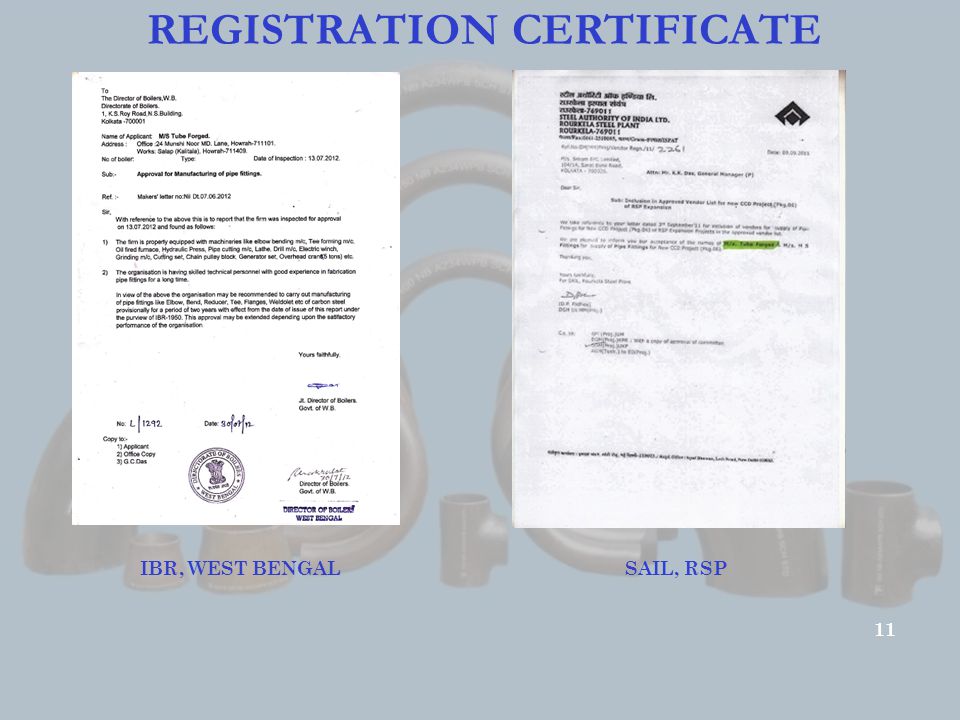

11 REGISTRATION CERTIFICATE 11 IBR, WEST BENGAL SAIL, RSP

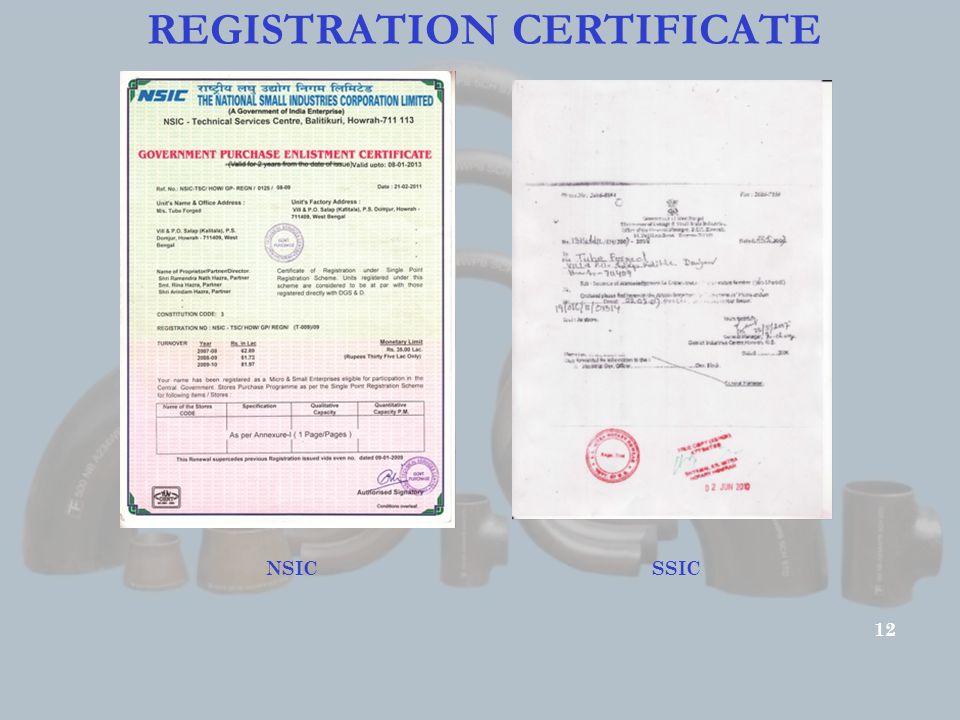

12 REGISTRATION CERTIFICATE 12 NSIC SSIC

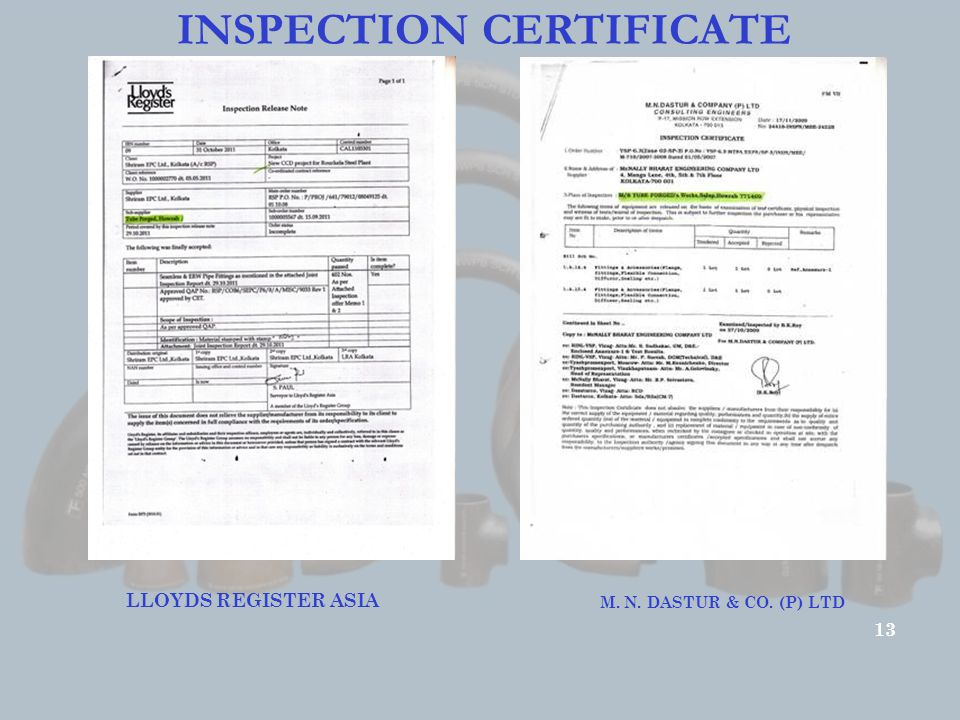

13 INSPECTION CERTIFICATE 13 LLOYDS REGISTER ASIA M. N. DASTUR & CO. (P) LTD

14 14 WEBSITE :
