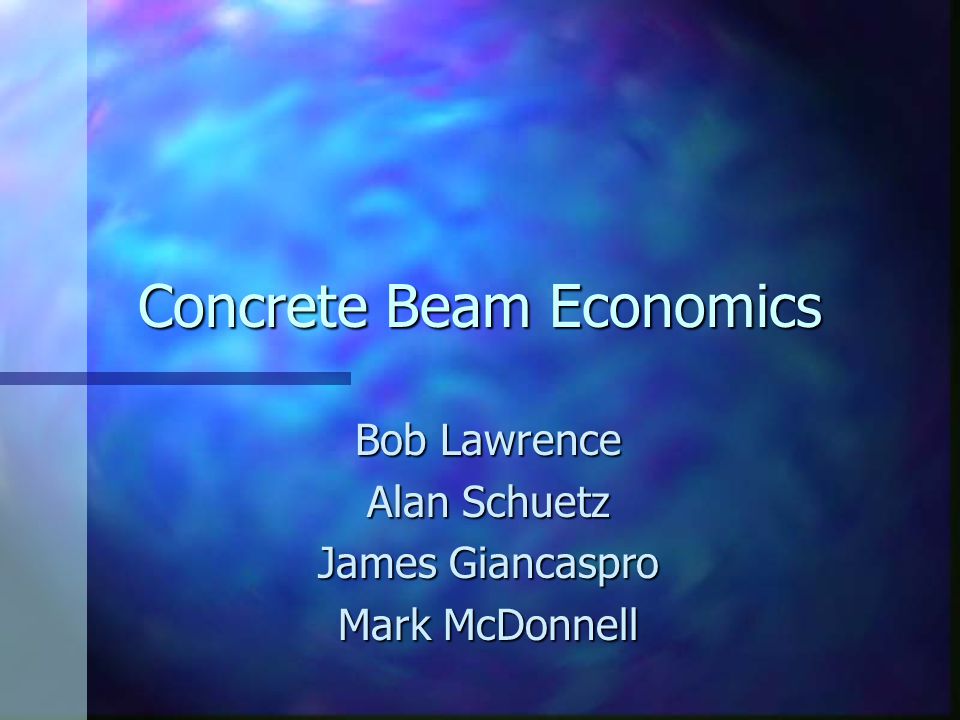

Concrete Beam Economics Bob Lawrence Alan Schuetz James Giancaspro Mark McDonnell

2

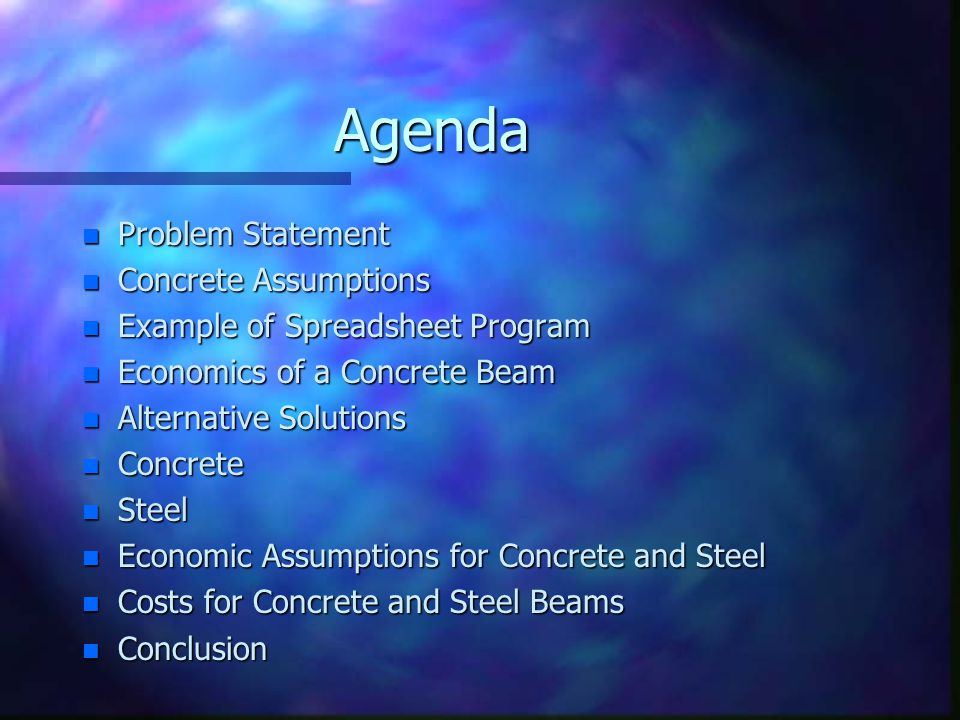

Agenda n Problem Statement n Concrete Assumptions n Example of Spreadsheet Program n Economics of a Concrete Beam n Alternative Solutions n Concrete n Steel n Economic Assumptions for Concrete and Steel n Costs for Concrete and Steel Beams n Conclusion

3

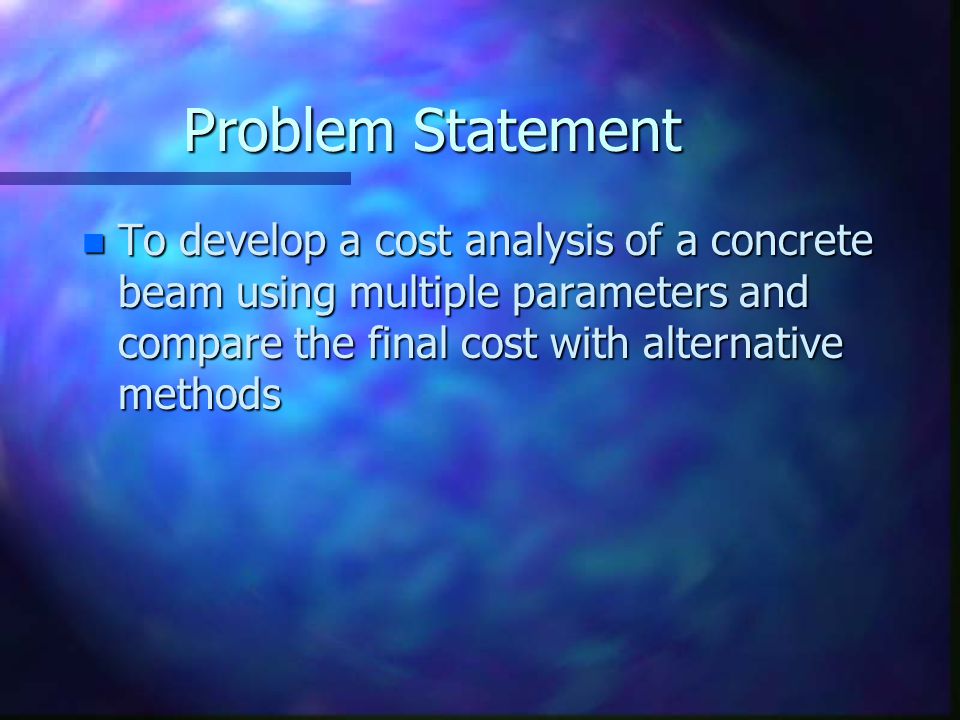

Problem Statement n To develop a cost analysis of a concrete beam using multiple parameters and compare the final cost with alternative methods

4

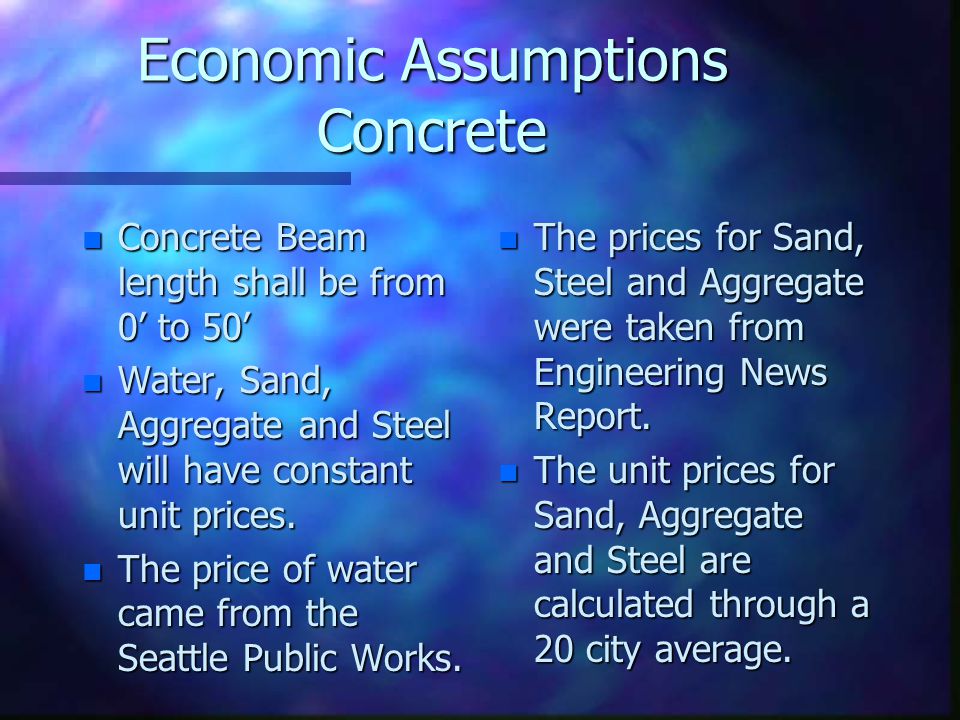

Economic Assumptions Concrete n Concrete Beam length shall be from 0 to 50 n Water, Sand, Aggregate and Steel will have constant unit prices. n The price of water came from the Seattle Public Works. n The prices for Sand, Steel and Aggregate were taken from Engineering News Report. n The unit prices for Sand, Aggregate and Steel are calculated through a 20 city average.

5

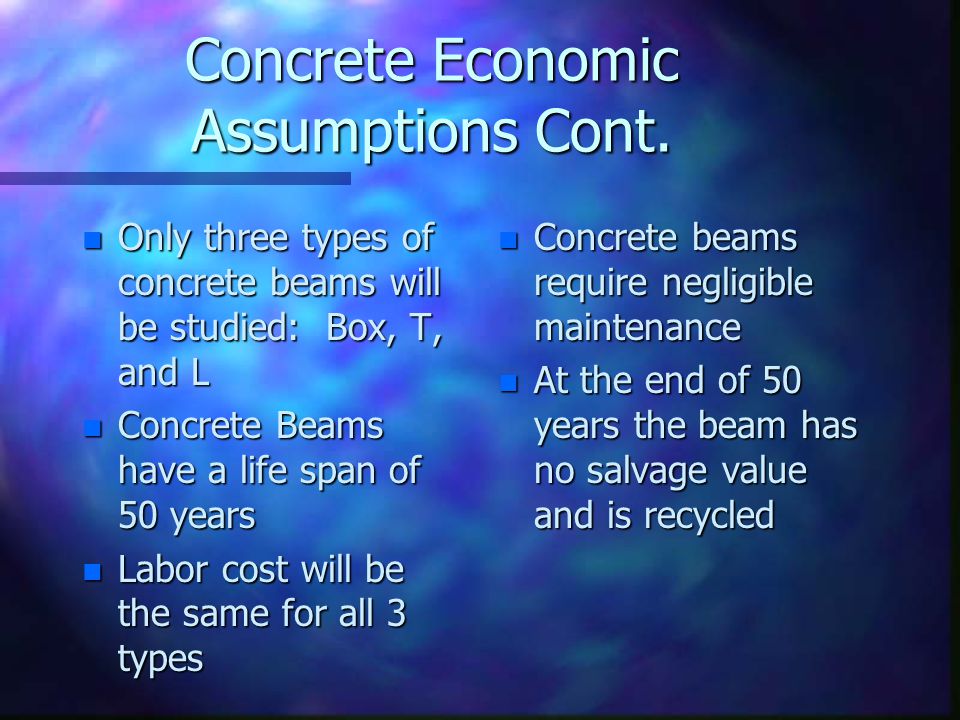

Concrete Economic Assumptions Cont. n Only three types of concrete beams will be studied: Box, T, and L n Concrete Beams have a life span of 50 years n Labor cost will be the same for all 3 types n Concrete beams require negligible maintenance n At the end of 50 years the beam has no salvage value and is recycled

6
Spreadsheet Presentation

7
Spreadsheet Economics n 10 Beam n n Total Material Cost For A Box Beam$108.46 n n Total Material Cost For A T-Beam$54.07 n n Total Material Cost For A L-Beam$59.55 n n 20 Beam n n Total Material Cost For A Box Beam $496.02 n n Total Material Cost For A T-Beam $243.12 n n Total Material Cost For A L-Beam$271.65

8

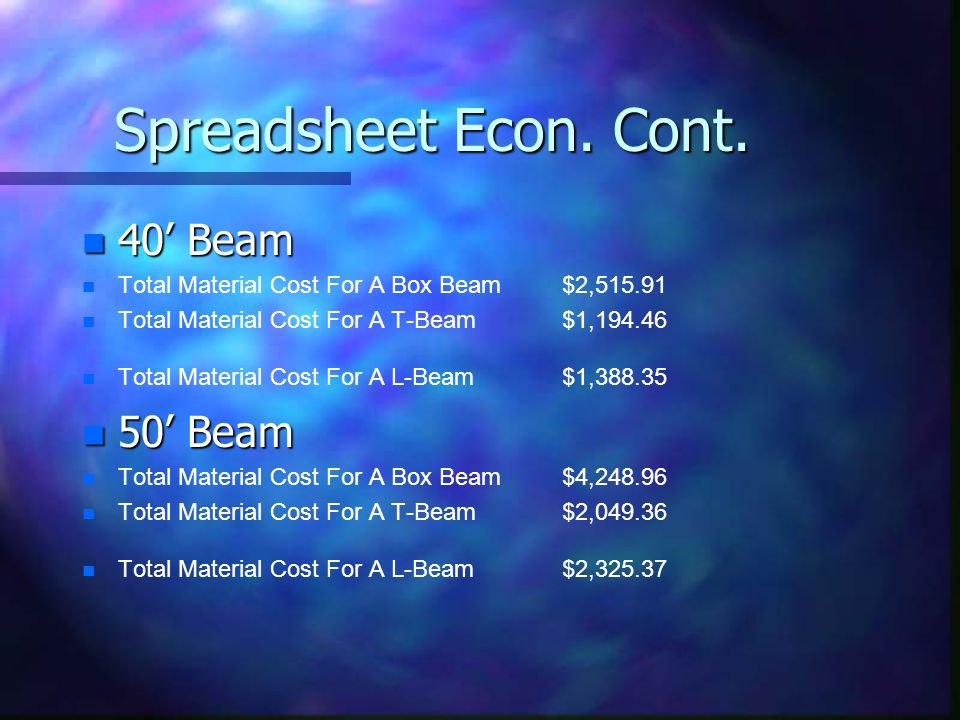

Spreadsheet Econ. Cont. n 40 Beam n n Total Material Cost For A Box Beam$2,515.91 n n Total Material Cost For A T-Beam$1,194.46 n n Total Material Cost For A L-Beam$1,388.35 n 50 Beam n n Total Material Cost For A Box Beam$4,248.96 n n Total Material Cost For A T-Beam$2,049.36 n n Total Material Cost For A L-Beam$2,325.37

9

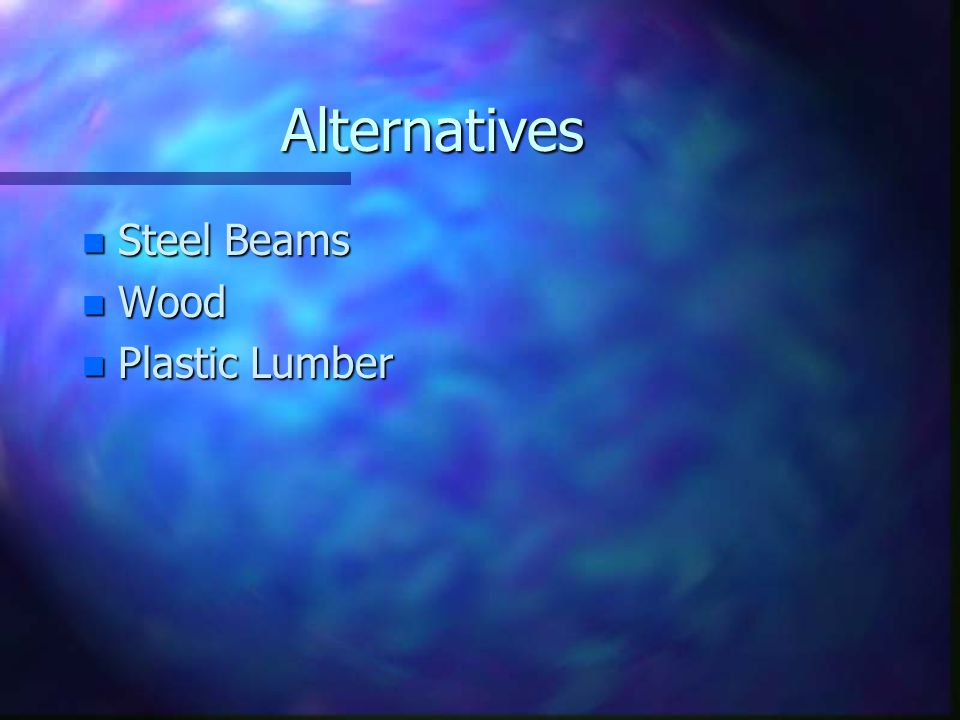

Alternatives n Steel Beams n Wood n Plastic Lumber

10

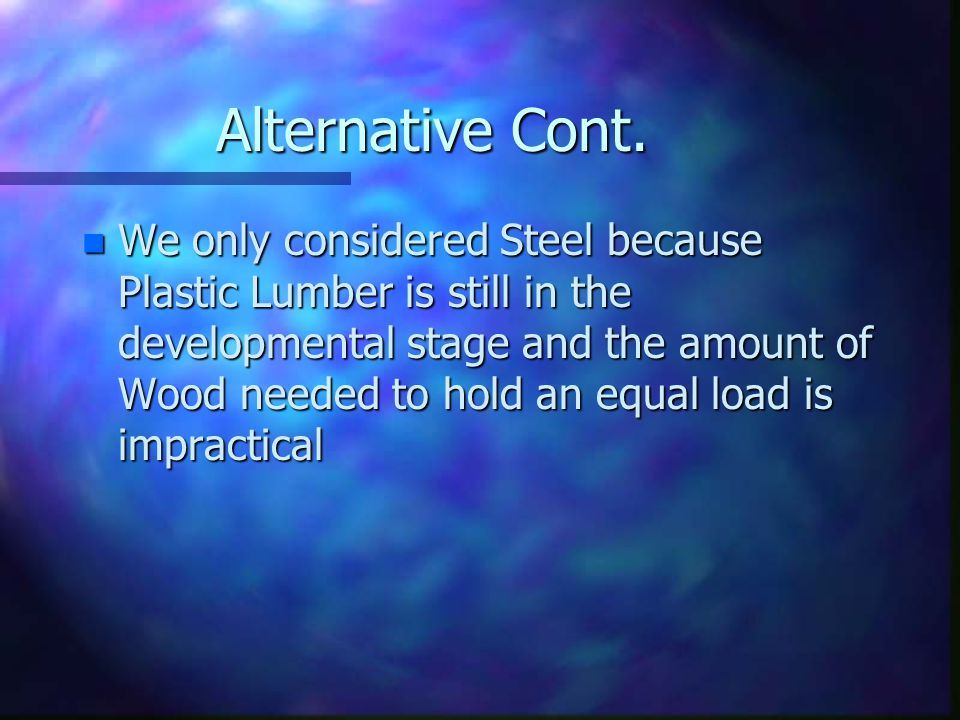

Alternative Cont. n We only considered Steel because Plastic Lumber is still in the developmental stage and the amount of Wood needed to hold an equal load is impractical

11

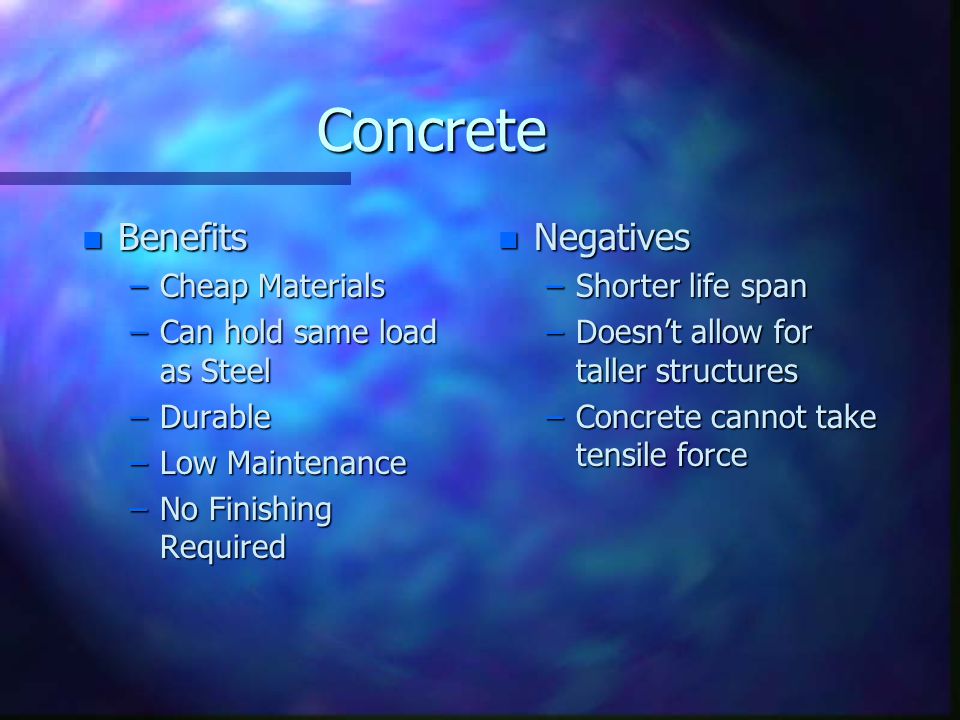

Concrete n Benefits –Cheap Materials –Can hold same load as Steel –Durable –Low Maintenance –No Finishing Required n Negatives –Shorter life span –Doesnt allow for taller structures –Concrete cannot take tensile force

12

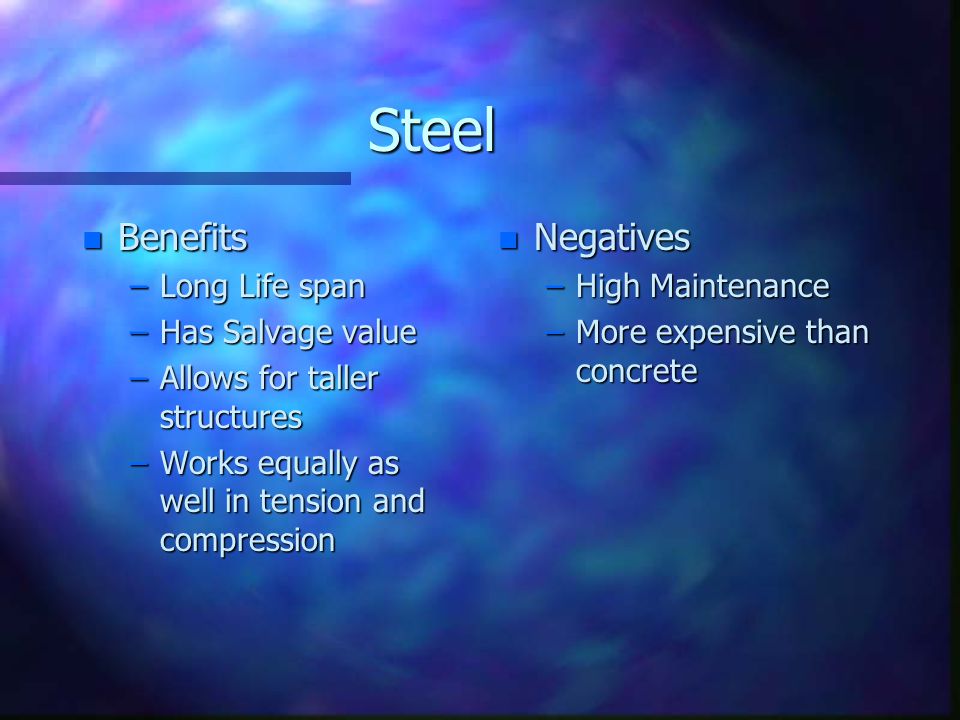

Steel n Benefits –Long Life span –Has Salvage value –Allows for taller structures –Works equally as well in tension and compression n Negatives –High Maintenance –More expensive than concrete

13

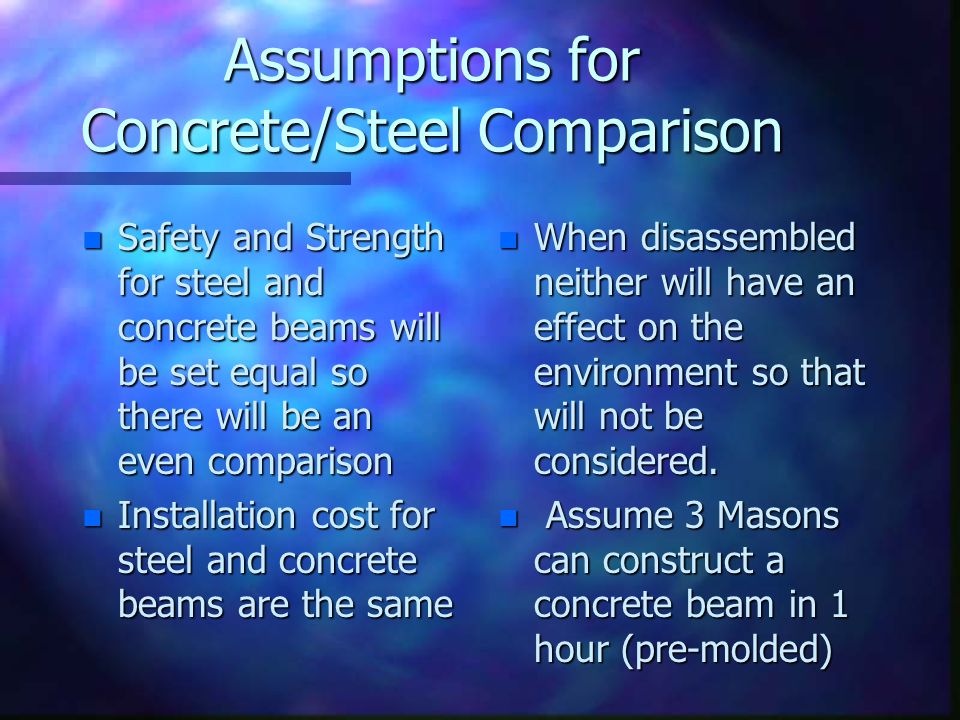

Assumptions for Concrete/Steel Comparison n Safety and Strength for steel and concrete beams will be set equal so there will be an even comparison n Installation cost for steel and concrete beams are the same n When disassembled neither will have an effect on the environment so that will not be considered. n Assume 3 Masons can construct a concrete beam in 1 hour (pre-molded)

14
Assumptions Cont. n Steel beam must be painted every 7 years or they will rust n We will terminate our economic comparison at 49 years so the study times will be equal n MARR 10% n The spreadsheet program assumes all steel is 60 ksi. n The price of steel is a national average. n The current recycling value of steel is $90.00/ton

15

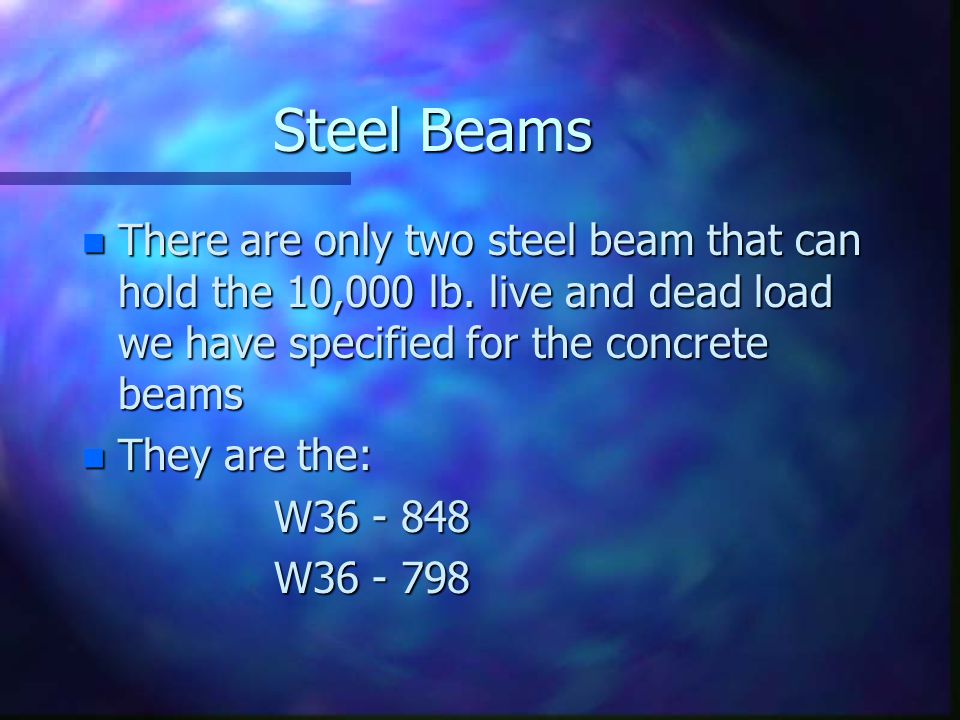

Steel Beams n There are only two steel beam that can hold the 10,000 lb. live and dead load we have specified for the concrete beams n They are the: W36 - 848 W36 - 798

16

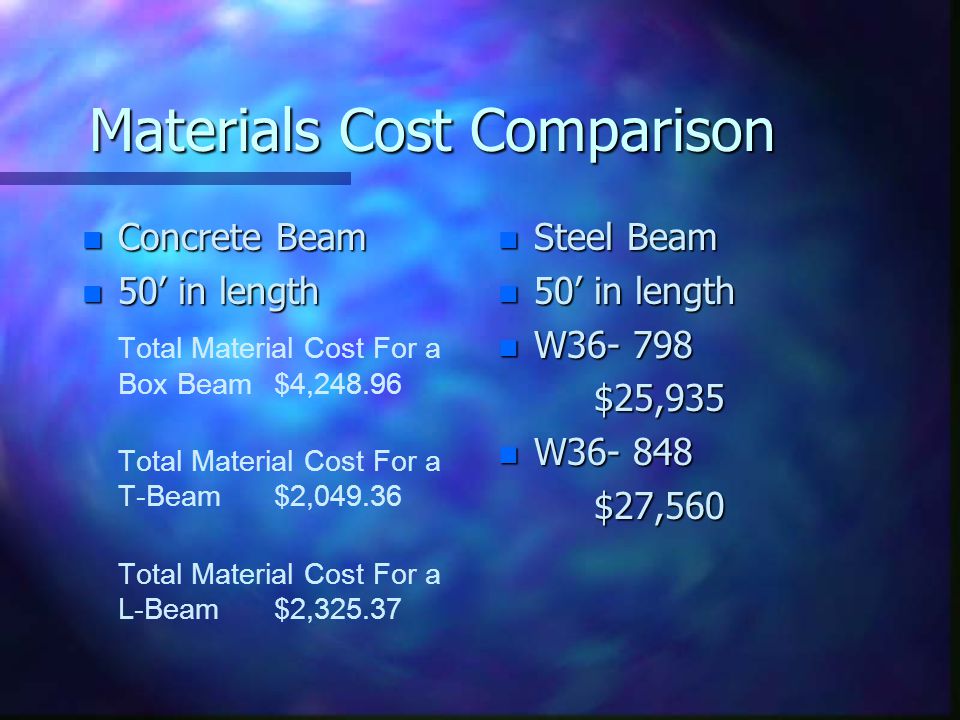

Materials Cost Comparison n Concrete Beam n 50 in length Total Material Cost For a Box Beam$4,248.96 Total Material Cost For a T-Beam$2,049.36 Total Material Cost For a L-Beam$2,325.37 n Steel Beam n 50 in length n W36- 798 $25,935 n W36- 848 $27,560

17

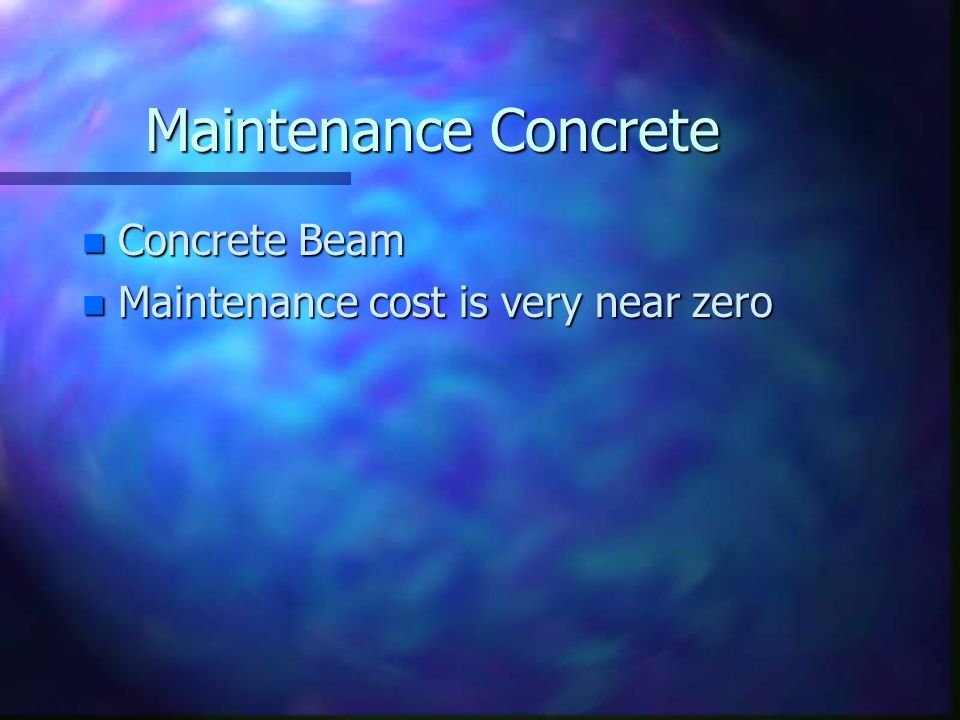

Maintenance Concrete n Concrete Beam n Maintenance cost is very near zero

18

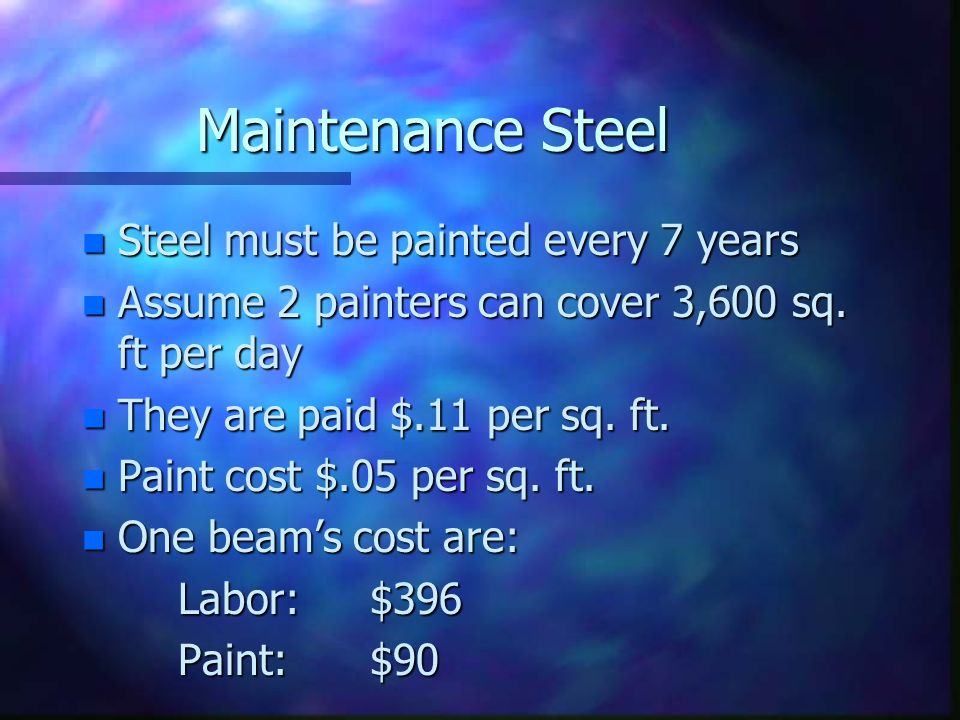

Maintenance Steel n Steel must be painted every 7 years n Assume 2 painters can cover 3,600 sq. ft per day n They are paid $.11 per sq. ft. n Paint cost $.05 per sq. ft. n One beams cost are: Labor:$396 Paint:$90

19

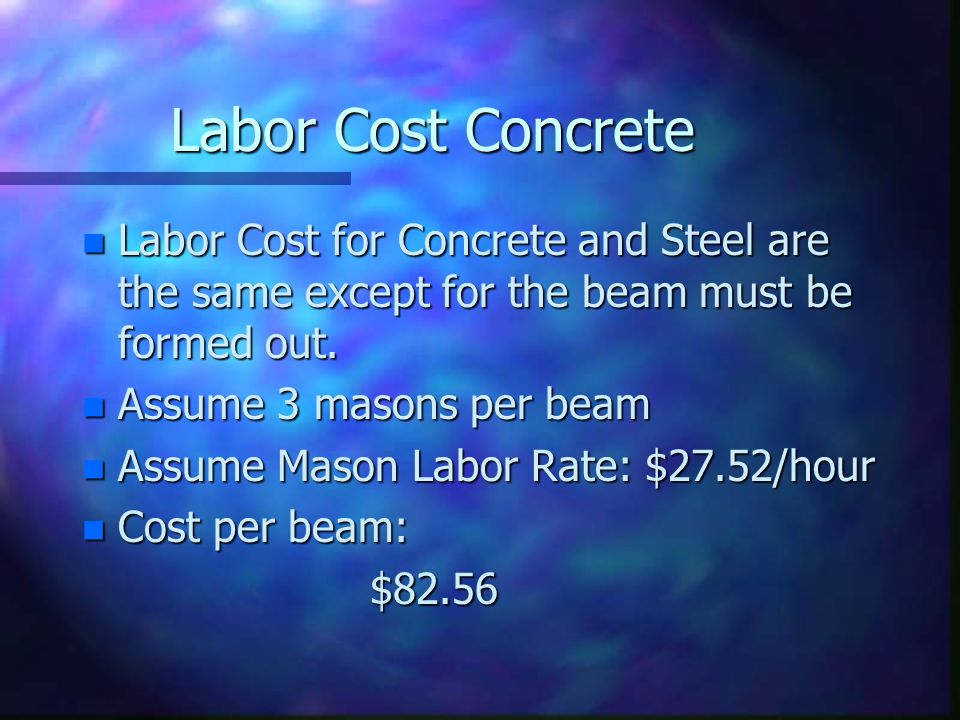

Labor Cost Concrete n Labor Cost for Concrete and Steel are the same except for the beam must be formed out. n Assume 3 masons per beam n Assume Mason Labor Rate: $27.52/hour n Cost per beam: $82.56

20
Salvage Value n Concrete n Concrete has salvage value of approximately zero n Steel n 50 Length n W36- 848 Salvage Value: $1908 n W36 - 798 Salvage Value: $1795.5

21

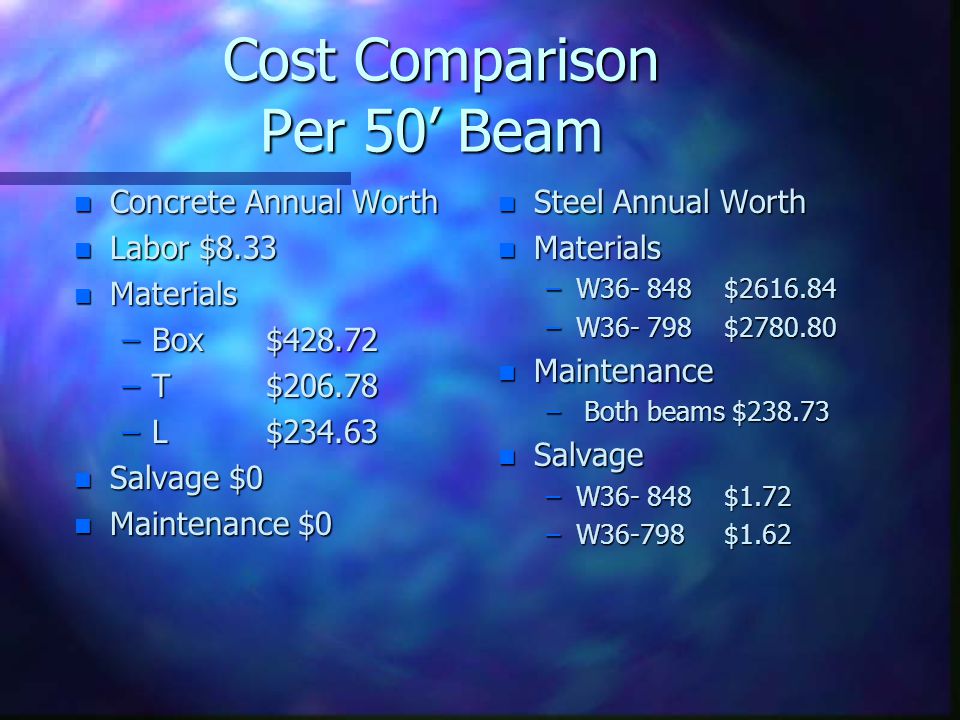

Cost Comparison Per 50 Beam Cost Comparison Per 50 Beam n Concrete Annual Worth n Labor $8.33 n Materials –Box$428.72 –T$206.78 –L$234.63 n Salvage $0 n Maintenance $0 n Steel Annual Worth n Materials –W36- 848 $2616.84 –W36- 798 $2780.80 n Maintenance – Both beams $238.73 n Salvage –W36- 848 $1.72 –W36-798 $1.62

22
Total Costs n Total Costs n Concrete –Box-$437 –T-$215.16 –L-$243 n Steel –W36- 848 -$3017.81 –W36- 798 - $2853.95

23
Conclusion n The main purpose of our project was to set up a Spreadsheet that calculates material prices for concrete beams n Although through comparison our recommendation would be for Concrete Beams
