Physics 6B Stress, Strain and Elastic Deformations Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

2
When a force is applied to an object, it will deform. If it snaps back to its original shape when the force is removed, then the deformation was ELASTIC. We already know about springs - remember Hookes Law : F spring = -kΔx Hookes Law is a special case of a more general rule involving stress and strain. The constant will depend on the material that the object is made from, and it is called an ELASTIC MODULUS. In the case of tension (stretching) or compression we will call it Youngs Modulus*. So our basic formula will be: *Bonus Question – who is this formula named for? Click here for the answerClick here for the answer Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

3
To use our formula we need to define what we mean by Stress and Strain. STRESS is the same idea as PRESSURE. In fact it is the same formula: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

4
To use our formula we need to define what we mean by Stress and Strain. STRESS is the same idea as PRESSURE. In fact it is the same formula: STRAIN is a measure of how much the object deforms. We divide the change in the length by the original length to get strain: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

5
To use our formula we need to define what we mean by Stress and Strain. STRESS is the same idea as PRESSURE. In fact it is the same formula: STRAIN is a measure of how much the object deforms. We divide the change in the length by the original length to get strain: Now we can put these together to get our formula for the Youngs Modulus: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

6

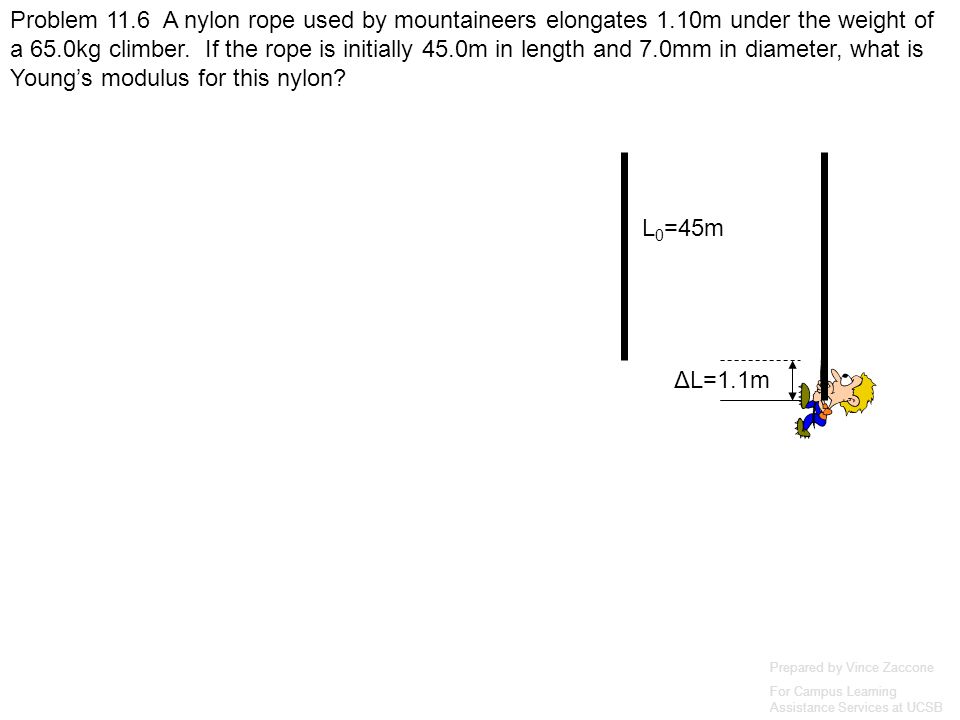

Problem 11.6 A nylon rope used by mountaineers elongates 1.10m under the weight of a 65.0kg climber. If the rope is initially 45.0m in length and 7.0mm in diameter, what is Youngs modulus for this nylon? Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

7
ΔL=1.1m L 0 =45m Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB Problem 11.6 A nylon rope used by mountaineers elongates 1.10m under the weight of a 65.0kg climber. If the rope is initially 45.0m in length and 7.0mm in diameter, what is Youngs modulus for this nylon?

8
ΔL=1.1m L 0 =45m A couple of quick calculations and we can just plug in to our formula: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB Problem 11.6 A nylon rope used by mountaineers elongates 1.10m under the weight of a 65.0kg climber. If the rope is initially 45.0m in length and 7.0mm in diameter, what is Youngs modulus for this nylon?

9
ΔL=1.1m L 0 =45m 7mm A couple of quick calculations and we can just plug in to our formula: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB Problem 11.6 A nylon rope used by mountaineers elongates 1.10m under the weight of a 65.0kg climber. If the rope is initially 45.0m in length and 7.0mm in diameter, what is Youngs modulus for this nylon? Dont forget to cut the diameter in half.

10
ΔL=1.1m L 0 =45m 7mm A couple of quick calculations and we can just plug in to our formula: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB Problem 11.6 A nylon rope used by mountaineers elongates 1.10m under the weight of a 65.0kg climber. If the rope is initially 45.0m in length and 7.0mm in diameter, what is Youngs modulus for this nylon? Dont forget to cut the diameter in half.

11

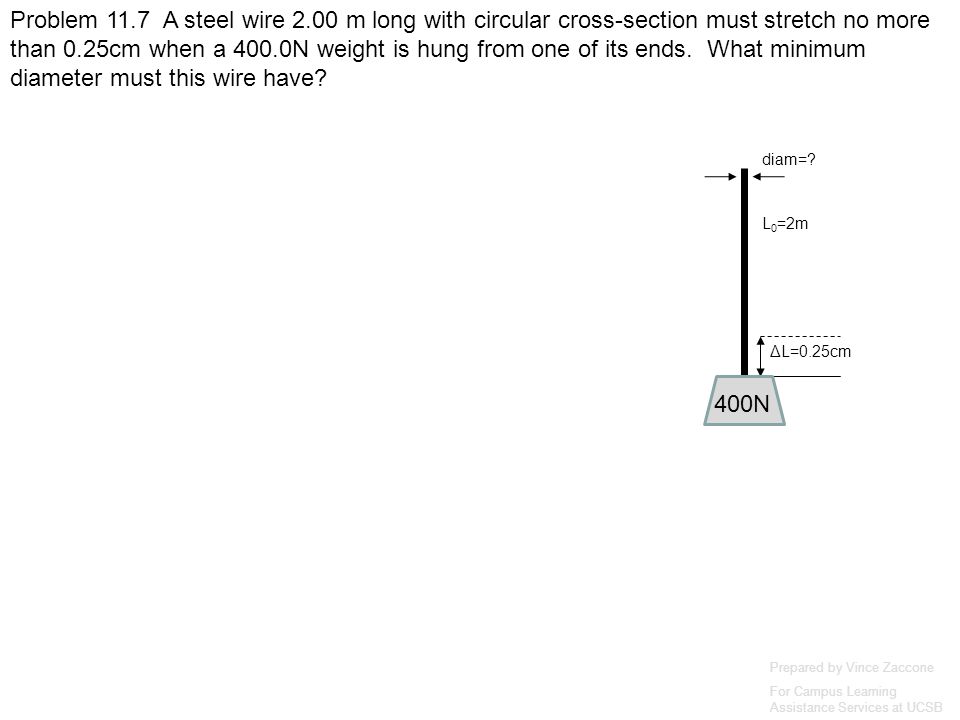

Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB Problem 11.7 A steel wire 2.00 m long with circular cross-section must stretch no more than 0.25cm when a 400.0N weight is hung from one of its ends. What minimum diameter must this wire have?

12
L 0 =2m ΔL=0.25cm 400N diam=? Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB Problem 11.7 A steel wire 2.00 m long with circular cross-section must stretch no more than 0.25cm when a 400.0N weight is hung from one of its ends. What minimum diameter must this wire have?

13
L 0 =2m ΔL=0.25cm 400N diam=? We have most of the information for our formula. We can look up Youngs modulus for steel in a table: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB Problem 11.7 A steel wire 2.00 m long with circular cross-section must stretch no more than 0.25cm when a 400.0N weight is hung from one of its ends. What minimum diameter must this wire have?

14
L 0 =2m ΔL=0.25cm 400N diam=? We have most of the information for our formula. We can look up Youngs modulus for steel in a table: The only piece missing is the area – we can rearrange the formula Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

15

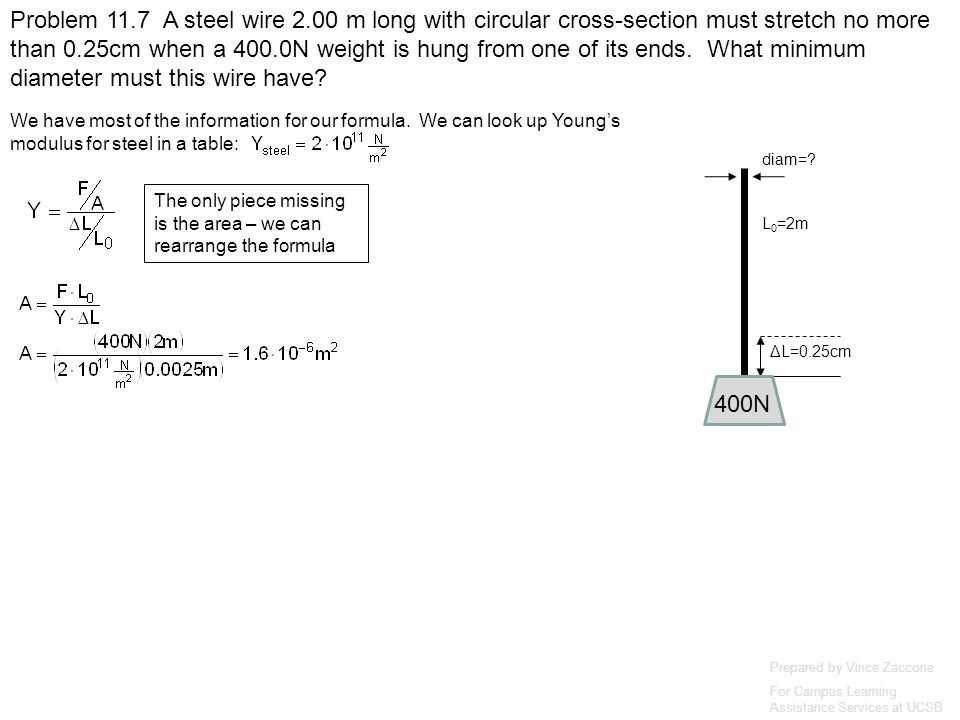

Problem 11.7 A steel wire 2.00 m long with circular cross-section must stretch no more than 0.25cm when a 400.0N weight is hung from one of its ends. What minimum diameter must this wire have? L 0 =2m ΔL=0.25cm 400N diam=? We have most of the information for our formula. We can look up Youngs modulus for steel in a table: The only piece missing is the area – we can rearrange the formula Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

16
L 0 =2m ΔL=0.25cm 400N diam=? We have most of the information for our formula. We can look up Youngs modulus for steel in a table: The only piece missing is the area – we can rearrange the formula Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB Problem 11.7 A steel wire 2.00 m long with circular cross-section must stretch no more than 0.25cm when a 400.0N weight is hung from one of its ends. What minimum diameter must this wire have?

17
L 0 =2m ΔL=0.25cm 400N diam=? We have most of the information for our formula. We can look up Youngs modulus for steel in a table: The only piece missing is the area – we can rearrange the formula One last step – we need the diameter, and we have the area: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB Problem 11.7 A steel wire 2.00 m long with circular cross-section must stretch no more than 0.25cm when a 400.0N weight is hung from one of its ends. What minimum diameter must this wire have?

18
L 0 =2m ΔL=0.25cm 400N diam=? We have most of the information for our formula. We can look up Youngs modulus for steel in a table: The only piece missing is the area – we can rearrange the formula One last step – we need the diameter, and we have the area: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB Problem 11.7 A steel wire 2.00 m long with circular cross-section must stretch no more than 0.25cm when a 400.0N weight is hung from one of its ends. What minimum diameter must this wire have?

19
L 0 =2m ΔL=0.25cm 400N diam=? We have most of the information for our formula. We can look up Youngs modulus for steel in a table: The only piece missing is the area – we can rearrange the formula One last step – we need the diameter, and we have the area: double the radius to get the diameter: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB Problem 11.7 A steel wire 2.00 m long with circular cross-section must stretch no more than 0.25cm when a 400.0N weight is hung from one of its ends. What minimum diameter must this wire have?

20

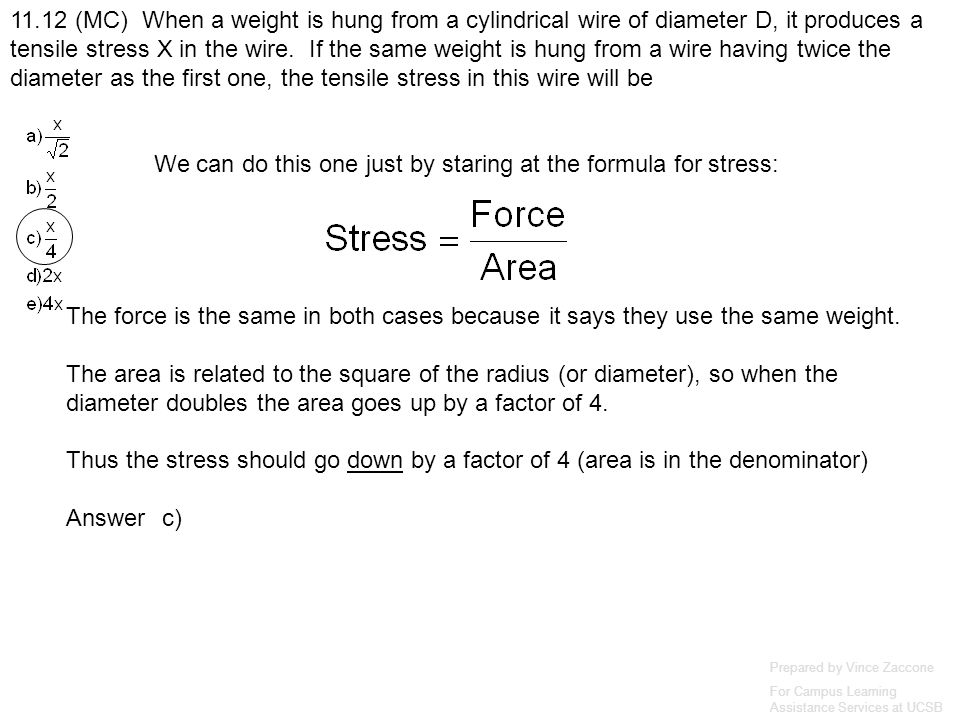

Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB 11.12 (MC) When a weight is hung from a cylindrical wire of diameter D, it produces a tensile stress X in the wire. If the same weight is hung from a wire having twice the diameter as the first one, the tensile stress in this wire will be

21
We can do this one just by staring at the formula for stress: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB 11.12 (MC) When a weight is hung from a cylindrical wire of diameter D, it produces a tensile stress X in the wire. If the same weight is hung from a wire having twice the diameter as the first one, the tensile stress in this wire will be

22
We can do this one just by staring at the formula for stress: The force is the same in both cases because it says they use the same weight. The area is related to the square of the radius (or diameter), so when the diameter doubles the area goes up by a factor of 4. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB 11.12 (MC) When a weight is hung from a cylindrical wire of diameter D, it produces a tensile stress X in the wire. If the same weight is hung from a wire having twice the diameter as the first one, the tensile stress in this wire will be

23
We can do this one just by staring at the formula for stress: The force is the same in both cases because it says they use the same weight. The area is related to the square of the radius (or diameter), so when the diameter doubles the area goes up by a factor of 4. Thus the stress should go down by a factor of 4 (area is in the denominator) Answerc) Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB
