1 ® ®®

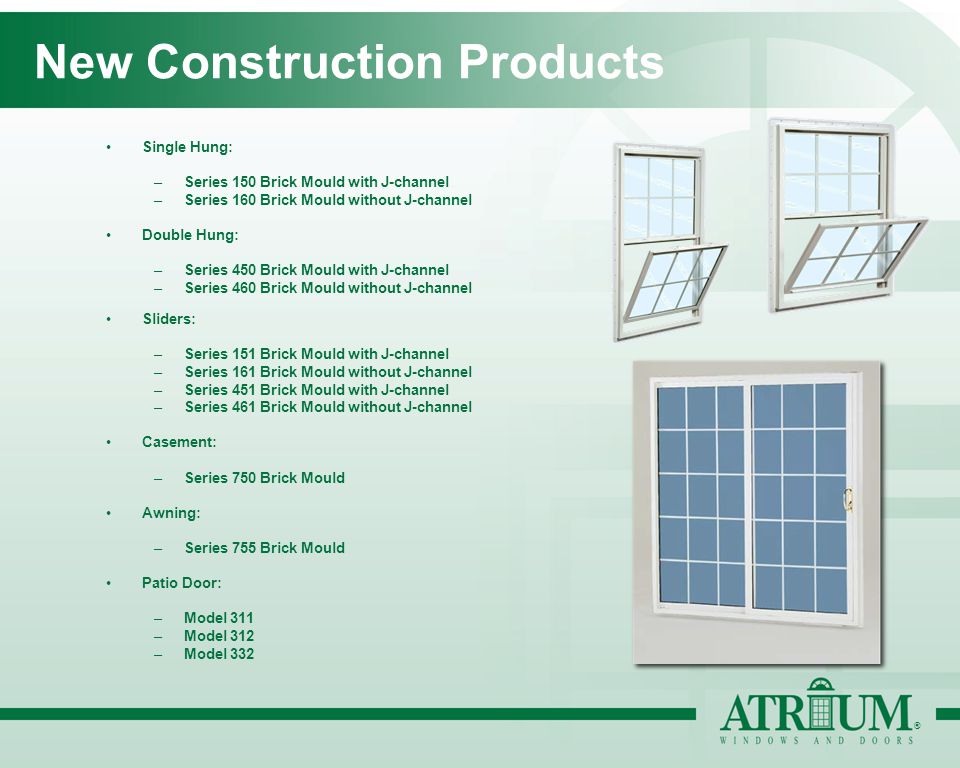

2 ® New Construction Products Single Hung: –Series 150 Brick Mould with J-channel –Series 160 Brick Mould without J-channel Double Hung: –Series 450 Brick Mould with J-channel –Series 460 Brick Mould without J-channel Sliders: –Series 151 Brick Mould with J-channel –Series 161 Brick Mould without J-channel –Series 451 Brick Mould with J-channel –Series 461 Brick Mould without J-channel Casement: –Series 750 Brick Mould Awning: –Series 755 Brick Mould Patio Door: –Model 311 –Model 312 –Model 332

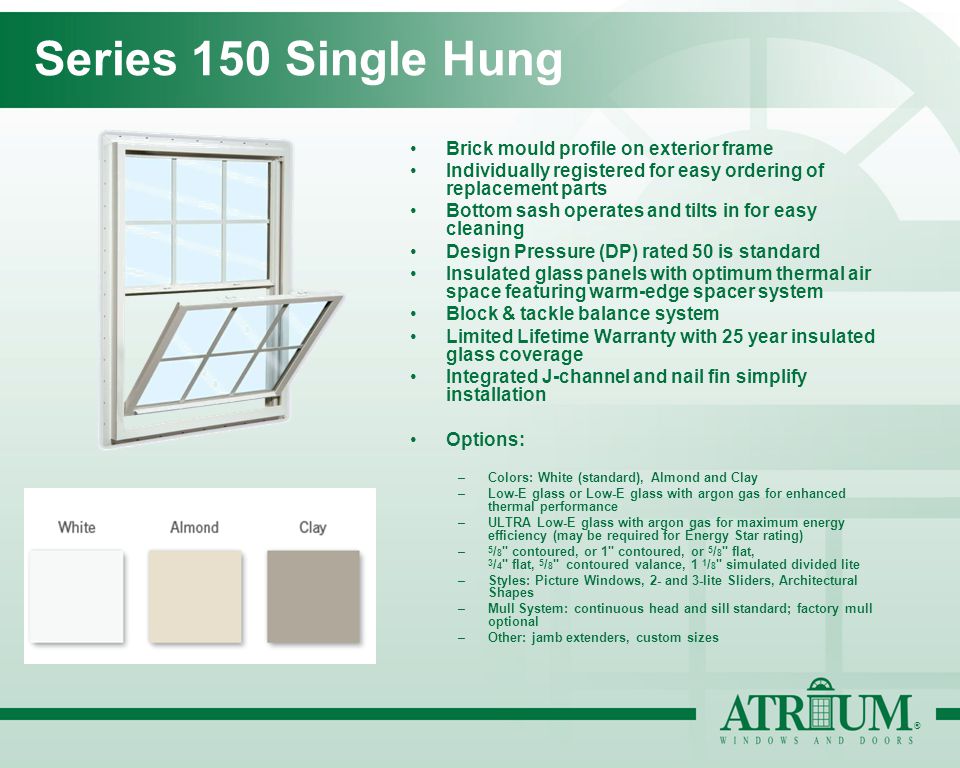

3 ® Series 150 Single Hung Brick mould profile on exterior frame Individually registered for easy ordering of replacement parts Bottom sash operates and tilts in for easy cleaning Design Pressure (DP) rated 50 is standard Insulated glass panels with optimum thermal air space featuring warm-edge spacer system Block & tackle balance system Limited Lifetime Warranty with 25 year insulated glass coverage Integrated J-channel and nail fin simplify installation Options: –Colors: White (standard), Almond and Clay –Low-E glass or Low-E glass with argon gas for enhanced thermal performance –ULTRA Low-E glass with argon gas for maximum energy efficiency (may be required for Energy Star rating) – 5 / 8 " contoured, or 1" contoured, or 5 / 8 " flat, 3 / 4 " flat, 5 / 8 " contoured valance, 1 1 / 8 " simulated divided lite –Styles: Picture Windows, 2- and 3-lite Sliders, Architectural Shapes –Mull System: continuous head and sill standard; factory mull optional –Other: jamb extenders, custom sizes

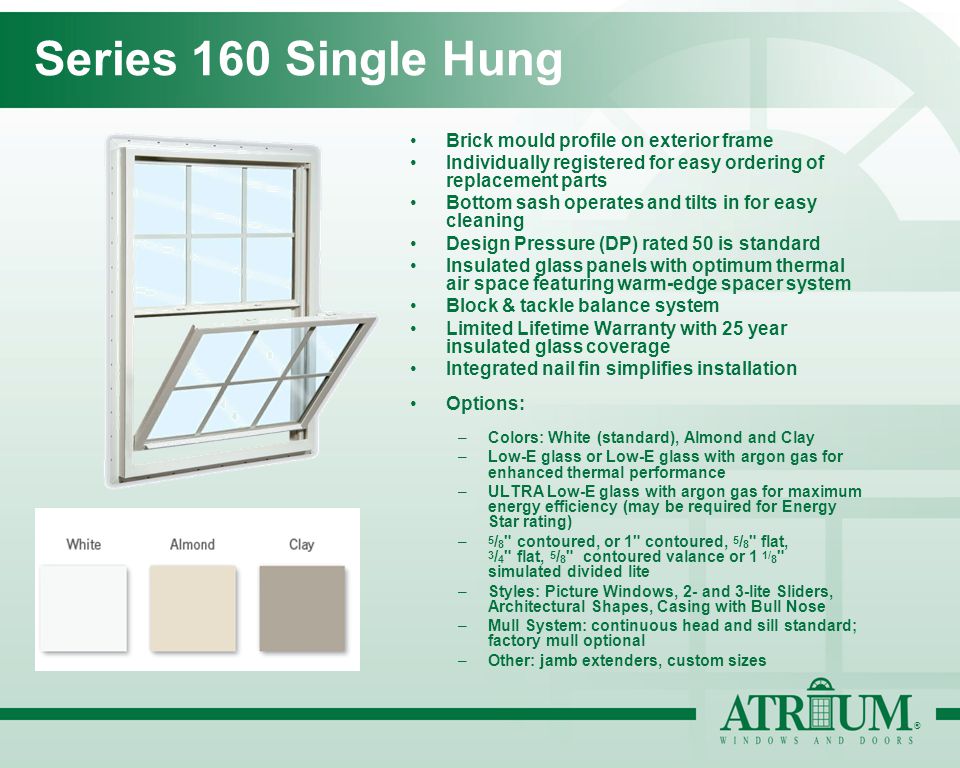

4 ® Series 160 Single Hung Brick mould profile on exterior frame Individually registered for easy ordering of replacement parts Bottom sash operates and tilts in for easy cleaning Design Pressure (DP) rated 50 is standard Insulated glass panels with optimum thermal air space featuring warm-edge spacer system Block & tackle balance system Limited Lifetime Warranty with 25 year insulated glass coverage Integrated nail fin simplifies installation Options: –Colors: White (standard), Almond and Clay –Low-E glass or Low-E glass with argon gas for enhanced thermal performance –ULTRA Low-E glass with argon gas for maximum energy efficiency (may be required for Energy Star rating) – 5 / 8 " contoured, or 1" contoured, 5 / 8 " flat, 3 / 4 " flat, 5 / 8 " contoured valance or 1 1/ 8 " simulated divided lite –Styles: Picture Windows, 2- and 3-lite Sliders, Architectural Shapes, Casing with Bull Nose –Mull System: continuous head and sill standard; factory mull optional –Other: jamb extenders, custom sizes

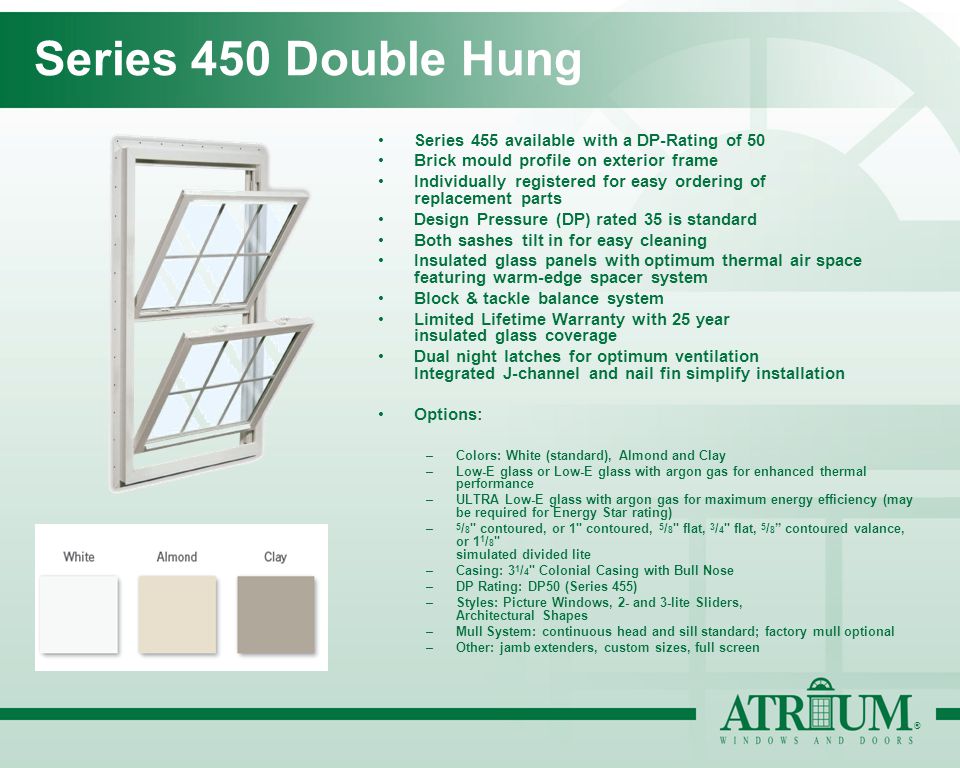

5 ® Series 450 Double Hung Series 455 available with a DP-Rating of 50 Brick mould profile on exterior frame Individually registered for easy ordering of replacement parts Design Pressure (DP) rated 35 is standard Both sashes tilt in for easy cleaning Insulated glass panels with optimum thermal air space featuring warm-edge spacer system Block & tackle balance system Limited Lifetime Warranty with 25 year insulated glass coverage Dual night latches for optimum ventilation Integrated J-channel and nail fin simplify installation Options: –Colors: White (standard), Almond and Clay –Low-E glass or Low-E glass with argon gas for enhanced thermal performance –ULTRA Low-E glass with argon gas for maximum energy efficiency (may be required for Energy Star rating) – 5 / 8 " contoured, or 1" contoured, 5 / 8 " flat, 3 / 4 " flat, 5 / 8 contoured valance, or 1 1 / 8 " simulated divided lite –Casing: 3 1 / 4 " Colonial Casing with Bull Nose –DP Rating: DP50 (Series 455) –Styles: Picture Windows, 2- and 3-lite Sliders, Architectural Shapes –Mull System: continuous head and sill standard; factory mull optional –Other: jamb extenders, custom sizes, full screen

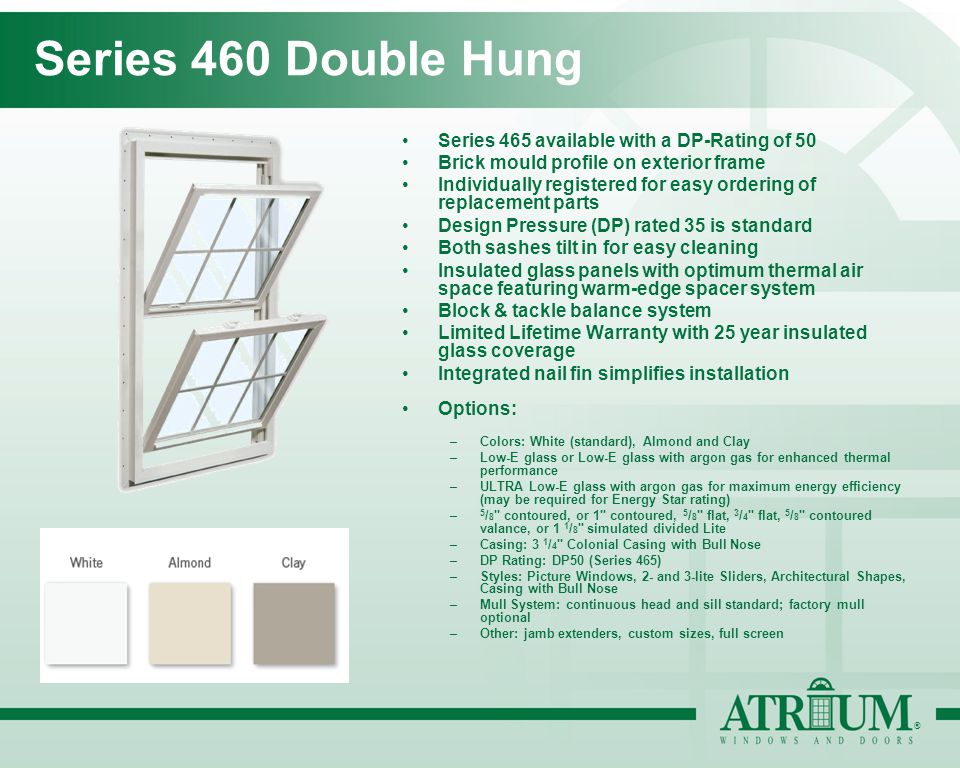

6 ® Series 460 Double Hung Series 465 available with a DP-Rating of 50 Brick mould profile on exterior frame Individually registered for easy ordering of replacement parts Design Pressure (DP) rated 35 is standard Both sashes tilt in for easy cleaning Insulated glass panels with optimum thermal air space featuring warm-edge spacer system Block & tackle balance system Limited Lifetime Warranty with 25 year insulated glass coverage Integrated nail fin simplifies installation Options: –Colors: White (standard), Almond and Clay –Low-E glass or Low-E glass with argon gas for enhanced thermal performance –ULTRA Low-E glass with argon gas for maximum energy efficiency (may be required for Energy Star rating) – 5 / 8 " contoured, or 1" contoured, 5 / 8 " flat, 3 / 4 " flat, 5 / 8 " contoured valance, or 1 1 / 8 " simulated divided Lite –Casing: 3 1 / 4 " Colonial Casing with Bull Nose –DP Rating: DP50 (Series 465) –Styles: Picture Windows, 2- and 3-lite Sliders, Architectural Shapes, Casing with Bull Nose –Mull System: continuous head and sill standard; factory mull optional –Other: jamb extenders, custom sizes, full screen

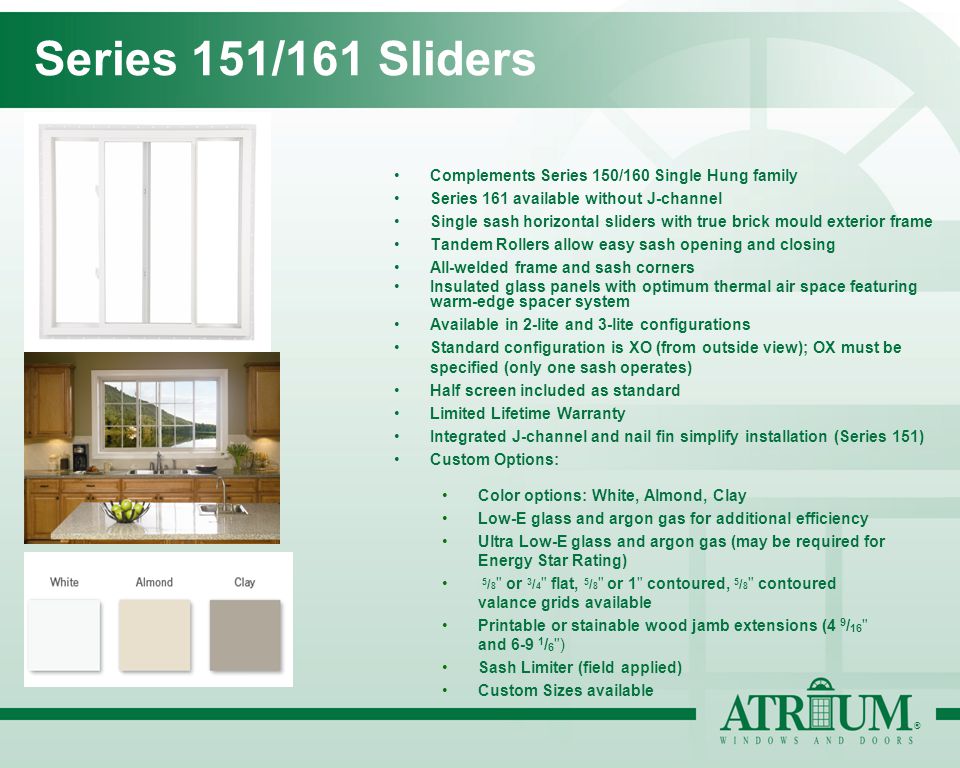

7 ® Series 151/161 Sliders Complements Series 150/160 Single Hung family Series 161 available without J-channel Single sash horizontal sliders with true brick mould exterior frame Tandem Rollers allow easy sash opening and closing All-welded frame and sash corners Insulated glass panels with optimum thermal air space featuring warm-edge spacer system Available in 2-lite and 3-lite configurations Standard configuration is XO (from outside view); OX must be specified (only one sash operates) Half screen included as standard Limited Lifetime Warranty Integrated J-channel and nail fin simplify installation (Series 151) Custom Options: Color options: White, Almond, Clay Low-E glass and argon gas for additional efficiency Ultra Low-E glass and argon gas (may be required for Energy Star Rating) 5 / 8 " or 3 / 4 " flat, 5 / 8 " or 1" contoured, 5 / 8 " contoured valance grids available Printable or stainable wood jamb extensions (4 9 / 16 " and / 6 ") Sash Limiter (field applied) Custom Sizes available

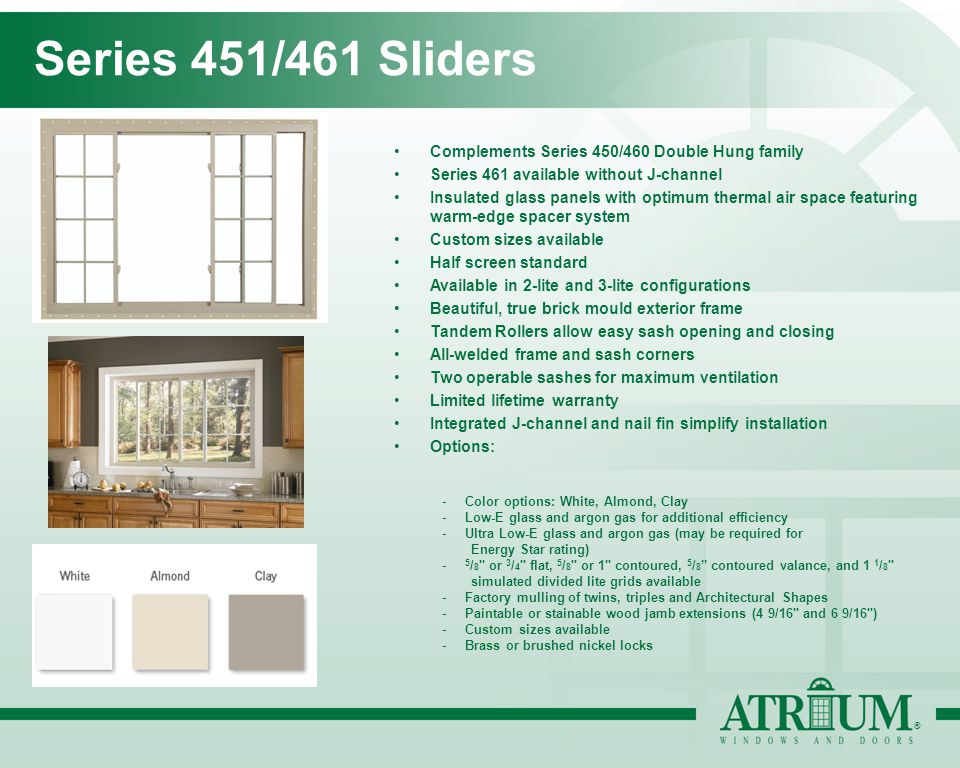

8 ® Series 451/461 Sliders Complements Series 450/460 Double Hung family Series 461 available without J-channel Insulated glass panels with optimum thermal air space featuring warm-edge spacer system Custom sizes available Half screen standard Available in 2-lite and 3-lite configurations Beautiful, true brick mould exterior frame Tandem Rollers allow easy sash opening and closing All-welded frame and sash corners Two operable sashes for maximum ventilation Limited lifetime warranty Integrated J-channel and nail fin simplify installation Options: - Color options: White, Almond, Clay - Low-E glass and argon gas for additional efficiency - Ultra Low-E glass and argon gas (may be required for Energy Star rating) - 5 / 8 " or 3 / 4 " flat, 5 / 8 " or 1" contoured, 5 / 8 contoured valance, and 1 1 / 8 " simulated divided lite grids available - Factory mulling of twins, triples and Architectural Shapes - Paintable or stainable wood jamb extensions (4 9/16" and 6 9/16") - Custom sizes available - Brass or brushed nickel locks

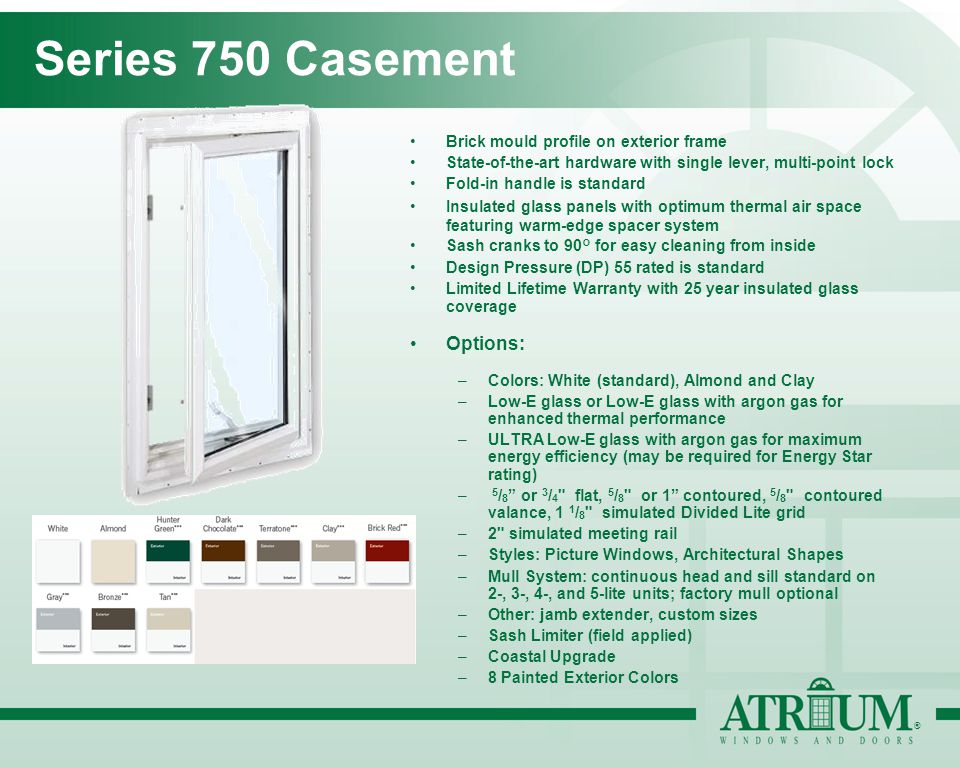

9 ® Series 750 Casement Brick mould profile on exterior frame State-of-the-art hardware with single lever, multi-point lock Fold-in handle is standard Insulated glass panels with optimum thermal air space featuring warm-edge spacer system Sash cranks to 90° for easy cleaning from inside Design Pressure (DP) 55 rated is standard Limited Lifetime Warranty with 25 year insulated glass coverage Options: –Colors: White (standard), Almond and Clay –Low-E glass or Low-E glass with argon gas for enhanced thermal performance –ULTRA Low-E glass with argon gas for maximum energy efficiency (may be required for Energy Star rating) – 5 / 8 or 3 / 4 " flat, 5 / 8 " or 1 contoured, 5 / 8 " contoured valance, 1 1 / 8 " simulated Divided Lite grid –2" simulated meeting rail –Styles: Picture Windows, Architectural Shapes –Mull System: continuous head and sill standard on 2-, 3-, 4-, and 5-lite units; factory mull optional –Other: jamb extender, custom sizes –Sash Limiter (field applied) –Coastal Upgrade –8 Painted Exterior Colors

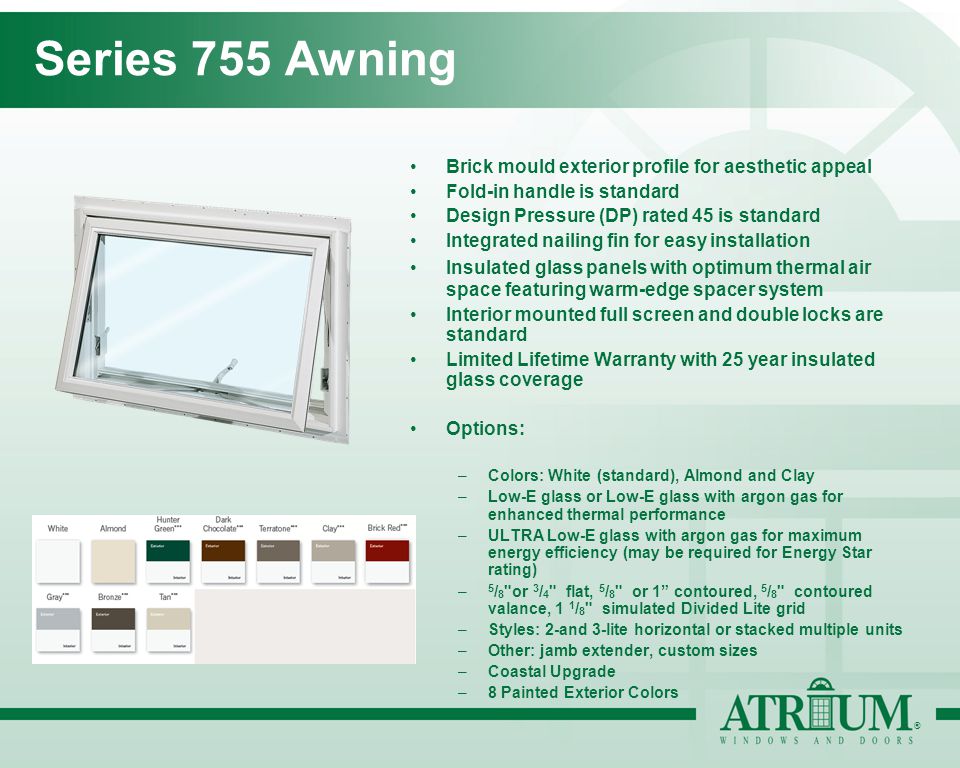

10 ® Series 755 Awning Brick mould exterior profile for aesthetic appeal Fold-in handle is standard Design Pressure (DP) rated 45 is standard Integrated nailing fin for easy installation Insulated glass panels with optimum thermal air space featuring warm-edge spacer system Interior mounted full screen and double locks are standard Limited Lifetime Warranty with 25 year insulated glass coverage Options: –Colors: White (standard), Almond and Clay –Low-E glass or Low-E glass with argon gas for enhanced thermal performance –ULTRA Low-E glass with argon gas for maximum energy efficiency (may be required for Energy Star rating) – 5 / 8 "or 3 / 4 " flat, 5 / 8 " or 1 contoured, 5 / 8 " contoured valance, 1 1 / 8 " simulated Divided Lite grid –Styles: 2-and 3-lite horizontal or stacked multiple units –Other: jamb extender, custom sizes –Coastal Upgrade –8 Painted Exterior Colors

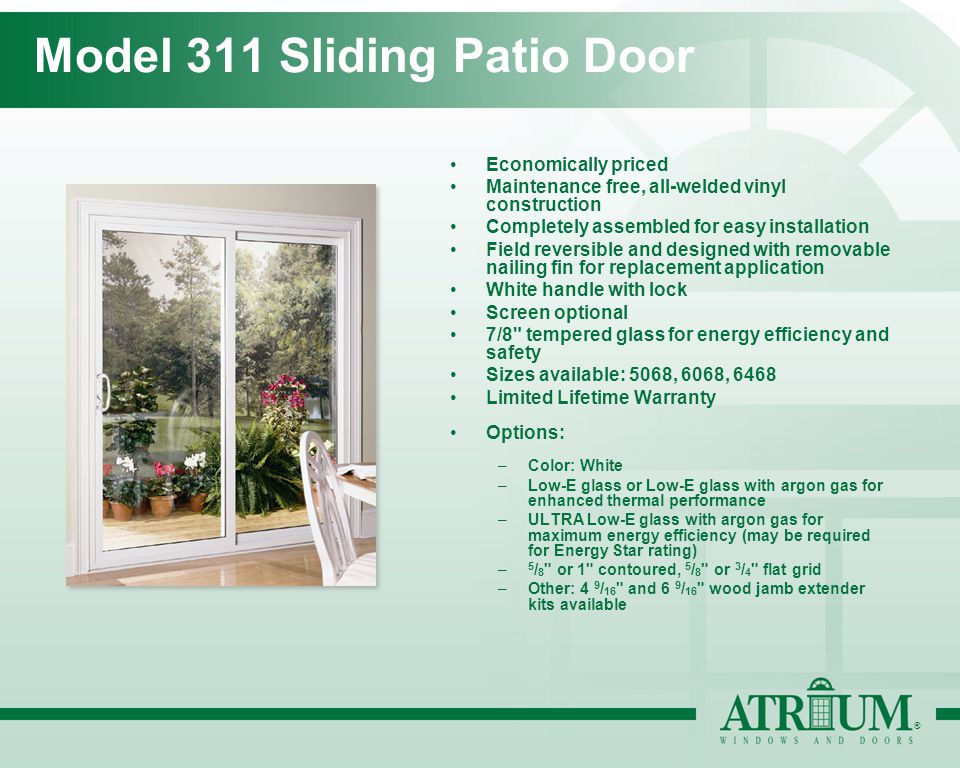

11 ® Model 311 Sliding Patio Door Economically priced Maintenance free, all-welded vinyl construction Completely assembled for easy installation Field reversible and designed with removable nailing fin for replacement application White handle with lock Screen optional 7/8" tempered glass for energy efficiency and safety Sizes available: 5068, 6068, 6468 Limited Lifetime Warranty Options: –Color: White –Low-E glass or Low-E glass with argon gas for enhanced thermal performance –ULTRA Low-E glass with argon gas for maximum energy efficiency (may be required for Energy Star rating) – 5 / 8 " or 1" contoured, 5 / 8 " or 3 / 4 " flat grid –Other: 4 9 / 16 " and 6 9 / 16 " wood jamb extender kits available

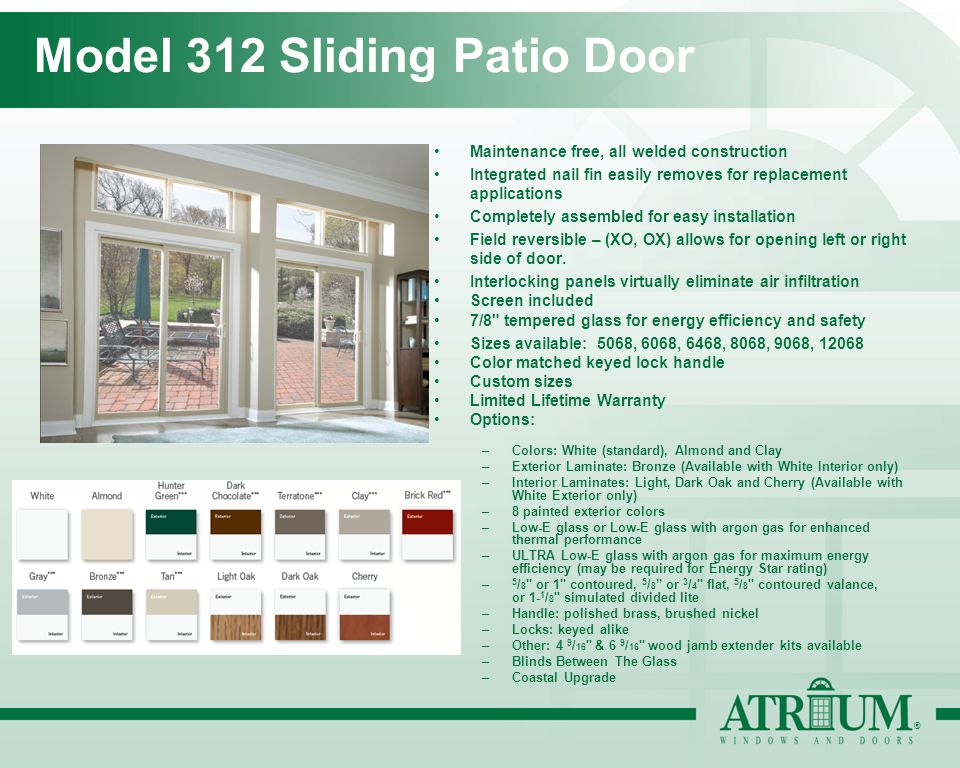

12 ® Model 312 Sliding Patio Door Maintenance free, all welded construction Integrated nail fin easily removes for replacement applications Completely assembled for easy installation Field reversible – (XO, OX) allows for opening left or right side of door. Interlocking panels virtually eliminate air infiltration Screen included 7/8" tempered glass for energy efficiency and safety Sizes available: 5068, 6068, 6468, 8068, 9068, Color matched keyed lock handle Custom sizes Limited Lifetime Warranty Options: –Colors: White (standard), Almond and Clay –Exterior Laminate: Bronze (Available with White Interior only) –Interior Laminates: Light, Dark Oak and Cherry (Available with White Exterior only) –8 painted exterior colors –Low-E glass or Low-E glass with argon gas for enhanced thermal performance –ULTRA Low-E glass with argon gas for maximum energy efficiency (may be required for Energy Star rating) – 5 / 8 " or 1" contoured, 5 / 8 or 3 / 4 " flat, 5 / 8 " contoured valance, or 1- 1 / 8 " simulated divided lite –Handle: polished brass, brushed nickel –Locks: keyed alike –Other: 4 9 / 16 " & 6 9 / 16 " wood jamb extender kits available –Blinds Between The Glass –Coastal Upgrade

13 ® Model 332 Sliding Patio Door DP 50 rating (5068 and 6068 models) – excellent structural integrity for strict coastal building requirements Maintenance free, all-welded vinyl construction 4 9/16" jamb depth Designed with nailing fin for new construction application Completely assembled for easy installation Field reversible – {XO, OX} allows for opening from left or right side of door Interlocking panels virtually eliminate air infiltration Heavy duty screen included 7/8" tempered glass for energy efficiency and safety Sizes available: 5068, 6068, 6468, 8068, 9068, 12068, 5080, 6080, 6480 Color matched keyed lock handle with dual point locking mechanism Custom sizes Limited lifetime warranty Options: –Colors: White (standard), Almond and Clay –Interior Laminates: Light, Dark Oak and Cherry (Available with White Exterior only) –Exterior Laminate: Bronze (available with white interior only) –8 painted exterior colors –Low-E glass or Low-E glass with argon gas for enhanced thermal performance –ULTRA Low-E glass with argon gas for maximum energy efficiency (may be required for Energy Star rating) – 5 / 8 " contoured, or 1" contoured, 5 / 8 " flat 3 / 4 " flat or 1- 1 / 8 " simulated divided lite –Handle: polished brass, brushed nickel –Locks: keyed alike –Other: 4 9 / 16 " & 6 9 / 16 " wood jamb extender kits available –Blinds Between The Glass –Coastal Upgrade Exclusive Options: –Foot bolt lock –Field applied flat or brick mould J-channel

14 ® Blinds Between The Glass Option for Series 312 and 332 Vinyl Sliding Patio Doors Sealed between the glass, blinds easily tilt and raise with easy-access controls No more snags or tangled cords, and glass is easy to clean Schlage compatible keyed lock Operating panel easily opens and closes Nail fin removes for easy replacement applications Screen included Limited Lifetime Warranty Color options: White; interior and exterior laminates; 8 painted colors (6068 only) Note: blinds, operators, and glass panels available in white only

15 ® ®
