1 st CoSACNet Meeting Neil McCartney NPL Materials Centre National Physical Laboratory, UK Southampton University, 30 January 2001 Design tools for composites

2
Definition of design ? u Selection of materials, geometry, loading modes and limits so that products meet specified performance criteria e.g. è deflections within specification è failure loads in excess of maximum expected load during service è avoidance of microstructural damage ( ply cracks / delaminations ) è lifetimes ( cycles / time ) in excess of specification u Design is quantitative and based on mathematical models that adequately represent behaviour è semi-empirical / phenomenological relationships è analytical formulae ( from Hookes law to complex analyses ) è finite element or boundary element analysis

3

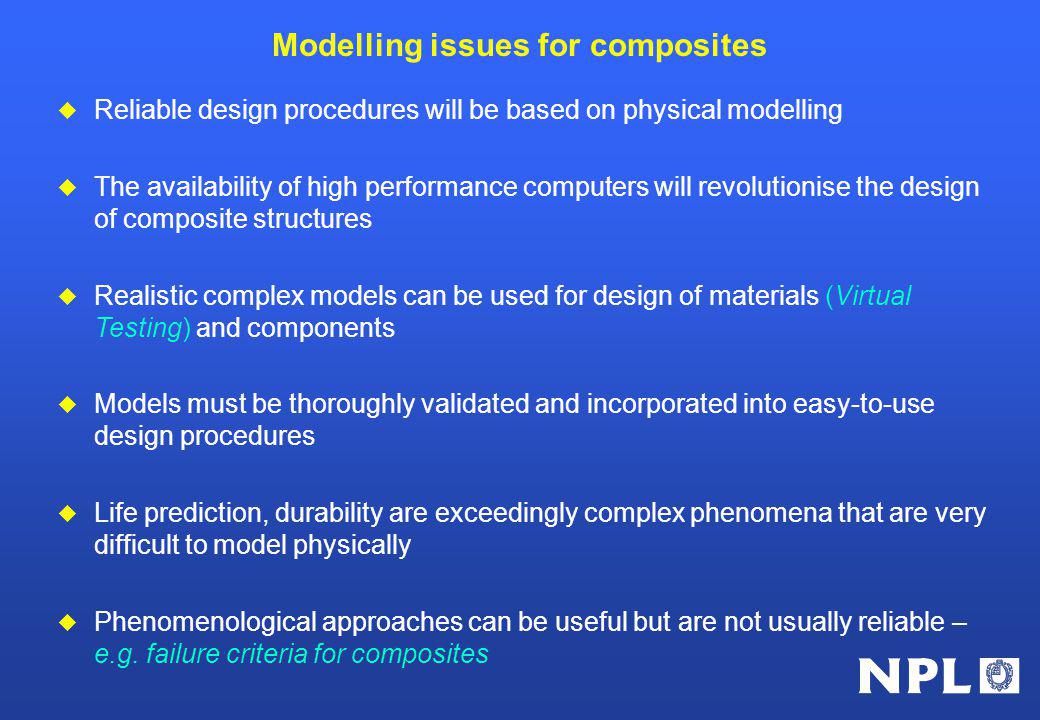

Modelling issues for composites u Reliable design procedures will be based on physical modelling u The availability of high performance computers will revolutionise the design of composite structures u Realistic complex models can be used for design of materials (Virtual Testing) and components u Models must be thoroughly validated and incorporated into easy-to-use design procedures u Life prediction, durability are exceedingly complex phenomena that are very difficult to model physically u Phenomenological approaches can be useful but are not usually reliable – e.g. failure criteria for composites

4
Conventional failure criteria u phenomenological in nature - no physics ! è based on invariance requirements u applied to stress states for composite structures where no damage has been allowed for u not easily applied to environmentally or fatigue damaged composites Tsai - Wu (1971) Physically based models are needed !

5

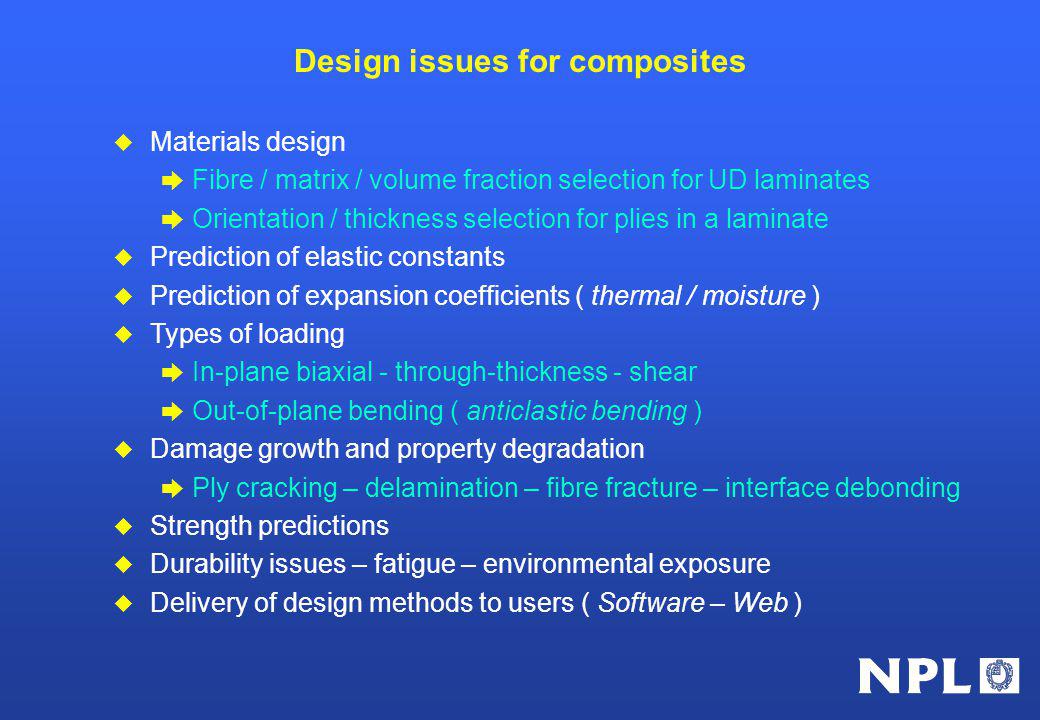

Design issues for composites u Materials design è Fibre / matrix / volume fraction selection for UD laminates è Orientation / thickness selection for plies in a laminate u Prediction of elastic constants u Prediction of expansion coefficients ( thermal / moisture ) u Types of loading è In-plane biaxial - through-thickness - shear è Out-of-plane bending ( anticlastic bending ) u Damage growth and property degradation è Ply cracking – delamination – fibre fracture – interface debonding u Strength predictions u Durability issues – fatigue – environmental exposure u Delivery of design methods to users ( Software – Web )

6
Delivering design tools to users Commercial systems LAP and CoDA UK Composite Design Toolset ( DERA, AEAT, NPL, SER Systems Ltd ) Web-based design tools – E-mail communication Smart design manuals

7
CoDA for Component and Composite Design Analysis Version 3 Graham D Sims and Bill Broughton NPL Materials Centre National Physical Laboratory, UK CoDA A commercially supported package

8

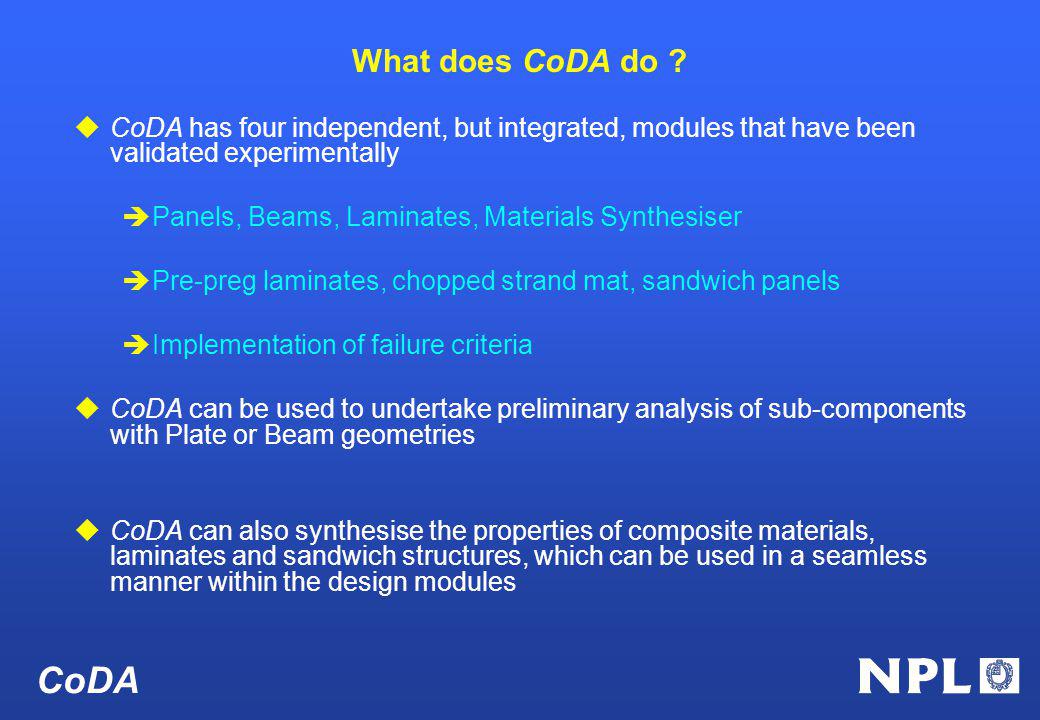

What does CoDA do ? uCoDA has four independent, but integrated, modules that have been validated experimentally èPanels, Beams, Laminates, Materials Synthesiser èPre-preg laminates, chopped strand mat, sandwich panels èImplementation of failure criteria uCoDA can be used to undertake preliminary analysis of sub-components with Plate or Beam geometries uCoDA can also synthesise the properties of composite materials, laminates and sandwich structures, which can be used in a seamless manner within the design modules CoDA

13
UK Composite Design Toolset A collaboration between DERA, UKAEA & NPL Integrated toolbox comprising modules that can exchange data & results PC008A/15A – DERA – Micromechanics, LPT, 2D/3D GENLAM – DERA – Non-linear LPT – thermal stresses – scissoring CCSM – Cambridge, IC, DERA – Micromechanics + LPT – unnotched & notched failure PREDICT – NPL – progressive damage modelling in laminates LAMFAIL – UMIST, DERA progressive damage with empirical model – nonlinear scissoring – complex load histories A global data base of materials properties – links to other systems

14
PREDICT - Design objectives u Predict properties of UD composites from properties of fibre and matrix u Predict in-plane properties of general symmetric laminates u Predict initial formation of fully developed ply cracks in a general symmetric laminates subject to general in-plane loading and thermal residual stresses ( in fatigue loading designers will want to avoid damage ) u Predict progressive degradation of thermo-elastic constants as a function of applied stress or strain ( strain softening rules needed for FEA analyses ) u Predict effects on damage resistance of varying orientations and thicknesses of plies in a laminate u Predict effects of temperature changes on ply crack formation ( investigate thermal cracking during manufacture, or cooling )

15
Designing composites from fibre and matrix level Predicting ply properties – validation Predicting laminate properties Delaying damage formation during loading PREDICT

16
Ply geometry and location of ply cracks 2L Ply 1Ply 2Ply3Ply 4 - 45 o 90 o 0o0o 0o0o - 45 o 45 o Quasi - isotropic laminates

17
45 o - 45 o 90 o 0o0o Ply crack

19
GRP : Predicted from fibre/matrix properties Experimental data : Lodiero & Broughton, NPL, 2000

20
Stress - strain relations for damaged laminate is a label denoting the presence of some form of damage in the laminate defined by a set of other parameters Same form as those for an undamaged laminate Validity confirmed by accurate stress analysis

21
Degradation of properties of laminates Damage parameter : k, k and k 1 are easily calculated using CLT Thermo-elastic constants for damaged laminates :

22
Continuum damage mechanics (CDM) Stress - strain relation = S where Damage parameters d 1, d 2 and d 3 are such that

23

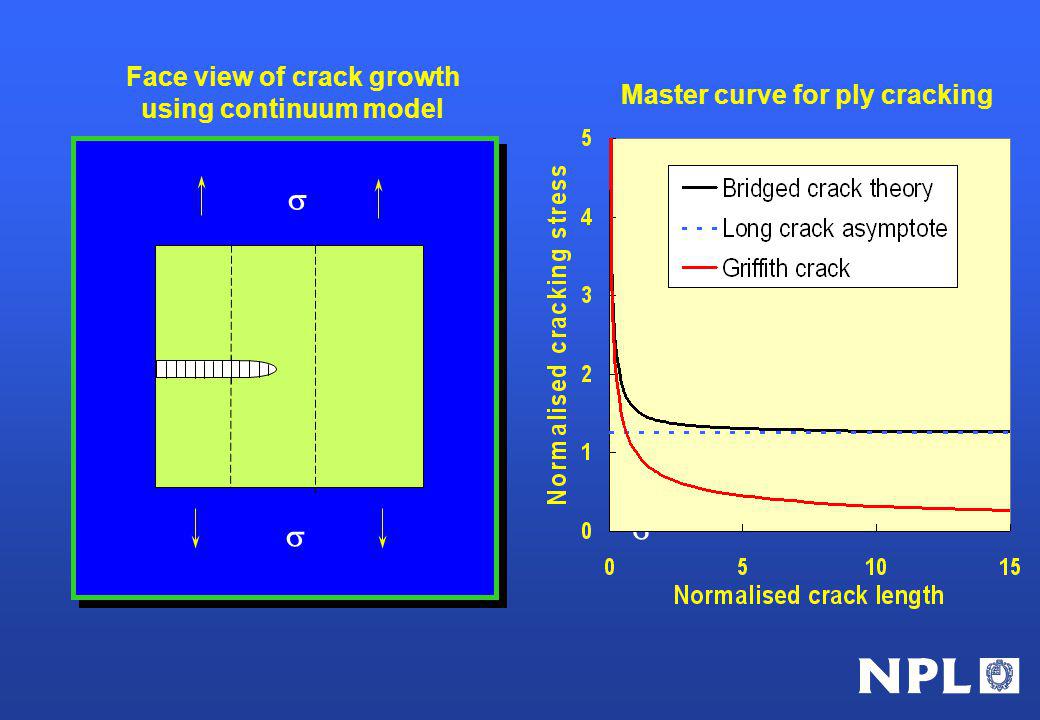

Face view of crack growth using continuum model Master curve for ply cracking

24

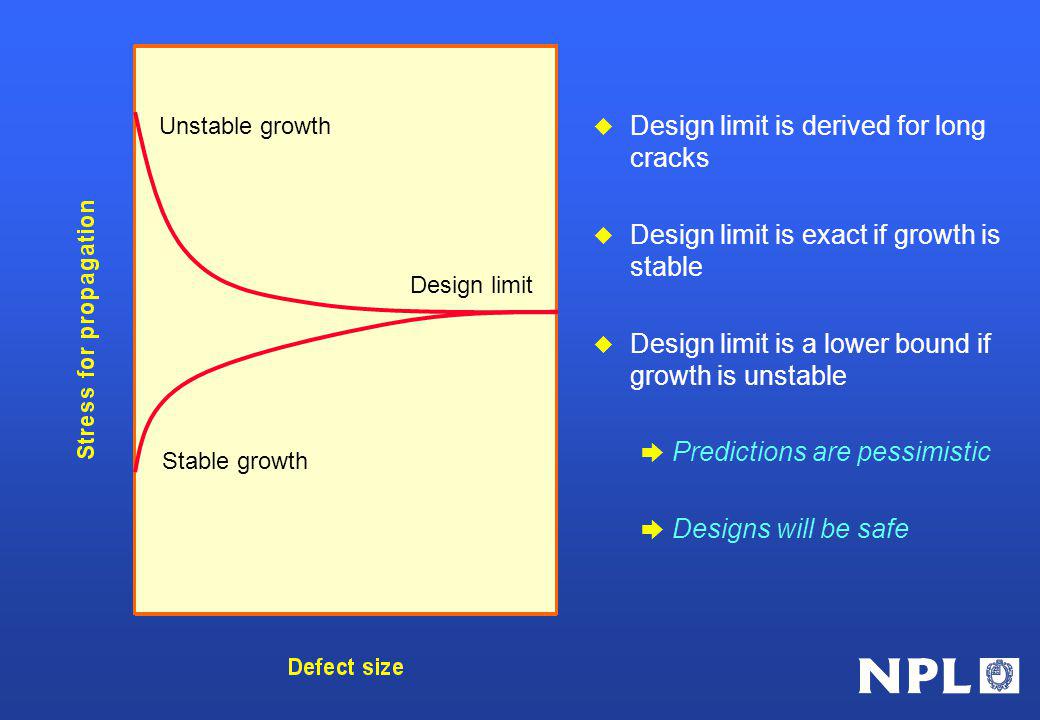

Unstable growth Stable growth Design limit u Design limit is derived for long cracks u Design limit is exact if growth is stable u Design limit is a lower bound if growth is unstable è Predictions are pessimistic è Designs will be safe

25
Ply crack initiation criterion : Criterion for progressive discrete ply crack formation : Criteria for ply crack formation s 0 is value of s at ply crack closure

26

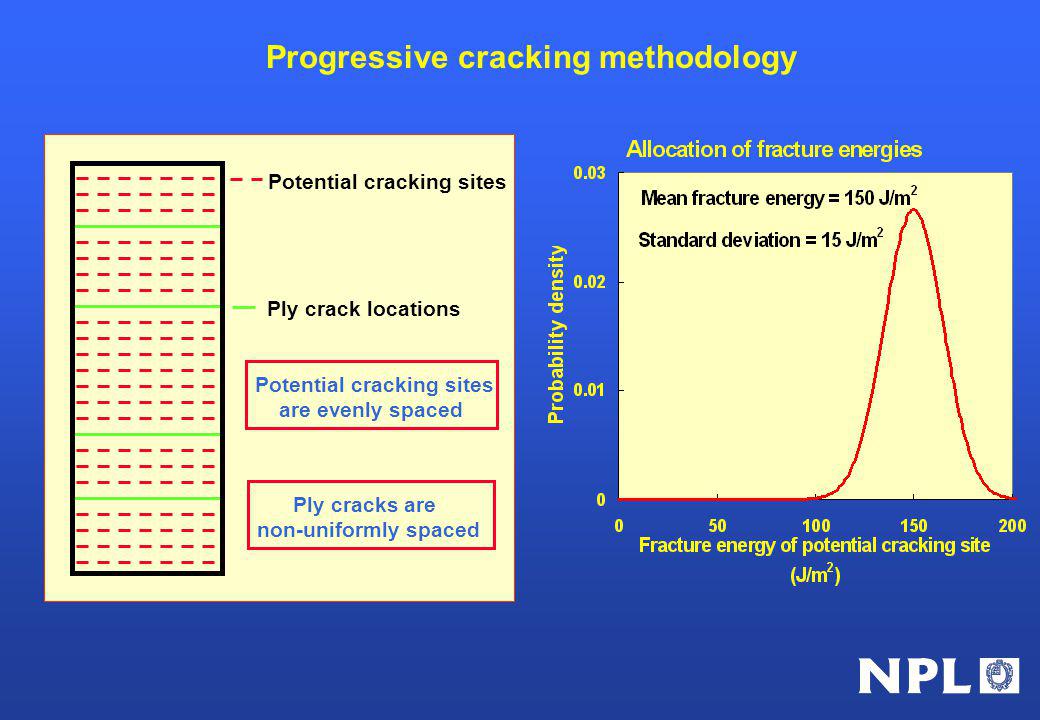

Potential cracking sites Ply crack locations Potential cracking sites are evenly spaced Ply cracks are non-uniformly spaced Progressive cracking methodology

27
Master curve for triaxial loading 0 s s 0 s i s 0 Inelastic strain u Damage initiation stress u Gradient of unloading line u Enclosed area Area = 0 Key features : Apply directly to other stress and temperature states for which = 0 :

28
A popular approach of damage mechanics Homogenised Cracked laminate Homogeneous damaged ply in laminate Degraded properties modelled semi-empirically Classical laminate analysis

29
Cracked laminate Homogenised Cracked laminate Homogeneous damaged ply in laminate Approach of NPL model

30
Out - of - plane bending u Non-symmetrical laminates u Through-thickness thermal gradients u Major problem is dealing with anti-clastic bending u Model already exists for ply cracks subject to plane strain bending Anti-clastic bending of UD ply

31
Plane strain bending of cracked [ 0 / 90 / 0 / 90 / 0 ] laminate i = 1 i = 2 i = N+1 M M 0 90 0 0 x y 0 - Work in progress to predict ply crack formation -

32
GRP laminate Ply crack 90 o ply 0 o ply 90 o ply 0 o ply

33
Modelling laminate failure Physical modelling of damage modes Cross-ply laminates subject to biaxial loading Prediction of failure strain and strength

34
Biaxial loading Thermal stresses Multiple plies Modelling failure of cross-ply laminates u Effects of ply cracking alone on laminate properties are well understood u Ply cracking affects thermo-elastic properties (strain softening) but we need to address laminate failure issues u Tensile failure is determined principally by fibre fracture u Statistical nature of fibre failure must be included u Predicting the failure of cross-ply laminates is the first step 0o0o 90 o 0o0o

35
Modelling failure of cross-ply laminates Biaxial loading Thermal stresses Static failure of fibres fibre/matrix debonding frictional contact shear yielding Fibre matrix cell Biaxial stresses Thermal stresses 0o0o 90 o 0o0o

36
Mechanical behaviour of fibre / matrix cell L - b is length of debond zone Could substitute any other model for which a look-up table can be constructed

37
Monte Carlo model for progressive failure in 0 o plies Parameters : M, N, L Element length Repeated runs of a simulation to determine the statistical variability of performance

38
Critical fibre stress or strain ? u In fibre tests performance of fibre in tension can be characterised by : è axial fibre stress at failure axial strain at failure f = E f f u In a composite fibre subject to triaxial loading è there are both loading & Poisson ratio effects on axial fibre strain u Assume fibre strength in a composite is governed by axial fibre failure strain è consistent with concept of fibre axial strain controlling the stability of fibre defects initiating tensile failure

39
Failure The effect of fibre fracture on properties CFRP (V f = 0.6)

40
Virtual testing is defined as the combination of high quality models, high performance computing and a user - friendly interface Will replicate many aspects of physical mechanical testing so that engineers do not need to learn a new vocabulary Will allow material properties to be derived from more fundamental properties, leading to inventive materials design It will be more than just a simulation, because extensive validation and testing will have taken place, resulting in a reliable replacement for some physical testing Virtual Testing

41
Virtual testing of composites over the Internet Web site address http://materials.npl.co.uk/

42
Virtual testing : Composite laminates Developed at NPL, the Internet based system enables a materials designer to create an entirely new material and to test it Image taken from NPL Internet Laminate Damage Simulation The system simulates the damage caused by cracking as load increases and predicts the subsequent degrading of material properties

43
Composite Laminate Testing The user can generate design data for damaged composite laminates Results taken from NPL Internet version of Laminate Damage Simulation

44
The Future : The era of simulation

45
Conclusions u Reliable design methods for composite materials will be based on physical models of behaviour. Key to reliability is rigorous validation of design methods u Physical models are complex in nature and not usually amenable to simple design rules ( sometimes there is no alternative ) u Damage models have good potential for application in construction sector ( e.g. bridge strengthening with CFRP ) u The implementation of physically based design methods in design offices will usually involve the use of computer based techniques : è Specific software packages – LAP, CoDA, Toolset è Web-based access to specific design packages, NPL demonstrator è Web-based access to distributed software – networking ? è Integration of design, optimisation, prototype and production simulation in virtual manufacturing
