New Method Steel Stamps, Inc. is the world leader in manufacturing Automatic Roll Marking Attachments for OD and End Face marking.

Similar presentations


Presentation on theme: "New Method Steel Stamps, Inc. is the world leader in manufacturing Automatic Roll Marking Attachments for OD and End Face marking."— Presentation transcript:

1

2 New Method Steel Stamps, Inc. is the world leader in manufacturing Automatic Roll Marking Attachments for OD and End Face marking

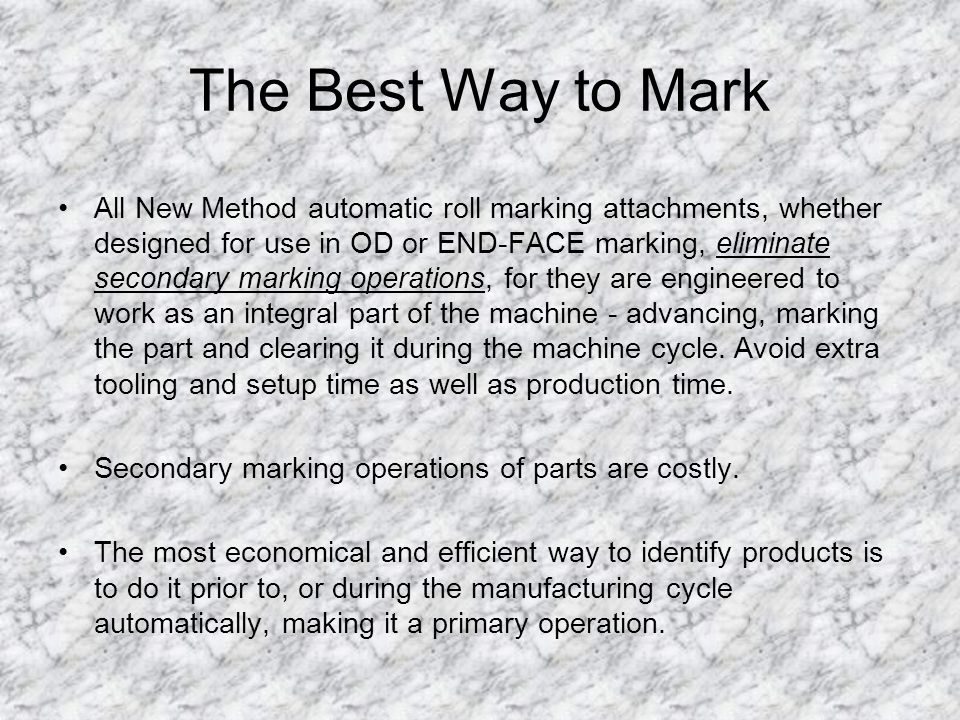

3 The Best Way to Mark All New Method automatic roll marking attachments, whether designed for use in OD or END-FACE marking, eliminate secondary marking operations, for they are engineered to work as an integral part of the machine - advancing, marking the part and clearing it during the machine cycle. Avoid extra tooling and setup time as well as production time. Secondary marking operations of parts are costly. The most economical and efficient way to identify products is to do it prior to, or during the manufacturing cycle automatically, making it a primary operation.

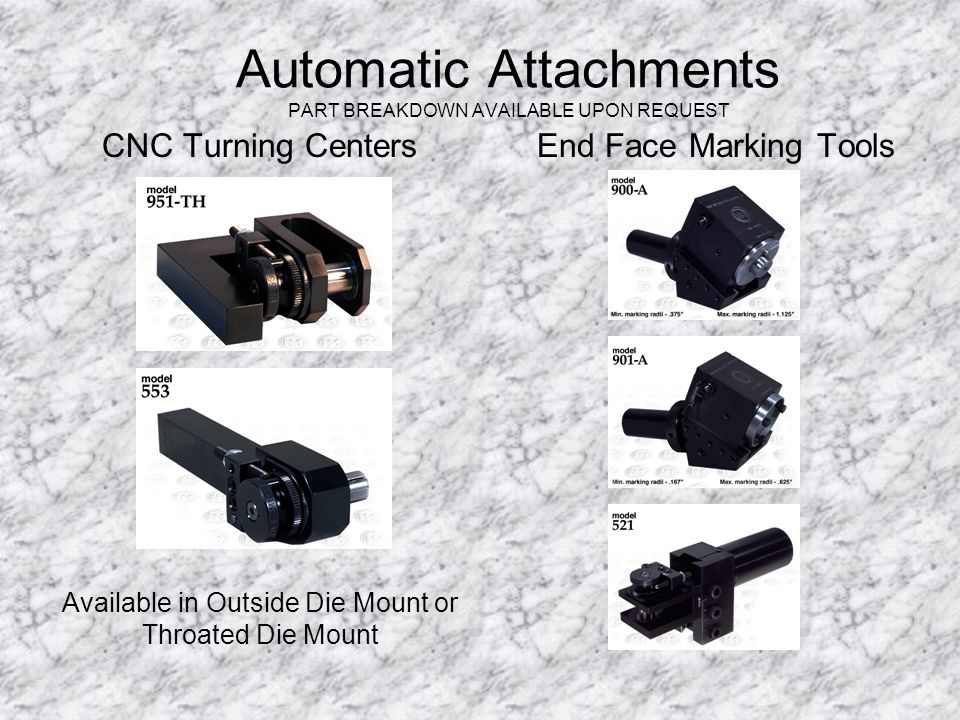

4 Automatic Attachments PART BREAKDOWN AVAILABLE UPON REQUEST CNC Turning Centers Available in Outside Die Mount or Throated Die Mount End Face Marking Tools

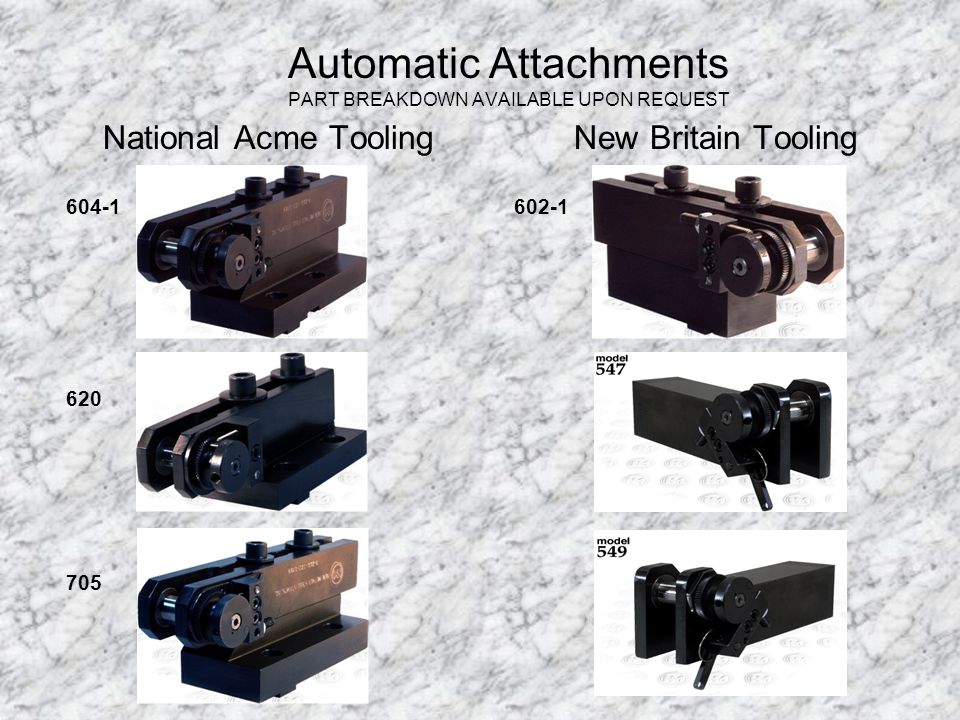

5 Automatic Attachments PART BREAKDOWN AVAILABLE UPON REQUEST National Acme Tooling New Britain Tooling 602-1

6 Automatic Attachments PART BREAKDOWN AVAILABLE UPON REQUEST Greenlee Tooling Tooling for Swiss Machines (including Citizen, Nakamora, Schutte, Star and Tornos) are available. New Method also makes Custom Tooling upon request.

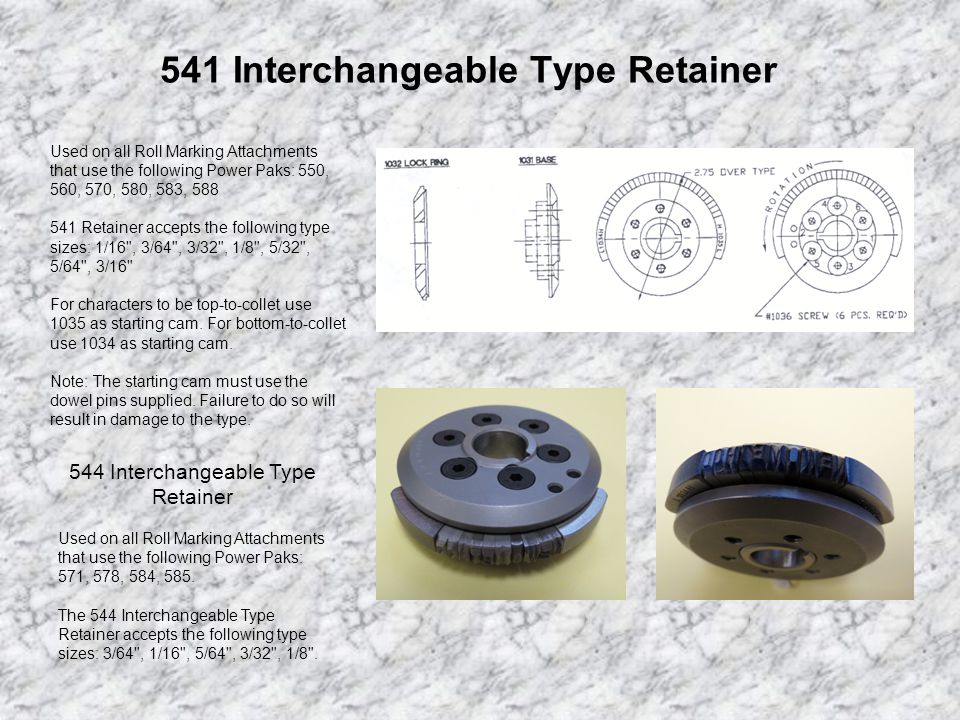

7 541 Interchangeable Type Retainer Used on all Roll Marking Attachments that use the following Power Paks: 550, 560, 570, 580, 583, Retainer accepts the following type sizes: 1/16", 3/64", 3/32", 1/8", 5/32", 5/64", 3/16" For characters to be top-to-collet use 1035 as starting cam. For bottom-to-collet use 1034 as starting cam. Note: The starting cam must use the dowel pins supplied. Failure to do so will result in damage to the type. 544 Interchangeable Type Retainer Used on all Roll Marking Attachments that use the following Power Paks: 571, 578, 584, 585. The 544 Interchangeable Type Retainer accepts the following type sizes: 3/64", 1/16", 5/64", 3/32", 1/8".

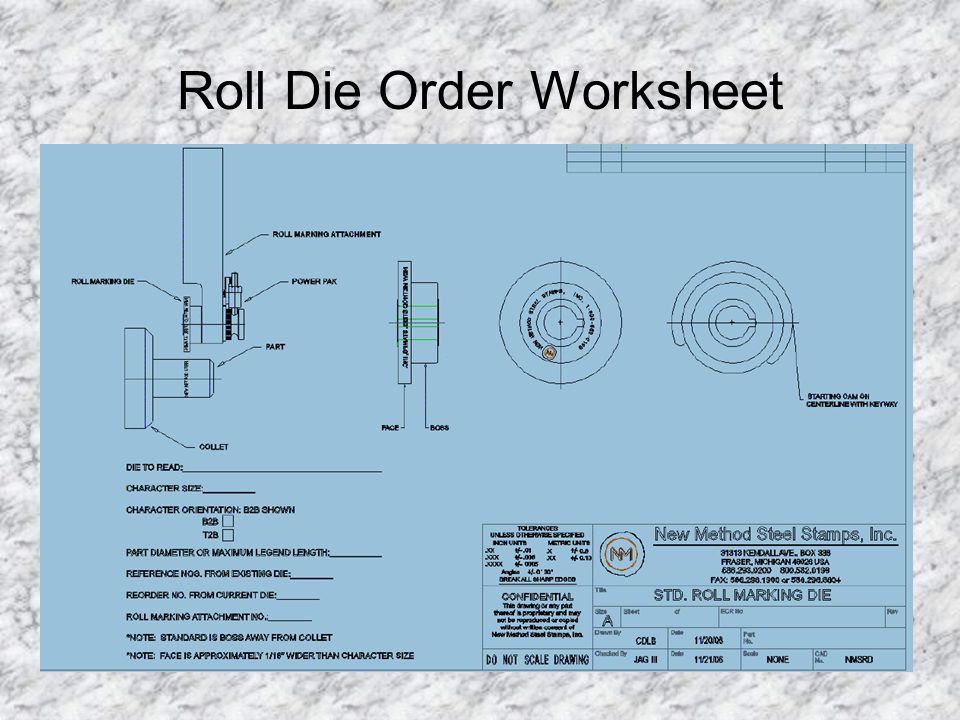

8 Roll Die Order Worksheet

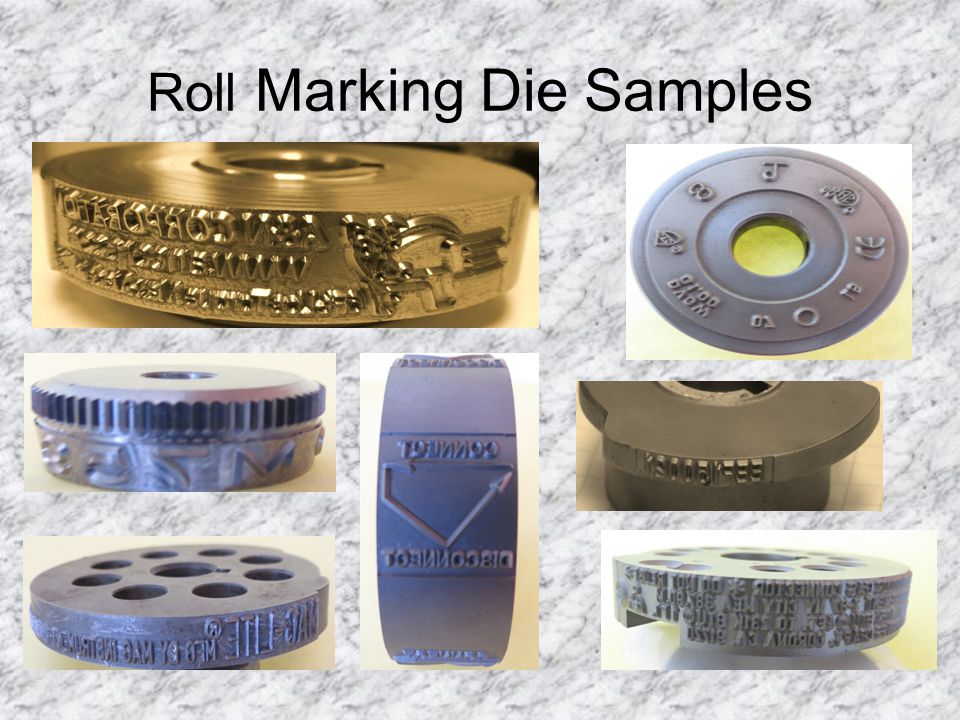

9 Roll Marking Die Samples

10 Bar stock marking means marking the full bar length of hex, round or square stock before machining parts from the bar in a Screw Machine or Turning Center. Typical parts include fittings, spud orifices, and flow controllers. Bars can be marked on 1,2,3,4,5, or 6 sides either while being straightened or from coil or after cutting to bar lengths. Bar Marking Machines

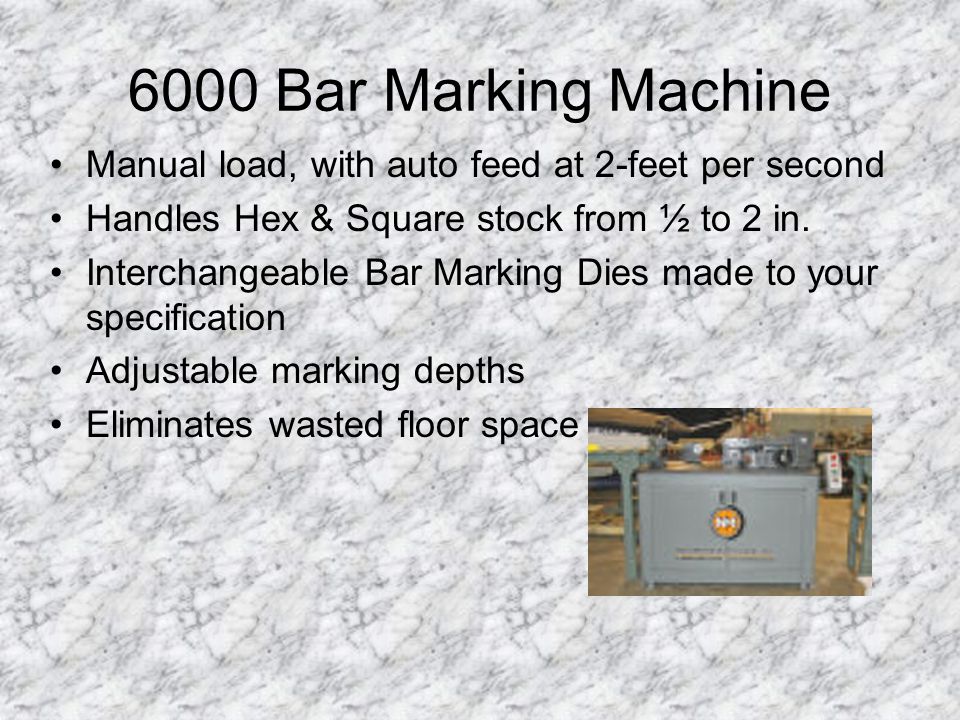

11 6000 Bar Marking Machine Manual load, with auto feed at 2-feet per second Handles Hex & Square stock from ½ to 2 in. Interchangeable Bar Marking Dies made to your specification Adjustable marking depths Eliminates wasted floor space

12 New Method Bar Marking Model 6400

13 Secondary Marking Machines

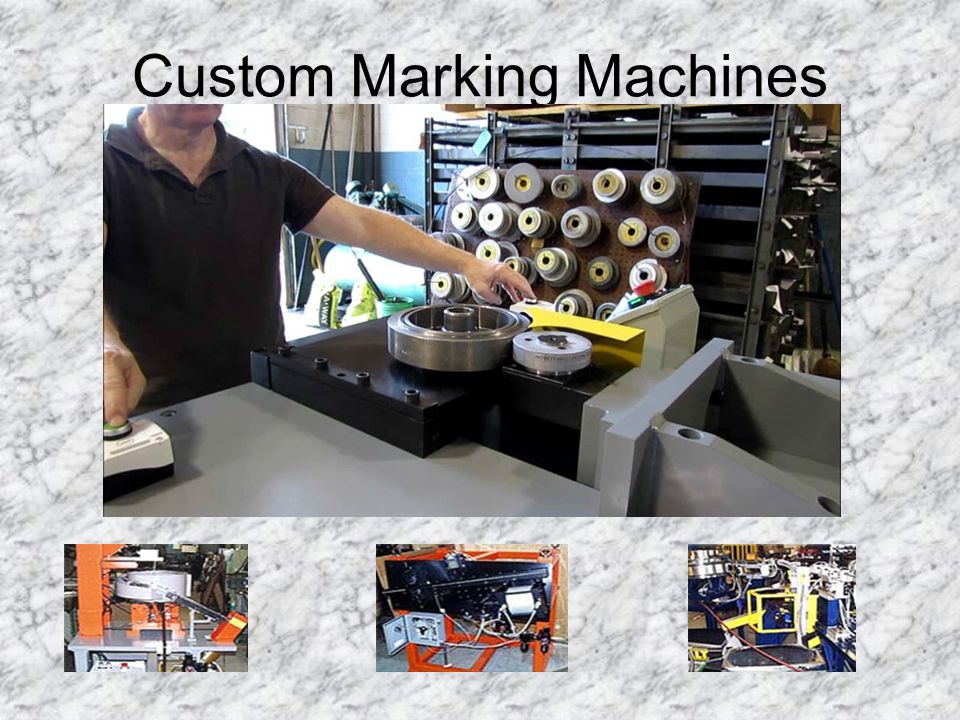

14 Custom Marking Machines

15 Pneumatic & Manual Marking Presses

16 Manual Marking Options

17 Contact Information Charles D. L. Brown President – Quotes, sales, customer service, technical issues Kellee M. Warren Office Manager – Quotes, sales, billing inquires Office Phone +1 (586) Toll Free +1 (800) Office Fax +1 (586) Website – Mailing Address: P.O. Box 338 Fraser, MI Physical Address: Kendall Fraser, MI Located approximately 10 miles north of Detroit, Michigan
