Presentation on theme: "Www.sterlingint.comwww.citycrown.com World leaders in ultra precision machine systems since 1962. We have built more than 75% of the worlds ultra precision."— Presentation transcript:

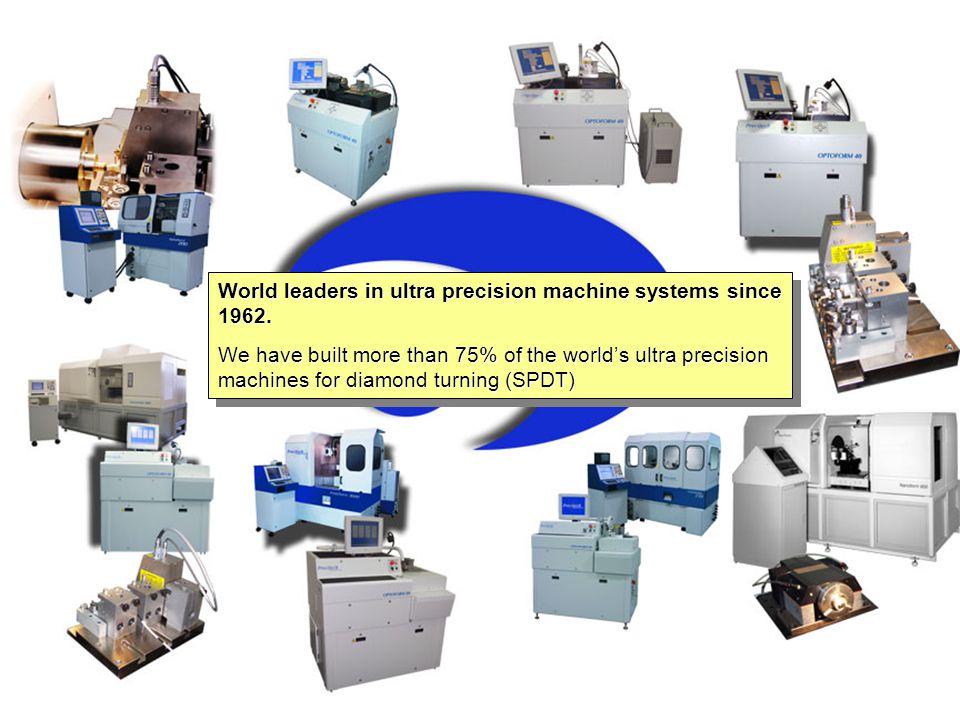

1 World leaders in ultra precision machine systems since We have built more than 75% of the worlds ultra precision machines for diamond turning (SPDT) World leaders in ultra precision machine systems since We have built more than 75% of the worlds ultra precision machines for diamond turning (SPDT)

2 Since 1962 you would have known us as … PNEUMO PRECISION (1962) RANK PNEUMO (1987) PRECITECH … currently (Electro-Optics) STERLING … currently (Ophthalmics) Since 1962 you would have known us as … PNEUMO PRECISION (1962) RANK PNEUMO (1987) PRECITECH … currently (Electro-Optics) STERLING … currently (Ophthalmics)

3 All of the OPTOFORM and NANOFORM machine systems are built at the New Hampshire plant in the USA.

4 The light grey section of the factory is temperature controlled to facilitate precision machine construction.

5 Each machine is built in its own bay by a team of specialist engineers with different skill sets.

6 Top Left: Assembly Top right: Engineering Design offices Bottom left: Applications Development Lab. Bottom Right: Test Area Top Left: Assembly Top right: Engineering Design offices Bottom left: Applications Development Lab. Bottom Right: Test Area

7 PRECISION MECHANICAL COMPONENTS (Aerospace etc.) ELECTRO-OPTICS (Defense, Consumer Electronics etc.) OPHTHALMICS (Intra-ocular lenses, Contact lenses, Mold inserts, corneal implants etc.) Our global business falls into 3 main sectors….

8 Machine Product Range OPTOFORM 30 (discontinued) OPTOFORM 40 OPTOFORM 50 (discontinued) OPTOFORM 80 FAST TOOL SERVOS VariForm VariMax FTS-1000 FTS-500 NANOFORM 200 NANOFORM 250 Ultra NANOFORM 350 NANOFORM 450 NANOFORM 700 MULTI-AXIS MACHINES SPECIAL BUILDS SLOW TOOL SERVO

9 Lens Design Software Products LDS-3 Soft Power Suite GP Power Suite Multi Curve Generator (MCG) TurboLens Opto-Cad (.dxf) MiniGEN (order-entry interface) MiniFile Path Editor (freeform designs) For details please go to:

10 OPTOFORM 30 (discontinued)

11 OPTOFORM 50 (discontinued)

12 OPTOFORM 40 and 80 OPTOFORM 40 and 80 These machines utilize all the latest technologies … Linear Motors Hydrostatic Oil and Air slides Laser scale positioning Fast Tool Servo support Advanced Design packages Gang Tooling systems Touch Screen controls Extremely flexible machine control system. These machines utilize all the latest technologies … Linear Motors Hydrostatic Oil and Air slides Laser scale positioning Fast Tool Servo support Advanced Design packages Gang Tooling systems Touch Screen controls Extremely flexible machine control system.

13 VARIFORM (OSCILLATING TOOL) VARIFORMS have had more than a 95% global market share when it comes to manufacturing non-rotationally symmetrical surfaces in OPHTHALMICS. Now the newer FTS-1000 is rapidly gaining market share. VARIFORMS have had more than a 95% global market share when it comes to manufacturing non-rotationally symmetrical surfaces in OPHTHALMICS. Now the newer FTS-1000 is rapidly gaining market share.

14 NANOFORM 200

15 NANOFORM 250 Ultra

16 FTS-1000 – Fast Tool Servo (Oscillating Tool Technology). The FTS-1000 is the most advanced technology for producing non- rotationally symmetrical surfaces of all kinds. Its stiffness, combined with its range, makes for superior surface finishes and form. The FTS-1000 is the most advanced technology for producing non- rotationally symmetrical surfaces of all kinds. Its stiffness, combined with its range, makes for superior surface finishes and form.

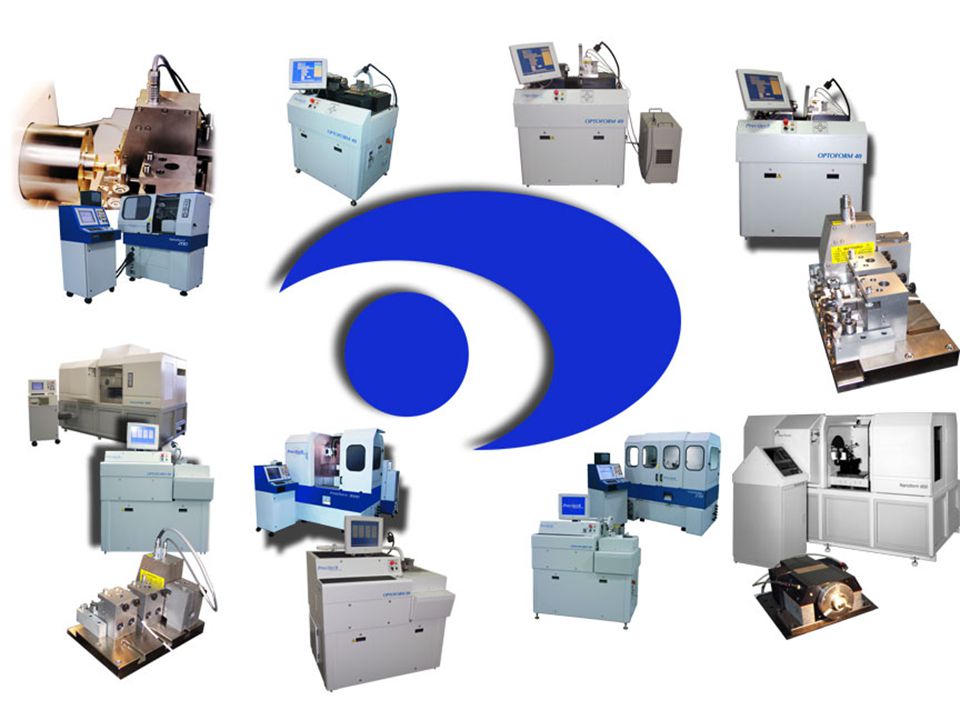

17
