Part VI NP-Hardness

2
Lecture 23 Whats NP?

3
Hard Problems

4

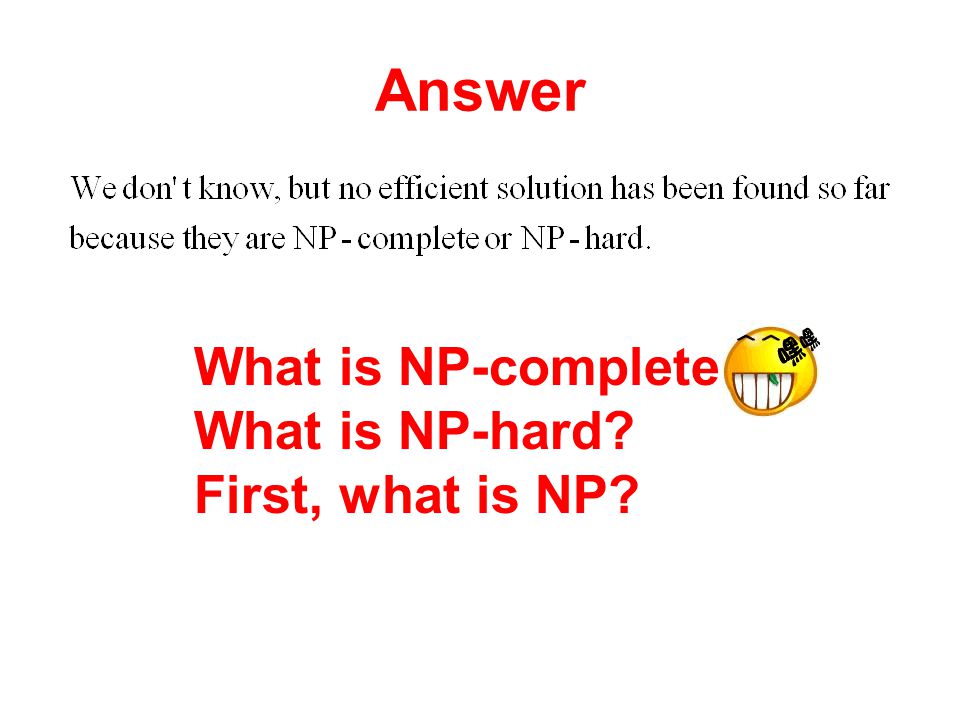

Answer What is NP-complete? What is NP-hard? First, what is NP?

5
Answer 1 Wrong! Did you take computer science before ?

6

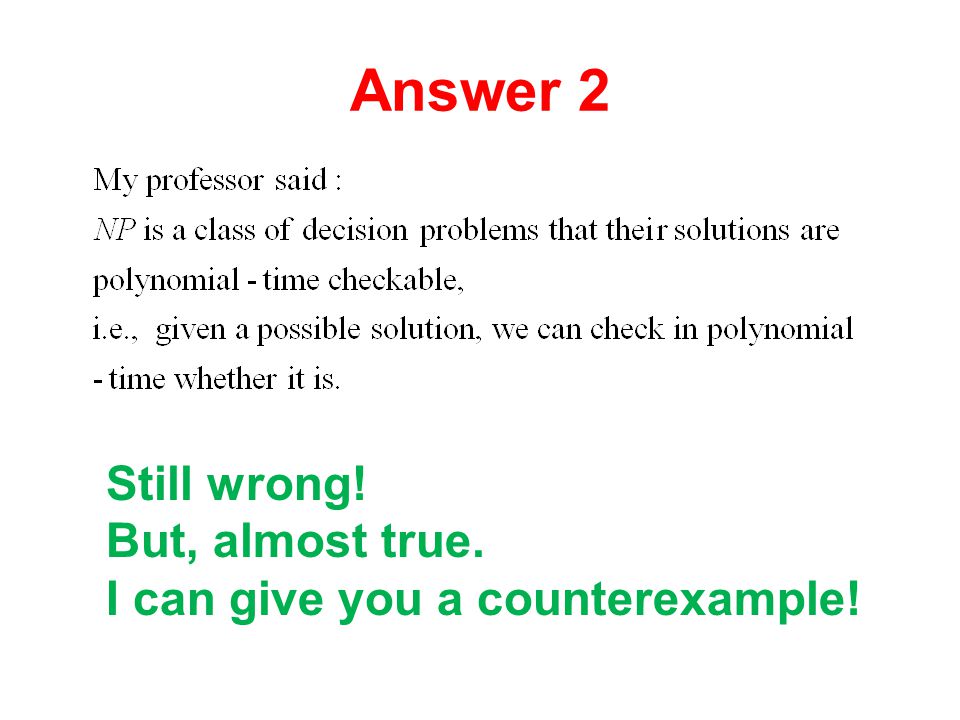

Answer 2 Still wrong! But, almost true. I can give you a counterexample!

7
Integer Programming

8

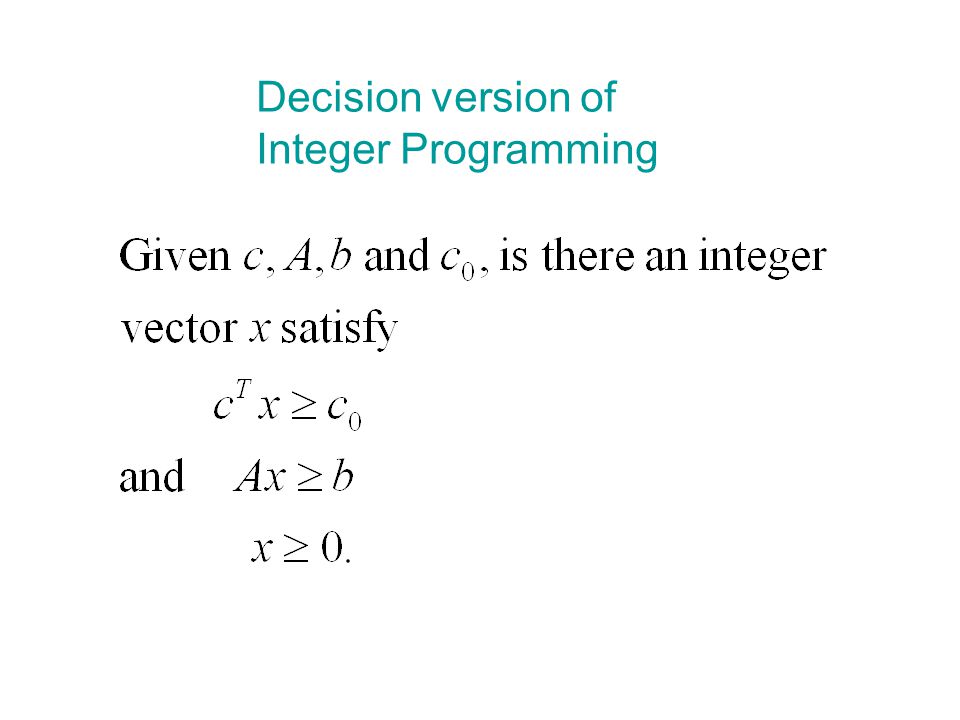

Decision version of Integer Programming

10
How to prove a decision problem belonging to NP? How to design a polynomial-time nondeterministic algorithm?

11

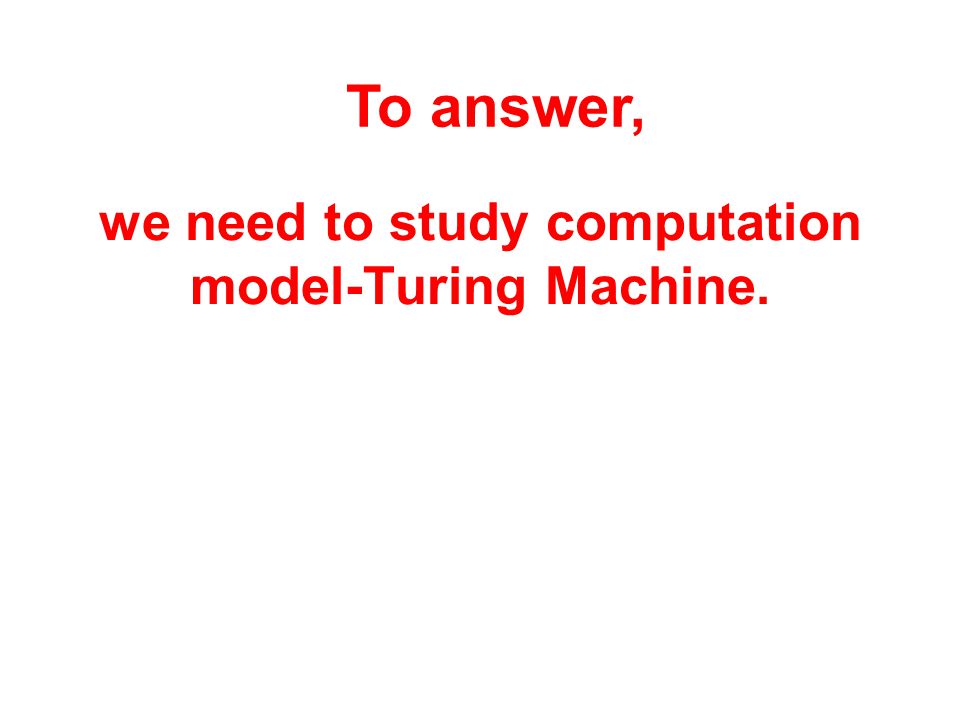

we need to study computation model-Turing Machine. To answer,

12
Deterministic Turing Machine (DTM) Finite Control tape head

13

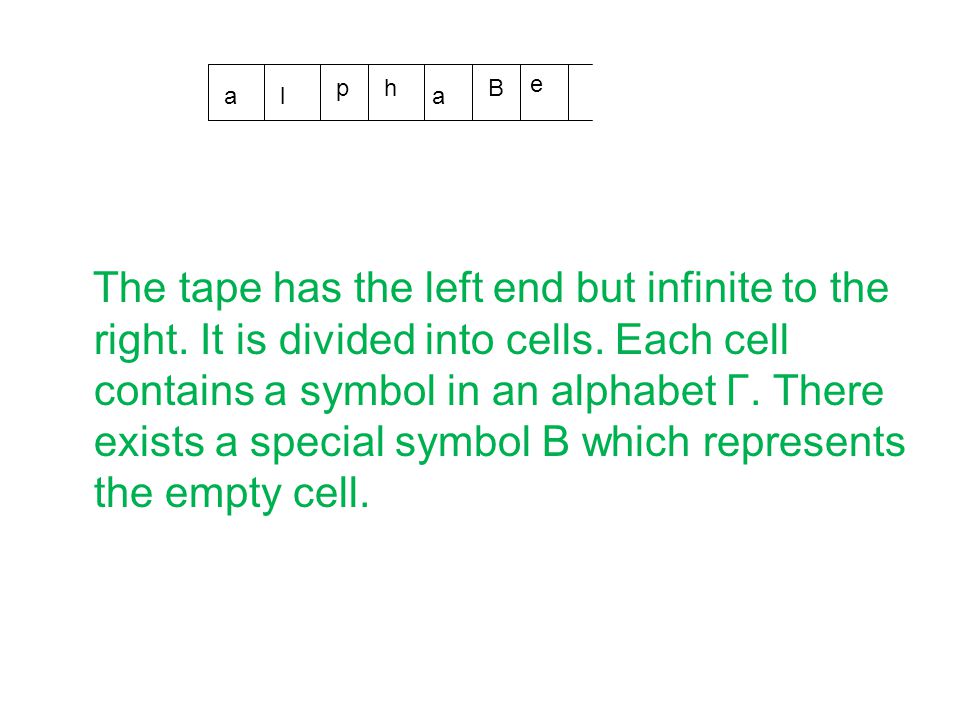

The tape has the left end but infinite to the right. It is divided into cells. Each cell contains a symbol in an alphabet Γ. There exists a special symbol B which represents the empty cell. al ph a B e

14
The head scans at a cell on the tape and can read, erase, and write a symbol on the cell. In each move, the head can move to the right cell or to the left cell (or stay in the same cell). a

15

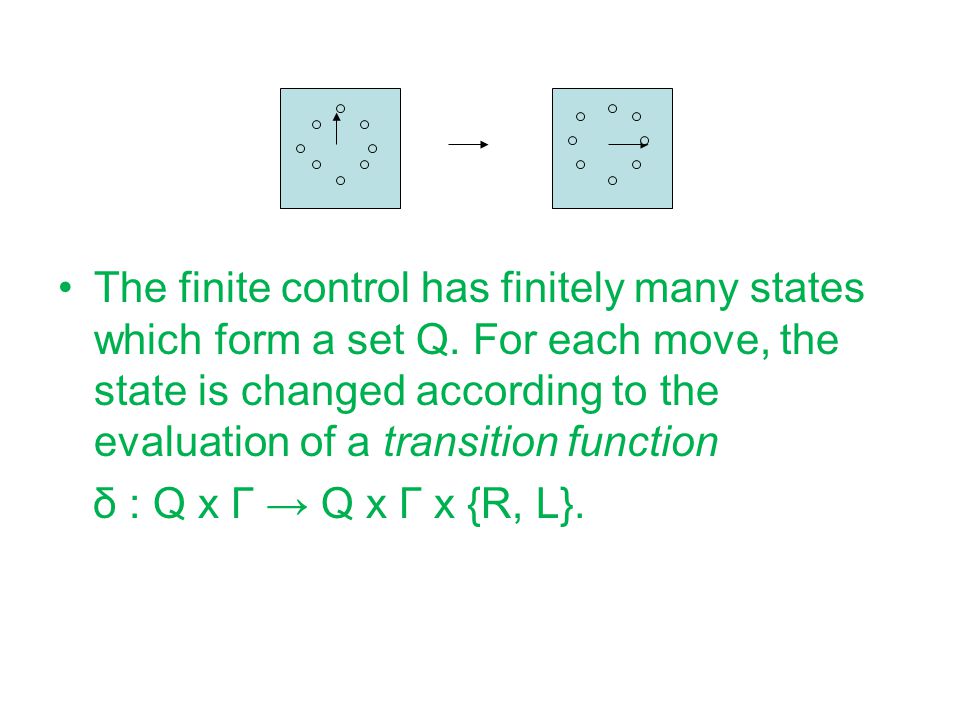

The finite control has finitely many states which form a set Q. For each move, the state is changed according to the evaluation of a transition function δ : Q x Γ Q x Γ x {R, L}.

16
δ(q, a) = (p, b, L) means that if the head reads symbol a and the finite control is in the state q, then the next state should be p, the symbol a should be changed to b, and the head moves one cell to the left. q a b p

17

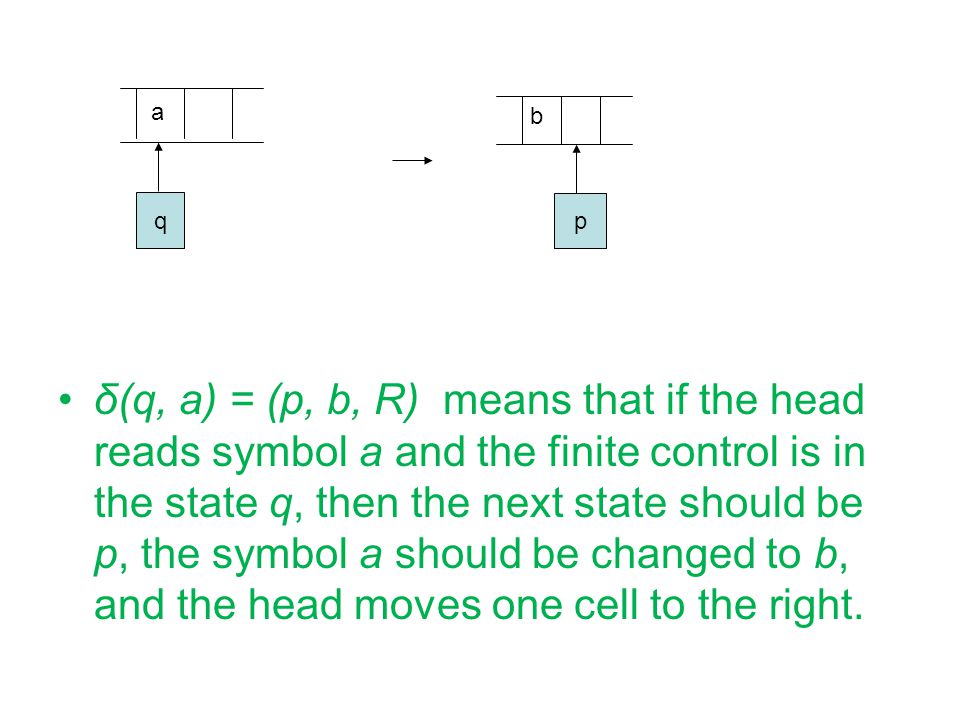

δ(q, a) = (p, b, R) means that if the head reads symbol a and the finite control is in the state q, then the next state should be p, the symbol a should be changed to b, and the head moves one cell to the right. p q a b

18
There are some special states: an initial state s and an final states h. Initially, the DTM is in the initial state and the head scans the leftmost cell. The tape holds an input string. s

19
When the DTM is in the final state, the DTM stops. An input string x is accepted by the DTM if the DTM reaches the final state h. Otherwise, the input string is rejected. h x

20
Multi-tape DTM Input tape (read only) Storage tapes Output tape (possibly, write only)

21
Nondeterministic Turing Machine (NTM) Finite Control tape head

22
The tape has the left end but infinite to the right. It is divided into cells. Each cell contains a symbol in an alphabet Γ. There exists a special symbol B which represents the empty cell. al ph a B e

23

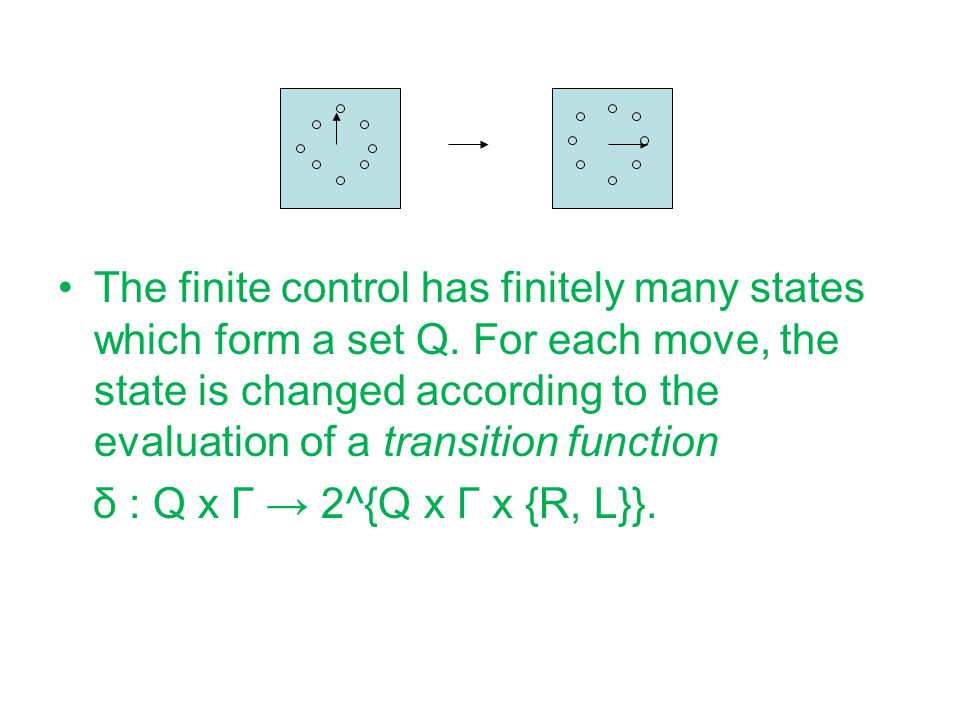

The finite control has finitely many states which form a set Q. For each move, the state is changed according to the evaluation of a transition function δ : Q x Γ 2^{Q x Γ x {R, L}}.

24
Nondeterministic TM (NTM) There are multiple choices for each transition. For each input x, the NTM may have more than one computation paths. An input x is accepted if at least one computation path leads to the final state. L(M) is the set of all accepted inputs.

25

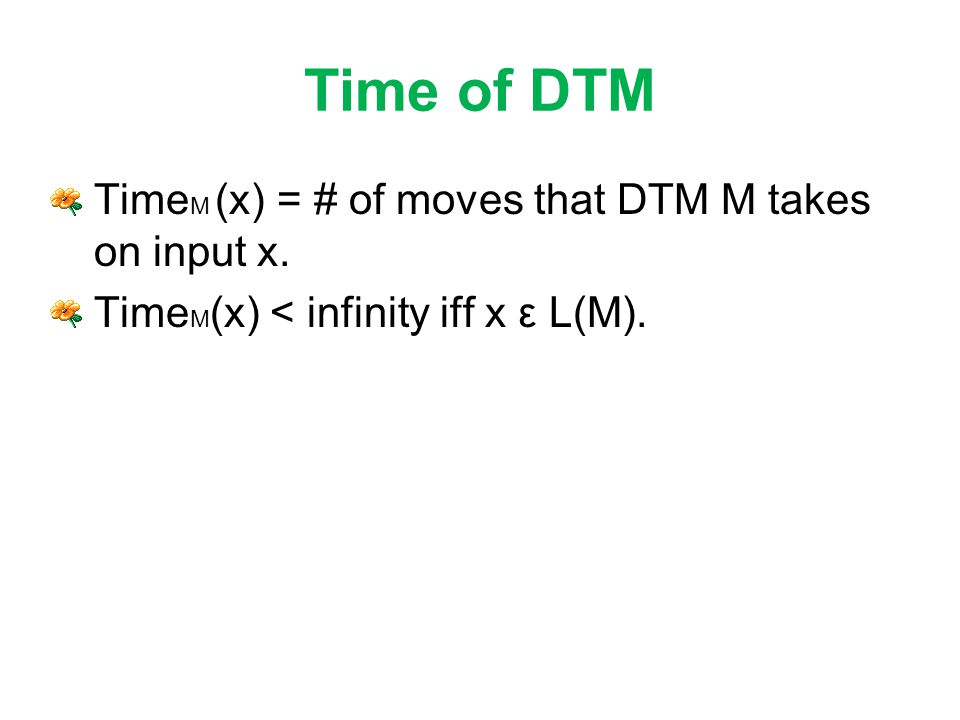

Time of DTM Time M (x) = # of moves that DTM M takes on input x. Time M (x) < infinity iff x ε L(M).

26

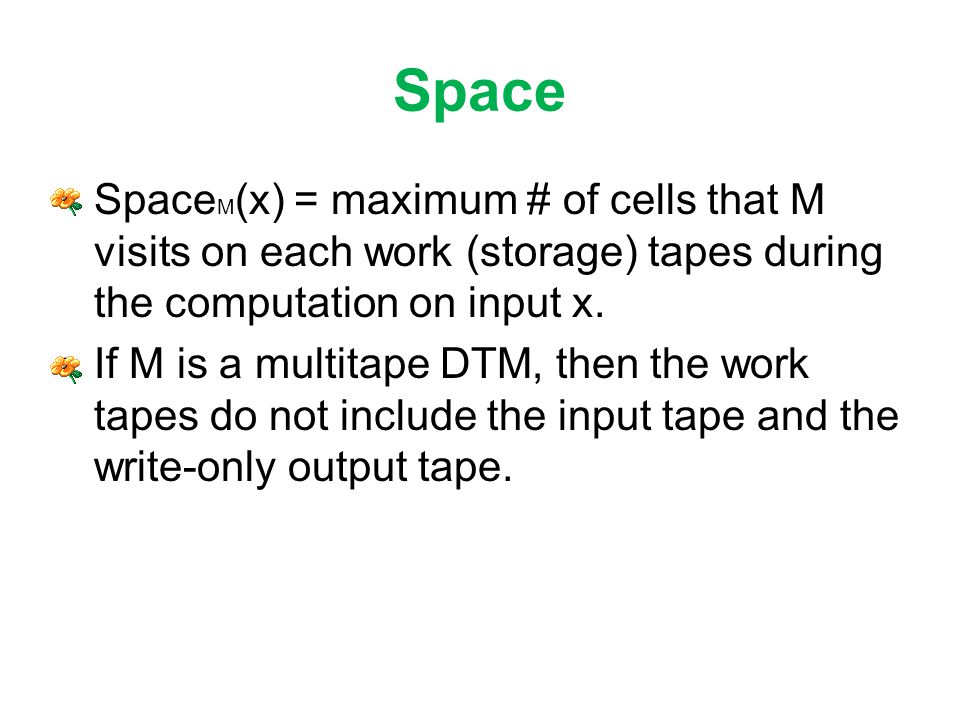

Space Space M (x) = maximum # of cells that M visits on each work (storage) tapes during the computation on input x. If M is a multitape DTM, then the work tapes do not include the input tape and the write-only output tape.

27
Whats P? P is a class of decision problems that each can be solved by deterministic TM in polynomial time.

28
Whats NP? NP is a class of decision problems that each can be solved by a nondeterministic TM in polynomial time. NP is a class of decision problems that each can be solved by a polynomial-time nondeterministic algorithm.

29
Whats PSPACE? PSPACE is a class of decision problems that each can be solved by TM in polynomial space. Why didnt specify Deterministic or Nondeterministic? It doesnt matter due to Savitchs Theorem.

30

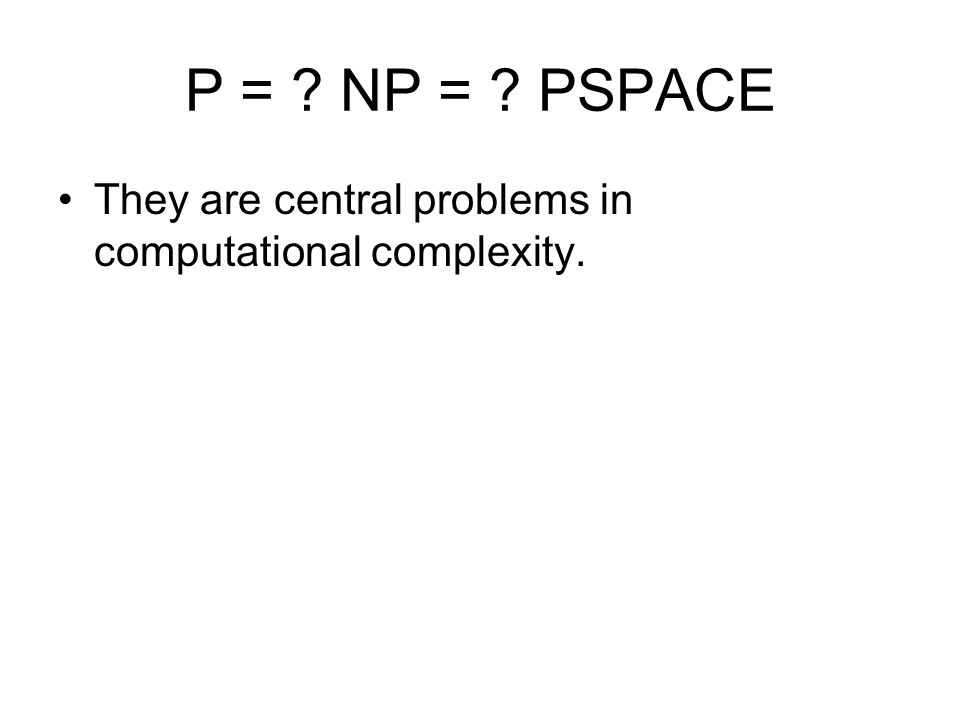

P = ? NP = ? PSPACE They are central problems in computational complexity.

31

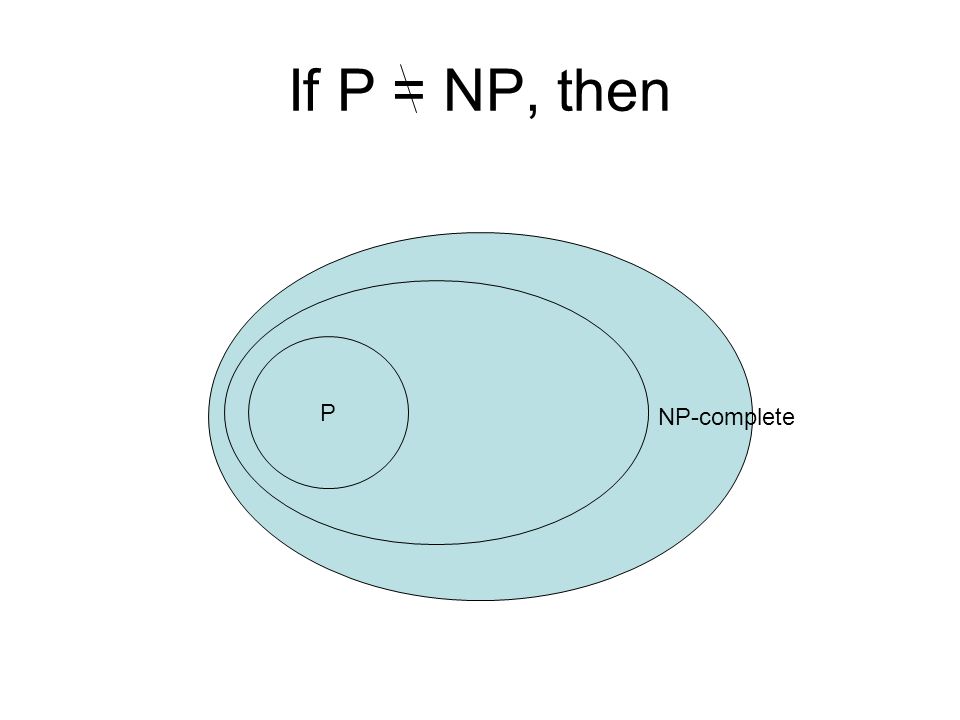

If P = NP, then NP-complete P

32

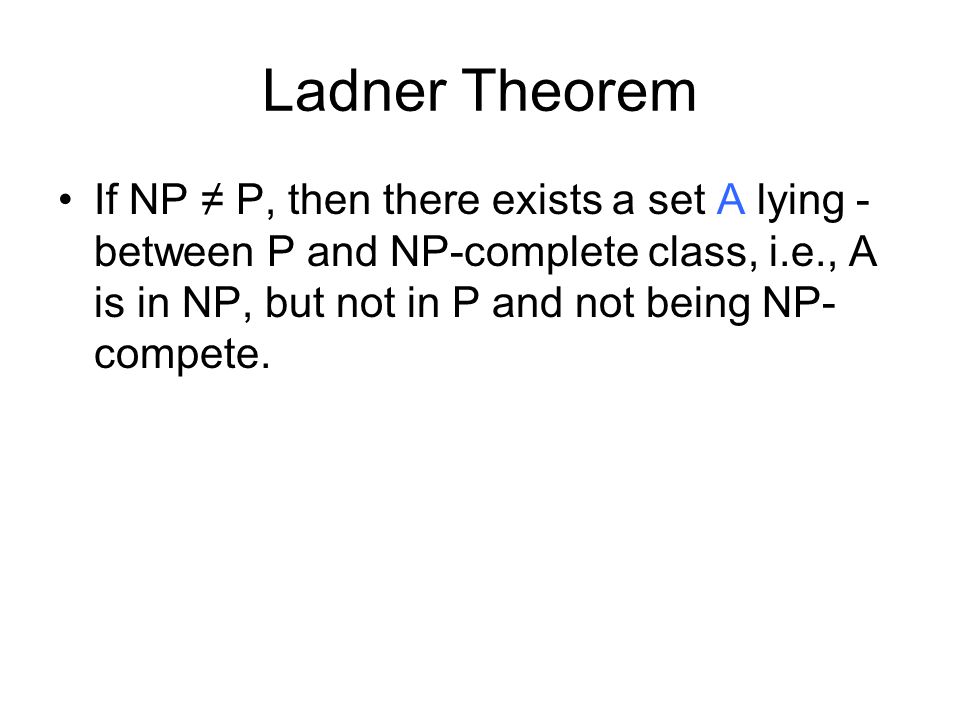

Ladner Theorem If NP P, then there exists a set A lying - between P and NP-complete class, i.e., A is in NP, but not in P and not being NP- compete.

33
How to prove a decision problem belonging to NP? How to design a polynomial-time nondeterministic algorithm?

34
Hamiltonian Cycle Given a graph G, does G contain a Hamiltonian cycle? Hamiltonian cycle is a cycle passing every vertex exactly once.

35
Nondeterministic Algorithm Guess a permutation of all vertices. Check whether this permutation gives a cycle. If yes, then algorithm halts. What is the running time?

36
Guessing Time Each guess can choose one from a constant number of choices. This is because that in NTM, the number of choices for each move is independent from input size. Guessing a permutation of n vertices needs (n long n) time.

37

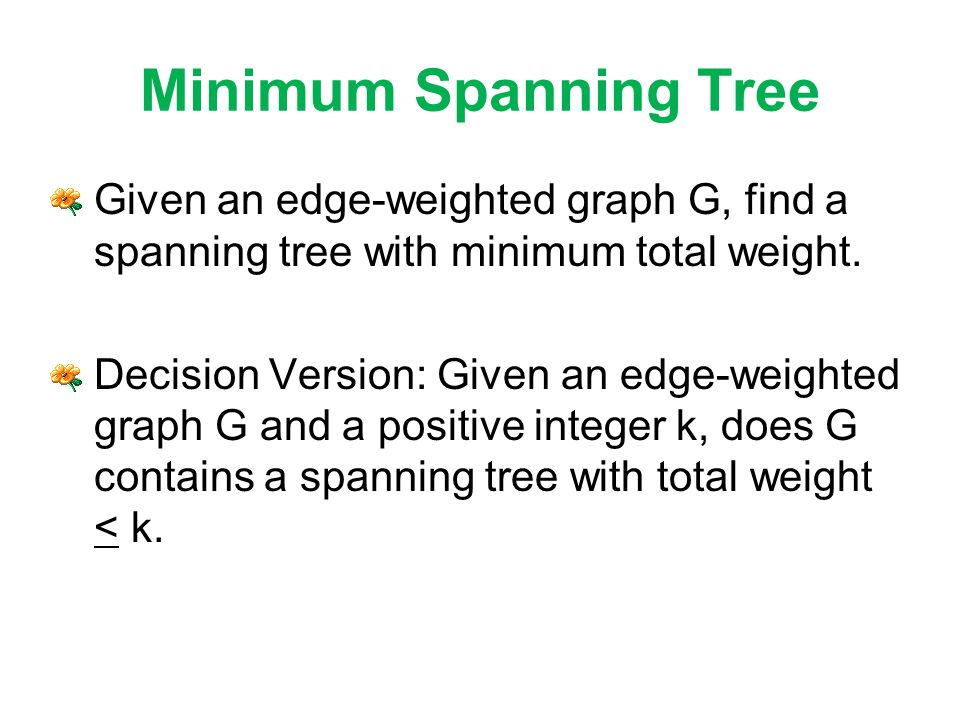

Minimum Spanning Tree Given an edge-weighted graph G, find a spanning tree with minimum total weight. Decision Version: Given an edge-weighted graph G and a positive integer k, does G contains a spanning tree with total weight < k.

38

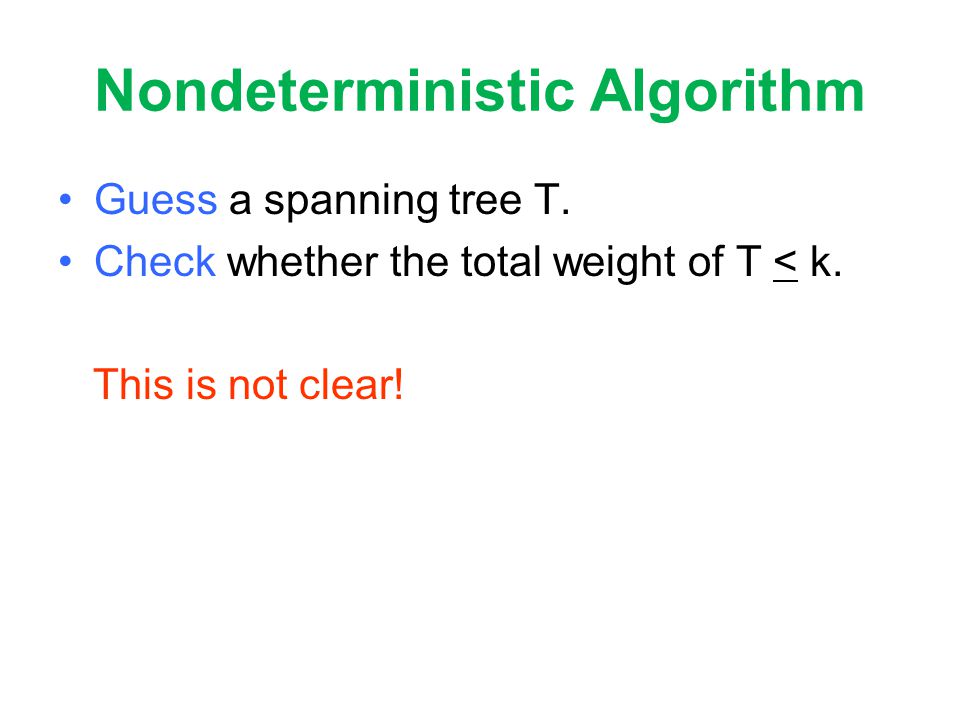

Nondeterministic Algorithm Guess a spanning tree T. Check whether the total weight of T < k. This is not clear!

39
How to guess a spanning tree? Guess n-1 edges where n is the number of vertices of G. Check whether those n-1 edges form a connected spanning subgraph, i.e., there is a path between every pair of vertices.

40

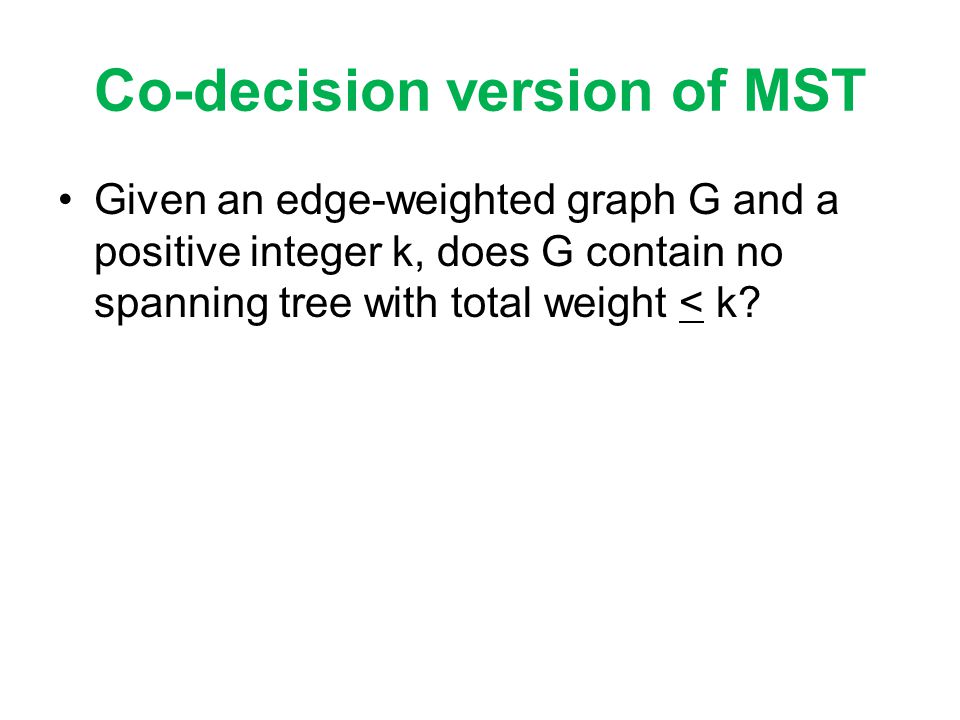

Co-decision version of MST Given an edge-weighted graph G and a positive integer k, does G contain no spanning tree with total weight < k?

41
Algorithm Computer a minimum spanning tree. Check whether its weight < k. If yes, the algorithm halts.

42

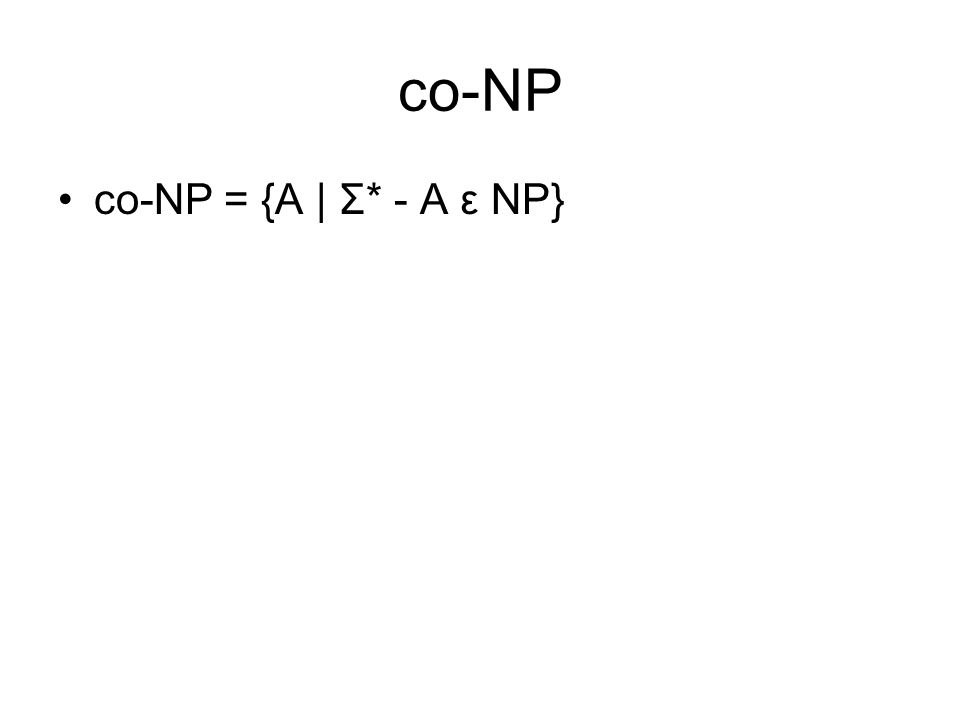

co-NP co-NP = {A | Σ* - A ε NP}

43
NP co-NP So far, no natural problem has been found in NP co-NP, but not in P. P NP co-NP

44

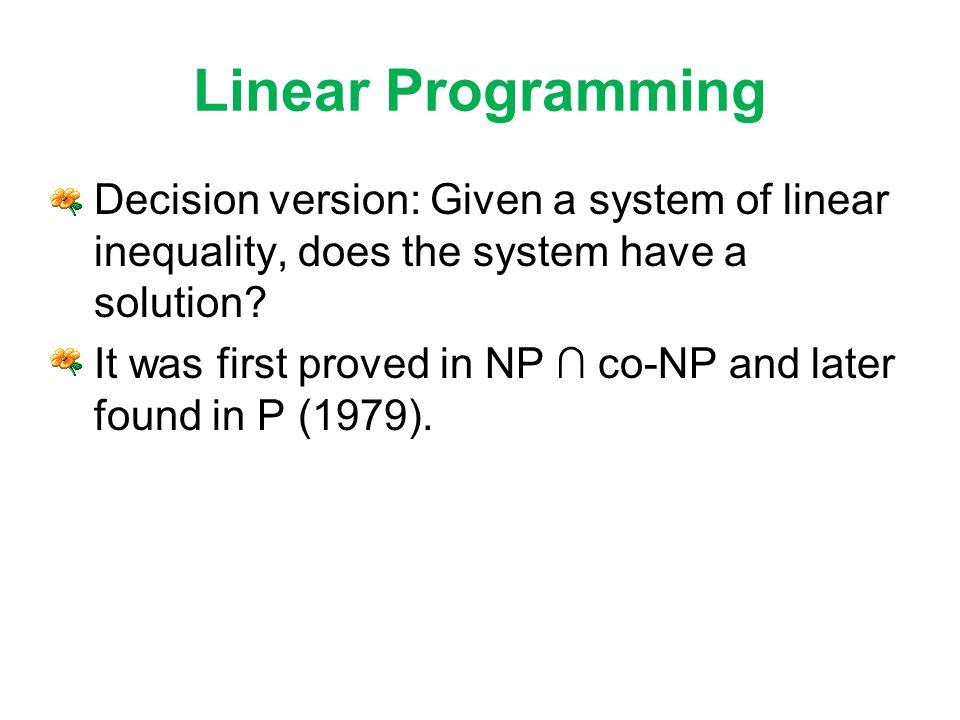

Linear Programming Decision version: Given a system of linear inequality, does the system have a solution? It was first proved in NP co-NP and later found in P (1979).

45
Primality Test Given a natural number n, is n a prime? It was first proved in NP co-NP and later found in P (2004).

46
Therefore A natural problem belonging to NP co- NP is a big sign for the problem belonging to P.

47
Proving a problem in NP In many cases, it is not hard. In a few cases, it is not easy.

48

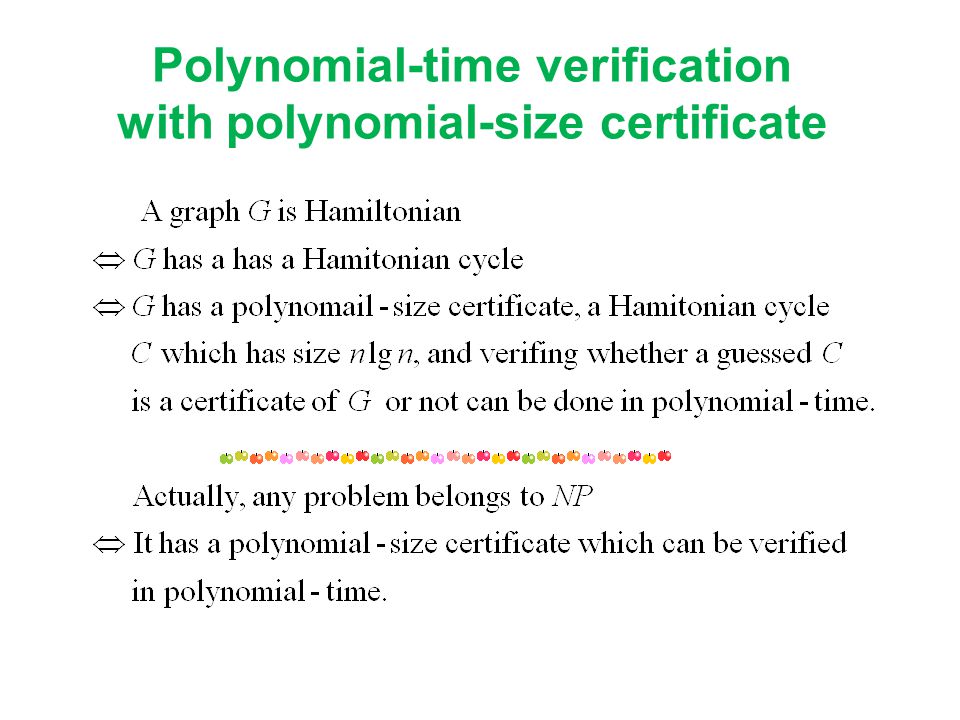

Polynomial-time verification with polynomial-size certificate

49

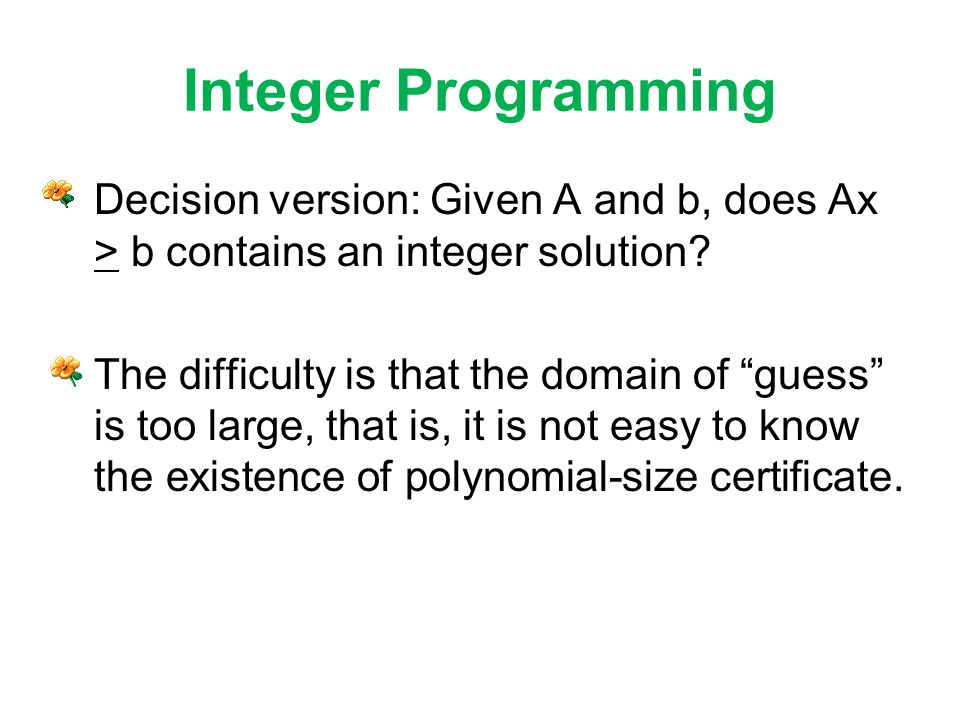

Integer Programming Decision version: Given A and b, does Ax > b contains an integer solution? The difficulty is that the domain of guess is too large, that is, it is not easy to know the existence of polynomial-size certificate.
