1 Fossil Fuels and the Environment

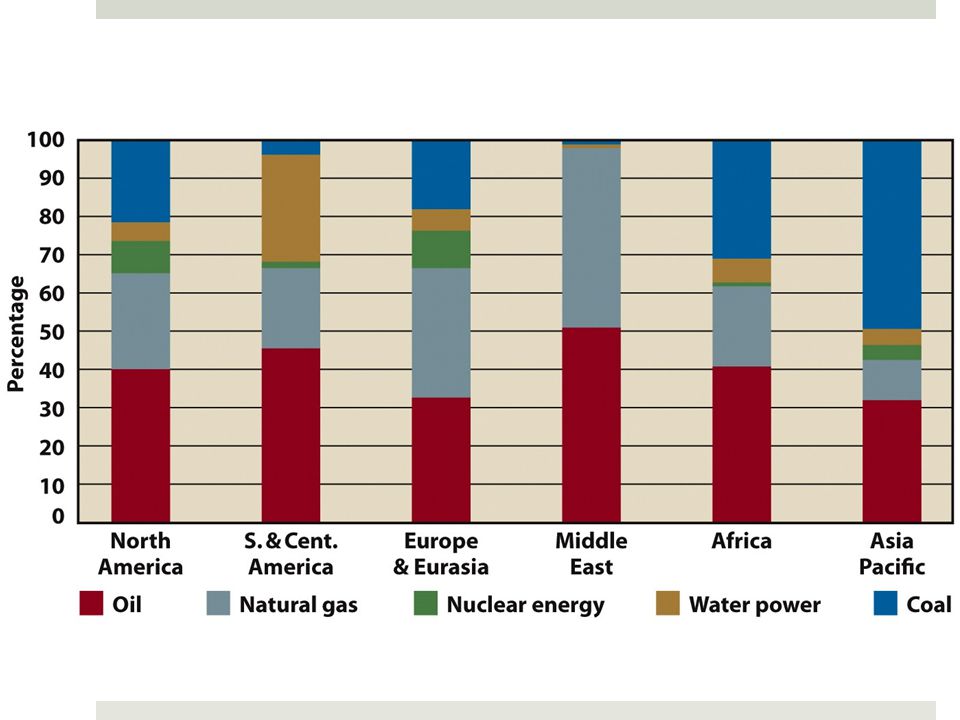

2 Fossil Fuels Fossil fuels are forms of stored solar energy Plants convert solar energy to chemical energy through photosynthesis Incomplete decomposed organic matter then covered up Converted to oil, natural gas, and coal Provide 90% of energy consumed

3

4

5

6 Crude Oil and Natural Gas Most geologist accept the hypothesis that these derived from organic matter Buried in what are known as depositional basins Oil and gas primarily found along plate boundaries Exceptions to this include Texas, Gulf of Mexico and the North Sea

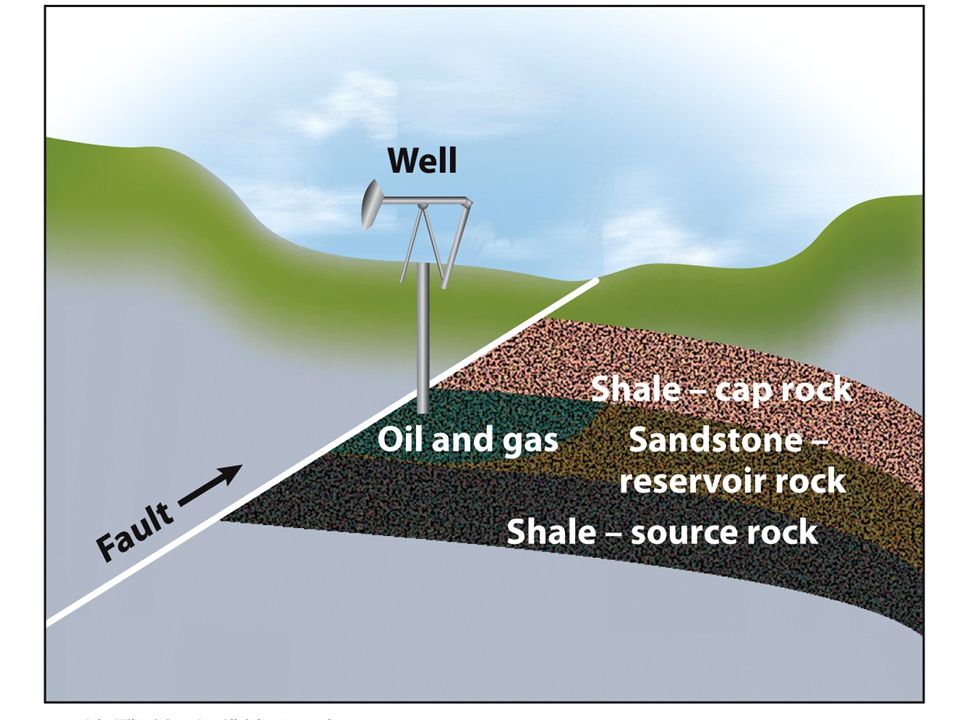

7 Crude Oil and Natural Gas Source rock is fine grained, organic- rich sediment At a depth at least 500 m Subjected to increased heat and pressure that initiates the chemical transformation Elevated pressure causes sediment to be compressed This initiates upward migration to lower- pressure reservoir rock

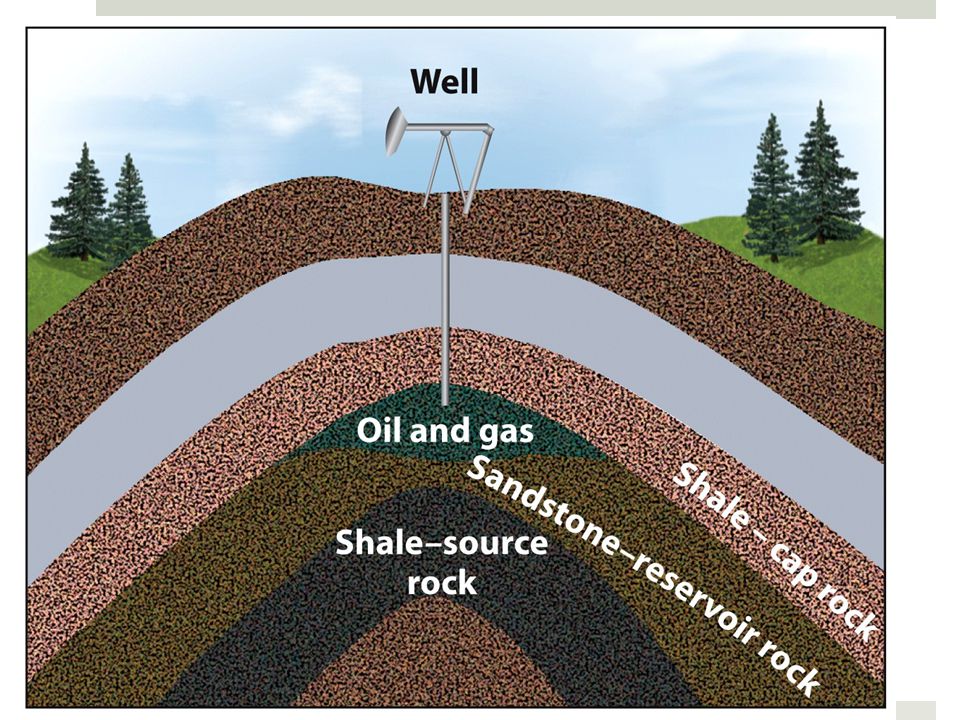

8 Crude Oil and Natural Gas Reservoir rock is coarser grained and relatively porous sandstone and porous limestone Trap Natural upward migration of the oil and gas is interrupted or blocked Rock that helps form a trap known as cap rock, often shale

9

10

11 Petroleum Production Primary production Involves simply pumping the oil from wells Recovers only 25% of petroleum in reservoir Enhanced recovery Increase the amount recovered to about 60% Steam, water, or chemicals injected into the reservoir to push oil towards wells

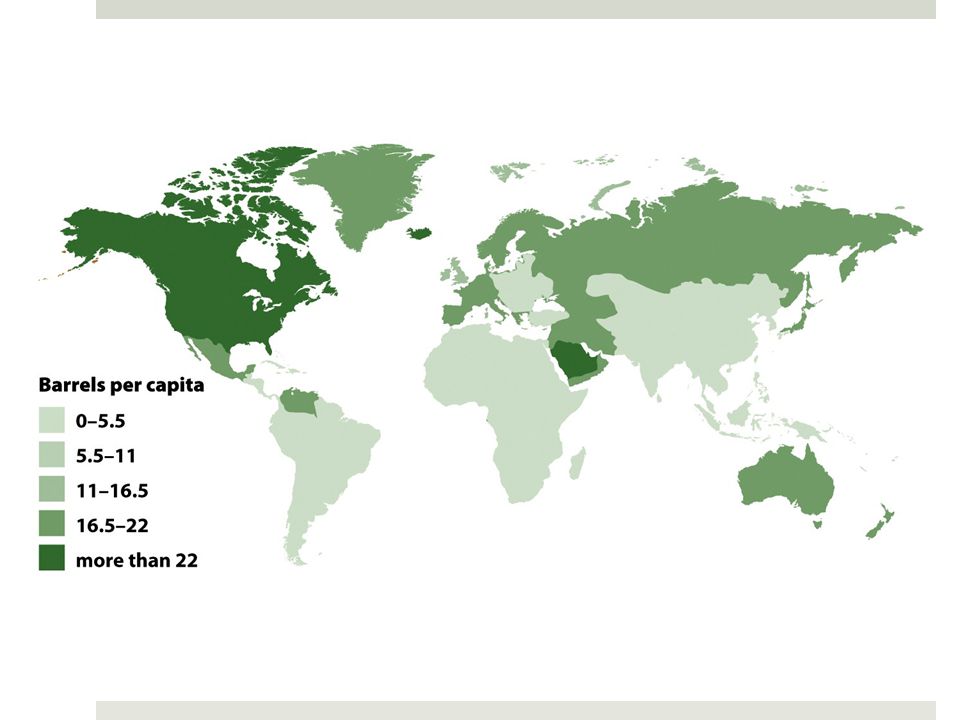

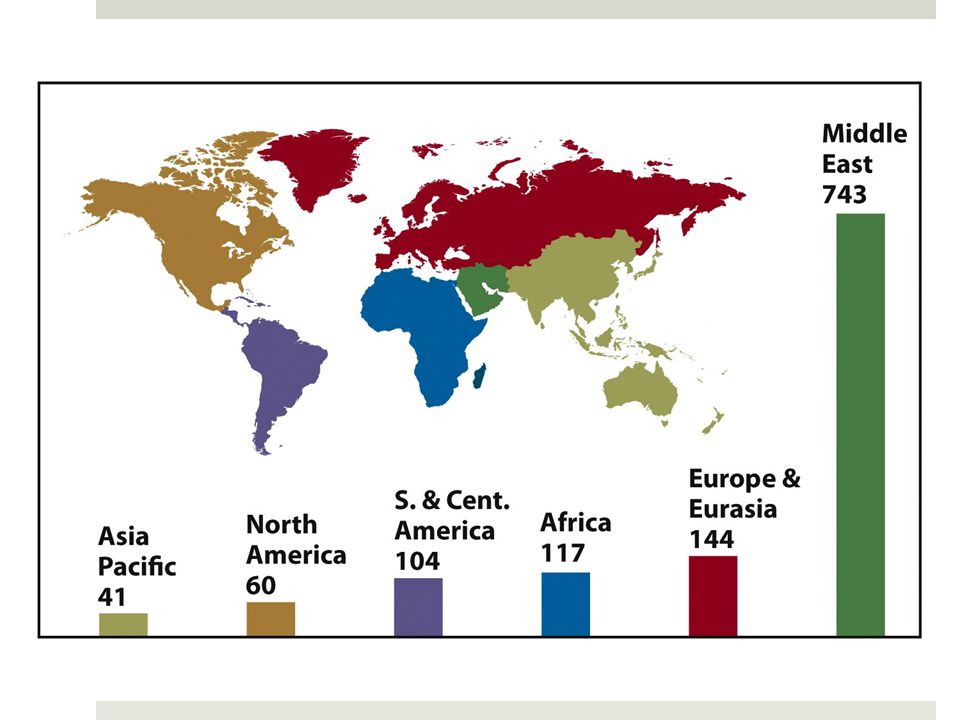

12 Petroleum Production Next to water, oil is the most abundant fluid in the upper crust Concentrated in a few fields Proven oil reserves are the part of the total resource that has been identified and can be extracted now at a profit Domination of energy use in North America but not reserves. Leads to trade imbalance

13

14

15

16 Oil in the Twenty-First Century Recent estimates of proven oil reserves suggest that oil and natural gas will last only a few decades. When will we reach peak production? Likely to be between Will have to adjust to potential changes in lifestyle and economies in a post- petroleum era

17 Oil in the Twenty-First Century Argument that we are head toward a potential crisis We are approaching the time when approximately 50% of the total crude oil available from transitional oil fields will have been consumed. Proven reserves are about 1.2 trillion barrels. World consumption is quickly using what is left.

18 Oil in the Twenty-First Century For every three barrels of oil we consume, we are finding only one barrel. Forecasts that predict a decline in production of oil are based on many assumptions but most expert agree it is coming in the next few decades. In the US production of oil as we know it now will end by World production by 2100.

19 Oil in the Twenty-First Century Before shortages we need to planning and appropriate action to avoid Military confrontation Food shortages Social disruption Need to develop alternative energy sources Solar energy Wind power Nuclear power

20 Natural Gas Only begun to utilize this resource Transported by pipelines Worldwide estimates of recoverable gas will last about 70 years. In US about 30 years Considered a clean fuel Produces fewer pollutants than burning oil or coal Could be a transition fuel to alternative energy

21 Coal-Bed Methane The process of coal formation also produces a lot of methane that is stored within coal Estimated amount is about five-year supply Promising energy source however there are several environmental concerns Disposal of large volumes of salty water Migration of methane, which may contaminate surrounding areas

22 Coal-Bed Methane Environmental benefits Produces a lot less carbon dioxide than does burning coal or petroleum. Reduces the amount of methane released into the atmosphere

23 Methane Hydrates Beneath the seafloor there exist deposits known as methane hydrates White, ice like compound made up of molecules of methane gas molecular cages of frozen water Forms as a result of microbial decomposition on the sea floor and then trapped in ice Also found on land in permafrost

24 Methane Hydrates Found in ocean where deep, cold seawater provides high pressure and low temperatures. Not stable at lower pressure and warmer temperatures Documented cases of releases seen off coast of Norway Potential energy source but currently no way to mine or transport the gas

25 Environmental Effects of Oil and Natural Gas Recovery, refining, and use of oil and natural gas cause well documented environmental problems. Air and water pollution, acid rain, and global warming

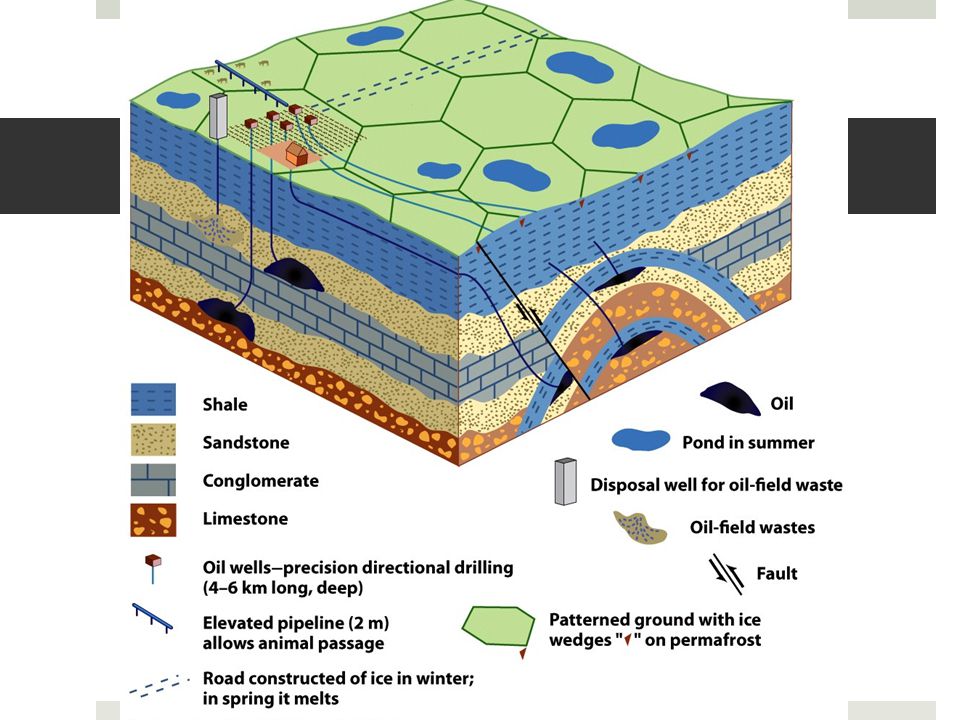

26 Recovery Possible environmental impacts on land include: Use of land to construct pads for wells, pipelines, and storage tanks and to build a network of roads and other production facilities. Pollution of surface waters and groundwater from: leaks from broken pipes or tanks containing oil or other chemicals and salty water (brine) that is brought to the surface in large volumes with the oil.

27 Recovery Accidental release of air pollutants, such as hydrocarbons and hydrogen sulfide (a toxic gas). Land subsidence (sinking) as oil and gas are withdrawn. Loss or disruption of and damage to fragile ecosystems, such as wetlands or other unique landscapes.

28 Recovery Environmental impacts associated w/ oil production in marine environment: Oil seepage into the sea from normal operations or large spills from accidents. Release of drilling muds containing heavy metals, such as barium, that may be toxic to marine life. Aesthetic degradation from the presence of offshore oil drilling platforms, which some people think are unsightly.

29

30 Refining At refineries, crude oil is heated so that its components can be separated and collected Fractional distillation Accidental spills and slow leaks Over years large amount of hydrocarbons released, polluting soil and ground water Variety of chemicals used in the industrial process which have the potential to pollute.

31 Delivery and Use Crude oil mostly transported on land by pipelines and across the ocean in tankers Both have danger of oil spill Air pollution most serious impact associated with use (burning) Contributes to urban smog

32

33

34

35

36

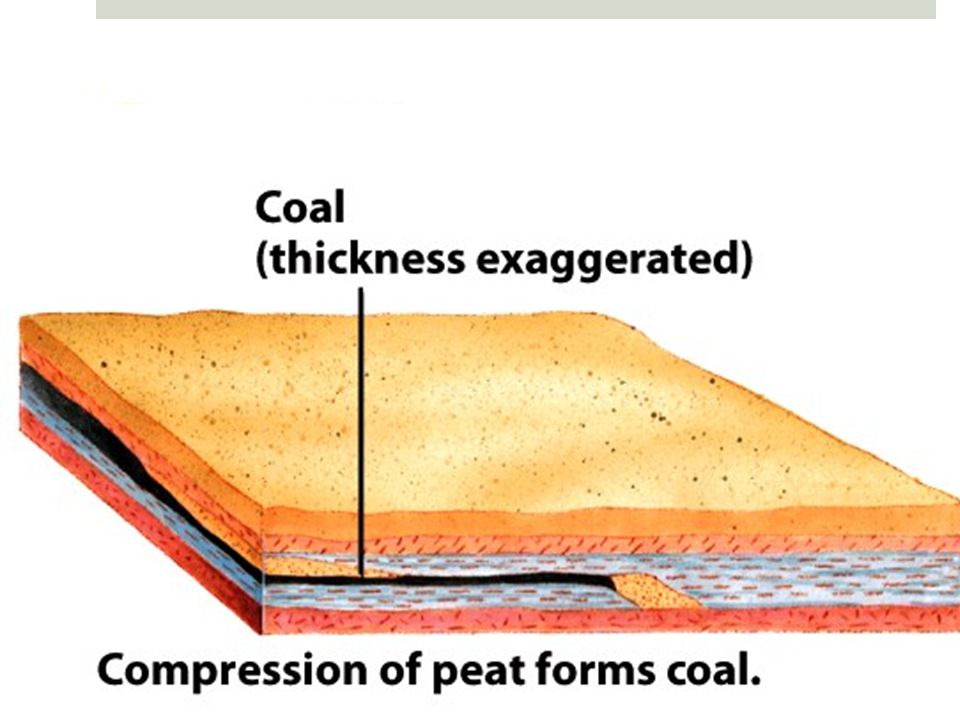

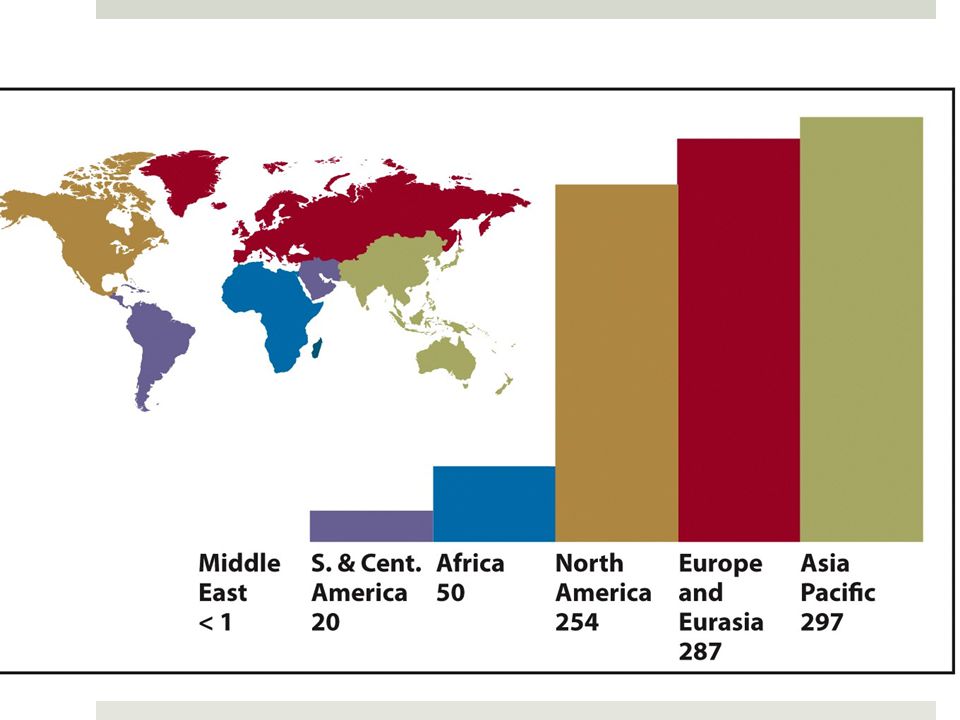

37 Coal Partially decomposed vegetation, when buried in a sedimentary environment, may be slowly transformed into the solid, brittle, carbonaceous rock. Most abundant fossil fuel At current consumption rate could last 250 years

38

39

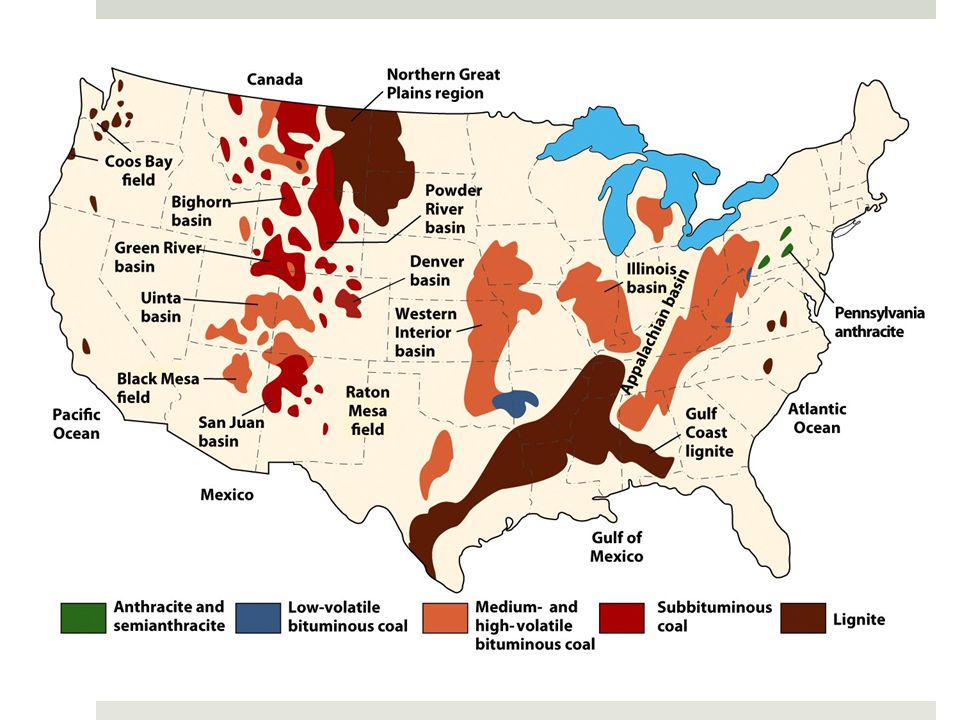

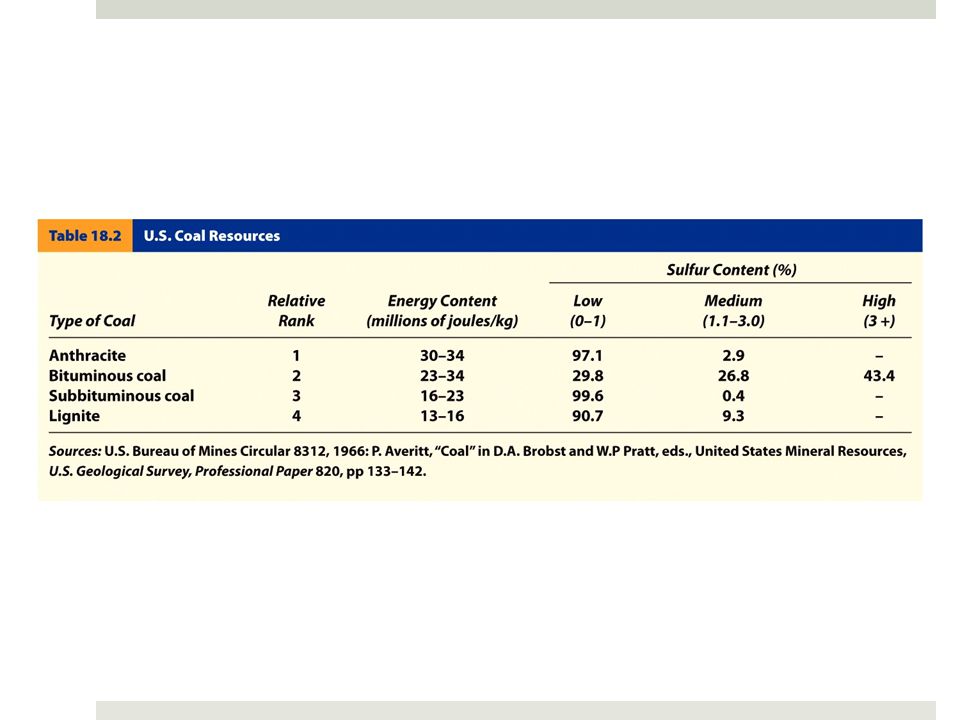

40 Coal Classified according to its energy and sulfur content Anthracite Bituminous Subbituminous Lignite Energy content greatest in anthracite and lowest in lignite Lower sulfur coal emits less sulfur dioxide

41

42

43 Coal Mining and the Environment In US thousands of sq miles disturbed by coal mining Only about half reclaimed The process of restoring and improving disturbed land, often by reforming the surface and replanting vegetation.

44 Strip Mining A surface process in which overlying layers of soil and rock is stripped off to reach the coal. Over half of the coal in US mined this way One serious problem is acid mine drainage The drainage of acidic water from mine sites Happens in eastern US where there is abundant rain fall

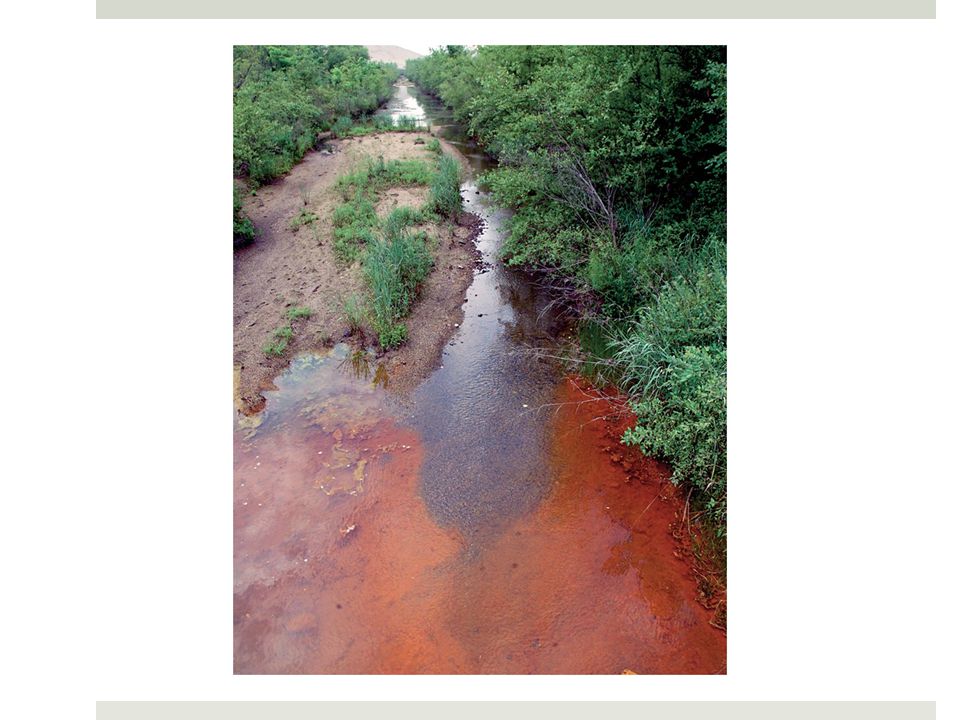

45 Strip Mining Acid mine drainage occurs where surface water infiltrates spoil banks Water reacts with sulfide minerals to produce sulfuric acid. The acid then pollutes streams and groundwater

46

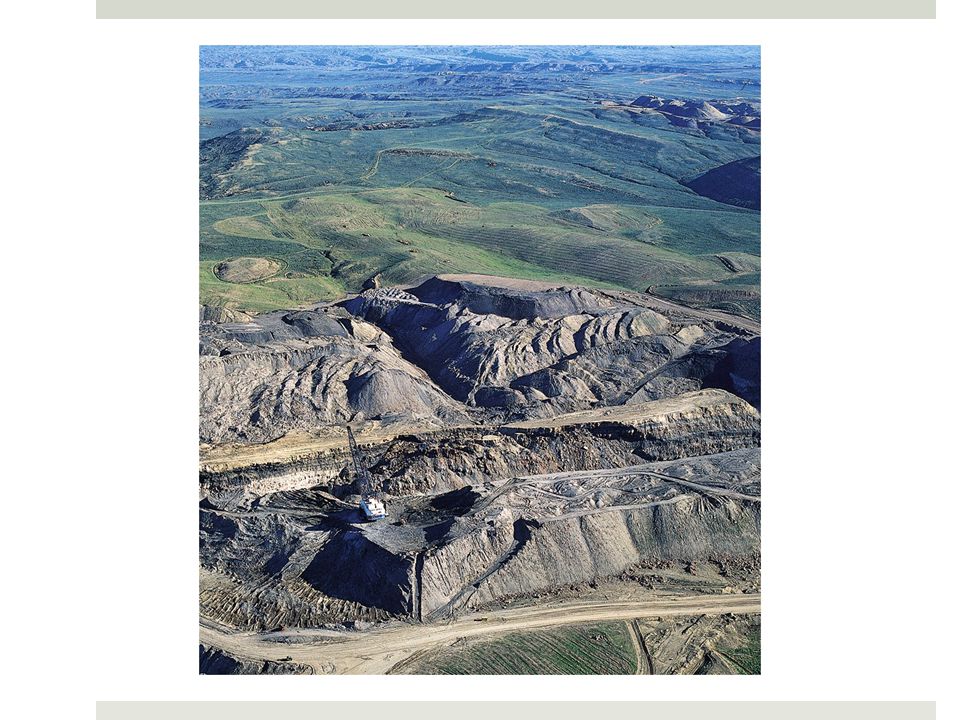

47 Strip Mining In arid and semiarid regions the land may be more sensitive to activities related to mining Exploration and road building Soils thin and water scarce Makes reclamation more difficult Reclamation can minimize damage Laws vary by site

48

49 Strip Mining Appalachian Mountains of West Virginia Technique known as mountaintop removal Strip-mining levels tops of mountains and fills valleys w/ mining waste Flood hazard increases as valleys filled w/ mine waste and toxic waste water is stored behind coal waste sludge dams Also produces voluminous amounts of coal dust

50 Strip Mining Surface Mining Control Act of 1977 US government has required that mined land restored to support pre-mining use Prohibit mining on prime ag land Reclamation includes Disposing of wastes Contouring the land Replanting vegetation

51 Underground Mining Accounts for 40% of coal mined in the US Some of the environmental problems: Acid mine drainage from the mines and waste piles has polluted thousands of kilometers of streams. Land subsidence can occur over mines. Coal fires in underground mines may be either naturally caused or deliberately set.

52

53 Transport of Coal Transporting coal from mining areas to large population centers where energy is needed. Significant environmental issue Freight trains and slurring pipelines have been used

54 The Future of Coal Burning of coal produces 60% of electricity used and 25% of total energy consumed in US Coal 90% of our energy reserves However coal power plants emit 70% of sulfur dioxide 30% of nitrogen oxides 35% of carbon dioxide

55 The Future of Coal Clean Air Amendments of 1990 mandate reducing these emissions. Option for cleaner coal include: Chemical and/or physical cleaning of coal prior to combustion. New boiler designs that permit lower temp of combustion. Injection of material rich in calcium carbonate into the gases following burning. Scrubbers-removes sulfur dioxides

56 The Future of Coal Conversion of coal at power plants into gas before burning. Convert coal to oil. Consumer education about energy conservation and efficiency to reduce the demand for energy. Development of zero emissions coal- burning electric power plants

57 The Future of Coal As oil and gas reserves dry up more pressure put on coal. Increased use of coal will have significant environmental impact. More land strip mined. Burning coal produces large amounts of air pollutants Handling of large quantities of coal through all stages has potentially adverse environmental effects. include aesthetic degradation, noise, dust, and release of harmful or toxic trace elements into the water, soil, and air.

58 Allowance Trading EPA grants utility companies tradable allowances for polluting 1 allowance good for 1 ton of sulfur dioxide Could then be traded and sold by brokers Idea is to reduced overall pollution through economic market forces

59 Oil shale Fine grained sedimentary rock containing organic matter (kerogen). When heated to 500 o C oil shale yields oil Destructive distillation The oil from shale called synfuel

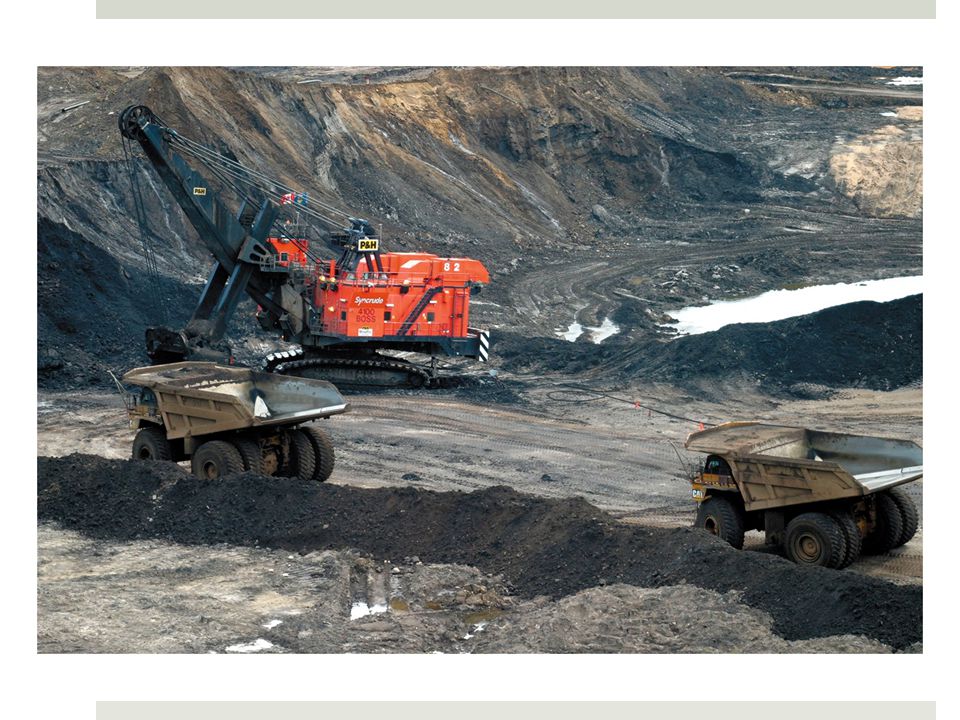

60 Tar Sands Sedimentary rocks or sands impregnated with tar oil, asphalt, or bitumen. Recovered by mining the sands and then washing the oil out with hot water. Most in Alberta, Canada Strip mined Similar problem as with shale, greater volume

61

62 Oil shale Recovery done both surface and subsurface Disposal of waste a problem because shale must be retorted Volume of waste 20-30% greater than original volume. Despite this oil shale may developed as oil prices rise.

63
