1 Periapical radiography

2 Main indications Detection of periapical infection Detection of periapical infection Assessment of the periodontal status Assessment of the periodontal status After trauma to the teeth and associated alveolar bone After trauma to the teeth and associated alveolar bone Assessment of the presence and position of unerupted teeth Assessment of the presence and position of unerupted teeth

3 During endodontics During endodontics Preoperative assessment and postoperative appraisal of apical surgery Preoperative assessment and postoperative appraisal of apical surgery Detailed evaluation of bone lesions Detailed evaluation of bone lesions Implant evaluation Implant evaluation

4 Ideal positioning requirements The tooth under investigation and the film packet should be in contact or,if not feasible, as close as possible The tooth under investigation and the film packet should be in contact or,if not feasible, as close as possible The tooth and the film packet should be parallel to one another The tooth and the film packet should be parallel to one another

5 The film packet should be positioned with its long axis vertically for incisors and canines, and horizontally for premolars and molars with sufficient film beyond the apices to record the apical tissues The film packet should be positioned with its long axis vertically for incisors and canines, and horizontally for premolars and molars with sufficient film beyond the apices to record the apical tissues The positioning should be reproducible

6 The X-ray tubehead should be positioned so that the beam meets the tooth and the film at right angles in both the vertical and the horizontal planes The X-ray tubehead should be positioned so that the beam meets the tooth and the film at right angles in both the vertical and the horizontal planes

7

8 Positioning of the instrument

9

10 Theoretical basis of the bisected angle technique

11

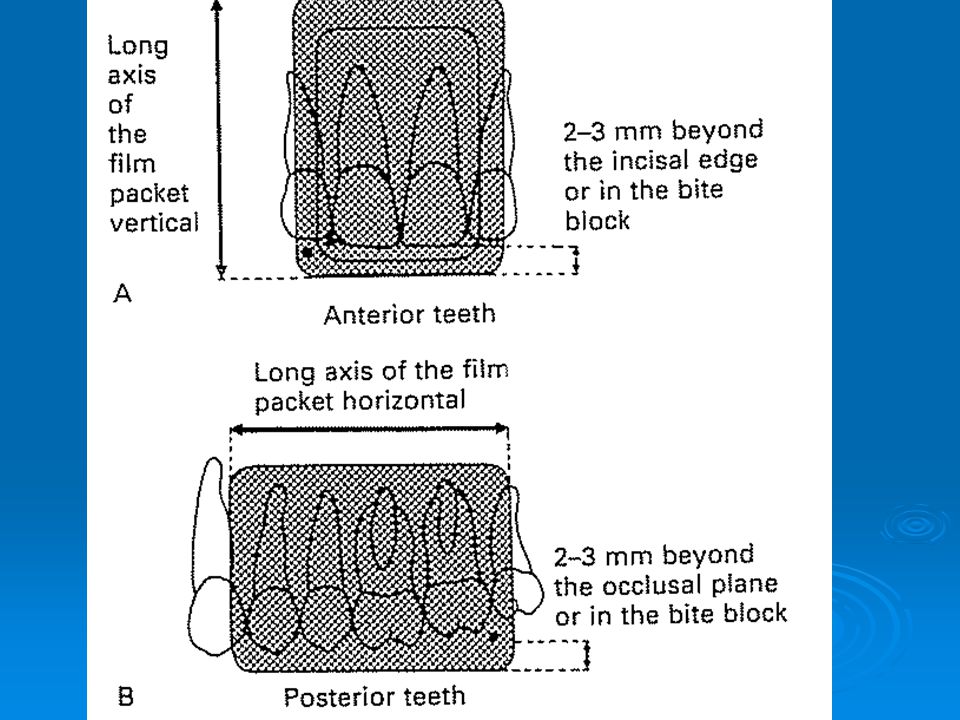

12

13

14

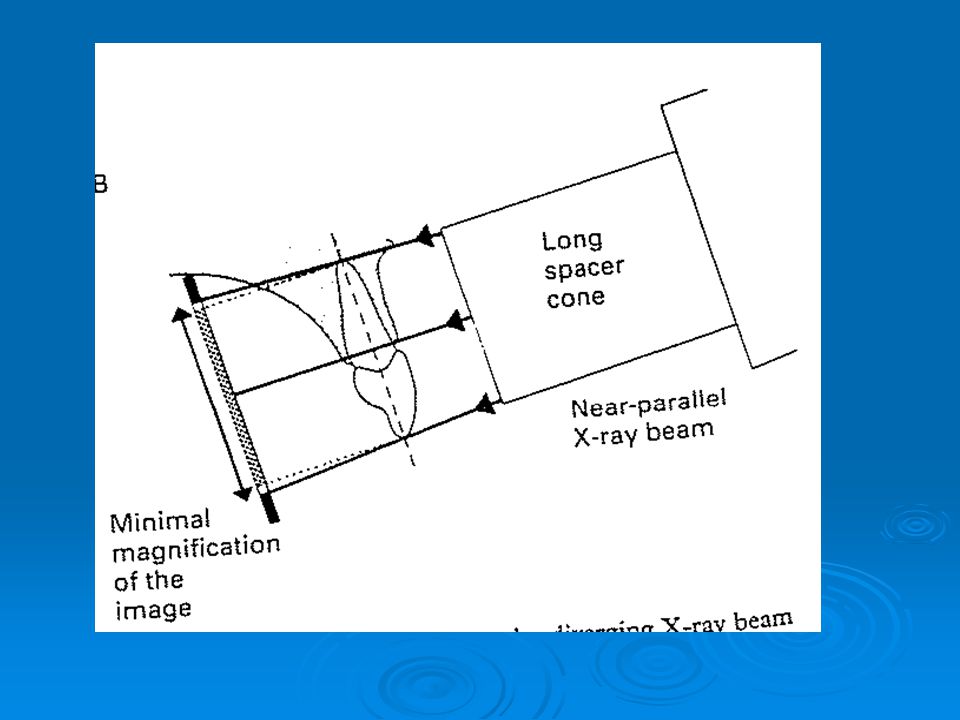

15

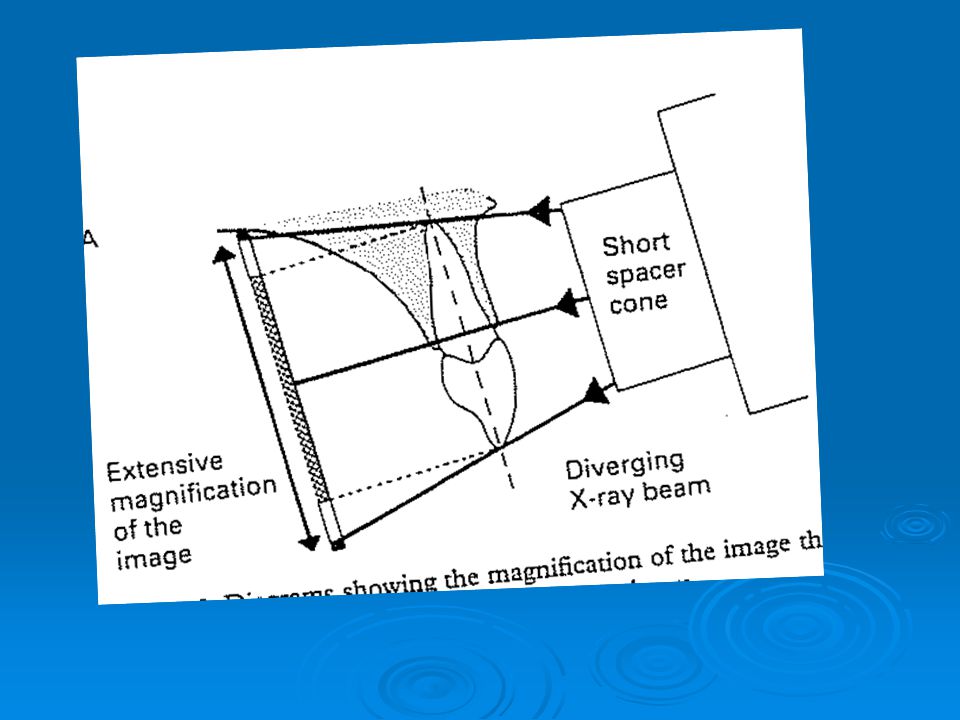

16

17 Advantages of the paralleling technique Geometrically accurate images are produced with little magnification, foreshortening or elongation Geometrically accurate images are produced with little magnification, foreshortening or elongation The shadow of the zygomatic buttress appears above the apices of the molar teeth The shadow of the zygomatic buttress appears above the apices of the molar teeth

18 The horizontal and vertical angulations of the X-ray tubehead are automatically determined by the positioning device The horizontal and vertical angulations of the X-ray tubehead are automatically determined by the positioning device There is no cone cutting There is no cone cutting The radiographs are reproducible The radiographs are reproducible The technique is useful for some patients with disabilities The technique is useful for some patients with disabilities

19 Disadvantages of the paralleling technique Positioning of the film packet for the posterior teeth can cause gagging Positioning of the film packet for the posterior teeth can cause gagging The anatomy of the mouth sometimes makes the technique imposible, e.g a shallow, flat palate The anatomy of the mouth sometimes makes the technique imposible, e.g a shallow, flat palate The apices of the teeth can sometimes appear very near the edge of the film The apices of the teeth can sometimes appear very near the edge of the film

20 The technique cannot be performed satisfactory using a short focal spot to skin distance because of the resultant magnification The technique cannot be performed satisfactory using a short focal spot to skin distance because of the resultant magnification The holders need to be autoclavable The holders need to be autoclavable Positioning the holders in the lower third molar region can be very difficult Positioning the holders in the lower third molar region can be very difficult

21 Advantages of the bisected angle technique Positioning of the film packet is relatively simple and comfortable for the patient Positioning of the film packet is relatively simple and comfortable for the patient If the angulations are assessed correctly the image should be diagnosticable If the angulations are assessed correctly the image should be diagnosticable

22 Disadvantages Incorrect vertical angulation results in foreshortening or elongation of the image Incorrect vertical angulation results in foreshortening or elongation of the image The shadow of the zygomatic buttress overlies the roots of the upper molars The shadow of the zygomatic buttress overlies the roots of the upper molars Incorrect horizontal angulation results in overlapping of the crowns or cone cutting Incorrect horizontal angulation results in overlapping of the crowns or cone cutting

23 The periodontal bone levels are poorly shown The periodontal bone levels are poorly shown It is not possible to obtain reproducible views It is not possible to obtain reproducible views The buccal roots of the maxillary premolars and molars are foreshortened The buccal roots of the maxillary premolars and molars are foreshortened
