1 Anaerobic Culture Techniques 3rd Science Practical Seminar 1 Vincent OFlaherty

2 Anaerobic microorganisms are widespread and very important Do not require oxygen for growth - often extremely toxic

3 Facultative anaerobes - can grow in the presence or absence of oxygen Obtain energy by both respiration and fermentation Oxygen not toxic, some use nitrate (NO 3 - ) or sulphate (SO 4 2- ) as a terminal electron acceptor under anaerobic conditions

4 Obligate (strict) anaerobes - oxygen is toxic to these organisms, do not use oxygen as terminal electron acceptor Archaea such as methanogens and Bacteria, e.g Clostridia, Bacteriodes etc. etc.

5 Microaerophilic organisms - require low levels of oxygen for growth, but cannot tolerate the levels present in the atmosphere Aerotolerant Anaerobes: Metabolism is anaerobic but they are unaffected by the presence of oxygen.

6 Oxygen Toxicity Oxygen is used by aerobic and facultatively anaerobic organisms as its strong oxidising ability makes it an excellent electron acceptor During the stepwise reduction of oxygen, which takes place in respiration toxic and highly reactive intermediates are produced reactive oxygen species (ROS).

7 Anaerobic and Aerobic Respiration Reaction nameReduct.Oxid.Reaction Stoichiometry kcal/ mol Aerobic Respiration CHOO 2 C 6 H 12 O 6 + 6O 2 ==> 6CO 2 + 6H 2 O 686 Nitrate ReductionCHONO 3 - CHO + NO H + ==> CO 2 + N 2 + H 2 O 649 Sulfate ReductionCHOSO CHO + SO H + => 2CO 2 + H+ 2H 2 O 190 MethanogenesisCHO or H 2 CO 2 4H 2 + CO 2 ==> CH 4 + 2H 2 O 8.3

8 ROS production during respiration O 2 + e - => O 2 - superoxide anion O e - + 2H + => H 2 O 2 hydrogen peroxide H 2 O 2 + e - + H + => H 2 O + OH. Hydroxyl radical OH. + e - + H + => H 2 O water

9 Organisms that use O 2 have developed defence mechanisms to protect themselves from these toxic forms of oxygen - enymes Catalase: H 2 O 2 + H 2 O 2 => 2H 2 O + O 2 Peroxidase: H 2 O 2 + NADH + H + => 2H 2 O + NAD + Superoxide dismutase: O O H + => H 2 O 2 + O 2

10 Oxygen tolerance of bacteria is dependent on which of these enzymes they possess.

11 Anaerobic environments Anaerobic environments (low reduction potential) include: Sediments of lakes, rivers and oceans; bogs, marshes, flooded soils, intestinal tract of animals; oral cavity of animals, deep undrground areas, e.g. oil packets and some aquifers Anaerobes also important in some infections, e.g. C. tetanii and C. perfringens important in deep puncture wound infections

12

13

14 Also microaerophiles like Campylobacter jejuni very important in medial terms For proper diagnosis and for studies of anaerobic environments culture techniques are desirable

15 Culture of anaerobes is extremely difficult due to the need to exclude oxygen, slow growth and complex growth requirements Molecular methods based on DNA analysis and direct microscopy have shown that we are largely ignorant of the microbial world and previously unknown diversity has been discovered

16 Microbial Numbers in Natural Environments HabitatTypical countsCultivable (%) Soil cells/g Lakes/rivers cells/ml Ground water cells/ml<1 Marine (surface) cells/ml Marine (depth) cells/mlND Sediments cells/g<1

17 Culture methods Anaerobes differ in their sensitivity to oxygen and the culture methods employed reflect this - some are simple and suitable for less sensitive organisms, others more complex but necessary for fastidious anaerobes Vessels filled to the top with culture medium can be used for organisms not too sensitive

18 Most common adaptation of media is the addition of a reducing agent, e.g. thioglycollate, cysteine Acts to reduce the oxygen to water, brings down the redox potential -300mV or less. Can add a redox indicator such as rezazurin, pink in the presence of oyxgen - colourless in its absence

19 Deep culture tubes can be used to test whether an unknown organism is anaerobic/facultative or aerobic Thioglycollate added to culture medium, oxygen only found near top where it can diffuse from air -pattern of colony formation characteristic of organisms

20 +500 mV mV Redox potential

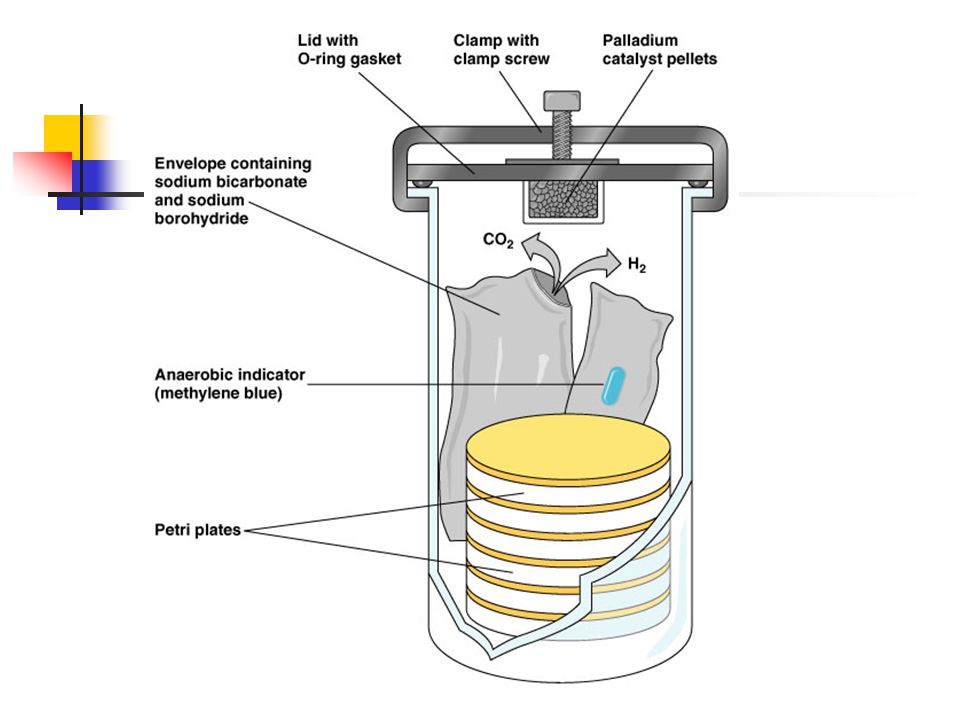

21 Pyrogallic acid-sodium hydroxide method can be used, again relies on a chemical reaction to generate an anaerobic environment, but a catalyst rather than a reducing agent Anaerobic jars (GasPak System) are sued to incubate plates in an anaerobic atmosphere, useful if brief exposure to oxygen is not lethal

22

23

24 P. aeruginosaStrict aerobe EnterococcusFacultative Grows aerobic or anaerobic. Bacteriodes fragilis

25 Culture of strict anaerobes For culture of strict anaerobes all traces of oxygen must be removed from medium and for many organisms sample must be kept entirely anaerobic during manipulations Methanogenic archaea from rumen and sewage treatment plants killed by even a brief exposure to O 2 Medium usually boiled during preparation and reducing agent added, stored under O 2 - free atmosphere

26 Manipulations usually carried out under a jet of O 2 -free N 2 or N 2 /CO 2 to exclude O 2 Roll-tube (Hungate) method often used instead of conventional plates for isolation and culture of strict anaerobes

27 1.Exclude oxygen by flushing the tube with the desired gas 2. Place 4.5ml of pre- reduced anaerobic agar medium into tube 3. Seal the tube with the butyl rubber stopper and screw cap 4.Autoclave the tube 5.Inoculate with a syringe 6.Prepare on roll tube spinner 7.Incubate in water bath

28 Use of anaerobic cabinet/glove box allows conventional bacteriological techniques e.g. replica plating, antibiotic sensitivity testing etc. to be carried out anaerobically

29

30
