1 Thick and thin line technique Imagine there is a spider on one of the surfaces of the 3D object. If he crawls onto another surface and you can still see him then that line should be thin. If he crawls onto the next surface and you cant see him then that line should be thick. All external lines = THICK Used for an edge where only one surface can be seen Most internal lines (but not always) = THIN Used for an edge where both surfaces can be seen

2

3 By applying different TONES to a drawing you can make the object look more three dimensional Using SHADING, LINES AND DOTS the closer you draw the lines or dots together or the harder you press the darker the TONE is

4 Curved surfaces, the amount of light reflected gets less as the surface turns away from the light source and therefore the tone you use needs to be darker. A HIGHLIGHT should be used, a white area, that is closest to the light source You can use SHADOWS on drawings to increase the feeling of depth and to suggest the object is resting on a surface. A shadow will be an elongated shape of the object, it will be on the side furthest away from the light source and will be darker than the darkest tone on the object.

5 TONE = the various shades that can be produced from one different colour SHADING = a technique used to show how light falls on an object HIGHLIGHT = a bright area where light is reflected from the edge or surface of an object SHADOW = a dark area formed when an object is in the way of rays of light

6 WOOD – drawing curved lines on the end to represent growth rings and straight lines on the sides to represent the grain. Use a combination of brown, yellow and orange MATT METAL - a series of straight lines can create a hard effect, altering the distance between the lines gives lighter and darker tones.

7 CHROME METAL – reflections appear as high contrast areas of dark and light TEXTURED PLASTIC – represented by drawing small, irregular shapes over the required area. CONCRETE – represented by a series of dots and small irregular shapes

8 SHINY PLASTIC – draw a number of short parallel lines across the surface or shade the surface evenly and rub out wavy lines GLASS AND CLEAR PLASTIC – shade the suface using a light blue pencil and then rub out areas to suggest reflections. Feint broken lines can be used to show details that can be seen through the glass or plastic.

9 RENDERING

10 COLOUR WHEEL

11 PRIMARY COLOURS

12 SECONDARY COLOURS

13 TERTIARY COLOURS There are 6 tertiary colours which are made by mixing a primary and a secondary colour together. Yellow-orange Red-orange Red-violet Blue-violet Blue-green Yellow-green

14 CONTRASTING COLOURS These are colours that are opposite each other on the colour wheel. Opposite colours create the maximum contrast with each other.

15 HARMONIOUS COLOURS These are colours which sit next to each other on the colour wheel. These colours are in harmony with each other.

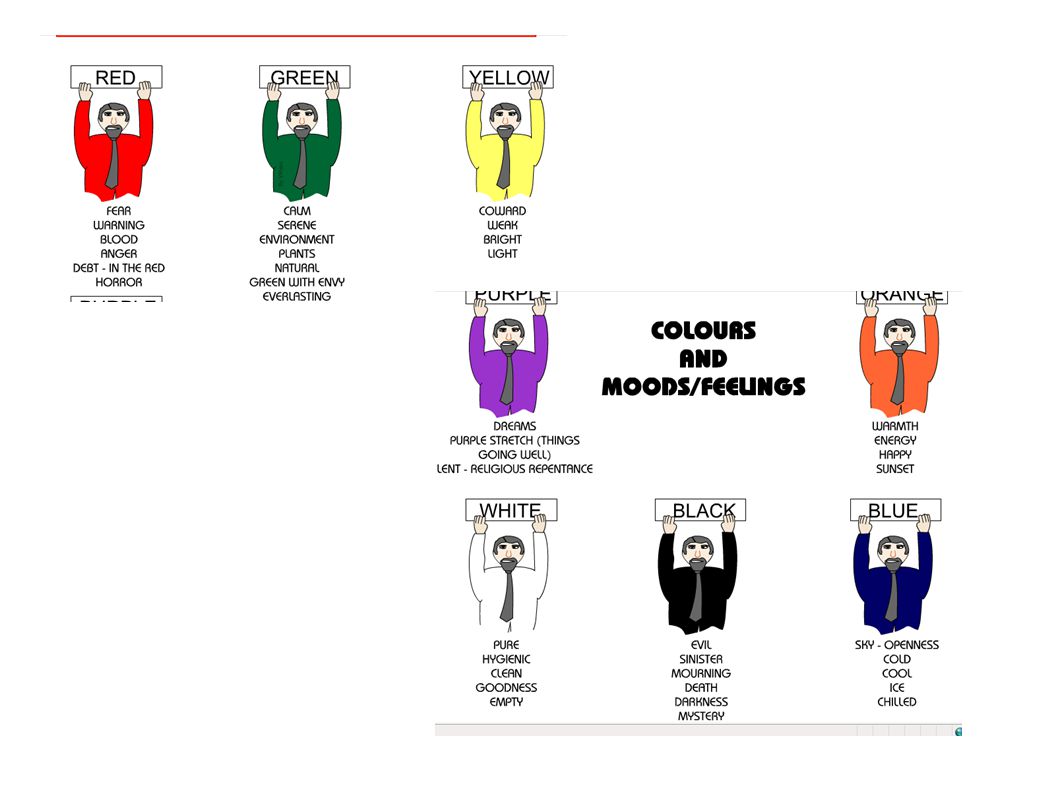

16

17 Tasks 1. Check yourself exam question page Check yourself exam question page Further practice at rendering and enhancement techniques
