Residential Irrigation Spray Nozzles
An innovative patent pending technology in the field of Residential Lawn Irrigation Market Sovi Square patent pending products are based on a simple yet innovative Pop-Up Spray Heads & Nozzles that has an Adjustable Rectangle/Square 0° to 360° to complement and is compatible to current standard adjustable circular Pop-Ups.
In many, if not most cases, the lawn garden of residential houses are Rectangle shape or combinations of Rectangle areas In most cases the method of irrigation systems are Circular spray head pattern popup sprinkles As a result we see a discrepancy between the irrigated area geometry and the irrigation system pattern, i.e. Rectangle Vs. Circle The current solutions

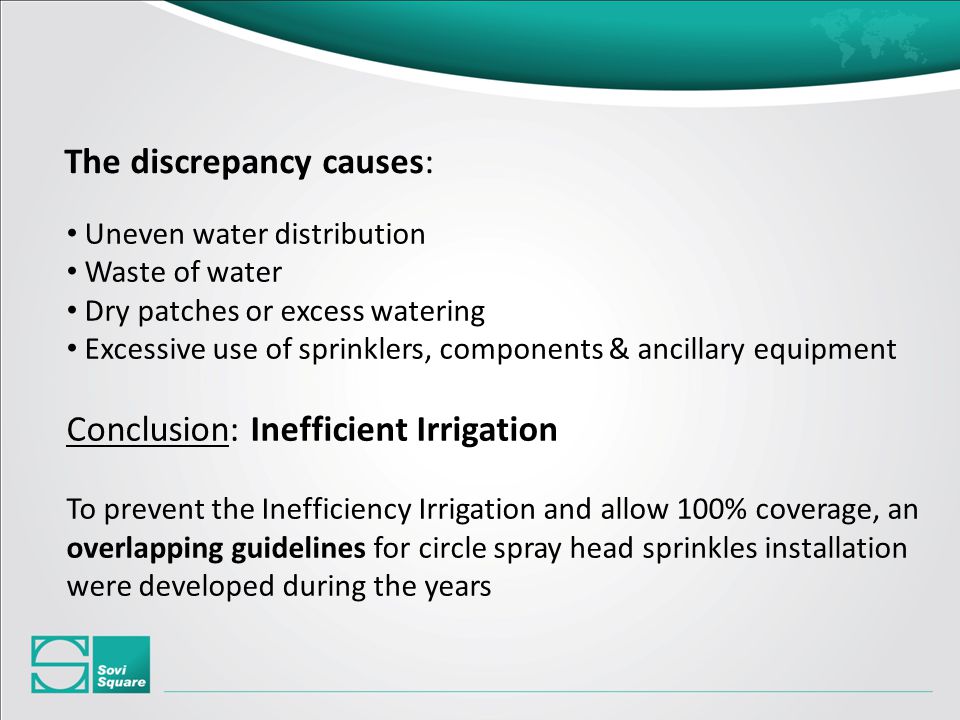

The discrepancy causes: Uneven water distribution Waste of water Dry patches or excess watering Excessive use of sprinklers, components & ancillary equipment Conclusion: Inefficient Irrigation To prevent the Inefficiency Irrigation and allow 100% coverage, an overlapping guidelines for circle spray head sprinkles installation were developed during the years
Overlapping implications Water distribution with 6 circular sprinkles ~27% of the area has 4 watering sprinkles ~44% of the area has 3 watering sprinkles ~29% of the area has 2 watering sprinkles Main Conclusions: The area receives uneven water distribution Assuming that two (2) sprinkles overlapping per area is the minimum required, then around ~70% of the irrigated area receives overlapping irrigation
Sovi Square Technology Capability The technology supports an adjustable 0° to 360° Square of 4x4, 6x6, 8x8 meters with 30 PSI, but not limited The technology supports an adjustable 0° to 360° Rectangle of 4x6, 6x10 meters with 30 PSI, but not limited The technology supports EST, CST, RCS, LCS, SST with one single model and also capable to tune the water distance
Circular Spray Heads Typical installation To achieve 100% coverage without dry patches, will require 30 Circular Spray Heads and complex infrastructure to support them using the overlapping guidelines
Sovi Square Rectangular/Square Spray Heads installation To achieve 100% coverage without dry patches, will require about ~16 Sovi Square Spray Heads and simplified infrastructure to support them.
Sovi Square solution: Sovi Square solution provides 100% coverage and better uniformity with less sprinklers leading to a lower cost over all package, i.e. infrastructure and water saving to our customers with significant ecology contribution, i.e. Green product. Breakthrough simple design - up to 3 parts Interchangeable to current Pop-Up systems Simpler infrastructure installation Material and labor ~30% saving Water consumption ~25% saving Has superior water distribution uniformity
To install Sovi Square innovative Spray Head Nozzle in all major irrigation popup sprinkler systems and contribute to Saving overall Cost of Ownership to our customers, i.e. manufactures, distributors and end users worldwide. Sovi Square Vision
Contact details: Yair Doari – VP Business Development Manager Mobile: +972-50-5219351 email@example.com www.sovisquare.com Thank you
